ABB SACE Emax 2 User manual

DOC. N° 1SDH001316R0002 - ECN000086018 - Rev. C
SACE Emax 2
Low voltage air circuit-breakers Emax E1.2-E2.2-E4.2-E6.2
Instructions for using Ekip Touch protection trip units
and Accessories.

ABB | SACE Emax 2
2 | © 2018 ABB | 1SDH001316R0002 - ECN000086018 - Rev. C |

Circuit breakers Emax E1.2-E2.2-E4.2-E6.2 ................................ 3
1 - Contents .........................................................................3
Organization of this handbook .............................................. 3
Intended readership.............................................................. 3
Instructions........................................................................... 3
Integrated informations......................................................... 3
Introduction to Ekip trip units...................................................... 4
1 - Presentation....................................................................4
Families and functionality ..................................................... 4
Accessorizing modules ......................................................... 5
Ekip Touch protection trip unit .................................................... 6
1 - Layout of the interface ....................................................6
Components of the interface................................................. 6
Signallings ............................................................................ 7
Structure of the pages .......................................................... 7
Diagnosis bar........................................................................ 7
Main page............................................................................. 8
Start page............................................................................. 8
2 - Pages details ..................................................................9
3 - Insertion of the password................................................9
Description ........................................................................... 9
Components of the page ...................................................... 9
4 - Setting the parameters..................................................10
Modifying a parameter........................................................ 10
Programming the trip unit ................................................... 10
5 - Protections ...................................................................11
Operating principle ............................................................. 11
6 - Touch protections .........................................................12
Availability (Performance).................................................... 12
Neutral................................................................................ 12
Summary table of basic protections.................................... 13
7 - Measuring Pro protections............................................15
Availability (Performance).................................................... 15
Summary table of Measuring Pro protections ..................... 15
Availability (Performance).................................................... 16
Summary table of Hi-Touch protections.............................. 16
8 - Hi-Touch protections.....................................................16
Availability (Performance).................................................... 18
Summary table for G Touch protections.............................. 18
9 - G Touch protections......................................................18
Availability (Performance).................................................... 20
Summary table of G Hi-Touch protections .......................... 20
10 - G Hi-Touch protections ...............................................20
11 - External toroid protections..........................................21
12 - Touch measurements ..................................................21
13 - Ekip Measuring Measurements ...................................21
14 - Hi-Touch measurements .............................................21
15 - Test.............................................................................21
16 - Self-diagnosis .............................................................22
Alarms and signals.............................................................. 22
Self-diagnosis..................................................................... 22
Protections and Measurements .......................................... 23
Programming errors ............................................................ 24
17 - Operating features ...................................................... 25
Electrical characteristics..................................................... 25
Functional characteristics ................................................... 26
Additional options via remote / front control ....................... 26
18 - Default parameters......................................................26
19 - Ekip Power Controller .................................................26
Accessories ................................................................................ 27
1 - Preliminary considerations............................................27
Introduction ........................................................................ 27
Accessory combination tables ............................................ 27
Disassembly operations for circuit breakers E1.2................ 29
Disassembly operations for circuit breakers E2.2-E4.2-E6.230
2 - Wiring diagrams............................................................31
Electronic accessories............................................................... 31
1 - Introduction ..................................................................31
2 - Ekip Measuring modules...............................................31
3 - Ekip Synchrocheck module...........................................31
4 - Ekip Signalling 4K module ............................................31
5 - Ekip Signalling 2K modules...........................................31
6 - Ekip Signalling 3T modules ...........................................31
7 - Ekip Com Modbus RTU modules ..................................31
8 - Ekip Com Profibus DP modules ....................................31
9 - Ekip Com DeviceNet modules™ ...................................31
10 - Ekip Com Modbus TCP modules ................................31
11 - Ekip Com Profinet modules.........................................32
12 - Ekip Com EtherNet/IP™ modules ...............................32
13 - Ekip Com IEC 61850 modules.....................................32
14 - Ekip Link module ........................................................32
15 - Ekip Com Hub modules ..............................................32
16 - Ekip Com Actuator module .........................................32
17 - Other accessories .......................................................32
© 2018 ABB SACE Emax 2 | I 1SDH001316R0002 - ECN000086018 - Rev. C

II | © 2018 ABB SACE Emax 2 1SDH001316R0002 - ECN000086018 - Rev. C

ABB | SACE Emax 2
Circuit breakers Emax E1.2-E2.2-E4.2-E6.2 | 1 - Contents3 | © 2018 ABB | 1SDH001316R0002 - ECN000086018 - Rev. C
Circuit breakers Emax E1.2-E2.2-E4.2-E6.2
1 - Contents
Organization of this handbook
This manual contains the characteristics and instructions for using Ekip Touch trip units, compatible with
SACE Emax 2 circuit-breakers, and completes the information in manuals 1SDH000999R0002 (for E1.2) or
1SDH001000R0002 (for E2.2-E4.2-E6.2).
Intended readership
This manual refers to two user profiles, as defined by standard IEC 60050:
• Electrically Skilled Person (IEV 195-04-01): person with relevant education and experience to enable him
or her to perceive risks and to avoid hazards which electricity can create.
• Trained Persons in the electrical field (IEV 195-04-02): person adequately advised or supervised by electrically
skilled persons to enable him or her to perceive risks and to avoid danger which electricity can create.
NOTE: This manual specifically indicates what operations can be performed by people trained
in the field of electricity. All the remaining operations described in the handbook must be
performed by skilled persons, in the electrical field. ABB declines all liability for damage to
persons or property caused by failure to comply with the instructions in this document.
Instructions
WARNING! carefully read the instructions for putting into service and maintenance
given in the installation manuals 1SDH000999R0002 (for E1.2) or 1SDH001000R0002
(for E2.2-E4.2-E6.2).
Integrated informations
Further details about functionality, parameters and supporting documentation are available in the manual
1SDH001330R0002 (Emax 2 engineering manual) available on the website ABB library.

ABB | SACE Emax 2
4 | © 2018 ABB | 1SDH001316R0002 - ECN000086018 - Rev. C Introduction to Ekip trip units | 1 - Presentation
Introduction to Ekip trip units
1 - Presentation

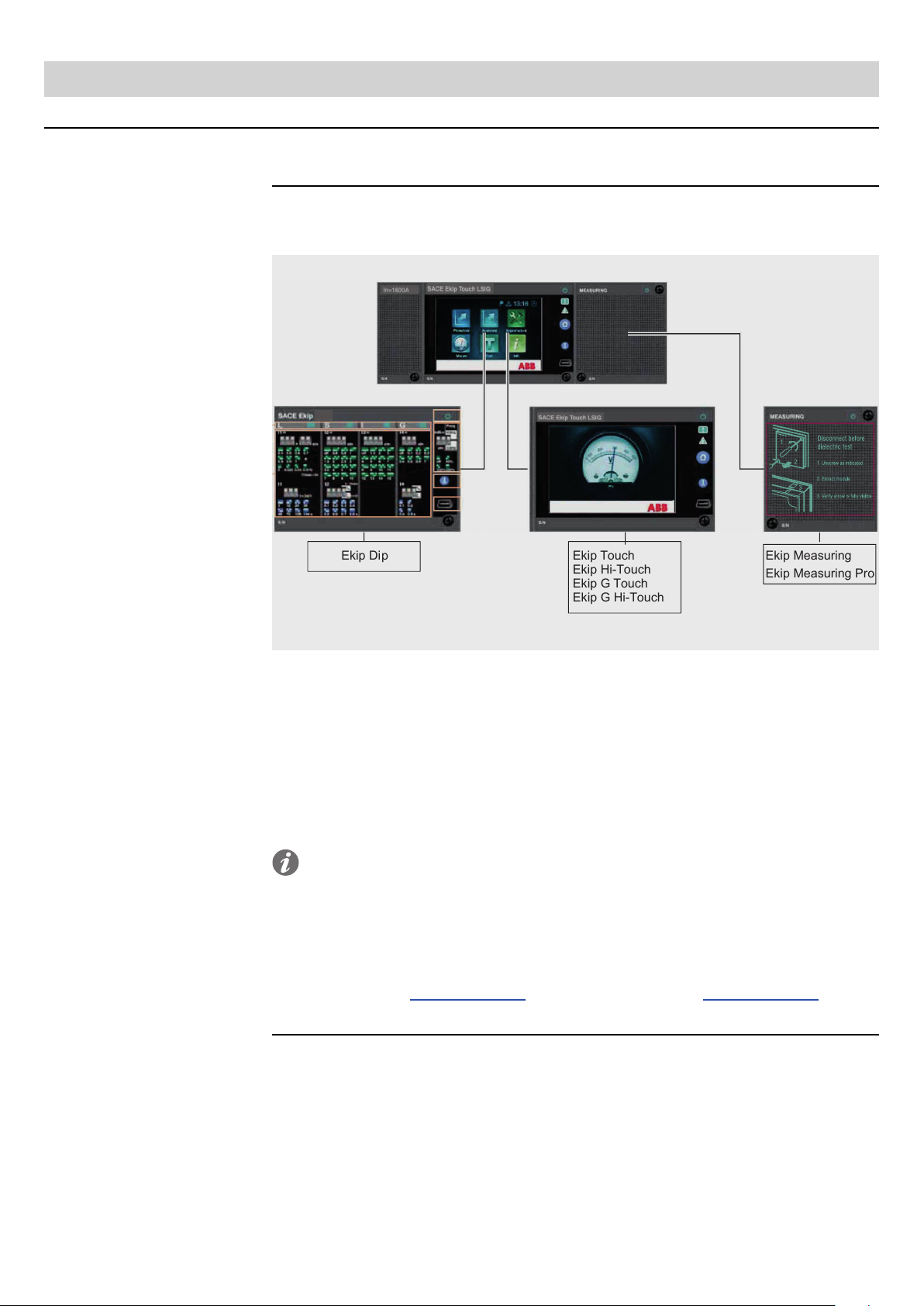

Families and functionality
SACE Emax 2 can be configured with five different types of protection trip unit, distinguished by type of
interface and functionality. One trip unit has a dip-switch interface (Ekip Dip) while the others are equipped
with a touchscreen display (Ekip Touch).
Ekip Dip Ekip Touch
Ekip Hi-Touch
Ekip GTouch
Ekip G Hi-Touch
Ekip Measuring Pro
Ekip Measuring
Figure 1
All trip units have protection and measuring functions that refer to the primary currents of the installation and
are available in the following versions:
• Ekip DIP: LI, LSI, LSIG
• Ekip Touch: LI, LSI, LSIG
• Ekip Hi-Touch: LSI, LSIG
• Ekip G Touch: LSIG
• Ekip G Hi-Touch: LSIG
The Ekip Touch trip unit can be equipped with the Ekip Measuring module to extend the measurement
functions, or the protection and measurement functions (with the Ekip Measuring Pro module), to voltage,
power and energy.
NOTE: Ekip Hi-Touch, Ekip G Touch and Ekip G Hi-Touch trip units have the Ekip Measuring
Pro module mounted as standard.
The corresponding LCD model (Ekip LCD, Ekip Hi-LCD, Ekip G LCD, Ekip G Hi-LCD) is available for all Ekip
Touch versions if the installation must operate under particularly aggressive environmental conditions.
Ekip Touch is described starting from page 6.
The description of Ekip DIP is available on the website http://www.abb.com/abblibrary/DownloadCenter/ in
the installation manuals 1SDH000999R0002 (for circuit breakers E1.2) and 1SDH001000R0002 (for circuit
breakers E2.2-E4.2-E6.2).

ABB | SACE Emax 2
Introduction to Ekip trip units | 1 - Presentation5 | © 2018 ABB | 1SDH001316R0002 - ECN000086018 - Rev. C
Accessorizing modules
The Emax 2 circuit-breakers and Ekip trip units can be equipped as indicated in the combination tables on
page 27.
Various types of modules are available, differing in functionality and in their position on the circuit-breaker.
The modules that can be connected directly to the electronic trip unit are:
Name Description
Ekip Measuring
Ekip Measuring Pro Power supply, protection and measurement modules.
Ekip Signalling 4K Signalling module
NOTE: the Ekip Signalling 4K module is not available for E1.2 circuit-breakers.
The modules available for the terminal box of the circuit-breaker are:
Name Description
Ekip Supply Power supply module
Ekip Signalling 2K Signalling module
Ekip Signalling 3T Signalling module
Ekip Synchrocheck Module for measuring voltage and synchronism between two
power sources
Ekip Com Modbus RTU
Ekip Com Profibus DP
Ekip Com DeviceNet™
Ekip Com Modbus TCP
Ekip Com Profinet
Ekip Com EtherNet/IP™
Ekip Com IEC 61850
Ekip Com Hub
Communication module
Link Communication module
The modules external to the circuit-breaker are:
Name Description
Ekip Multimeter Power supply and measurement module
Ekip Signalling 10K Signalling module
Ekip Signalling Modbus TCP Remote control and monitoring module
The supervision, configuration and reporting functions are, in addition, guaranteed by further modules for
temporary power supply and communication (test modules):
Name Description
Ekip TT Power supply and test module
Ekip T&P Power supply, communication and test module
Ekip Programming Power supply, communication and programming module
Ekip Bluetooth Power supply and communication module
Other accessories:
Name Description
Ekip LCD LCD interface for aggressive environments
Rating plug Module which defines the rated current In
Toroid S.G.R. External homopolar current sensor
Rc Toroid External differential current sensor
External neutral Current sensor on the external neutral
Ekip AUP Connected/isolated position contacts
Ekip RTC Contact for signalling circuit-breaker is ready to close

ABB | SACE Emax 2
6 | © 2018 ABB | 1SDH001316R0002 - ECN000086018 - Rev. C Ekip Touch protection trip unit | 1 - Layout of the interface
Ekip Touch protection trip unit
1 - Layout of the interface
Components of the interface
The operator interface for the Ekip Touch trip units appears as follows:
L1
U12
528.9A
95.3V
U12 U31 L1 L2 L3U23 Ne
03:55
A
B
C
D
E
F
G
Figure 2
The following table provides a description of the parts of the interface:
Pos. Description
ATouchscreen display.
BPower LED, green.
CLED Warning, yellow.
DLED Alarm, red.
EThe HOME key accesses the main page, or the initial page.
F
iTEST key. If the main page or a level 2 page is displayed (see below), whenever you press on it
the following pages are displayed in succession:
• List of Alarms, if there are any messages.
• Protection unit, with information on Mainboard and trip unit.
• Circuit-breaker, with information on the circuit-breaker.
• Last opening, with information on the last opening.
If the Trip Test item has been selected in the Test menu, it will execute the opening command
when pressed and held for at least 7 seconds.
GTest connector.

ABB | SACE Emax 2
Ekip Touch protection trip unit | 1 - Layout of the interface7 | © 2018 ABB | 1SDH001316R0002 - ECN000086018 - Rev. C
Signallings
The following table provides a description of the signals of the interface:
LEDs Description
Green
The possible states are:
• Off: power supply absent.
• On, fixed or flashing: power supply present, and trip unit on.
NOTE: if the trip unit is off and no opening has taken place, if you press the iTEST key
the LED comes on for 6 s.
Yellow
The possible states are:
• Off: no warning or error.
• On, blinking rapidly: absence of communication between trip unit and Mainboard, or
installation error (of the Rating Plug, or the Ekip Measuring module, or Ekip Measuring Pro).
• On, flashing slowly: internal error.
• On, with two quick flashes every 0.5 s: parametrization error.
• On, fixed: prealarm of protection L, or circuit-breaker state error.
Red
The possible states are:
• Off: no alarm or error.
• On, blinking rapidly: absence of communication between trip unit and Mainboard, or trip coil
disconnected, or current sensor disconnected, or delay active.
• On, with two quick flashes every 2 s: rating plug error.
• On, flashing slowly: internal error.
• On, fixed: tripping signal.
Structure of the pages
The following table shows how the pages shown on the display are structured:
Level 1 Level 2 Level 3
Diagnosis bar Alarm list page
Main page
Histograms page
Menu page
Protections menu
Advanced menu
Measurements menu
Settings menu
Test menu
About menu
Measuring instruments pages
Measurements pages
Diagnosis bar
The diagnostics bar is present in the main page and level 2 pages, along the lower side of the display, and its
function is to display the messages.
The bar appears as follows:
TC disconnected
Figure 3
Continued on the next page

ABB | SACE Emax 2
8 | © 2018 ABB | 1SDH001316R0002 - ECN000086018 - Rev. C Ekip Touch protection trip unit | 1 - Layout of the interface
Continued from the previous page
The following table provides a description of the various areas of the bar:
Pos. Description
A
It shows the type of message:
• Alarm
• Warning, error, or prealarm
• Information
• Active timing
BIt displays the active messages one by one in a loop.
CABB logo.
The complete list of messages is given on page 22.
Main page
To open the page, press the key HOME.
The page appears as follow:
Figure 4
The following table provides a description of the various areas of the page:
Pos. Function
AIt opens the Histograms page.
BIt opens the Menu page.
CIt opens the Measuring instruments page.
DIt opens the Measurements page.
EIn the presence of messages, it opens the Alarm List page.
Start page
To open the page, press the HOME key until the page is displayed.
The system returns automatically to this page after some minute of inactivity.
The default start page is the page Histograms.
Any graphical level 2 page (accessible from the main page) can be set as the start page, except for the
pages Alarm List and Menu.
To set a page as the start page, you need to:
1. Open the page
2. Keep the HOME key pressed for at least 5 seconds.
3. Select Yes in the confirmation window that appears on the display.

ABB | SACE Emax 2
Ekip Touch protection trip unit | 2 - Pages details9 | © 2018 ABB | 1SDH001316R0002 - ECN000086018 - Rev. C
2 - Pages details
Details related to this chapter are available in the manual 1SDH001330R0002 (Emax 2 engineering manual)
available on the website ABB library.
3 - Insertion of the password
Description
The page where the password is entered is open, if a parameter to be entered, or the Test menu have been
selected, or if the password must be changed.
NOTE: insertion of the password is requested, if:
• The password has never been inserted.
• After programming has been cancelled.
• After a few minutes of inactivity.
The password is composed of five digits, each of which can have a value from 0 to 9.
The default value is “00001”, and it must be modified after the first switch-on in order to prevent access by
unauthorized personnel.
In order to modify the password, from the menu Settings, you need to select System - New Password.
It is possible to disable the password by inserting "00000" as new password .
Components of the page
The page appears as follow:
C
D
****0
A B
E
Password
Confirm
Figure 5
The following table provides a description of the various areas of the page:
Pos. Function
ACancels the operation, and opens the start menu.
BIt shows the name of the page
CKeys to increase and decrease the corresponding digit.
DIt displays the digits of the password.
E
Confirm key:
• Confirmation after inserting a digit in a position from 1 to 4 will automatically bring you to the
next digit.
• When the fifth digit is confirmed, the entire password is confirmed and the selected page is
opened.
NOTE:
• If you are changing the password, after the first confirmation of the new password, the page
opens again for the reconfirmation.
• In the case of an incorrect password, the message “Wrong Password” appears for approximately
3 seconds, and the page for insertion of the password opens again.
• There is no limit to the number of incorrect passwords that you can insert.
• If the password is lost, see the document 1SDH001501R0002 or contact ABB

ABB | SACE Emax 2
10 | © 2018 ABB | 1SDH001316R0002 - ECN000086018 - Rev. C Ekip Touch protection trip unit | 4 - Setting the parameters

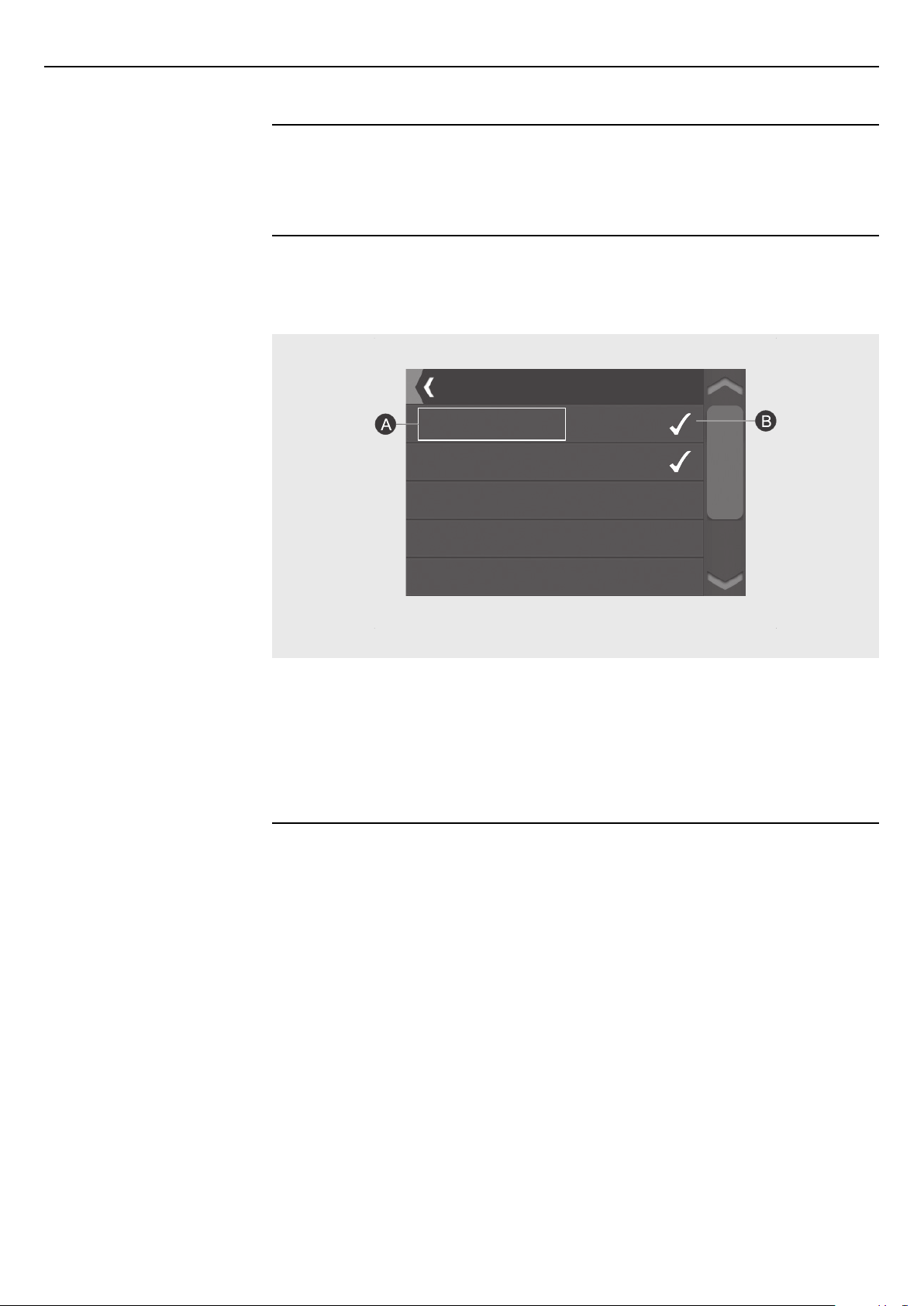

4 - Setting the parameters
Modifying a parameter
To set a parameter, you need to select it. Selecting a parameter opens the page Modify Parameter.
There are two possible types of Modify Parameter page:
• By option: it consists of a list of the values that can be assigned to the parameter.
• By value: graphical page with a bar for assigning the parameter a numerical value within a range..
Programming the trip unit
When a parameter is modified, the new value is indicated in the Start menu, and the parameter is associated
to a tick symbol.
The menu with submenus and parameters with ticks appears as follows:
S(V) Protection
Enable
On
Trip enable
On
Function
Step mode
I20 Threshold
0.60In (240A)
Ul Threshold
100% Un (100V)
Figure 6
The ticks indicate that the changes are not effective. In order make a change effective, the trip unit must be
programmed. To program the trip unit, you need to press the key HOME, that opens the page Programming.
Alternatively, you can go up to the higher level menus until the page is displayed.
In the page Programming:
• A list of the changes made is displayed.
• You are asked to confirm, cancel, or modify the settings.

ABB | SACE Emax 2
Ekip Touch protection trip unit | 5 - Protections11 | © 2018 ABB | 1SDH001316R0002 - ECN000086018 - Rev. C
5 - Protections
Operating principle
All the protections present in the electronic trip units with a display (Ekip Touch, Ekip Hi-Touch, Ekip G Touch,
Ekip G Hi-Touch) have a delay time before entering alarm state and tripping the circuit-breaker.
The duration of the delay depends on the parameters set: threshold, time, curve. Depending on the current
read by the trip unit, there are two possible behaviours:
• Current above the protection threshold, persistent alarm condition, the trip unit will open the circuit-breaker.
• Current below the protection threshold, alarm condition and delay interrupted.
The protection threshold relates to different parameters, according to the type:
Type Reference
Current Nominal current of the rating plug (In).
Voltage Rated voltage set (Un)
Frequency Frequency set (fn)
Power Current multiplied by rated voltage (Sn = √3 * In * Un)
IMPORTANT:
• To manage the tripping of the circuit-breaker through a specific protection, the
protection itself must be enabled.
• All the protections have a default configuration: if enabled, check the parameters and
make the necessary changes according to the requirements of your installation.

ABB | SACE Emax 2
12 | © 2018 ABB | 1SDH001316R0002 - ECN000086018 - Rev. C Ekip Touch protection trip unit | 6 - Touch protections
6 - Touch protections
Availability (Performance)
The following is a complete list of the protections (and related parameters) available with all the trip units
equipped with a display, in the Protections and Advanced menus:
Name Protection against Threshold Time Function Auxiliary functions
(5) (8)
L(1) Overload with long-time
delay X X X Thermal memory, Pre-alarm threshold
S(9) Selective short-circuit X X X
Trip enable, Zone Selectivity,
Thermal Memory, Startup
enable, Lock
I(2) Instantaneous
short-circuit X-- -- Startup enable, Lock
G(4)(6)(9)(10) Earth fault X X X
Trip enable, Zone Selectivity,
Startup enable, Locking,
Pre-alarm threshold
2I Instantaneous short-
circuit programmable X-- -- --
MCR (3) Instantaneous short
circuit on closing X-- -- Monitoring period, Locking
IU Current unbalance X X -- Trip enable
OT (7) Temperature outside
range -- -- -- Trip enable
IInst Instantaneous
short-circuit -- -- -- --
Hardware
Trip
Circuit-breaker internal
connection error -- -- -- --
Harmonic
Distortion Distorted waveforms -- -- -- --
Current
thresholds
(11)
Programmable signal
thresholds X-- -- Direction of current flow
Neutral Neutral protection X-- -- --
(1) The protection forces the tripping time to 1 second in two cases:
• if according to the calculation the time is less than 1 second.
• if the fault current is greater than 12 In.
(2) Activatable with protection MCR= Off.
(3) Activatable with protection I= Off.
(4) The protection automatically deactivates in the event of a connection error of 1 or more sensors, or if the
measured current is higher than a maximum value:
• 8 In (with I4 ≥0.8 In).
• 6 In (with 0.5 In ≤I4 < 0.8 In).
• 4 In (with 0.2 In ≤I4 < 0.5 In).
• 2 In (with I4 < 0.2 In)
(5) Detailed description in the Design Engineer's manual.
(6) If the presence of sensor S.G.R. is activated, G protection adjustment is replaced by the Gext item in the
Advanced section. Both the G and Gext items are available with Ekip Hi-Touch and Ekip G Hi-Touch.
(7) Available in the Circuit-Breaker Settings menu.
(8) Locking Function available via Ekip Connect.
(9) For all the UL versions the maximum time allowed by the trip unit is 0.4 seconds. If a higher value is set, the
trip unit signals the error and forces the parameter to 0.4 seconds.
(10) For all the UL versions the maximum threshold allowed by the trip unit is 1200 A. If a higher value is set, the
trip unit signals the error and forces the parameter to 1200 A.
(11) The current thresholds do not manage the trip, but only the signal.
Neutral
Adjusting of the neutral setting is used to customize the L, S and I protections on the Neutral pole with a
control factor different from the other phases.
Represented as a percentage, it defines the multiplication factor applied to the tripping thresholds of the
protections (example: 50%= the tripping threshold of the neutral is half the phase threshold).
NOTE: adjust the neutral setting only with four-pole or three-pole circuit-breakers with external
neutral.

ABB | SACE Emax 2
Ekip Touch protection trip unit | 6 - Touch protections13 | © 2018 ABB | 1SDH001316R0002 - ECN000086018 - Rev. C
Summary table of basic protections
ABB ANSI
(1)
Threshold Threshold
tolerance
(3)
Time Calculation
formula t
t
(2)
Calculation
example t
t
(2)
Tolerance t
t
(3)
L
(60947-2) 49 I1 = 0.4…1 In step = 0.001 In
Activation for
If in the range
(1.05...1.2) x I1
t1 = 3…144 s
step = 1 s
tt =
(9 t1) / (If / I1) 2
tt = 6.75 s with:
I1 = 0.4 In; t1 = 3
s; If = 0.8 In
± 10 % with If ≤
6 In
± 20 % with If >
6 In
L
(60255-151) (9) 49 I1 = 0.4…1 In
step = 0.001 In
Activation for
If in the range
(1.05...1.2) x I1
t1 = 3…144 s
step = 1 s
tt =
(t1 x a x b) / ((If /
I1) k-1)
See the table
below
± 10 % with If ≤
6 In
± 20 % with If >
6 In
S
(t = k) 50 TD I2 = 0.6...10 In step = 0.1 In
± 7 % with If ≤
6 In
± 10 % with If >
6 In
t2 = 0.05…0.8 s
step = 0.01 s tt = t2 -
The better of the
two values:
± 10 % or ± 40
ms
S
(t = k / I 2)51 I2 = 0.6...10 In
step = 0.1 In
± 7 % with If ≤
6 In
± 10 % with If >
6 In
t2 = 0.05…0.8 s
step = 0.01 s
tt =
(100 t2) / (If) 2
tt = 5 s con:
I2 = 1 In; t2 = 0.8
s; If = 4 In
± 15 % with If ≤
6 In
± 20 % with If >
6 In
I50 I3 = 1.5...15 In
step = 0.1 In ± 10 % Not adjustable tt ≤30 ms - -
G
(t = k) 50N TD I4 (4)= 0.1...1 In
step = 0.001 In ± 7 %
t4 =
Instantaneous…1
s, 0.1...1s
step = 0.05 s
tt = t4 -
The better of the
two values:
± 10 % or ± 40
ms (8)
G
(t = k / I 2)51N I4 (4)= 0.1...1 In step = 0.001 In ± 7 % t4 = 0.1…1 s step = 0.05 s
tt =
2 / (If / I4) 2
tt = 0.32 s with:
I4 = 0.8 In; t4 =
0.2 s; If = 2 In
± 15 %
2I 50 I31 = 1.5...15 In
step = 0.1 In ± 10 % Not adjustable tt ≤30 ms - -
MCR -I3 = 1.5...15 In
step = 0.1 In ± 10 % 40…500 ms (5)
step = 0.01 s tt ≤30 ms - -
IU 46 I6 = 2…90 %
step = 1 % ± 10 % t6 = 0.5…60 s step = 0.5 s tt = t6 -
the better of the
two values:
± 10 % or ± 40
ms (for a time set
< 5 s) / ± 100 ms
(for a time set ≥
5 s)
Iinst -Defined by ABB -Instantaneous ---
Current
thresholds (1
and 2)
-50…100 % I1
step = 1 % -----
Current
thresholds
(Iw1 and Iw2)
-0.1…10 In
step = 0.01 In -----
Continued on the next page

ABB | SACE Emax 2
14 | © 2018 ABB | 1SDH001316R0002 - ECN000086018 - Rev. C Ekip Touch protection trip unit | 6 - Touch protections
Continued from the previous page
The following are the details of the protections according to standard IEC 60255-151:
Protection Curve parameters Calculation formula t
t
(3)
Calculation example t
t
(3)
L
(60255-151 SI)
a = 0.02; b = 0.15873;
k = 0.16
tt =
(t1 x k x b) / ((If / I1) a -1)
tt = 4.78 s with:
I1 = 0.4 In; t1 = 3 s; If = 0.8 In
L
(60255-151 VI)
a = 1; b = 0.148148;
k = 13.7
tt =
(t1 x k x b) / ((If / I1) a -1)
tt = 6 s with:
I1 = 0.4 In; t1 = 3 s; If = 0.8 In
L
(60255-151 EI)
a = 2; b = 0.1;
k = 82
tt =
(t1 x k x b) / ((If / I1) a -1)
tt = 8 s with:
I1 = 0.4 In; t1 = 3 s; If = 0.8 In
L
(60255-151 I 4)
a = 4; b = 1;
k = 82
tt =
(t1 x k x b) / ((If / I1) a -1)
tt = 16 s with:
I1 = 0.4 In; t1 = 3 s; If = 0.8 In
Table of Additional Functions of the protections
The following table summarises the additional functions combined with protections S, I, G:
ABB ANSI
(1)
Threshold Threshold
tolerance
(3)
Time
(7)
Calculation
formula t
t
(3)
Tolerance t
t
(3)
S
(Startup) (6) -If startup= 0.6...10 In step = 0.1 In
± 7 % with If ≤6 In
± 10 % with If > 6 In
t2 startup= 0.1…30 s
step = 0.01 s tt = t2
The better of the two
values:
± 10 % or ± 40 ms
I
(Startup) -I3 startup= 1.5...15 In
step = 0.1 In ± 10 % t3 startup= 0.1…30 s step = 0.01 s tt ≤30 ms -
G
(Startup) (6) -I4 startup= 0.2...1 In
step = 0.02 In ± 7 % t4 startup= 0.1…30 s step = 0.01 s tt = t4
The better of the two
values:
± 10 % or ± 40 ms
S
(SdZ) 68 - - t2 SdZ = 0.04…0.2 s
step = 0.01 s - -
G
(SdZ) 68 - - t4 SdZ = 0.04…0.2 s
step = 0.01 s - -
(1) ANSI / IEEE C37-2 encoding.
(2) t t calculation is valid for If values exceeding the trip threshold of the protection. Use fault current and threshold values expressed in In to calculate t
t, as shown in the example.
(3) Valid tolerances with steady-state energized trip unit or trip unit energized by auxiliary power supply, tripping time ≥100 ms, temperature and
currents within operating limits. If these conditions are not guaranteed, the tolerances in the table that following these notes are valid.
(4) In the presence of auxiliary power supply, you can select all the thresholds. In self-supply mode the minimum threshold is limited to: 0.3 In (with In
= 100 A), 0.25 In (with In = 400 A) or 0.2 In (for all other sizes).
(5) The MCR time is the time for which the protection remains active after circuit-breaker closing. Tripping time, not adjustable, as for protection I.
(6) Startup can be activated only with the function set to fixed time.
(7) For the startup functions, the specified time is the period during which the protection with the different threshold remains active, calculated from
the moment the startup threshold is exceeded.
(8) With t4 = Instantaneous, the maximum tolerance is 50 ms.
Protection Tolerance threshold Tolerance t
t
LActivation for If in the range 1.05...1.2 I1 ± 20 %
S± 10 % ± 20 %
I± 15 % ≤60 ms
G± 15 % ± 20 % (60 ms with t4 = instantaneous)
2I ± 15 % ≤60 ms
Other -± 20 %

ABB | SACE Emax 2
Ekip Touch protection trip unit | 7 - Measuring Pro protections15 | © 2018 ABB | 1SDH001316R0002 - ECN000086018 - Rev. C
7 - Measuring Pro protections
Availability (Performance)
The following is a complete list of the protections (and related parameters) available with all the trip units of the Touch range equipped with an Ekip
Measuring Pro module, in the Protections and Advanced menus:
Name Protection against Threshold Time Auxiliary functions
(3) (4)
UV Minimum voltage XXTrip Enable, Lock
OV Maximum voltage XXTrip Enable, Lock
VU (1) Voltage unbalance XXTrip Enable, Lock
UF (2) Minimum frequency XXTrip Enable, Lock
OF (2) Maximum frequency XXTrip Enable, Lock
RP Reverse active power XXTrip Enable, Lock
Phase Sequence Phase sequence error X--
Cosφ Power factor error X--
(1) Protection not active if the highest of the voltages measured is in any case less than 30% of Un.
(2) Protection not active for voltages <30V.
(3) Detailed description in the Design Engineer's manual
(4) Locking Function available via Ekip Connect.
Summary table of Measuring Pro protections
ABB ANSI
(3)
Threshold Tolerance
threshold Time Calculation formula t
t
(1)
Tolerance t
t
(2)
UV 27 U8 = 0,05….0,98 Un
step = 0.001 Un ± 2 % t8 = 0.05…120 s step = 0.01 s tt = t8
The better of the two values:
± 10 % or ± 40 ms (for a time
set < 5 s) / ± 100 ms (for a
time set ≥5 s)
OV 59 U9 = 1….1,5 Un
step = 0.001 Un ± 2 % t9 = 0.05…120 s step = 0.01 s tt = t9
The better of the two values:
± 10 % or ± 40 ms (for a time
set < 5 s) / ± 100 ms (for a
time set ≥5 s)
VU 47 U14 = 2…90 %
step = 1 % ± 5 % t14 = 0.5…60 s step = 0.5 s tt = t14
The better of the two values:
± 10 % or ± 40 ms (for a time
set < 5 s) / ± 100 ms (for a
time set ≥5 s)
UF 81L f12 = 0,9….1 fn
step = 0.001 fn ± 1 % (4) t12 = 0,06…300 s
step = 0.01 s tt = t12
The better of the two values:
± 10 % or ± 40 ms (for a time
set < 5 s) / ± 100 ms (for a
time set ≥5 s)
OF 81H f13 = 1….1,1 fn
step = 0.001 fn ± 1 % (4) t13 = 0,06…300 s
step = 0.01 s tt = t13
The better of the two values:
± 10 % or ± 40 ms (for a time
set < 5 s) / ± 100 ms (for a
time set ≥5 s)
RP 32R P11 = -1…-0.05 Sn
step = 0.001 Sn ± 10 % t11 = 0.5…100 s step = 0.1 s tt = t11
The better of the two values:
± 10 % or ± 40 ms (for a time
set < 5 s) / ± 100 ms (for a
time set ≥5 s)
Synchro-
check 25
Ulive = 0.5…1.1 Un; step = 0.001 Un
∆U = 0.02…0.12 Un; step = 0.001 Un
∆f = 0.1…1 Hz; step = 0.1 Hz
∆Cos φ = 5…50° elt; step = 5° elt
tsyn = 0.1…3 s; step = 0.1 s
± 10 % tref = 0.1…30 s
step = 1 ms - -
Cyclic
direction of
the phases
47 1-2-3 or 3-2-1 - - - -
Cos φ 78 Cos φ = 0.5…0.95
step = 0.01 - - - -
(1) Calculation of t t is valid for values exceeding the tripping threshold of the protection.
(2) Valid tolerances with steady-state energized trip unit or trip unit energized by auxiliary power supply, tripping time ≥100 ms, temperature and
currents within operating limits. If these conditions are not guaranteed, the tripping time tolerance of ± 10 % will become ± 20%.
(3) ANSI / IEEE C37-2 encoding.
(4) Valid tolerance for frequencies in the range: fn ± 2 %. For frequency outside the range a tolerance of ± 5 % applies.

ABB | SACE Emax 2
16 | © 2018 ABB | 1SDH001316R0002 - ECN000086018 - Rev. C Ekip Touch protection trip unit | 8 - Hi-Touch protections
8 - Hi-Touch protections
Availability (Performance)
The following is a complete list of the protections (and related parameters) available with all the Ekip Hi-Touch and Ekip G Hi-Touch trip units, in
the Protections and Advanced menus:
Name Protection against Threshold Time Auxiliary functions
(1) (2)
S2 (3) Selective short-circuit XXTrip enable, Zone Selectivity, Startup enable, lock
D(6) Directional short circuit XXTrip Enable, Directional Zone Selectivity (4), Startup enable,
Locki, Min Angle Direction
UV2 Minimum voltage XXTrip Enable, Lock
OV2 Maximum voltage XXTrip Enable, Lock
UF2 (5) Minimum frequency XXTrip Enable, Lock
OF2 (5) Maximum frequency XXTrip Enable, Lock
Set A-B Double configuration of the
protections XXDefault set, Activation event, Activation delay
(1) Detailed description in the Design Engineer's manual.
(2) Locking Function available via Ekip Connect.
(3) For all the UL versions the maximum time allowed by the trip unit is 0.4 seconds. If a higher value is set, the trip unit signals the error and forces
the parameter to 0.4 seconds.
(4) Directional Zone Selectivity works as an alternative to S and G Zone Selectivity.
(5) Protection not active for voltages <30V.
(6) The protection does not detect the direction of fault current for voltages < 5V.
Summary table of Hi-Touch protections
ABB ANSI
(4)
Threshold Tolerance threshold Time Calculation
formula t
t
(1)
Tolerance t
t
(2)
S2 50 TD I5 = 0.6...10 In
step = 0.1 In
± 7 % If ≤6 In
± 10 % If > 6 In
t5 = 0.05...0.8 s
step = 0.01 s tt = t5
The better of the two
values:
± 10 % or ± 40 ms
D67 I7 Fw/Bw = 0.6...10 In
step = 0.1 In
± 7 % If ≤6 In
± 10 % If > 6 In
t7 Fw/Bw =
0.1...0.8 s
step = 0.01 s
tt = t7
The better of the two
values:
± 10 % or ± 40 ms
UV2 27 U15= 0,05….0,98 Un
step = 0.001 Un ± 2 % t15 = 0.05…120 s step = 0.01 s tt = t15
The better of the two
values:
± 10 % or ± 40 ms (for a
time set < 5 s) / ± 100 ms
(for a time set > 5 s)
OV2 59 U16= 1….1,5 Un
step = 0.001 Un ± 2 % t16 = 0.05…120 s step = 0.01 s tt = t16
The better of the two
values:
± 10 % or ± 40 ms (for a
time set < 5 s) / ± 100 ms
(for a time set > 5 s)
UF2 81L f17= 0,9….1 fn
step = 0.001 fn ± 1 % (5) t17 = 0,06…300 s
step = 0.01 s tt = t17
The better of the two
values:
± 10 % (min=30ms) or ±
40 ms (for a time set < 5 s)
/ ± 100 ms (for a time set
> 5 s)
OF2 81H f18= 1….1,1 fn
step = 0.001 fn ± 1 % (5) t18 = 0,06…300 s
step = 0.01 s tt = t18
The better of the two
values:
± 10 % or ± 40 ms (for a
time set < 5 s) / ± 100 ms
(for a time set > 5 s)
Continued on the next page

ABB | SACE Emax 2
Ekip Touch protection trip unit | 8 - Hi-Touch protections17 | © 2018 ABB | 1SDH001316R0002 - ECN000086018 - Rev. C
Continued from the previous page
The following table summarises the additional functions combined with protections S2 and D:
ABB ANSI
(4)
Threshold Threshold
tolerance
(2)
Time
(3)
Calculation
formula t
t
(1)
Tolerance t
t
(2)
S2
(Startup) -I5 startup= 0.6...10 In step = 0.1 In
± 7 % with If ≤6 In
± 10 % with If > 6 In
t5 startup= 0.1…30 s
step = 0.01 s tt = t5 startup
The better of the two
values:
± 10 % or ± 40 ms
S2
(Sdz) 68 - - t2 sdz= 0.04…0.2 s
step = 0.01 s - -
D
(Startup) -I7 startup= 0.6...10 In
step = 0.1 In ± 10 % t7 startup= 0.1…30 s step = 0.01 s tt = t7 startup
The better of the two
values:
± 10 % or ± 40 ms
D
(SdZ) 68 - - t7 SdZ = 0.1…0.8 s
step = 0.01 s - -
(1) Calculation of t t is valid for values exceeding the tripping threshold of the protection.
(2) Valid tolerances with steady-state energized trip unit or trip unit energized by auxiliary power supply, tripping time ≥100 ms, temperature and
currents within operating limits. If these conditions are not guaranteed, the tripping time tolerance of ± 10 % will become ± 20%.
(3) For the startup functions, the specified time is the period during which the protection with the different threshold remains active, calculated from the
moment the startup threshold is exceeded.
(4) ANSI / IEEE C37-2 encoding.
(5) Valid tolerance for frequencies in the range: fn ± 2 %. For frequency outside the range a tolerance of ± 5 % applies.

ABB | SACE Emax 2
18 | © 2018 ABB | 1SDH001316R0002 - ECN000086018 - Rev. C Ekip Touch protection trip unit | 9 - G Touch protections
9 - G Touch protections
Availability (Performance)
The following is a complete list of the protections (and related parameters) available with all the Ekip G Touch and Ekip G Hi-Touch trip units, in
the Protections and Advanced menus:
Name Protection against Th-
reshold Time Additional parameters
(2)
Auxiliary functions
(2) (3)
S(V) Voltage control short-circuit X X X Trip enable, lock
RV (1) Residual voltage X X Trip enable, lock
RQ Reverse reactive power X X X Trip Enable, Lock
OQ Maximum reactive power X X Trip Enable, Lock
OP Maximum active power X X Trip Enable, Lock
UP (4) Minimum active power X X Trip Enable, Lock, Startup enable
(1) Available for four-pole or three-pole circuit-breakers configured with external neutral voltage.
(2) Detailed description in the Design Engineer's manual.
(3) Locking Function available via Ekip Connect.
(4) Not active for voltages <30V and if the circuit-breaker is open. The protection is also active for negative (reverse) active power, but it is
independent of the RP protection (Protection against reverse active power).
Summary table for G Touch protections
ABB ANSI
(5)
Threshold Tolerance
threshold Tripping time Calculation formula t
t
(1)
Tolerance t
t
(2)
S(V)
(Step) 51V
I20 = 0.6...10 In; step = 0.1 In (6)
Ul = 0.2…1 Un; step = 0.01 Un
Ks = 0.1…1; step = 0.01 (6)
± 10 % t20 = 0.05…30 s
step = 0.01 s tt = t20
The better of the two
values:
± 10 % or ± 40 ms (for a
time set < 5 s) / ± 100 ms
(for a time set > 5 s)
S(V) (3)
(Linear) 51V
I20 = 0.6...10 In; step = 0.1 In (6)
Ul = 0.2…1 Un; step = 0.01 Un (7)
Uh = 0.2…1 Un; step = 0.01 Un (7)
Ks = 0.1…1; step = 0.01 (6)
± 10 % t20 = 0.05…30 s
step = 0.01 s tt = t20
The better of the two
values:
± 10 % or ± 40 ms (for a
time set < 5 s) / ± 100 ms
(for a time set > 5 s)
RV 59N U22 = 0.05….0.5 Un
step = 0.001 Un ± 5 % t22 = 0.05…120 s step = 0.01 s tt = t22
The better of the two
values:
± 10 % or ± 40 ms (for a
time set < 5 s) / ± 100 ms
(for a time set > 5 s)
RQ 40/32R
Q24 = -1…-0.1 Sn; step = 0.001
Sn
Kq = -2…2; step = 0.01
Vmin = 0.5...1.2 Un; step = 0.01
± 10 % t24 = 0.5…100 s
step = 0.1 s tt = t24
The better of the two
values:
± 10 % or ± 40 ms (for a
time set < 5 s) / ± 100 ms
(for a time set > 5 s)
OP 32OF P26 = 0.4…2 Sn
step = 0.001 Sn ± 10 % t26 = 0.5…100 s step = 0.5 s tt = t26
The better of the two
values:
± 10 % or ± 40 ms (for a
time set < 5 s) / ± 100 ms
(for a time set > 5 s)
OQ 32OF Q27 = 0.4…2 Sn
step = 0.001 Sn ± 10 % t27 = 0.5…100 s step = 0.5 s tt = t27
The better of the two
values:
± 10 % or ± 40 ms (for a
time set < 5 s) / ± 100 ms
(for a time set > 5 s)
UP 32LF P23 = 0.1...1 Sn
step = 0.001 Sn ± 10 % t23 = 0.5…100 s step = 0.5 s tt = t23
The better of the two
values:
± 10 % or ± 40 ms (for a
time set < 5 s) / ± 100 ms
(for a time set > 5 s)
Continued on the next page
