ABB Relion REM615 User manual

Relion® 615 series
Motor Protection and Control
REM615
IEC 60870-5-103 Point List Manual

Document ID: 1MRS756882
Issued: 2010-06-11
Revision: B
Product version: 3.0
© Copyright 2010 ABB. All rights reserved

Copyright
This document and parts thereof must not be reproduced or copied without written
permission from ABB, and the contents thereof must not be imparted to a third
party, nor used for any unauthorized purpose.
The software or hardware described in this document is furnished under a license
and may be used, copied, or disclosed only in accordance with the terms of such
license.
Trademarks
ABB and Relion are registered trademarks of ABB Group. All other brand or
product names mentioned in this document may be trademarks or registered
trademarks of their respective holders.
Warranty
Please inquire about the terms of warranty from your nearest ABB representative.
ABB Oy
Distribution Automation
P.O. Box 699
FI-65101 Vaasa, Finland
Telephone: [phone]
Facsimile: [phone]
http://www.abb.com/substationautomation

Disclaimer
The data, examples and diagrams in this manual are included solely for the concept
or product description and are not to be deemed as a statement of guaranteed
properties. All persons responsible for applying the equipment addressed in this
manual must satisfy themselves that each intended application is suitable and
acceptable, including that any applicable safety or other operational requirements
are complied with. In particular, any risks in applications where a system failure and/
or product failure would create a risk for harm to property or persons (including but
not limited to personal injuries or death) shall be the sole responsibility of the
person or entity applying the equipment, and those so responsible are hereby
requested to ensure that all measures are taken to exclude or mitigate such risks.
This document has been carefully checked by ABB but deviations cannot be
completely ruled out. In case any errors are detected, the reader is kindly requested
to notify the manufacturer. Other than under explicit contractual commitments, in
no event shall ABB be responsible or liable for any loss or damage resulting from
the use of this manual or the application of the equipment.

Conformity
This product complies with the directive of the Council of the European
Communities on the approximation of the laws of the Member States relating to
electromagnetic compatibility (EMC Directive 2004/108/EC) and concerning
electrical equipment for use within specified voltage limits (Low-voltage directive
2006/95/EC). This conformity is the result of tests conducted by ABB in
accordance with the product standards EN 50263 and EN 60255-26 for the EMC
directive, and with the product standards EN 60255-1 and EN 60255-27 for the low
voltage directive. The IED is designed in accordance with the international
standards of the IEC 60255 series.

Table of contents
Section 1 Introduction.......................................................................3
This manual........................................................................................3
Intended audience..............................................................................3
Product documentation.......................................................................4
Product documentation set............................................................4
Document revision history.............................................................5
Related documentation..................................................................6
Symbols and conventions...................................................................6
Safety indication symbols..............................................................6
Manual conventions.......................................................................6
Functions, codes and symbols......................................................7
Section 2 IEC 60870-5-103 data mappings.....................................9
Overview.............................................................................................9
Point list for REM615 Ver.3.0 ME01-03............................................11
Section 3 Interoperability profile for 615 series IEC
60870-5-103...................................................................21
Physical layer...................................................................................21
Electrical interface.......................................................................21
Optical interface...........................................................................21
Transmission speed....................................................................21
Link layer..........................................................................................21
Application layer...............................................................................22
Transmission mode for application data......................................22
COMMON ADDRESS of ASDU..................................................22
Selection of standard information numbers in monitor
direction.......................................................................................22
System functions in monitor directions...................................22
Status indications in monitor direction....................................22
Supervision indications in monitor direction...........................23
Earth fault indications in monitor direction..............................23
Fault indications in monitor direction......................................23
Auto-reclosure indications in monitor direction.......................24
Measurands in monitor direction............................................25
Generic functions in monitor direction....................................25
Selection of standard information numbers in control
direction.......................................................................................25
System functions in control direction......................................25
Generic functions in monitor direction....................................25
Table of contents
REM615 1
Point List Manual

Basic application functions..........................................................26
Miscellaneous..............................................................................26
Section 4 Glossary.........................................................................27
Table of contents
2REM615
Point List Manual

Section 1 Introduction
1.1 This manual
The point list manual describes the outlook and properties of the data points
specific to the IED. The manual should be used in conjunction with the
corresponding communication protocol manual.
1.2 Intended audience
This manual addresses the communication system engineer or system integrator
responsible for pre-engineering and engineering for communication setup in a
substation from an IED perspective.
The system engineer or system integrator must have a basic knowledge of
communication in protection and control systems and thorough knowledge of the
specific communication protocol.
1MRS756882 B Section 1
Introduction
REM615 3
Point List Manual

1.3 Product documentation
1.3.1 Product documentation set
Planning & purchase
Engineering
Installing
Commissioning
Operation
Maintenance
Decommissioning deinstalling & disposal
Application manual
Operation manual
Installation manual
Service manual
Engineering manual
Commissioning manual
Communication protocol
manual
Technical manual
Planning & purchase
Engineering
Installing
Commissioning
Operation
Maintenance
Decommissioning deinstalling & disposal
Planning & purchase
Engineering
Installing
Commissioning
Operation
Maintenance
Decommissioning deinstalling & disposal
Application manualApplication manual
Operation manualOperation manual
Installation manualInstallation manual
Service manualService manual
Engineering manualEngineering manual
Commissioning manualCommissioning manual
Communication protocol
manual
Communication protocol
manual
Technical manualTechnical manual
en07000220.vsd
IEC07000220 V1 EN
Figure 1: The intended use of manuals in different lifecycles
The engineering manual contains instructions on how to engineer the IEDs using
the different tools in PCM600. The manual provides instructions on how to set up a
PCM600 project and insert IEDs to the project structure. The manual also
recommends a sequence for engineering of protection and control functions, LHMI
functions as well as communication engineering for IEC 61850 and other
supported protocols.
The installation manual contains instructions on how to install the IED. The
manual provides procedures for mechanical and electrical installation. The chapters
are organized in chronological order in which the IED should be installed.
The commissioning manual contains instructions on how to commission the IED.
The manual can also be used by system engineers and maintenance personnel for
assistance during the testing phase. The manual provides procedures for checking
of external circuitry and energizing the IED, parameter setting and configuration as
Section 1 1MRS756882 B
Introduction
4REM615
Point List Manual

well as verifying settings by secondary injection. The manual describes the process
of testing an IED in a substation which is not in service. The chapters are organized
in chronological order in which the IED should be commissioned.
The operation manual contains instructions on how to operate the IED once it has
been commissioned. The manual provides instructions for monitoring, controlling
and setting the IED. The manual also describes how to identify disturbances and
how to view calculated and measured power grid data to determine the cause of a
fault.
The service manual contains instructions on how to service and maintain the IED.
The manual also provides procedures for de-energizing, de-commissioning and
disposal of the IED.
The application manual contains application descriptions and setting guidelines
sorted per function. The manual can be used to find out when and for what purpose
a typical protection function can be used. The manual can also be used when
calculating settings.
The technical manual contains application and functionality descriptions and lists
function blocks, logic diagrams, input and output signals, setting parameters and
technical data sorted per function. The manual can be used as a technical reference
during the engineering phase, installation and commissioning phase, and during
normal service.
The communication protocol manual describes a communication protocol
supported by the IED. The manual concentrates on vendor-specific implementations.
The point list manual describes the outlook and properties of the data points
specific to the IED. The manual should be used in conjunction with the
corresponding communication protocol manual.
Some of the manuals are not available yet.
1.3.2 Document revision history
Document revision/date Product version History
A/2009-07-03 2.0 First release
B/2010-06-11 3.0 Content updated to correspond to the
product version
Download the latest documents from the ABB web site http://
www.abb.com/substationautomation.
1MRS756882 B Section 1
Introduction
REM615 5
Point List Manual

1.3.3 Related documentation
Name of the document Document ID
IEC 60870-5-103 Communication Protocol Manual 1MRS756710
1.4 Symbols and conventions
1.4.1 Safety indication symbols

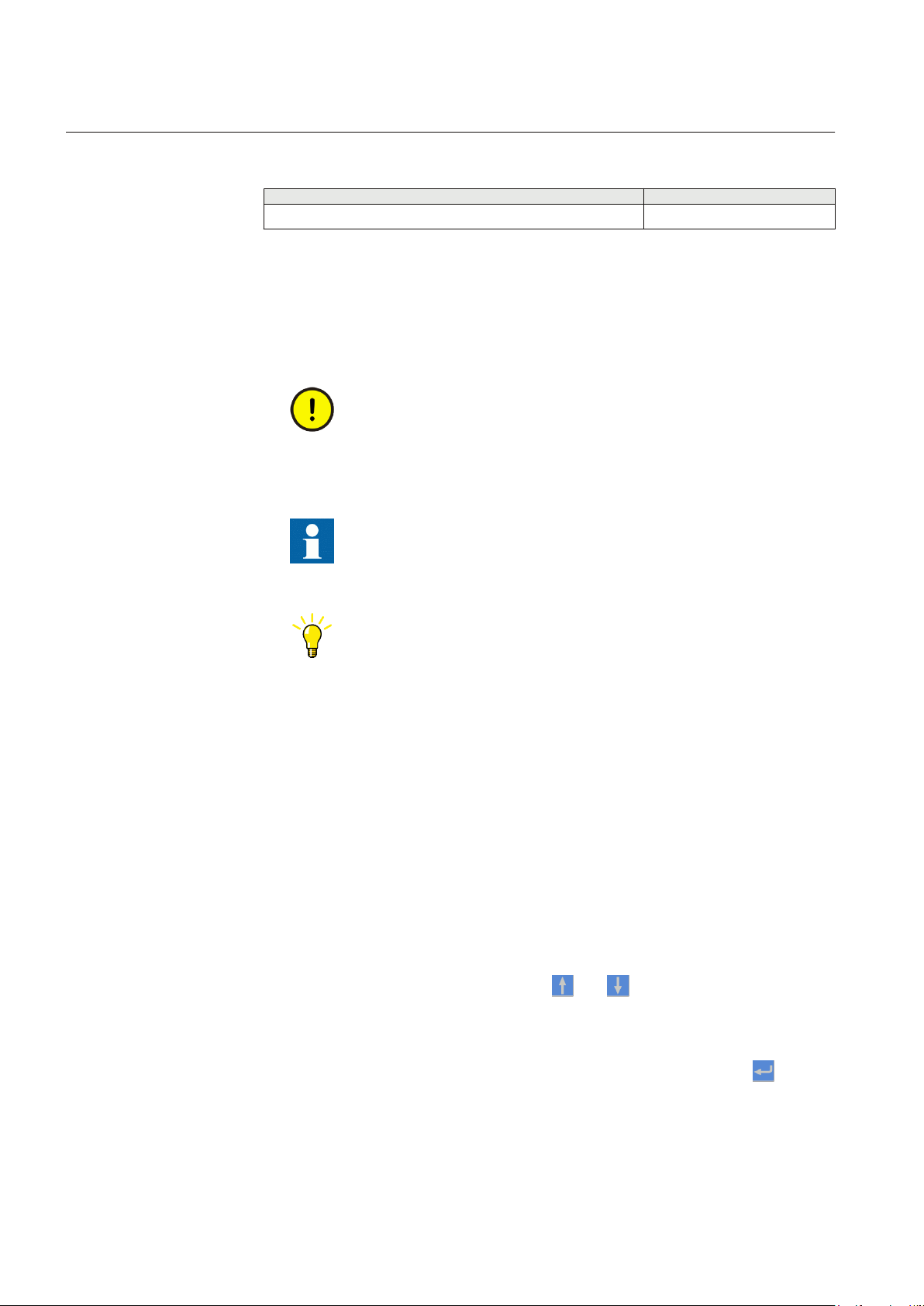

The caution icon indicates important information or warning related
to the concept discussed in the text. It might indicate the presence
of a hazard which could result in corruption of software or damage
to equipment or property.
The information icon alerts the reader to important facts and
conditions.
The tip icon indicates advice on, for example, how to design your
project or how to use a certain function.
Although warning hazards are related to personal injury, it should be understood
that operation of damaged equipment could, under certain operational conditions,
result in degraded process performance leading to personal injury or death.
Therefore, comply fully with all warning and caution notices.
1.4.2 Manual conventions
Conventions used in IED manuals. A particular convention may not be used in this
manual.
• Abbreviations and acronyms in this manual are spelled out in the glossary. The
glossary also contains definitions of important terms.
• Push button navigation in the LHMI menu structure is presented by using the
push button icons, for example:
To navigate between the options, use and .
• HMI menu paths are presented in bold, for example:
Select Main menu/Settings.
• LHMI messages are shown in Courier font, for example:
To save the changes in non-volatile memory, select Yes and press .
• Parameter names are shown in italics, for example:
The function can be enabled and disabled with the Operation setting.
• Parameter values are indicated with quotation marks, for example:
Section 1 1MRS756882 B
Introduction
6REM615
Point List Manual

The corresponding parameter values are "On" and "Off".
• IED input/output messages and monitored data names are shown in Courier
font, for example:
When the function starts, the START output is set to TRUE.
1.4.3 Functions, codes and symbols
Table 1: REM615 Functions, codes and symbols
Function IEC 61850 IEC 60617 IEC-ANSI
Protection
Three-phase non-directional
overcurrent protection, low stage,
instance 1
PHLPTOC1 3I> (1) 51P-1 (1)
Three-phase non-directional
overcurrent protection, instantaneous
stage, instance 1
PHIPTOC1 3I>>> (1) 50P/51P (1)
Non-directional earth-fault protection,
low stage, instance 1 EFLPTOC1 Io> (1) 51N-1 (1)
Non-directional earth-fault protection,
high stage, instance 1 EFHPTOC1 Io>> (1) 51N-2 (1)
Directional earth-fault protection, low
stage, instance 1 DEFLPDEF1 Io> -> (1) 67N-1 (1)
Three-phase undervoltage protection,
instance 1 PHPTUV1 3U< (1) 27 (1)
Positive-sequence undervoltage
protection, instance 1 PSPTUV1 U1< (1) 47U+ (1)
Negative-sequence overvoltage
protection, instance 1 NSPTOV1 U2> (1) 47O- (1)
Frequency protection, instance 1 FRPFRQ1 f>/f<,df/dt (1) 81 (1)
Frequency protection, instance 2 FRPFRQ2 f>/f<,df/dt (2) 81 (2)
Negative-sequence overcurrent
protection for motors, instance 1 MNSPTOC1 I2>M (1) 46M (1)
Negative-sequence overcurrent
protection for motors, instance 2 MNSPTOC2 I2>M (2) 46M (2)
Loss of load supervision LOFLPTUC1 3I< 37
Motor load jam protection JAMPTOC1 Ist> 51LR
Motor start-up supervision STTPMSU1 Is2t n< 49,66,48,51LR
Phase reversal protection PREVPTOC1 I2>> 46R
Thermal overload protection for motors MPTTR1 3Ith>M 49M
Circuit breaker failure protection CCBRBRF1 3I>/Io>BF 51BF/51NBF
Master trip, instance 1 TRPPTRC1 Master Trip (1) 94/86 (1)
Master trip, instance 2 TRPPTRC2 Master Trip (2) 94/86 (2)
Arc protection, instance 1 ARCSARC1 ARC (1) 50L/50NL (1)
Arc protection, instance 2 ARCSARC2 ARC (2) 50L/50NL (2)
Arc protection, instance 3 ARCSARC3 ARC (3) 50L/50NL (3)
Table continues on next page
1MRS756882 B Section 1
Introduction
REM615 7
Point List Manual

Function IEC 61850 IEC 60617 IEC-ANSI
Multi-purpose protection, instance 11) MAPGAPC1 MAP (1) MAP (1)
Multi-purpose protection, instance 21) MAPGAPC2 MAP (2) MAP (2)
Multi-purpose protection, instance 31) MAPGAPC3 MAP (3) MAP (3)
Control
Circuit-breaker control CBXCBR1 I <-> O CB I <-> O CB
Disconnector position indication,
instance 1 DCSXSWI1 I <-> O DC (1) I <-> O DC (1)
Disconnector position indication,
instance 2 DCSXSWI2 I <-> O DC (2) I <-> O DC (2)
Disconnector position indication,
instance 3 DCSXSWI3 I <-> O DC (3) I <-> O DC (3)
Earthing switch indication ESSXSWI1 I <-> O ES I <-> O ES
Emergency startup ESMGAPC1 ESTART ESTART
Condition monitoring
Circuit-breaker condition monitoring SSCBR1 CBCM CBCM
Trip circuit supervision, instance 1 TCSSCBR1 TCS (1) TCM (1)
Trip circuit supervision, instance 2 TCSSCBR2 TCS (2) TCM (2)
Current circuit supervision CCRDIF1 MCS 3I MCS 3I
Fuse failure supervision SEQRFUF1 FUSEF 60
Runtime counter for machines and
devices MDSOPT1 OPTS OPTM
Measurement
Disturbance recorder RDRE1 - -
Three-phase current measurement,
instance 1 CMMXU1 3I 3I
Sequence current measurement CSMSQI1 I1, I2, I0 I1, I2, I0
Residual current measurement,
instance 1 RESCMMXU1 Io In
Three-phase voltage measurement VMMXU1 3U 3U
Residual voltage measurement RESVMMXU1 Uo Vn
Sequence voltage measurement VSMSQI1 U1, U2, U0 U1, U2, U0
Three-phase power and energy
measurement, including power factor PEMMXU1 P, E P, E
RTD/mA measurement XRGGIO130 X130 (RTD) X130 (RTD)
Frequency measurement FMMXU1 f f
1) Multi-purpose protection is used for, for example, RTD/mA based protection.
Section 1 1MRS756882 B
Introduction
8REM615
Point List Manual

Section 2 IEC 60870-5-103 data mappings
2.1 Overview
These tables show the default point definitions. The user is able to freely remap all
these data. In that case PCM600 can provide an updated point list export of the new
outlook.
Indications and controls table columns
IEC 61850 name Internal signal that is mapped to the IEC 60870-5-103 point.
Expressed in the form 'Logical Device.Logical Node.Data
Object.Data Attribute'.
AFL-Common SA name AFL name of the corresponding data signal.
Description Signal description.
DPI value Value description. DPI value 10 means ON and value 01
means OFF.
FUN Default Function Type definition for the point. Observe that
Function Type 0 means that FUN in practice contains the
given Device Function Type. The user-definable Function
Type definition is set to the same FUN value as default.
INF Default Information Number definition for the point. The user-
definable Information Number definition is set to the same
INF value as default.
InUse 1 means that the point is taken in use as default, and 0 that
the point is not in use as default.
ASDU ASDU point type. 1 and 2 are indications in monitoring
direction. 20 means that the point is controllable.
GI Default setting for General Interrogation. 1 means ON, 0
means OFF.
Coding IEC 60870-5-103 DPI value coding. 1 means that the point
shows OFF (01) and ON (10) values only. 2 means that the
point shows values Intermediate (00), OFF (01), ON (10)
and Error (11).
Class 2 data table columns
Index Value position within the Class2 frame.
IEC 61850 name Internal signal that is mapped to the IEC 60870-5-103 point.
Description Signal description.
Default scale Value that corresponds to the maximum IEC 60870-5-103
measurand value 1.
Table continues on next page
1MRS756882 B Section 2
IEC 60870-5-103 data mappings
REM615 9
Point List Manual

Frame No6 Shows if the value is present in Class2 frame 6.
Frame No7 Shows if the value is present in Class2 frame 7.
Comment Additional information.
Section 2 1MRS756882 B
IEC 60870-5-103 data mappings
10 REM615
Point List Manual

2.2 Point list for REM615 Ver.3.0 ME01-03
1MRS756882 B Section 2
IEC 60870-5-103 data mappings
REM615 11
Point List Manual

Table 2: Indications and controls
IEC 61850 name AFL-Common SA name Description DPI value FUN INF InUse ASDU GI Coding
Device function type - standard data
LD0.LLN0.LEDRs1.ctlVal - LED reset
10=Reset indications and alarm LEDs 0 19 1 20 0 1
LD0.LLN0.Beh.stVal (Test mode) - Test mode
10=Test mode ON, 01=Test mode OFF 0 21 1 1 1 1
LD0.I3CGGIO1.ActSG.ctlVal - Parameter setting group 1 10=Setting group 1 in use 0 23 1 1,20 1 1 LD0.I3CGGIO1.ActSG.ctlVal - Parameter setting group 2 10=Setting group 2 in use 0 24 1 1,20 1 1 LD0.I3CGGIO1.ActSG.ctlVal - Parameter setting group 3 10=Setting group 3 in use 0 25 1 1,20 1 1 LD0.I3CGGIO1.ActSG.ctlVal - Parameter setting group 4 10=Setting group 4 in use 0 26 1 1,20 1 1 LD0.I3CGGIO1.ActSG.ctlVal - Parameter setting group 5 10=Setting group 5 in use 0 27 1 1,20 1 1 LD0.I3CGGIO1.ActSG.ctlVal - Parameter setting group 6 10=Setting group 6 in use 0 28 1 1,20 1 1 LD0.TCSSCBR1.CirAlm.stVal TCSSCBR1.ALARM Trip circuit 1 alarm 10=TCS1 alarm 0 36 1 1 1 1 LD0.LEDPTRC1.Op.general - Global operate 10=Operate (LEDPTRC) 0 68 1 2 0 1 LD0.LEDPTRC1.Str.general - Global start 10=Start (LEDPTRC) 0 84 1 2 1 1
Device function type - private data
LD0.TRPPTRC1.Op.general - TRPTRC1 input signal 10=Input signal ON 10 1 1 2 0 1 LD0.TRPPTRC1.Tr.general - TRPTRC1 trip output signal 10=Trip output signal ON 10 2 1 2 0 1 LD0.TRPPTRC2.Op.general - TRPTRC2 input signal 10=Input signal ON 10 3 1 2 0 1 LD0.TRPPTRC2.Tr.general - TRPTRC2 trip output signal 10=Trip output signal ON 10 4 1 2 0 1 CTRL.LLN0.Loc.stVal - Local/Remote state 10=Local, 01=Remote 10 10 1 1 1 1 CTRL.LLN0.LocRem.stVal.Station - Station state 10=Station ON, 01=OFF 10 11 1 1 1 1 LD0.LLN0.RecRs.ctlVal - Reset all data 10=Reset all data 10 19 1 20 0 1 LD0.LLN0.LEDRs2.ctlVal - Reset alarm LEDs 10=Reset alarm LEDs only 10 21 1 20 0 1 LD0.TCSSCBR2.CirAlm.stVal TCSSCBR2.ALARM Trip circuit 2 alarm 10=TCS2 alarm 10 36 1 1 1 1 DR.RDRE1.RcdTrg.ctlVal - Trig DR recording 10=External DR trig 10 41 1 20 0 1 DR.RDRE1.MemClr.ctlVal - Clear DR memory 10=Clear memory 10 42 1 20 0 1 LD0.CMSTA1.RecRs.ctlVal - Reset CMMXU1 max.demands 10=Reset max values 10 45 1 20 0 1
Multipurpose inputs (all variants)
LD0.MVGAPC1.Q1.stVal - MVGAPC1 input 1 signal 10=Input ON, 01=OFF 11 1 0 1 1 1 LD0.MVGAPC1.Q2.stVal - MVGAPC1 input 2 signal 10=Input ON, 01=OFF 11 2 0 1 1 1 LD0.MVGAPC1.Q3.stVal - MVGAPC1 input 3 signal 10=Input ON, 01=OFF 11 3 0 1 1 1 LD0.MVGAPC1.Q4.stVal - MVGAPC1 input 4 signal 10=Input ON, 01=OFF 11 4 0 1 1 1 LD0.MVGAPC1.Q5.stVal - MVGAPC1 input 5 signal 10=Input ON, 01=OFF 11 5 0 1 1 1 LD0.MVGAPC1.Q6.stVal - MVGAPC1 input 6 signal 10=Input ON, 01=OFF 11 6 0 1 1 1 LD0.MVGAPC1.Q7.stVal - MVGAPC1 input 7 signal 10=Input ON, 01=OFF 11 7 0 1 1 1 LD0.MVGAPC1.Q8.stVal - MVGAPC1 input 8 signal 10=Input ON, 01=OFF 11 8 0 1 1 1
SRGAPC1, flip-flop reset control (all variants)
LD0.SRGAPC1.Rs1.ctlVal - Reset SRGAPC1 flip-flop 1 10=Reset 11 101 1 20 0 1
Table continues on next page
Section 2 1MRS756882 B
IEC 60870-5-103 data mappings
12 REM615
Point List Manual

IEC 61850 name AFL-Common SA name Description DPI value FUN INF InUse ASDU GI Coding LD0.SRGAPC1.Rs2.ctlVal - Reset SRGAPC1 flip-flop 2 10=Reset 11 102 1 20 0 1 LD0.SRGAPC1.Rs3.ctlVal - Reset SRGAPC1 flip-flop 3 10=Reset 11 103 1 20 0 1 LD0.SRGAPC1.Rs4.ctlVal - Reset SRGAPC1 flip-flop 4 10=Reset 11 104 1 20 0 1 LD0.SRGAPC1.Rs5.ctlVal - Reset SRGAPC1 flip-flop 5 10=Reset 11 105 1 20 0 1 LD0.SRGAPC1.Rs6.ctlVal - Reset SRGAPC1 flip-flop 6 10=Reset 11 106 1 20 0 1 LD0.SRGAPC1.Rs7.ctlVal - Reset SRGAPC1 flip-flop 7 10=Reset 11 107 1 20 0 1 LD0.SRGAPC1.Rs8.ctlVal - Reset SRGAPC1 flip-flop 8 10=Reset 11 108 1 20 0 1
Fuse failure protection
LD0.SEQRFUF1.Str.general SEQRFUF1.FUSEF_U General start 10=General start 22 84 1 2 1 1 LD0.SEQRFUF1.Str3Ph.general SEQRFUF1.FUSEF_3PH 3 phase start 10=3 phase start 22 94 1 2 1 1
Current circuit failure protection
CTRL.CCRDIF1.Alm.stVal CCRDIF1.FAIL Current circuit failure alarm 10 = Alarm 23 1 1 1 1 1 CTRL.CCRDIF1.Op.general CCRDIF1.ALARM Current circuit failure operate 10 = Operate 23 90 1 2 0 1
Frequency protection, 2 stages (ME02,ME03)
LD0.FRPTRC1.Str.general FRPFRQ1.START Stage 1 start 10 = Stage1 start 27 11 1 2 1 1 LD0.FRPTOF1.Op.general FRPFRQ1.OPR_OFRQ Operate 1 signal for overfrequency 10 = Stage1 overfrequency operate 27 12 1 2 0 1 LD0.FRPTUF1.Op.general FRPFRQ1.OPR_UFRQ
Operate 1 signal for underfrequency 10 = Stage1 underfrequency operate 27 13 1 2 0 1
LD0.FRPFRC1.Op.general FRPFRQ1.OPR_FRG
Operate 1 signal for frequency gradient
10= Stage1 frequency gradient operate 27 14 1 2 0 1
LD0.FRPTRC2.Str.general FRPFRQ2.START Stage 2 start 10 = Stage2 start 27 21 1 2 1 1 LD0.FRPTOF2.Op.general FRPFRQ2.OPR_OFRQ Operate 2 signal for overfrequency 10 = Stage2 overfrequency operate 27 22 1 2 0 1 LD0.FRPTUF2.Op.general FRPFRQ2.OPR_UFRQ
Operate 2 signal for underfrequency 10 = Stage2 underfrequency operate 27 23 1 2 0 1
LD0.FRPFRC2.Op.general FRPFRQ2.OPR_FRG
Operate 2 signal for frequency gradient
10 = Stage2 frequency gradient operate 27 24 1 2 0 1
Multipurpose analog protection functions (3 stages) (ME01,ME02)
LD0.MAPGAPC1.Str.general MAPGAPC1.START Stage 1 Start 10 = Stage1 start 27 151 1 1 1 1 LD0.MAPGAPC1.Op.general MAPGAPC1.OPERATE Stage 1 Operate 10 = Stage1 operate 27 152 1 1 0 1 LD0.MAPGAPC2.Str.general MAPGAPC2.START Stage 2 Start 10 = Stage2 start 27 153 1 1 1 1 LD0.MAPGAPC2.Op.general MAPGAPC2.OPERATE Stage 2 Operate 10 = Stage2 operate 27 154 1 1 0 1 LD0.MAPGAPC3.Str.general MAPGAPC3.START Stage 3 Start 10 = Stage3 start 27 155 1 1 1 1 LD0.MAPGAPC3.Op.general MAPGAPC3.OPERATE Stage 3 Operate 10 = Stage3 operate 27 156 1 1 0 1
XRGGIO130 Alarm/Warning (ME01,ME02)
LD0.XRGGIO130.Wrn.stVal XRGGIO130.WARNING XRGGIO130 Warning 10 = Warning 27 201 0 1 0 1 LD0.XRGGIO130.Alm.stVal XRGGIO130.ALARM XRGGIO130 Alarm 10 = Alarm 27 202 0 1 0 1
Phase undervoltage protection (1 stage)
LD0.PHPTUV1.Str.phsA - Start[.phsA] 10=PhsA start 41 64 0 2 1 1 LD0.PHPTUV1.Str.phsB - Start[.phsB] 10=PhsB start 41 65 0 2 1 1 LD0.PHPTUV1.Str.phsC - Start[.phsC] 10=PhsB start 41 66 0 2 1 1 LD0.PHPTUV1.Str.general PHPTUV1.START Start[.general] 10=Start general 41 84 1 2 1 1
Table continues on next page
1MRS756882 B Section 2
IEC 60870-5-103 data mappings
REM615 13
Point List Manual

IEC 61850 name AFL-Common SA name Description DPI value FUN INF InUse ASDU GI Coding LD0.PHPTUV1.Op.general PHPTUV1.OPERATE Operate[.general] 10=Operate general 41 90 1 2 0 1
Positive sequence undervoltage protection (1 stage)
LD0.PSPTUV1.Str.phsA - Start[.phsA] 10=PhsA start 42 64 0 2 1 1 LD0.PSPTUV1.Str.phsB - Start[.phsB] 10=PhsB start 42 65 0 2 1 1 LD0.PSPTUV1.Str.phsC - Start[.phsC] 10=PhsB start 42 66 0 2 1 1 LD0.PSPTUV1.Str.general PSPTUV1.START Start[.general] 10=Start general 42 84 1 2 1 1 LD0.PSPTUV1.Op.general PSPTUV1.OPERATE Operate[.general] 10=Operate general 42 90 1 2 0 1
Negative sequence overvoltage protection (1 stage)
LD0.NSPTOV1.Str.phsA - Start[.phsA] 10=PhsA start 43 64 0 2 1 1 LD0.NSPTOV1.Str.phsB - Start[.phsB] 10=PhsB start 43 65 0 2 1 1 LD0.NSPTOV1.Str.phsC - Start[.phsC] 10=PhsB start 43 66 0 2 1 1 LD0.NSPTOV1.Str.general NSPTOV1.START Start[.general] 10=Start general 43 84 1 2 1 1 LD0.NSPTOV1.Op.general NSPTOV1.OPERATE Operate[.general] 10=Operate general 43 90 1 2 0 1
Physical binary I/O signals
LD0.XGGIO120.Ind1.stVal - X120-Input 1 10=ON, 01=OFF 51 1 0 1 1 1 LD0.XGGIO120.Ind2.stVal - X120-Input 2 10=ON, 01=OFF 51 2 0 1 1 1 LD0.XGGIO120.Ind3.stVal - X120-Input 3 10=ON, 01=OFF 51 3 0 1 1 1 LD0.XGGIO120.Ind4.stVal - X120-Input 4 10=ON, 01=OFF 51 4 0 1 1 1 LD0.XGGIO110.Ind1.stVal - X110-Input 1 10=ON, 01=OFF 52 1 0 1 1 1 LD0.XGGIO110.Ind2.stVal - X110-Input 2 10=ON, 01=OFF 52 2 0 1 1 1 LD0.XGGIO110.Ind3.stVal - X110-Input 3 10=ON, 01=OFF 52 3 0 1 1 1 LD0.XGGIO110.Ind4.stVal - X110-Input 4 10=ON, 01=OFF 52 4 0 1 1 1 LD0.XGGIO110.Ind5.stVal - X110-Input 5 10=ON, 01=OFF 52 5 0 1 1 1 LD0.XGGIO110.Ind6.stVal - X110-Input 6 10=ON, 01=OFF 52 6 0 1 1 1 LD0.XGGIO110.Ind7.stVal - X110-Input 7 10=ON, 01=OFF 52 7 0 1 1 1 LD0.XGGIO110.Ind8.stVal - X110-Input 8 10=ON, 01=OFF 52 8 0 1 1 1 LD0.XGGIO110.SPCSO1.stVal - X110-Output 1 10=ON, 01=OFF 52 101 0 1 1 1 LD0.XGGIO110.SPCSO2.stVal - X110-Output 2 10=ON, 01=OFF 52 102 0 1 1 1 LD0.XGGIO110.SPCSO3.stVal - X110-Output 3 10=ON, 01=OFF 52 103 0 1 1 1 LD0.XGGIO110.SPCSO4.stVal - X110-Output 4 10=ON, 01=OFF 52 104 0 1 1 1 LD0.XGGIO100.SPCSO1.stVal - X100-Output 1 10=ON, 01=OFF 53 101 0 1 1 1 LD0.XGGIO100.SPCSO2.stVal - X100-Output 2 10=ON, 01=OFF 53 102 0 1 1 1 LD0.XGGIO100.SPCSO3.stVal - X100-Output 3 10=ON, 01=OFF 53 103 0 1 1 1 LD0.XGGIO100.SPCSO4.stVal - X100-Output 4 10=ON, 01=OFF 53 104 0 1 1 1 LD0.XGGIO100.SPCSO5.stVal - X100-Output 5 10=ON, 01=OFF 53 105 0 1 1 1 LD0.XGGIO100.SPCSO6.stVal - X100-Output 6 10=ON, 01=OFF 53 106 0 1 1 1 LD0.XAGGIO130.Ind1.stVal - XA130-Input 1 10=ON, 01=OFF 54 1 0 1 1 1 LD0.XAGGIO130.Ind2.stVal - XA130-Input 2 10=ON, 01=OFF 54 2 0 1 1 1 LD0.XAGGIO130.Ind3.stVal - XA130-Input 3 10=ON, 01=OFF 54 3 0 1 1 1
Table continues on next page
Section 2 1MRS756882 B
IEC 60870-5-103 data mappings
14 REM615
Point List Manual
