ABB ACQ580-34 User manual

—
ABB DRIVES FOR WATER
ACQ580-34 drive modules
Quick installation guide
English. . . . . . . . 3
EN

—
List of related manuals
You can find manuals and other product documents in PDF format on the Internet. See section
Document library on the Internet on the inside of the back cover. For manuals not available in the
Document library, contact your local ABB representative.
The code below opens an online listing of the manuals applicable to the product:
Drive hardware manuals and guides Code (English)
Drive/converter/inverter safety instructions Multilingual code:
3 AXD50000037978
ACQ580-34 drive modules hardware manual 3AXD50000420025
ACQ580-34 drive modules quick installation guide 3AXD50000424634
ACx-AP-x Assistant control panels user’s manual 3AUA0000085685
Recycling instructions and environmental information
for ACS880-04, ACS880-14, ACS880-34, ACS580-04,
ACQ580-04 and ACH580-04 drives
3AXD50000137688
Drive firmware manuals and guides
ACQ580 pump control program firmware manual
3AXD50000035867
ACH580 drives with pump control program quick
startup guide
3AXD50000048773
Option manuals and guides
DPMP-02/03 mounting platform for control panels
installation guide
3AUA0000136205
CPTC-02 ATEX-certified thermistor protection module,
Ex II (2) GD (+L537+Q971) user’s manual
3AXD50000030058
FOCH du/dt filters hardware manual 3AFE68577519
Sine filters hardware manual 3AXD50000016814
Manuals and quick guides for I/O extension modules,
fieldbus adapters, etc.
ACQ580-34 manuals
3AXD50000424634 Rev C
MUL
EFFECTIVE: 2019-09-12
 2019 ABB Oy. All Rights Reserved.

EN – Quick installation guide 3
EN
DA
DE
ES
FI
FR
IT
PL
PT
RU
SV
TR
ZH
EN – Quick installation guide
Contents of this guide
This guide tells you briefly how to install the drive module into a 800 mm wide Rittal VX25
cabinet. For installation examples in different cabinets and more detailed instructions,
engineering guide lines, technical data and complete safety instructions, see the hardware
manual (www.abb.com/drives, Select Document Library and search for document number
3AXD50000420025 [English]).
Obey the safety instructions
See figures on page 9. If you ignore these instructions, injury or death, or damage to the
equipment can occur.
WARNING! Handle the drive module carefully. Open the support legs by pressing
each leg a little down and turning it aside (1, 2).
Do not tilt the drive module. It is heavy and its center of gravity is high. The
module will overturn from a sideways tilt of 5 degrees. Do not leave the module
unattended on a sloping floor.
To prevent the drive module from falling, attach its top lifting lugs with chains to the cabinet
frame before you push the module into the cabinet. Work carefully preferably with help
from another person. Keep a constant pressure with one foot on the base of the module to
prevent the module from falling on its back.
WARNING! If you are not a qualified electrical professional, do not do installation
or maintenance work. Go through these steps before you begin any installation or
maintenance work.
1. Clearly identify the work location.
2. Disconnect all possible voltage sources.
•Open the main disconnector of the drive.
•Make sure that reconnection is not possible. Lock the disconnectors to open
position and attach a warning notice to them.
•Disconnect any external power sources from the control circuits before you do
work on the control cables.
•After you disconnect the drive, always wait for 5 minutes to let the intermediate
circuit capacitors discharge before you continue.
3. Protect any other energized parts in the work location against contact.
4. Take special precautions when close to bare conductors.

4 EN – Quick installation guide
EN
DA
DE
ES
FI
FR
IT
NL
PL
PT
RU
SV
TR
ZH
5. Measure that the installation is de-energized.
•Use a multimeter with an impedance of at least 1 Mohm.
•Make sure that the voltage between the drive module input power terminals
(L1/U1, L2/V1, L3/W1) and the grounding (PE) busbar is close to 0 V.
•Make sure that the voltage between the drive module UDC+ and UDC- terminals
and the grounding (PE) terminal is close to 0 V.
6. Install temporary grounding as required by the local regulations.
7. Ask for a permit to work from the person in control of the electrical installation work.
Select the power cables
Size the power cables according to local regulations to carry the nominal current given on
the type designation label of your drive.
Ensure the cooling
See table on page 9 for the losses and the cooling air flow through the drive. The allowed
operating temperature range of the drive without derating is -15 to +40 °C.
Protect the drive and input power cables
See table on page 9.
Installing the drive module and LCL filter module into a
cabinet

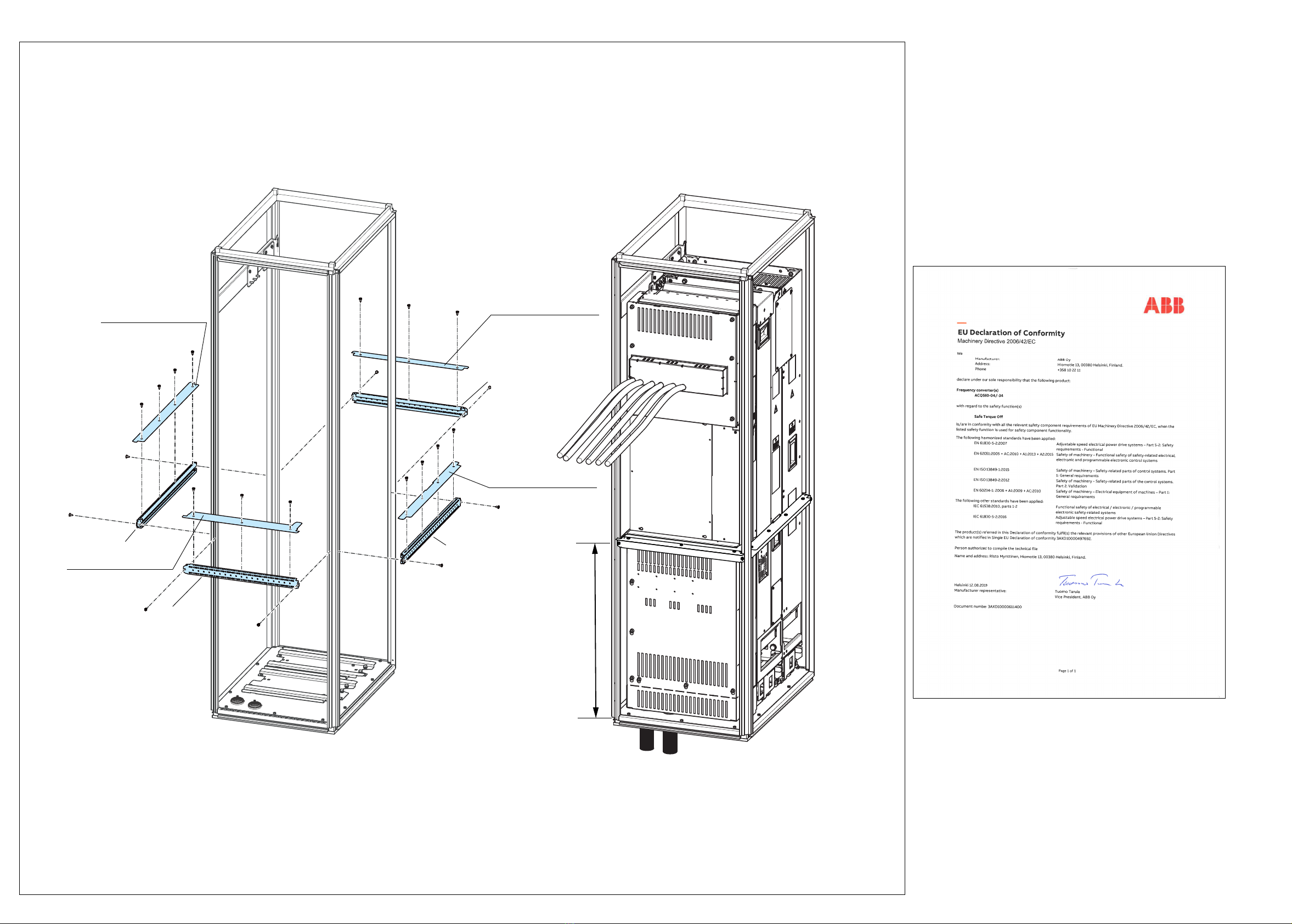

See appendix Step-by-step drawings for an installation example of standard drive
configuration in Rittal VX25 800 mm wide cabinet.

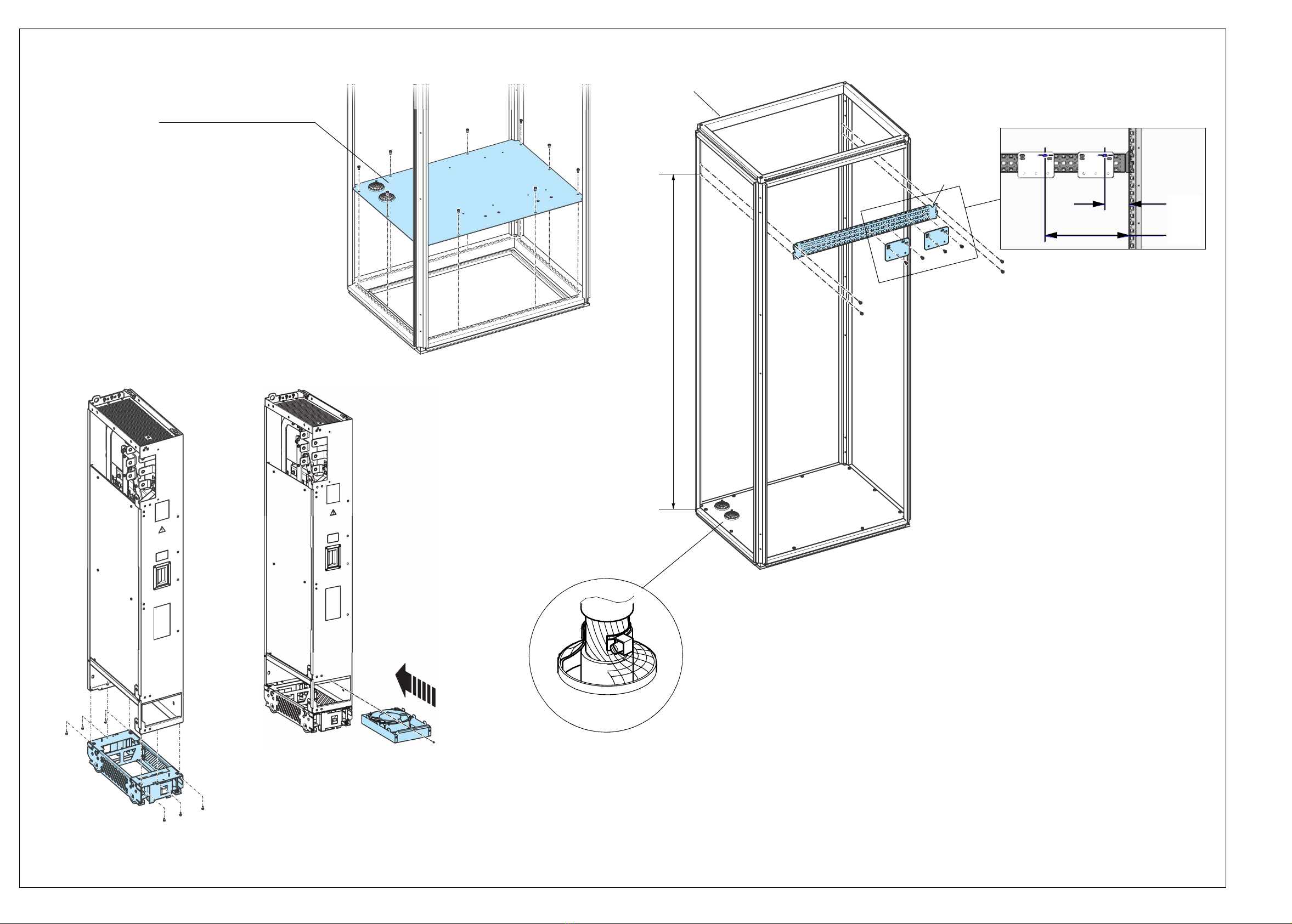

•Attach the plinth to the floor.
•Attach the cabinet frame to the plinth.
•Make the bottom plate with 360-degree grounding entries for power cables.
•Attach the bottom plate to the cabinet.
•Attach the punched section to the back of the cabinet frame.
•Attach the mounting brackets to the punched section.
•Install the pedestal to the LCL filter module.
•Install the cooling fan to the LCL filter module.
•Attach the LCL filter module pedestal guide plate to the cabinet bottom plate.
•Attach the telescopic insertion ramp to the pedestal guide plate.
•To prevent the LCL filter module from falling, attach its lifting lugs with chains to the
cabinet frame.

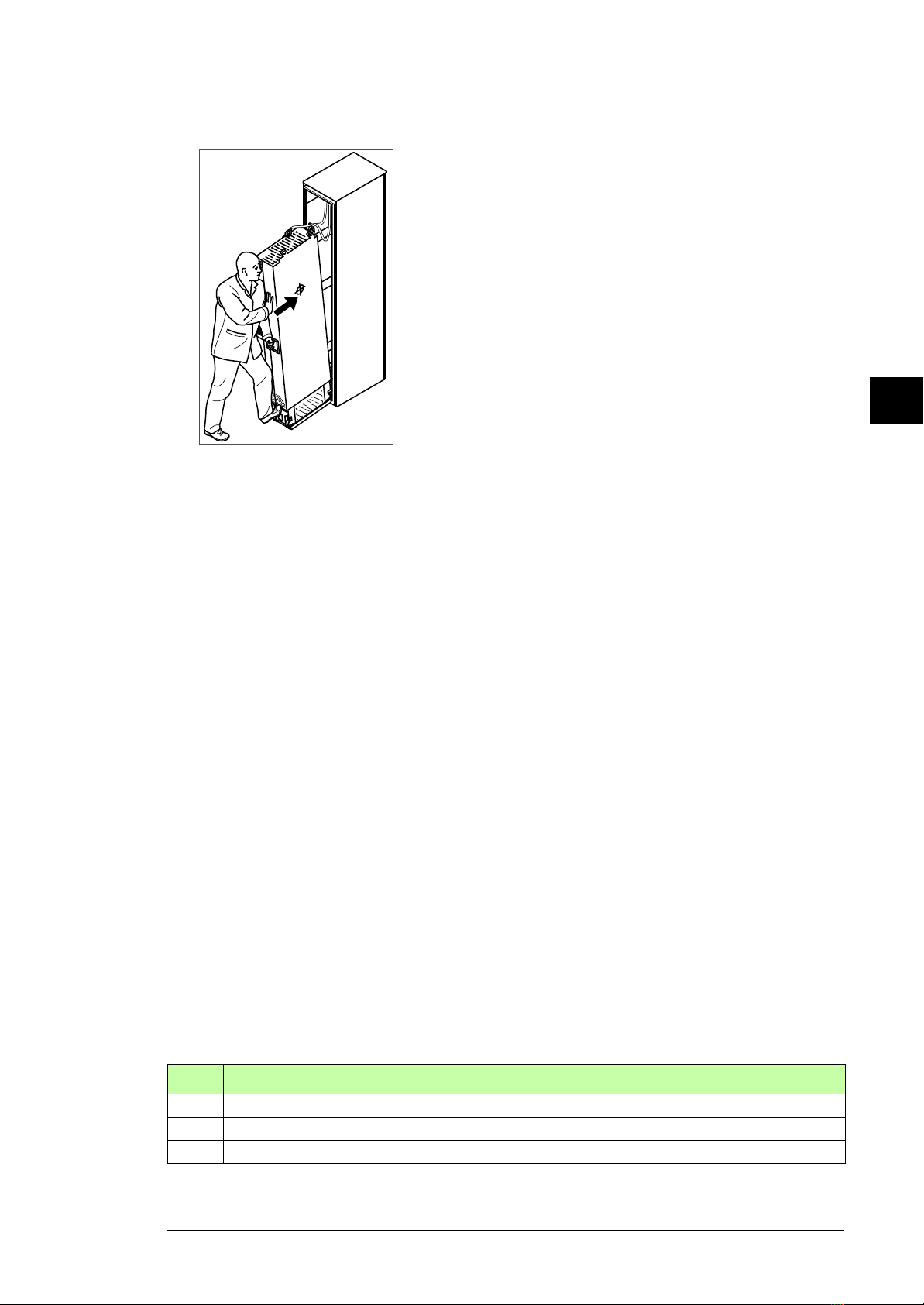

•Push the LCL filter module carefully into the cabinet along the telescopic insertion
ramp. Work preferably with help from another person as shown below. Keep a
constant pressure with one foot on the base of the module to prevent the module from
falling on its back

EN – Quick installation guide 5
EN
DA
DE
ES
FI
FR
IT
PL
PT
RU
SV
TR
ZH
•Unfasten the insertion ramp and attach the LCL filter module to bottom plate.

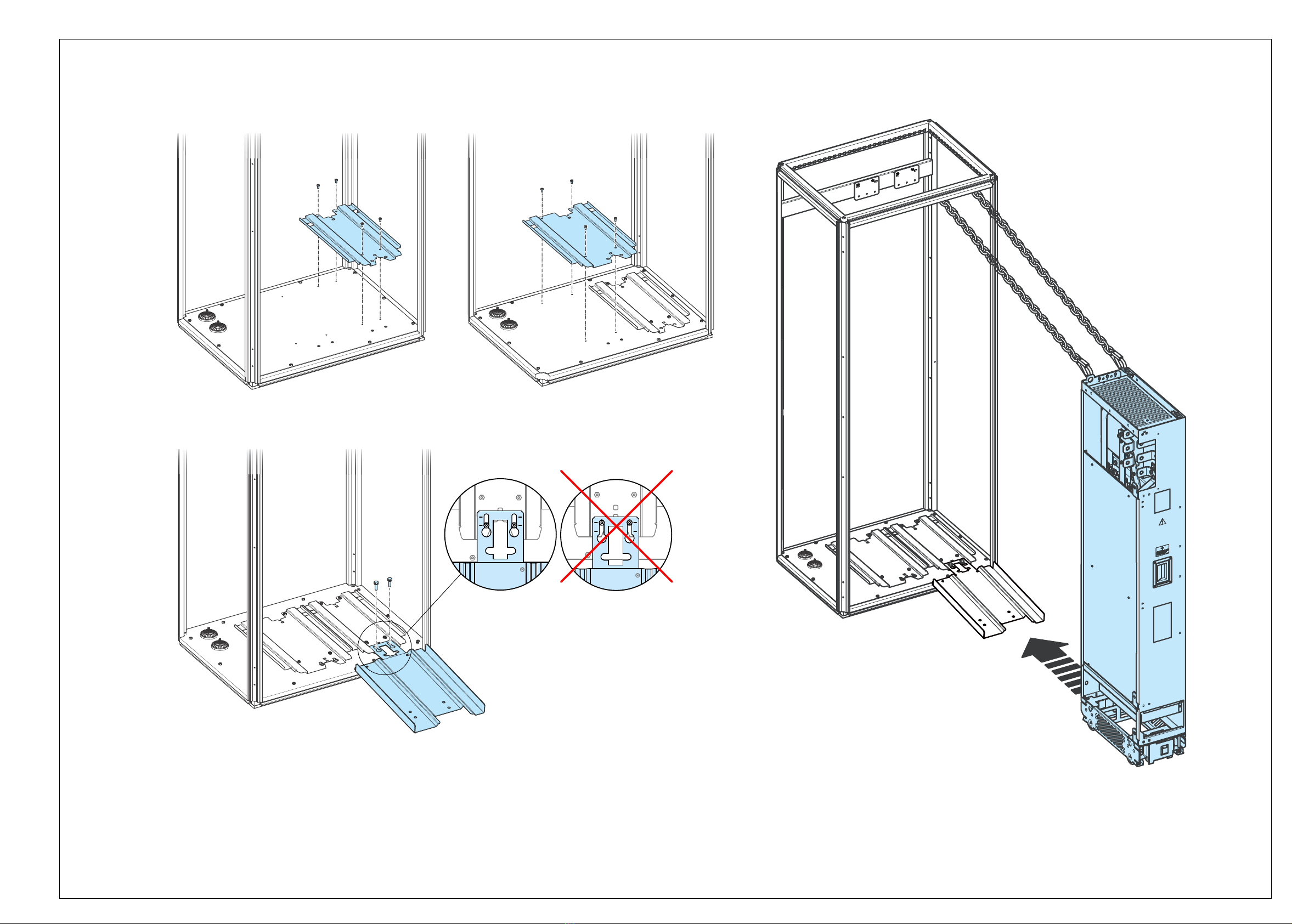

•Attach the drive module pedestal guide plate to the cabinet bottom plate.
•Attach the telescopic insertion ramp to the pedestal guide plate.
•Remove the sheeting from the clear plastic shrouds of the drive module from both
sides.
•Install the top metallic shroud to the drive module.
•Install the back shrouds to the drive module.
•To prevent the drive module from falling, attach its lifting lugs with chains to the
cabinet frame.
•Push the drive module carefully into the cabinet along the telescopic insertion ramp.
Work preferably with help from another person. Keep a constant pressure with one
foot on the base of the module to prevent the module from falling on its back.
•Unfasten the insertion ramp and attach the drive module to the bottom plate.

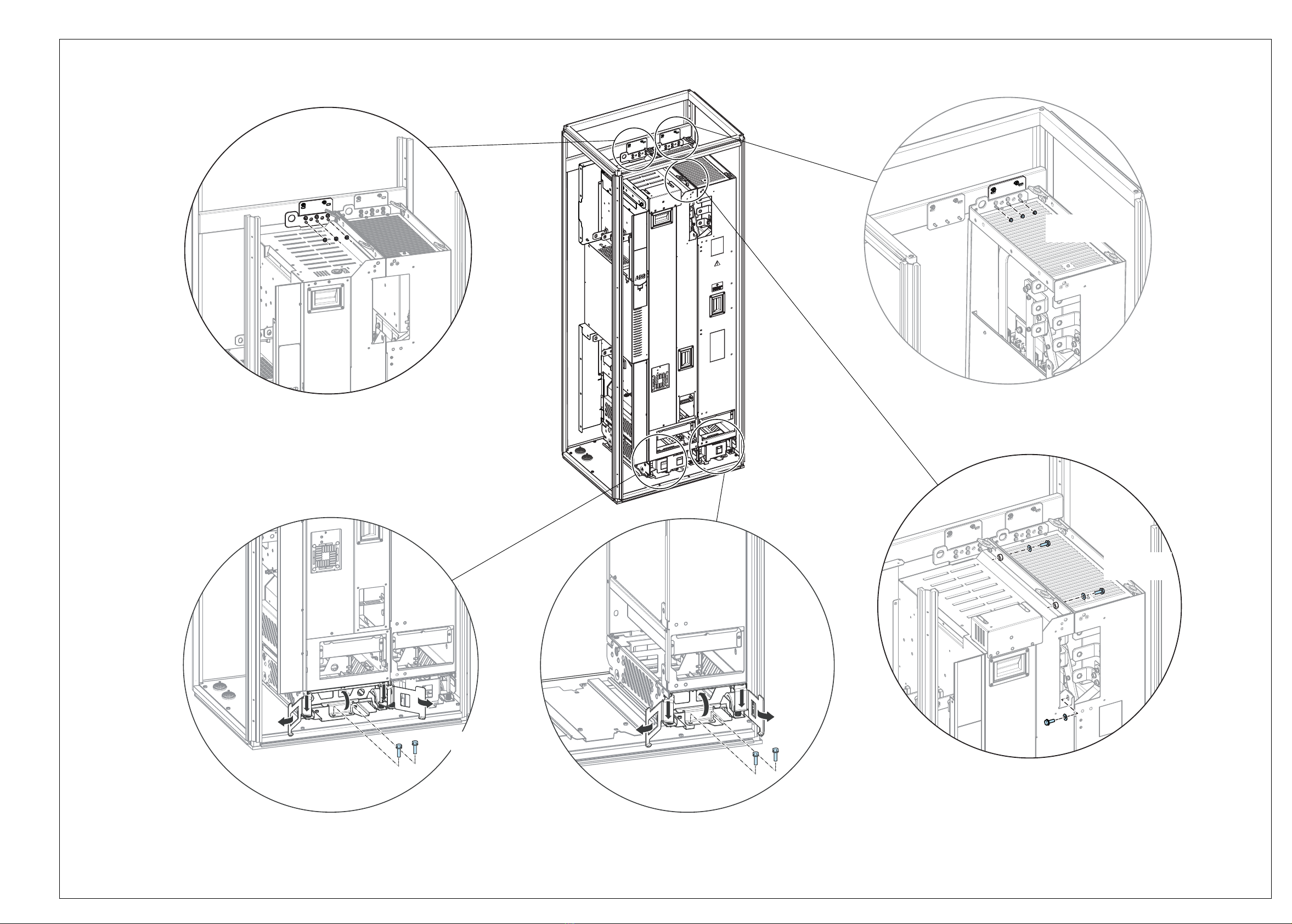

•Attach the LCL filter module and drive module to the punched section.
•Attach LCL filter module to the drive module from top side. Reinstall the cover.
•Connect the LCL filter busbars to the drive module busbars with the connecting
busbars.
•Connect the LCL filter fan power supply cable to connector FAN3:LCL.
•Connect the power cables and install the shrouds as described in section Connecting
the power cables and installing the shrouds.
•Connect the control cables.
•Install the air baffles.
Connecting the power cables and installing the shrouds
Step Task (motor cables)
1 Install the grounding terminal to the drive module base.
2 Run the motor cables to the cabinet. Ground the cable shields 360 degrees at the cabinet entry.
3 Connect the twisted shields of the motor cables to the grounding terminal.
3AUA0000088632

6 EN – Quick installation guide
EN
DA
DE
ES
FI
FR
IT
NL
PL
PT
RU
SV
TR
ZH
4 Screw in and tighten the insulators to the drive module by hand. Install the T3/W2 connection
terminal to the insulators.
WARNING! Do not use longer screws or bigger tightening torque than given in the
installation drawing. They can damage the insulator and cause dangerous voltage to
be present at the module frame.
5 Connect the phase T3/W2 conductors to the T3/W2 terminal.
6 Install the T2/V2 connection terminal to the insulators See the warning in step 4.
7 Connect the phase T2/V2 conductors to the T2/V2 connection terminal.
8 Install the T1/U2 connection terminal to the insulators. See the warning in step 4.
9 Connect the phase T1/U2 conductors to the T1/U2 terminal.

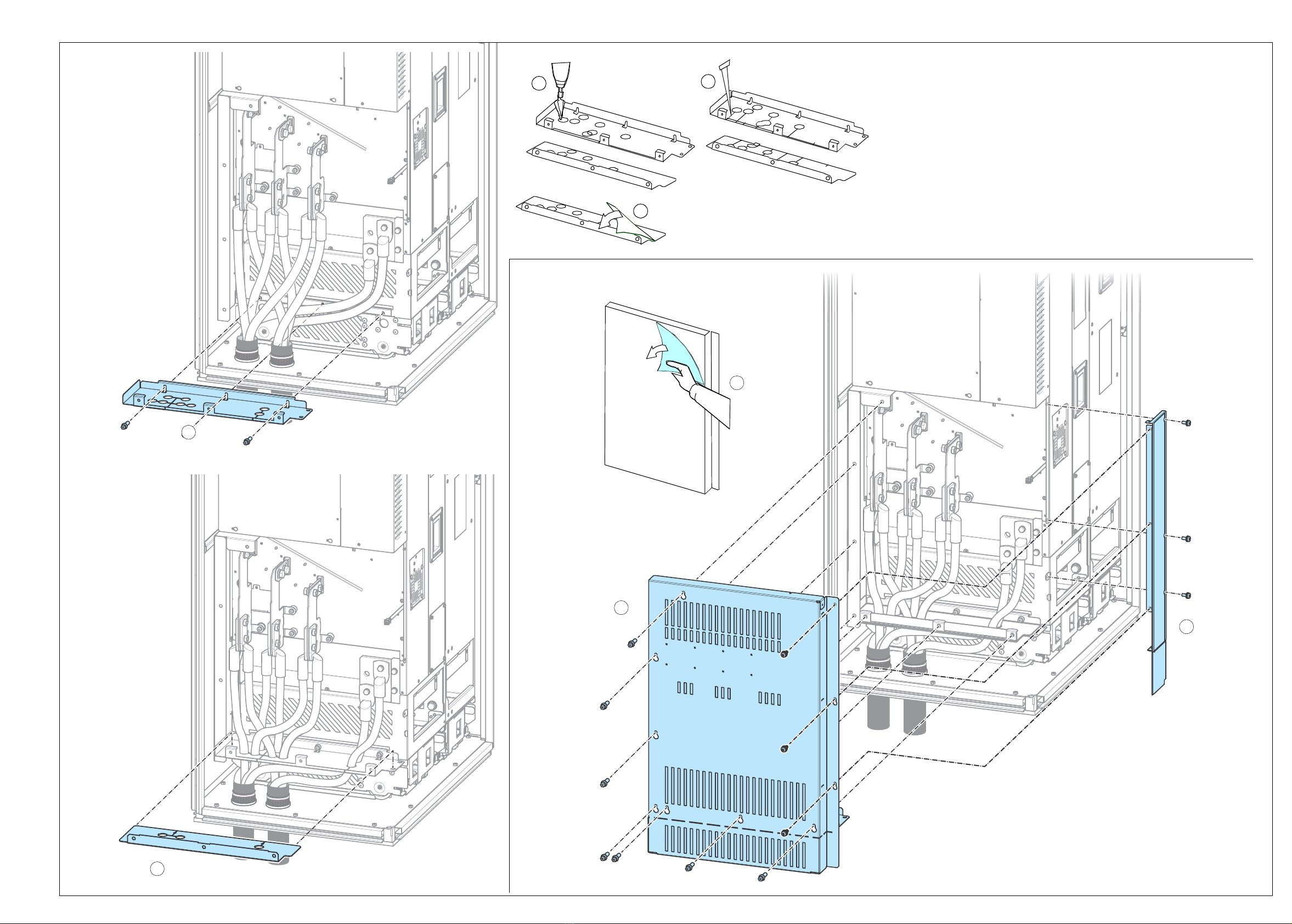

10 Remove the plastic sheeting from the output clear plastic shrouds from both sides.
11 Install the shrouds to the drive module.
12 Install the lower front cover to the drive module.

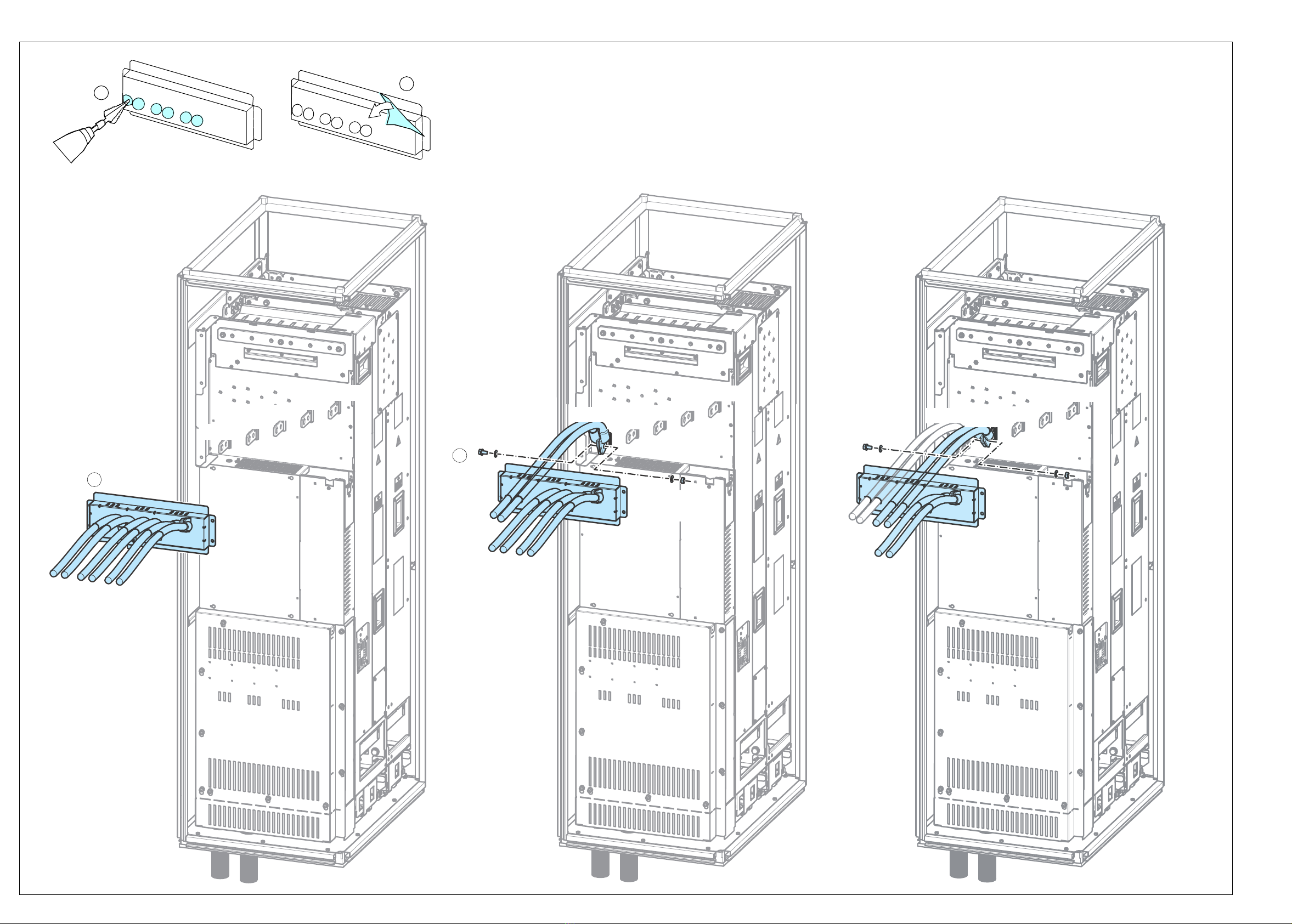

Step Task (input cables)
1 Ground the input cable shields (if present) 360 degrees at the cabinet entry.
2 Connect the twisted shields of the input cables and separate ground cable (if present) to the cabinet
grounding busbar.
3 Step drill carefully sufficiently big holes to the entry clear plastic shroud for the cables to the
connected. Align the holes in the vertical direction according to the alignment holes in the shroud.
Smooth the hole edges.
Remove the plastic sheeting from both sides of the shroud.
Attach the cables firmly to the cabinet frame to prevent chafing against the hole edges.
4 Put the conductors of the input cables through the drilled holes in the clear plastic shroud.
5 For drive modules without option +H370: Connect the input cable conductors to the drive module
L1/U1, L2/V1 and L3/W1 connection busbars, Go to step 12.
For option +H370: Do steps 6 to 11.
6Screw in and tighten the insulators to the drive module by hand. Install the L1/U1 connection
terminal to the insulators.
WARNING! Do not use longer screws or bigger tightening torque than given in the
installation drawing. They can damage the insulator and cause dangerous voltage to
be present at the module frame.
7Connect the L1/U1 conductors to the L1/U1 connection terminal.
8Install the L2/V1 connection terminal to the insulators. See the warning in step 6.
9Connect the L2/V1 conductors to the L2/V1 connection terminal.
10 Install the L3/W1 connection terminal to the insulators. See the warning in step 6.
11 Connect the L3/W1 conductors to the L3/W1 connection terminal.
12 Install the entry clear plastic shroud. Install the front clear plastic shroud and upper front cover.
13 Install the side and top clear plastic shrouds to the drive module.
Step Task (motor cables)

EN – Quick installation guide 7
EN
DA
DE
ES
FI
FR
IT
PL
PT
RU
SV
TR
ZH
Default I/O connections
The default I/O connections of the Water default configuration are shown below.
Wire sizes: 0.14…2.5 mm2 (26...16 AWG): All terminals.
Tightening torques: 0.5…0.6 N·m (0.4 lbf·ft).
500 ohm
Max.
X1
1…10 kohm
1SCR
Reference voltage and analog inputs and outputs
2AI1
Signal cable shield (screen)
3AGND
Output frequency/speed reference : 0…10 V
4+10V
Analog input circuit common
5AI2
Reference voltage 10 V DC
6
Actual feedback: 0…10 V
AGND
7AO1
8AO2
Analog input circuit common
Output frequency: 0…10 V
9AGND
Output current: 0…20 mA
Analog output circuit common
10 +24V
X2 & X3 Aux. voltage output and programmable digital inputs
11 DGND
Aux. voltage output +24 V DC, max. 250 mA
12 DCOM
Aux. voltage output common
13 DI1
Digital input common for all
14 DI2
Stop (0) / Start (1)
15 DI3
Not configured
16 DI4
Constant frequency/speed selection
17 DI5
Not configured
18 DI6
Not configured
Not configured
19 RO1C
X6, X7, X8 Relay outputs
20 RO1A
21 RO1B
Ready run
250 V AC / 30 V DC
2 A
22 RO2C
23 RO2A
24 RO2B
Running
250 V AC / 30 V DC
2 A
25 RO3C
26 RO3A
27 RO3B
X5
Fault (-1)
250 V AC / 30 V DC
2 A
29 B+
Embedded fieldbus
30 A-
31 DGND
S4 TERM
Embedded fieldbus, EFB (EIA-485)
S5 BIAS
Termination switch
X4
Bias resistors switch
34
Safe torque off
OUT1
35 OUT2
36 SGND
37 IN1
38 IN2
X10
40
24 V AC/DC
41
Safe torque off. Factory connection. Both
circuits must be closed for the drive to start. See
chapter 7KH6DIHWRUTXHRIIIXQFWLRQ in the
$&4KDUGZDUHPDQXDO
(3AXD50000[English]).
24 V AC/DC+ in Ext. 24V AC/DC input to power up the control unit
24 V AC/DC- in
when the main supply is disconnected.
Total load capacity of the Auxiliary voltage output +24V (X2:10) is 6.0 W (250 mA / 24 V DC).

8 EN – Quick installation guide
EN
DA
DE
ES
FI
FR
IT
NL
PL
PT
RU
SV
TR
ZH

Step-by-step drawings for an installation example of standard drive configuration in Rittal VX25 800 mm wide cabinet 9
Step-by-step drawings for an installation example of standard drive configuration in Rittal VX25 800 mm wide cabinet
INPUT
(PE) PE (PE)
3
9
L1 L2 L3
L1 L2 L3
1
2a 2b
PE
L1/
U1 V1
L2/ L3/
W1 UDC- UDC+
PE
8
ACQ580-34
OUTPUT
T1/ T2/ T3/
U2 V2 W2
6
4
V1
U1 W1
5
3 ~
M
7
1
2
3
Drive type
ACQ580-34-
Air flow Losses Type DIN 43653
m3/h W
UN = 400 V
246A-4 2100 5280 170M5408
293A-4 2100 6400 170M5410
363A-4 2100 8000 170M6410
442A-4 2100 10000 170M6411
505A-4 2100 10000 170M6412
585A-4 2100 12600 170M6414
650A-7 2100 14200 170M6414
UN = 480 V IEC
246A-4 2100 5220 170M4410
293A-4 2100 5220 170M5408
365A-4 2100 7830 170M5410
442A-4 2100 9135 170M6410
505A-4 2100 9135 170M6411
585A-4 2100 9135 170M6411
650A-4 2100 10440 170M6412
UN = 480 V UL
240A-4 2100 5280 170M4410
302A-4 2100 6525 170M5408
361A-4 2100 7830 170M5410
414A-4 2100 9135 170M6410
477A-4 2100 10440 170M6411
WARNING! The UDC+ and UDC- terminals of the drive
module must not be used for any other than optional external
brake chopper connection.

10 Step-by-step drawings for an installation example of standard drive configuration in Rittal VX25 800 mm wide cabinet
Rittal 8806.000
Rittal 8617.140
1705.5 (67.15)
Tapping screw M6×12
Torx T30 8 N·m
360 °
80.5
(3.17)
280.5
(11.04)
non-ABB part (see dimension drawings)
