ABB ACS880-01 Series User manual

ABB industrial drives
Recycling instructions and environmental information
ACS880-01 drives

List of related manuals
You can find manuals and other product documents in PDF format on the Internet. See section
Document library on the Internet on the inside of the back cover. For manuals not available in the
Document library, contact your local ABB representative.
Drive hardware manuals and guides Code (English)
ACS880-01 drives recycling instructions environmental
information
3AUA0000149383
ACS880-01 hardware manual 3AUA0000078093

Recycling instructions and
environmental information
ACS880-01 drives
3AUA0000149383 Rev A
EN
EFFECTIVE: 2013-10-16
2013 ABB Oy. All Rights Reserved.
Table of contents

5
Table of contents
1. Introduction to the manual
What this chapter contains . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Applicability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Target audience . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Contents of the manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Disclaimer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2. Product materials
Contents of this chapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Materials of frames R1 to R3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Materials of frame R4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Materials of frame R5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Materials of frames R6 to R7 and R8 to R9 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Materials of the control unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Materials of the control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Product manuals and sales brochures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
3. Manufacturing and use
Manufacturing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
4. Product disposal
Contents of this chapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Manual dismantling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Mechanical shredding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
List of potentially harmful materials . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
A recycling example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Further information
Product and service inquiries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Product training . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Providing feedback on ABB Drives manuals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Document library on the Internet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

6

Introduction to the manual 7
1
Introduction to the manual
What this chapter contains
This chapter describes the contents of the manual. It also contains information on the
compatibility and intended audience.
Applicability
This document covers the environmental information of the following products:
•ACS880-01 drives with option modules.
Target audience
This document is intended for ABB internal use, ABB customers and for commercial
recyclers.
Contents of the manual
The document comprises a summary of materials used in the products and instructions
how to handle an end-of-life product.
Because environmental regulations vary from country and region to another, and are also
evolving rapidly by time, we recommended to contact local environmental authorities for
up-to-date information about proper product material recovery or other treatment.
This manual contains the following chapters:
•Product materials
•Manufacturing and use
•Product disposal

8 Introduction to the manual
Disclaimer
The information presented in this publication does not form part of any quotation or
contract, is believed to be accurate and reliable and may be changed without notice. No
liability will be accepted by the publisher for any consequences of its use. Publication
thereof does not convey nor imply any license under patent - or other industrial or
intellectual - property rights.

Product materials 9
2
Product materials
Contents of this chapter
This chapter describes the main components and product materials of the ACS880-01
drives.

10 Product materials
Materials of frames R1 to R3
The main components are shown in the figure below.
ACS880-01 frames R1 to R3 product materials
Frame R1 Frame R2 Frame R3
Total
weight
(kg) ~6
Total
weight
(kg) ~8
Total
weight
(kg) ~10
Part Category Qty Materials Weight (g) Weight (g) Weight (g)
1 Sheet metal parts 4 Zn plated Fe 800 830 1160
2 Reinforced plastic parts 2 Plastic: PC+10%GF, Brass 1210 1360 1710
3 Housing / Cover parts 5 Plastic: ABS PC 740 740 940
4 Heat sink 2 Aluminum: AW-6060 [Al MgSi] 960 1200 1560
5 Choke 1 Fe, Cu, PET+30%GF, silicone,
thermoplastic polyester, glass-filled nylon.
1390 2200 3060
6 Gaskets 7 (R1)
6 (R2)
6 (R3)
Rubber: TPE 50 50 60
7 Axial fan 1 Various materials, plastic parts: PBT. 90 210 210
8 Printed circuit board 2 Various materials, electronic components. 780 780 980
9 Semiconductors 1 Cu, AI oxide, Sn, silicone gel, PBT, GF 40 40 40
10 Control unit 1 See subcection Materials of the control
unit on page 15.
550 550 550
11 Control panel 1 See subsection Materials of the control
panel on page16.
130 130 130
Cables / Wires N/A PVC, Cu, GF, Sn, Au, Ni, phosphor
bronze, thermoplastic polyester, glass-
filled nylon.
30 30 30

Product materials 11
Materials of frame R4
The main components are shown in the figure below.
ACS880-01 frame R4 product materials Total weight
(kg) ~18.5
Part Category Qty Materials Weight (g)
1 Sheet metal parts 19 Zn plated Fe 5750
2 Not included
3 Deck part 1 Plastic: PC+10%GF, PUR 460
4 Housing parts 2 Plastic: ABS PC, PUR, Brass 930
5 Not included
6 Housing / Cover parts 4 Plastic: ABS PC 1010
7 Heat sink 1 Aluminum: AW-6060 [Al MgSi] 1860
8 Choke 1 Fe, Cu, PET+30%GF, silicone, thermoplastic polyester, glass-
filled nylon.
4710
9 Gaskets 7 Rubber: TPE 100
10 Axial fan 1 Various materials, plastic parts: PBT 230
11 Printed circuit board 4 Various materials, electronic components. 2060
14 Semiconductors 1 Cu, Al oxide, Sn, silicone gel, PBT, GF 310
15 Control unit 1 See subsection Materials of the control unit on the 15. 550
16 Control panel 1 See subsection Materials of the control panel on the 16. 130
Cables / Wires N/A PVC, Cu, GF, Sn, Au, Ni, phosphor bronze, thermoplastic
polyester, glass-filled nylon.
90

12 Product materials

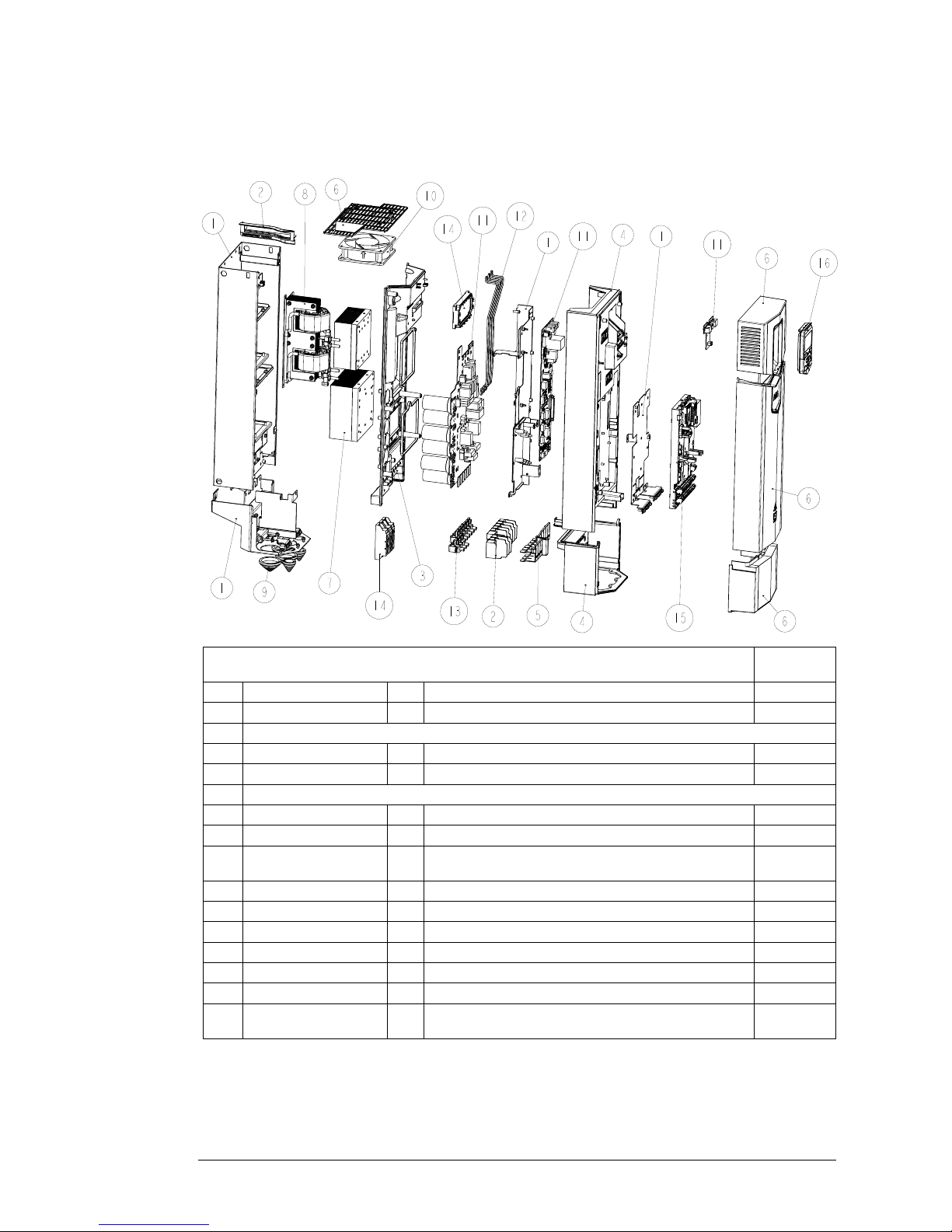

Materials of frame R5
The main components are shown in the figure below.
ACS880-01 frame R5 product materials Total weight
(kg) ~23
Part Category Qty Materials Weight (g)
1 Sheet metal parts 16…
17
Zn plated Fe 6190…6730
2 Reinforced plastic parts 2 Plastic: PC+10%GF 270
3 Deck part 1 Plastic: PC+10%GF, PUR 620
4 Housing parts 2 Plastic: ABS PC, PUR, Brass 1210
5 Terminal cover 1 Plastic: PC 40
6 Housing / Cover parts 4 Plastic: ABS PC 1310
7 Heat sink 2 Aluminum: AW-6060 [Al MgSi] 3100
8 Choke 1 Fe, Cu, PET+30%GF, silicone, thermoplastic polyester, glass-
filled nylon.
6040
9 Gaskets 7 Rubber: TPE 140
10 Axial fan 1 Various materials, plastic parts: PBT 370
11 Printed circuit board 3 Various materials, electronic components. 1820…2210
12 Bus bars 3 Cu, Sn 110…250
13 Terminal connectors 8 SS, Sn plated Cu, Zn plated steel 340
14 Semiconductors 4 Cu, Al oxide, Sn, silicone gel, PBT, GF 580
15 Control unit 1 See subsection Materials of the control unit on page 15. 550
16 Control panel 1 See subsection Materials of the control panel on page 16. 130
Cables / Wires N/A PVC, Cu, GF, Sn, Au, Ni, phosphor bronze, thermoplastic
polyester, glass-filled nylon.
150

Product materials 13
Materials of frames R6 to R7 and R8 to R9
The main components are shown in the figure below.
ACS880-01 frames R6 to R7 product materials
Frame R6 Frame R7
Total
weight
(kg) ~45
Total
weight
(kg) ~55
Part Category Qty Materials Weight (g) Weight (g)
1 Sheet metal parts 12…13 (R6)
13…14 (R7)
Zn plated Fe 12130…
12290
13760…
13920
2 Reinforced plastic parts 5 Plastic: PC+10%GF 800 910
3 Housing parts 3 Plastic: ABS PC, PUR, Brass 1440 1740
4 Terminal cover /
Insulating sheets
8…10 (R6)
8…12 (R7)
Plastic: PC 240…420 430…530
5 Housing / Cover parts 3 Plastic: ABS PC 1410 2080
6 Heat sink 1 Aluminum: AW-6060 [Al MgSi] 5520 7350
7 Choke 2 Fe, Cu, PET+30%GF, silicone, thermoplastic
polyester, glass-filled nylon.
9400 13800
8 Gaskets 23 (R6)
24 (R7)
Rubber: TPE 280 460
9 Axial fan 2 Various materials, plastic parts: PBT, aluminum
alloy.
940 940
10 Printed circuit board 3 (R6)
3…4 (R7)
Various materials, electronic components. 650 650…740
11 Bus bars 12…17 (R6)
15…20 (R7)
Cu, Sn 1240…
1660
1740…
2550
12 Terminal connectors 9 SS, Sn plated Cu, Zn plated steel 980 1110
13 Electrolytic capacitor 6 Al, electrolytic solution. 1680 2340
14 Semiconductors 7 (R6)
9 (R7)
Cu, Al oxide, Sn, silicone gel, PBT, GF 1380 2040
15 Control unit 1 See subsection Materials of the control unit on
page 15.
550 550

14 Product materials
16 Control panel 1 See subsection Materials of the control panel on
page 16.
130 130
17 Ferrite toroids
(optional)
0 or 3 Ferrite iron 0 or 540 0 or 540
Cables / Wires N/A PVC, Cu, GF, Sn, Au, Ni, phosphor bronze,
thermoplastic polyester, glass-filled nylon
1010 1340
ACS880-01 frames R8 to R9 product materials
Frame R8 Frame R9
Total
weight
(kg) ~70
Total
weight
(kg) ~98
Part Category Qty Materials Weight (g) Weight (g)
1 Sheet metal parts 16…18 Zn plated Fe 15760…
16290
21310…
22210
2 Reinforced plastic parts 9 Plastic: PC+10%GF 1160 1410
3 Housing parts 3 Plastic: ABS PC, PUR, Brass 2120 2200
4 Terminal cover /
Insulating sheets
11…17 (R8)
8…13 (R9)
Plastic: PC 400…520 360…460
5 Housing / Cover parts 3 Plastic: ABS PC 2310 2720
6 Heat sink 1 Aluminum: AW-6060 [Al MgSi] 7710 14490
7 Choke 2 Fe, Cu, PET+30%GF, silicone, thermoplastic
polyester, glass-filled nylon.
17650 25430
8 Gaskets 27 (R8)
23 (R9)
Rubber: TPE 640 970
9 Axial fan 2 (R8)
3 (R9)
Various materials, plastic parts: PBT, aluminum
alloy.
980 1860
10 Printed circuit board 3…4 (R8)
4…5 (R9)
Various materials, electronic components. 650…740 940…1040
11 Bus bars 13…18 (R8)
14…17 (R9)
Cu, Sn 2770…
3900
5390…
6810
12 Terminal connectors 9 SS, Sn plated Cu, Zn plated steel 2090 3060
13 Electrolytic capacitor 6 Al, electrolytic solution 3410 5760
14 Semiconductors 9…10 (R8)
10…11 (R9)
Cu, Al oxide, Sn, silicone gel, PBT, GF 1850…
2220
2720…
3100
15 Control unit 1 See subsection Materials of the control unit on
page 15.
550 550
16 Control panel 1 See subsection Materials of the control panel on
page 16.
130 130
17 Ferrite toroids
(optional)
0 or 4 Ferrite iron 0 or 720 0 or 720
Cables / Wires N/A PVC, Cu, GF, Sn, Au, Ni, phosphor bronze,
thermoplastic polyester, glass-filled nylon
1920 2810
ACS880-01 frames R6 to R7 product materials
Frame R6 Frame R7
Total
weight
(kg) ~45
Total
weight
(kg) ~55
Part Category Qty Materials Weight (g) Weight (g)

Product materials 15
Materials of the control unit
The main components are shown in the figure below.
ACS880-01 control unit product materials
Part Category Qty Materials Weight (g)
1 Housing parts 1 Plastic: ABS PC 140
2 Sheet metal parts 1 Zn plated Fe 100
3 Printed circuit board 1 Various material, electronic components. 240
4 Connectors 11 PA plastic, Fe, Sn, Cu 80
5 Memory unit 1 Plastic: ABS, electronic components. 10

16 Product materials

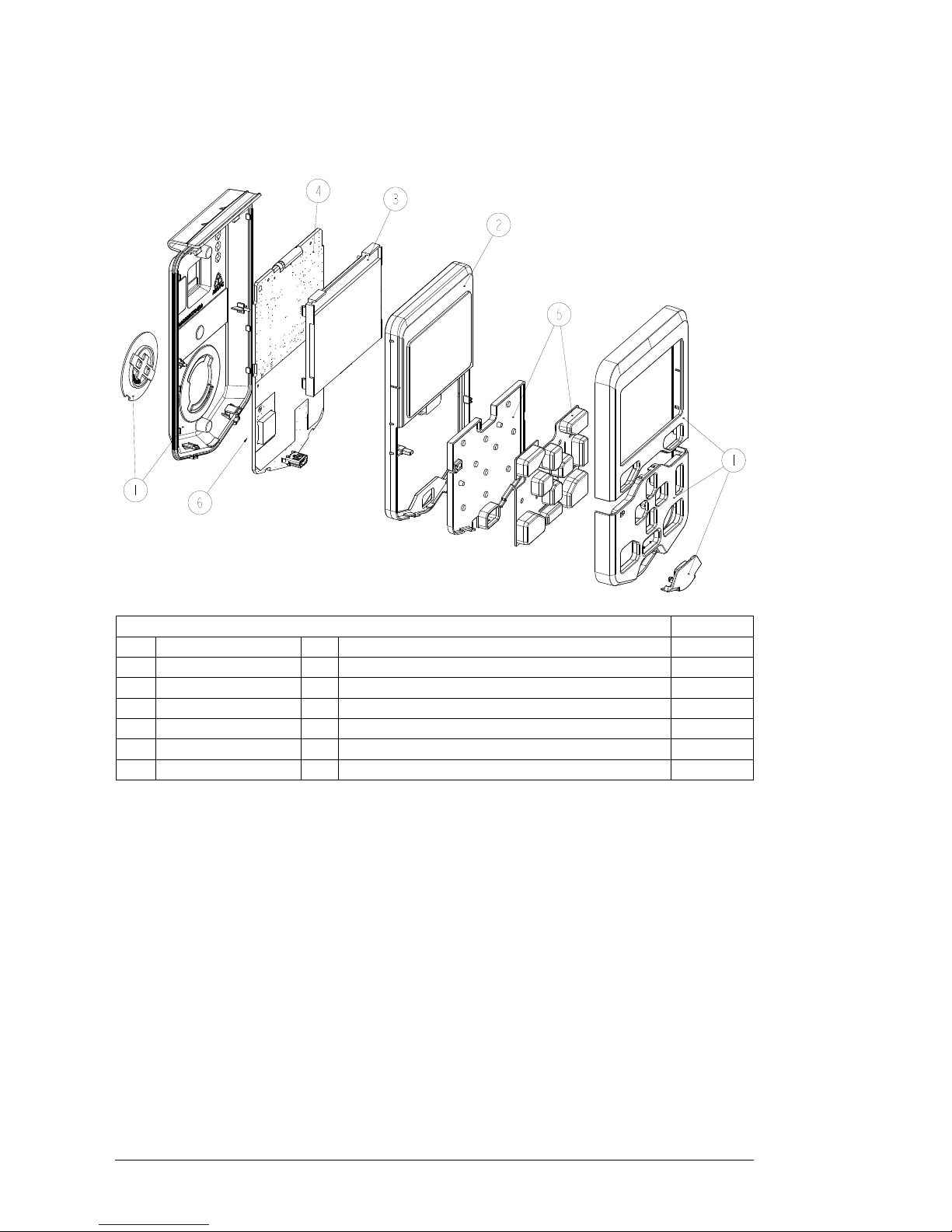

Materials of the control panel
The main components are shown in the figure below.
Package
The product package is made of corrugated cardboard.
You can recycle all materials used in the package.
To avoid pollution caused by unnecessary transportation, the factory does not take back
used packages. The local ABB companies give instructions on the package recycling
when necessary.
ABB recommends package recycling as it preserves raw materials and reduces waste
being landfilled.
ACS880-01 control panel product materials
Part Category Qty Materials Weight (g)
1 Housing parts 4 Plastic: ABS PC 40
2 Lens 1 Plastic: PC 15
3 LCD display 1 Various materials 20
4 Printed circuit board 1 Various material, electronic components. 45
5 Keypad 2 Silicone rubber 20
5 CR 2032 lithium battery 1 Various materials 3

Product materials 17
Product manuals and sales brochures
All paper format brochures and manuals are printed according to the guidelines of the
Nordic Environmental Label.
To save natural resources and reduce paper waste, all product manuals are available on
the internet.

18 Product materials

Manufacturing and use 19
3
Manufacturing and use
Manufacturing
ABB Drives has on Environmental Management System (EMS) which covers
manufacturing and other functions. The EMS is certified to ISO 14001:2004.
Use
The use of a drive has several positive environmental impacts, such as:
•Substantial energy savings can be reached using a drive. These savings can be even
50% in pump and fan drives. This means reduced CO2and NOx emissions in power
plants, due to reduced energy demand.
•Process control is improved when a drive is used for the control of the motor meaning
reduced waste.
•When a process operates in an optimal way, wear on the equipment (such as
conveyors and pumps) is reduced and life time increased. This decreases
environmental load.
•Noise is reduced (in most cases).
The drive itself does not cause any emissions while in use.

20 Manufacturing and use
