ACME LED-MTX25 IP User manual

LED-MTX25 IP
User Manual
Pleasereadtheinstructionscarefully

1B
Contents
1. Safety Instructions..........................................................................................2
2. Technical Specifications..................................................................................3
3. Installation......................................................................................................4
3.1 Fixture Jointing..........................................................................................4
4. How to set the unit ........................................................................................5
4.1 Rear Panel.................................................................................................5
4.2 Main Function...........................................................................................6
5. How To Control The Unit .............................................................................10
5.1 Master/Slave Built In Preprogrammed Function ......................................10
5.2 DMX Controller ......................................................................................10
5.3 DMX512 Configuration...........................................................................11
6. DMX512 Connections ..................................................................................15
7. Troubleshooting............................................................................................16
8. Fixture Cleaning............................................................................................17

2B
1. Safety Instructions
WARNING
yPlease keep this User Manual for future consultation. If you sell the fixture to
another user, be sure that they also receive this instruction booklet.
yPlease unpack and check carefully there is no transportation damage before using the
fixture.
yPlease disconnect main power before servicing and maintenance.
yThe unit must be installed in a location with adequate ventilation, at least 50cm from
adjacent surfaces. Be sure that no ventilation slots are blocked.
yThe maximum ambient temperature is Ta: 40℃. DO NOT operate it where the
temperature is higher than this.
yDO NOT connect the device to any dimmer pack.
yThe housing must be replaced if they are visibly damaged.
yUnit surface temperature may reach up to 85℃. Don’t touch the housing bare-hand
during its operation. Turn off the power and allow about 15 minutes for the unit to cool
down before replacing or serving.
yThere are no user serviceable parts inside the fixture. Do not open the housing or attempt
any repairs by yourself. In the unlikely event your fixture may require service, please
contact your nearest dealer.
yIn the event of serious operating problem, stop using the fixture immediately. Never try to
repair the fixture by yourself. Repairs carried out by unskilled people can lead to damage
or malfunction. Please contact the nearest authorized technical assistance center. Always
use the same type spare parts.
Please read the instructions carefully which includes important
information about the installation, operation and maintenance.

3B
yIt’s important to ground the yellow/green conductor to earth in order to avoid
electric shock.
yDO NOT touch any wire during operation and there might be a hazard of electric shock.
yDO NOT expose the fixture to rain or moisture, in order too prevent or reduce
the risk of electrical shock or fire.
yDo not look directly at the LED light beam while the fixture is on.
2. Technical Specifications
yDMX 1/4/9/25/29 channels switchable.
ySmooth 0~100% dimming and variable strobe speeds.
yTwo operation modes: DMX, Mater/Slave mode.
yIdeal for discotheques, clubs, bars, parties, Mobile DJs, ect.
yInputVoltage: AC 100V~240V 50/60Hz
yPower consumption: 69W
yFuse: T15A
yLED: 25 x 3W WW LED
yDimension: 600 x 600 x 104 mm
yWeight: 12.5Kgs
For AC 230V 50Hz power supply, the maximum fixtures that can be connected on one power cable is 12;
For AC 120V 60Hz power supply, the maximum fixtures that can be connected on one power cable is 6.

4B
3. Installation
The unit should be mounted via its screw holes on the bracket. Always ensure that the
unit is firmly fixed to avoid vibration and slipping while operating. Always ensure that the
structure to which you are attaching the unit is secure and is able to support a weight of 10
times of the unit’s weight. Also always use a safety cable that can hold 12 times of the weight
of the unit when installing the fixture.
The equipment must be fixed by professionals. And it must be fixed at a place where is out
of the touch of people and has no one pass by or under it.
3.1 Fixture Jointing
Firstly, plug L type Hexagon wrench into the hole back of the fixture to fasten and locate two
fixtures so that movement won’t happen and jointing become more conveniently, please see
figure 1 showed below:
Figure 1

5B
Secondly, use L type Hexagon wrench to counter-clockwise rotate connection lock to the end
until lock tongue returns back, for direction please see arrow ①showed in figure 2 ,and the
next step, use Hexagon wrench clockwise rotate connection lock to the end, see arrow ②.
Figure 2
The maximum fixtures that can be jointed together is 10.
4. How to set the unit
4.1 Rear Panel

6B
○
1 Display: Show the various menus and the selected functions
○
2 LED:
DMX On DMX input present
MASTER On Master Mode
SLAVE On Slave Mode
○
3 Button:
MENU To select the programming functions
DOWN To go backward in the selected functions
UP To go forward in the selected functions
ENTER To confirm the selected functions
○
4 DMX input: For DMX512 link, use 3/5-pin XLR plug cable to input DMX signal.
○
5DMX output: For DMX512 link, use 3/5-pin XLR plug cable to link the next unit.
○
6Mains input: Connect to supply mains power.
○
7Mains output: Connect to supply mains power for the next unit.
4.2 Main Function
To select any functions, press MENU button until the required one is shown on the display.
Select the function by ENTER button and the display will blink. Use DOWN and UP button to
change the mode. Once the required mode has been selected, press ENTER button to setup
or it will automatically return to the main functions without any change after idling 30
seconds. Back to the functions without any change press MENU button. The main functions
are shown below:

7B

8B

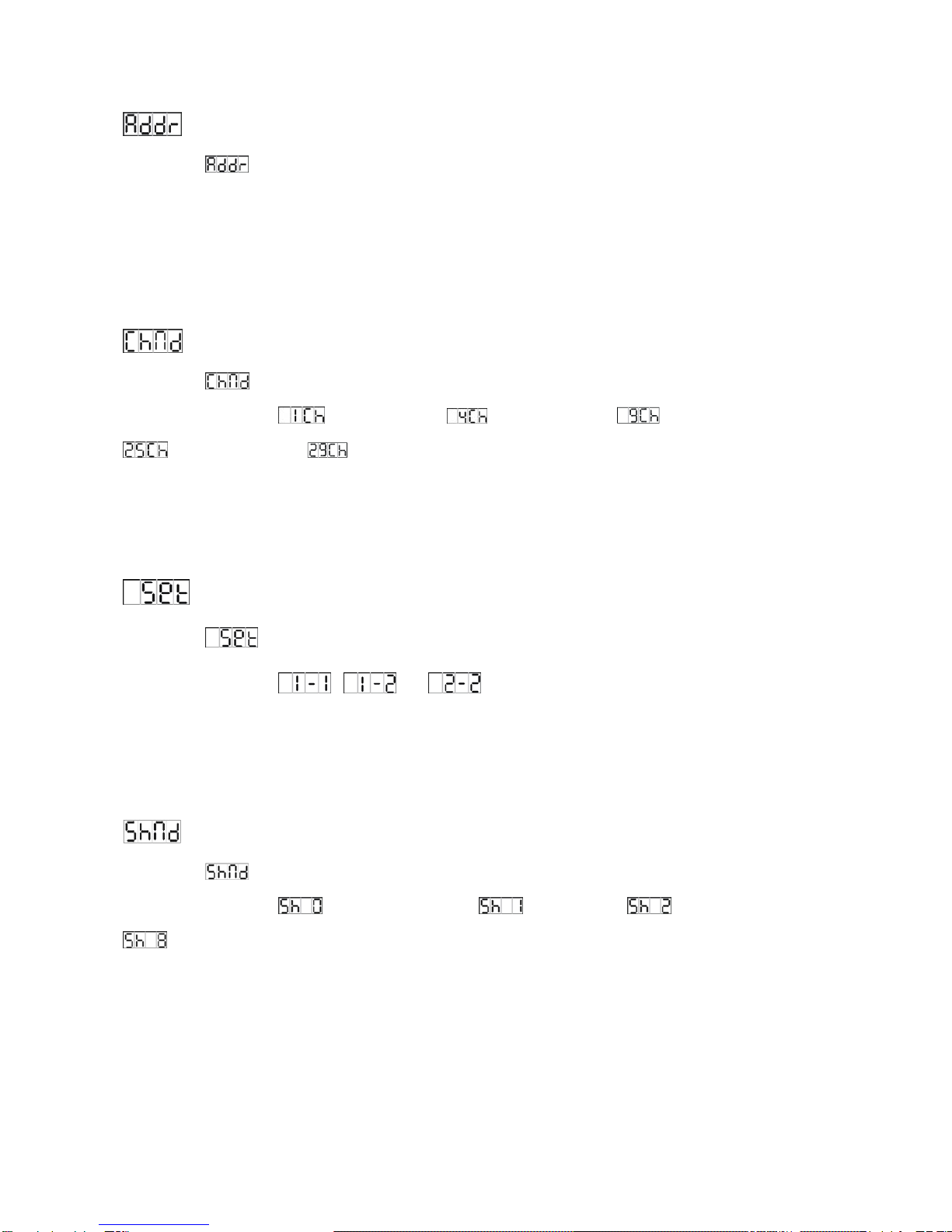

DMX 512 Address
Select the , press the ENTER button and the display will blink. Use the DOWN and UP
button to change the DMX 512 address. Once the address has been selected, press the
ENTER button to setup or automatically exit menu mode without any change after 60 seconds.
Back to the previous functions without any change press the MENU button.
Channel Mode
Select the , press the ENTER button and the display will blink. Use the DOWN and UP
button to select the (1 channel) or (4 channels) or (9 Channels) or
(25 channels) or (29 Channels) mode. Once selected, press the ENTER button
to setup or automatically exit menu mode without any change after 60 seconds. To go back to
the functions without any change press the MENU button
Set Mode
Select the , press the ENTER button and the display will blink. Use the DOWN and UP
button to select the , or mode.Once selected, press the ENTER
button to setup or automatically exit menu mode without any change after 60 seconds. To go
back to the functions without any change press the MENU button.
Show Mode
Select the , press the ENTER button and the display will blink. Use the DOWN and UP
button to select the (Random show) or (show 1) or (Show 2) or … or
(show 8). Once selected, press the ENTER button to store or automatically exit menu
mode without any change after 60 seconds. To go back to the functions without any change
press the MENU button

9B

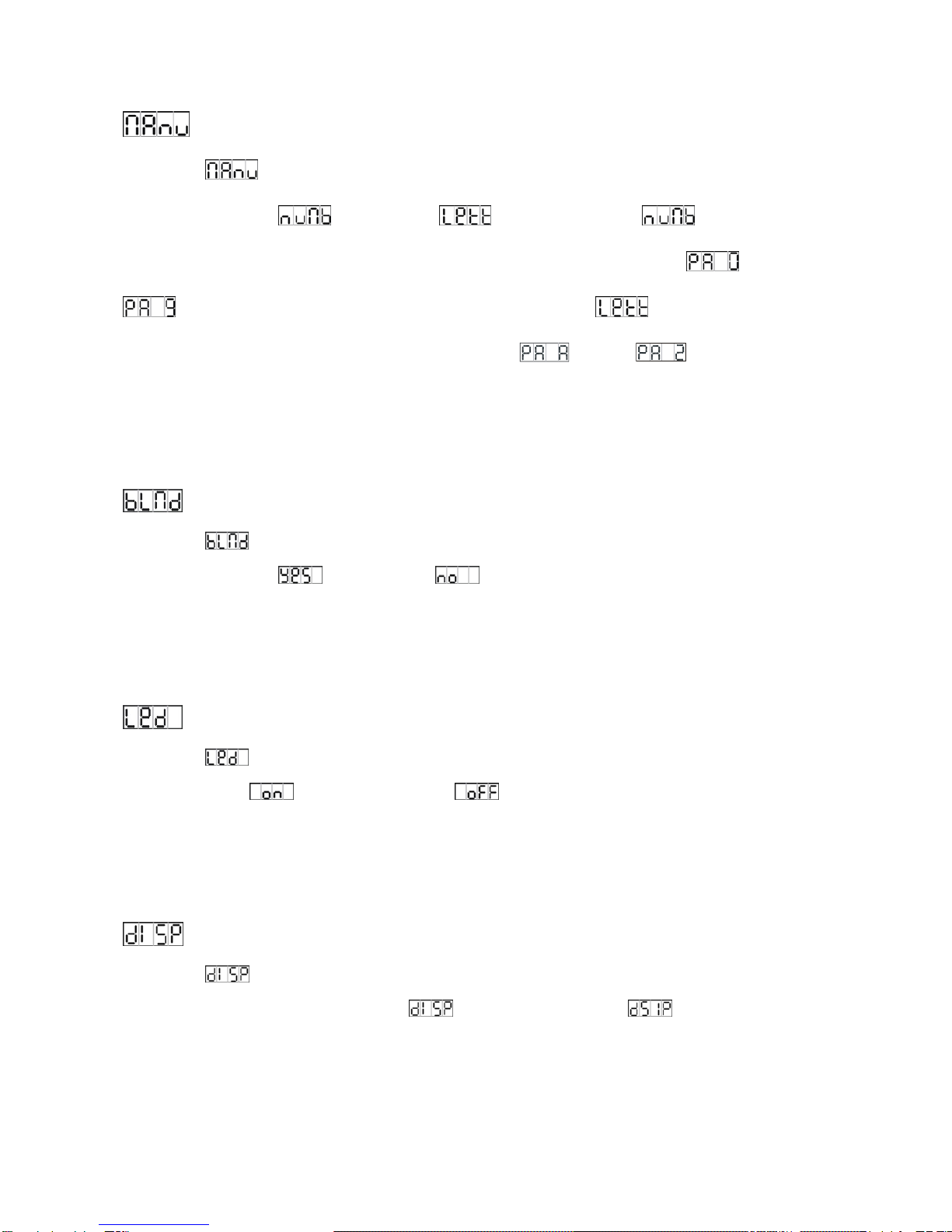

Manual Mode
Select the , press the ENTER button and the display will blink. Use the DOWN and UP
button to select the (number) or (letter). When the is selected,
press the ENTER button, then use the DOWN and UP button to select the or…or
,and press the ENTER button to store. If you select the , press the ENTER
button, use the DOWN and UP button to select the or…or , and press the
ENTER button to setup or automatically exit menu mode without any change after 60 seconds.
To go back to the functions without any change press the MENU button
Blackout Mode
Select the , press the ENTER button and the display will blink. Use the DOWN and UP
button to select the (blackout) or (normal). Once selected, press the ENTER
button to setup or automatically exit menu mode without any change after 60 seconds. To go
back to the functions without any change press the MENU button.
LED display
Select the , press the ENTER button and the display will blink. Use the DOWN and UP
button to select (LED display on) or (LED display off). Once selected, press the
ENTER button to setup or exit menu mode without any change after 60 seconds. Back to the
functions without any change press the MENU button again.
Display Inverse
Select the , press the ENTER button and the display will blink. Press the ENTER button
to change the display mode between (Display normal) and (Display inverse).
Back to the functions without any change press the MENU button.

10B
Auto Test
Select the , press the ENTER button and the unit will run the built-in programmer for
Auto test. To go back to the functions press the MENU button.
Fixture use time
Select the , press the ENTER button and the display will show the number of working
hours of the unit. To go back to the functions press the MENU button.
Firmware version
Select the , press ENTER button and the display will show the version of software of the
unit. To go back to the functions press the MENU button.
5. How To Control The Unit
You can operate the unit in two ways:
1. By master/slave built-in preprogram function
2. By DMX controller
No need to turn the unit off when you change the DMX address, as new DMX address setting
will be affected at once. Each time you turn the unit on, it will show “ ” on the display.
After that the unit will be ready to receive DMX signal or run the built in programs.
5.1 Master/Slave Built In Preprogrammed Function
By linking the units in master/slave connection, the first unit will control the other units to
give an automatic, sound activated, synchronized light show. This function is good when you
want an instant show. You have to set the first unit in master mode and select (random
show), (show 1) or …or (show 8). Its DMX input jack will have nothing
plugged into it, and Its master LED will be constantly on and sound LED will flash to the
music.
5.2 DMX Controller
Using universal DMX controller to control the units, you have to set DMX address from 1 to

11B
512 channel so that the units can receive DMX signal.
Press the MENU button up to when the is showing on the display. Pressing the ENTER
button and the display will blink. Use the DOWN and UP button to change the DMX512
address. Once the address has been selected, press and hold the ENTER button until the
display stops blinking or storing automatically 8 seconds later. To go back to the functions
without any change press the MENU button again.

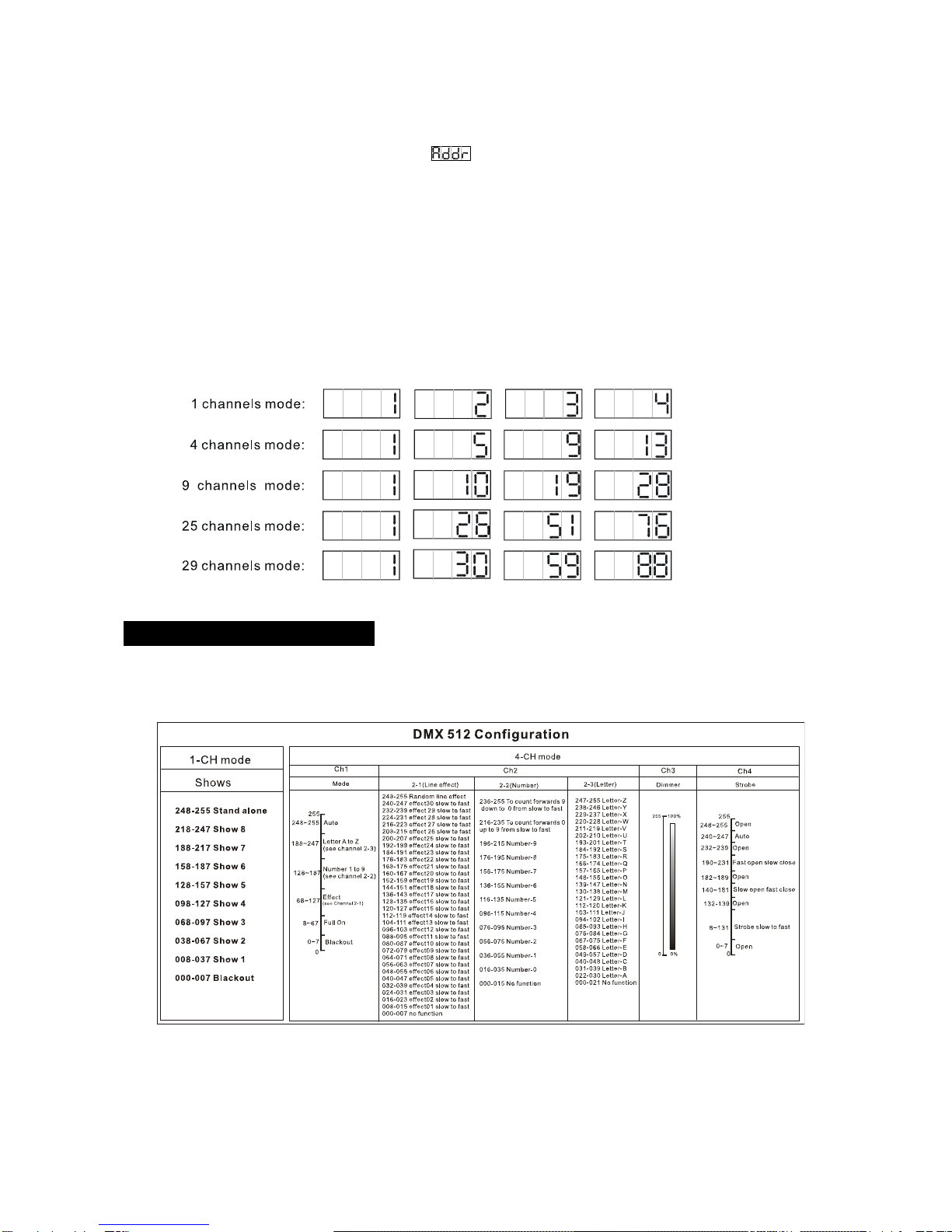

If you use please refer to the following diagram to address your DMX512 channel for the first
4 /2 units.
5.3 DMX512 Configuration
1/4 channel mode:

12B

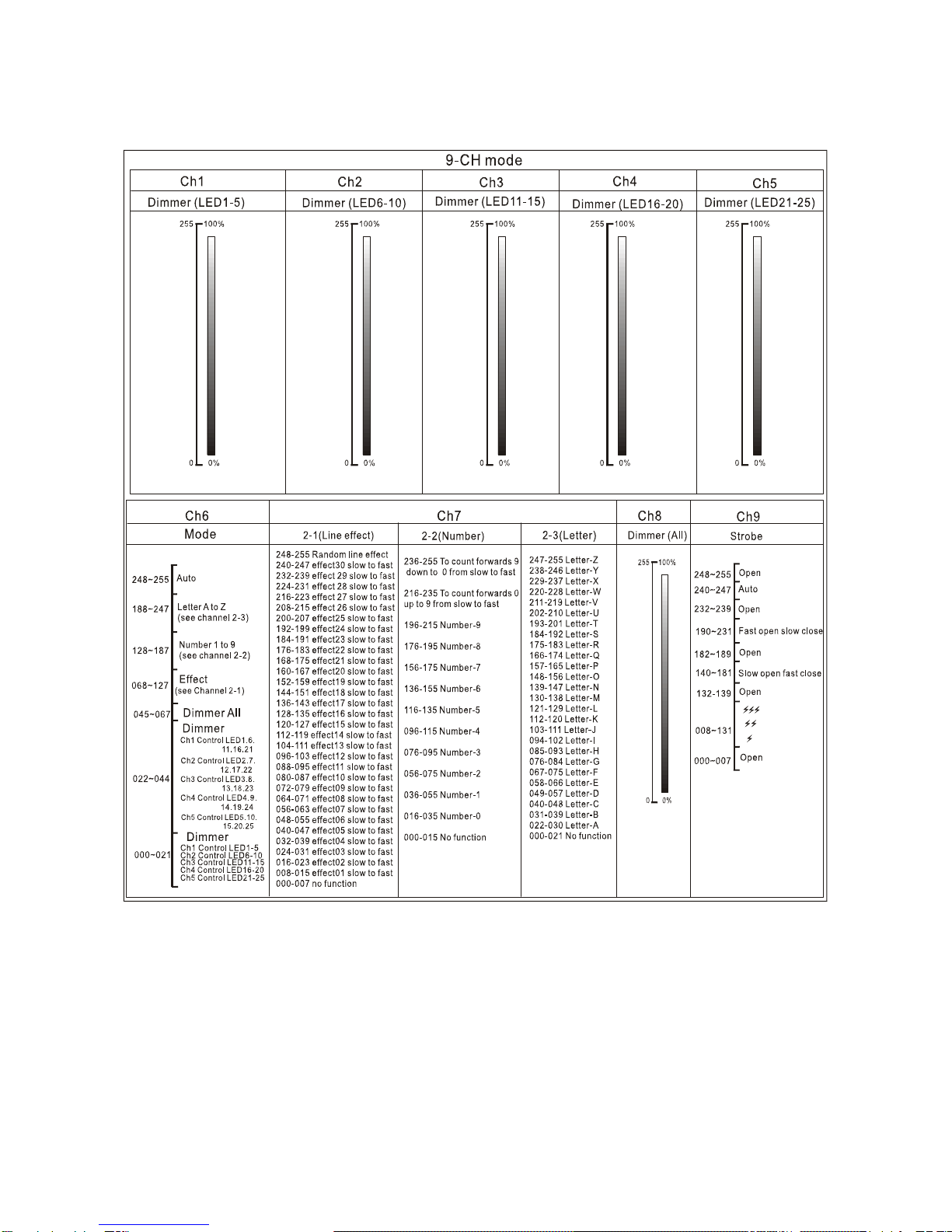

9 channel mode:

13B
25 channel mode:

14B

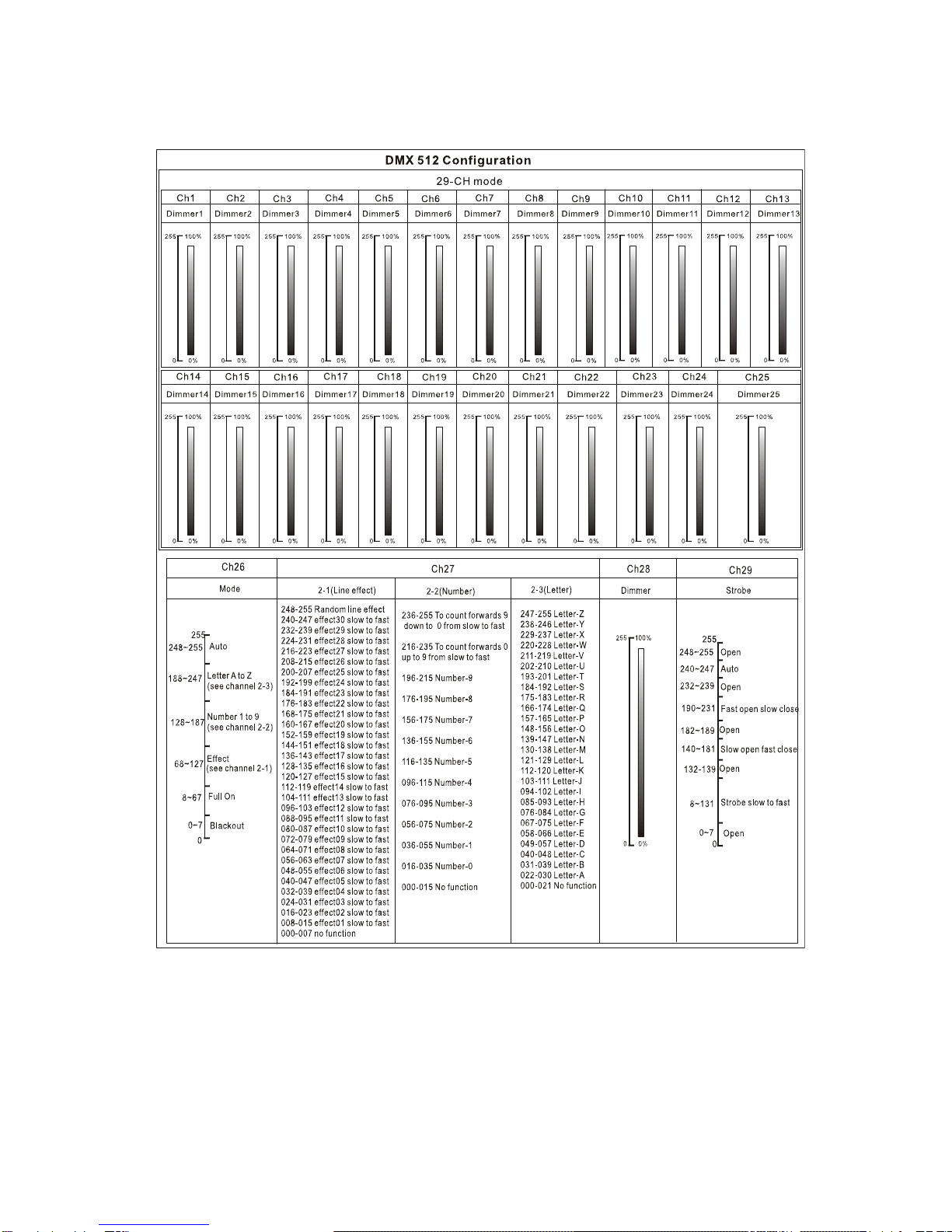

29 channel mode:

15B
6. DMX512 Connections
mode connection：
mode connection:

16B
1. Connect the fixture together in a “daisy chain” by XLR plug cable from the output of the
fixture to the input of the next fixture. The cable cannot be branched or split to a “Y”
cable. Inadequate or damaged cables, soldered joints or corroded connectors can easily
distort the signal and shut down the system
2. The DMX output and input connectors are pass-through to maintain the DMX circuit
when one of the units’ power is disconnected.
3. At last fixture, the DMX cable has to be terminated with a terminator to reduce signal
errors. Solder a 120-ohm 1/4W resistor between pin 2(DMX-) and pin 3(DMX+) into a
3-pin XLR-plug and plug it in the DMX-output of the last fixture.
4. Each lighting fixture needs to have an address set to receive the data sent by the controller.
The address number is between 0-511 (usually 0 & 1 are equal to 1).
5. 3 pin XLR connectors are more popular than 5 pins XLR.
3 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+)
5 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+),
Pin4/5: not used
7. Troubleshooting
Following are a few common problems that may occur during operation. Here are some
suggestions for easy troubleshooting:
A. The fixture does not work, no light
1. Check the connection of power and main fuse.
2. Measure the mains voltage on the main connector.
B. Not responding to DMX controller
1. DMX LED should be on. If not, check DMX connectors, cables to see if link properly.
2. If the DMX LED is on and no response to the channel, check the address settings and
DMX polarity.
3. If you have intermittent DMX signal problems, check the pins on connectors or on PCB of

17B
the fixture or the previous one.
4. Try to use another DMX controller.
5. Check if the DMX cables run near or run alongside to high voltage cables that may cause
damage or interference to DMX interface circuit.
C. One of the channels is not working well
1. The stepper motor might be damaged or the cable connected to the PCB is broken.
2. The motor’s drive IC on the PCB might be out of condition.
8. Fixture Cleaning
The cleaning of internal must be carried out periodically to optimize light output. Cleaning
frequency depends on the environment in which the fixture operates: damp, smoky or
particularly dirty surrounding can cause greater accumulation of dirt on the fixture’s optics.
yClean with soft cloth using normal glass cleaning fluid.
yAlways dry the parts carefully.
yClean the external optics at least every 20 days. Clean the internal optics at least every
30/60 days.

Declaration of Conformity
We declare that our products (lighting equipments) comply with the
following specification and bears CE mark in accordance with the
provision of the Electromagnetic Compatibility (EMC) Directive
2004/108/EC.
EN55103-1: 2009 ; EN55103-2: 2009;
EN61000-3-2: 2006 + A1:2009 + A2:2009; EN61000-3-3: 2008.
&
Harmonized Standard
EN 60598-1:2008 + All:2009; EN 60598-2-17:1989 + A2:1991;
EN 62471:2008; EN 62493: 2010
Safety of household and similar electrical appliances
Part 1: General requirements

Innovation, Quality, Performance
