ACME E-200 MB MC User manual

User Manual
Please read the instrucon carefully before use
E-200 MB MC

Contents
1. Safety Instruction................................................................................... 2
2. Technical Specifications ......................................................................... 3
3. The Unit Construction............................................................................ 6
4. Installation ............................................................................................. 6
5. Control Panel ......................................................................................... 7
6. Main Function........................................................................................ 8
7. How to Control the Unit....................................................................... 14
7.1 DMX Connection ............................................................................ 14
7.2 DMX Address Setting...................................................................... 15
7.3 DMX Configuration ........................................................................ 16
8. Troubleshooting ................................................................................... 17
9. Fixture Cleaning ................................................................................... 18
1C

1. Safety Instruction
WARNING
Please keep this User Guide for future consultation. If you sell the unit to another user, be sure
that they also receive this instruction booklet.
Unpack and check carefully there is no transportation damage before using the unit.
Before operating, ensure that the voltage and frequency of power supply match the power
requirements of the unit.
It’s important to ground the yellow/green conductor to earth in order to avoid electric shock.
The unit is for indoor use only. Use only in a dry location.
The unit must be installed in a location with adequate ventilation, at least 50cm from adjacent
surfaces. Be sure that no ventilation slots are blocked.
Disconnect main power before replacement or servicing.
Make sure there are no flammable materials close to the unit while operating as it is fire hazard.
Use safety cable when fixes this unit. DO NOT handle the unit by taking its head only, but always
by taking its base.
Maximum ambient temperature is Ta: 40℃. DO NOT operate it where the temperature is higher
than this.
Unit surface temperature may reach up to 85℃. DO NOT touch the housing bare-hand during its
operation. Turn off the power and allow about 15 minutes for the unit to cool down before
replacing or serving.
In the event of serious operating problem, stop using the unit immediately. Never try to repair
the unit by yourself. Repairs carried out by unskilled people can lead to damage or malfunction.
Please contact the nearest authorized technical assistance center. Always use the same type
spare parts.
DO NOT touch any wire during operation as high voltage might be causing electric shock.
Please read this instruction carefully which includes important
information about the installation, usage and maintenance.
2C

Warning:
To prevent or reduce the risk of electrical shock or fire, do not expose the unit to rain or
moisture.
DO NOT open the unit within five minutes after switching off.
The housing, the lenses, or the ultraviolet filter must be replaced if they are visibly damaged.
◆Note: Use only the color gel that can resist high temperature. (
＞
300
℃
)
Caution:
There are no user serviceable parts inside the unit. Do not open the housing or attempt any
repairs yourself. In the unlikely event your unit may require service, please contact your nearest
dealer.
Installation:
The unit should be mounted via its screw holes on the bracket. Always ensure that the unit is
firmly fixed to avoid vibration and slipping while operating. And make sure that the structure to
which you are attaching the unit is secure and is able to support a weight of 10 times of the
unit’s weight. Also always use a safety cable that can hold 12 times of the weight of the unit
when installing the fixture.
The equipment must be fixed by the professionals. And it must be fixed at a place where is out of
the touch of people and has no one pass by or under it.
2. Technical Specifications
DMX Control: 2 Channel Mode (Dimming, Strobe)
Control Modes: DMX, Master/Slave
Lens Options: 5°，11°，14°，19°，26°，36°，50°or 70°
0% ~ 100% linear dimming
Variable Strobe Effects
3C

Input Voltage: AC 100 ~240V, 50/6 0 Hz
Power Consumption: 210W
Light Sources
：
1 x 200W (5 in 1 ) LED
IP Grade
：
IP22
Weight
：
5
°：
10.8kgs
11
°，
14
°，
19
°：
10.6kgs
26
°，
36
°：
10.2kgs

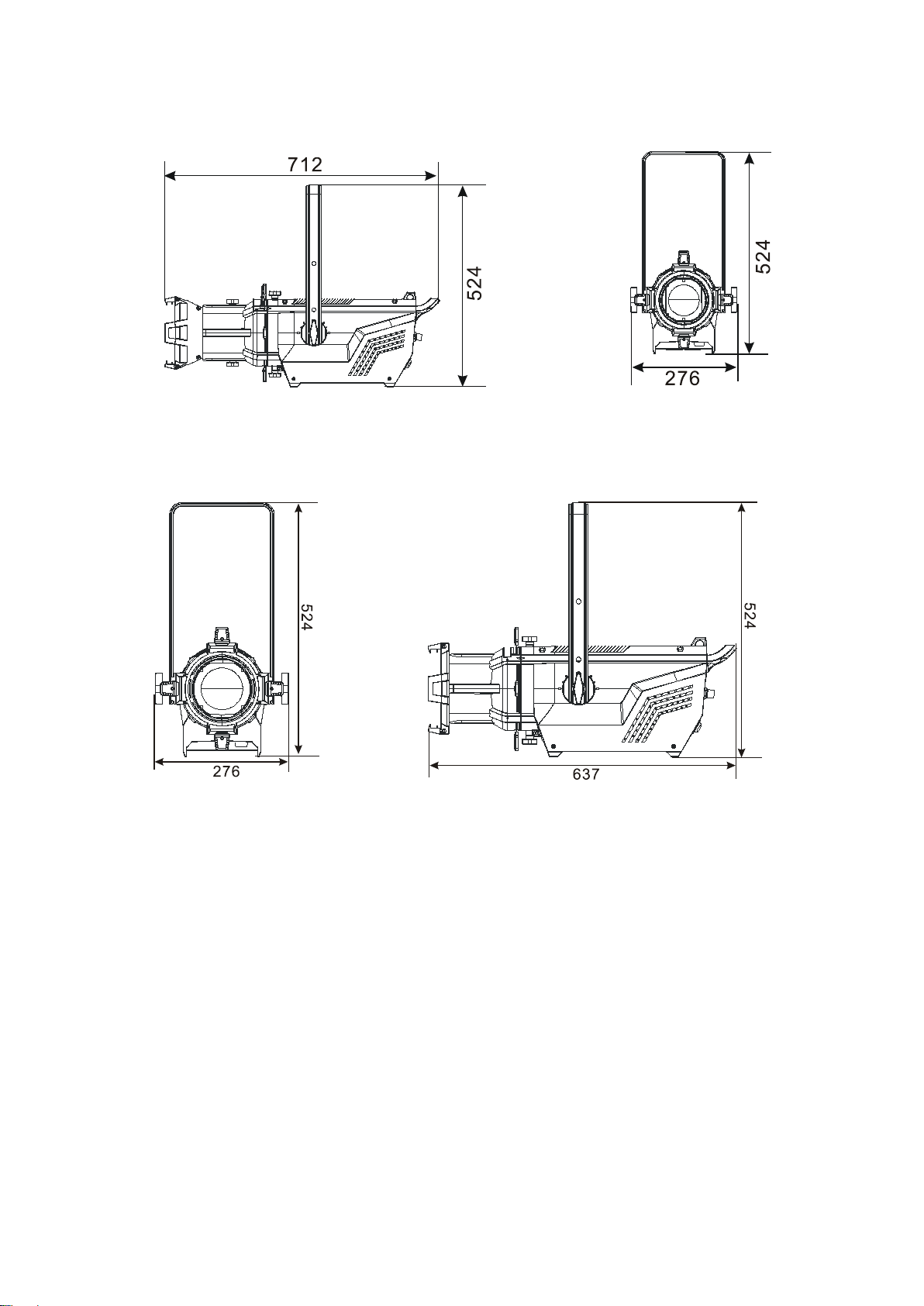

Dimension
：
5
°：
1155 ×378 × 524mm
11
°，
14
°，
19
°：
872 ×276 × 524mm
26
°，
36
°：
712 ×276 × 524mm
50
°，
70
°：
637 ×276 × 524mm
4C

5C

3. The Unit Construction
4. Installation
1 2
Loosen the two screws on the Main Body (MB) and put the Framing System into the MB, then
turn the Framing System right .Tighten the two screws to fix the Framing System.
1. Lens Module
；
2. Framing System
；
3. Bracket
；
4. Main Body;
5. Clip for Gel Holder
6. Gobo Slot
6C

3 4
Put the Lens Module into the Framing System and tighten the Lens Module into the Framing
System with two screws.
5. Control Panel
7C

1
．
Display: To show the various menus and the selected functions.
2
．
Dimmer Adjust Knob
：
Adjust the lightness for the unit；
3
．
LED:
MASTER On Master Mode
SLAVE On Slave Mode
DMX On DMX input present
4．MAINS OUT: PowerCon loop connection for main power supply to the next unit;
5
．
MAINS IN:PowerCon connection from main power supply;
6
．
DMX IN:For DMX512 link, use 5-pin XLR cable to link the unit and the DMX controller;
7
．
DMX IN:For DMX512 link, use 3-pin XLR cable to link the unit and the DMX controller；
8
．
DMX OUT: For DMX512 link, use 5-pin XLR cable to link the next unit and output DMX signal;
9
．
DMX OUT: For DMX512 link, use 3-pin XLR cable to link the next unit and output DMX signal;
10. RJ 45 Socket: No function at the moment. Reserve for Art-net in the future.
11. Fuse (T 5A): To protect the unit from damage of over current;
12. POWER SWITCH: Turns On/off the power;
13. Button:
MENU To select the programming functions
DOWN To go backward in the selected functions
UP To go forward in the selected functions
ENTER To confirm the selected functions
6. Main Function
To select any functions, press the MENU button until the required function is showing on the
display. Select the function by pressing the ENTER button and the display will blink. Use the
DOWN and UP button to change the mode. Once the required mode has been selected, press the
ENTER button to setup to go back to the functions without any changes press the MENU button
again. Hold and press the MENU button for one second or wait for one minute to exit the menu
mode.
8C

The main functions are shown below:
9C

DMX Address
To select the DMX Address, press the ENTER button to show DMX ADDRESS on the display. Use
the DOWN/UP button to adjust the address from 1 to 512. Once the address has been selected,
press the ENTER button to setup, to go back to the functions without any changes press the MENU
button again. Hold and press the MENU button for one second or wait for one minute to exit the
menu mode.
DMX Channel Mode
To select the DMX Channel Mode, press the ENTER button to show DMX CHANNEL MODE on the
display. Use the DOWN/UP button to select the 5Ch or 9Ch modes.Once the mode has been
selected, press the ENTER button to setup, to go back to the functions without any changes press
the MENU button again. Hold and press the MENU button for one second or wait for one minute
to exit the menu mode.
Dimmer Speed
To select Dimmer Speed, press the ENTER button to show the DIMMER SPEED on the display. Use
the DOWN/UP button to select the FAST (dimmer open fast) or SMOOTH (dimmer open smooth).
Once selected, press the ENTER button to setup, to go back to the functions without any change
press the MENU button again. Press and hold the MENU button about one second or wait for one
minute to exit the menu mode.
Dimmer Curve
To select Dimmer Curve, press the ENTER button to show the DIMMER CURVE on the display. Use
the DOWN/UP button to select the Mode1 or Mode 2 or Mode 3 or Mode 4. Once the mode has
been selected, press the ENTER button to setup, to go back to the functions without any change
press the MENU button again. Press and hold the MENU button about one second or wait for one
minute to exit the menu mode.
10C

Mode 1(Optically Linear):
The increase in light intensity appears to be linear as DMX value is increased.
Mode 2(Square Law):
Light intensity control is finer at low levels and coarser at high levels.
Mode 3(Inverse Square Law):
Light intensity control is coarser at low levels and finger at high levels.
Mode 4(S-cure):
Light intensity control is finger at low levels and high levels and coarser at medium levels.
Slave Mode
To select the Slave Mode, press the ENTER button to show SLAVE MODE on the display. Use the
DOWN/UP button to select the Master or Slave modes.Once the mode has been selected, press
the ENTER button to setup, to go back to the functions without any changes press the MENU
button again. Hold and press the MENU button for one second or wait for one minute to exit the
menu mode.
Black Out
To select the Black Out, press the ENTER button to show BALCKOUT on the display. Use the
DOWN/UP button to select the Master Slave, Blackout or Last State mode. Once the mode has
been selected, press the ENTER button to setup, to go back to the functions without any changes ,
press the MENU button again. Hold and press the MENU button for one second or wait for one
minute to exit the menu mode.
Display Setting
11C

To select the Display Setting, press the ENTER button to confirm. Use the DOWN/UP button to
select Backlight Intensity , Contrast Ratio, Backlight Auto Off, Display Inverse or Language.
Backlight Intensity
Select Backlight Intensity, press ENTER button to confirm, present mode will blink on the
display, use UP and DOWN button to adjust backlight intensity from 1 (dark) to 10 (bright),
press ENTER button to store. Press MENU button back to the last menu or let the unit idle one
minute to exit menu mode.
Contrast Ratio
Select Contrast Ratio, press ENTER button to confirm, present mode will blink on the display,
use UP and DOWN button to adjust the intensity ratio from 1 (dark) to 30 (bright), press
ENTER button to store. Press MENU button back to the last menu or let the unit idle one
minute to exit menu mode.
Backlight Auto Off
Select Backlight Auto Off, press ENTER button to confirm, present mode will blink on the
display, use UP and DOWN button to select No (display always on) or Yes (display goes off one
minute after exiting menu mode), press ENTER button to store. Press MENU button back to
the last menu or let the unit idle one minute to exit menu mode.
Display Inverse
Select Display Inverse, press ENTER button to confirm, present mode will blink on the display,
use UP and DOWN button to select No (normal display) or Yes (inverse display), press ENTER
button to store. Press MENU button back to the last menu or let the unit idle one minute to
exit menu mode.
Language
Select Language, press ENTER button to confirm, present mode will blink on the display, use
UP and DOWN button to select English or Chinese, press ENTER button to store. Press MENU
button back to the last menu or let the unit idle one minute to exit menu mode.
12C

Manual Mode
To select the Manual Mode, press the ENTER button to show the MANUAL Mode on the display.
Use the DOWN/UP button to select the Strobe/Dimmer Value/Red/Green/Blue/Grass Green/or
Amber. Once the function or color has been selected, press the ENTER button to setup, use the
DOWN and UP button to change the value (0~255). Once the mode has been selected, press the
ENTER button to setup, go back to the functions without any change press the MENU button again.
Press and hold the MENU button about one second or wait for one minute to exit the menu mode.
Fixture Information
To select Fixture Information，press the ENTER button to confirm，Use the DOWN/UP button to
select the LED Temp.、Fixture Hours or Firmware version。
LED Temp.
To select the LED Temp., press the ENTER button to show LED T E M P. on the display, and the
display will show the temperature of the fixture. To go back to the functions without any changes
press the MENU button again. Hold and press the MENU button for one second or wait for one
minute to exit the menu mode.
Fixture Hours
To select the Fixture Hours, press the ENTER button to show FIXTURE HOURS on the display and
the display will show the number of working hours of the unit. To go back to the functions without
any changes press the MENU button again. Hold and press the MENU button for one second or
wait for one minute to exit the menu mode.
Firmware Version
To select the Firmware Version, press the ENTER button to show FIRMWARE VERSION on the
display and the display will show the version of software of the unit. To go back to the functions
without any changes press the MENU button again. Hold and press the MENU button for one
second or wait for one minute to exit the menu mode.
Factory Setting
13C

To select the Factory Setting, press the ENTER button to show FACTORY SETTING on the display,
use the DOWN/UP button to select No (keep the present setting) or Yes (the fixture will reset to
factory settings and exit menu mode). To go back to the functions without any changes press the
MENU button again. Hold and press the MENU button for one second or wait for one minute to
exit the menu mode.
7. How to Control the Unit
7.1 DMX Connection
1. At last unit, the DMX cable has to be terminated with a terminator. Solder a 120-o h m 1/4 W
resistor between pin 2(DMX-) and pin 3(DMX+) into a 3-pin XLR-plug and plug it in the
DMX-output of the last unit.
2. Connect the unit together in a “daisy chain” by XLR plug cable from the output of the unit to
the input of the next unit. The cable cannot be branched or split to a “Y” cable. DMX 512 is a
14C

very high-speed signal. Inadequate or damaged cables, soldered joints or corroded connectors
can easily distort the signal and shut down the system.
3. The DMX output and input connectors are pass-through to maintain the DMX circuit, when
one of the units’ power is disconnected.
4. Each lighting unit needs to have a DMX address to receive the data by the controller. The
address number is between 0-511 (usually 0 & 1 are equal to 1).
5. The end of the DMX 512 system should be terminated to reduce signal errors.
6. 3 pin XLR connectors are more popular than 5 pins XLR.
3 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+)
5 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+), Pin4, Pin5 not used.
7.2 DMX Address Setting
If you use a universal DMX controller to control the units, you have to set DMX address from 1 to
512 so that the units can receive DMX signal.
Press the MENU button to enter menu mode, select DMX Functions, press the ENTER button to
confirm, use the UP/DOWN button to select DMX Address, press the ENTER button to confirm,
the present address will blink on the display, use the UP/DOWN button to adjust the address from
001 to 512, and press the ENTER button to store. Press the MENU button back to the last menu or
let the unit idle 7 seconds to exit menu mode.
Please refer to the following diagram to set the DMX address for the first 4 units：
Channel Mode
Unit 1
Address
Unit 2
Address
Unit 3
Address
Unit 4
Address
5Channel 1 6 11 16
9Channel 1 10 19 28
15C

7.3 DMX Configuration
5 Channel Mode
：
CHANNEL VALUE FUNCTION
1 0 – 255
RED
0% ~ 100%
2 0 – 255
GREEN
0% ~ 100%
3 0 – 255
BLUE
0% ~ 100%
4 0 – 255
GRASSGREEN
0% ~ 100%
5 0 – 255
AMBER
0% ~ 100%
9 Channel Mode
：
CHANNEL VALUE FUNCTION
1
000-007
008-015
016-131
132-139
140-181
182-189
190-231
232-239
240-247
248-255
STROBE:
Off
Open
Strobe slow to fast
open
Slow open Fast close
Open
Slow close Fast open
Open
Random strobe
open
2 0 – 255
DIMMER
Close Open（0% ~ 100%）
3 0 – 255
RED
0% ~ 100%
4 0 – 255
GREEN
0% ~ 100%
5 0 – 255
BLUE
0% ~ 100%
16C

6 0 – 255
GRASSGREEN
0% ~ 100%
7 0 – 255
AMBER
0% ~ 100%
8 0 – 255
COLOR
32 Color
9 000-007
008-255
CTC
No Function
CTO
8. Troubleshooting
Following are a few common problems that may occur during operation. Here are some
suggestions for easy troubleshooting:
A. The unit does not work, no light and the fan does not work
1. Check the connection of power and main fuse.
B. Not responding to DMX controller
1. DMX LED should be on. If not, check DMX connectors and cables to see if link properly.
2. If the DMX LED is on but no response check the address settings and DMX polarity.
3. If you have intermittent DMX signal problems check the cables on connectors.
4. Try to another DMX controller.
5. Check if the DMX cables run near or run alongside high voltage cables that may cause
interference to DMX circuits.
C. Some units don’t respond to the easy controller
1. You may have a break in the DMX cabling. Check the LED for the response of the master/ slave
mode signal.
2. Wrong DMX address in the unit. Set the correct address.
D. No response to the sound
1. Make sure the unit is set into the correct mode.
2. Check the microphone to see if it is good by tapping it.
17C

3. Make sure the fixture is not set into Blackout mode
9. Fixture Cleaning
The cleaning of external must be carried out periodically to optimize light output. Cleaning
frequency depends on the environment in which the fixture operates: damp, smoky or particularly
dirty surrounding can cause greater accumulation of dirt on the fixture’s optics.
Clean with soft cloth using normal glass cleaning fluid.
Always dry the parts carefully.
Clean the external optics at least every 30 days.
18C

Declaration of Conformity
We declare that our products (lighting equipments) comply with the
following specification and bears CE mark in accordance with the provision
of the Electromagnetic Compatibility (EMC) Directive 89/336/EEC.
EN55103-1: 2009+A1:2012; EN55103-2: 2009;
EN61000-3-2: 2014; EN61000-3-3: 2013.
&
Harmonized Standard
EN 60598-1:2015; EN 60598-2-17:1989 + A2:1991;
EN 62471:2008; EN 62493: 2010
Safety of household and similar electrical appliances
Part 1: General requirements
Innovation, Quality, Performance
