ACS Alert J5 User manual

Alcohol Countermeasure Systems Corp
14-975 Midway Boulevard
Mississauga, Ontario L5T 2C6 Canada
Alcohol Countermeasure Systems (AA) Pty Ltd
Box 5, 312B North Rocks Road
North Rocks, NSW 2151 Australia
Te l e p h o n e :
Facsimile:
Te l e p h o n e :
Facsimile:
User Guide
905.670.2288
905.670.8211
612.9871.8150
612.9871.8150
© Alcohol Countermeasure Systems Corp 2006 © 2006
acs-corp.com
User
Guide
ALERT J5
Portable Breath Alcohol Tester

© Alcohol Countermeasure Systems Corp ALERT J5™ User Guide
Revision 1.0 August 2006
2
Size 130 mm x 59 mm x 32 mm
Weight 110 grams
Ambient Temperature 00C to 500C
Sensor Electrochemical Fuel Cell
Specificity Alcohol only, no response to ketones,
hydrocarbons
Purge Cycle < 30 sec.
Mouthpiece Style Straight tube (pressure tube)
Last Test Recall Up to 10
Breath Sample 5 second moderate and continuous
Analysis Time < 10 sec.
Recycle Time (Recovery) 25 sec.
BAC Readout Formats 0 to .450 mg%
Range of Measurement 0 to .450 mg% (0.000 to 0.450 % BAC)
Accuracy +/- 5% @ 100 mg % (+/-0.005 @ 0.100% BAC
Number of Tests 1,000 (new batteries)
Automatic Power Down After 120 seconds. (2 minutes)
Display LCD Menu Interface
Battery Type 2 x AA Alkaline Batteries.
DC Power Source Power Port DC Type 12 volt. (vehicle)
Calibration Alcohol/Water Simulator / Calibrate Every 6
months or 500 Tests whichever comes first.
Complete Package J5, case, batteries, and 5 mouthpieces
Optional Printer
Protection Plan 2 and 3 yr Product Protection Plan
35
Description Specifications
ALERT J5 Specifications

Whats New in ALERT J5 Technology ?
Getting Started with Your ALERT J5
Attaching the Mouthpiece
Obtaining / Capturing a Breath Sample
Test Recall Function

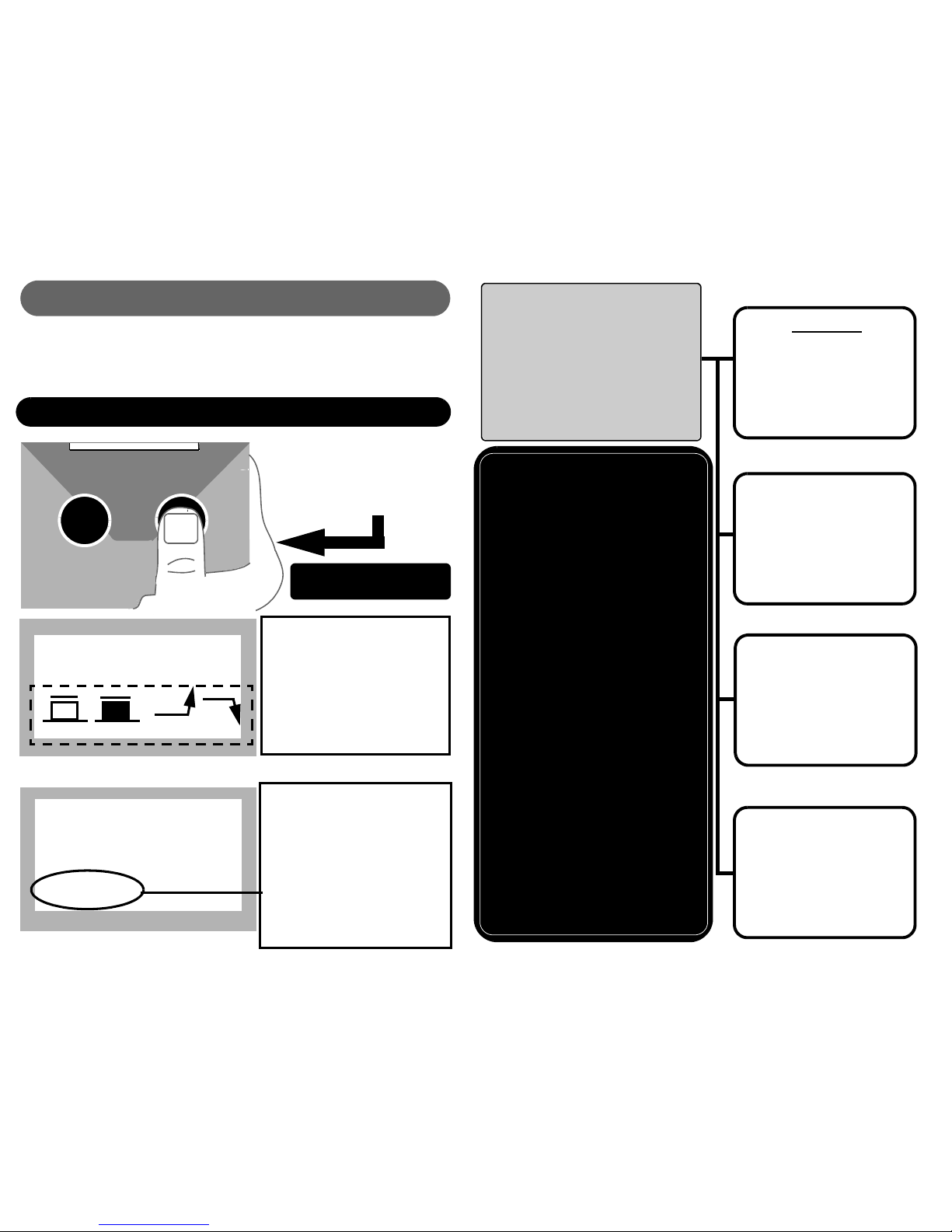

Diagnostics and Testing Menus
Configuring ALERT J5 - Settings, About Device

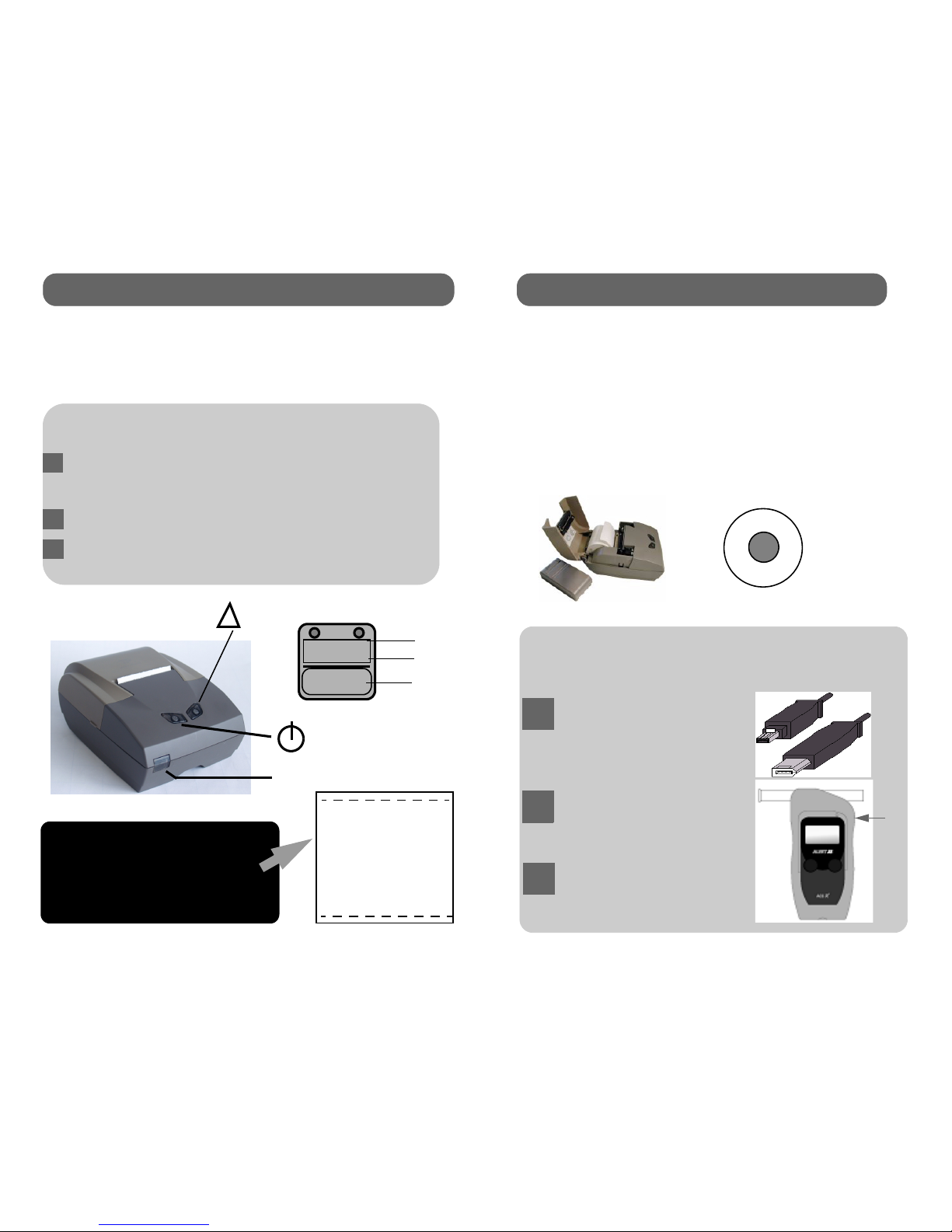

Printing of Test Results
ALERT J5 Quick Reference Menu, Menu Help
Calibrating ALERT J5*
Troubleshooting
Service Record
Index
ALERT J5 Specifications
ALERT J5
Table of Contents
3
4
5, 6
7
8
11
12
16,17
18
20,24
21
34
31
33
35
TroubleShooting:
If for any reason you are having difficulty operating your ALERT J5 please
refer to the following troubleshooting menu before contacting ACS Customer
Service.
Remedy/ What to Do
I can’t turn the ALERT J5 on Are the batteries in need of replacing ?
I cannot get a BAC result Make sure to provide a breath sample
correctly
I cannot see the display outside Adjust brightness of ALERT J5 in direct
sunlight.
I cannot set the time or date See the Menu section for instructions.
I cannot print the result Ensure that the J5 is connected properly.
Check distance if printing wirelessly (<1m).
The mouthpiece won’t connect Check to make sure correct mouthpiece is
being used. (Use pressure tube type only.)
I cannot access test recall See Section on Test Recall
The ALERT J5 won’t shut off The ALERT J5 can auto power off, see
section on settings.
I cannot set the language See the Menu - Language Sections
I cannot calibrate properly
When do I re-calibrate ?
Make sure you follow procedures for cali-
bration. An expiry message will prompt the
user to recalibrate ( 6 months /500 tests).
The mouthpiece does not fit Make sure to use correct mouthpiece
The ALERT J5 will not turn on Check battery power / Try new batteries.
I dropped the ALERT J5 by
accident - will it still work ?
Open the battery cover and make sure the
batteries fit snugly before contacting ACS.
Where can I send the ALERT J5
for service ?
If the warranty is still in effect: Return to
ACS Corp.
How do I print results ? Refer to Section on Printing
The wireless print connection is
not working
Make sure the distance between the
printer and Handset is within 1 metre.
I don’t understand the Menu
- how to access
Refer to the LCD Menu Section
The mouthpiece port is clogged -
what should I do
Contact ACS Corp for assistance.
Problem What to Do / Remedy
Contact ACS: servic[email protected]
* A Calibration Assistance booklet is available if needed.

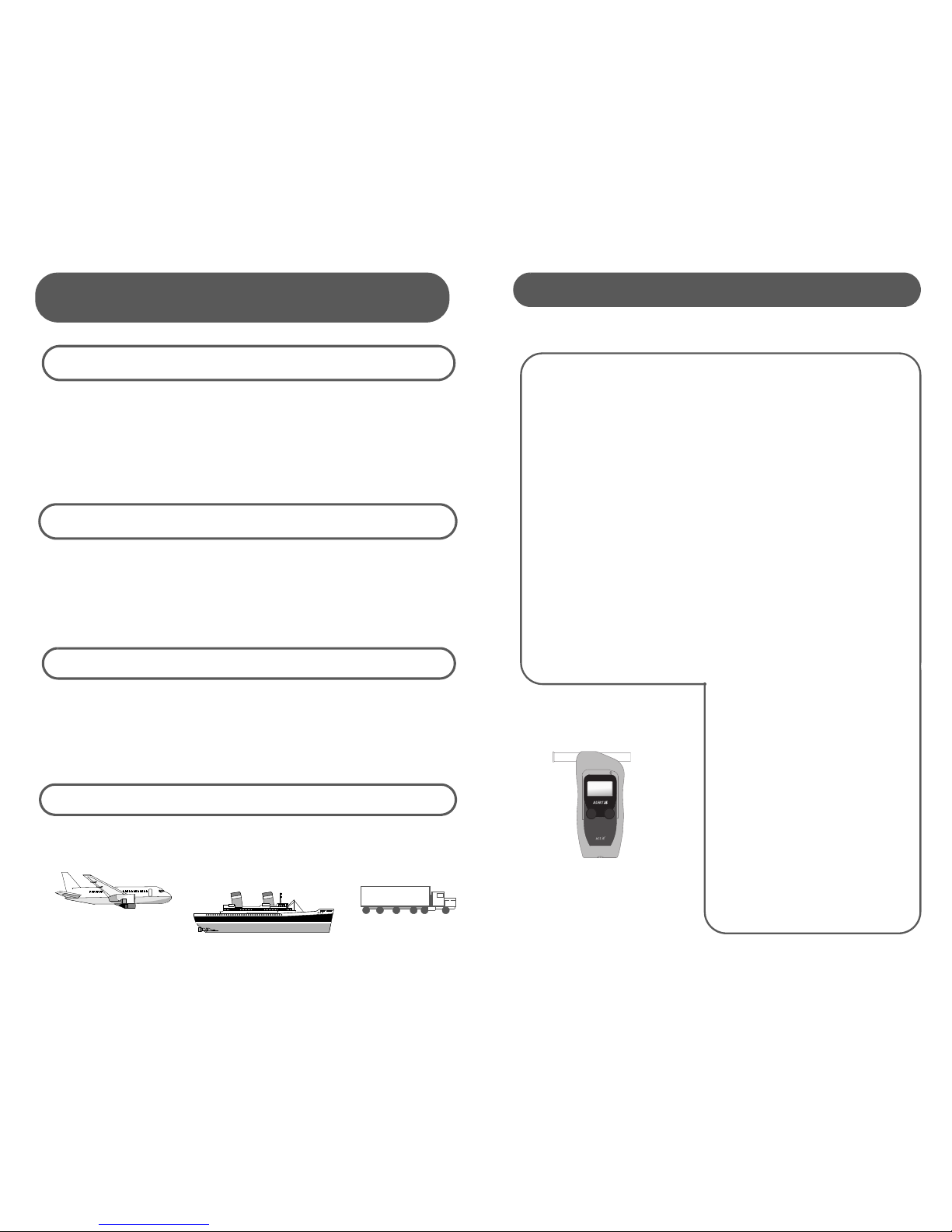

What’s New in ALERT J5 Technology Over Previous
Portable Breath Alcohol Testers ?
Easy Portability/ Adaptability
Breath alcohol detection has never been easier, the ALERT J5 provides an
evidential-capable solution in a small handheld package. Ideal for a range of
professional applications in law enforcement on land, air and sea, ALERT J5
does not require tricky installation wiring and is fully portable. Powered by
2 AA batteries, ALERT J5 ensures hundreds of tests between charges to give
you the reliability you can count on.
Improved Full Functionality & Menu Features
ALERT J5 brings added functionality to portable breath testing with a new
range of functions accessible from the LCD menu. Test recalls are now
possible to enable full archiving and printing of all recorded breath test
results. Users and administrators of ALERT J5 enabled alcohol monitoring
programs now have access to extremely detailed test data to assist with
program management.
New Sampling Mechanism / Breath Volume Reduction
The ALERT J5 uses a unique alcohol-specific fuel cell and pump system to
assess breath samples that requires less than 1% (1.2l) of the previous
breath volume to provide an accurate BAC evaluation. Also new is a large
backlit, LCD Screen to assist users with easy menu/function selection,
reducing training times and enabling users to become experts in operating
the J5 in a minimum amount of time.
Variety of Applications/Recommended Uses
Law Enforcement, Government, Business, Logistics (Rolling Transport and
Rail), Marine and Heavy Equipment.
4New Features 33
Index A-M
about device menu 17
alcohol reference solution 21
analysis time 7
auto shutdown 15
BAC Limits Reference 27,28,29

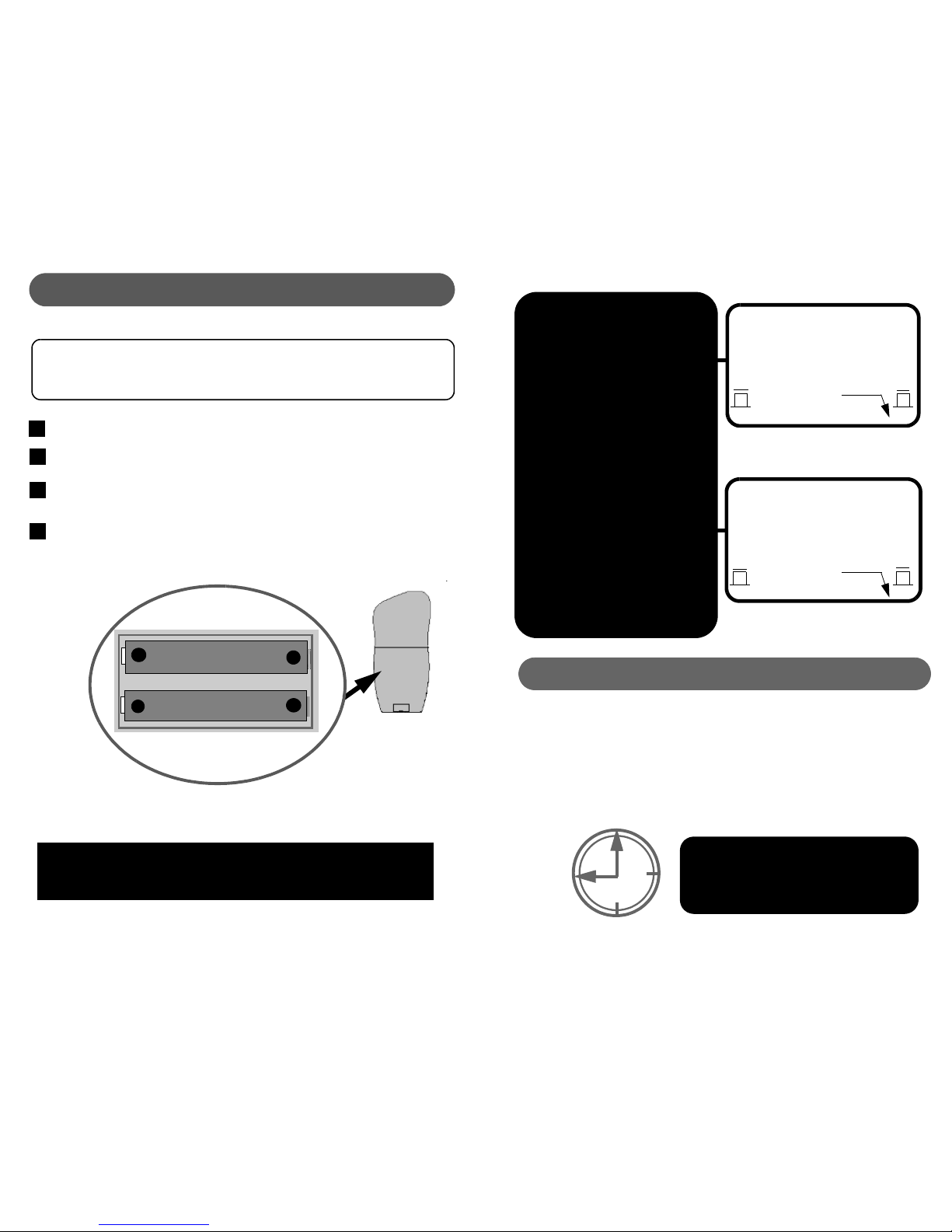

batteries (replacing) 22
breath alcohol measurement 7,8
breath sample, providing 8,9,10,11
calibration 21
calibration solution (alcohol reference solution) 21
configuration, settings 16
device tests 12,13
display 6
fuel cell 23
getting started 6
last test recall 11
LCD Menu 6,10/ diagnostics access12
manual on/off 15
mouthpiece, attaching 7
type to use 5,7
menu operation 4,12,20,32
Index
number of tests 9,34
platinum fuel cell 23
printer 18
range of measurement 26
recovery 26
recycle time (recovery) 26
residual mouth alcohol 7
roadside screening 23
sample pump 4
sensor 23
serial connection, for printing 19
service code (TPM)
specificity for alcohol, 4
test recall 4,11
test taking 6
troubleshooting, tips 34
warn vs fail 26
N-Z
Graphic Insert
ALERT J5
Index N-Z
Index
Portable Breath Tester

32
Notes:
Pressure Tube Mouthpiece
ALERT J5 Handset
5

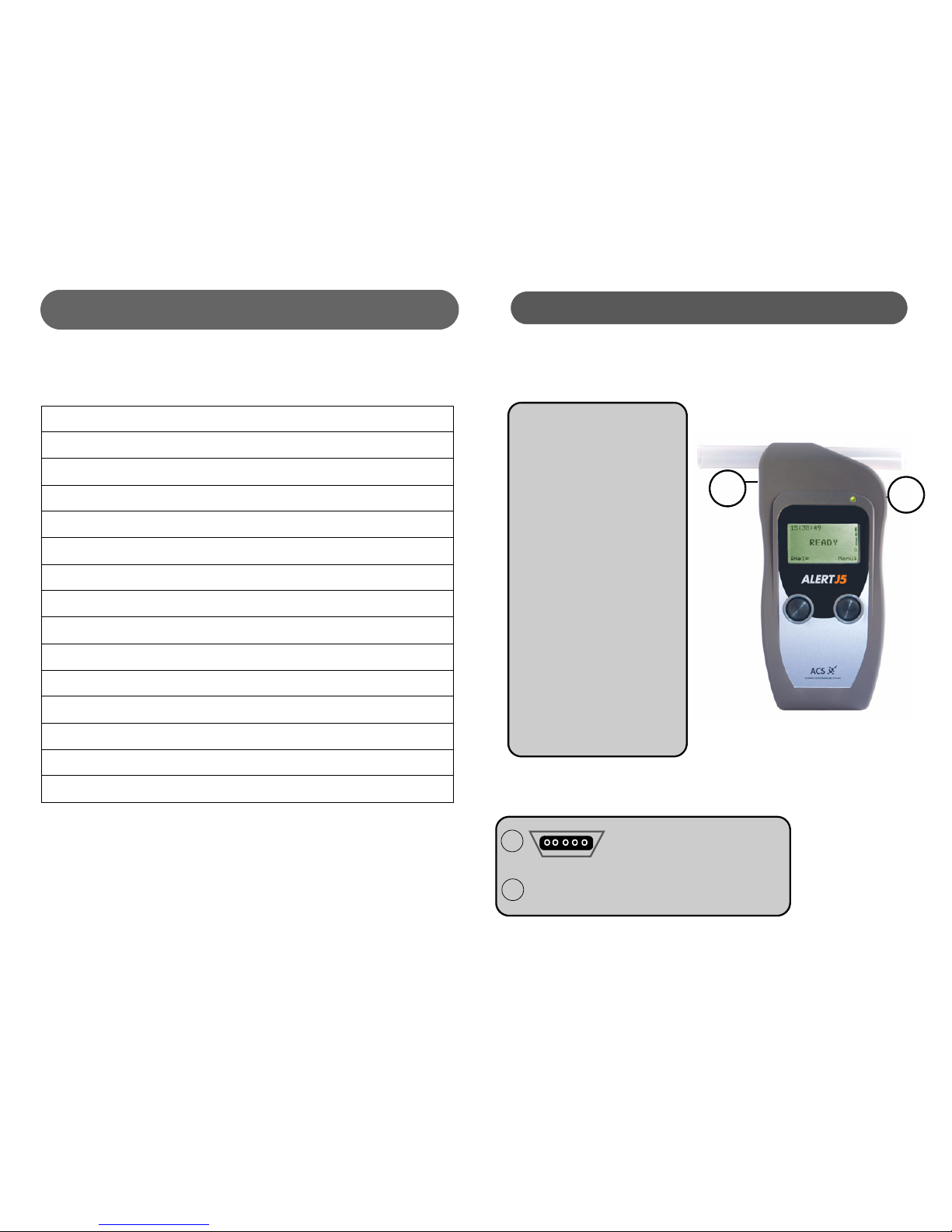

Handset Features
LCD Display
(Backlit)
ABS Shatter
Resistant Case
Large Two
Button Operation
(Can be operated with gloves)
Ergonomic Hand Held Design
ALERT J5 Handset
1
1Serial Port Connection
(5 pin)
(For Printer)
2
2irDA Port Window (effective to 1m)
3
21
LED Indicator

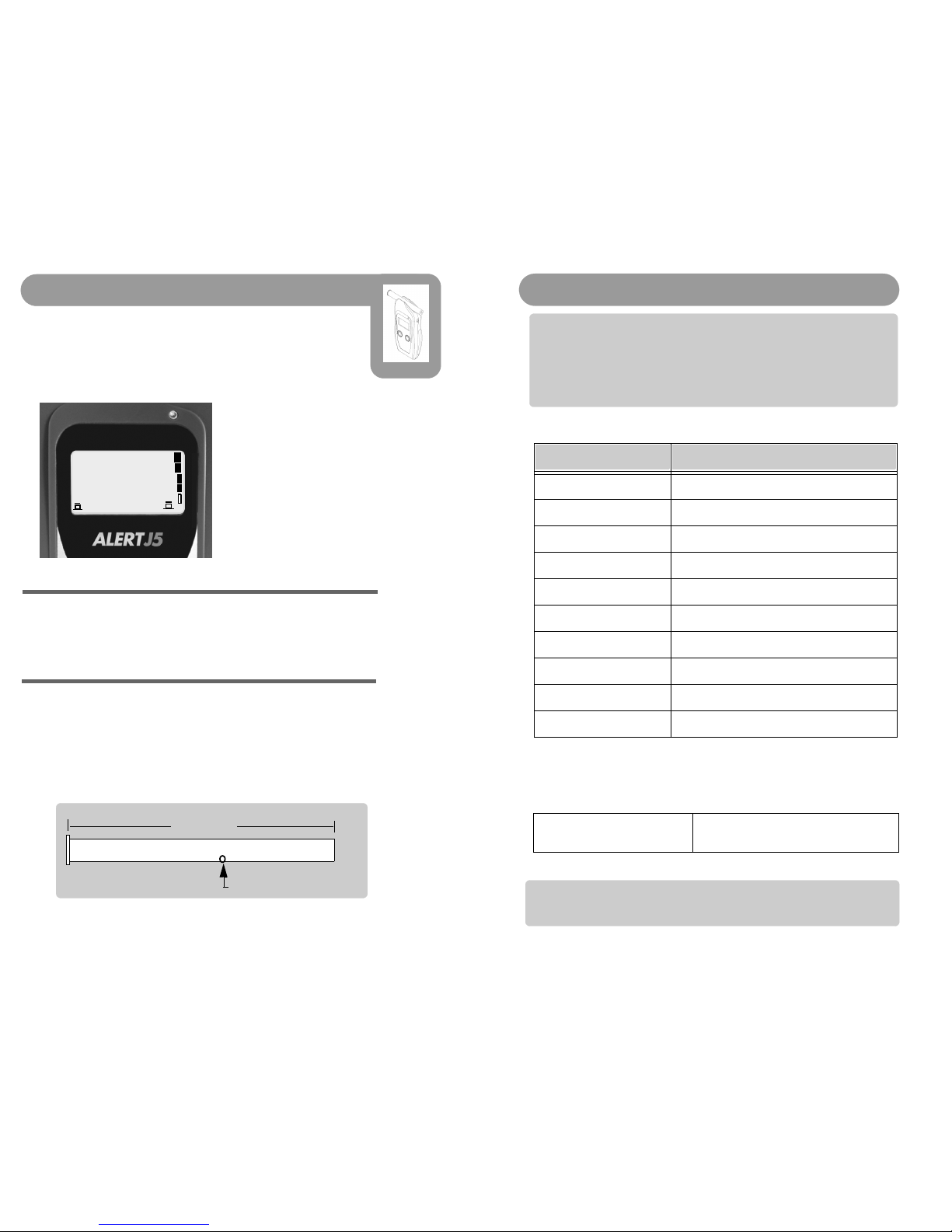

Getting Started with the ALERT J5
1. Press either the left or right button to Turn the ALERT
J5 on. The READY screen appears as below:
11:05:24
READY
Help Menu
2. Note that ALERT J5 LCD display has detailed information
on screen with time, status, battery strength indicator and
a help/menu option.
3. In the READY state, provide a breath sample for testing and
analysis - make sure to attach the mouthpiece as shown on
the next page.
ALERT J5 Pressure Tube Mouthpiece
Port Inlet
9.8 cm
ALERT J5: Service Record
Make note of service or repairs made to your ALERT J5, it will
assist technical service advisors at ACS with providing
excellent solutions to any issues you may encounter.
For troubleshooting contact: [e-mail]
Date: Service Performed: (Enter Details)
Date of Purchase/ Serial Number:
Tip: The serial number can be found in the “About Device”
menu in the ALERT J5 Handset.
631
Service Record/ Serial NumberGetting Started with ALERT J5

Attaching the Mouthpiece (Pressure Tube)
Breath alcohol analysis requires the use of an new, sterile,
disposable mouthpiece for every breath alcohol test to ensure good
hygiene and the accuracy of the breath sample. Make sure to use a
new pressure-tube mouthpiece from a sealed plastic package every
time.
730
Align the mouthpiece
outlet hole to the J5
inlet port. (bottom of
tube)
Press the mouthpiece
firmly into place.
1
2

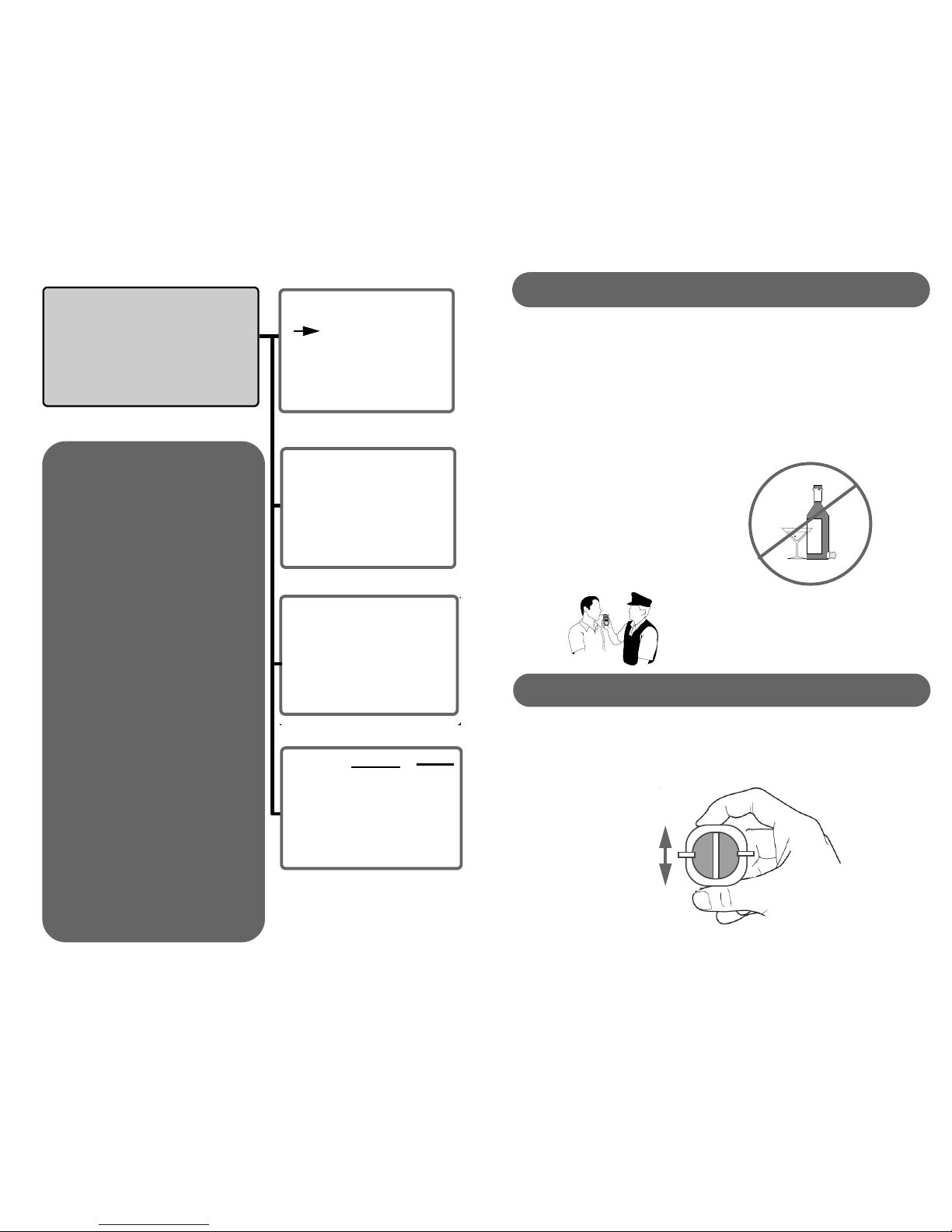

Controlling Residual Mouth Alcohol
Using the ALERT J5 is simple - power on with either left or right but-
ton, and wait for the “READY” screen. Before administering a breath
test, ensure the following:
Cautions (2) : No Drinking or Smoking Prior to Breath Test.
To ensure accuracy, please make sure test subject
has not had anything to drink within the last 15 minutes.
Also, make sure the test subject has not been
smoking for at least 3 minutes.
press down onto inlet port
Warranty / Patent Protection
Quality Workmanship & Warranty
The ALERT J5 is warranted to be free from defects in workmanship and
materials for a period of one year from the date of shipment.
Alcohol Countermeasure Systems agrees to replace or repair any unit or part
that in its judgement is found to be defective, providing that the defect has
not been caused by misuse or mishandling. Units in warranty must be prop-
erly packaged and shipped prepaid to the factory authorized service center.
For service and product inquiries please contact:
serv[email protected]
Patent Protection
Alcohol Countermeasure Systems Corp is the owner of an extensive number of
patents in several countries covering various aspects of breath sampling
procedures and breath alcohol measurement. This instrument incorporates
many breath testing principles as outlined and protected by these patents.
Attaching the Mouthpiece
The ALERT J5 meets the following standards for electromagnetic
compatibility standards:
EMC Directive: 204/104/EC
CEcert GmbH Certification: August 2/06 Cert # 606.083.1
Test Standards: EN 61000-6-1:2001
EN 61000-6-3:2001 +A11:2004
Test Report: # 406083.1
This product also meets/exceeds directives for Waste Electrical and
Electronic Equipment (WEEE), 2002/96/EC, and the Restriction of Use of
Certain Hazardous Substances (RoHS), 2002/95/EC.
EMC Compliance / WEEE Directives / RoHS Compliance

829
ALERT J5: Obtaining a Breath Sample
Obtaining a breath sample for analysis is very easy with ALERT J5.
Here’s how to capture a breath sample for testing:
1. Turn o n t h e A LE RT J5 by pressing the left or right button.
2. Check to make sure that the Mouthpiece is properly attached and
wait for the READY Screen to appear.
3. Have the subject provide a breath sample by blowing into the mouthpiece
for at period of 5 seconds. Continuous pressure is recommended - the
ALERT J5 has an intuitive LCD display and built-in intelligence to sense
proper breath pressure and will prompt the user to deliver a proper
breath sample for testing.
09:28:57 AM
BLOWING....
Help Menu
4. While the subject is blowing , the LCD screen will display as
shown:
BLOW for 5 seconds into the Mouthpiece
Obtaining a Breath Sample
Province BAC Upper
Limit/ Lower
Limit
Immediate
Suspension
Period
Interlock
Requirement
(yes/no)
Alberta .08 ADLS under
review
yes
British
Columbia
.08/.05 30 days review
Manitoba .08/.05 30 day ADLS yes
New
Brunswick
.08/.05 180 days yes
Newfoundland .08 / * .05 1 year yes
Nova Scotia .08/.05 1 year yes
Nunavut/
NWT
.08/.06 90 days ADLS yes
Ontario .08 90 days yes
Quebec .08 30 days yes
PEI .08 / .05 90 days yes
Saskatchewan .08/.04 1 year yes
Yukon .08 30 days yes
BAC Limits/ Penalties : Canada
The preceding table courtesy of Canada Safety Council, Table 1 “ Provincial BAC Levels and
Sanctions”, Canada’s Blood Alcohol Laws. 2006.
* Denotes driving privileges can be suspended at the level .05% BAC in Newfoundland.
Note: New drivers in Canada (under 20 months with full license) are subject to .00% BAC
restrictions.
BAC Limits: Canada
*As of June 30, 2006
About Permissible Blood Alcohol Levels in Canada
Because sanctions can be imposed upon detection of a .05% BAC, it is
more accurate to state that for most provinces it is impermissible to
operate motorized vehicles at BAC levels higher than .05%. When an
impairment level of .08% BAC is exceeded, it becomes a criminal matter
and is subject to much stricter penalty.

Obtaining a Breath Sample (Cont’d)
While sampling breath alcohol , the ALERT J5 has an ability to accurately
assess proper breath flow for sampling and will prompt the subject if
breath flow is too low, or too high. A properly delivered breath sample is
followed by a BAC result within 10 seconds. When blowing into the ALERT
J5, make sure to blow for 5seconds. Listen for the tone to sound and
complete the breath test.
If breath flow is too low, the
following message is displayed.
ACTION: Blow Harder.
If breath flow is too
high: ACTION: Blow softer
BLOW HARDER
BLOW SOFTER
ANALYZING...
Proper breath samples....result in
the ANALYZING message...
The breath sample is being
evaluated by the sensor and a
result will follow (<10 sec.):
09:29:03 AM
020 mg %
Help Menu
BAC Result /Value
9
28
Minnesota .10 90 days no no
Mississippi .08 90 days after 15 days no
Missouri .08 30 days no yes
Montana .08 -- -- yes
Nebraska .08 90 days after 30 days yes
Nevada .08 90 days after 30 days yes
New Hampshire .08 6 months no yes
NewJersey.08----yes
New Mexico .08 90 days after 30 days yes
New York .08 variable yes yes
North Carolina .08 30 days after 10 days yes
North Dakota .08 91 days after 30 days yes
Ohio .08 90 days after 15 days yes
Oklahoma .08 180 days yes yes
Oregon .08 90 days after 30 days yes
Pennsylvania.08----yes
RhodeIsland.08----yes
South Carolina .08 -- -- yes
South Dakota .08 -- -- no
Tennessee .08 -- -- yes
Texas .08 90 days yes yes
Utah .08 90 days yes yes
Vermont .08 90 days no no
Virginia .08 7 days no yes
Washington .08 90 days after 30 days yes
West Virginia .08 6 months after 30 days yes
Wisconsin .08 6 months yes yes
Wyoming .08 90 days yes no
The above table is provided to you by The Insurance Institute for
Highway 2006 http://www.highwaysafety.org U.S % BAC Limits by State, 2006.
BAC Limits by U.S State (continued) *As of June 30, 2006
5.
6.
Breath Testing
Print New Option to Print/ New Test
11:13:04
BLOW HARDER
Help Menu

27
10
ALERT J5 LCD Menu Graphics (Symbols)
Press/ Enter Prompt:
Press to scroll down through the menu
selections. (right button.)
Hold and Exit Prompt:
Use this prompt to exit the Test Recall
Menu.
Arrow Keys:
Help to scroll through the records one
at a time. Alternates with the thicker
arrow to allow scrolling through the
records 10 at a time.
or
001/062* Current/ Total Test Records: (Test #)
Displayed in the right corner is the
number of test records, both current
record and total number of records in
memory.
.020 mg % BAC Value:
Once a breath test is evaluated, the
result is indicated on the LCD Display
for viewing or printing. (eg. .020)
June 27, 2006
10:55:41 AM
Date and Time:
The Date and Time of all submitted
breath tests is captured for archiving
and printing.
*The ALERT J5 has a unique test recall memory designed for archiving
stored test results for printing and retrieval of test records. Tests can be
viewed one at a time or paged through 10 at a time to find the
preferred test record.
Menu Icon/Symbol Help
Blood Alcohol Concentration (BAC) Limits Reference
State BAC Legal Limit
Administrative
License Suspension
1st Offense
Restore Driving
Privileges during
Suspension
Interlock
Requirement
Alabama .08 90 days no no
Alaska .08 90 days after 30 days yes
Arizona .08 90 days after 30 days yes
Arkansas .08 120 days yes yes
California .08 120 days after 30 days yes
Colorado .10 90 days yes yes
Connecticut .08 90 days yes no
Delaware .10 90 days yes no
D.C .08 2-90 days yes no
Florida .08 6 months yes yes
Georgia .08 1 year yes yes
Hawaii .08 90 days after 30 days yes
Idaho .08 90 days after 30 days yes
Illinois .08 90 days after 30 days yes
Indiana .08 180 days after 30 days yes
Iowa .08 180 days after 90 days yes
Kansas .08 30 days no yes
Kentucky .08 -- -- yes
Louisiana .08 90 days after 30 days yes
Maine .08 90 days yes yes
Maryland .08 45 days yes yes
Massachusetts .08 90 days no no
Michigan.08----yes
BAC Limits U.S.A
Scrolling Arrow Key: (Up or Down)
This right corner key allows moving
from screen to screen in the ALERT J5.
