ADF Web HD67850-B2-Y User manual

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DALI
/
SNMP Agent
Document code: MN67850_ENG Revision 1 000 Pagina 1 di 42
User Manual
Revision 1 000
English
DALI / SNMP Agent - Converter
(Order Code: HD67850-B2-Y, HD67850-B2-N)
for Website information:
www adfweb com?Product=HD67850
for Price information:
www adfweb com?Price=HD67850-B2
Benefits and Main Features:
Very easy to configure
Electrical isolation
Temperature range: -40°C/85°C (-40°F/185°F)
For others DALI products, see also the following links:
Converter DALI to
www adfweb com?Product=HD67822 (KNX)
www adfweb com?Product=HD67831 (Seria )
www adfweb com?Product=HD67832 (BACnet/IP Master)
www adfweb com?Product=HD67833 (BACnet/IP S ave)
www adfweb com?Product=HD67834 (CAN)
www adfweb com?Product=HD67835 (CANopen)
www adfweb com?Product=HD67836 (DeviceNet Master)
www adfweb com?Product=HD67837 (DeviceNet S ave)
www adfweb com?Product=HD67838 (DMX)
www adfweb com?Product=HD67839 (Ethernet)
www adfweb com?Product=HD67840 (EtherNet/IP)
www adfweb com?Product=HD67842 (Modbus Master)
www adfweb com?Product=HD67843 (Modbus S ave)
www adfweb com?Product=HD67844 (Modbus TCP Master)
www adfweb com?Product=HD67845 (Modbus TCP S ave)
www adfweb com?Product=HD67848 (PROFINET)
www adfweb com?Product=HD67849 (SNMP Manager)
Do you have an your customer protocol?
www adfweb com?Product=HD67003
Do you need to choose a device? do you want help?
www adfweb com?Cmd=helpme
User Manual

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DALI
/
SNMP Agent
Document code: MN67850_ENG Revision 1 000 Pagina 2 di 42
INDEX:
Page
INDEX 2
UPDATED DOCUMENTATION 2
REVISION LIST 2
WARNING 2
TRADEMARKS 2
SECURITY ALERT 3
EXAMPLE OF CONNECTION 4
CONNECTION SCHEME 5
CHARACTERISTICS 6
CONFIGURATION 6
POWER SUPPLY 7
FUNCTION MODES 8
LEDS 9
DALI 10
ETHERNET 11
USE OF COMPOSITOR SW67850 12
NEW PROJECT / OPEN PROJECT 13
SOFTWARE OPTIONS 14
SET COMMUNICATION 16
DALI ACCESS 17
SET SNMP ACCESS 18
SNMP MIB 19
UPDATE DEVICE 20
USE OF DALI CONSOLE SOFTWARE 22
STRUCTURE OF THE SOFTWARE 23
SETUP 24
NETWORK SETTING 28
DALI MAP 31
MECHANICAL DIMENSIONS 39
ORDERING INFORMATIONS 40
ACCESSORIES 40
DISCLAIMER 41
OTHER REGULATIONS AND STANDARDS 41
WARRANTIES AND TECHNICAL SUPPORT 42
RETURN POLICY 42
UPDATED DOCUMENTATION:
Dear customer, we thank you for your attention and we remind you that
you need to check that the following document is:
Updated
Related to the product you own
To obtain the most recently updated document, note the “document code”
that appears at the top right-hand corner of each page of this document
With this “Document Code” go to web page www adfweb com/download/
and search for the corresponding code on the page Click on the proper
“Document Code” and download the updates
REVISION LIST:
WARNING:
ADFweb com reserves the right to change information in this manual about
our product without warning
ADFweb com is not responsible for any error this manual may contain
TRADEMARKS:
All trademarks mentioned in this document belong to their respective
owners
Revision Date Author Chapter Description
1 000 15/06/2020 VDB All First Release

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DALI
/
SNMP Agent
Document code: MN67850_ENG Revision 1 000 Pagina 3 di 42
SECURITY ALERT:
G ENERAL I NFORMATION
To ensure safe operation, the device must be operated according to the instructions in the manual When using the device, legal and
safety regulation are required for each individual application The same applies also when using accessories
I NTENDED U SE
Machines and systems must be designed so the faulty conditions do not lead to a dangerous situation for the operator (i e
independent limit switches, mechanical interlocks, etc )
Q UALIFIED P ERSONNEL
The device can be used only by qualified personnel, strictly in accordance with the specifications
Qualified personnel are persons who are familiar with the installation, assembly, commissioning and operation of this equipment and
who have appropriate qualifications for their job
R ESIDUAL R ISKS
The device is state-of-the-art and is safe The instruments can represent a potential hazard if they are inappropriately installed and
operated by untrained personnel These instructions refer to residual risks with the following symbol:
This symbol indicates that non-observance of the safety instructions is a danger for people that could lead to serious injury or
death and / or the possibility of damage
CE CONFORMITY
The declaration is made by our company You can send an email to support@adfweb com or give us a call if you need it

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DALI
/
SNMP Agent
Document code: MN67850_ENG Revision 1 000 Pagina 4 di 42

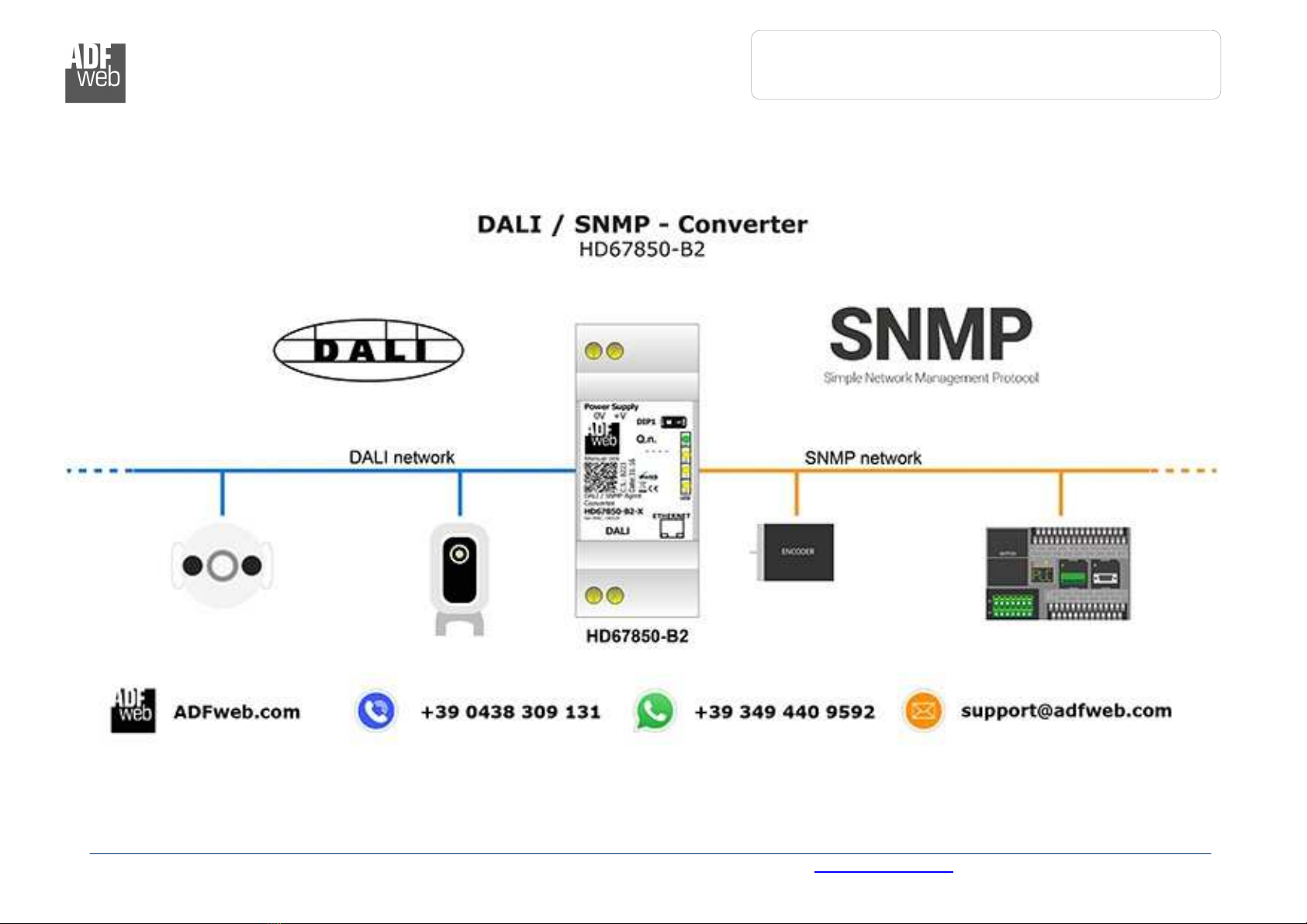

EXAMPLE OF CONNECTION:

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DALI
/
SNMP Agent
Document code: MN67850_ENG Revision 1 000 Pagina 5 di 42
CONNECTION SCHEME:
Figure 1: Connection scheme for HD67850-B2

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DALI
/
SNMP Agent
Document code: MN67850_ENG Revision 1 000 Pagina 6 di 42
CHARACTERISTICS:
The HD67850 is a DALI / SNMP - Converter
It has the following characteristics:
Up to 64 devices on DALI bus;
Configurator for DALI network/devices;
Isolation between DALI – SNMP, Power Supply – SNMP Additional isolation Power Supply – DALI for HD67850-B2-N version;
Mountable on 35mm Rail DIN;
Wide power supply input range: 8…24V AC or 12…35V DC;
Wide temperature range: -40°C / 85°C [-40°F / +185°F]
CONFIGURATION:
You need “DALI Console” software on your PC in order to perform the following:
Configure the DALI network;
Setup the DALI devices (groups, scenes, IDs, …);
Test DALI communication
You need Compositor SW67850 software on your PC in order to perform the following:
Define the parameter of SNMP line;
Define the parameter of DALI line;
Define the list of OIDs accessible on SNMP side;
Update the device

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DALI
/
SNMP Agent
Document code: MN67850_ENG Revision 1 000 Pagina 7 di 42
POWER SUPPLY:
The devices can be powered at 8…24V AC and 12…35V DC For more details see the two tables below
VAC
VDC
Vmin Vmax Vmin Vmax
8V 24V 12V 35V
Consumption at 24V DC:
Device Consumption [W/VA]
HD67850-B2 3 5
HD67850-B2
Caution: Not reverse the po arity power

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DALI
/
SNMP Agent
Document code: MN67850_ENG Revision 1 000 Pagina 8 di 42

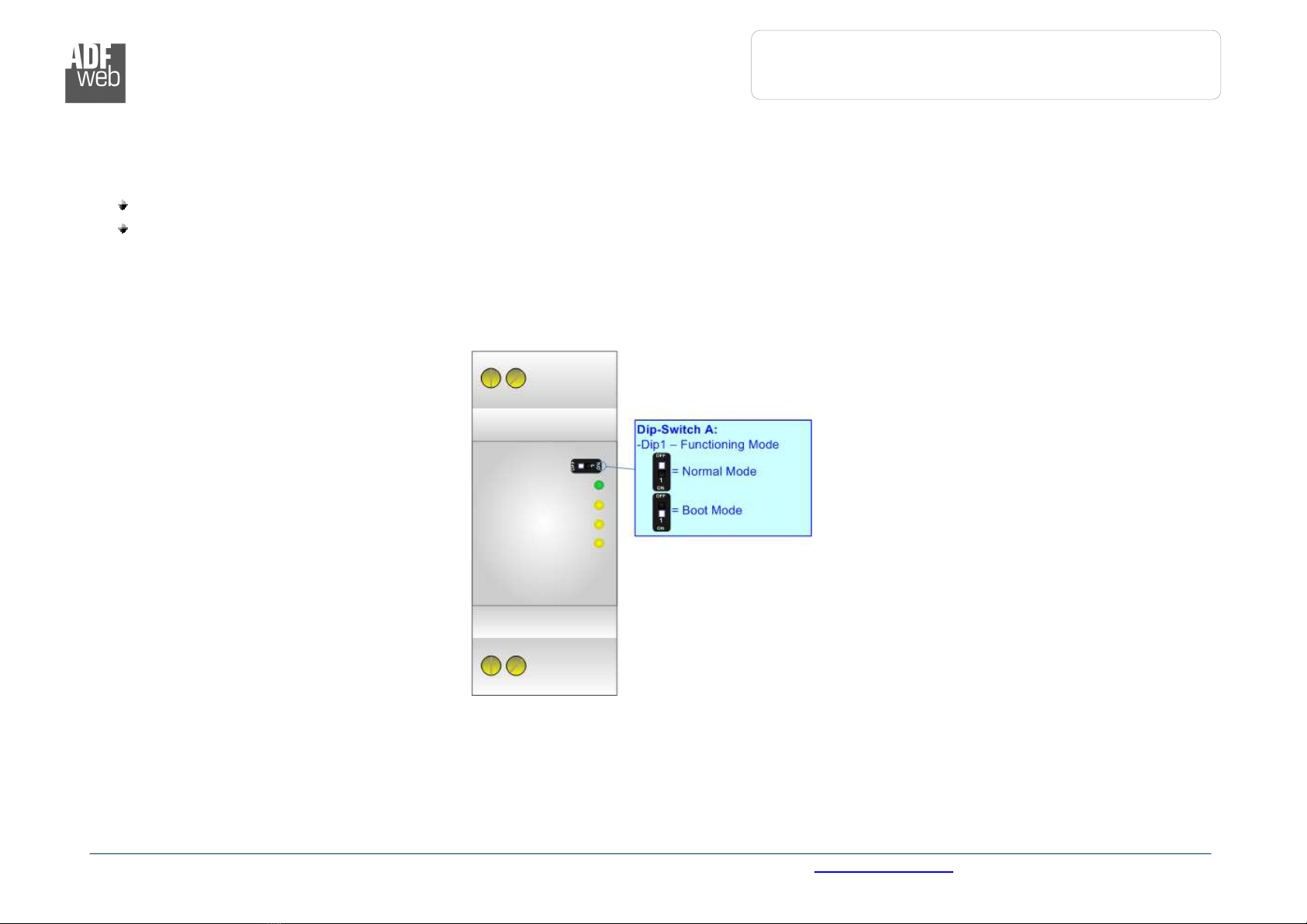

FUNCTION MODES:
The device has got two functions mode depending of the position of the ‘Dip1 of Dip-Switch A’:
The first, with ‘Dip1 of Dip-Switch A’ at “OFF” position, is used for the normal working of the device
The second, with ‘Dip1 of Dip-Switch A’ at “ON” position, is used for upload the Project and/or Firmware
For the operations to follow for the updating, see ‘UPDATE DEVICE’ section
According to the functioning mode, the LEDs will have specifics functions, see ‘LEDS’ section

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DALI
/
SNMP Agent
Document code: MN67850_ENG Revision 1 000 Pagina 9 di 42
LEDS:
The device has got five LEDs that are used to give information of the functioning status
The various meanings of the LEDs are described in the table below
LED Norma Mode Boot Mode
1: Device State (green) Blinks slowly (~1Hz) B inks quick y: Boot state
B inks very s ow y (~0.5Hz): update in progress
2: DALI communication
(yellow) Blinks when DALI communication is running B inks quick y: Boot state
B inks very s ow y (~0.5Hz): update in progress
3: SNMP communication
(yellow) Blinks when SNMP communication is running B inks quick y: Boot state
B inks very s ow y (~0.5Hz): update in progress
4: Comm error (yellow) Turns ON when DALI devices defined are not present B inks quick y: Boot state
B inks very s ow y (~0.5Hz): update in progress
5: Ethernet Link (green) ON: Ethernet cable connected
OFF: Ethernet cable disconnected
ON: Ethernet cable connected
OFF: Ethernet cable disconnected

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DALI
/
SNMP Agent
Document code: MN67850_ENG Revision 1 000 Pagina 10 di 42
DALI:
DALI stands for “Digital Addressable Lighting Interface” and it is an interface protocol for digital
communication between electronic lighting equipment (electronic ballasts, transformers, etc )
With the right choice of individual DALI components an extremely wide range of requirements can be met,
from operating the lighting system from a simple light switch to lighting management systems for entire
office complexes with thousands of light sources Using ADFweb com’s DALI converters, any light source,
including incandescent lamps, fluorescent lamps, high-intensity discharge lamps and even LEDs, can be
controlled irrespective of whether they are installed in an office, a restaurant or a street light
Characteristics Description
Medium Shielded Twisted Pair
Topology Linear, Star or mixed
Device power consumption Max 250 mA
DALI voltage 9 5 V – 22 5 V (typical 16 V)
Maximum cable length 300 m (1 5 mm2 wire)
Maximum number of DALI
devices 64
Baud rate 1200 bps
Maximum number of DALI
groups 16
Maximum number of DALI
scenes 16

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DALI
/
SNMP Agent
Document code: MN67850_ENG Revision 1 000 Pagina 11 di 42
ETHERNET:
The Ethernet port is used for programming DALI network, for programming the converter and for SNMP communication
The Ethernet connection must be made using Connector2 of HD67850-B2 with at least a Category 5E cable The maximum length of the
cable should not exceed 100m The cable has to conform to the T568 norms relative to connections in cat 5 up to 100 Mbps To connect the
device to an Hub/Switch is recommended the use of a straight cable, to connect the device to a PC is recommended the use of a cross cable

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DALI
/
SNMP Agent
Document code: MN67850_ENG Revision 1 000 Pagina 12 di 42
USE OF COMPOSITOR SW67850:
To configure the Converter, use the available software that runs with Windows called SW67850 It is downloadable on the site
www adfweb com and its operation is described in this document (This manual is referenced to the last version of the software present on
our web site) The software works with MSWindows (XP, Vista, Seven, 8, 10; 32/64bit)
When launching the SW67850, the window below appears (Fig 2)
Note:
It is necessary to have installed Net Framework 4
F
igure 2: Main window for SW67850

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DALI
/
SNMP Agent
Document code: MN67850_ENG Revision 1 000 Pagina 13 di 42
NEW CONFIGURATION / OPEN CONFIGURATION:
The “New Configuration” button creates the folder which contains the entire device’s configuration
A device’s configuration can also be imported or exported:
To clone the configurations of a Programmable “DALI / SNMP Agent - Converter” in
order to configure another device in the same manner, it is necessary to maintain the
folder and all its contents;
To clone a project in order to obtain a different version of the project, it is sufficient to
duplicate the project folder with another name and open the new folder with the
button “Open Configuration”

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DALI
/
SNMP Agent
Document code: MN67850_ENG Revision 1 000 Pagina 14 di 42

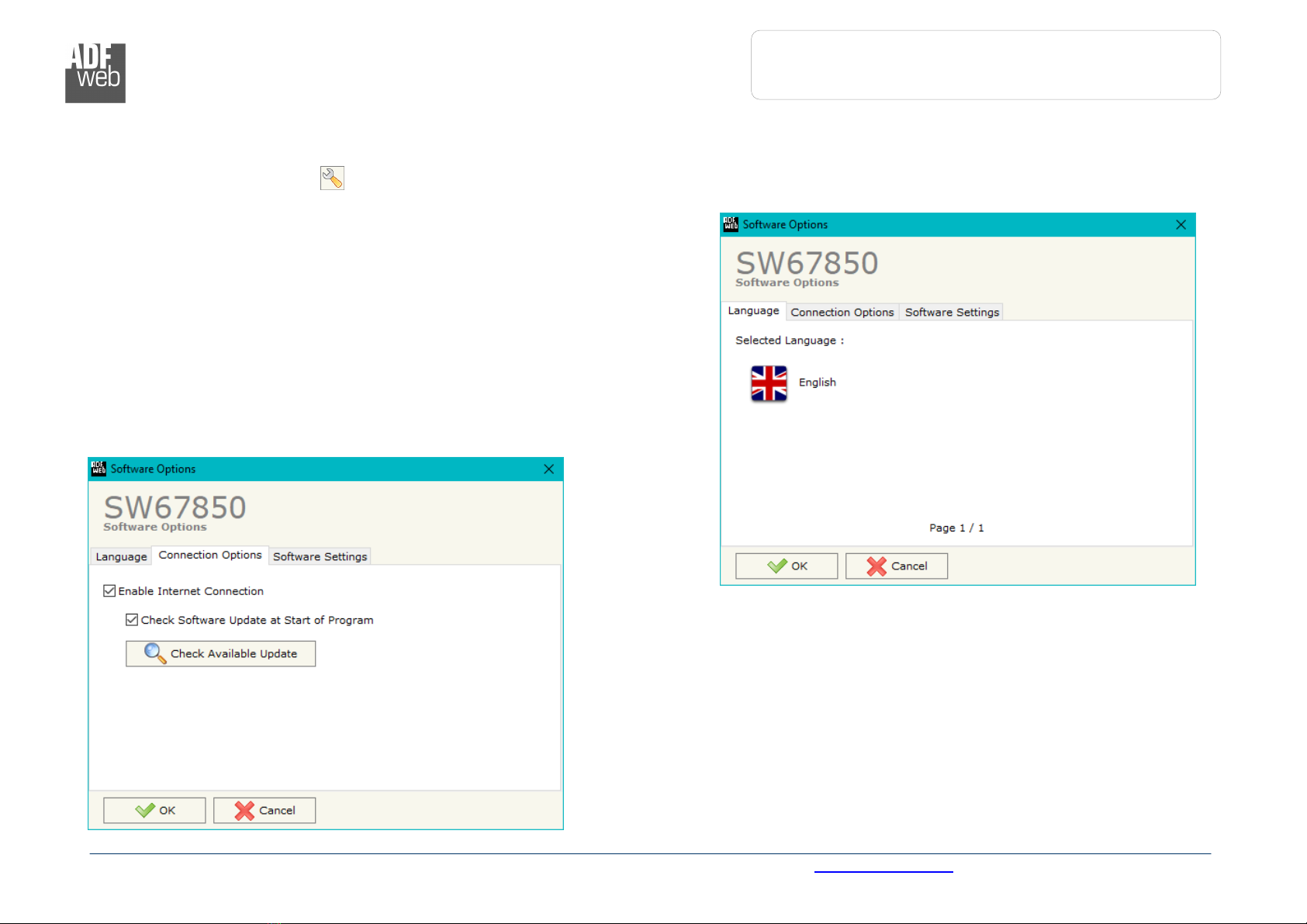

SOFTWARE OPTIONS:
By pressing the “Settings” ( ) button there is the possibility to change the language of the software and check the updatings for the
compositor
In the section “Language” it is possible to change the language of the
software
In the section “Connection Options”, it is possible to check if there are some
updatings of the software compositor in ADFweb com website
Checking the option “Check Software Update at Start of Program”, the
SW67850 check automatically if there are updatings when it is launched

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DALI
/
SNMP Agent
Document code: MN67850_ENG Revision 1 000 Pagina 15 di 42
In the section “Software Settings”, it is possible to enable/disable some
keyboard’s commands for an easier navigation inside the tables contained in
the different sections of the software

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DALI
/
SNMP Agent
Document code: MN67850_ENG Revision 1 000 Pagina 16 di 42
SET COMMUNICATION:
This section define the fundamental communication parameters of SNMP Manager and DALI buses
By Pressing the “Set Communication” button from the main window for SW67850 (Fig 2) the window
“Set Communication” appears (Fig 3)
The means of the fields for the “DALI” section are:
In the field “DALI Conso e Port” the UDP port used for Ethernet communication is defined;
If the option “Disab e DALI Scan” is checked, the automatic scanning of DALI side is disabled
The DALI side is scanned only on Ethernet command;
If the option “Enab e DALI 2” is checked, DALI 2 functions are enabled (normally used with
DALI sensors, actuators, exc )
The means of the fields for “SNMP Agent” are:
In the field “IP ADDRESS” the IP address that you want to give to the SNMP side is defined;
In the field “SUBNET Mask” the SubNet Mask of the SNMP side is defined;
In the field “GATEWAY” the default gateway that you want to use is defined This feature can be
enabled or disabled pressing the Check Box field This feature is used for going out of the net;
In the field "Name of Station" it is possible to assign a name to the SNMP node
In the field "Contact" the contact for SNMP Agent station is defined;
In the field "Location" the location for SNMP Agent station is defined;
In the field “Version” the version of SNMP is defined;
If SNMP V3 is used, the following fields must be filled:
oIn the field “User” the user for the SNMP authentication is defined;
oIn the field “Security Leve ” the type of security used is defined;
oIn the field “Authority” the password for the SNMP authentication is defined;
oIn the field “Authority Mode” the mode used for the authentication is defined;
oIn the field “Privacy” the password for Privacy authentication is defined;
oIn the field “Privacy Mode” the mode used for Privacy is defined
Figure 3: “Set Communication” window

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DALI
/
SNMP Agent
Document code: MN67850_ENG Revision 1 000 Pagina 17 di 42
DALI ACCESS:
By pressing the “DALI Access” button from the main window for SW67850 (Fig 2) the window “Select the DALI Device Present in the
Network” appears (Fig 4)
This section is used to define the DALI devices connected to the converter It is enough to check/uncheck the connected/unconnected DALI
devices
Figure 4: “DALI Access” window

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DALI
/
SNMP Agent
Document code: MN67850_ENG Revision 1 000 Pagina 18 di 42
SET SNMP ACCESS:
By pressing the “Set SNMP Access” button from the main window for SW67850 (Fig 2) the “Set SNMP Access” window appears (Fig 5) In
this section, it is possible to create the OIDs for SNMP side to read or write using GET and SET commands or to be sent as TRAP messages
The window is divided into two tables, one for SNMP readings and one for SNMP writings
The data of the columns in the “SNMP Read” have the following meanings:
If the field “Enab e” is checked, the
SNMP OID is enabled;
In the field “Community Name” the
name of the Community is defined;
In the field “Type” the type of data of
the OID is defined (Octet String or
Integer);
If the field “On Change” is checked, the
OID is sent as Trap when the data from
DALI side change;
If the field “On CMD” is checked, the
OID is sent as Trap when the a DALI command is received;
If the field “On Timer” is checked, the OID is sent as Trap cyclically;
In the field “Time (ms)” the delay time for the Trap send is defined (if “On Timer” option is checked);
In the field “Position” the starting byte of the internal memory array where taking the data is defined;
In the field “Start Bit” the starting bit of the selected Position is defined;
In the field “Num Bits/Bytes” the dimension of the OID is defined For ‘Int’ type the dimension is in bit, for ‘String’ type the
dimension is in bytes;
In the field “Description” the description/name of the OID is defined;
In the field “IP Address” the IP Address of the SNMP device where addressing the Trap message is defined This field is used only
when ‘On Change’ or ‘On Timer’ option is checked;
In the field “Conversion” it is possible to select the data conversion to apply to the data;
In the field “Mnemonic” a brief description of the OID is defined
Figure
5a
: “
Set SNM Access
-
> SNM Read
” window

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DALI
/
SNMP Agent
Document code: MN67850_ENG Revision 1 000 Pagina 19 di 42
The data of the columns in the “SNMP Write”
have the following meanings:
If the field “Enab e” is checked, the
SNMP OID is enabled;
In the field “Community Name” the
name of the Community is defined;
In the field “Type” the type of data of
the OID is defined (Octet String or
Integer);
In the field “Position” the starting byte
of the internal memory array where mapping the data is defined;
In the field “Start Bit” the starting bit of the selected Position is defined;
In the field “Num Bits/Bytes” the dimension of the OID is defined For ‘Int’ type the dimension is in bit, for ‘String’ type the
dimension is in bytes;
In the field “Description” the description/name of the OID is defined;
In the field “Conversion” it is possible to select the data conversion to apply to the data;
In the field “Mnemonic” a brief description of the OID is defined
Note:
If the fields “On Change” and “On Timer” are disabled, the OID is readable using standard GET command If one of these fields is
enabled, the OID is sent as Trap and it is readable by GET command too
Note:
The field “Description” must start with lowercase letter and it cannot contain special chars (just letters and numbers) All the
“Description” fields must be different between them
SNMP MIB:
By pressing the “SNMP MIB” button it is possible to save the MIB file for the SNMP Agent
Figure
5b
: “
Set SNM Access
-
> SNM Write
” window

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DALI
/
SNMP Agent
Document code: MN67850_ENG Revision 1 000 Pagina 20 di 42
UPDATE DEVICE:
By pressing the “Update Device” button, it is possible to load the created Configuration into the device; and also the Firmware, if
necessary
If you don’t know the actual IP address of the device you have to use this
procedure:
Turn OFF the Device;
Put Dip1 of ‘Dip-Switch A’ in ON position;
Turn ON the device
Connect the Ethernet cable;
Insert the IP “192.168.2.205”;
Select which operations you want to do;
Press the “Execute update firmware” button to start the upload;
When all the operations are “OK” turn OFF the Device;
Put Dip1 of ‘Dip-Switch A’ at OFF position;
Turn ON the device
If you know the actual IP address of the device, you have to use this procedure:
Turn on the Device with the Ethernet cable inserted;
Insert the actual IP of the Converter;
Select which operations you want to do;
Press the “Execute update firmware” button to start the upload;
When all the operations are “OK” the device automatically goes at Normal Mode
At this point the configuration/firmware on the device is correctly update
Figure 6: “Update device” windows
