ADF Web HD67912-A1 User manual

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
PROFINET
/ HART Master
Document code: MN67912_ENG Revision 1. Page 1 of 3
User Manual
Revision 1.
English
PROFINET / HART Master - Converter
(Order Code: HD67912-A1)
For Website information:
www.adfweb.com?Product=HD67912
For Price information:
www.adfweb.com?Price=HD67912-A1
Benefits and Main Features:
Very easy to configure
Triple Electrical isolation
Temperature range: -4 °C/+85°C (-4 °F/+185°F)
For other HART products see also the following link:
Converter HART Master to
www.adfweb.com?Product=HD679 (Seria )
www.adfweb.com?Product=HD679 1 (BACnet S ave)
www.adfweb.com?Product=HD679 2 (CAN)
www.adfweb.com?Product=HD679 3 (CANopen)
www.adfweb.com?Product=HD679 4 (DeviceNet S ave)
www.adfweb.com?Product=HD679 5 (Ethernet)
www.adfweb.com?Product=HD679 6 (EtherNet/IP S ave)
www.adfweb.com?Product=HD679 7 (J1939)
www.adfweb.com?Product=HD679 8 (Modbus S ave)
www.adfweb.com?Product=HD679 9 (Modbus TCP S ave)
www.adfweb.com?Product=HD6791 (MQTT)
www.adfweb.com?Product=HD67911 (PROFIBUS S ave)
www.adfweb.com?Product=HD67913 (SNMP Agent)
Do you have your customer protocol? Then go to:
www.adfweb.com?Product=HD67 3
Do you need to choose a device? Do you want help?
www.adfweb.com?Cmd=helpme
User Manual

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
PROFINET
/ HART Master
Document code: MN67912_ENG Revision 1. Page 2 of 3
INDEX:
Page
INDEX 2
UPDATED DOCUMENTATION 2
REVISION LIST 2
WARNING 2
TRADEMARKS 2
SECURITY ALERT 3
EXAMPLE OF CONNECTION 4
CONNECTION SCHEME 5
CHARACTERISTICS 6
CONFIGURATION 6
POWER SUPPLY 7
FUNCTION MODES 8
LEDS 9
HART 1
ETHERNET 11
USE OF COMPOSITOR SW67912 12
NEW CONFIGURATION / OPEN CONFIGURATION 13
SOFTWARE OPTIONS 14
SET COMMUNICATION 16
HART VARIABLES 17
UPDATE DEVICE 19
MECHANICAL DIMENSIONS 21
SCAN FUNCTION 22
HART DIAGNOSTIC OVER PROFINET 24
PLC CONFIGURATION 25
DISCLAIMER 27
OTHER REGULATIONS AND STANDARDS 28
WARRANTIES AND TECHNICAL SUPPORT 29
RETURN POLICY 3
UPDATED DOCUMENTATION:
Dear customer, we thank you for your attention and we remind you that
you need to check that the following document is:
Updated
Related to the product you own
To obtain the most recently updated document, note the “document code”
that appears at the top right-hand corner of each page of this document.
With this “Document Code” go to web page www.adfweb.com/download/
and search for the corresponding code on the page. Click on the proper
“Document Code” and download the updates.
REVISION LIST:
WARNING:
ADFweb.com reserves the right to change information in this manual about
our product without warning.
ADFweb.com is not responsible for any error this manual may contain.
TRADEMARKS:
All trademarks mentioned in this document belong to their respective
owners.
Revision Date Author Chapter Description
1. 18/ 6/2 19 Tf All First Release

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
PROFINET
/ HART Master
Document code: MN67912_ENG Revision 1. Page 3 of 3
SECURITY ALERT:
G ENERAL I NFORMATION
To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device, legal and
safety regulation are required for each individual application. The same applies also when using accessories.
I NTENDED U SE
Machines and systems must be designed so the faulty conditions do not lead to a dangerous situation for the operator (i.e.
independent limit switches, mechanical interlocks, etc.).
Q UALIFIED P ERSONNEL
The device can be used only by qualified personnel, strictly in accordance with the specifications.
Qualified personnel are persons who are familiar with the installation, assembly, commissioning and operation of this equipment and
who have appropriate qualifications for their job.
R ESIDUAL R ISKS
The device is state-of-the-art and is safe. The instruments can represent a potential hazard if they are inappropriately installed and
operated by untrained personnel. These instructions refer to residual risks with the following symbol:
This symbol indicates that non-observance of the safety instructions is a danger for people that could lead to serious injury or
death and / or the possibility of damage.
CE CONFORMITY
The declaration is made by our company. You can send an email to [email protected]om or give us a call if you need it.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
PROFINET
/ HART Master
Document code: MN67912_ENG Revision 1. Page 4 of 3
EXAMPLES OF CONNECTION:

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
PROFINET
/ HART Master
Document code: MN67912_ENG Revision 1. Page 5 of 3
CONNECTION SCHEME:
Figure 1: Connection scheme for HD67912-A1

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
PROFINET
/ HART Master
Document code: MN67912_ENG Revision 1. Page 6 of 3
CHARACTERISTICS:
The HD67912-A1 are PROFINET / HART Master - Converters.
It allows for the following characteristics:
Triple isolation between Ethernet - Power Supply, Ethernet - HART, HART - Power Supply;
Two-directional information between Ethernet bus and HART bus;
Mountable on 35mm Rail DIN;
Wide power supply input range: 8…24V AC or 12…35V DC;
Wide temperature range: -4 °C / 85°C [-4 °F / +185°F].
CONFIGURATION:
You need Compositor SW67912 software on your PC in order to perform the following:
Define the parameters of PROFINET line;
Define the parameters of HART line;
Define HART variables in read/write;
Define HART rules for gateway functions;
Update the device.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
PROFINET
/ HART Master
Document code: MN67912_ENG Revision 1. Page 7 of 3
POWER SUPPLY:
The devices can be powered at 8…24V AC and 12…35V DC. For more details see the two tables below.
VAC
VDC
Vmin Vmax Vmin Vmax
8V 24V 12V 35V
Consumption at 24V DC:
Device Consumption [W/VA]
HD67912-A1 3.5
HD67912-A1
Caution:
Do n
ot reverse the po arity power

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
PROFINET
/ HART Master
Document code: MN67912_ENG Revision 1. Page 8 of 3
FUNCTION MODES:
The device has got two function modes depending on the position of the ‘Dip2 of Dip-Switch A’:
The first, with ‘Dip2 of Dip-Switch A’ at “OFF” position, is used for the normal working of the device.
The second, with ‘Dip2 of Dip-Switch A’ at “ON” position, is used for uploading the Project and/or Firmware.
For the operations to follow for the updating, see ‘UPDATE DEVICE’ section.
According to the functioning mode, the LEDs will have specific functions, see ‘LEDS’ section.
Warning:
Dip1 of ‘Dip-Switch A’ must be at ON position to work even if the Ethernet cable is not inserted.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
PROFINET
/ HART Master
Document code: MN67912_ENG Revision 1. Page 9 of 3
LEDS:
The device has got six LEDs that are used to give information about the functioning status.
The various meanings of the LEDs are described in the table below.
LED Norma Mode Boot Mode
1: HART communication
(green) It blinks when HART communication is running B inks quick y: Boot state
B inks very s ow y (~0.5Hz): update in progress
2: Ethernet link (green) ON: Ethernet cable connected
OFF: Ethernet cable disconnected
ON: Ethernet cable connected
OFF: Ethernet cable disconnected
3: PROFINET communication
(green) It blinks when PROFINET communication is running B inks quick y: Boot state
B inks very s ow y (~0.5Hz): update in progress
4 : Device State
(green) Blinks slowly (~1Hz)
B inks quick y: Boot state
B inks very s ow y (~0.5Hz): update in
progress

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
PROFINET
/ HART Master
Document code: MN67912_ENG Revision 1. Page 1 of 3
HART:
“HART” is an acronym for Highway Addressable Remote Transducer. The HART Protocol makes uses Frequency Shift Keying (FSK) standard
to superimpose digital communication signals at a low level on top of the 4-2 mA. This enables two-way field communication to take place
and makes it possible for additional information beyond just the normal process variable to be communicated to/from a smart field
instrument.

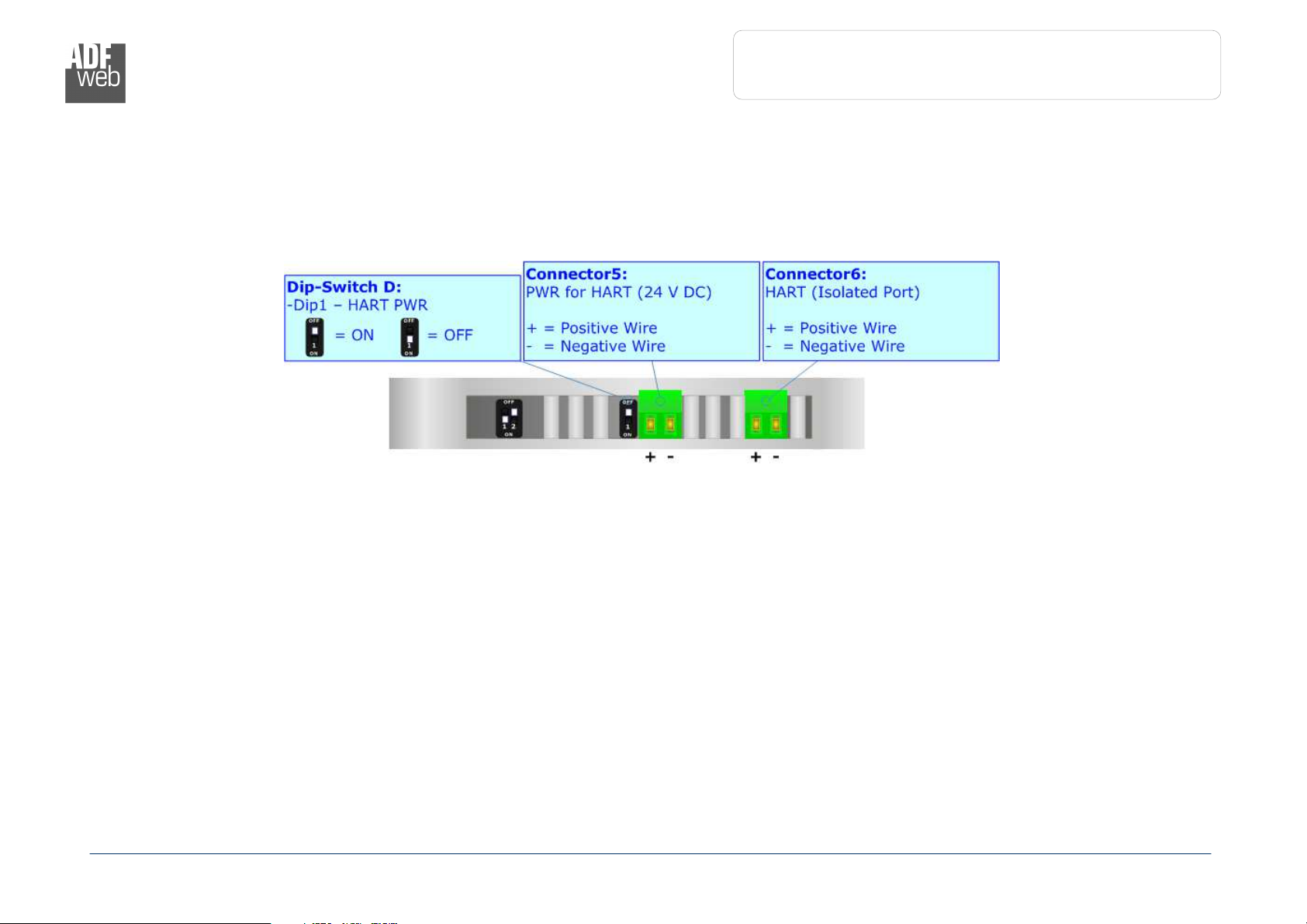

It is possible to provide the current loop for HART communication and an additional low power supply @ 24 V DC for feeding HART devices
by setting Dip-Switch D at ON position.
Current loop for HART is required when there is not an external device in the bus that provides it.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
PROFINET
/ HART Master
Document code: MN67912_ENG Revision 1. Page 11 of 3
ETHERNET:
The updating of the converters and Ethernet communication must be made using Connector4 of the HD67912-A1 with at least a Category 5E
cable. The maximum length of the cable should not exceed 1 m. The cable has to conform to the T568 norms relative to connections in
cat.5 up to 1 Mbps. To connect the device to an Hub/Switch is recommended the use of a straight cable, to connect the device to a
PC/PLC/other is recommended the use of a cross cable.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
PROFINET
/ HART Master
Document code: MN67912_ENG Revision 1. Page 12 of 3
USE OF COMPOSITOR SW67912:
To configure the Converter, use the available software that runs with Windows called SW67912. It is downloadable on the site
www.adfweb.com and its operation is described in this document. This manual is referenced to the last version of the software present on
our web site). The software works with MSWindows (XP, Vista, Seven, 8, 1 ; 32/64bit).
When launching the SW67912, the window below appears (Fig. 2).
Note:
It is necessary to have installed .Net Framework 4.
Figure 2: Main window for SW67
9
12

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
PROFINET
/ HART Master
Document code: MN67912_ENG Revision 1. Page 13 of 3
NEW CONFIGURATION / OPEN CONFIGURATION:
The “New Configuration” button creates the folder which contains the entire device’s
configuration.
A device’s configuration can also be imported or exported:
To clone the configurations of a programmable “PROFINET / HART Master” in order to
configure another device in the same manner, it is necessary to maintain the folder
and all its contents;
To clone a project in order to obtain a different version of the project, it is sufficient to
duplicate the project folder with another name and open the new folder with the
button “Open Configuration”.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
PROFINET
/ HART Master
Document code: MN67912_ENG Revision 1. Page 14 of 3
SOFTWARE OPTIONS:

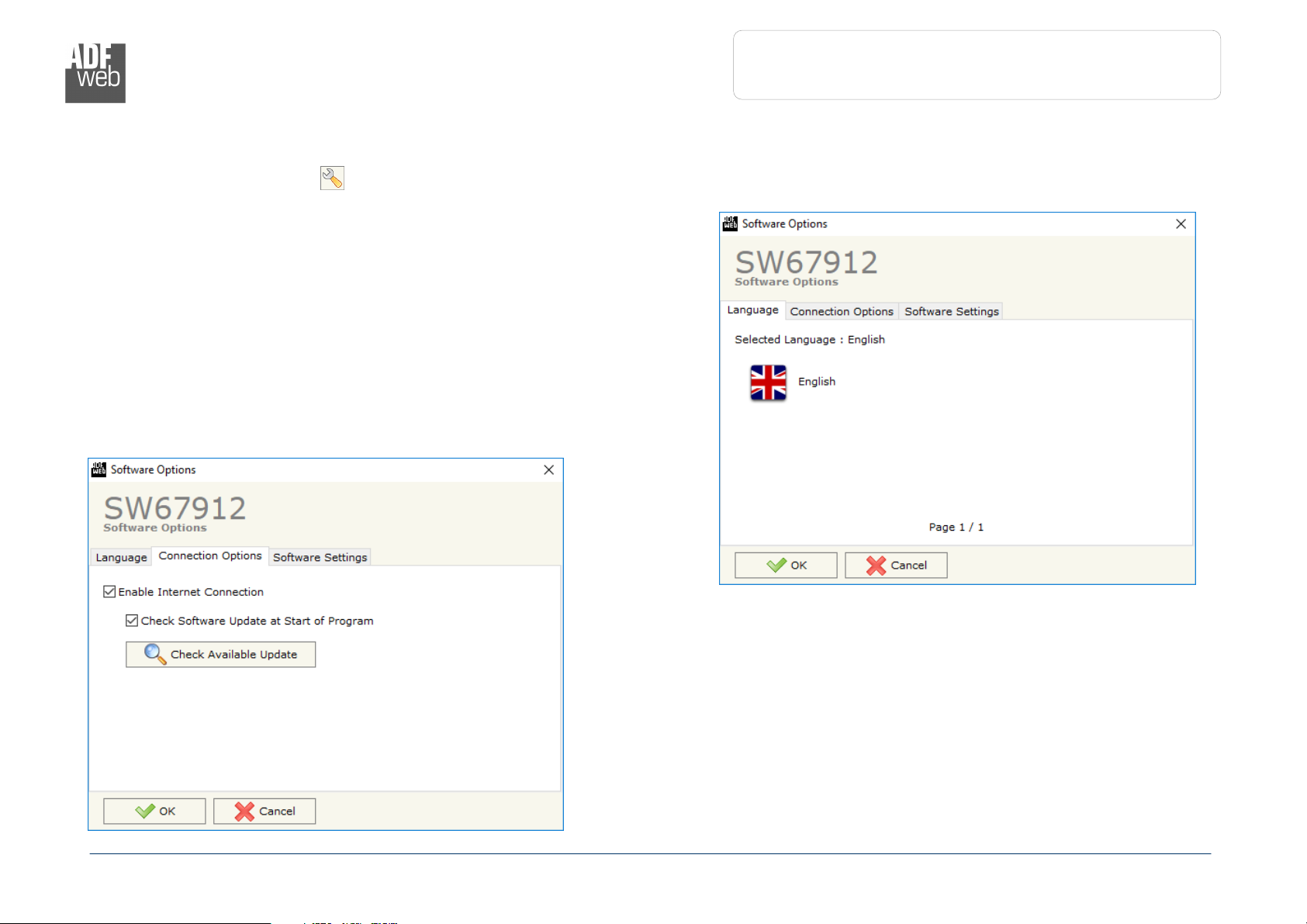

By pressing the “Settings” ( ) button there is the possibility to change the language of the software and check the updatings for the
compositor.
In the section “Language” it is possible to change the language of the
software.
In the section “Connection Options”, it is possible to check if there are some
updatings of the software compositor in ADFweb.com website.
Checking the option “Check Software Update at Start of Program”, the
SW67912 checks automatically if there are updatings when it is launched.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
PROFINET
/ HART Master
Document code: MN67912_ENG Revision 1. Page 15 of 3
In the section “Software Settings”, it is possible to enable/disable some
keyboard’s commands for an easier navigation inside the tables contained in
the different sections of the software.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
PROFINET
/ HART Master
Document code: MN67912_ENG Revision 1. Page 16 of 3
SET COMMUNICATION:
This section define the fundamental communication parameters of HART and
Modbus buses.
By Pressing the “Set Communication” button from the main window for SW67912
(Fig. 2) the window “Set Communication” appears (Fig. 3).
The means of the fields for the “HART Master” section are:
In the field “Address” the type of Master is defined;
In the field “Retry Limit” the maximum number of retries in case of missing
response from HART device is defined;
The meaning of the fields of “PROFINET” are:
In the field “IP ADDRESS” the IP address to assign to the converter is
defined;
In the field “SUBNET Mask” the SubNet Mask of the converter is defined;
In the field “GATEWAY” the default gateway of the network is defined. This
feature can be enabled or disabled pressing the Check Box field. This feature
is used for going out of the net;
In the field “Tunne ing Port” the port to use for the “Tunneling mode” is
defined (see page 28 for more details);
In the field "Name of Station" the name of PROFINET side of the converter
is defined;
In the field "Number Bytes Input" the number of byte from the PROFINET
Master to the converter is defined (it is possible to use up to 1439 byte);
In the field "Number Bytes Output " the number of byte from the
converter to the PROFINET Master is defined (it is possible to use up to 1439
byte);
If the field “Diagnostic” is checked, the diagnostic function is enabled. In
the field on the right, the starting PROFINET byte where saving the
diagnostic is defined (see page 24 for more details).
Figure 3
: “Set Communication” window

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
PROFINET
/ HART Master
Document code: MN67912_ENG Revision 1. Page 17 of 3
Figure 4: “HART Variables” window
HART VARIABLES:
By Pressing the “HART Variab es” button from the main window for SW67912 (Fig. 2) the window “Definition of HART Variables List”
appears (Fig. 4).
This section is used to define the HART variables to read/write with the PROFINET Master.
The means of the fields are:
If the field “Enab e” is checked, the HART variable is enabled;
In the field “Device Address” the address of HART device is defined;
In the field “Preamb e Count” the number of bytes for the synchronization is defined;
If the field “Type” the type of HART parameter is defined;
In the field “Var/Cmd Number” the identification of variable/command to read/write is defined. From HART standard, the most used
numbers are:
o246: Primary Variable;
o247: Secondary Variable;
o248: Tertiary Variable;
o249: Quaternary Variable.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
PROFINET
/ HART Master
Document code: MN67912_ENG Revision 1. Page 18 of 3
In the field “Params” the parameters for the commands are defined;
In the field “Position” the starting byte of the PROFINET array where mapping the HART data is defined;
In the field “Swap” the bytes’ order is reversed;
In the field “Conv Int” the data from HART device is converted in Integer format;
In the field “Operations” a post-operation on the data read is defined;
In the field “Mnemonic” a description of the variable is defined.
Note:
In order to configure the HART devices and their variables, it is possible to scan the HART network and get the data automatically. It
is enough to click on “Scan” button. See page 22 for more info.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
PROFINET
/ HART Master
Document code: MN67912_ENG Revision 1. Page 19 of 3
UPDATE DEVICE:
By pressing the “Update Device” button, it is possible to load the created
Configuration into the device; and also the Firmware, if necessary. This by using the
Ethernet port.
If you don’t know the actual IP address of the device you have to use this procedure:
Turn OFF the Device;
Put Dip2 of ‘Dip-Switch A’ in ON position;
Turn ON the device
Connect the Ethernet cable;
Insert the IP “192.168.2.205”;
Select which operations you want to do;
Press the “Execute update firmware” button to start the upload;
When all the operations are “OK” turn OFF the Device;
Put Dip2 of ‘Dip-Switch A’ in OFF position;
Turn ON the device.
If you know the actual IP address of the device, you have to use this procedure:
Turn ON the Device with the Ethernet cable inserted;
Insert the actual IP of the Converter;
Select which operations you want to do;
Press the “Execute update firmware” button to start the upload;
When all the operations are “OK” the device automatically goes at Normal Mode.
At this point the configuration/firmware on the device is correctly updated.
Figure
5
: “Update device” windows

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
PROFINET
/ HART Master
Document code: MN67912_ENG Revision 1. Page 2 of 3
Note:
When you receive the device, for the first time, you also have to update the Firmware in the HD679 9 device.
Warning:
If Fig. 6 appears when you try to do the Update try these points before seeking
assistance:
Try to repeat the operations for the updating;
Try with another PC;
Try to restart the PC;
Check the LAN settings;
If you are using the program inside a Virtual Machine, try to use in the main
Operating System;
If you are using Windows Seven, Vista, 8 or 1 make sure that you have the
administrator privileges;
In case you have to program more than one device, using the "UDP Update", you
have to cancel the ARP table every time you connect a new device on Ethernet. For
do this you have to launch the "Command Prompt" and write the command "arp -
d". Pay attention that with Windows Vista, Seven, 8, 1 you have to launch the
"Command Prompt" with Administrator Rights;
Pay attention at Firewall lock.
Warning:
In the case of HD67912 you have to use the software “SW67912”: www.adfweb.com\download\filefold\SW67912.zip.
Figure
6
:
“
Error
” window
