ADF Web HD67619-A1 User manual

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
S7comm /
PROFIBUS
Slave
Document code: MN67619_ENG Revision 1.000 age 1 of 25
User Manual
Revision 1.000
English
S7comm / PROFIBUS Slave - Converter
(Order Code: HD67619-A1)
for Website information:
http://www.adfweb.com/? roduct=HD67619
for rice information:
http://www.adfweb.com/? rice=HD67619-A1
Benefits and Main Features:
Triple electrical isolation
Two Ethernet ports
Temperature range: -40°C/+85°C (-40°F/+185°F)
For others S7comm devices, see also the following links:
S7comm from/to …
www.adfweb.com? roduct=HD67618 (Mod us TCP Slave)
www.adfweb.com? roduct=HD67620 (IEC61850 Server)
www.adfweb.com? roduct=HD67621 (Serial)
www.adfweb.com? roduct=HD67622 (Mod us Slave)
www.adfweb.com? roduct=HD67623 (CAN)
www.adfweb.com? roduct=HD67624 (CANopen)
www.adfweb.com? roduct=HD67625 (DeviceNet Slave)
www.adfweb.com? roduct=HD67626 (SNMP Agent)
www.adfweb.com? roduct=HD67627 (EtherNet/IP Slave)
www.adfweb.com? roduct=HD67628 (KNX)
www.adfweb.com? roduct=HD67629 (MQTT)
www.adfweb.com? roduct=HD67630 (BACnet Slave)
www.adfweb.com? roduct=HD67631 (Ethernet)
www.adfweb.com? roduct=HD67632 (OPC UA Server)
www.adfweb.com? roduct=HD67633 (PROFINET Slave)
Do you have an your customer protocol?
See the following links:
www.adfweb.com? roduct=HD67003
Do you need to choose a device? do you want help?
Ask it to the following link:
www.adfweb.com?Cmd=helpme
User Manual

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
S7comm /
PROFIBUS
Slave
Document code: MN67619_ENG Revision 1.000 age 2 of 25
INDEX:
age
INDEX 2
U DATED DOCUMENTATION 2
REVISION LIST 2
WARNING 2
TRADEMARKS 2
SECURITY ALERT 3
EXAM LE OF CONNECTION 4
CONNECTION SCHEME 5
CHARACTERISTICS 6
CONFIGURATION 6
OWER SU LY 7
FUNCTION MODES 8
LEDS 9
ROFIBUS 10
ETHERNET 10
USE OF COM OSITOR SW67619 11
NEW ROJECT / O EN ROJECT 12
SOFTWARE O TIONS 13
SET COMMUNICATION 15
S7comm ACCESS 16
GSD FILE 19
U DATE DEVICE 20
MECHANICAL DIMENSIONS 22
ORDERING INFORMATIONS 23
ACCESSORIES 23
DISCLAIMER 24
OTHER REGULATIONS AND STANDARDS 24
WARRANTIES AND TECHNICAL SU ORT 25
RETURN OLICY 25
Pagina 2 di 25
UPDATED DOCUMENTATION:
Dear customer, we thank you for your attention and we remind you that
you need to check that the following document is:
Updated
Related to the product you own
To obtain the most recently updated document, note the “document code”
that appears at the top right-hand corner of each page of this document.
With this “Document Code” go to web page www.adfweb.com/download/
and search for the corresponding code on the page. Click on the proper
“Document Code” and download the updates.
REVISION LIST:
Revision Date Author Chapter Description
1.000 13/03/2020 Ff All First release version
WARNING:
ADFweb.com reserves the right to change information in this manual about
our product without warning.
ADFweb.com is not responsible for any error this manual may contain.
TRADEMARKS:
All trademarks mentioned in this document belong to their respective
owners.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
S7comm /
PROFIBUS
Slave
Document code: MN67619_ENG Revision 1.000 age 3 of 25
SECURITY ALERT:
G ENERAL I NFORMATION
To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device, legal and
safety regulation are required for each individual application. The same applies also when using accessories.
I NTENDED U SE
Machines and systems must be designed so the faulty conditions do not lead to a dangerous situation for the operator (i.e.
independent limit switches, mechanical interlocks, etc.).
Q UALIFIED P ERSONNEL
The device can be used only by qualified personnel, strictly in accordance with the specifications.
Qualified personnel are persons who are familiar with the installation, assembly, commissioning and operation of this equipment and
who have appropriate qualifications for their job.
R ESIDUAL R ISKS
The device is state-of-the-art and is safe. The instruments can represent a potential hazard if they are inappropriately installed and
operated by untrained personnel. These instructions refer to residual risks with the following symbol:
This symbol indicates that non-observance of the safety instructions is a danger for people that could lead to serious injury or
death and / or the possibility of damage.
CE CONFORMITY
The declaration is made by our company. You can send an email to [email protected]om or give us a call if you need it.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
S7comm /
PROFIBUS
Slave
Document code: MN67619_ENG Revision 1.000 age 4 of 25
EXAMPLE OF CONNECTION:

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
S7comm /
PROFIBUS
Slave
Document code: MN67619_ENG Revision 1.000 age 5 of 25
CONNECTION SCHEME:
Figure
1
: Connection scheme for HD67
61
9
-
A1

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
S7comm /
PROFIBUS
Slave
Document code: MN67619_ENG Revision 1.000 age 6 of 25
CHARACTERISTICS:
The HD67619-A1 is a S7comm / ROFIBUS slave Converter.
It allows the following characteristics:
Two-directional information between S7comm and ROFIBUS;
Mountable on 35mm Rail DIN;
Wide power supply input range: 8…24V AC or 12…35V DC;
Wide temperature range: -40°C / 85°C [-40°F / +185°F].
CONFIGURATION:
You need Compositor SW67619 software on your C in order to perform the following:
Define the parameter of the ROFIBUS;
Define the parameter of the S7comm;
Define the S7comm requests to send to the S7comm servers;
Update the device.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
S7comm /
PROFIBUS
Slave
Document code: MN67619_ENG Revision 1.000 age 7 of 25
POWER SUPPLY:
The devices can be powered between a wide range of tensions. For more details see the two tables below.
VAC
VDC
Vmin Vmax Vmin Vmax
HD67619-A1 8V 24V 12V 35V
Consumption at 24V DC:
Device W/VA
HD67619-A1 4
Caution: Not reverse the polarity power
HD67619-A1

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
S7comm /
PROFIBUS
Slave
Document code: MN67619_ENG Revision 1.000 age 8 of 25
FUNCTION MODES:
The device has got two functions mode depending of the position of the Dip2 of ‘Dip-Switch A’:
The first, with Dip2 in Off position (factory setting), is used for the normal working of the device.
The second, with Dip2 in On position, is used for upload the roject/Firmware.
For the operations to follow for the updating (see ‘U DATE DEVICE’ section).
According to the functioning mode, the LEDs will have specifics functions (see ‘LEDS’ section).

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
S7comm /
PROFIBUS
Slave
Document code: MN67619_ENG Revision 1.000 age 9 of 25
LEDS:
The device has got six LEDs that are used to give information of the functioning status.
The various meanings of the LEDs are described in the table below.
LED Normal Mode Boot Mode
1: ON [supply voltage ]
(green)
ON: Device powered
OFF: Device not powered
ON: Device powered
OFF: Device not powered
2: Device State (green) Blinks slowly (~1Hz) Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
3: ROFIBUS communication
(green) Blinks when ROFIBUS communication is running Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
4: S7comm communication
(green) Blinks when a S7comm response is received Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
5: Ethernet1 Tx (green) Blinks when it is transmitting Ethernet frames Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
6: Ethernet2 Tx (green) Blinks when it is transmitting Ethernet frames Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
S7comm /
PROFIBUS
Slave
Document code: MN67619_ENG Revision 1.000 age 10 of 25
PROFIBUS:
The ROFIBUS uses a 9-pin D-SUB connector. The pin assignment is defined
like in the right figure.
Here some codes of cables:
Belden: p/n 183079A - Continuous Armor DataBus® ISA/S -50
ROFIBUS Cable.
ETHERNET:
The Ethernet connection must be made using Connector3 or Connector4 of HD67619-A1 with at least a Category 5E cable. The maximum
length of the cable should not exceed 100m. The cable has to conform to the T568 norms relative to connections in cat.5 up to 100 Mbps. To
connect the device to an Hub/Switch is recommended the use of a straight cable, to connect the device to a C/ LC/other is recommended
the use of a cross cable.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
S7comm /
PROFIBUS
Slave
Document code: MN67619_ENG Revision 1.000 age 11 of 25
USE OF COMPOSITOR SW67619:
To configure the Converter, use the available software that runs with Windows called SW67619. It is downloadable on the site
www.adfweb.com and its operation is described in this document. (This manual is referenced to the last version of the software present on
our web site). The software works with MSWindows (X , Vista, Seven, 8, 10; 32/64bit).
When launching the SW67619, the window below appears (Fig. 2).
Note:
It is necessary to have installed .Net Framework 4.
Figure 2: Main window for SW67619

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
S7comm /
PROFIBUS
Slave
Document code: MN67619_ENG Revision 1.000 age 12 of 25

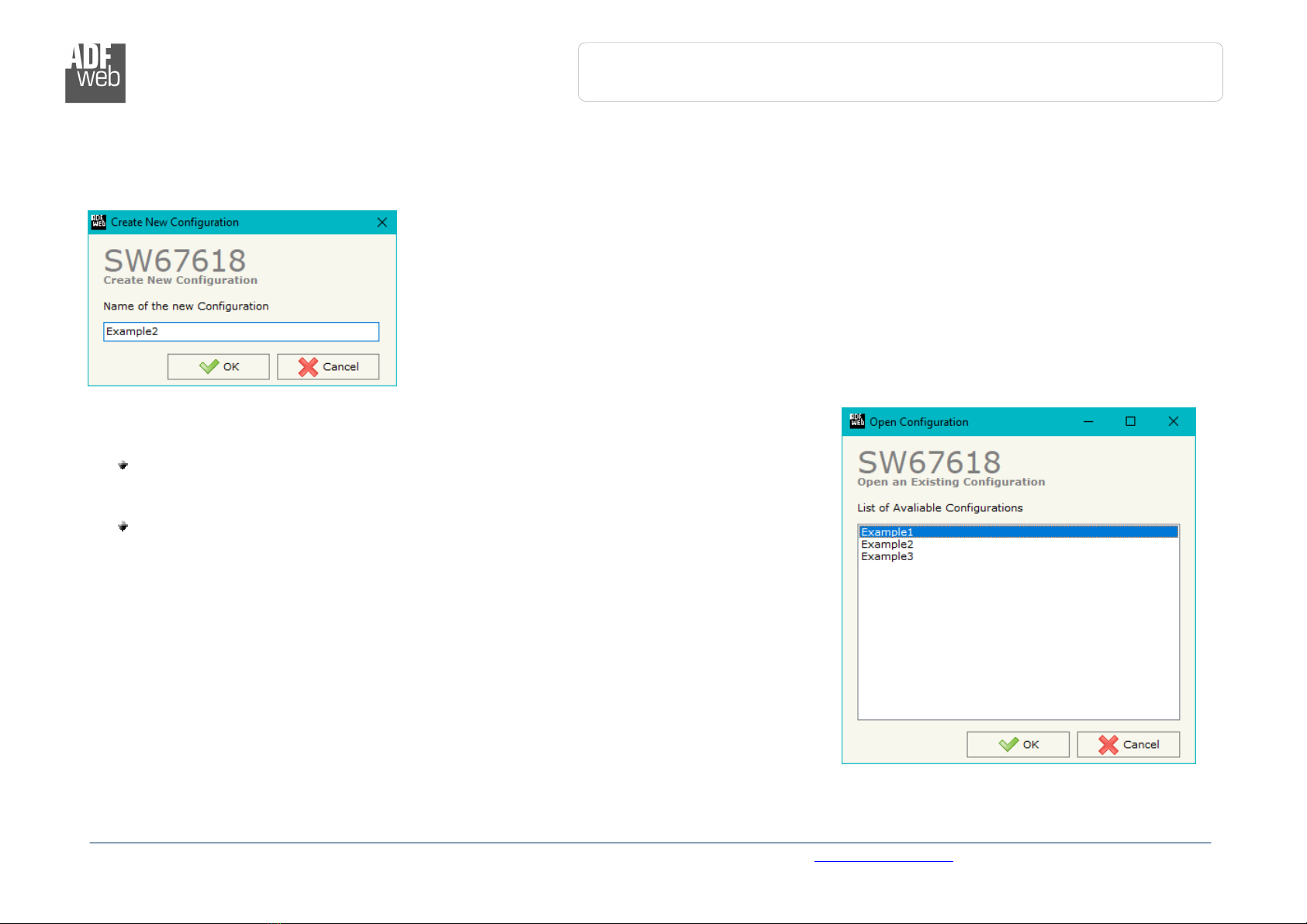

NEW CONFIGURATION / OPEN CONFIGURATION:
The “New Configuration” button creates the folder which contains the entire device’s configuration.
A device’s configuration can also be imported or exported:
To clone the configurations of a programmable “S7comm / ROFIBUS Slave -
Converter” in order to configure another device in the same manner, it is necessary to
maintain the folder and all its contents;
To clone a project in order to obtain a different version of the project, it is sufficient to
duplicate the project folder with another name and open the new folder with the
button “Open Configuration”.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
S7comm /
PROFIBUS
Slave
Document code: MN67619_ENG Revision 1.000 age 13 of 25

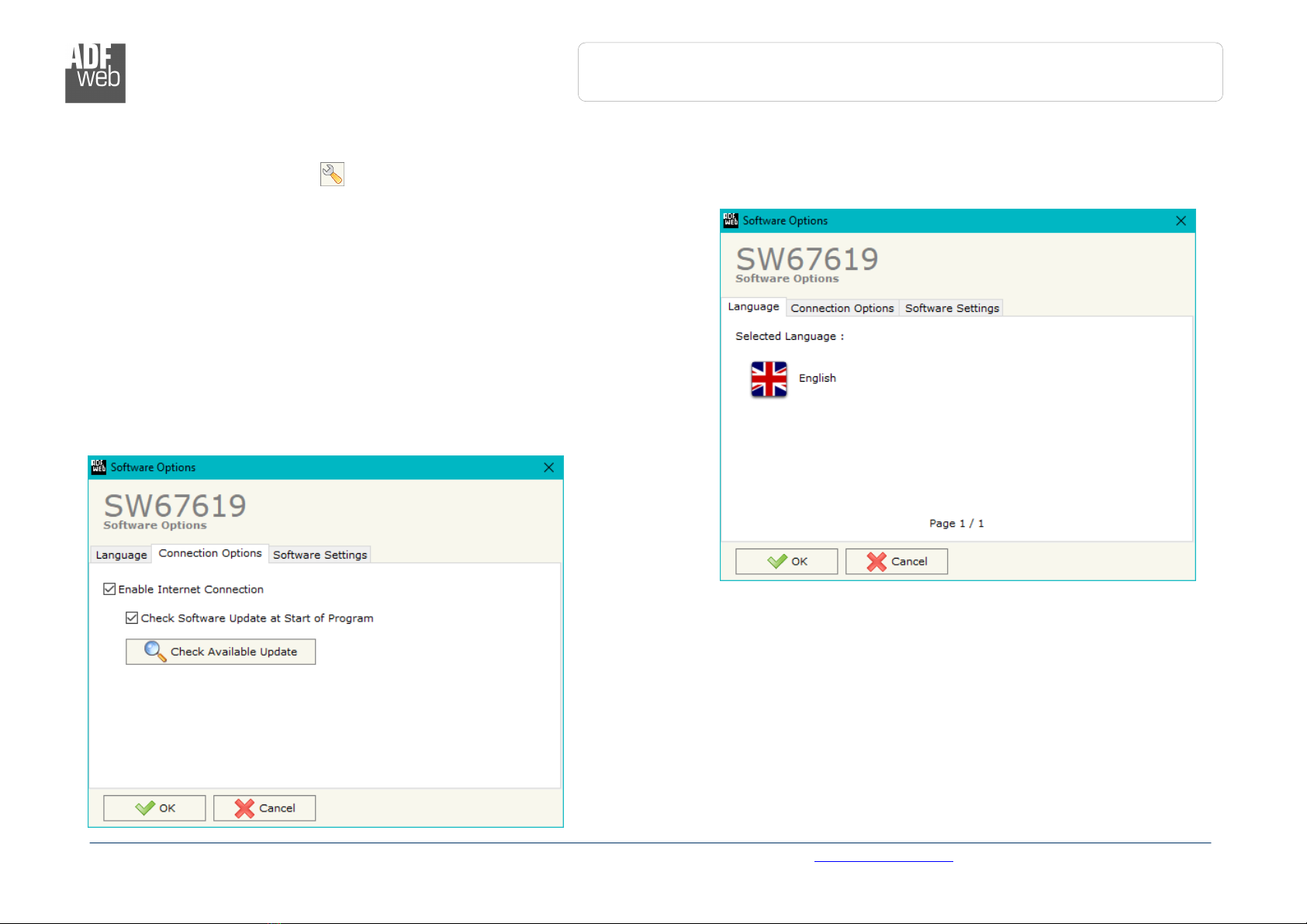

SOFTWARE OPTIONS:
By pressing the “Settings” ( ) button there is the possibility to change the language of the software and check the updatings for the
compositor.
In the section “Language” it is possible to change the language of the
software.
In the section “Connection Options”, it is possible to check if there are some
updatings of the software compositor in ADFweb.com website.
Checking the option “Check Software Update at Start of Program”, the
SW67619 check automatically if there are updatings when it is launched.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
S7comm /
PROFIBUS
Slave
Document code: MN67619_ENG Revision 1.000 age 14 of 25
In the section “Software Settings”, it is possible to enable/disable some
keyboard’s commands for an easier navigation inside the tables contained in
the different sections of the software.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
S7comm /
PROFIBUS
Slave
Document code: MN67619_ENG Revision 1.000 age 15 of 25
SET COMMUNICATION:
This section define the fundamental communication parameters of two buses, ROFIBUS
and S7comm.
By ressing the “Set Communication” button from the main window for SW67619 (Fig. 2)
the window “Set Communication” appears (Fig. 3).
The means of the fields for “S7comm” are:
In the fields “IP ADDRESS” the I address for S7comm side of the converter is
defined;
In the fields “SUBNET Mask” the SubNet Mask for S7comm side of the converter is
defined;
In the fields “GATEWAY” the default gateway of the net is defined. This feature can
be enabled or disabled pressing the Check Box field. This feature is used for going
out of the net.
The means of the fields for “ ROFIBUS” are:
In the field “ID Device” the ID of ROFIBUS side of the converter is defined;
In the field “Baudrate” the data rate used for ROFIBUS communication is defined
(fixed to ‘Auto Baudrate’);
In the field "Num er Byte IN" the number of Input bytes of ROFIBUS side of the
converter is defined;
In the field "Num er Byte OUT" the number of Output bytes of ROFIBUS side of
the converter is defined.
Figure 3: “Set Communication” window

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
S7comm /
PROFIBUS
Slave
Document code: MN67619_ENG Revision 1.000 age 16 of 25
Figure
4a
:
“S7 r
otocol
Access

S7comm
Read” window
S7comm ACCESS:
By ressing the “S7comm Access ” button from the main window of SW67619 (Fig. 2), the window “Set S7comm Access” appears (Fig. 4).
The window is divided in two parts, the “S7comm Read” that contains the data that the converter reads from the S7comm servers and
“S7comm Write” that contains the data that the converter writes into the S7comm servers.
The means of the fields in the window “S7comm Read” are the following:
In the field “PLC Address” the I address of the LC that contains the data to be read is defined;
In the field “PLC Port” the port used for S7comm communication is defined;
In the field “PLC Type” the family of the LC is defined;
In the field “Rack” the Rack’s ID of the LC is defined;
In the field “Slot” the Slot’s ID is defined;
In the field “Data Type” the data format of the variable to read is defined;
In the field “Data Identifier” the identifier of the variable to read is defined;
In the field “PLC Area” the memory area where the data is located inside the LC is defined;
In the field “PLC Add” the starting memory address where the data is located is defined;
In the field “PLC Bit” the starting bit of the selected LC Address is defined;
In the field “Poll Time” the frequency of the request is defined (in ms);
In the field “Position” the starting byte of the ROFIBUS array from which mapping the data read is defined;

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
S7comm /
PROFIBUS
Slave
Document code: MN67619_ENG Revision 1.000 age 17 of 25
In the field “Start Bit” is used for the “Bit” data. It is possible to select the bit of the selected osition where mapping the data;
If the field “Swap” is checked, the bytes’ order is reversed;
If the field “Swap W” is checked, the words’ order is reversed;
In the field “Mnemonic” a description of the data inserted in the row is defined.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
S7comm /
PROFIBUS
Slave
Document code: MN67619_ENG Revision 1.000 age 18 of 25
Figure 4b: “S7 rotocol Access  S7comm Write” window
The means of the fields in the window “S7comm Read” are the following:
In the field “PLC Address” the I address of the LC that contains the data to be read is defined;
In the field “PLC Port” the port used for S7comm communication is defined;
In the field “PLC Type” the family of the LC is defined;
In the field “Rack” the Rack’s ID of the LC is defined;
In the field “Slot” the Slot’s ID is defined;
In the field “Data Type” the data format of the variable to read is defined;
In the field “Data Identifier” the identifier of the variable to read is defined;
In the field “PLC Area” the memory area where the data is located inside the LC is defined;
In the field “PLC Add” the starting memory address where the data is located is defined;
In the field “PLC Bit” the starting bit of the selected LC Address is defined;
In the field “Poll Time” the frequency of the request is defined (in ms);
By checking the field “On Change” the S7comm write request is sent only if ROFIBUS data are changed;
By checking the field “On CMD” the S7comm write request is sent when a ROFIBUS writing for the selected variable is received;
In the field “Position” the starting byte of the ROFIBUS array from which taking the data to write is defined;
The field “Start Bit” is used for the “Bit” data. It is possible to select the bit of the selected osition from which taking the data;
If the field “Swap” is checked, the bytes’ order is reversed;
If the field “Swap W” is checked, the words’ order is reversed;
In the field “Mnemonic” a description of the data inserted in the row is defined.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
S7comm /
PROFIBUS
Slave
Document code: MN67619_ENG Revision 1.000 age 19 of 25
GSD FILE:
By pressing the “GSD File” button it is possible to save the GSD file for the ROFIBUS side.
With this feature you can save the configuration of the gateway of the ROFIBUS side.
Note:
When you import the .gsd file on your Master ROFIBUS you have to add all the modules that are present inside it.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
S7comm /
PROFIBUS
Slave
Document code: MN67619_ENG Revision 1.000 age 20 of 25
UPDATE DEVICE:
By pressing the “Update Device” button, it is possible to load the created
Configuration into the device; and also the Firmware, if necessary. This by using the
Ethernet port.
If you don’t know the actual I address of the device you have to use this procedure:
Turn OFF the Device;
ut Dip2 of ‘Dip-Switch A’ in ON position;
Turn ON the device
Connect the Ethernet cable;
Insert the I “192.168.2.205”;
Select which operations you want to do;
ress the “Execute update firmware” button to start the upload;
When all the operations are “OK” turn OFF the Device;
ut Dip2 of ‘Dip-Switch A’ in OFF position;
Turn ON the device.
If you know the actual I address of the device, you have to use this procedure:
Turn ON the Device with the Ethernet cable inserted;
Insert the actual I of the Converter;
Select which operations you want to do;
ress the “Execute update firmware” button to start the upload;
When all the operations are “OK” the device automatically goes at Normal Mode.
At this point the configuration/firmware on the device is correctly updated.
Figure 5: “Update device” windows
