Afag PS 25/50 User manual

High precision slide
PS 25 /32 and ZA
- Declaration of Incorporation
- Module Information
- Montage Instructions
- Maintenance Instructions
„Translation“ of the Original Montage Instruction
© Copyright by Afag Automation AG

2 PS 25-32-OI-vers. 3.5 gb.21.07.14.docx
These Montage Instructions apply to:
Type
Order No. Type Order No.
PS 25/50
50076883 PS 32/150 50076907
PS 25/100
PS 25/150
PS 25/200
PS 32/50
PS 32/100
50076888 PS 32/200 50076909
50076891 PS 32/250 50076911
50076893 PS 32/300 50076913
50076902
50076905
Version of this documentation: PS 25-32-OI -vers.3.5 gb. 21.07.14.docx
DANGER
Indique un danger immédiat.
Lorsque l’information n’est pas respectée, les conséquences
peuvent être la mort ou des blessures corporelles graves
(invalidité).
WARNING
Indique une situation potentiellement dangereuse.
Lorsque l’information n’est pas respectée, les conséquences
peuvent être la mort ou des blessures corporelles graves
(invalidité).
CAUTION
Indique une situation pouvant être dangereuse.
Lorsque l’information n’est pas respectée, les conséquences
peuvent être des dommages matériels ainsi que des blessures
corporelles de gravité légère ou moyenne.
NOTE
Indique une note à caractère General, des tours de main destines à
l’utilisateur ainsi que des conseils pour le travail; ceux-ci n’ayant
aucune incidence sur la sécurité et la santé du personnel.
Symbols: Assembly and initial start-up must be carried out by qualified
personnel only and according to these Montage Instructions.

3 PS 25-32-OI-vers.3.5 gb. 21.07.14.docx
Table of Contents:
1.0.0 Declaration of Incorporation Page 5
1.1.0 Declaration of Incorporation according to the Machinery
Directive 2006/42/EG Page 5
2.0.0 Module Information Page 6
2.1.0 Transport and storage (packing and unpacking) Page 6
2.1.1 Possibilities of fastening the Ps 25/32 Page 7
2.1.2 Hole matrix and centering bushings Page 8
2.1.3 Tightening torques for bolts Page 9
2.1.4 Slide unit load factors PS 25 Page 10
2.1.5 Preferred combinaisons PS 25 Page 11
2.1.6 Slide unit load factors PS 32 Page 12
2.1.7 Preferred combinations PS 32 Page 13
3.0.0 Montage Instructions Page 14
3.1.0 Manufacturer address Page 14
3.1.1 Symbols Page 15
3.1.2 General description Page 15
3.1.3 Description of the module Page 16
3.1.4 Scope of supply Page 17
3.1.5 Designated use Page 17
3.1.6 Warranty Page 18
3.1.7 Areas of application Page 18
3.1.8 Dimensions drawing PS 25 Page 19
3.1.9 Technical data of the PS 25 Page 20
3.2.0 Dimensions drawing PS 32 Page 21
3.2.1 Technical data PS 32 Page 22
3.2.3 Pneumatic connection Page 24
3.2.4 Preparation for start-up Page 25
3.2.5 Setting the shock absorbers and the stop screw Page 26
3.2.6 Inquiry of the sensors Page 27
3.2.7 Accessories of the sensor Page 27
3.2.8 Optional intermediate stop ZA-PS 25/32 Page 28

4 PS 25-32-OI-vers. 3.5 gb.21.07.14.docx
3.2.9 Mounting the stopper angle Page 29
3.3.0 Mounting procedure for the ZA-intermediate stop Page 29
3.3.1 Adjustment of the stop screw with shock absorber Page 34
3.3.2 Operating sequence of the intermediate position with axial interm.
stop Page 35
4.0.0 Maintenance Instructions Page 37
4.1.0 Maintenance and servicing of the PS 25/32 Page 37
4.1.1 Servicing Page 38
4.1.2 Accessories for the PS 25/32 Page 39
4.1.3 Trouble-shooting Page 40
4.1.4 Disassembly and repair Page 41
4.1.5 Spare parts the PS 25/32 Page 42
5.0.0 Disposal Page 42

5 PS 25-32-OI-vers.3.5 gb. 21.07.14.docx
1.0.0 EC Declaration for Incorporation
1.1.0 According to 2006/42/EC dated 09. June 2006, Appendix II B VI for
Incorporation of partly completed machinery.
The manufacturer: Afag Automation AG, Fiechtenstrasse 32, CH-4950 Huttwil
Tel. [phone], www.afag.com
As manufacturer of the partly completed machine we declare that:
-The specified machine corresponds to the listed essential requirements of the
directive 2006/42/EG, wehere applicable the other directives and standards listed
below.
Designation: High precision slide (pneumatic)
Type: PS 25 / PS 32
Sequential series No. 50xxxxxx
Machinery Directive 2006/42/EG
-The relevant technical documentation is compiled in accordance with part B of
Annex VI
-The relevant technical documentation in accordance with part B of Annex VI will
be transmitted in response to a reasonable request by the national authorities in
printed from or in electronic from (pdf).
Applied and fulfilled essential requirements:
-1.1; 1.1.1; 1.1.2; 1.2.3; 1.2.4.4; 1.3; 1.3.5; 1.3.6; 1.3.7; 1.3.9; 1.4.1; 1.5; 1.5.3;
1.6; 1.6.1; 1.6.3; 1.6.4; 1.7; 1.7.4; 1.7.4.1; 1.7.4.2; 1.7.4.3
-Increase of the harmonized standards applied:
-EN 349; EN ISO 12100-1; EN 12100-2 partly fulfilled
This partly completed machinery must not be put into service until the final machinery
into which it is to be incorporated has been declared in conformity with the provisions of
this Directive 2006/42/EC, where appropriate.
Name and address of the person authorised to compile the relevant technical
documentation: Lanz Beat, PM & Marketing-Services, Afag Automation AG
Place, Date: Huttwil, 21. Juli 2014
Sigfried Egli Markus Werro
Head of HT Managing Director
Afag Automation AG Afag Automation AG

6 PS 25-32-OI-vers. 3.5 gb.21.07.14.docx
2.0.0 Module Information
2.1.0 Transport and storage (packing and unpacking)
CAUTION
The PS module is packed in the original cardboard boxe, if the
module is not handled properly it may fall out of the box when
unpacking and cause injuries to limbs or squeeze your fingers.
NOTE
Consider please! With each module security is settled a technical
newspaper. This newspaper is to be reas busily by each person with
the module.

7 PS 25-32-OI-vers.3.5 gb. 21.07.14.docx

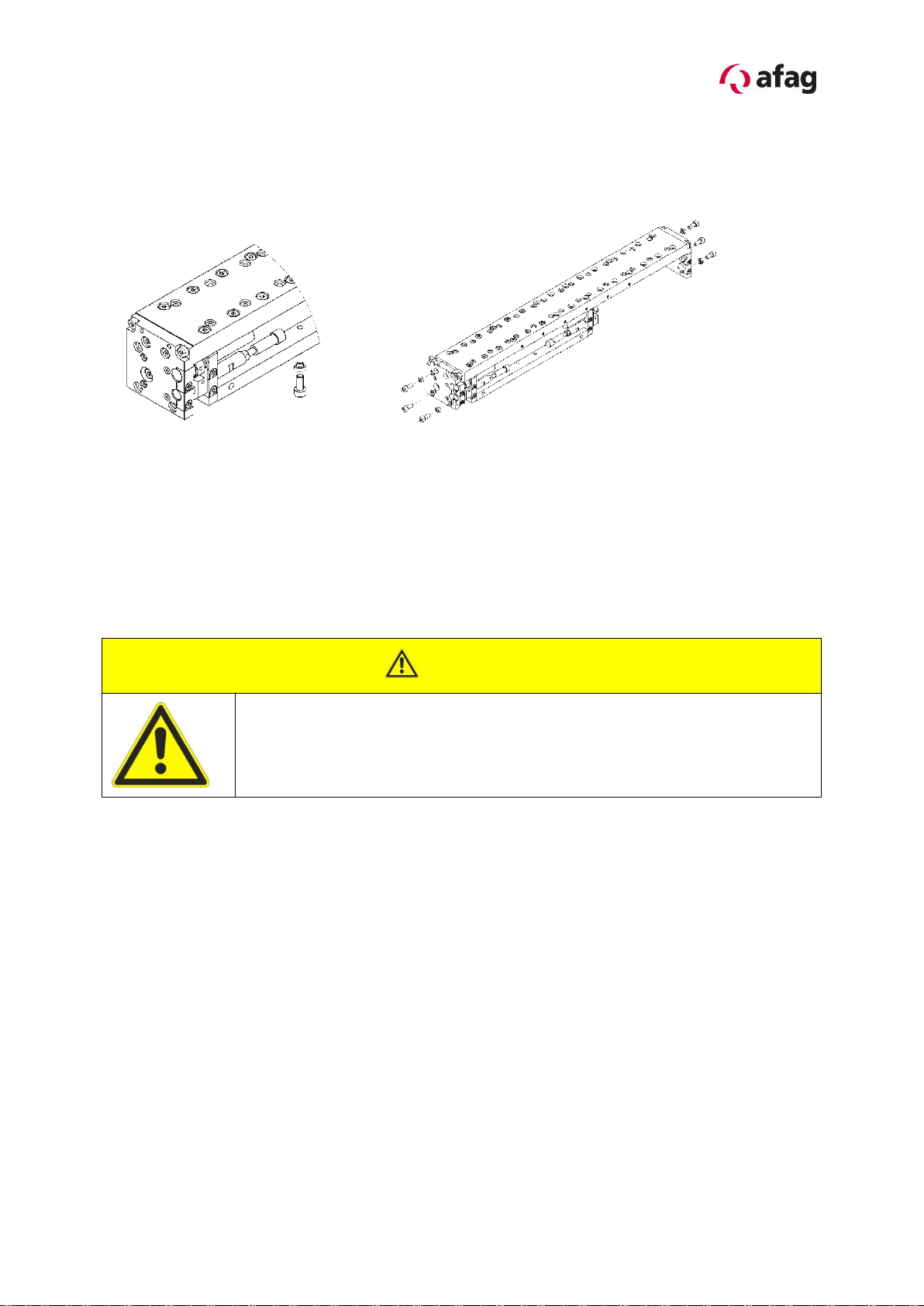

2.1.1 Possibilities of fastening the PS 25/32
Depending on the application either the base body or the slide can be mounted rigidly.
Installation of base body from below Mounting of gantry model
Use the centering bushings included in the scope of supply to determine the position
and insert these bushings in the opposite borings of the mounting grid.
VORSICHT
CAUTION
In case of installation in a vertical position, the slide should
always be moved, before the installation, into the lowermost
position, since masses that move suddenly can cause injury.

8 PS 25-32-OI-vers. 3.5 gb.21.07.14.docx
2.1.2 Hole matrix and centering bushings
Hole matrix at the PS 25/32 High precisions slide
PS 25/PS32
Hole matrix
48x48 mm
(30x30 mm)
Thead / bore hole
M6 (M4)
Centering
bushings (H7)
Ø 9x4 mm (Ø 7x3 mm)
Use the centering bushings included in the scope of supply for positioning and insert
these centering bushings in the diagonally opposite bore holes of the mounting grid.

9 PS 25-32-OI-vers.3.5 gb. 21.07.14.docx
2.1.3 Tightening torques for bolts
The screws to be used for assembly must at least satisfy the following conditions:
Standard: VDI 2230
Strength: class 8.8
Surface: galvanized blue, oiled or greased
Thread
Tightening moments
M3
1.1 … 1.4 Nm
M4
2.6 … 3.3 Nm
M5
5.2 … 6.5 Nm
M6
9,0 ... 11.3 Nm
M8
21.6 … 27.3 Nm
This is an incomplete machine
Assembly of the PS 25/32 high precision slide in a system
The series of the PS 25/32 module is used for the linear, smooth movement of rigidly
mounted loads under the ambient and operating conditions defined for this module, see
Technical data. The PS 25/32 module can be installed in the horizontal or vertical
position.
NOTE
These Montage Instructions should be read carefully before carrying
out any activity on or with the PS 25/32 module. The PS 25/32
module may only be deployed in accordance with the intended use.
NOTE
Safety instructions
Modifications on the PS 25/32 module that are not described in these
Montage Instructions or have not been approved in writing by Afag
Automation AG are not permitted. In case of improper changes or
assembly, installation, operation and maintenance or repairs Afag
rejects all liability.

10 PS 25-32-OI-vers. 3.5 gb.21.07.14.docx
2.1.4 Slide unit load factors PS 25

11 PS 25-32-OI-vers.3.5 gb. 21.07.14.docx

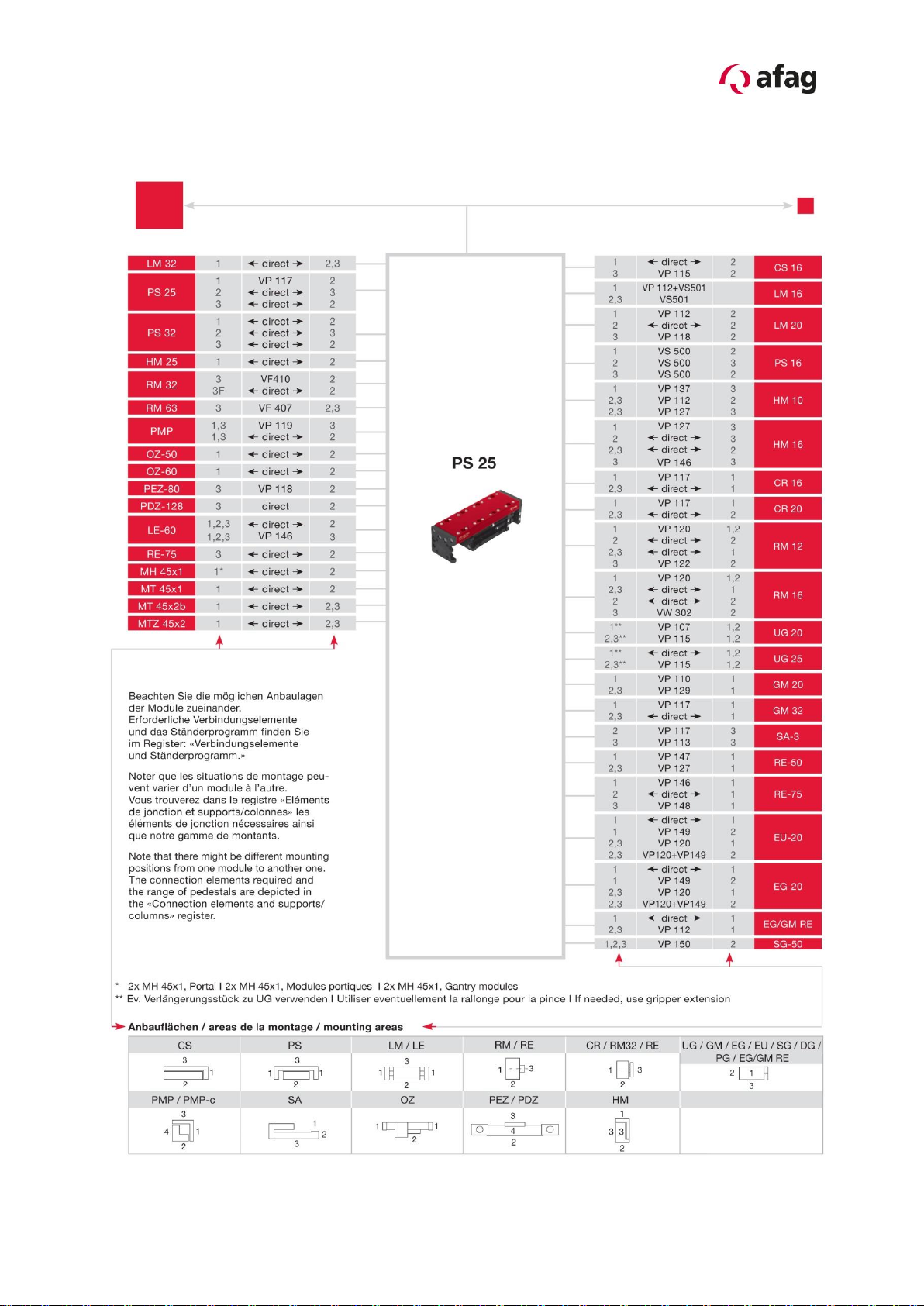

2.1.5 Preferred combinations PS 25

12 PS 25-32-OI-vers. 3.5 gb.21.07.14.docx
2.1.6 Slide unit load factors PS 32

13 PS 25-32-OI-vers.3.5 gb. 21.07.14.docx

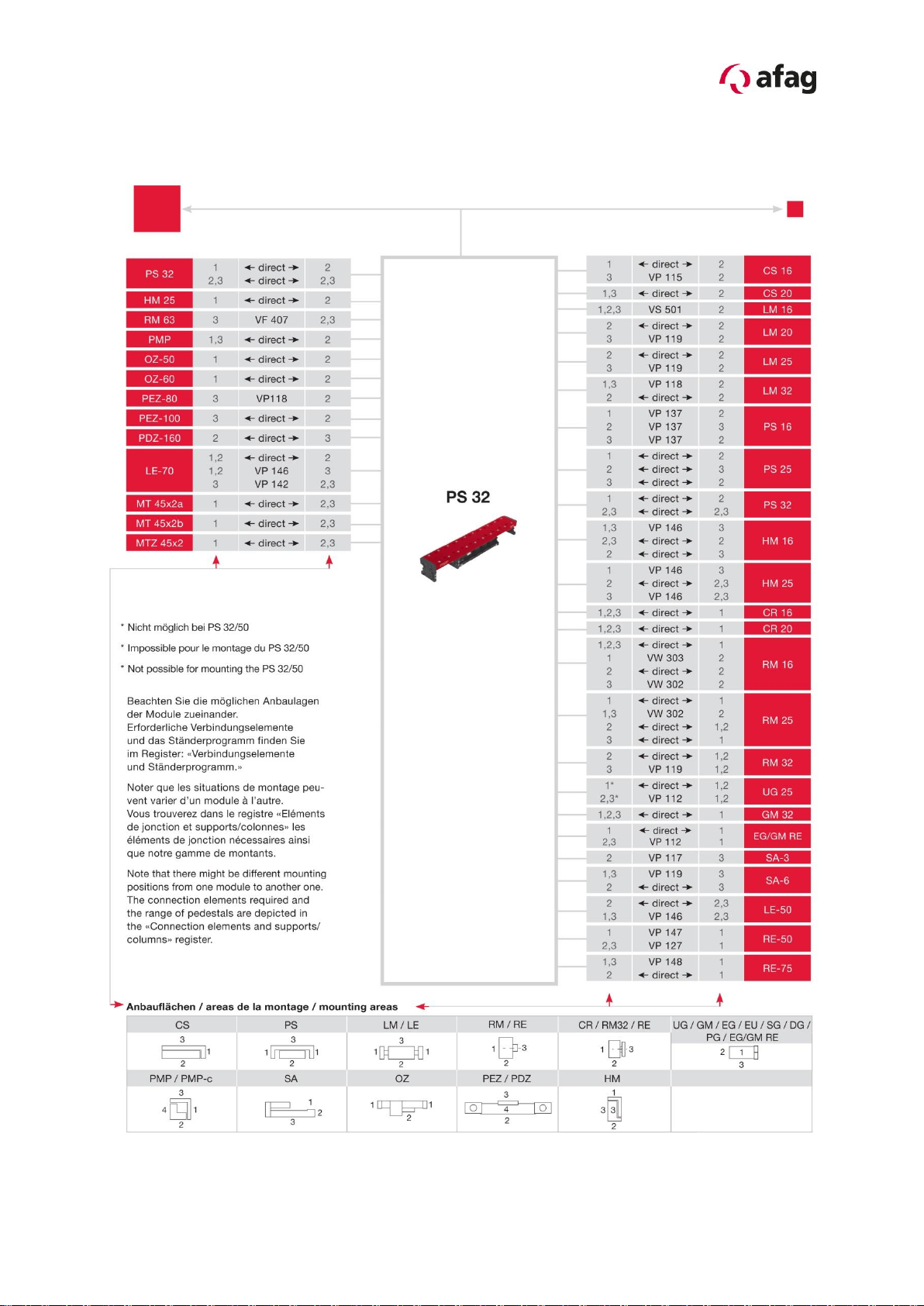

2.1.7 Preferred combinations PS 32

14 PS 25-32-OI-vers. 3.5 gb.21.07.14.docx
3.0.0 Montage Instructions
3.1.0 These Montage Instructions are valid for:
Product name: High precision slide (pneumatic)
Types: PS 25/50; PS 25/100; PS 25/150;PS 25/200
PS 32/50; PS 32/100; PS 32/150; PS 32/200;
PS 32/250; PS 32/300
Sequential series No. 50xxxxxx
This is an incomplete machine
This partly completed machinery must not be put into service until the final machinery
into which it is to be incorporated has been declared in conformity with the provisions of
this Directive 206/42/EG, where appropriate.
Name and address of the person authorised to compile the relevant technical
documentation: Lanz Beat, PM & Marketing-Services, Afag Automation AG

15 PS 25-32-OI-vers.3.5 gb. 21.07.14.docx
3.1.1 Symbols
Assembly and initial start-up must be carried out by qualified personnel only and
according to these instructions.
CAUTION
Indicates a possibly dangerous situation.
Non-compliance with this information can result in damage to
property or light to medium personal injuries.
NOTE
Indicates general notes, useful operator tips and operating
recommendations which don't affect safety and health of the
personnel.
3.1.2 General description
This is an incomplete machine
The series of the PS 25/32 High precision slide is used for the linear, smooth movement
of rigidly mounted loads under the ambient and operating conditions defined, see
Technical data.
The PS 25/32 High precision slide can be installed in the horizontal or vertical position.
Modifications on the PS 25/32 High precision slide that are not described in these
Montage Instructions or have not been approved in writing by Afag Automation AG are
not permitted. In case of improper changes or assembly, installation, operation,
maintenance or repairs, Afag Automation AG rejects all liability.

16 PS 25-32-OI-vers. 3.5 gb.21.07.14.docx
3.1.3 Description of the module
1
Body base
4
Counterpart (IProximity switch)
2
3
Slids
Proximity switch holder
5
6
7
Shock absorber
Counterpart (Shock absorber)
Adjusting stop screw
The PS 25/32 consists of the base body (1) with pneumatic connections and cylinder
and the slide (2).
The limit positions are set by a proximity switch holder (3) and the corresponding
counterpart (8). To query the limit positions an inductive sensor with a diameter of 4 mm
(not included in the scope of delivery) can be fixed in the Stop screws.
The mouvement at the limit positions is absorbed by a hydraulic shock absorber (5) and
is counterpart (6). Stop screws and shock absorbers can be installed at the base body
or the slide.
Thus there are various design possibilities so that the PS 25/32 can be adapted to the
space conditions within your system in the best possible way.
2
1
3
4
5
6
7

17 PS 25-32-OI-vers.3.5 gb. 21.07.14.docx
3.1.4 Scope of supply
Quantit.
Description
1
Module PS 25; (PS 32)
2
Proximity switch holder
2
2
4
Shock absorber ASSD M12x1-1 (PS 25)
Shock absorber ASSD M14x1-1 (PS 32)
Mounting screw M6x16 mm, (PS 25); M6x20 mm, (PS 32)
2
2
Centering bushings Ø 7x3 mm
Centering bushings Ø 9x4 mm
3.1.5 Designated use
The series of the high-precision slides PS 25/32 is used for the linear movement of
rigidly mounted loads in non-explosion harzadous ambient and operating conditions that
are specified fort this module; see catalogue technical.
NOTE
Safety Instructions
These Montage Instructions should be read carefully before carrying
out any activity on or with the module.
The module may only be used in accordance with the intended
purpose.
Modifications on the module that are not described in these Montage
Instructions or have not been approved in writing by Afag are not
permitted. In case of inexpert changes or improper assembly,
installation, operation, maintenance or repairs, Afag rejects all
liability.
CAUTION
Connection of compressed air and operation of pneumatic
systems may cause unpredictable movements which may result
in personal injury or damage to property.
When connecting compressed air for the first time make sure that all air chokes are
closed. Ventilate the system slowly.

18 PS 25-32-OI-vers. 3.5 gb.21.07.14.docx
3.1.6 Warranty
The module is designed for 40 million /2 years* load alterations under the ambient
conditions and conditions of deployment defined for this module, see catalogue. The
warranty includes the repair or replacement of faulty parts at Afag AG.
*First go in event
When repairs are carried out by the customer without prior training or instruction by
Afag automation AG the warranty will become void. No additional claims can be
entertained.
3.1.7 Areas of application
The PS 25/32 High precision slides are exclusively designed for the linear movement of
load capacities of up to 10 –12 kg, (PS 32 = 20 kg) in any position on the slide and
maximum 5-6 kg, ( PS 32 = 12 kg) at the face side of the module; the load capacities
should not affect persons, property or the environment. They can also be used in
combination with other modules than Pick &Place machines, the permissible load
capacities should, however, not be exceeded.
Any other use is regarded as inadequate.
NOTE
The manufacturer does not accept any liability for damage
resulting from such use. The risk is that of the user alone.
Intended use also includes paying attention to the Montage Instructions and observing
the maintenance and repair instructions specified by the manufacturer.
The PS 25/32 module may only be operated and serviced by correspondingly trained
personnel who have also profound knowledge of the dangers.
CAUTION
The applicable regulations for prevention of accidents and the
other generally accepted safety-relevant and occupational
safety and health regulations are to be followed.

19 PS 25-32-OI-vers.3.5 gb. 21.07.14.docx

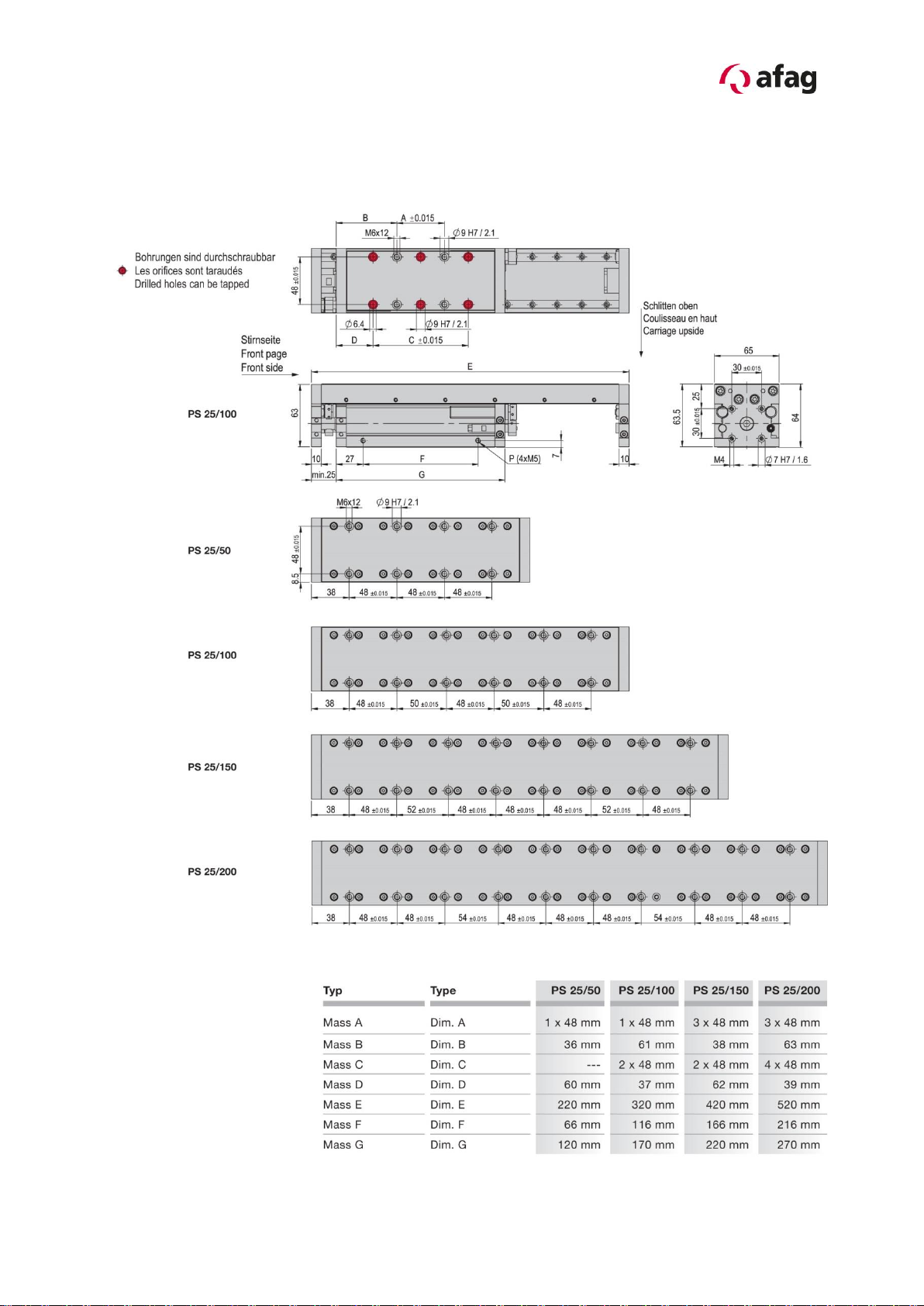

3.1.8 Dimensions drawing PS 25

20 PS 25-32-OI-vers. 3.5 gb.21.07.14.docx
3.1.9 Technical data of the PS 25
