Introduction
General Information 5
Important Safety Warnings 7
Cleaning 8
Recycling the Product 8
Parts Identification 9
Site Preparation 11
This manual describes how to install, operate, and troubleshoot the Agilent G6011B Quiet
Cover MS for LC/MS rough pumps.
Your rough pump fits in the Quiet Cover MS to significantly reduce noise, while an internal fan
ensures that your pump will not overheat. There is an easy-to-use kickstand and a full-size oil tray
to facilitate changing the oil. There are also multiple access panels for easy access to the pump
for routine maintenance.
The Quiet Cover MS is only compatible with the Agilent MS40+ and MS40S Rotary-Vane Pump
used with electron microscopy and mass spectrometry including the LC/MS.

1 General Information
General Information
5Quiet Cover MS User Manual
General Information
The Quiet Cover MS conforms to the International Electrochemical Commission (IEC) 61010–1
safety standard.
It also conforms to the following regulations on Electromagnetic Compatibility (EMC) and Radio
Frequency Interference (RFI):
•CISPR 11/EN 55011: Group 1, Class A
•IEC/EN 61326
•AUS/NZ
This ISM device complies with Canadian ICES-001. Cet appareil ISM est conforme a la norme
NMB—001 du Canada.
The Quiet Cover MS is designed and manufactured under a quality system registered to ISO 9001.
Information
The Agilent Technologies Quiet Cover MS meets the following IEC classifications: Category II,
Pollution Degree 2, Class III.
Quiet Cover MS has been designed and tested in accordance with recognized safety standards
and is designed for use indoors. If it is used in a manner not specified by the manufacturer, the
protection provided by the instrument may be impaired. Whenever the safety protection of the
Quiet Cover MS has been compromised, disconnect it from all power sources and secure it
against unintended operation.
Refer servicing to qualified service personnel. Substituting parts or performing any unauthorized
modification to the instrument may result in a safety hazard.

1 General Information
Symbols
Quiet Cover MS User Manual 6
Symbols
Warnings in the manual or on the instrument must be observed during all phases of operation,
service, and repair of this instrument. Failure to comply with these precautions violates safety
standards of design and the intended use of the instrument. Agilent Technologies assumes no
liability for the customer’s failure to comply with these requirements. Table 1 lists the safety
symbols that may appear on Quiet Cover MS.
Table 1 Safety symbols
Description Symbol
See accompanying instructions for more information.
Indicates that you must not discard this electrical /
electronic product in domestic household waste.

1ImportantSafetyWarnings
Important Safety Warnings
7Quiet Cover MS User Manual
Important Safety Warnings
Safety cautions and warnings must be observed during all phases of operation, service, and repair
of Quiet Cover MS. Failure to comply with these precautions violates safety standards of design
and Quiet Cover MS’s intended use. Agilent Technologies assumes no liability for the customer’s
failure to comply with these requirements.
WARNING
A two-person lift is required when removing the Quiet Cover MS from the packaging. Failure to
perform a two person lift may result in personal injury.
WARNING
Never run the pump without also running Quiet Cover MS.
CAUTION
While running Quiet Cover MS:
• Do not block air flow to the fan.
• Do not set items on top of Quiet Cover MS.
• It is important that the Quiet Cover MS not recirculate hot air. Always position the
Quiet Cover MS where it can draw cool air on all sides.
CAUTION
Be sure to position Quiet Cover MS so that there is plenty of room to allow access to panels and
controls.
WARNING
In the event of a temperature alarm malfunction or if the alarm has been on for an extended
period of time, the Quiet Cover MS and the pump may be dangerously hot. Check that the
Quiet Cover MS and pump are cool before you touch them.

1Cleaning
Electromagnetic compatibility
Quiet Cover MS User Manual 8
Electromagnetic compatibility
This device complies with the requirements of CISPR 11. Operation is subject to the following two
conditions:
•This device may not cause harmful interference.
•This device must accept any interference received, including interference that may cause
undesired operation.
If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try one or more of the
following measures:
•Relocate the radio or antenna.
•Move the device away from the radio or television.
•Plug the device into a different electrical outlet, so that the device and the radio or television
are on separate electrical circuits.
•Make sure that all peripheral devices are also certified.
•Make sure that appropriate cables are used to connect the device to peripheral equipment.
•Consult your equipment dealer, Agilent Technologies, or an experienced technician for
assistance.
•Changes or modifications not expressly approved by Agilent Technologies could void the
user’s authority to operate the equipment.
Sound emission certification for Federal Republic of
Germany
•Sound pressure – Lp < 70 dB am according to EN 27779:1991.
•Schalldruckpegel – LP < 70 dB am nach EN 27779:1991.
Cleaning
To clean the Quiet Cover MS:
1Reach under the front of Quiet Cover MS and pull out the oil tray.
2Wipe out excess oil with a clean, lint-free cloth.
3Wash the tray with a mild soap solution.
4Wipe away any spills or other debris from the Quiet Cover MS using a clean, lint-free cloth.
Recycling the Product
For recycling, contact your local Agilent sales office.

1 Parts Identification
Parts Identification
9Quiet Cover MS User Manual
Parts Identification
Table 2 lists the contents of the Quiet Cover MS kit. Figure 1 and Figure 2 on page 10 depict the
parts of the Quiet Cover MS.
NOTE
See Figure 10 on page 21 for a view of the front panel control.
Table 2 G6011B Quiet Cover MS contents list
Part Quantity Part number
Quiet Cover MS 1 G6011B
Oil tray 1 G6011-40100
Power supply 1 5188-1164
KF40 Trim ring 1 n/a
Quiet Cover MS User Manual 1 G6011-90110
MS40+ Mounting Spacer 4 n/a
MS40S Front Air Duct 1 n/a
MS40S Exhaust Fitting 1 n/a
Figure 1. Quiet Cover MS (front view)
Status light
Locking caster
Power switch
Foreline hose opening
Oil tray
Access door

1 Parts Identification
Parts Identification
Quiet Cover MS User Manual 10
Figure 2. Quiet Cover MS (rear view) (power supply not shown)
Kickstand
Power connection
Fan Intake

1 Site Preparation
Site Preparation
11 Quiet Cover MS User Manual
Site Preparation
Prepare the installation site to meet the criteria in Table 3.
Table 3 Site prep information
Criteria Description
Physical dimensions
Weight 11.3 kg (25 lbs)
Dimensions Kickstand up: 
68 × 25 × 44 cm (27 × 13.5 × 17.25 inches) 
(L × W × H)
Power supply
AC input voltage 100 to 240 VAC ±10%
DC output voltage +24 V
Output load (max.) 1.25 A
Input frequency 47 to 63 Hz
Power consumption 11 W
Rated current 450 mA
Temperature and humidity ranges
Ambient temperature 5 to 35 °C (41 to 95 °F)
Humidity 15 to 95%
Altitude ≤4,600 m (14,950 ft)

Quiet Cover MS User Manual 12
Installation
Installing the Oil Tray 13
Accommodating a KF40 Foreline Pump Intake Flange 14
Installing the Rough Pump Inside the Quiet Cover MS 15
Connecting the Power Supply 18
Verifying the Installation 19
This chapter describes how to assemble the Quiet Cover MS and install the rough pump.

2 Installing the Oil Tray
Installing the Oil Tray
Quiet Cover MS User Manual 13
Installing the Oil Tray
Your Quiet Cover MS is shipped to you with the oil tray packaged separately. You need to install it
prior to using the Quiet Cover MS.
1Remove any protective film from the tray.
2Slide the tray into the bottom of the Quiet Cover MS with the deep part of the tray facing the
front of the Quiet Cover MS. Along the bottom edge of the frame, a pair of rails guides the tray
into place (Figure 3).
Figure 3. Installing the oil tray
Deep part of tray
Slide in tray

2 Accommodating a KF40 Foreline Pump Intake Flange
Accommodating a KF40 Foreline Pump Intake Flange
Quiet Cover MS User Manual 14
Accommodating a KF40 Foreline Pump Intake
Flange
The G6011B Quiet Cover is configured from the factory to accommodate an MS-40+ vacuum
pump with a KF25 Foreline Pump intake flange.
If you are installing the G6011B Quiet Cover on an MS-40 vacuum pump with a KF25 Foreline
Pump intake flange, skip this procedure.
If you are installing the G6011B Quiet Cover on an MS-40 vacuum pump with a KF40 Foreline
Pump intake flange, follow this procedure to exchange the fitting to accommodate the KF40.
To exchange the fitting:
1Remove the KF25 Flange, KF25 trim ring, and KF25 insulating foam from the top cover.
2Install the KF40 Trim ring. See Figure 4.

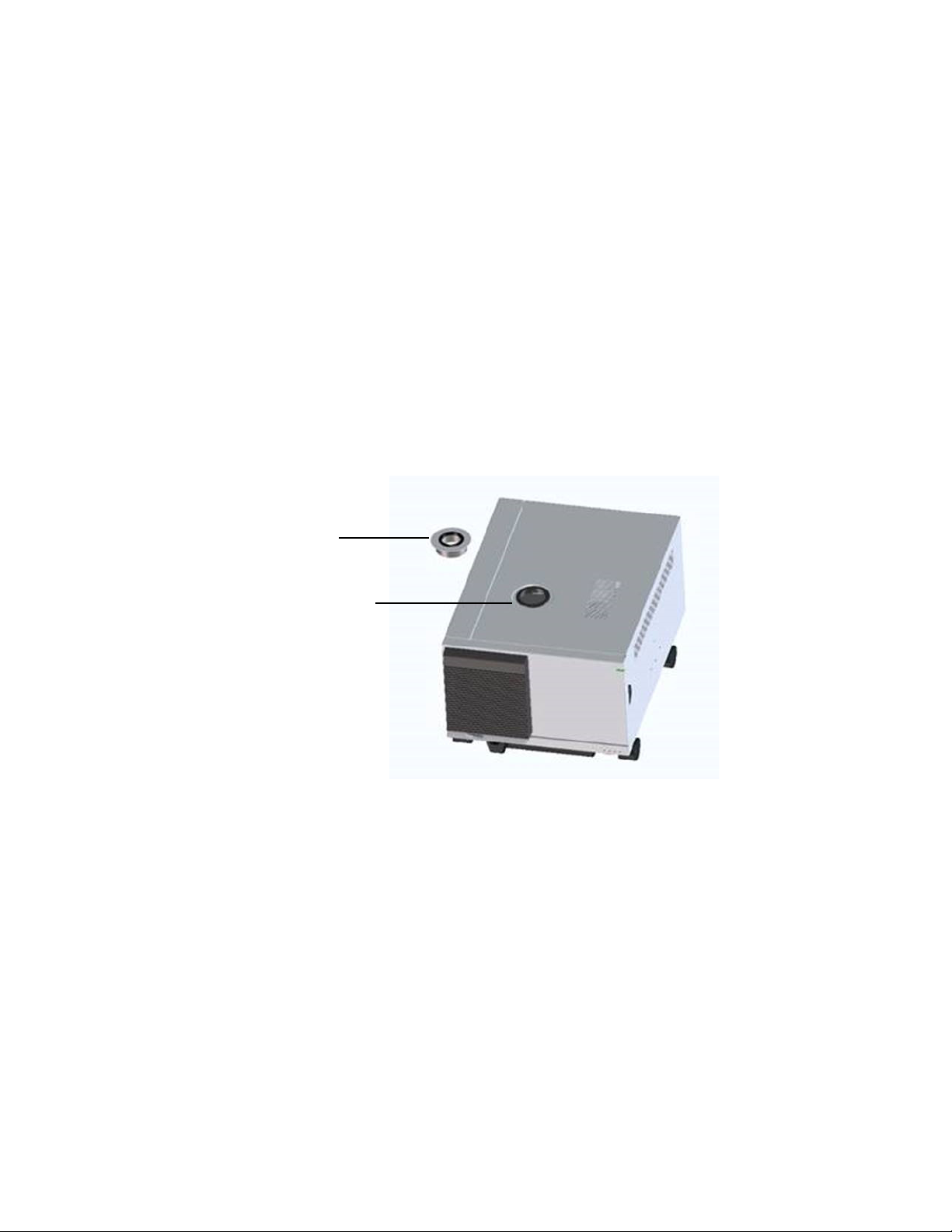

Figure 4. Installing the KF40 foreline trim ring
KF25 Flange ring
Installed KF40 Trim ring

2 Installing the Rough Pump Inside the Quiet Cover MS
Installing the Rough Pump Inside the Quiet Cover MS
Quiet Cover MS User Manual 15
Installing the Rough Pump Inside the Quiet Cover MS
NOTE
The pump must be disconnected from the LC/MS when placing it inside the Quiet Cover MS.
Configuring the G6011B Quiet Cover for the correct revision of MS-40 vacuum pump:
•MS-40+
•MS-40S (variable speed electrical pump fan)
The G6011B Quiet Cover is configured from the factory to accommodate an MS-40+ vacuum
pump. If this revision of pump is being installed, no changes are required and the installer can
proceed to the next procedure on page 16.
If an MS-40S pump is being installed, complete the procedure below before proceeding to the next
procedure on page 16.
1Remove the MS-40+ mounting spacers attached to the G6011B floor mounting tabs.
2Attach the MS-40S Elbow fitting.
3Use a T10 driver to remove the six M3 screws, and replace the MS-40+ Front Air Duct with the
MS-40S Front Air Duct included inside the accessories box.
Figure 5. Front air duct, elbow fitting, and mounting tabs
Mounting tabs with
MS-40+ spacers
MS-40S 
Elbow fitting
MS-40S 
Front air duct

2 Installing the Rough Pump Inside the Quiet Cover MS
Installing the Rough Pump Inside the Quiet Cover MS
Quiet Cover MS User Manual 16
To install the rough pump inside the Quiet Cover MS:
1Lock the front locking casters to secure the Quiet Cover MS (Figure 6).
Figure 6. Locking casters, top access panels, and main cover
2To remove the main cover assembly:
aOpen the front access door.
bLift the main cover vertically to detach it from the guide pins.
WARNING
A two-person lift is required when installing the rough pump into the Quiet Cover MS. 
Failure to perform a two person lift may result in personal injury.
WARNING
The pump may be hot. Use gloves when moving it or wait until it is cool.
Main cover
Door finger
pull
Locking caster

2 Installing the Rough Pump Inside the Quiet Cover MS
Installing the Rough Pump Inside the Quiet Cover MS
Quiet Cover MS User Manual 17
3Install the rough pump into the Quiet Cover MS. Orient the rough pump support foot into the
front mounting cup inside the Quiet Cover MS and between the Quiet Cover MS mounting tabs
so that the pump oil level window sight glass faces the front access door (Figure 7).
•The rough pump should fit against the Quiet Cover MS motor air duct when the pump feet are
positioned between the mounting tabs and inside the one mounting cup. A slight gap is
acceptable. If the support feet do not align with the mounting cup and mounting tabs, the
rough pump orientation is incorrect.
•Pump should be slightly touching both the motor air duct and the electrical panel access door.
4Connect the pump power cord to the rough pump through the EBox opening (Figure 8).
5Set the power switch to the On position through the EBox opening (Figure 8 on page 17).
NOTE
The pump is controlled by the MS and should always be left on.
6Install the clear PVC exhaust hose included with the quiet cover to the MS40 exhaust port.
Refer to MS40 installation manual for more information.
Figure 7. Mounting cup and mounting tabs on the Quiet Cover MS
Figure 8. Pump power cord
Mounting tabs with
MS-40+ spacers
Motor air duct
Exhaust hose tubing
Power cord
connection
EBox opening

2 Connecting the Power Supply
Connecting the Power Supply
Quiet Cover MS User Manual 18
7Install the main cover assembly. Confirm the cover stud guide pins are aligned properly with
the main chassis assembly.
8Close the front access door.
9Connect MS Foreline hose to the pump. Refer to pump documentation or more information.
10 If the Quiet Cover MS is not currently in its operating location, unlock the locking casters,
carefully push the Quiet Cover MS to its operating location, and lock the front locking casters.
WARNING
Do not attempt to lift the Quiet Cover MS with the rough pump installed. Lifting the
Quiet Cover MS with the rough pump installed may result in personal injury.
Connecting the Power Supply
Connect the power supply to the back of Quiet Cover MS by twisting the ring on the circular
connector of the power cord (Figure 9). Plug the pronged end of the power cable into the wall
outlet.
Figure 9. Connecting the power supply
Connect
power

2 Verifying the Installation
Verifying the Installation
Quiet Cover MS User Manual 19
Verifying the Installation
NOTE
When the G6011B Quiet Cover is plugged into an external power outlet, the Power Switch (front
lower left-hand corner of the Quiet Cover) will light up orange. This indicates that power is
connected to the Quiet Cover.
To verify that you installed the Quiet Cover MS correctly,
1Position the power cords so they do not interfere with the kickstand (Figure 2).
2Lock the casters to avoid unwanted movement of the Quiet Cover MS.
3Turn the Power Switch to the off position.
4Plug the G6011B Quiet Cover into an external power outlet. If the instrument is receiving
power, the Power Switch (Figure 1) should light up orange.
5Turn the Power Switch on. If the instrument is turned on correctly, the Power Switch (Figure 1)
should light up green.
If the ambient temperature is < 35 °C, the temperature alarm and the fan should be off, and
the status indicator should light up green.
If the Quiet Cover internal temperature exceeds 35 °C, the fan should turn on, and the status
light will light up orange. This is the normal operating mode.
NOTE
In normal operating modes, the status light will be either green or orange, depending on if the fan
is on or not.

Quiet Cover MS User Manual 20
Operation
Control Panel and Indicators 21
Handling Temperature Alarms 21
Changing Rough Pump Oil 22
Using the Kickstand 24
To operate Quiet Cover MS, you will need to:
•Understand the controls and indicators on the front panel
•Know how to handle temperature alarms and signals
•Know how to drain oil from the rough pump and oil tray
•Be able to tilt the Quiet Cover MS using the kickstand for draining the oil
