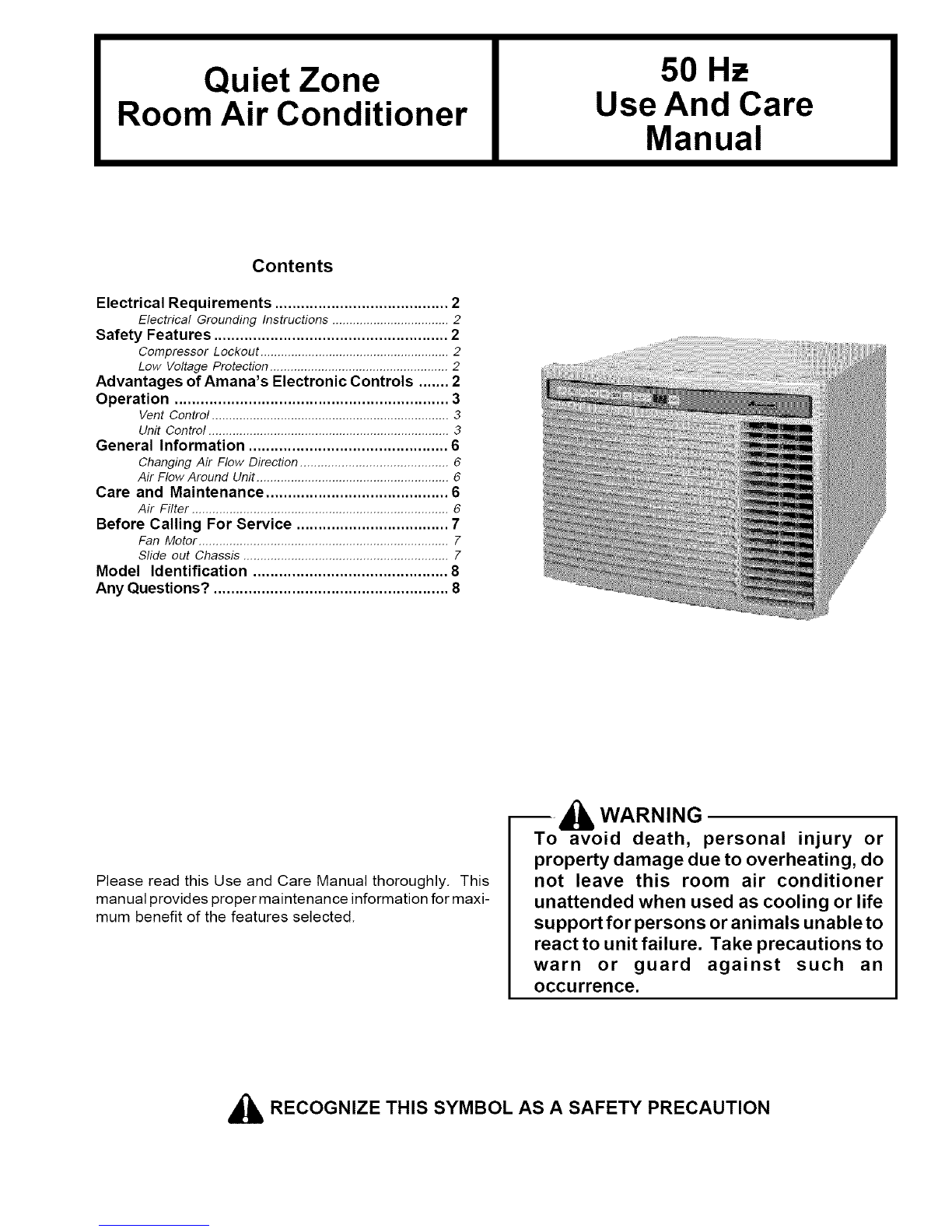

Quiet Zone
Room Air Conditioner 50
Use And Care
Manual
Contents
Electrical Requirements ........................................ 2
Electrical Grounding Instructions .................................. 2
Safety Features ...................................................... 2
Compressor Lockout ....................................................... 2
Low Voltage Protection .................................................... 2
Advantages of Amana's Electronic Controls ....... 2
Operation ............................................................... 3
Vent Control ..................................................................... 3
Unit Control ...................................................................... 3
General Information .............................................. 6
Changing Air Flow Direction ........................................... 6
Air Flow Around Unit ........................................................ 6
Care and Maintenance .......................................... 6
Air Filter ........................................................................... 6
Before Calling For Service ................................... 7
Fan Motor ......................................................................... 7
Slide out Chassis ............................................................ 7
Model Identification ............................................. 8
Any Questions? ...................................................... 8
Please read this Use and Care Manual thoroughly. This
manual provides proper maintenance information for maxi-
mum benefit of the features selected.
I_= _k WARNING
To avoid death, personal injury or
property damage due to overheating, do
not leave this room air conditioner
unattended when used as cooling or life
support for persons or animals unable to
react to unit failure. Take precautions to
warn or guard against such an
occurrence.
RECOGNIZE THIS SYMBOL AS A SAFETY PRECAUTION

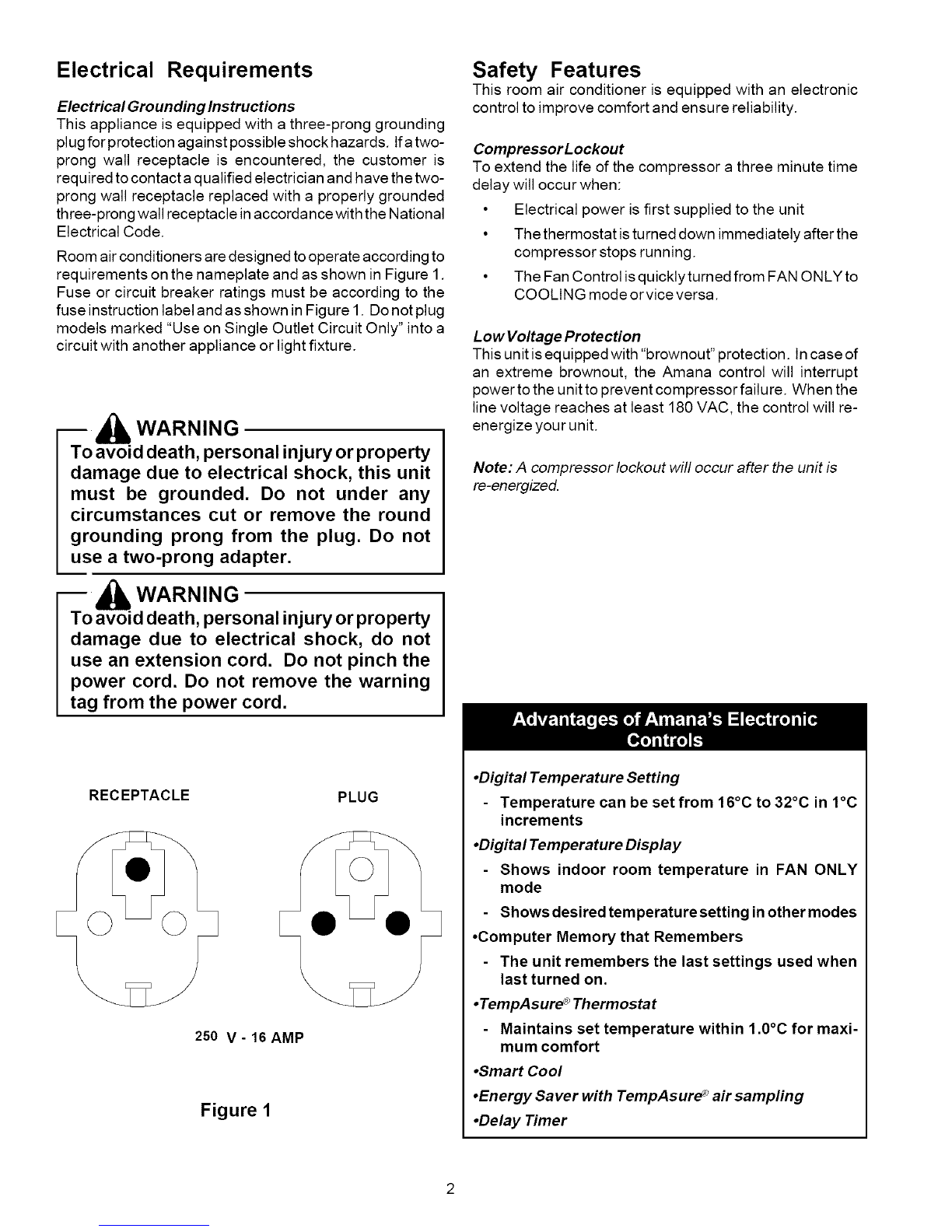

Electrical Requirements
Electrical Grounding Instructions
This appliance is equipped with a three-prong grounding
plug for protection against possible shock hazards. Ifa two-
prong wall receptacle is encountered, the customer is
required to contact a qualified electrician and have the two-
prong wall receptacle replaced with a properly grounded
three-prong wall receptacle in accordance with the National
Electrical Code.
Room air conditioners are designed to operate according to
requirements on the nameplate and as shown in Figure 1.
Fuse or circuit breaker ratings must be according to the
fuse instruction label and as shown in Figure 1. Do not plug
models marked "Use on Single Outlet Circuit Only" into a
circuit with another appliance or light fixture.
I_k WARNING
To avoid death, personal injury or property
damage due to electrical shock, this unit
must be grounded. Do not under any
circumstances cut or remove the round
grounding prong from the plug. Do not
use a two-prong adapter.
[-- _ WARNING
To avoid death, personal injury or property
damage due to electrical shock, do not
use an extension cord. Do not pinch the
power cord. Do not remove the warning
tag from the power cord.
Safety Features
This room air conditioner is equipped with an electronic
control to improve comfort and ensure reliability.
CompressorLockout
To extend the life of the compressor a three minute time
delay will occur when:
• Electrical power is first supplied to the unit
• The thermostat isturned down immediately after the
compressor stops running.
• The Fan Control isquicklyturned from FAN ONLY to
COOLING mode or vice versa.
Low Voltage Protection
This unit isequipped with "brownout" protection. Incase of
an extreme brownout, the Amana control will interrupt
power to the unit to prevent compressor failure. When the
line voltage reaches at least 180 VAC, the control will re-
energize your unit.
Note: A compressor lockout will occur after the unit is
re-energized.
RECEPTACLE PLUG
250 V- 16 AMP
Figure 1
•Digital Temperature Setting
Temperature can be set from 16°C to 32°C in 1°C
increments
•Digital Temperature Display
Shows indoor room temperature in FAN ONLY
mode
Shows desired temperature setting in other modes
•Computer Memory that Remembers
The unit remembers the last settings used when
last turned on.
•TempAsure _Thermostat
Maintains set temperature within 1,0°C for maxi-
mum comfort
•Smart Cool
•Energy Saver with TempAsure _air sampling
•Delay Timer

Operation
Vent Control
Open or close the vent by sliding thevent control leverto the
appropriate setting.
EXHAUST- This setting opens the vent to move indoor air
out.
Note: To conserve energy, the unit should be set to the
FAN ONL Ymode when using this setting.
CLOSED - In this position the vent is closed and room air
is recirculated and filtered. This position should be used for
all normal cooling operations (see underlined cooling op-
tions on control panel).
ENERGYSAVER (HIGH, MED and LOW)-
ENERGY SAVER mode provides the most
energy efficient use of your room air condi-
tioner. I n ENERGY SAVER mode, thefan stopswhen the
compressor stops cooling. This feature can be used with
SMART COOL or cooling with any fan speed.
Amana's new air sampling system works to maintain set
temperaturewithin 1.5°Fwhile in ENERGY SAVER mode.
Approximately every 5 minutes the fan will turn on and
"sample" the room airto determine ifcooling is needed. If
the room is cool enough, the fan will cycle off. If the room
needs further cooling, the compressor will start along with
the fan until the set temperature is reached.
ENERGY SAVER has a soft start fan feature. This feature
starts the fan in low speed to reduce noise.
FAN ONLY - FAN ONLY circulates room airat the set fan speed without cooling. This
feature can be turned off bypressing the FAN
ONLY, the SMART COOL, orthe ENERGY SAVER button.
Indoor temperature is displayed in FAN ONLY mode.
Unit Control
Control Panel
OFF - Completely shuts off the unit.
SMART COOL- SMART COOL adjusts the
fan speed of the unit to achieve the selected
temperature. The SMART COOL feature
uses computer logic to cool the room quickly
and quietly. The fan speed starts on high, automatically
switches to medium, and finally goes to low as the room
temperature nears the set temperature.
___ LOW FAN, MED FAN, HIGH FAN
-These three buttons are used to
select either a low, medium or
high fan speed to cool. If FAN ONLY is selected these
buttons change fan speed without cooling. Selecting the
fan speed starts normal cooling.
_-_ SET_SET Temperature -These key pads
_d;enCrease or decrease the set tempera-
DELAY TIMER - This button provides a
means of delaying the start up or shut down
of the air conditioner from 1 to 24 hours from the present
time. After setting the delay timer, the displayed time will
countdown to unit start or stop. See next page for details.

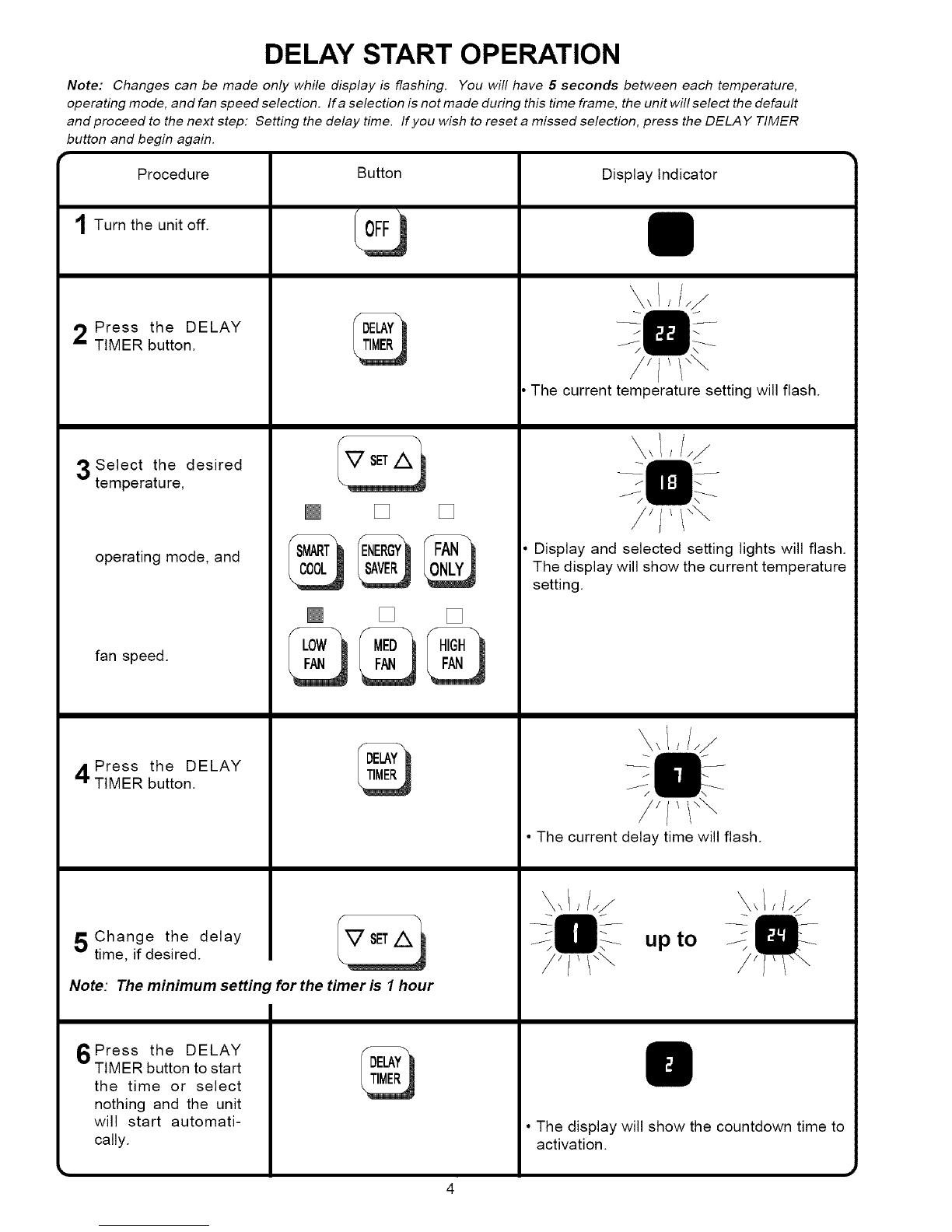

DELAY START OPERATION
Note: Changes can be made only while display is flashing. You will have 5seconds between each temperature,
operating mode, and fan speed selection. Ifaselection is not made during this time frame, the unit will select the default
and proceed to the next step: Setting the delay time. If you wish to reset a missed selection, press the DELA Y TIMER
button and begin again.
Procedure
1 Turn the unit off.
Press the DELAY
/_ TIMER button.
3Select the desired
temperature,
operating mode, and
fan speed.
4Press the DELAY
TIMER button.
5Change the delay
time, if desired.
Button
SET_l
J
[] []
" _NERGY IFAN"
[] []
,0w,iIHG,
FA.
Note: The minimum setting for the timer is Ihour
Press the DELAY
TIMER button to start
the time or select
nothing and the unit
will start automati-
cally.
TIM_DELAY
1
Display Indicator
\, _/J/
L
The current temperature setting will flash.
/J/,
Display and selected setting lights will flash.
The display will show the current temperature
setting.
• The current delay time will flash.
\,///_/
=i up to
• The display will show the countdown time to
activation.

DELAY STOP OPERATION **
r •
Procedure Button Display Indicator
1With unit running,
press the DELAY
TIMER button.*
2Change the delay
time, if desired.
Press the DELAY
TIMER button to start
the time or select
nothing and the unit
will start automati-
cally.
Tocancel, press the
DELAY TIMER or
OFF button
TIM_DELAY"1
DELAY_
J I J_ Displayflashes
\,///,/ \,///,/
_ULup to__
/'l'1"\ /'l'1"\
TIM_DELAY mor
The display shows the countdown hours.
*A setting must be selected within a 5-second time period, while flashing, or the unit will select the default as the new
setting.
**If there is no loss of power, the unit will keep the last setting.
Note: Ira power failure occurs, the last delay settings will be lost and the default setting will be active.

General Information
Changing Air Flow Direction
•Adjust horizontal baffles for directing air up or down
• Adjust vertical baffles with handle to direct air left or
right
1. Once a year, remove chassis from outer case and
thoroughly clean air conditioner.
2. Wash air conditionerwith warm, soapywateras needed.
Rinse and dry thoroughly.
3. If using concentrated liquid detergent, dilute in warm
water first.
4. Do not use abrasive cleaners such as Comet TM, Ajax TM,
etc. These items can scratch, crack, and discolor sur-
faces.
VERTICAL BAFFLE
CONTROL
Air Flow Around Unit
Checkindoorgrilleand outdoor louvers for air flow obstruc-
tions. Do not block airflowto and from unit. The outdoorcoil
should be checked and periodically cleaned for debris that
Oceanside or Corrosive Environment
Salt air or a corrosive environment may greatly reduce the
life of the unit. After cleaning, sand and repaint any
scratches or blisters on painted surfaces, tn humid areas
where algae formation is common, place an algaecide
tablet in outdoor side of unit base pan.
Air Filter
The front contains a removable grille that provides easy
access to the air filter. The filter can be removed two ways:
METHOD ONE:
Grasp the filter handle and slide the filter to the left until
it clears the unit.
LOUVEF INDOOR
GRILLE
may collect and block unit air flow. If air flow is obstructed
or deflected back into unit, the compressor may cycle on
and off rapidly, causing early compressor failure.
Care and Maintenance
-- AWARNING
To avoid death or personal injury due to
electrical shock, turn fan control off and
unplug power cord before cleaning or
performing maintenance. After cleaning
or performing maintenance, reconnect
power.
Note: The unit should be inspected byan authorized servicer
once a year to ensure proper function of the unit.

METHODTWO:
1.Removethefrontgrille.
Slidethegrilletotheleftuntilitclearstheunitclipsand
pullout.
2.Graspthefilterhandleandslidethefiltertotheleftuntil
itclearstheunitclipsandpullout.
GRILLE
NOTE: A charcoal air purification filter accessory is
available that reduces smoke, odor, pollen, and fine dust
particles. See your store dealerfor details or call Amana at
1-800-843-0304.
IMPORTANT NOTE: A dirty air filter reduces operating
efficiency. Inspect filter at least once every week during
operation. Clean filter with a vacuum cleaner or warm, soapy
water. Thoroughly dryfilter before replacing. Donot operate
unit without filter.
Fan Motor
Fan motor is permanently lubricated so there is no need to
oil motor.
Slide out Chassis
Some models feature a slide out chassis for easier instal-
lation. Referto Installation Instructions provided with unit for
details on removing chassis from outer case.
Reinstall air filter by reversing above procedure.
eeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeee
Before Calling For Service
Difficulty Possible Cause
Air conditioner will not operate. No power to unit.
Little or no cooling.
Noisy unit.
Mounting support cannot be
installed.
Compressor lockout on initial plug-in
Dirty air filter.
Air conditioner undersized for
application.
Power interruption or changing unit
settings.
Loose parts.
Weak building construction.
Water hitting fan blade.
Storm window frame has been
installed into window.
Odors in cooling. Mold, mildew or algae formation on
wet surfaces.
Water in base pan. Water in base pan is picked up by Normal in high humidity.
the fan blade and thrown onto the
warm outdoor coil where the water
then evaporates. 7
Suggested Solution
Set fan control to position other than off.
Confirm power cord is plugged in.
Check fuse or circuit breaker.
Wait 3 to 4 minutes and recheck compressor.
Clean air filter.
Check with dealer to determine proper unit
capacity for application.
Let fan run. Compressor will automatically
restart in approximately 3 to 4 minutes.
Tighten any loose parts.
Provide additional support.
Normal in high humidity.
Some models require the window sill to be
adapted to accept the mounting support.
Refer to Installation Instructions provided with
the unit for details.
Place algaecide tablet in base pan.

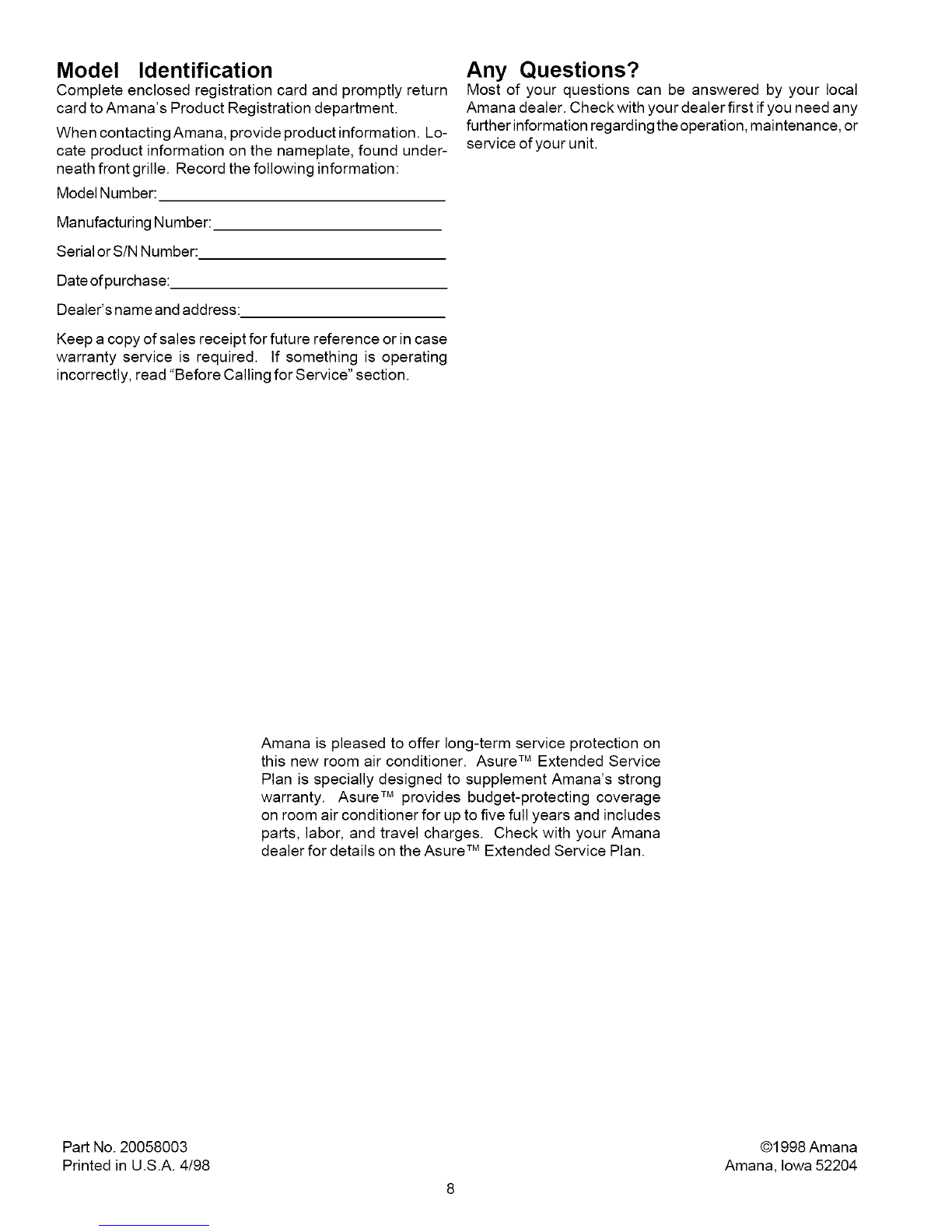

Model Identification
Complete enclosed registration card and promptly return
card to Amana's Product Registration department.
When contacting Amana, provide product information. Lo-
cate product information on the nameplate, found under-
neath front grille. Record the following information:
Model Number:
Manufacturing Number:
Serial orS/N Number:
Date of purchase:
Dealer's name and address:
Keep a copy of sales receipt for future reference or in case
warranty service is required. If something is operating
incorrectly, read "Before Calling for Service" section.
Any Questions?
Most of your questions can be answered by your local
Amana dealer. Check with your dealer first ifyou need any
further information regarding the operation, maintenance, or
service of your unit.
Amana is pleased to offer long-term service protection on
this new room air conditioner. Asure TM Extended Service
Plan is specially designed to supplement Amana's strong
warranty. Asure TM provides budget-protecting coverage
on room air conditioner for up to five full years and includes
parts, labor, and travel charges. Check with your Amana
dealer for details on the Asure TM Extended Service Plan.
Part No. 20058003
Printed in U.S.A. 4/98 ©1998 Amana
Amana, Iowa 52204
