American Standard SELECTRONIC 6067.111 User manual

Installation Instructions
Installation Instructions
Certified to comply with ASME A112.19.2
© 2014 AS America, Inc.
Exposed Flushometer
for 1-1/2"Top Spud Bowls
CLOG RESISTANT
• Self-cleaning piston valve prevents clogging and reduces maintenance.
ONE SENSOR FITS ALL
• Only 1 sensor for entire Selectronic™ line of faucets, urinals, and ush valves.
• Range can be adjusted manually or with optional remote control.
M965644 REV. 1.1 (12/14)
CAUTION: Use only American Standard
supplied cable sets. Using non-AS supplied
cables, or cutting, splicing or modifying any
components will void the warranty.
AC POWERED PROXIMITY
EXPOSED TOILET FLUSH VALVE
1.1, 1.28, 1.6,
1.6/1.1 & 1.28/1.1 GPF
SELECTRONIC®
6067.111
6068.111
6067.121
6068.121
6067.161
6068.161
6067.721
6068.721
6067.761
6068.761
MODEL NUMBERS
NOTE TO INSTALLER: Please give this manual to the customer after installation.NOTE TO INSTALLER: Please give this manual to the customer after installation.
To lear n m o re ab o u t Am e r i ca n S ta n d a rd S e le c tro n i c ®Products visit our website at: www.americanstandard-us.com
or e-mail us at: [e-mail]
For Parts, Service, Warranty or other Assistance,
please call (844) CRT-TEAM / [phone] (In Canada: 1-800-387-0369)
(In Toronto Area only: 1-905-306-1093)

11 M965644 REV. 1.1 (12/14)
All American Standard Products Are Water Tested At Our Factory.
Some Residual Water May Remain In The Valve During Shipping.
Thank you for selecting American-Standard...the benchmark of fine quality for over 100 years.To ensure that your
installation proceeds smoothly--please read these instructions carefully before you begin.
UNPACKING
29
8
710
1
3
DO NOT REMOVE PROTECTIVE FILM FROM SENSOR
EYE UNTIL INSTALLATION IS COMPLETE.
DO: CLEAN THE PRODUCT WITH CLEAR WATER. DRY WITH A SOFT COTTON FLANNEL CLOTH.
DO NOT: DO NOT CLEAN THE PRODUCT WITH SOAPS, ACID, POLISH, ABRASIVES, HARSH CLEANERS, OR A
CLOTH WITH A COARSE SURFACE.
CARE INSTRUCTIONS:
4
5
6
Cover Tube
Sweat Adapter
Stop Valve
AC Hardwire Power Supply
27" Extension Cable
Y-Adapter
10' Extension
1. Installation Instructions
2. Flush Valve Body Assembly
3. Cover Plate
4. Vacuum Breaker Tube
5. Spud Coupling Nut and Washers
6. Spud Flange
7. Wall Escutcheon
8.
9.
10.
11.
12.
13.
14.
Remove the Flush Valve items from the carton. The illustration below shows all items after they have been
removed from the carton. Some items may be packaged partially assembled to other items.
12
11
13
Power Source
12
14
13
AC Hard-Wire
6068. Series AC Multi 6067. Series
Installation Instructions
Installation Instructions
Certified to comply with ASME A112.19.2
© 2014AS America, Inc.
Exposed Flushometer
for 1-1/2"Top Spud Bowls
CLOG RESISTANT
• Self-cleaning piston valve preventsclogging and reduces maintenance.
ONE SENSOR FITS ALL
• Only 1 sensor for entire Selectronic™ line of faucets,urinals, and ush valves.
• Range can be adjusted manually or with optional remote control.
M965644 REV. 1.1 (12/14)
CAUTION: Use onlyAmerican Standard
supplied cable sets. Using non-AS supplied
cables, or cutting, splicing or modifying any
components will void the warranty.
AC POWERED PROXIMITY
EXPOSED TOILET FLUSH VALVE
1.1, 1.28, 1.6,
1.6/1.1 & 1.28/1.1 GPF
SELECTRONIC®
6067.111
6068.111
6067.121
6068.121
6067.161
6068.161
6067.721
6068.721
6067.761
6068.761
MODEL NUMBERS
NOTE TO INSTALLER: Please give this manual to the customer after installation.NOTE TO INSTALLER: Please give this manual to the customer after installation.
To le arn m ore a b ou t Am e ri c an S ta nda rd Se l ec tr oni c ®Products visit our websiteat: www.americanstandard-us.com
or e-mail us at: [email protected]
For Parts, Service,Warranty or other Assistance,
please call (844) CRT-TEAM / [phone] (In Canada: 1-800-387-0369)
(In TorontoArea only: 1-905-306-1093)

M965644 REV. 1.1 (12/14)
2

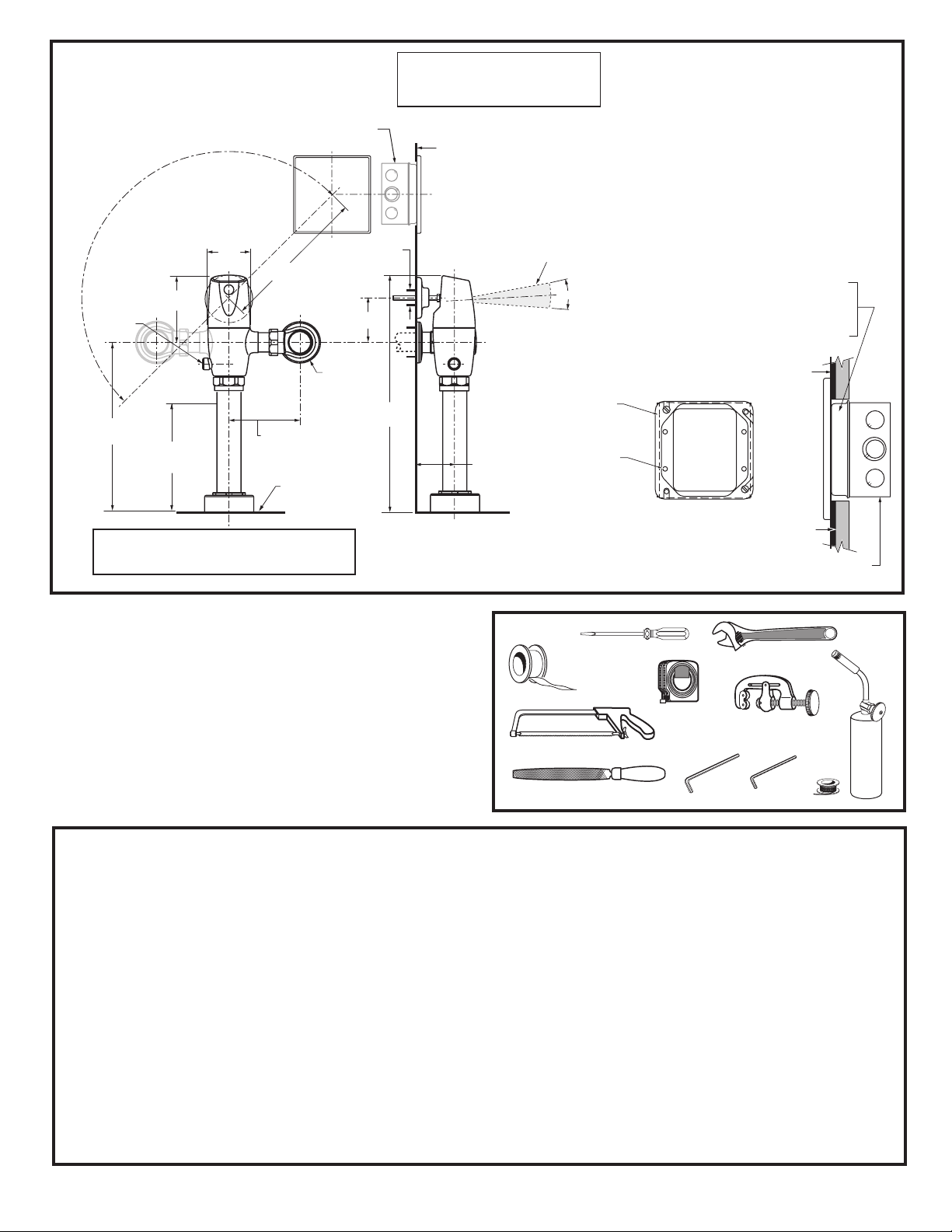

GENERAL DESCRIPTION:
Exposed Flushometer
for 1-1/2" Top Spud Fixtures
SELECTRONIC™
PROXIMITY TOILET
FLUSH VALVE
Exclusive, self cleaning piston-type flush
valve with proximity operation and
manual override. Operates on AC power.
Recommended operating pressure 20psi
(flowing) to 80 psi (static). Can install left
or right-handed. Detection Zone can also
be adjusted manually, or with optional
remote control.
RECOMMENDED TOOLS; Fig. 2 Fig. 2
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
Teflon Tape
Flat Blade Screwdriver
Adjustable Wrench
Tape Measure
Hacksaw
Tubing Cutter
File
For Sweat Connection; Solder and Torch
2.5mm Hex Wrench
1.5mm Hex Wrench
123
4
5
6
7910
8
PRIOR TO INSTALLATION
Note: Prior to installing the Selectronic™Flush Valve
the following items must be installed.
1. Toilet
2. Drain line
3. Water supply line
• Flush all water lines prior to operation (See Step 4). Dirt
and debris can cause flush valve to run continuously.
• With the exception of Stop Valve Inlet, DO NOT
use pipe sealant or plumbing grease on any
valve component or coupling!
• Protect the chrome or special finish on the Flushometer.
DO NOT USE toothed tools on finished surfaces to install
or service these valves. Also see “Care and Cleaning”
section of this manual.
• This product contains mechanical and/or electrical
components that are subject to normal wear. These
components should be checked on a regular basis and
replaced as needed to maintain the valve’s performance.
Fig. 1
Roughing-in Dimensions
Right or Left Hand Installation
10'
See (Section 5) for converting Flush
Valve to Left Hand Installation.
412mm
(16-3/16")
292mm
(11-1/2")
*-C-L-
-C-L-
120mm
(4-3/4")
86mm
(3-3/8)
73mm
(2-7/8")
DETECTION ZONE: 400mm-800mm
(FACTORY SETTING: 400mm)
(1" NPT)
15˚
FINISHED WALL
51mm (2") HOLE
FOR CONDUIT
SEE DETAIL “A”
MANUAL
OVERRIDE
BUTTON
*Note: The Critical Line (-C-L-) on Vacuum
Breaker must typically be 6"(152mm) above
fixture. Consult Codes for details.
305mm MAX.
(12" MAX.)
TOP OF
FIXTURE
152mm MIN.
(6") MIN. 170mm MAX.
(6-11/16") MAX.
108mm - 134mm
(4-1/4") - (5-1/4")
IMPORTANT:
• All plumbing and electrical wiring must be installed in
accordance with applicable codes, regulations and
standards.
• The use of water hammer arrestors is strongly
recommended for commercial applications. All piping
behind the walls should be properly secured and
fastened.
• Water supply lines must be sized to provide an
adequate volume of water for each fixture.
CAUTION: Use only American Standard
supplied cable sets. Using non-AS supplied
cables, or cutting, splicing or modifying any
components will void the warranty.
FINISHED TILE WALL
SCREW HOLES
FINISHED PLASTER WALL
FINISHED WALL
OPENING
DETAIL “A”
4"(102mm) SQ. X 3-1/2"(89mm) DEEP ELECTRICAL BOX
Hubbel-RACO #256 OR EQUAL (BY CONTRACTOR).
4"(102 mm) SQ. BOX DEVICE COVER (PLASTER RING).
3/4"(19 MM) HIGH Hubbel-RACO #779 OR EQUAL
(BY CONTRACTOR).
NOTE: INSTALL PLASTER RING SO THAT SCREW
HOLES ARE ON THE LEFT AND RIGHT SIDE OF BOX.

M965644 REV. 1.1 (12/14)
1
23
4
5
1-1/2" TOP SPUD
1
1
4
2
3
Fig. 4

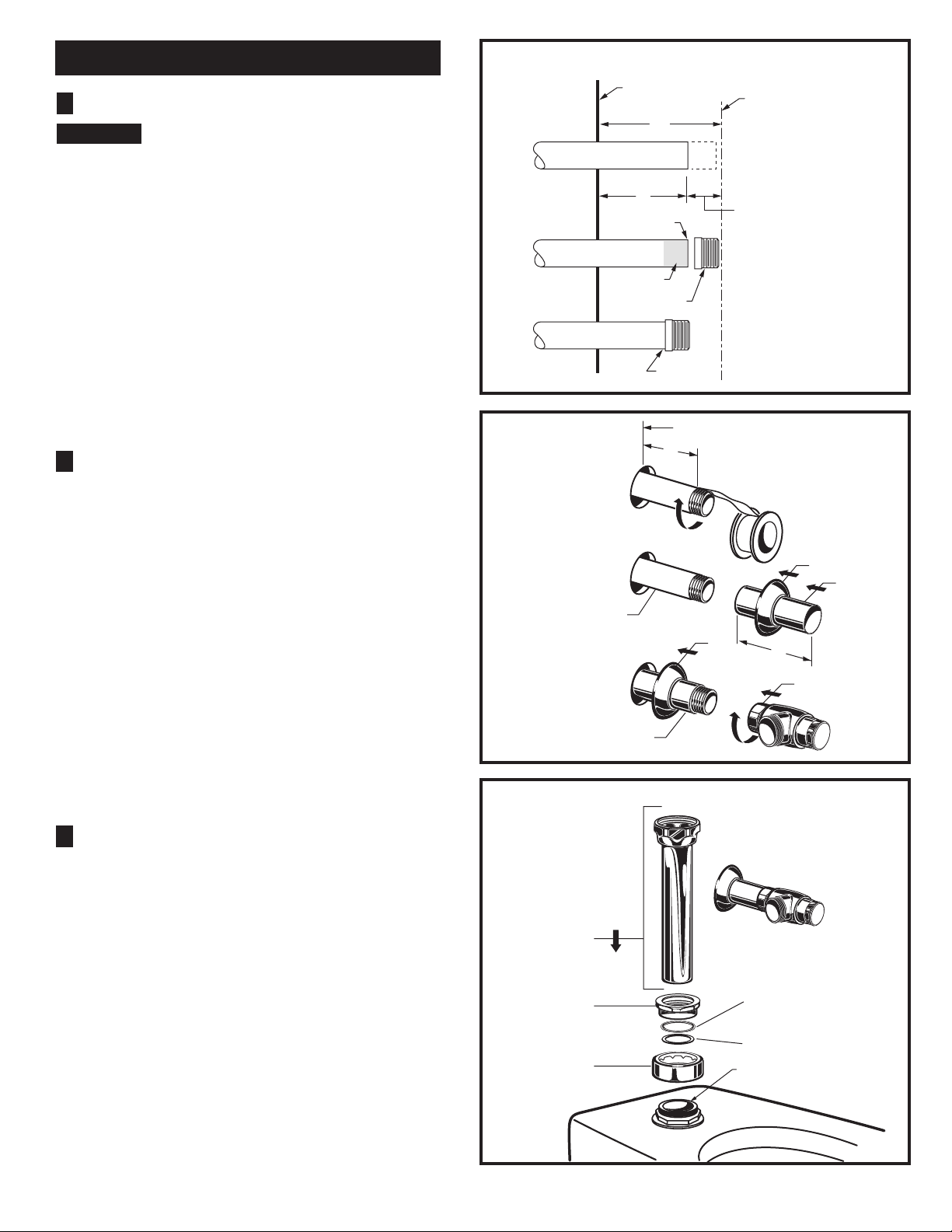

1. Measure from finished wall to first thread of Adapter
or threaded supply pipe (dimension “X”). Cut
COVER TUBE (1) to length (X). Apply Teflon Tape to
the threaded end of the Adapter or supply pipe.
2. Push WALL ESCUTCHEON (2) onto the COVER TUBE (1).
Slide both onto the SUPPLY PIPE (3).
3. Push the COVER TUBE (1) in to expose the threads of
the supply pipe. With a wrench thread the STOP VALVE (4)
onto the SUPPLY PIPE (3). Align and tighten.
4. Pull COVER TUBE (1) against STOP VALVE (4) and
push WALL ESCUTCHEON (2) against finished wall.
3
INSTALL COVER TUBE, WALL
ESCUTCHEON and STOP VALVE;
Fig. 4
2
TEFLON TAPE
FINISHED WALL
INSTALL SWEAT ADAPTER; Fig. 3
CAUTION Turn water supplies off before beginning
Note: Install Optional Sweat Adapter (Supplied) for
copper pipe supply line.
1. Measure the distance (A) from the finished wall to the
center of the inlet spud on the fixture.
2. Cut the supply pipe 1-1/4" (A-B=C) shorter than the
measurement taken in Step 1. File any rough edges off
the end of the supply pipe.
3. Clean the end of the supply pipe. Push the threaded
Adapter until it is seated against the internal stop.
Sweat the Adapter to the pipe.
1
CENTER LINE OF
FIXTURE SPUD
FINISHED WALL
FILE EDGES
SOLDER
ADAPTER
Fig.3
ADAPTER
32mm
(1-1/4")
A
(A-B)= B
C
X
X
CLEAN
1. Place the SPUD FLANGE (1) over the spud on
the Fixture.
2. Place FRICTION WASHER (3) and SEAL WASHER
(4) inside SPUD COUPLING NUT (2) and thread
onto Spud. Do not tighten fully.
3. Insert the VACUUM BREAKER TUBE (5) into the
SPUD COUPLING NUT (2) and push it down.
Note: If cutting VACUUM BREAKER TUBE (5) to size,
note that Critical Line (C/L) on Vacuum Breaker
must typically be 6"(152mm) above fixture. Consult
Code for details.
INSTALL VACUUM BREAKER
TUBE; Fig. 5
3
2
Fig. 5
FLUSH VALVE INSTALLATION

M965644 REV. 1.1 (12/14)
4
3. Pull the VACUUM BREAKER TUBE (7) up to meet the
threaded FLUSH VALVE BODY (5), hand tighten
the VACUUM BREAKER COUPLING NUT (6). Align
all components of the flush valve assembly. Fig. 8a.
4. Lightly tighten the COUPLING NUT (4) connection first,
then the VACUUM BREAKER COUPLING NUT (6) and
finally the SPUD COUPLING NUT (8). Once alligned
correctly, use a wrench to tighten couplings to make
water tight connections. Fig. 8a.
7
8
6
5
4
121mm,+13mm, -6mm
(4-3/4)(+1/2, -1/4)
1
CLOCKWISE CLOSES
STOP VALVE
COUNTER-CLOCKWISE
OPENS STOP VALVE
REMOVE COVER
Fig. 6

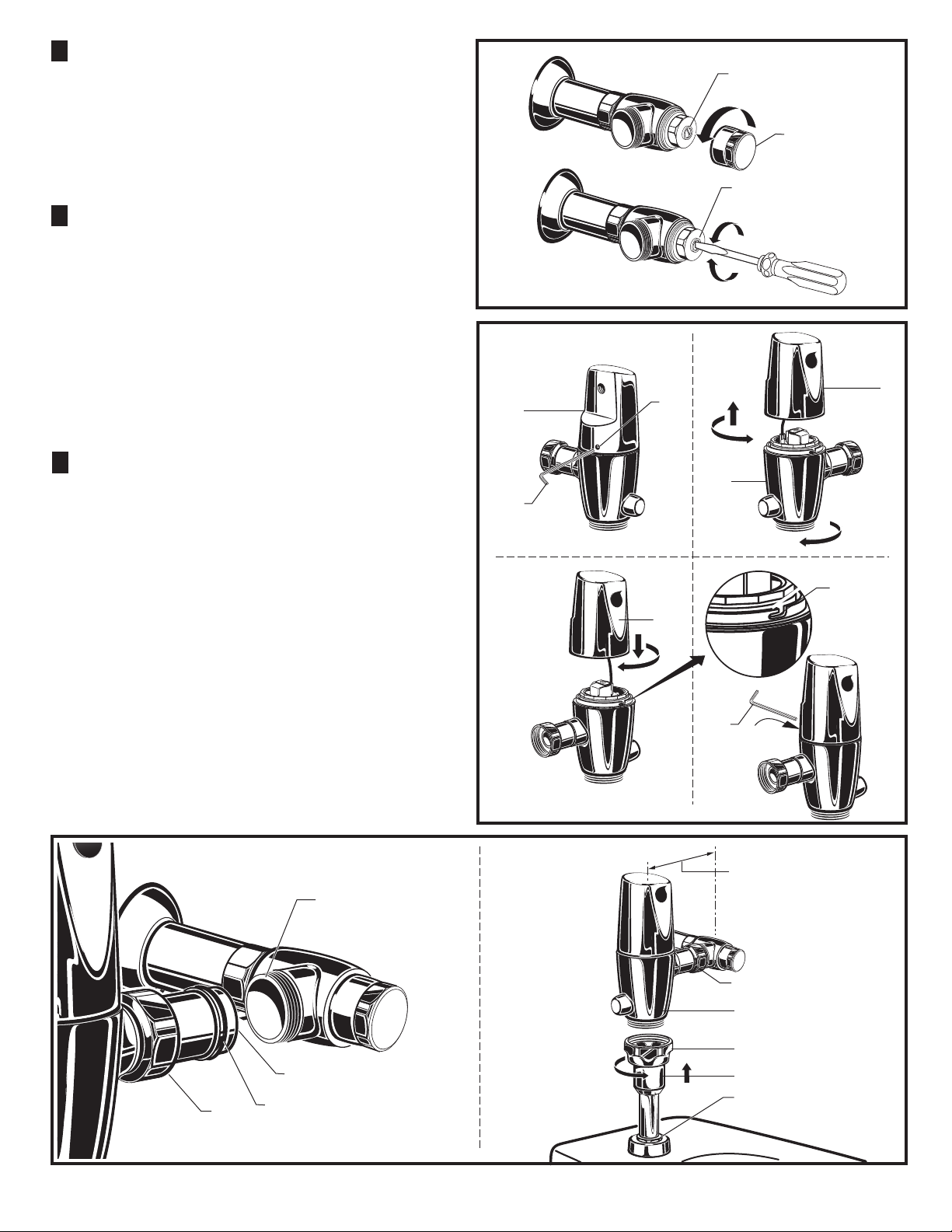

1. Remove STOP VALVE COVER (1) from STOP VALVE (2).
2. Open STOP VALVE (2) with a flat blade screwdriver.
3. Turn on water supply to flush line of any debris or
sediment.
4. Close STOP VALVE (2) and replace STOP VALVE
COVER (1).
FLUSH OUT SUPPLY LINES; Fig. 6
4
4
Fig. 7
3
The unit is shipped with the adjustable tailpiece on
the right side. If needed, the orientation can be
modified by following the steps below.
1. Loosen SET SCREW (1) with 2.5mm Hex Wrench (4)
in back of FLUSH VALVE COVER (2).
2. Rotate FLUSH VALVE COVER (2) to the right and pull off.
3. Rotate FLUSH VALVE BODY (3) 180˚
4. Replace COVER (2) and rotate until key engages.
Tighten SET SCREW (1).
8 LEFT OR RIGHT HAND
INSTALLATION; Fig. 7
5
4
2
2
KEY
2
2
1
3
180˚
Fig. 8 Fig. 8a
2
4
1
1. Insert ADJUSTABLE TAILPIECE (1) into the STOP
VALVE (2). Lubricate the O-RING (3) with water if
necessary. Lightly tighten COUPLING NUT (4). Fig. 8.
Important: Do not use lubricants (other than water) or
any type of thread sealing paste or tape.
2. Align the FLUSH VALVE BODY (5) directly above the
VACUUM BREAKER TUBE (7) and VACUUM BREAKER
COUPLING NUT (6). Fig. 8a.
Note: There is a +13mm, -6mm (+1/2, -1/4) tolerance for
the 121mm (4-3/4) dimension.
INSTALL FLUSH VALVE; Fig. 8, 8a
6
3
2
1

M965644 REV. 1.1 (12/14)
5

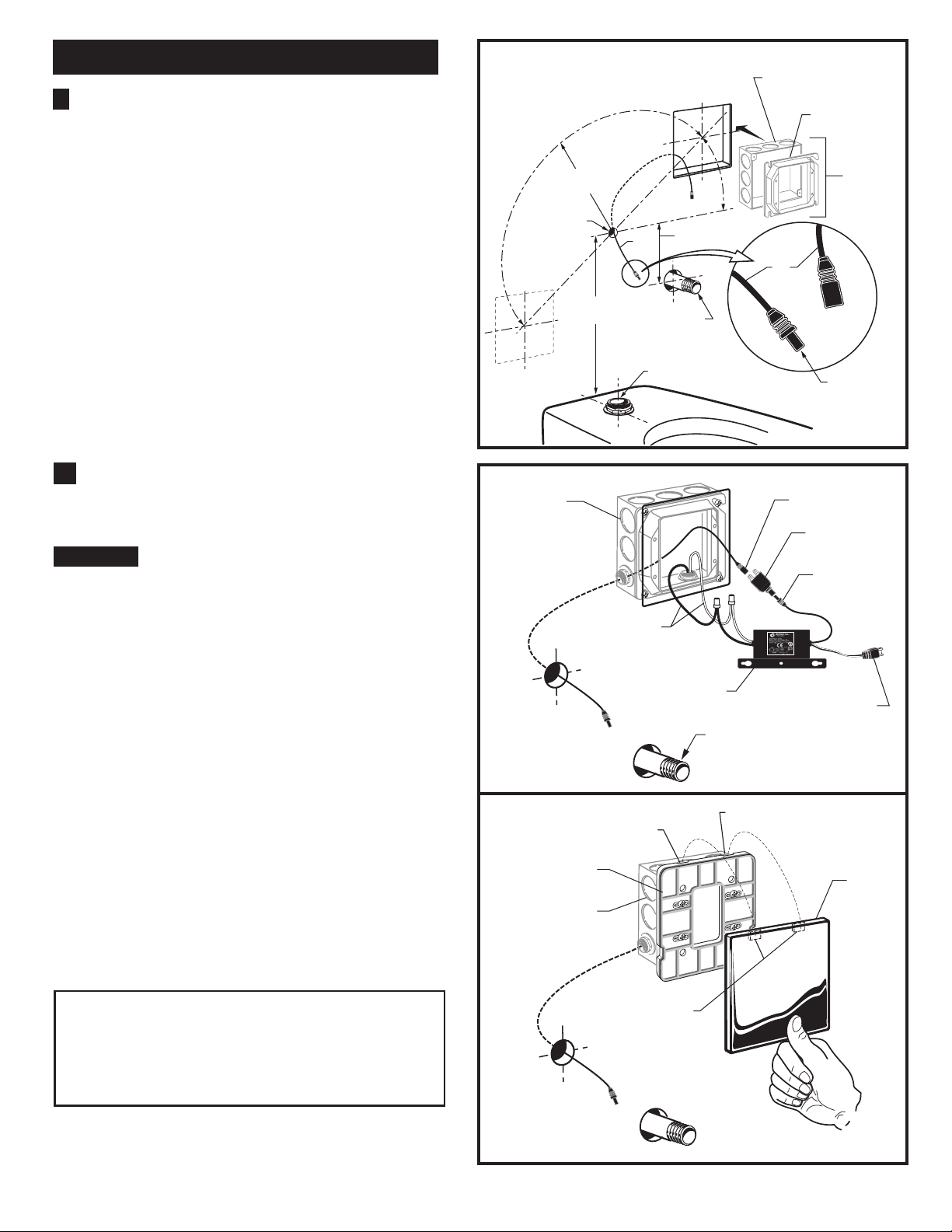

INSTALL ELECTRICAL BOX; Fig. 9
1. Drill a 2" diameter hole in the finished wall for the
conduit tube from the flush valve at the dimension
shown.
2. Cut a 105 x 105mm (4-1/8"x 4-1/8") opening in finished
wall for ELECTRICAL BOX (1) (not supplied) at the
dimensions shown.
Note: The ELECTRICAL BOX (1) can be installed in any
location along the marked arc.
3. Feed 27" EXTENSION CABLE (2) through wall opening
and back out through 2"diameter hole.
Important: Make sure the smaller end of the SENSOR
CABLE (2) goes through the 2" diameter hole.
4. Install ELECTRICAL BOX (1).
7
INSTALL POWER SUPPLY AND
MAKE ELECTRICAL CONNECTIONS;
Fig. 10, 10a
CAUTION Ensure that the line power to bathroom
is OFF prior to making connections.
1. Mount POWER SUPPLY (1) into ELECTRICAL BOX (2).
Connect White and Black power connections to
POWER SUPPLY (1). Fig. 10.
2. Connect AC POWER SUPPLY (1) to the single terminal
of the Y-ADAPTER (4).Fig. 10.
3. Connect one end of the 27" EXTENSION CABLE (3) to
one of the two available terminals of Y-ADAPTER (4).
Fig. 10.
4. After POWER SUPPLY (1) is installed and wire
connections are completed, install the COVER PLATE
FRAME (5) onto the ELECTRICAL BOX (2). Fig. 10a.
5. Install the two Tabs on the back side of the COVER
PLATE (6) into the two Slots located on the top edge of
the COVER PLATE FRAME (5). Push on bottom until it
snaps into place. Fig. 10a.
8a
SUPPLY
(1" NPT)
(1" NPT)
Fig.9 (TOP SPUD FIXTURE ILLUSTRATED)
1
86mm
(3-3/8")
385mm
(15-1/8")
(51mm) 2" DIA.
HOLE FOR
CONDUIT
SMALL END
2
2
BLACK & WHITE
POWER
CONNECTIONS
3
4
1
Fig.10
Fig.10a
1
TABS
SLOT
SLOT
CONNECTOR NOT USED
IN THIS INSTALLATION
2
56
2
Hubbel-RACO 779
CAUTION: Use only American Standard
supplied cable sets. Using non-AS supplied
cables, or cutting, splicing or modifying any
components will void the warranty.
Hubbel-RACO #256 OR EQUAL
(BY CONTRACTOR).
ELECTRICAL INSTALLATION
305mm
(12" MAX.)
1-1/2" TOP SPUD

M965644 REV. 1.1 (12/14)
Fig.10b
BLACK & WHITE
POWER
CONNECTIONS
1
2a 2
*MAXIMUM OF 15 UNITS PER TRANSFORMER.
10' MAXIMUM CABLE LENGTH BETWEEN UNITS.
3
Unit #1 Unit #2 Unit #3
Already installed
(See electrical installation
instructions, page 5)
6
CAUTION: Use only American Standard
supplied cable sets. Using non-AS supplied
cables, or cutting, splicing or modifying any
components will void the warranty.
MULTI-AC VERSION (DAISY-CHAIN); Fig. 10b
Important: All cover plates must be uninstalled before beginning to make daisy-chain connections.
Disconnect the first unit’s Y-Adapter from power supply before making daisy-chain connections.
Note: For Unit #1 electrical instructions, refer to section #7 & #8a (page 5).
For subsequent Units, refer to section #7 (page 5), as well as instructions below...
1. Connect one end of the 27" EXTENSION CABLE (1) to one of the two available terminals on the one end of the
Y-ADAPTER (2).
2. Take the 10' EXTENSION (3) and connect one end to the single terminal of Y-ADAPTER (2), and
the other end to available terminal of the previous unit’s Y-ADAPTER (2a).
3. Repeat process for each subsequent unit.
4. Place Y-ADAPTERS (2) into respective electrical box.
5. Reconnect the first unit’s Y-ADAPTER (2a) to power supply once all daisy-chain unit connections have been made.
8b

M965644 REV. 1.1 (12/14)
7
1
Fig. 12
2
CLOCKWISE CLOSES
STOP VALVE
ADJUST STOP VALVE; Fig. 12
Fig. 11
INSTALL CONDUIT, ESCUTCHEON
AND SENSOR CABLE; Fig. 11
1. Remove COVER (1). See step #5 to remove the
COVER (1).
2. Thread CONDUIT (2) into COVER (1) and secure by
tightening LOCK NUT (3).
3. Slide ESCUTCHEON (4) onto CONDUIT (2). Fig. 11.
4. Feed the 27" EXTENSION CABLE (5) through CONDUIT (2)
and connect to the SENSOR CABLE (6) from the
COVER (1). Tuck SENSOR CABLE (6) into COVER (1).
5. Insert CONDUIT (2) into hole in wall while replacing
COVER (1). Rotate COVER (1) until key engages.
Tighten set screw.
6. Slide ESCUTCHEON (4) tight against finished wall and
secure by tightening SET SCREW (7).
3
3
A
2
1
4
5
6
7
COUNTER-CLOCKWISE
OPENS STOP VALVE
REMOVE COVER
9
MAINTENANCE
IMPORTANT: To a voi d ove r fl o wi n g , t h e STOP VALVE (3 )
must never be opened to the point where the flow from
the valve exceeds the flow capacity of the fixture.
1. After installation is complete, peel off the PROTECTIVE
FILM (1) from the sensor. Standing to one side, block the
sensor with your hand for 10 seconds.
Remove your hand and listen for audible “click” from
within the valve.
2. Remove STOP VALVE COVER (2) from STOP VALVE (3).
Turn on water supply 1/4 turn to 1/2 turn (CCW) and test
for leaks.
Note: Unit may flush for approximately 5 to 10 sec. when
water is first turned on. If flow persists, turn water off
and repeat step #1 above.
3. Actuate the FLUSH VALVE:
A) Cover sensor with hand for 10 seconds.
NOTE: Stand outside of sensor detection area.
B) Remove hand from sensor detection area; unit will
flush in approximately 3 seconds.
4. Adjust STOP VALVE (3) after each flush until the stated
flush volume is achieved, no splashing occurs and the
fixture is properly cleansed.
5. When adjustment is complete, replace STOP VALVE COVER (2)
and tighten to ensure vandal-resistance.

Fig. 13
1
2
4
3
M965644 REV. 1.1 (12/14)
Fig. 14
1" - 2" (30mm - 50mm)
BLINKING LED
8
BLINKING LED
1
1
DETECTION ZONE
400mm TO 800mm
(Factory Setting: 400mm)
Note: The detection distance is preset and ideal for most
installations. Should an adjustment be required, follow the
steps below.

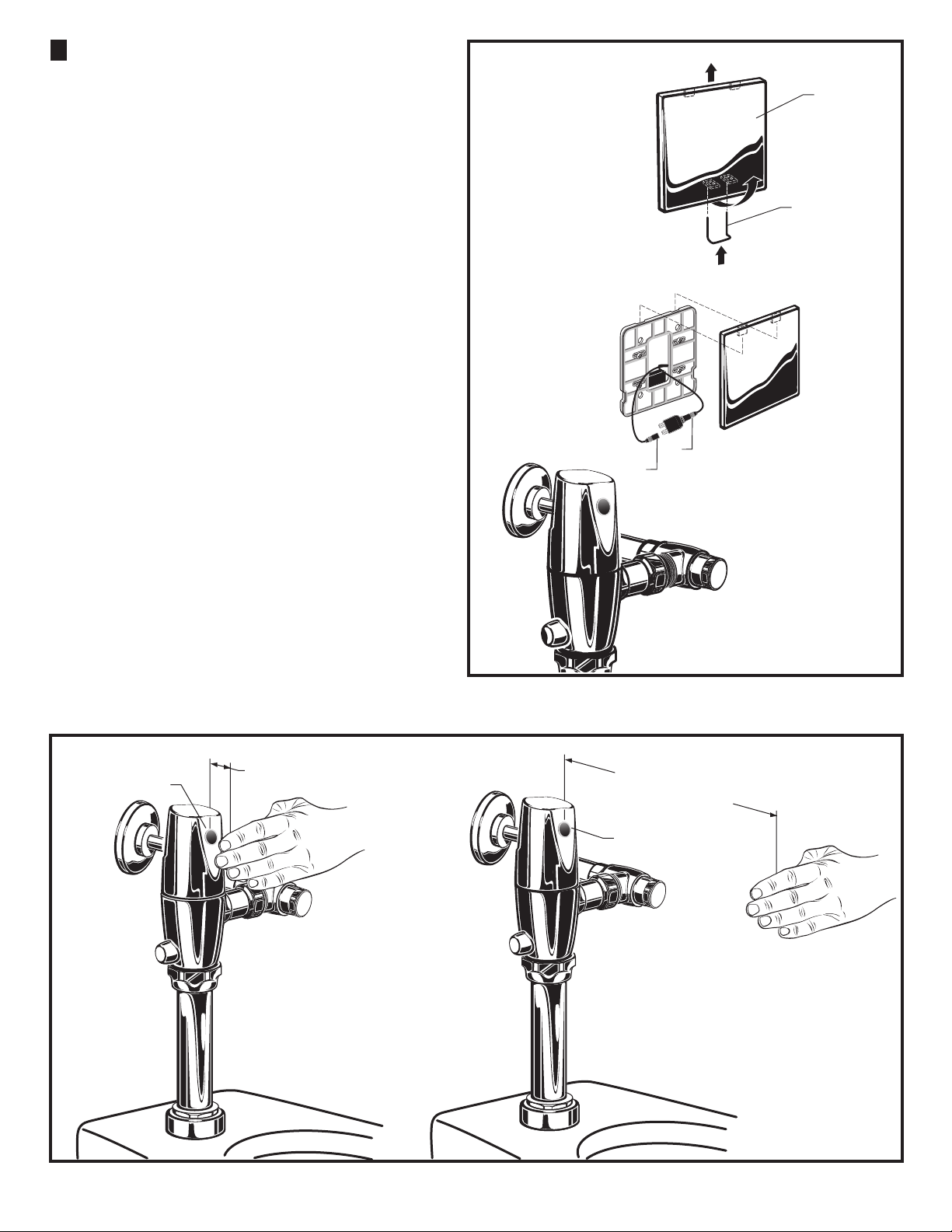

1. To remove the COVER PLATE (1), insert WIRE KEY (2)
(supplied) into the two holes located at the bottom of the
COVER PLATE (1). Push the WIRE KEY (2) up until it
releases the bottom clips. Pull the bottom edge away
and lift the COVER PLATE (1) off. Fig. 13.
2. Disconnect the 27" EXTENSION CABLE (3) from the
Y-ADAPTER (4), and reconnect.
Note: You have 5 seconds to begin entering the program
code after power connection is made.
3. While the SENSOR CONTROL LED (1) is blinking
slowly, place your hand 1 to 2 in. (30-50mm.) in front of
the sensor. Fig. 14.
4. When the LED (1) stops blinking and stays "ON", move
your hand to the desired position from sensor and hold in
place until the LED (1) begins to blink again.
Note: Detection Zone is 400mm - 800mm.
(Factory Setting: 400mm)
5. Once the SENSOR CONTROL LED (1) begins to blink
again, remove your hand from the detection zone. When
the flashing stops, the detection distance is set.
6. Actuate the FLUSH VALVE:
A) Cover sensor with hand for 10 seconds.
NOTE: Stand outside of sensor detection area.
B) Remove hand from detection area; unit will
flush in approximately 3 seconds.
SET DETECTION RANGE
(If Required) ; Fig. 13 & 14
B

9
TROUBLESHOOTING FLOW CHARTS
NNOO
YYEESS
NNOO
YYEESS
NNOO
11
22
11
22
YYEESS
NNOO
YYEESS
NNOO
UNIT DOES NOT FUNCTION
NNOO
NNOO
11
22
11
22
YYEESS
NNOO
NNOO
YYEESS
UNIT WILL ONLY FLUSH MANUALLY
YYEESS
NNOO
NNOO
11
22
11
22
NNOO
YYEESS
UNIT IS CONTINUOUSLY FLUSHING
OPEN VALVE
CRITICALLY LOW BATTERY . INSTALL
NEW BATTERY
DEAD BATTERY. INSTALL NEW
BATTERY. REPEAT.
DAMAGED SENSOR WIRE. REPLACE
SENSOR. (ONLY IF ABSOLUTELY NEEDED)
DAMAGED SOLENOID. REPLACE
SOLENOID
DAMAGED MANUAL OVERRIDE
BUTTON. REPLACE MANUAL
OVERRIDE BUTTON
DEAD BATTERY. INSTALL NEW
BATTERY. REPEAT.
DAMAGED SENSOR WIRES. REPLACE
SENSOR. (ONLY IF ABSOLUTELY NEEDED)
DAMAGED SENSOR WIRES. REPLACE
SENSOR. (ONLY IF ABSOLUTELY NEEDED)
CRITICALLY LOW BATETRY. INSTALL
NEW BATTERY
IS ANGLE STOP OPEN?
REPEATED DOUBLE
FLASH ON SENSOR?
RECONNECT BATTERY TO SENSOR.
FLASH ON SENSOR FOR 5
SECONDS?
PUSH MANUAL OVERRIDE
BUTTON; WILL THE UNIT FLUSH?
REPLACE PISTON ASSEMBLY.
CLOSE ANGLE STOP AND OPEN
AGAIN TO PRIME THE VALVE.
DOES FLUSHING STOP?
PUSH MANUAL OVERRIDE
BUTTON. DOES IT RETURN TO ITS
ORIGINAL POSITION FREELY?
RECONNECT BATTERY TO SENSOR.
FLASH ON SENSOR FOR 5
SECONDS?
REPLACE PISTON & SOLENOID
ASSEMBLY.
REPEATED DOUBLE
FLASH ON SENSOR?
RECONNECT BATTERY TO SENSOR.
FLASH ON SENSOR FOR 5
SECONDS?
REPLACE SOLENOID.
DEAD BATTERY. INSTALL NEW
BATTERY. REPEAT.
M965644 REV. 1.1 (12/14)
HOT LINE FOR HELP
For toll-free information and answers to your questions, call:
(844) CRT-TEAM / [phone]
Weekdays 8:00 a.m. to 6:00 p.m. EST
IN CANADA 1-800-387-0369 (TORONTO 1-905-306-1093)
Weekdays 8:00 a.m. to 7:00 p.m. EST
IN MEXICO 01-800-839-1200
Product names listed herein are trademarks of AS America, Inc. ©2014
To learn more about American Standard Selectronic® Products visit our website at:
www.americanstandard-us.com or e-mail us at: [email protected]

M964551-0070A
PISTON ASSEMBLY
M964411-0020A
1" VACUUM BREAKER
M962926-0070A
1" SWEAT ADAPTER
M964852-0070A
SOLENOID & PISTON
SUBASSEMBLY
M965644 REV. 1.1 (12/14)
M964945-0020A
ADJUSTABLE TAILPIECE
(4-1/4" to 5-1/4" Rough-in)
M950319-0071600A
SENSOR ASSEMBLY
(1.6 gpf)
M950319-0071280A
SENSOR ASSEMBLY
(1.28 gpf)
M950319-0074000A
SENSOR ASSEMBLY
(1.6/1.1gpf)
M950319-0075000A
SENSOR ASSEMBLY
(1.28/1.1gpf)
M950319-0071100A
SENSOR ASSEMBLY
(1.1gpf)
M964943-0021600A
COVER ASSEMBLY
(1.6 gpf)
M964943-0024000A
COVER ASSEMBLY
(1.6/1.1 gpf)
M964943-0023000A
COVER ASSEMBLY
(1.28/1.1 gpf)
M964943-0021280A
COVER ASSEMBLY
(1.28 gpf)
M964943-0021100A
COVER ASSEMBLY
(1.1 gpf)
M964120-0020A
ESCUTCHEON &
CONDUIT ASSEMBLY
A955056-0020A
1" STOP VALVE KIT
M924347-0020A
STOP VALVE CAP
A955057-0020A
INLET PIPE ASSEMBLY
10
M950354-0020A
MANUAL VALVE
M964302-0070A
SOLENOID ASSEMBLY
M906684-0070A
BONNET NUT
OPTIONAL ADJUSTABLE TAILPIECE
(Purchased Separately)
M962836-0020A (8-1/4" to 9-1/4" Rough-in)
M962835-0020A (7-1/4" to 8-1/4" Rough-in)
M962834-0020A (6-1/4" to 7-1/4" Rough-in)
M962833-0020A (5-1/4" to 6-1/4" Rough-in)
A922270-0070A
U-KEY
M964015-0020A
COVER PLATE
ASSEMBLY
M950510-0070A
27" EXTENSION
CABLE
M964402-0070A
VACUUM BREAKER KIT
M950511-0070A
10' EXTENSION
M950510-0070A
27" EXTENSION
CABLE
POWER SOURCE
AC Hard-Wire
6068. Series
M950512-0070A
Y-ADAPTER
AC Multi
6067. Series
M950512-0070A
Y-ADAPTER
M950520-0070A
POWER SUPPLY
AC POWERED PROXIMITY
EXPOSED TOILET FLUSH VALVE
1.1, 1.28, 1.6, 1.6/1.1 & 1.28/1.1 GPF
SELECTRONIC®
6067.111
6068.111
6067.121
6068.121
6067.161
6068.161
6067.721
6068.721
6067.761
6068.761
MODEL NUMBERS
HOT LINE FOR HELP
For toll-free information and answers to your questions, call:
(844) CRT-TEAM / [phone]
Weekdays 8:00 a.m. to 6:00 p.m. EST
IN CANADA 1-800-387-0369 (TORONTO 1-905-306-1093)
Weekdays 8:00 a.m. to 7:00 p.m. EST
IN MEXICO 01-800-839-1200
Pr oduct names listed herein are trademar ks of AS America, Inc . ©2 014
To learn more about American Standard Selectronic® Products visit our website at:
www.americanstandard-us.com or e-mail usat: [e-mail]
A912809-0070A
O-RING
M952269-0020A
ESCUTCHEON KIT
A917376-0070A
SET SCREW
