Amibot Swift User manual

EN
Robot vacuum
User manual
SwiFT
CONNECT

ENEN
User manual
Thank you for choosing AMIBOT! We hope you are fully satisfied
using your robot as part of your cleaning routine.
If you should encounter situations that have not been properly
addressed in this User Manual or were to have any queries, do not
hesitate to contact us and a member of our Technical Customer
Service Department will be more than happy to answer your
questions.
For more information, you can visit the official AMIBOT website:
www.amibot.tech
We reserve the right to make technical alterations to the appliance
without prior notice with the objective of continually improving our
products and customer satisfaction.
Please carefully read all instructions in this manual before using this
appliance. AMIBOT will not be liable for damage due to incorrect use.

1
Contents
EN
Recommendations........................................................2
Product overview..........................................................3
Contents of the box..............................................................................3
Product diagram ...................................................................................4
Starting the robot .................................................................................6
Cleaning modes ....................................................................................7
Stopping the robot................................................................................9
Switching off the robot.........................................................................9
Maintenance.................................................................10
Side brushes.........................................................................................10
Side wheels and castor .......................................................................10
Gap sensors..........................................................................................10
Maintenance.................................................................11
Dustbin and filter.................................................................................11
Indicator lights.............................................................12
Troubleshooting...........................................................13
Table: Malfunctions and possible causes .........................................13
Warranty and after-sales service...............................15
Technical specifications..............................................16
Safety instructions and precautions .........................17
Operating conditions...........................................................................17
Recycling instructions .................................................19

2
Recommendations
EN
• AMIBOT Swift Connect is designed to be used inside.
• AMIBOT Swift Connect is designed for routine floor cleaning. It is
not intended to replace heavy-duty cleaning.
• Before using the robot, ensure that the area to be cleaned is
not cluttered and remove any obstacles that may get in its way
during the cleaning cycle.
• Unplug and remove any power cables and small objects that may
damage or interfere with the robot.
• AMIBOT Swift Connect cannot go over thresholds.
• AMIBOT Swift Connect is not designed to be used on carpets,
which could cause the robot to freeze or reverse.
• AMIBOT Swift Connect needs a headway of at least 8cm so that
it can go under furniture.
• AMIBOT Swift Connect must be used on flat surfaces.
• AMIBOT Swift Connect must not be used on dark or extremely
sunny floors.
• If the robot could come across a gap while cleaning, please secure
the area and check that the gap sensors are clean.
• AMIBOT Swift Connect is not designed to vacuum water or other
liquids.
• Do not use the appliance on wet surfaces.
• Please switch the appliance off before handling it (manually
moving it, maintenance, storing it away).

3
Product overview
EN
Contents of the box
1
2
3
54
1. AMIBOT Swift Connect Robot
2. 4 x side brushes
3. 2 x filters
4. Power adapter
5. User manual

4
Product overview
EN
Product diagram
1
1
2
1. Bumper
2. Top
3. Power button
1. Power socket
Robot side view
Robot top view
3

5
Product overview
EN
1. Side brushes
2. Gap sensors
3. Side wheels
2
1
Robot bottom view
4. Castor
5. Vacuum nozzle
6. Battery cover
Dustbin
1. Dustbin dirt tube
2. Protection filter
3. Dustbin cover
1
4
6
2
3
5
3

6
Operating the robot
EN
Charging the robot
Starting the robot
When using the robot for the first time, insert the battery into the
robot and put the battery cover back on.

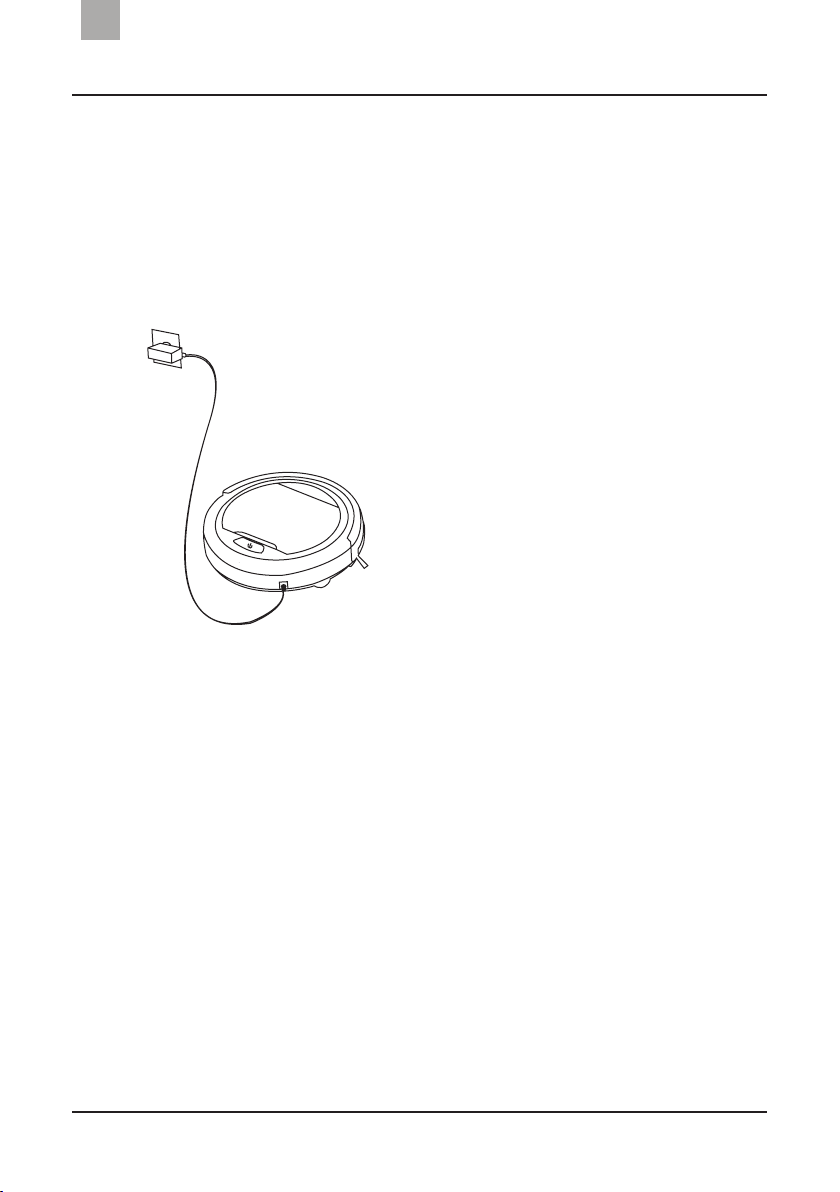

To charge the battery:
• Plug the adapter into the mains supply.
• Plug the adapter into the robot.
NOTE:
• To extend the robot’s battery life, charge the robot for 5 hours continuously.
• The robot is charging when the power button's indicator light is flashing blue.
• The robot is charged when the power button’s indicator light is steady blue.
• The robot needs to be charged when the power button’s indicator light is red.

7
Operating the robot
EN
Cleaning modes
The AUTO mode is the only cleaning mode offered by the robot.
Ensuring that it covers all hard floors, the robot alternates between
the random, spot and wall modes. Once it has finished the last
cleaning mode, it starts with random mode again and so on and so
forth.
When the robot is switched off, press the power button for 3
seconds to switch it on.
When the robot is in standby mode, press the power button once.
Switching on the robot
AUTO mode

8
Operating the robot
EN

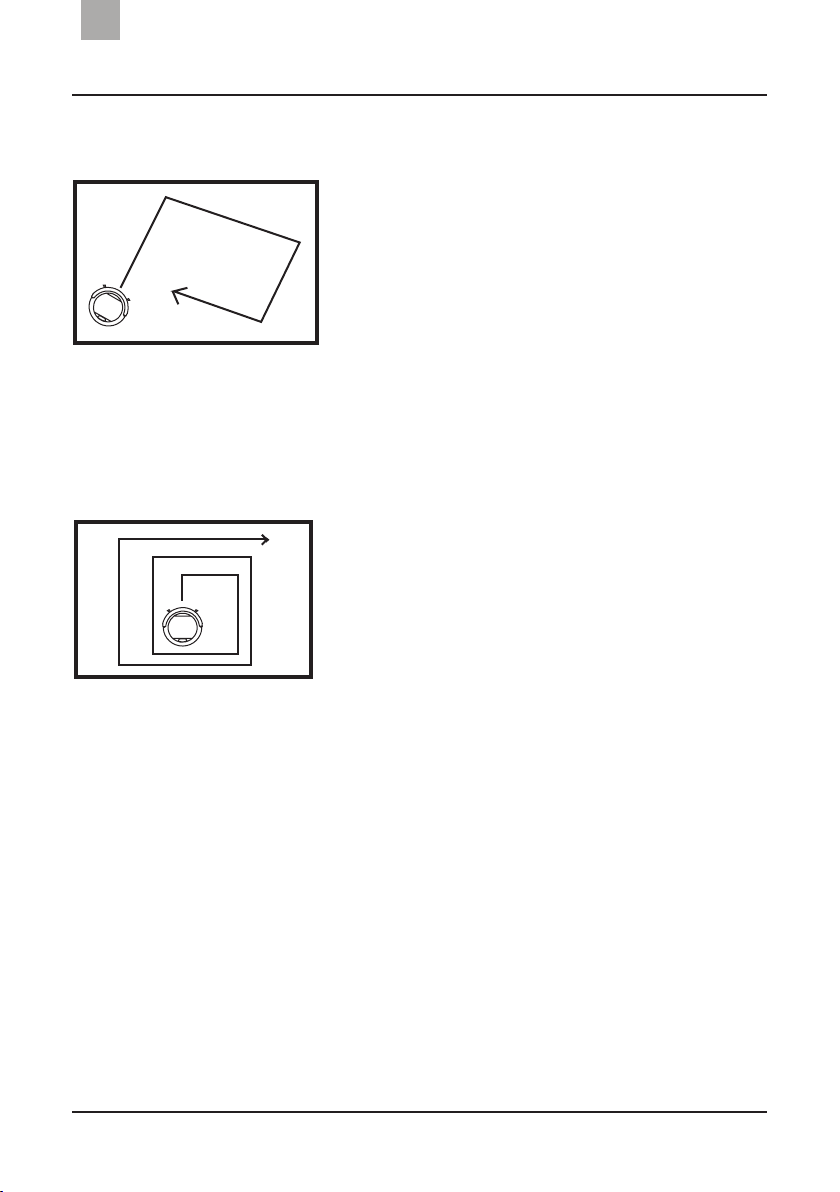

SPOT mode
With SPOT mode, the robot will move in a spiral to concentrate
vacuuming over a precise area.
RANDOM mode
When the robot is cleaning in RANDOM mode, it takes a random
path to cover as much surface area as possible.

9
Operating the robot
EN
WALL mode
With WALL mode, the robot goes along the walls, skirting boards
and furniture to clean as close to them as possible thanks to its side
brushes.
Stopping the robot
If the battery is low, the robot stops. If you want to stop the robot
manually, press the power button.
NOTE: When the robot is not cleaning, you are recommended to let it charge.
Switching off the robot
Press the power button for 7 seconds. The robot beeps once after
pressing the button, a second time after 5 seconds and after the
third beep, the robot switches off.

10
Maintenance
EN
Unclip the side brushes by gently pulling
them upwards and rinse them under
clean water. Dry side brushes well before
reusing them. Check that the left brush is
marked with an "L" and the right brush is marked with an "R".
NOTE: Side brushes must be replaced if you notice that their original shape has
changed.
Side wheels and castor
Wipe the side wheels with a dry
cloth to remove built up dust.
Use a slotted screwdriver to
remove the castor from its
frame and wipe it clean. Remove
the hair and other debris caught
around the axle.
Gap sensors
The gap and power sensors on
the bottom of the robot must
be regularly cleaned with a soft
cloth. Never let the sensors get
wet.
Side brushes

11
Maintenance
EN
Dustbin and filter
You should empty the dustbin every time the robot completes a
cleaning cycle. Remove the robot's dustbin by opening the top (Figure
1) and removing the cover and filter to empty it (Figure 2).
Then check that there is no dirt obstructing the robot's vacuum
system.
The filter cannot be cleaned, otherwise it would become damaged.
To extend the filter's life, gently shake it outside to remove any small
dust particles that may have gathered. If the filter is damaged, you
are recommended to replace it to ensure that your robot's filter
performance is maintained.
Dustbin
Figure 1 Figure 2

12
Indicator lights
EN
Robot status Indicator lights
Charging LED flashes blue
Charging finished LED steady blue
Malfunction LED steady red
Weak battery LED steady red

13
Troubleshooting
EN
Please contact AMIBOT technical department in the following cases:
• If the appliance has been dropped, damaged or come into
contact with water.
• If the power cable is damaged.
• If the battery is defective.
Table: Malfunctions and possible causes
To avoid breakdowns/malfunctioning, regularly check and clean the
appliance accessories.
No. Malfunction Cause Solution
01 The power
button is red.
1. The robot is not on
the floor.
2. The appliance has
run out of battery.
1. Place the robot on the
floor.
2. Charge the robot by
plugging in the power
cable.
02 Appliance
suction lost.
1. The dustbin is full.
2. The filter has not
been inserted
correctly.
1. Empty the dustbin and
clean the filter.
2. Check that the filter is
inserted correctly.
03
The appliance
is hard to
manoeuvre.
1. The wheels are
jammed.
1. Clean the robot’s wheels
and remove hair and
other debris caught up
around them.

14
Troubleshooting
EN
If none of the above-mentioned steps provide a solution for your
problem, please contact the AMIBOT after-sales department.
04
The robot does
not move cor-
rectly.
1. The floor is wet.
2. The dustbin is not
attached correctly.
3. The gap sensors
are dirty.
4. The robot is used
on dark-coloured
floors.
1. Dry the floor.
2. Remove and reinsert the
dustbin.
3. Clean the gap sensors
with a soft cloth.
4. Place the robot on a light-
coloured floor.
05
The LED light
flashes blue
even after
charging for 4
hours.
1. Charging was
interrupted.
1. Check that the robot is
plugged into the adapter
and mains supply.
06 The robot does
not start.
1. The battery is not
inserted correctly.
2. The battery is too
weak.
3. The robot is
switched off.
1. Check that the battery is
inserted correctly.
2. Charge the robot until the
LED light is steady blue.
3. Switch the robot on by
pressing the power button
for 3 seconds.

15
Warranty and after-sales service
EN
Customer service in France
Our AMIBOT customer service department is ready to help you:
By email: [email protected]
NOTE: The warranty does not cover damage caused by rusting, a collision or misuse.
Accessories are not covered by the warranty.

16
Technical specifications
EN
Classification Specification Value
Dimensions
Diameter 280 mm
Height 75 mm
Weight 2.1 kg
Electrical
specifications
Voltage 13 V
Power 20 Watts
Battery type Lithium ion 1500mAh
Noise level 70 dB
Dustbin capacity 250 ml
Charge type Manual charging
Cleaning
Cleaning modes AUTO
Charge time 5h
Cleaning time 1h30 min
Accessories Filter, side brushes
NOTE: These specifications could be modified with the objective of continual
improvement.

17
Safety instructions and precautions
EN
Operating conditions
When using an electrical appliance, basic precautions
should always be followed, which include:
• This appliance is not intended to be used by children or any person
with reduced physical, sensory or mental capacities, unless they
have been given supervision or instruction concerning use of the
device from a person responsible for their safety.
• Do not allow children to play with the appliance.
• Children should not clean or perform maintenance on the
appliance without supervision.
• The appliance must be kept out of children's reach while switched
on.
• The appliance must not be used if it has suffered a fall or presents
visible signs of damage.
• Do not use the appliance in extremely hot or cold environments
(below -10˚C, above 50˚C).
• To reduce the risk of electrical shock, do not place the appliance
near water or other liquids apart from when using the robot's
water tank.
• Do not touch the power plug or the appliance with wet hands.
• For household use only.
• Only use accessories recommended or supplied by the
manufacturer.
• Please make sure your power supply voltage matches the power
voltage marked on the power adapter.
• Store the appliance away from heat and flammable materials.
• Do not pull on the appliance's power cable to avoid causing
possible damage.
• Keep the power cable away from sources of heat.
• Do not use the appliance if the power cable or plug are damaged.

18
Safety instructions and precautions
EN
• Warning: Only use the power cable supplied by the manufacturer
to charge the battery.
• The robot batteries must only be replaced by qualified persons.
• Only use AMIBOT Swift Connect as described in this manual.
