Amibot Spirit LASER User manual

User Manual
Amibot SPIRIT

Safety Instructions.........................................................................4
Product Parts.................................................................................6
Main body and accessories.............................................................................6
Robot anatomy.................................................................................................7

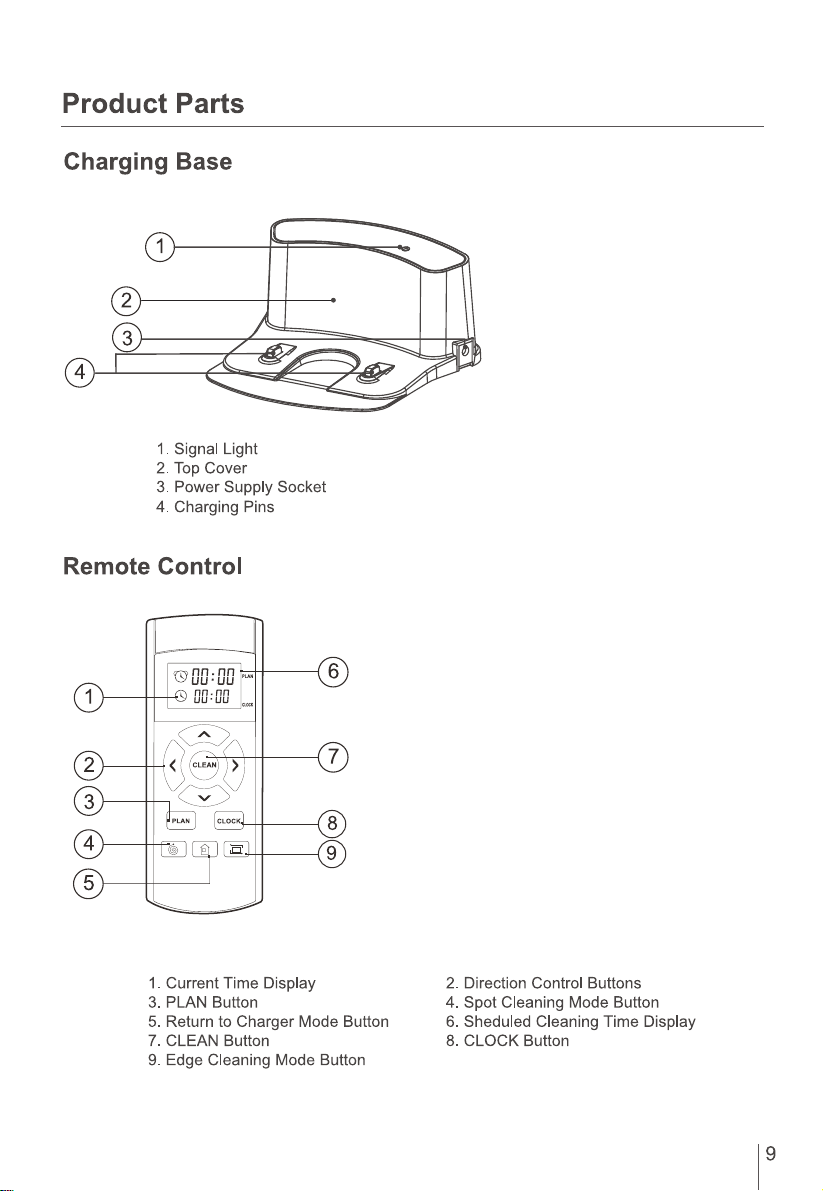

Charging base and remote control...................................................................9
CLEAN button satus.......................................................................................10
Product Operating........................................................................11
Notes before cleaning.....................................................................................11
Clean mode selection.....................................................................................14
Progamming the robot....................................................................................16
Install water tank module................................................................................18
Product Maintainance..................................................................19
Cliff sensors and auto charing pin..................................................................19
Troubleshooting...........................................................................20
Error sheet......................................................................................................20
Contents
3
Product Specifications..................................................................21
Dust bin and filters..........................................................................................19
Main brush, side brushes and cleaning mop..................................................19

Safety Instruction
4
Before using an electrical appliance, basic precautions should alwasy be followed, including the
following:
READ ALL INSTRUCITONS BEFORE USING THIS APPLIANCE.
SAVE THESE INSTRUCTIONS.
1. Only the certified technician may disassemble the product. Users are
not allowed to disassemble or repair the product.
2. Only use the adapter provided by the factory. Using other
un-matched adapter may cause electric shock, fire or product damage.
3. Do not touch the power cord, plug or adapter when your hands are
wet.
4. Do not make clothes or part of a body drawn into the product’s
wheels.
5. Do not make this product close to cigarette, lighter, match or any
flammables.
6. If the product is needed to clean, clean it after charging is stopped.
7. Do not over-bend the power cord or pressure the power cord with
heavy or sharp objects.
8. This product is used only indoors, do not use it outdoors.
9. Do not sit on top of this product or attach an object on the top of it.
10. Do not use this product in wet or moist environment (any
environment with liquid).
11. Before use, remove all the damageable objects (textile, glass,
lighting, etc) and objects that could get caught in the brushes or suck
passage (cords, clothing, papers, drapes, blinds, etc).
12. Do not place this product where it is easy to drop off (tables, chairs,
etc).
13. Turn off the power switch during transportation or when you don’t
need to use this product for a long time.
14. Before use, check whether adapter and outlet are properly
connected. Or else the battery may be damaged.
15. To avoid tripping, inform all the people in the house when this
product is working.

Safety Instruction
5
.
16. Do not use this product when dust bin is full.
17. Use this product in temperature from -10°to 50°(centigrade degree).
18. Do not place this product in high-temperature environment.
19. The battery must be removed from the product before it is scrapped.
20. The product must be disconnected from the supply mains when
removing the battery.
21. The battery is to be disposed of safety.
22. Use factory-authorized battery only, do not use unmatched battery.
NOTE: This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.

Water Tank
Injection Hole
Mop Holder
Mop
Primary Filter
Sponge
HEPA Filter
Dust Bin
Dust Bin Cover
Water Tank (Optional)
Dust Bin
Product Parts
8

CLEAN button status
Product Parts
10
Robot status
Charging
Charging finished
In selected mode
When robot in error
Low battery
In cleaning mode
Lights Status
Orange light flash
Green light turn solid
Green light flash
Red light turn solid
Orange light turn solid
Green light turn solid

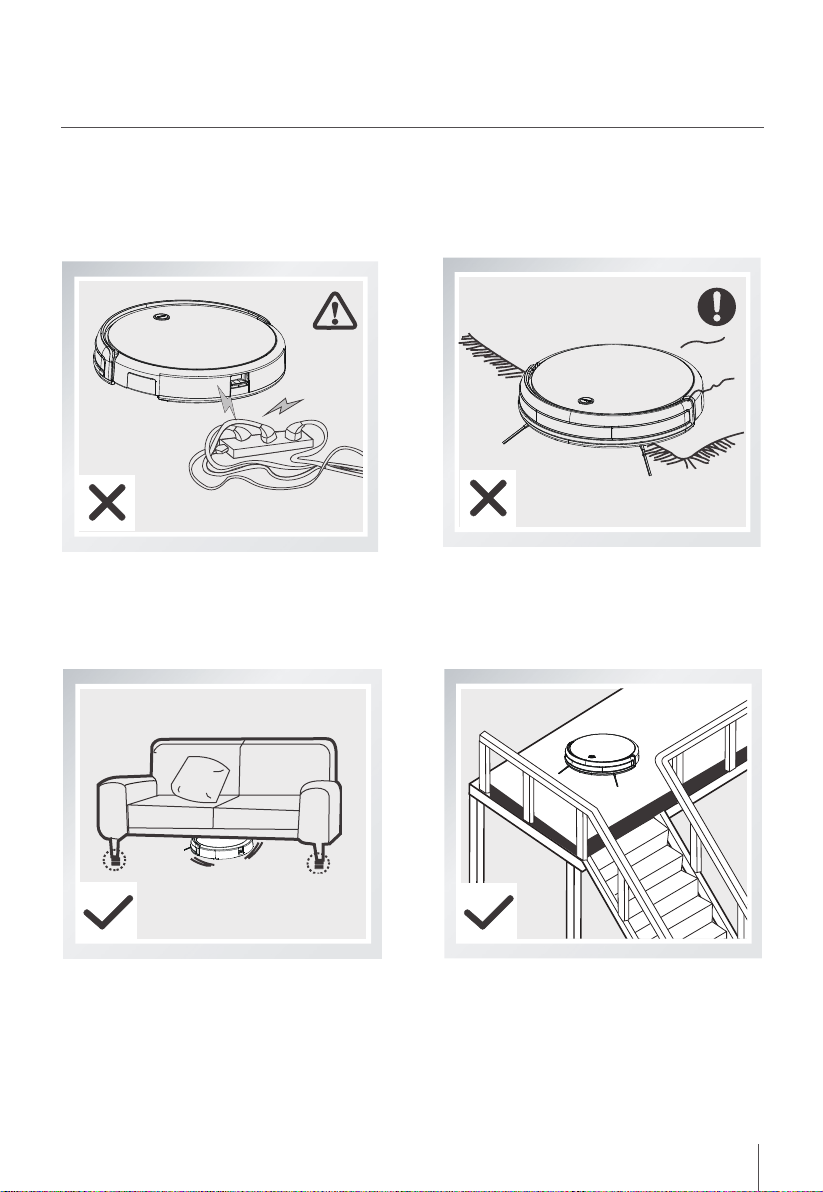

Notes before cleaning
Product Operation
11
Before operating robot, take a few moments to survey the area to be cleaned and remove any
obstacles.
Remove power cords and small objects from
the floor that could entagle the product. The product is not suitable for use on
long-pile carpet. Before using the product
near an area rug or on short-pile area rug
with tasseled edges, please remove all the
carpets and clean the area.
Please be aware that the robot needs at least
an 8 cm (3”) clearance to clean under
furniture without complications.
If there is a step or stairs in the cleaning area,
please operate robot to ensure its anti-drop
sensors can detect the drop off. It may be
necessary to place a physical barrier at the
edge of the drop off to keep the unit from
falling over the edge.

Product Operation
13
CLEAN
Start
Pause
Power OFF
Press the CLEAN button on robot or the CLEAN button on the remote control. Robot starts to
work immediately in auto cleaning mode.
*To choose another Cleaning Mode, please refer to next page for details.
Pause robot by pressing the CLEAN button
on robot or CLEAN button on the remote
control.
*If robot is pauser for more than 45 seconds it goes to sleep to save battery power, the CLEAN
button on the robot does not flash and buttons on the remote control are disabled. To wake up
robot, press the CLEAN button on the robot or the CLEAN button on the remote control.
Pause robot, move the side power switch to
the OFF position.
*When robot is not cleaning, it is suggested
to keep it powered ON and charging instead
of powered OFF.
CLEAN

Product Operation
14
Cleaning Mode Selection
AUTO Cleaning Mode
Spot Cleaning Mode
Robot has several cleaning modes to choose from effectively clean different floors. Cleaning modes
are selected using the remote control or the CLEAN button on the robot.
*Before selecting a cleaning mode, make sure the CLEAN button on robot flashes GREEN. If
not, press CLEAN button on robot or CLEAN button on the remote control to wake up the robot.
This is the most commonly used mode. In AUTO cleaning mode, robot cleans in a straight line
and changes direction when it meets an obstacle.
This mode is applicable for an area of highly
concentrated dirt or dust. In spot cleaning
mode, robot focuces on a specific area
to clean.

CLEAN
Product Operation
15
CLEAN

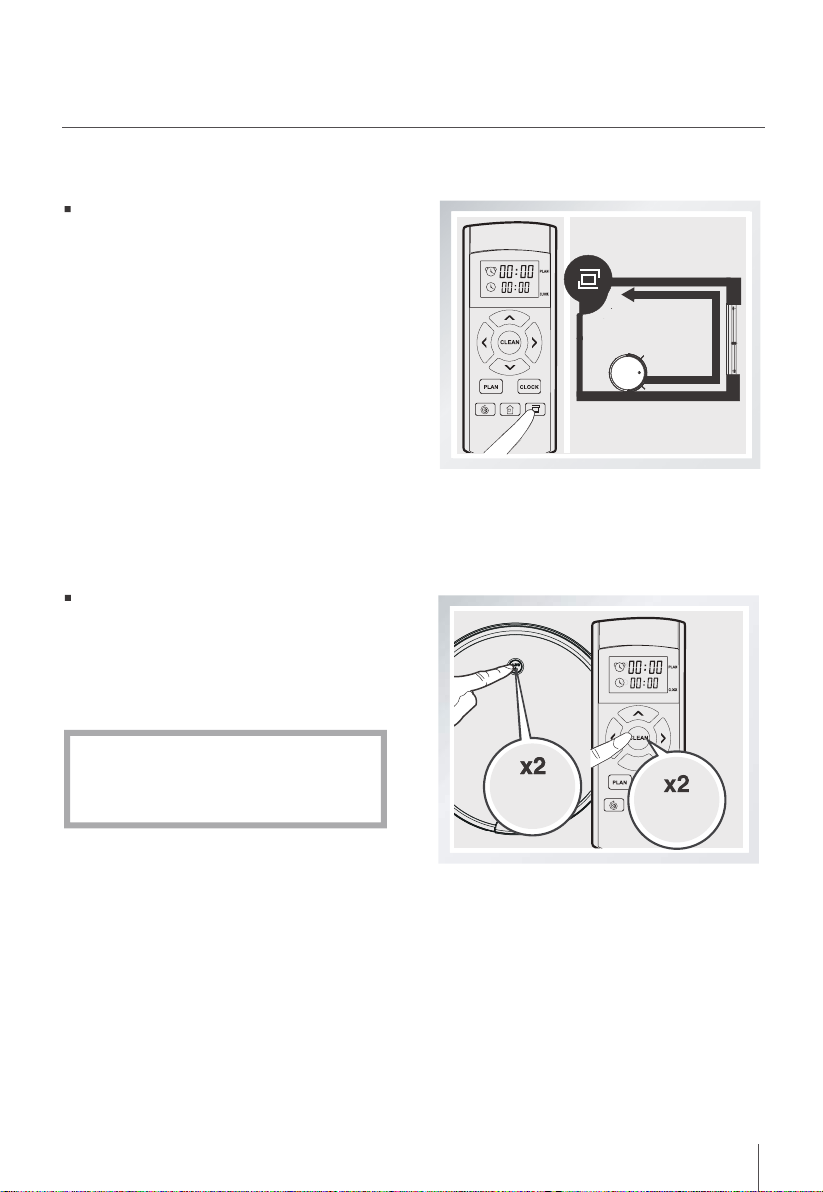

Edge Cleaning Mode
This mode is good for cleaning the edges
and corners of a room. In edge cleaning
mode, robot cleans along a border
(e.g.wall).
This mode is used if robot only needs to
clean a single room. Press the CLEAN
button on the robot twice or the CLEAN
button on the remote control twice to enter
single room mode, robot stops and beeps
when it completes cleaning.
*The room must be contained for Single
Room Mode to function properly. Close
doors to the room entrance and exit to
contain the room.
Single Room Mode

Product Operation
16
Programming the Robot

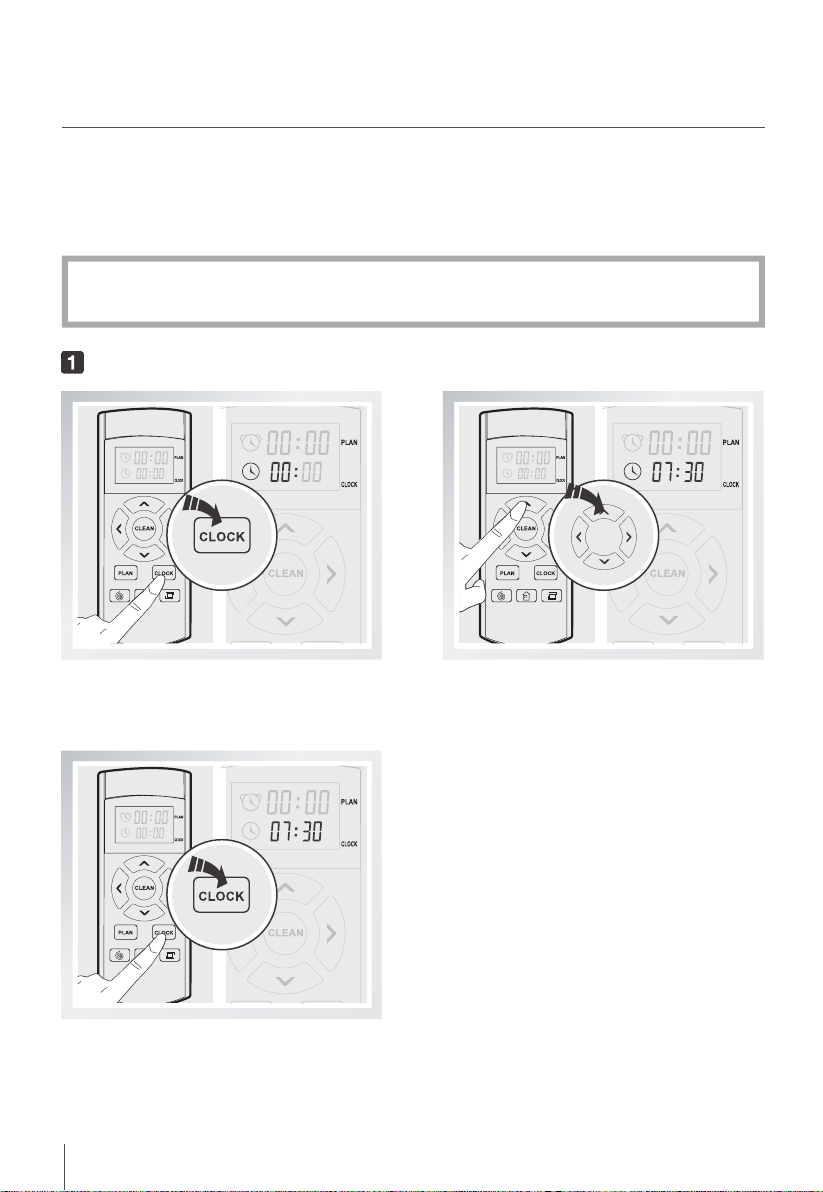

Set the Current Time of Day
This robot has a time scheduling function. It can be programmed to automatically clean once per
day, at a specific time even if nobody is at home. The current time of day and the cleaning time are
scheduled using the remote control.
*Before programming the robot, make sure the CLEAN button flashes GREEN. If not, press the
CLEAN button on the robot or the CLEAN button on remote control to wake up the robot.
Press CLOCK button on the remote control.
The hour in the second line on the screen
flashes.
Press the up and down direction control
buttons to adjust hour and minutes number.
Press the CLOCK on the remote control to
confirm and save the current time of day.

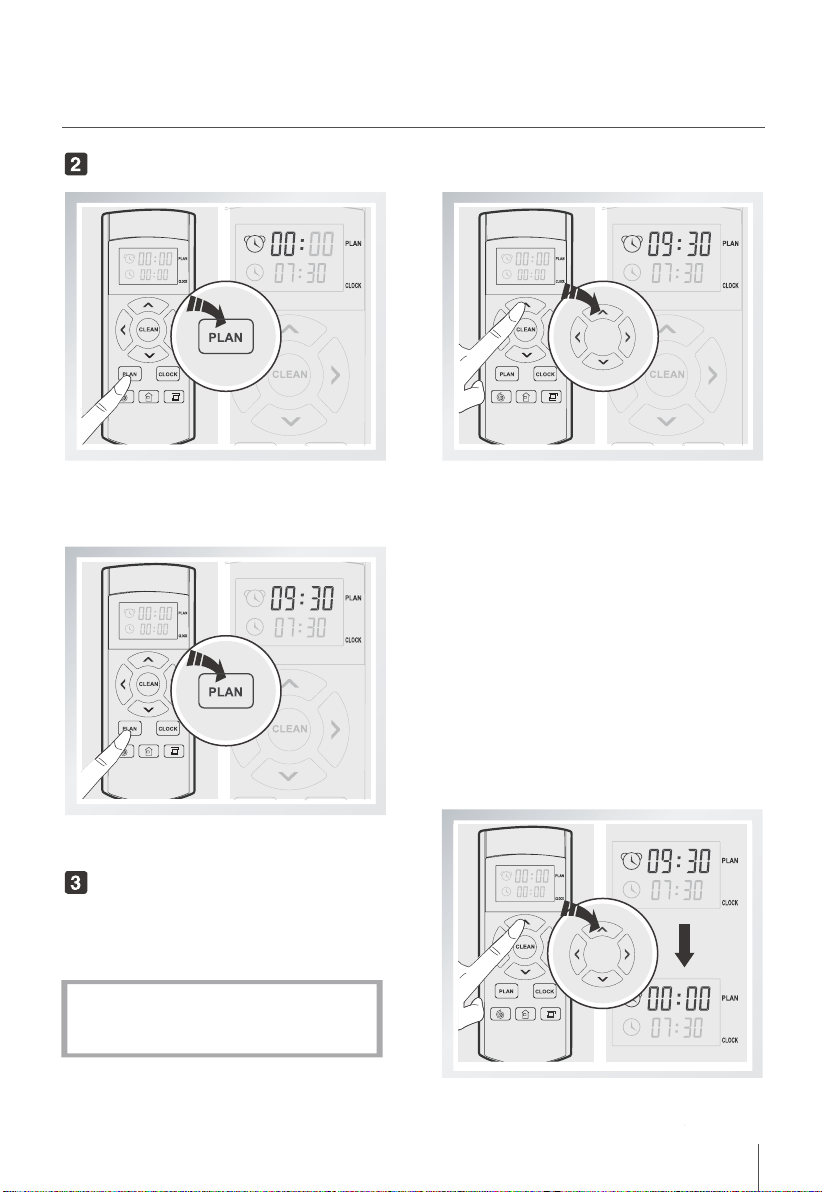

Schedule the Cleaning Time
Product Operation
17
Cancel Scheduled Cleaning Time
Press the PLAN button on the remote control
to schedule automatic cleaning. The hour in
the first line on the screen flashes.
Press the up and down direction control
buttons to adjust hour and minute number.
Press the left and right direction control
buttons to switch between hour and minute.
Press the PLAN button on the remote control
to confirm and save the schedule.
Adjust the time in the first line on the remote control
screen to “00:00” and save. The scheduled cleaning
time is cancelled.
*After replacing batteries in the remote
control, reser the current time and
scheduled cleaning time.

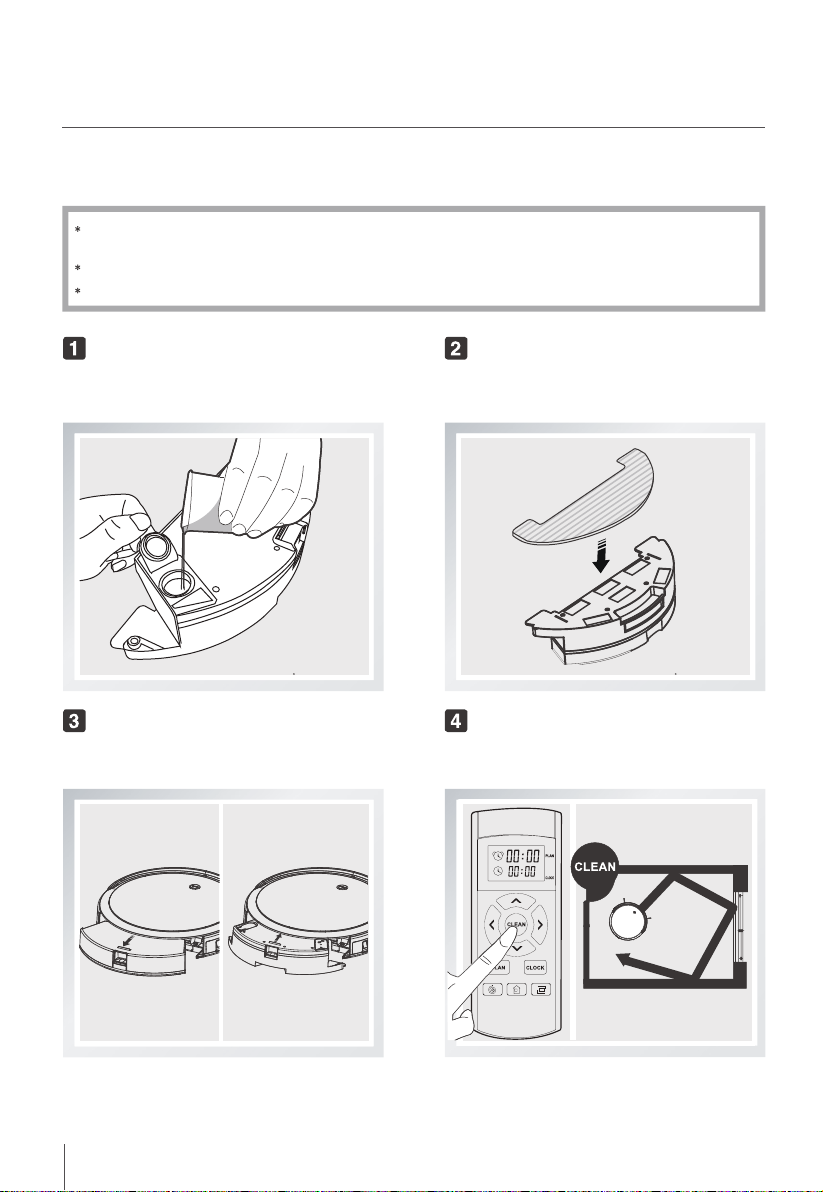

Install Water Tank Module
Add Water Stick the cleaning Mop
Install Water Tank Module Start Mopping
Product Operation
18
(Water tank is a optional part for this robot, so some of the models may not include this module.)
Do not use robot that installed water module on the carpet. Fold the edge of the carpet
before use.
Add water to the water tank if water runs out.
Water tank module must be removed before charging.
Open the injection hole lid, slowly pour in
clean water. Seal the lid carefully, stick the cleaning mop
on the bottom of the water tank, and buckle
up each side.
Take out the dust bin from robot, and install
water tank on the back of robot. Press CLEAN button on the robot or CLEAN button on remote control to start robot.

01
02
03
04
NO. Tone Cause Solution
If all above solutions don’t work, please take below actions:
Re-set the robot by re-turning on the power switch;
If re-set action doesn’t work, please send the robot to seller for repairing.
Check wheels
Clean cliff sensor and shake
bumper slightly, check whether
there is foreign matter
Move main body and
start again
Wheels no work
Cliff sensor or bumper
sensor failure
Main body gets stuck
Short tone
Main rotating brush failure Check main rotating brush
Error Sheet
When the robot meets with some routine troubles, it will remind you by beep.
Troubleshooting
20
