APRILIA eSR2 User manual

01
electric scooter
User manual
Thank you for choosing this product.
For information, technical support and assistance, contact your dealer
or visit the website www.apriliasmartmovement.com
English

02
Indice
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
19.
20.
Safety instructions
Quick-start guide
Contents
Product overview
Control information/Control panel
Assembly and set-up
Fold and carry
Battery charging and activation
Adjusting the brakes
Range
Storage and cleaning
General warnings
App conguration
Learn to drive
Battery (Warnings)
Responsibilities
Maintenance and daily care
Data sheet
Troubleshooting
Error code table

03
1. Safety instructions
Please read the following instructions carefully before using the product. Save this manual
for future reference or new users.
• The company will not assume any liability deriving from misuse of the product or non-
compliance with road regulations and the instructions in this manual.
• This electric scooter is not a toy. Use it responsibly, with care and respect for others.
• Check the local regulations in force regarding the use of this type of product before using
it and be sure to follow the local regulations. Drive responsibly and pay attention to
people and obstacles to avoid accidents.
• Always use the recommended clothing: non-slip gloves, knee and elbow pads and wear a
helmet.
• The person driving this scooter must be able to place both feet on the oor easily when
holding the handlebars at the correct height.
• When stopping or parking your vehicle, be sure to do so on a smooth, safe surface
• The maximum load capacity for the product is 100kg.
• This product may not be used by more than one person at the same time.
• Misuse of the product or non-compliance with the instructions in this manual may cause
serious damage.
• Should technical problems occur, contact the Technical Assistance Service at your dealer.
• Do not attempt to disassemble or repair the product on your own.
• Do not leave the battery near re or heat sources.
• Avoid using used, defective and/or non-original batteries.
• Do not sit on the product either when driving or stationary.
• In the event that the user who is going to use the product is not familiar with driving this
type of vehicle, it is recommended that they be instructed on the basics of driving by an
adult before using it for the rst time, regarding the following aspects:
1. Acceleration
2. Deceleration
3. Braking
4. Basic driving rules

04
2. Quick-start guide
• Before using the scooter for the rst time, fully charge the battery. When the scooter
is fully charged, the LED light on the charger changes from red (charging) to green
(charging completed).
• Press the power button for a few seconds to start it.
• Check the tyre pressure (36 PSI) if the scooter has not travelled at least 60% of the
stated km or reached the maximum speed in the rst 3 months of use, it is likely that the
wheels have deated again, it will thus be necessary to restore the pressure as indicated.
• Place the scooter on a at surface.
• Put your hands on the handlebar. Step onto the footplate with one foot and use the other
to give yourself a gentle push and accelerate.
• After use, check the battery indicator. If the battery is out of power, recharge it before use.
The electric scooter is a device that requires periodic recharging.
• When the scooter begins to move, place both feet on the footplate and press the
accelerator.
• To drive the scooter, tilt your body in the direction of travel when turning and slowly turn
the handlebars.
• To stop the scooter, release the accelerator and press the electronic or lever brake on the
left side of the handlebar.
• To dismount, rst stop the scooter completely. Trying to get o󰀨 the scooter while it is in
motion can cause injury.
• When you want to change speed mode, click the ON/OFF button (button B in
chapter 5).
• When driving at night or in dark places,double click the ON/OFF button to turn on the
lights, and wear a reective vest.
For your own safety, wear a helmet and knee pads to protect yourself against falls and
injuries while learning to ride the electric scooter.
The rider assumes all risks for not wearing a helmet or other protective gear.
Always respect the tra󰀩c code and tra󰀩c-related rules and regulations that are applicable
to cyclists in the country of circulation.
The accelerator is activated once the forward speed exceeds 3 km/h.
For safety reasons, the scooter is initially set up to avoid a standing start.
NOTICE

05
3. Package contents
Assembled scooter, the handlebar has to be installed with the appropriate screws.
The pack includes:
- 1x hexagonal key (3mm)
- 2x M5 screws
- 2x washers
- 1x charger

0606
4. Product overview
brake lever
locking hook
footboard hook closure
motor with
electronic brake
rear wheel
rear
suspension fork
rear light
kickstand
charging
port
framedrum brakefront wheel
headlight
locking mechanism
bell
accelerator
display
front
suspension fork

0707
5. Control information/Control panel
1. Speedometer: Displays the current speed of the scooter.
2. Battery Level: The battery level is indicated by 4 bars. Each bar equals around 25% of
charge.
3. ODO: Total distance travelled.
4. TRIP: Single trip distance.
5. Headlights: Headlight indicator light.
6. Mode 3 - The display shows the number 3 (up to 25km/h)
7. Mode 2 - The display shows the number 2 (up to 20km/h)
8. Mode 1 - The display shows the number 1 (up to 6km/h)
9. Cruise Control: Maintenance of speed. It is activated after the same speed has been
maintained for a few seconds.
10. Bluetooth (always ON)
6
1
73 4
10
5
8
9
2

0808
• Power Button (B): Hold it for some seconds to turn the scooter ON/OFF.
• Accelerator (A): Use it to start the scooter and to accelerate.
• Brake (C): Press and hold to brake.
• Mode: Press button (B) once to select the speed mode.
• Headlight and rear light: Double press button (B) to switch them on. When the lights are
on, double press button (B) to turn them o󰀨.
• Rapidly press 3 times to switch from Km/h to Mph.
• Rapidly press 4 times the button (B) to switch from ODO to TRIP.
The accelerator is activated once the forward speed exceeds 3 km/h.
NOTICE
A
B
C

09
6. Assembly and conguration
The vehicle is delivered folded and with the handlebar removed.
NOTICE
Steps:
1. Open the kickstand
2. Unfold the handlebar tube and secure it with the locking hook
3. Install the handlebar on the rod (beware not to atten the wires)
4. Insert the screws inside into the hole located under the control panel
5. Tighten the screws with the hexagonal key provided
6. Try to turn the e-scooter ON/OFF.
7. Charge the battery to 100%
8. Adjust the folding mechanism**
9. Adjust the braking system (chapter 9)
10. Check the tyre pressure (36 PSI)*
*If the scooter has not travelled at least 60% of the stated km or reached the maximum
speed in the rst 3 months of use, it is likely that the wheels have deated again, it will thus
be necessary to restore the pressure as indicated (36 PSI).
** If the lever is too unsteady after closing, please tune up the screw just enough to
increase the safety grip.

10

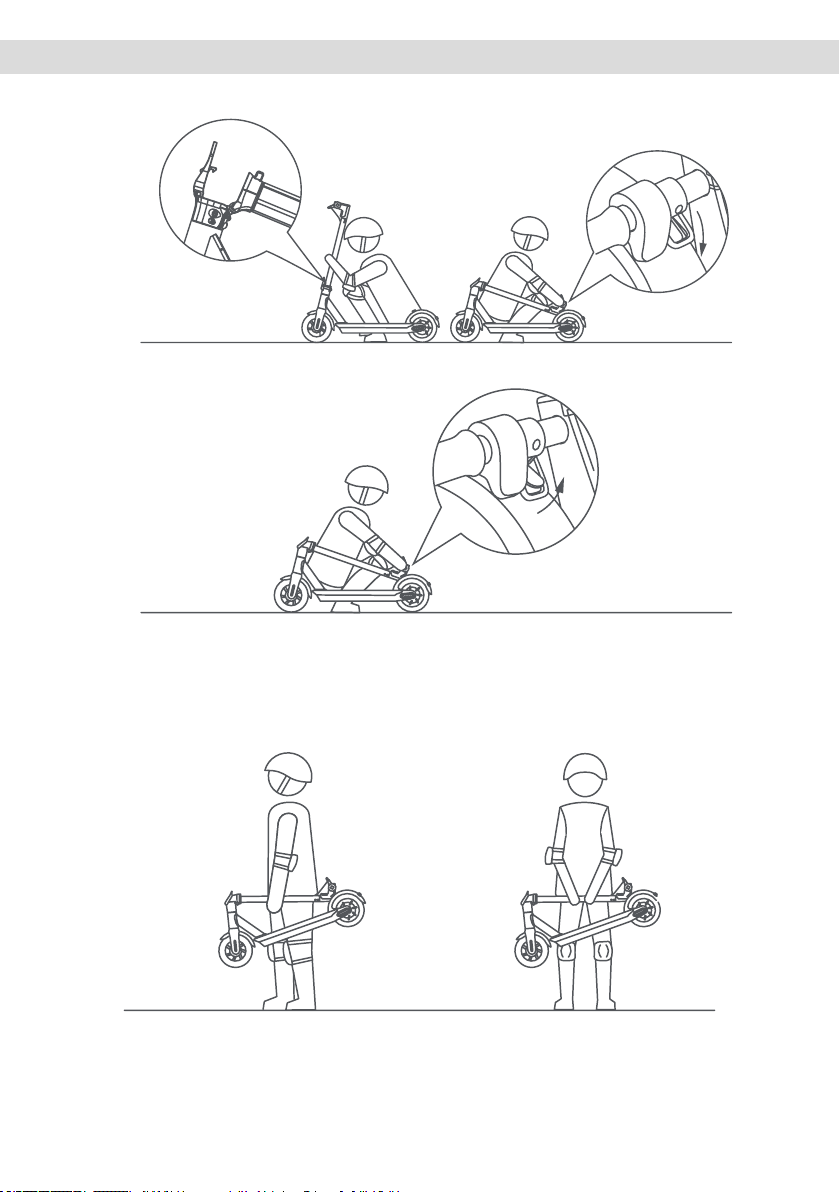

7. Fold and carry
Make sure that the electric scooter has been switched o󰀨. Hold the handlebar rod with
your hand, then pull the lever and align the handlebar hook with the hook located on the
footboard.
Fold and hold the handlebar rod with one or both hands.

11
8. Battery charging and activation
Charge the device for 6 to 8 hours before
the rst use.
It is also recommended to charge it after
each use and before storing it.
It is advisable to not allow the vehicle to fully
discharge to avoid damaging the battery.
NOTICE
Switch o󰀨 the scooter and open
the kickstand. Open the waterproof cover, then, connect the charger to the
charging port.
After charging, close the
waterproof cover.

12
9. Brake adjustment
Brake levers:
The position of the brake lever can be
adjusted if necessary through point A (see
photo).
Drum brake adjustment:
Adjust the brake by tightening or loosening the
screw (point B)
Good adjustment will ensure that the wheel
can turn easily and at the same time the
vehicle will stop immediately in the event of
braking.
A
B

13
Maximum range depends on several variables:
Terrain: Range is greater when driving on a smooth surface than when driving on rough
roads and slopes.
User weight: The heavier the user, the shorter the range.
Temperature: Riding the scooter in a very cold or hot environment a󰀨ects the range.
Speed and driving style: Driving smoothly and at constant speed extends the range.
Acceleration and aggressive manoeuvering reduce the range. Lower speed prolongs the
range.
Maintenance: Timely recharging and correct maintenance increases the range.
Charge the scooter 50%–60% before storing it out of season or for extended periods.
Recharge it to 50%–60% every 2–3 months. If not used daily, it is recommended to store
the scooter at 15–25 °C. Do not expose the scooter to low (below 0 °C) and high (over 40°
C) temperatures. Avoid leaving it outdoors, as it is not water resistant.
When the scooter gets dirty, clean it with a damp cloth. Before cleaning it, make sure
the electric scooter is turned o󰀨 and cover the charging port to prevent damage to the
electronic components. Do not use alcohol, gas, kerosene or other corrosive and volatile
chemical solvents. This can damage both the appearance and the internal structure of
the electric scooter. Do not use pressurised water guns or running water for cleaning. The
electric scooter is not waterproof.
Do not expose it to rain or water, or immerse it in water to wash it.
10. Range
11. Storage and cleaning

14
12. General warnings
• Check brakes, pressure (36 PSI), condition of wheels and accelerator before each use.
If you notice unusual noises or any anomalies, do not use the product and contact the
Technical Assistance Service at your dealer.
• The scooter should not be modied in any way; this could alter its e󰀩ciency or damage
its structure and cause problems.
• Be sure to turn o󰀨 the product before parking it.
• Do not drive the vehicle in the rain, snow or fog.
• Make sure the vehicle's electrical components do not come into contact with water or
other liquids.
• Avoid driving near rivers or lakes.
• Supervise children to ensure they do not play with the product. Strict supervision is
required if the product is being used by or near children.
• For information, technical support and assistance, contact your dealer.
Instructions on driving behaviour
• Do not use the phone or listen to music while riding the scooter.
• Only drive if there is enough light to drive safely. If you are driving in unfavourable light
conditions, remember to switch on the scooter lights and wear a reective jacket.
• Always grasp the handlebar with both hands when driving.
• Always ride with both feet on the board in a safe and comfortable way.
• Do not get distracted while driving and always look ahead.
• Always drive at a speed at which you can brake safely.
• Start braking su󰀩ciently far away so that you can avoid obstacles, curves and areas that
have uneven surfaces. Remember to let go of the accelerator before braking
• Do not get into competition with other drivers.
• Maintain a minimum safety distance of 5 m from other vehicles.

13. App conguration
15
What can you do with the Aprilia Smart Movement app?
• Set the driving mode (ECO, DRIVE, SPORT)
• Set the speed unit of measurement (km/mph)
• Enable the Zero Start mode
• Set the Cruise Control function
• View the partial and total kilometres travelled
• View the remaining battery level
• Display cruising speed
• Set the electric scooter name
• Switch the lights ON/OFF
• Set the motor block function
• Set the language
• View the last known position of your Aprilia Smart Movement vehicle
Access the app store to download and install the Aprilia Smart Movement app

16
1. Download the app on your smartphone;
2. Turn on the electric scooter and activate Bluetooth on the smartphone;
3. Start the app and log in*, connect your smartphone to the electric scooter via Bluetooth
within 1-2 metres;
*If this is your rst time using this app, register by choosing one od the following options
1) Sign up with Google
2) Sign up with Apple
3) Sign up with e-mail
The app’s interface appears as follows:

17
The app’s interface with the associated electric scooter appears as follows:
Main interface
Associated electric
scooter
Electric scooter
battery percentage
Speed in real time
Distance travelled (ODO)
Distance travelled (TRIP)
Record route
Lights switch-ON/OFF
Activate / Deactivate
application
Riding modes
Usage time
Map
Settings

18
Associated electric scooter Settings interface
Information on “Cruise Control”:
Activate the “Cruise Control” function in the app, keep the electric scooter at a constant
speed (> 8 km/h) and hold the accelerator lever down for some seconds. An acoustic
signal will indicate that “Cruise Control” is active, so it will not be necessary to keep the
accelerator lever held down. Press the accelerator lever or brake lever again to deactivate
the function.
Information on the “Zero Start” mode:
The Zero Start mode, if activated, allows you to start the electric scooter by operating the
accelerator without having to push o󰀨 with the feet and reach a speed of 3 km/h.
User prole
App language
Name of the
electric scooter
Speed units
ON/OFF Cruise Control
ON/OFF Mode
Zero Start
ON/OFF Motor lock
Information
Support request
via Whatsapp
Read the Privacy Policy
Read the Terms
and Conditions of Use
Delete user prole
User prole logout

19
Follow the safety instructions before riding
the scooter.
Use approved equipment such as helmets
and knee pads.
Do not use the electric scooter in the rain.
The electric scooter cannot be used by more
than one person at the same time.
14. Learning to ride
Before using the product check the local
legislation in force in relation to the use of
this type of product and be sure to follow
local regulations.

20
Minimum weight allowed on the electric
scooter: 20 kg.
Maximum weight allowed on the electric
scooter: 100 kg.
Do not ride the Electric scooter if you
have been drinking alcohol and/or taking
medicines.
Do not use the phone or listen to music while
riding the scooter.
Pay attention if you are driving where there
are bumps, sand, puddles, frost, snow, stairs,
in dark places or at night or in the wet.
