APS IA10SAA1B User manual

For 2018-2020 JEEP WRANGLER JL 4 DOOR
REV: 20190401
Installation Instructions for IA10SAA1B
by APS Auto Parts Specialist Inc.
Application: For 2018-2020 JEEP WRANGLER JL 4 DOOR
Estimated Time: 1 to 2 hours
The instruction here is for your
reference only. We strongly
recommend the professional
installer for best result. We are
not responsible for any damage
caused by the installation.
Thank you for choosing our
product!

For 2018-2020 JEEP WRANGLER JL 4 DOOR
REV: 20190401
Page 1 of 3

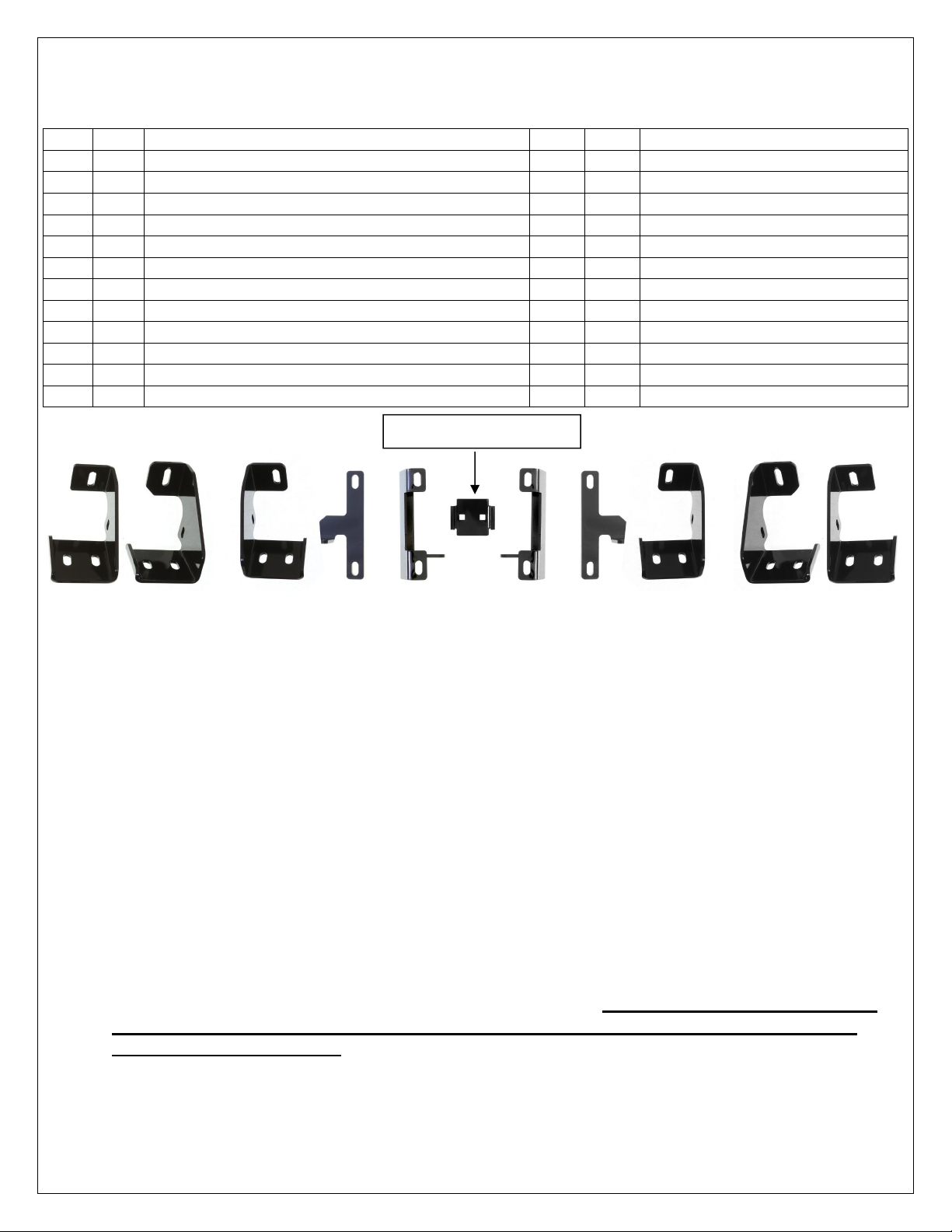

PARTS LIST:
Item
QTY
Description
Item
QTY
Description
#1
2
Driver/ Passenger Side Bar
#13
18
M8 Large Flat Washers
#2
1
Driver Front Mounting Bracket (DFM)
#14
12
M8 Lock Washers
#3
1
Driver Center Mounting Bracket (DCM)
#15
12
M6X1-25 Hex Bolts
#4
1
Driver Rear Mounting Bracket (DRM)
#16
24
M6 Large Flat Washers
#5
1
Passenger Front Mounting Bracket (PFM)
#17
12
M6X1 Nylon Lock Nuts
#6
1
Passenger Center Mounting Bracket (PCM)
#18
6
M8X1.25 - 25mm Hex Bolts
#7
1
Passenger Rear Mounting Bracket (PRM)
#19
6
M8X1.25 Hex Nuts
#8
1
Driver Front Support Bracket (DFS)
#20
6
2-Hole Support Bracket
#9
1
Passenger Front Support Bracket (PFS)
#21
12
M10 Flat Washer
#10
2
Driver Center Support Bracket (DCS/DRS)
#22
12
M10 Lock Washer
#11
2
Passenger Center Support Bracket (PCSPRS)
#23
12
M10X1.5 Hex Nuts
#12
6
M8X1.25 - 35mm Hex Bolts
#24
12
M10X1.5-75 Carriage Bolts
PROCEDURE:
1. REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT. READ
INSTRUCTIONS CAREFULLY. FACTORY INSTALLED OR AFTERMARKET "ROCK
RAILS,”SIDE STEPS OR RUNNING BOARDS MUST BE REMOVED. ASSISTANCE IS
HIGHLY RECOMMENDED.
2. Start installation on the Passenger side of the vehicle. Locate the (3)pairs of factory mounting
holes along the pinch weld(Figure 1). The mounting brackets on the Side armor attach to the
holes in the pinch weld and the small factory threaded hole directly behind the pinch
weld(Figure 2-4).
3. Install mounting brackets as shown(Figure 5 -7).
4. Select the Passenger Side Bar. Slip (2) M10X1.5-75 Carriage Bolts into each 2-Hole Support
Brackets ,and insert the 2-Hole support bracket into the Driver Side Bar.(Fig 8). Carefully
position the Bar onto the (3) Mounting Brackets. IMPORTANT: Do not slide the Bar on the
Brackets or damage to the finish may result. Attach the Driver Side Bar to the Mounting
Brackets with (2) M10 Hex Nuts,(2)M10 lock washers and (2)M10 flat washers, (Fig 9). Do not
tighten hardware.
5. Level and adjust the Bar properly and tighten all hardware. NOTE: Torque all M10 X1.5-75
Carriage Bolts to 22~25 Ib-ft. Don't over tighten,or the aluminum square bars will be
damaged by the brackets.
6. Repeat Step 2-5 for the other side installation. Installation completed!!! (See Fig 10)
7. Do periodic inspections to the installation to make sure that all hardware is secure and tight.
Products have a high quality finish that must be cared for like any other exposed finish on the vehicle. Protect
the finish with a non-abrasive automotive wax, (e.g.Pure Carnauba ) on a regular basis. The use of any soap,
2-Hole Support Bracket
PCM
DRM
PFM
DFM
PRM
DCM
DFS
PFS
PCS/PRS
DCS/DRS

For 2018-2020 JEEP WRANGLER JL 4 DOOR
REV: 20190401
Page 2 of 3
polish or wax that contains an abrasive is detrimental, as the compounds scratch the finish and open it to
corrosion.
Driver/Passenger Side Installation Pictured
(Fig 1) Locate the (3)pairs of factory
mounting holes
(Fig 2) Passenger side Front Mounting Location
Threaded hole on
floor panel
(Fig 3) Passenger side Center Mounting Location
(Fig 4) Passenger side Rear Mounting Location
Threaded hole on
floor panel
Front
Front
Front
(Fig 5) Passenger
side Front Bracket
attached to Center
Support.
(2) M6-25 Hex Bolts
(4) M6 Flat Washers
(2) M6 Nylon Lock Nuts
(1) M8-25 Hex Bolt
(2) M8 Flat Washers
(1) M8 Lock Washers
(1) M8 Hex Nut
(Fig 6) Passenger
side Center
Bracket attached
to Center Support
Bracket .
(1) M8-25 Hex Bolt
(2) M8 Flat Washers
(1) M8 Lock Washers
(1) M8 Hex Nut
(2) M6-25 Hex Bolts
(4) M6 Flat Washers
(2) M6 Nylon Lock Nuts
(1) M8-35 Hex Bolt
(1) M8 Lock Washer
(1) M8 Flat Washer

For 2018-2020 JEEP WRANGLER JL 4 DOOR
REV: 20190401
Page 3 of 3
Complete Installation
Fig 9
Fig 8
Fig 10
(Fig 7) Passenger
side Rear Bracket
attached to Rear
Support Bracket.
(1) M8-25 Hex Bolt
(2) M8 Flat Washers
(1) M8 Lock Washers
(1) M8 Hex Nut
(2) M6-25 Hex Bolts
(4) M6 Flat Washers
(2) M6 Nylon Lock Nuts
(1) M8-35 Hex Bolt
(1) M8 Lock Washer
(1) M8 Flat Washer
