Argos Atlas 147/1999 User manual

MADE IN
BRITAIN
Dimensions
Assembly Instructions - Please keep for future reference
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
Issue 4 - 04/09/14
Important - Please read these instructions fully before starting assembly
ALR2956
147/1999
157/6760
145/7229
Atlas - Triple Robe Carcass
Width - 150cm
Depth - 59.5cm
Height - 212.5cm
Issue 2 - 15/01/14 - Note added at Steps 2 and 3“Please ensure you have your panel in exactly the
same orientation as the picture above and use the 2 inside holes for screws B as shown in the picture”.

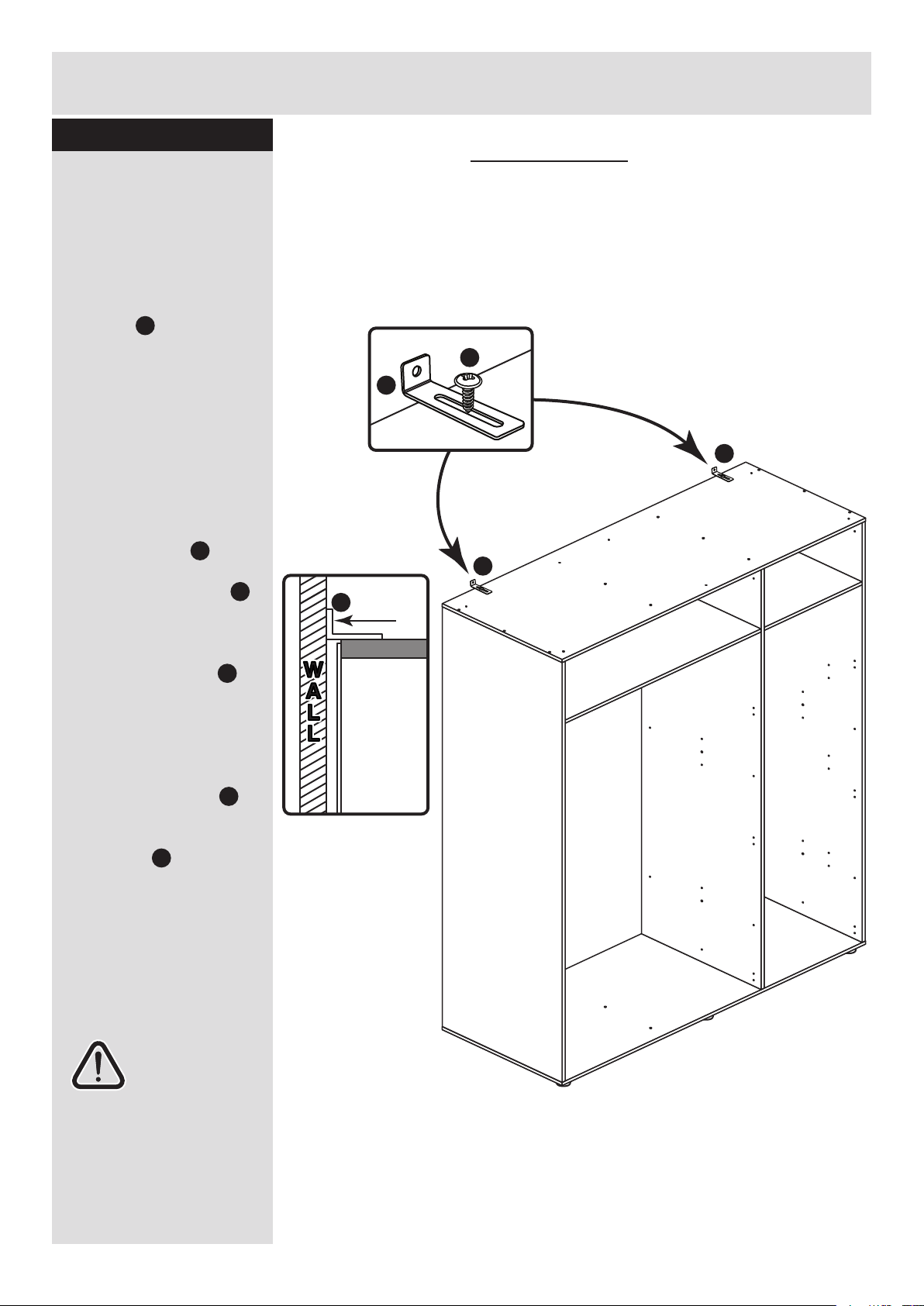

IMPORTANT
The unit MUST be fixed to a wall using
both of the brackets supplied.

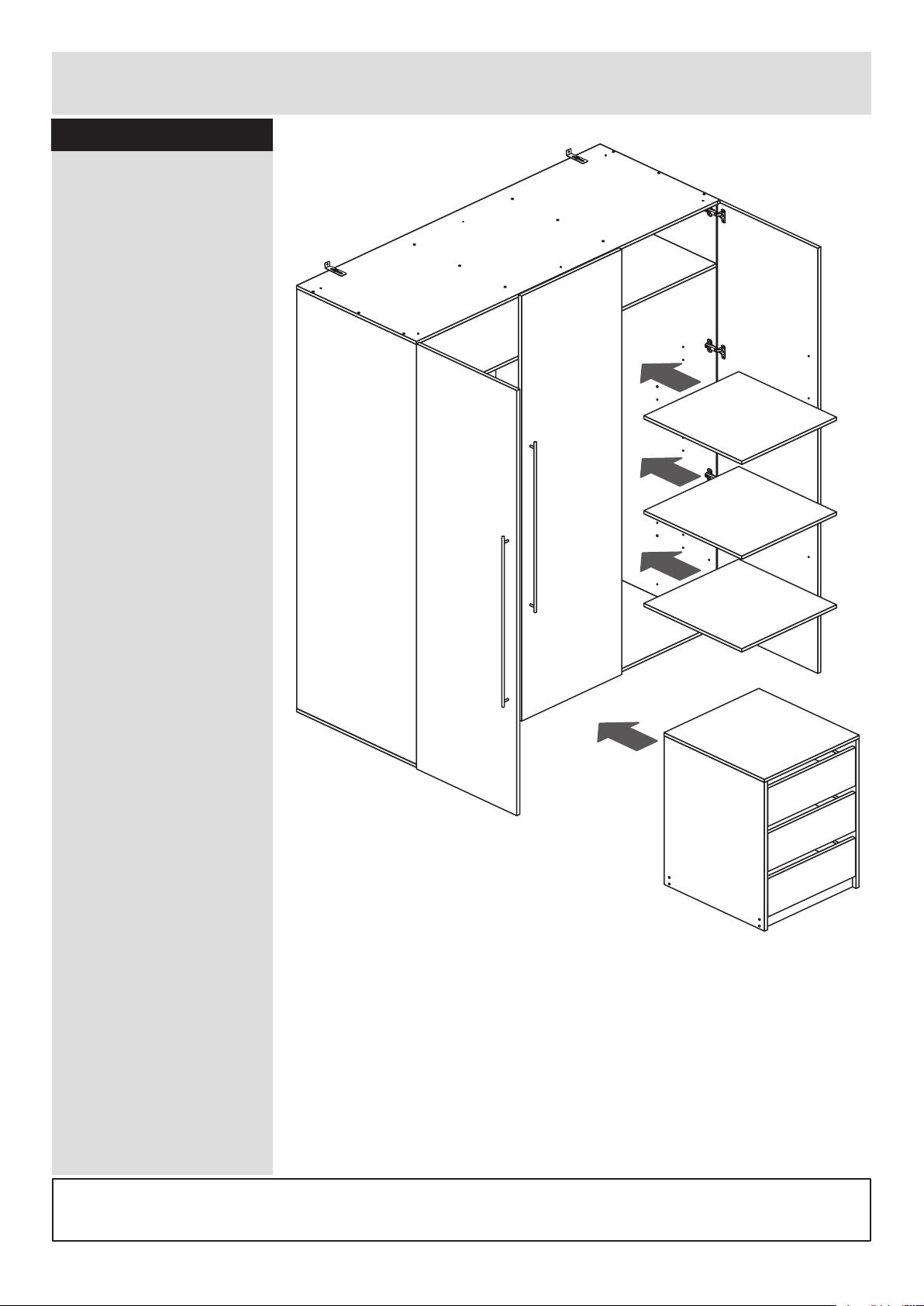

There is the option of
purchasing an Internal 3
Drawer Chest that can be
placed inside your Robe
Issue 3 - 06/02/14 - The holes for the front feet have come forward by 32mm to improve stability.
Overbalance Bracket and Screw increased to 2.
Note added at Step 21 to emphasise the unit must be fixed to a wall and must be level and square.
Issue 4 - 04/09/14 - Changed the Round Back Holders to Oblong Back Holders.

Safety and Care Advice
Important - Please read these instructions fully before starting assembly
• Warning: This unit weighs
approximately 65kgs.
Please lift with care.
• Check you have all the
components and tools listed on
pages 2 and 3.
• Remove all fittings from the
plastic bags and separate them
into their groups.
• Keep children and animals
away from the work area, small
parts could choke if swallowed.
• Parts of the assembly will be
easier with 2 people.
• Make sure you have enough
space to layout the parts before
starting.
• Do not stand or put weight on
the product, this could cause
damage.
• Assemble the item as close to
its final position (in the same
room) as possible.
• Assemble on a soft level
surface to avoid damaging the
unit or your floor (use opened
out unit carton).
1
Care and maintenance
• Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.
• From time to time check that
there are no loose screws on
this unit.
• This product should not be
discarded with household
waste. Take to your local
authority waste disposal centre.
Note: If required the next page
can be cut out and used as
reference throughout the
assembly. Keep this page with
these instructions for future
reference.
• We do not
recommend the
use of power
drill/drivers for
inserting screws,
as this could damage the unit.
Only use hand screwdrivers.
• Safety note: It is
recommended that this unit is
secured to a wall using the
bracket supplied.
• Dispose of all packaging
carefully and responsibly.

Components - Panels
Please check you have all the panels listed below
2
1
80%
If you have damaged or missing components, call the
Customer Helpline: 08456 400800 quoting the reference
numbers below
Universal End (D2396A)
(2074 x 591mm) x 2
5
2
Top/Base (D2652A)
(1499 x 592mm) x 2
Large Fixed Shelf (D2397A)
(968 x 590mm)
Upright (D2653A)
(2074 x 591mm)
4
3
Small Fixed Shelf (D2654A)
(484 x 590mm)
Small Back (X2100-504)
(2100 x 504mm)
Large Back (X2100-988)
(2100 x 988mm)
Large Hanging Rail (FHR960)
(960mm long) x 2
7
Small Hanging Rail (FHR476)
(476mm long) x 2
6
8 9

Please check you have all the fittings listed below
3
Components - Fittings If you have damaged or missing components, call the
Customer Helpline: 08456 400800 quoting the reference
numbers below
Note: The quantities below are the correct amount to complete the assembly. In some cases
more fittings may be supplied than are required.
A
Wooden dowel (F22) x 2
B
Metal dowel (F901) x 8
C
D E
Large locking
nut (F900) x 8
F
G H I
L
O
Nail (F51) x 40
Ruler - Use this ruler to help correctly identify the screws
mm 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170
J
M
K
N
see malibu fitment mk2 for large number of panels and fittings
Rail Holder
(F891) x 8
Allen Key (F36) x 1 50mm Screw (F49) x 18
19mm Screw (F461) x 6
Hinge (F328) x 12
25mm Screw (F50) x 6
13mm Screw (F63) x 38
13mm Screw (F79) x 2
Bracket (F327) x 2
Feet (F854) x 6
P
Nail screw (F277) x 6
Handle (F323) x 3
Q
Back holder (F276) x 6
*These can also be round

Assembly Instructions
4
If you have damaged or missing components, call the
Customer Helpline: 08456 400800 quoting the reference
numbers below
Step 1
Finished
front edge
Prepare the left end
Refer to step 1 and, if
you have chosen to fit 1
hanging rail, screw 2
metal dowels into the
left end .
Note: Tighten the metal
dowels up fully against
the panels.
To fit the rail holder ,
screw through its top
hole with screw and
into the shallow mark
hole drilled in the left end
. . Make sure that it is
fitted straight, in line with
the panel edges and
then fit another screw
using the lower hole.
Are you fitting 1 or 2
hanging rails or, a
shelf pack?
Step 2Only follow Steps 2 and 3 if you are just fitting 1 hanging rail.
If you are fitting 2 hanging rails, follow Step 4 and 5.
J
K
J
K
B
K
J
B
B
1
1
B
K
1
J
If you are just
fitting 1
hanging rail to
this side, the
large fixed
shelf will need
to go here.
If you are just
fitting 1
hanging rail or
the shelf pack
to this side,
the small fixed
shelf will need
to go here.
If you are fitting
2 hanging rails
to this side,
the large fixed
shelf will need
to go here.
If you are fitting
2 hanging rails
to this side,
the small fixed
shelf will need
to go here.

Finished
front edge
Assembly Instructions
5

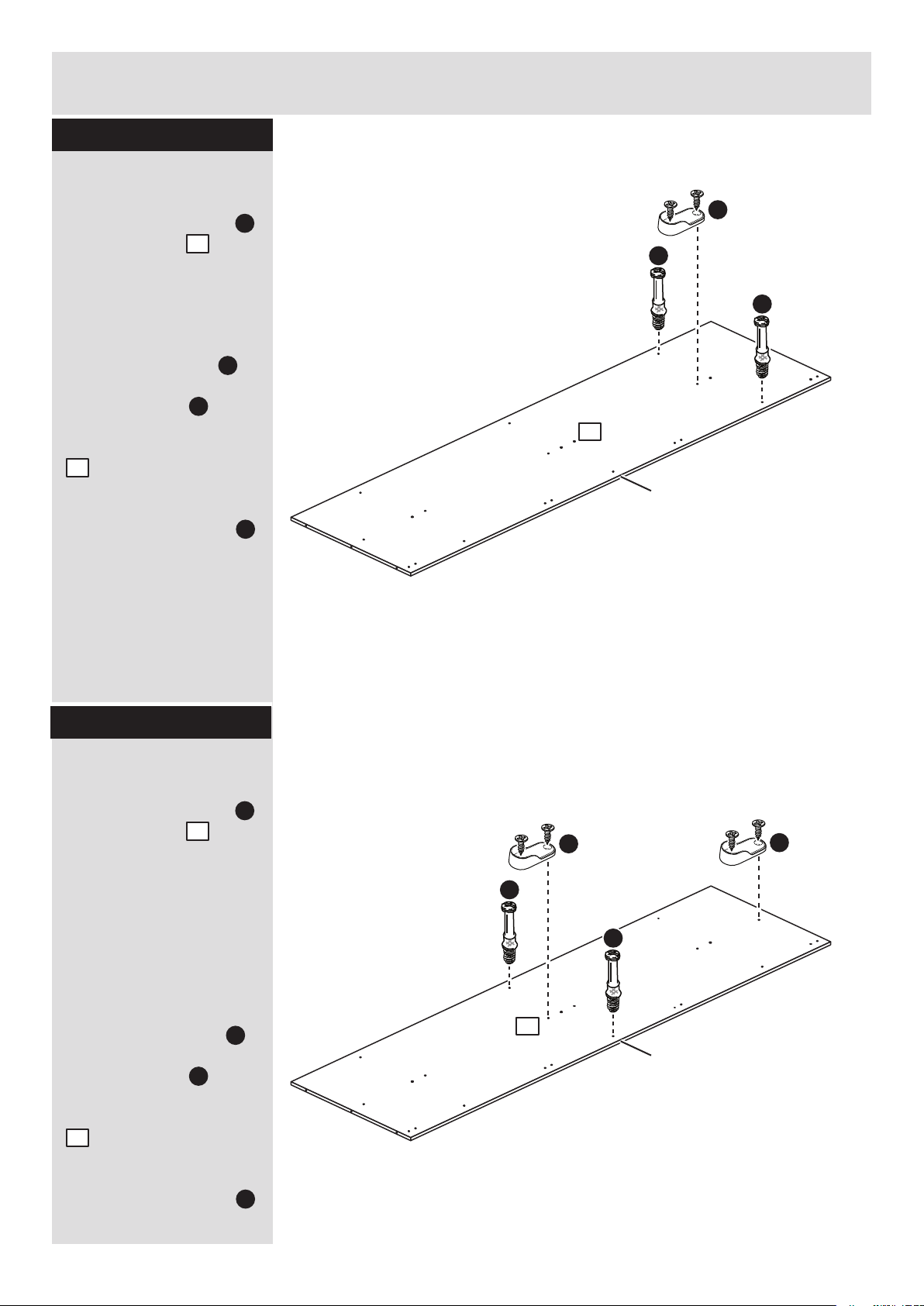

Step 2
Prepare the upright
Screw 2 metal dowels
into the upright .
Note: Tighten the metal
dowels up fully against
the panels.
Note: If you have
purchased a shelf pack,
do not fit the rail holder.
To fit the rail holder ,
screw through its top
hole with screw and
into the shallow mark
hole drilled in the upright
. . Make sure that it is
fitted straight, in line with
the panel edges and
then fit another screw
using the lower hole.
B
K
J
J
2
2
J
K
J
K
B
Refer to Step 1 and ONLY FOLLOW THIS STEP if you
are fitting the small fixed shelf near the top of the unit.
Note: If you have purchased a
shelf pack, do not fit the rail holder.
B
B
K
Turn the upright over and
carry out either step 4 or 5
2
Please ensure you have your panel in exactly the
same orientation as the picture above and use the
2 inside holes for screws B as shown in the picture.

Assembly Instructions
6
Step 3
Finished
front edge
K
B
B
K
J
K
J
K
B
Prepare the upright
Screw 2 metal dowels
into the upright .
Note: Tighten the metal
dowels up fully against
the panels.
Note: If you have
purchased a shelf pack,
do not fit the rail holder.
To fit the rail holders ,
screw through their top
hole with screw and
into the shallow mark
hole drilled in the upright
. . Make sure that it is
fitted straight, in line with
the panel edges and
then fit another screw
using their lower hole.
B
K
J
J
2
2
Refer to Step 1 and ONLY FOLLOW THIS STEP if you are
fitting the small fixed shelf near the middle of the unit.
Turn the upright over and
carry out either step 4 or 5
2
Please ensure you have your panel in exactly the
same orientation as the picture above and use the
2 inside holes for screws B as shown in the picture.

Assembly Instructions
7

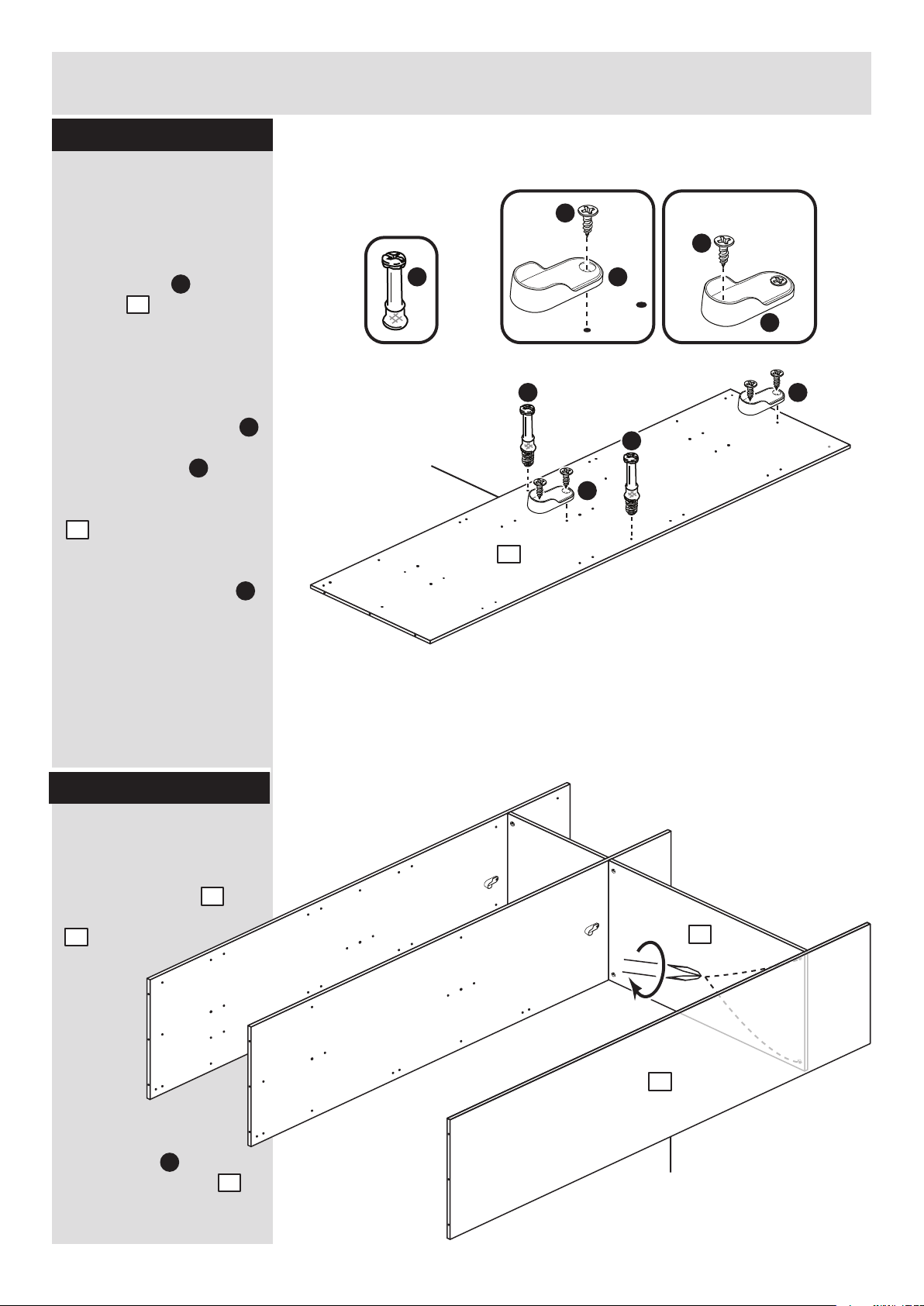

Step 4
Prepare the upright
Screw 2 metal dowels
into the upright .
Note: Tighten the metal
dowels up fully against
the panels.
To fit the rail holder ,
screw through its top
hole with screw and
into the shallow mark
hole drilled in the upright
. . Make sure that it is
fitted straight, in line with
the panel edges and
then fit another screw
using the lower hole.
B
K
J
J
2
2
Refer to Step 1 and ONLY FOLLOW THIS STEP if you
are fitting the large fixed shelf near the top of the unit.
B
B
Finished
front edge
Refer to Step 1 and ONLY FOLLOW THIS STEP if you are
fitting the large fixed shelf near the middle of the unit.
B
B
K
Finished
front edge
Step 5
Prepare the upright
Screw 2 metal dowels
into the upright .
Note: Tighten the metal
dowels up fully against
the panels.
Note: If you have
purchased a shelf pack,
do not fit the rail holder.
To fit the rail holders ,
screw through their top
hole with screw and
into the shallow mark
hole drilled in the upright
. . Make sure that it is
fitted straight, in line with
the panel edges and
then fit another screw
using their lower hole.
B
K
J
J
2
2
K
2
2
K

Finished
front edge
A
Finished
front edge
Finished
front edge
Assembly Instructions
8
Step 6
Prepare the large
fixed shelf
Tap 2 wooden dowels
into the large fixed shelf
. .
Note: Wooden dowels
must not stick out from
the edge by more than
10mm or they may
damage other panels.
Insert 4 large locking
nuts into the large
fixed shelf .
Note: The arrow on the
locking nut must point
towards the hole in the
edge of the panel.
A
C
4
4
C
10mm
A
C
C
A
C
C
4
Finished
front edge
Finished
front edge
Join the large fixed
shelf to the upright
Push the large fixed shelf
. onto the upright .
Use a screwdriver to
tighten the 2 large
locking nuts fitted to
the large fixed shelf .
Note: Turn the large
locking nuts as far as
they will go - more than
1/2 a turn.
B
C
3
1
4 2
C
C
4
If you have fitted the
2 metal dowels in this
position, the fixed
shelf will go here.
Step 7
4
If you have fitted the 2
metal dowels in this
position, the large
fixed shelf will go here.
B
C
2

Finished
front edge
Finished
front edge
Assembly Instructions
9

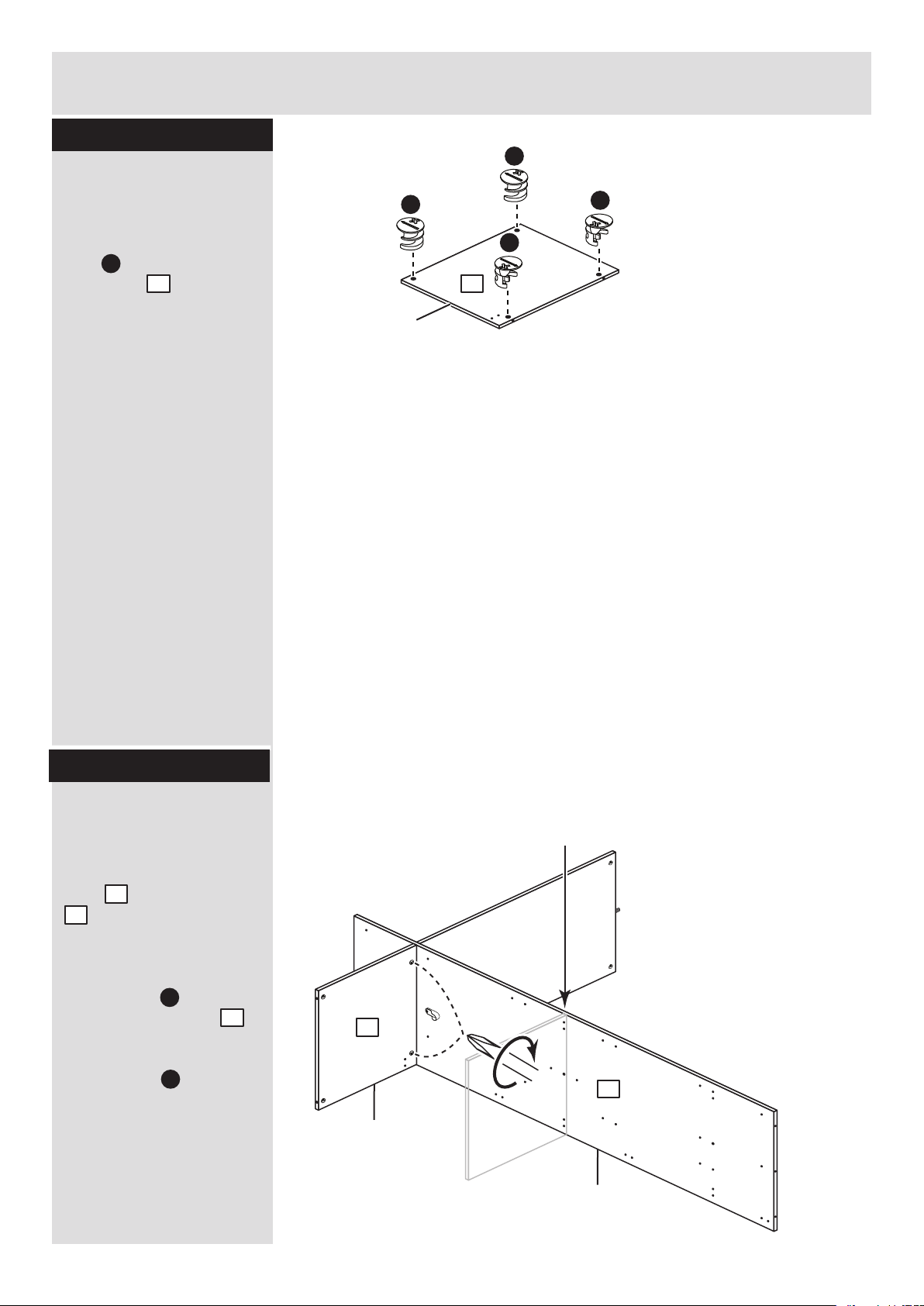

Step 8
Prepare the small
fixed shelf
Insert 4 large locking
nuts into the small
fixed shelf .
C
5
Finished
front edge
Finished
front edge
Join the small fixed
shelf to the upright
Push the small fixed
shelf onto the upright
. .
Use a screwdriver to
tighten the 2 large
locking nuts fitted to
the small fixed shelf .
Note: Turn the large
locking nuts as far as
they will go - more than
1/2 a turn.
B
C
3
1
5
2
C
C
5
If you have fitted the
2 metal dowels in this
position, the fixed
shelf will go here.
Step 9
C
CC
C
5
Finished
front edge
If you have fitted the 2
metal dowels in this
position, the small
fixed shelf will go here.
2
5
The following assembly diagrams will show the 2 fixed shelves
at the top end of the unit.
You may have fitted 1 or both of them in the middle of the unit.

Assembly Instructions
10
Step 10
Step 11
Step 5
Prepare the right end
Screw 2 metal dowels
into the right end .
To fit the rail holder ,
screw through its top
hole with screw and
into the shallow mark
hole drilled in the right
end . Make sure that
it is fitted straight, in line
with the panel edges and
then fit another screw
using the lower hole.
B
K
J
J
1
B
1
1
B
B
K
1
Finished
front edge
J
K
J
K
ONLY FOLLOW THIS STEP if you have fitted the
small fixed shelf near the top of the upright.
ONLY FOLLOW THIS STEP if you have fitted the
small fixed shelf in the middle of the upright.
B
B
K
1
Finished
front edge
Prepare the right end
Screw 2 metal dowels
into the right end .
Note: Tighten the metal
dowels up fully against
the panels.
To fit the 2 rail holders
screw through the top
hole with screw and
into the shallow mark
hole drilled in the right
end . Make sure that
they are fitted straight, in
line with the panel edges
and then fit another
screw using the lower
hole.
K
J
J
1
J
K
J
K
B
K

Finished
front edge
Assembly Instructions
11
Step 12
Finished
front edge
Finished
front edge
B
C
3
1
If you have fitted the
2 metal dowels in this
position, the fixed
shelf will go here. Step 13
Join the right side to
the small fixed shelf
Push the right side
onto the small fixed shelf
. .
Use a screwdriver to
tighten the 2 large
locking nuts fitted to
the small fixed shelf .
5
1
C
5
1
5
Finished
front edge
Prepare the left end
Screw 2 metal dowels
into the left end .
Note: Tighten the metal
dowels up fully against
the panels.
To fit the rail holder ,
screw through its top
hole with screw and
into the shallow mark
hole drilled in the left end
. . Make sure that it is
fitted straight, in line with
the panel edges and
then fit another screw
using the lower hole.
B
K
J
B
B
1
1
K
1
J
ONLY FOLLOW THIS STEP if you have fitted the
large fixed shelf near the top of the upright.
Note: If you have purchased a shelf pack,
do not fit the rail holder.

Assembly Instructions
12
Step 14
Step 15
Step 5
Finished
front edge
Prepare the left end
Refer to step 1 and, if
you have chosen to fit 2
hanging rails, screw 2
metal dowels into the
left end .
Note: Tighten the metal
dowels up fully against
the panels.
To fit the 2 rail holders
screw through the top
hole with screw and
into the shallow mark
hole drilled in the left end
. . Make sure that they
are fitted straight, in line
with the panel edges and
then fit another screw
using the lower hole.
B
K
J
J
B
B
1
1
J
K
J
K
B
K
1
K
ONLY FOLLOW THIS STEP if you have fitted the
large fixed shelf in the middle of the upright.
Join the left side to
the large fixed shelf
Push the left side
onto the large fixed shelf
. .
Use a screwdriver to
tighten the 2 large
locking nuts fitted to
the large fixed shelf .
4
1
C
4Finished
front edge
4
1

Finished
front edge
Finished
front edge
Assembly Instructions
Step 16

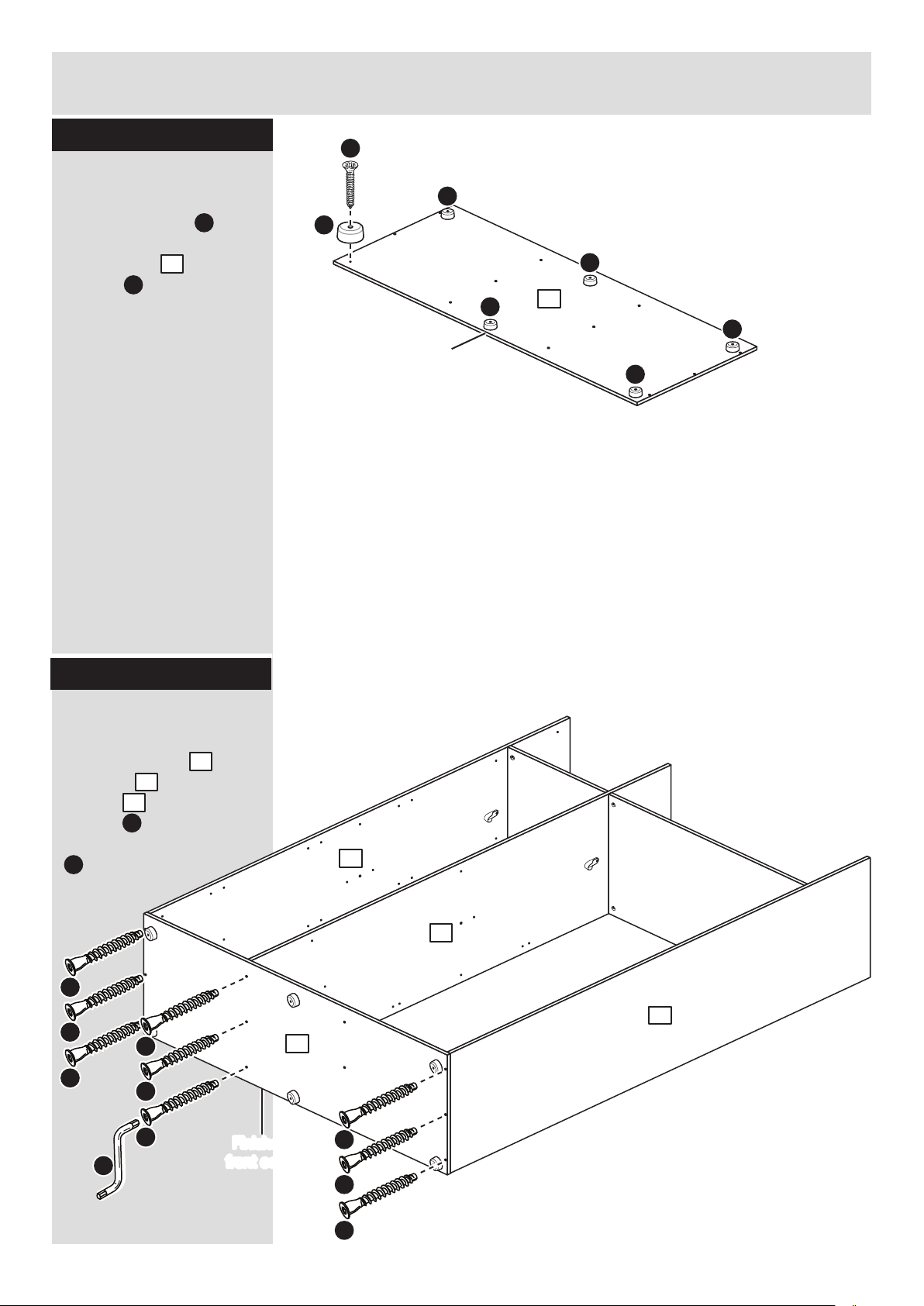

Prepare the base
Screw the 6 feet into
the shallow mark holes
on the base using
screws .
M
3
G
G
M
M
M
M
M
M
Finished
front edge
3
Step 17
Fit the base
Attach the base to
the ends and the
upright using 9
screws and tighten
them using the allen key
. .
3
1
2
F
E
1
1
2
3
13
E
F
F
F
F
F
F
F
F
F

Unit colour on
the top surface
F
F
F
F
F
F
F
F
F
Assembly Instructions
14
Step 18
Step 5
1
1
2

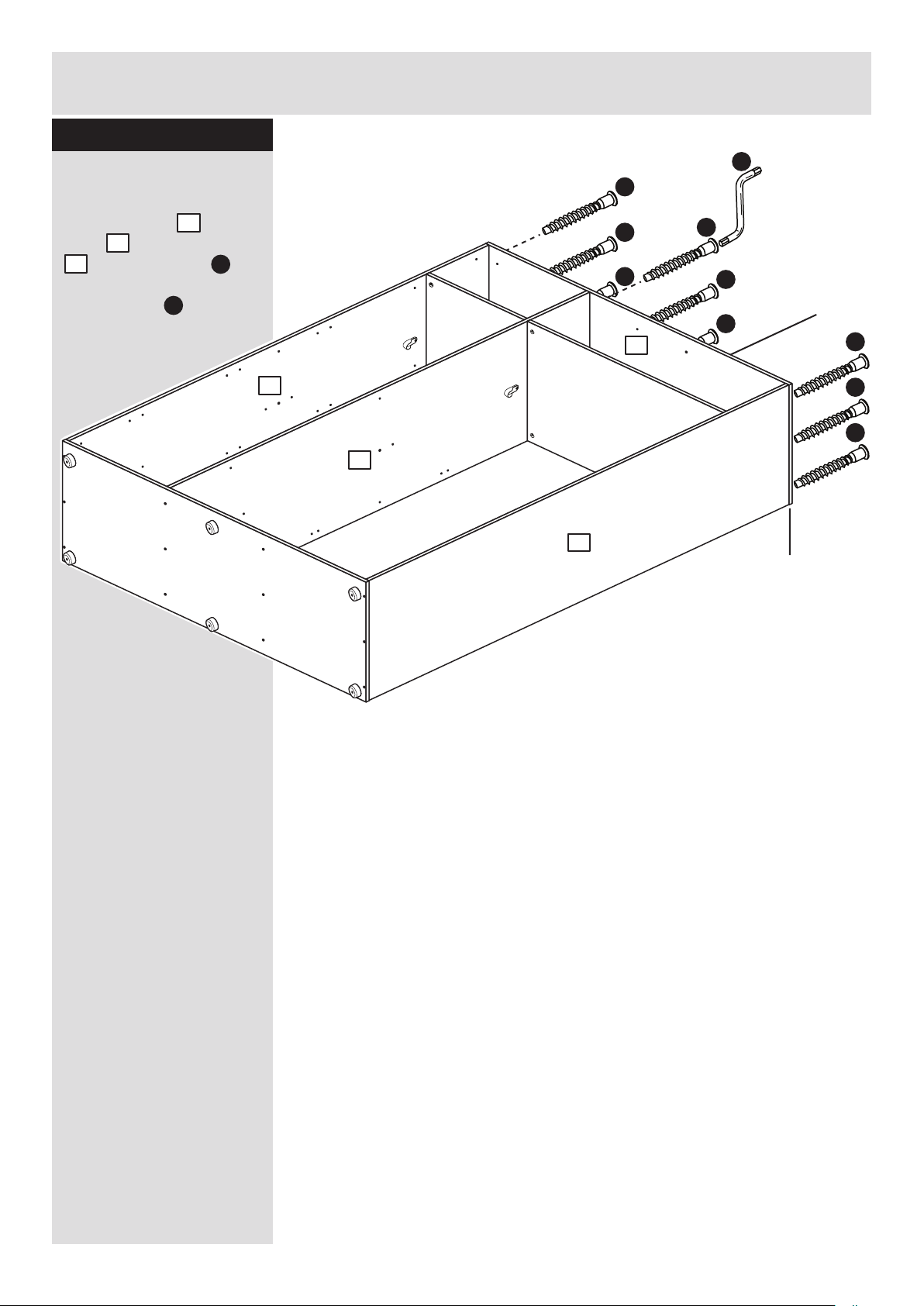

Fit the top
Attach the top to the
ends and the upright
. using 9 screws
and tighten them using
the allen key .
3
1
2F
E
E
3
Finished
front edge
Finished
front edge

Assembly Instructions
Step 19
15
yy
y
x
x
D
b:
Fit the back panels
a: Square up the unit by
making sure that the
measurement x:x equals
y:y.
Place the small back
and large back ,
coloured surface facing
down, onto the unit as
shown.
Make sure that the 2
backs are pushed up
tight against each other
and that they meet in the
centre of the divider’s
back edge.
b: Nail around
the outside edges of
the 2 backs.
Note: Do not nail where
the 2 backs meet.
c: Push the nail screws
. through the back
holders and tap them
down between the small
back and large back
. and into the back
edge of the upright .
Keep tapping the nail
screws in until the
back holders dig into
the small and large back.
Stand the unit up for
the next step.
8
9
D
P
Q
8
9
2
P
Q
Warning: The
unit is heavy.
Lift with care.
The measurement from top corner X to bottom corner X must be
equal to the measurement from top corner Y to bottom corner Y
a:
QP +
c:
8
9
P
Q
8
9
Q
Note: These can
also be round
Note: If ever you need to take
the backs off to dismantle the
unit, the nail screws can be
taken out using a screwdriver.
P
Q

Assembly Instructions
16
Step 20
Step 5
K

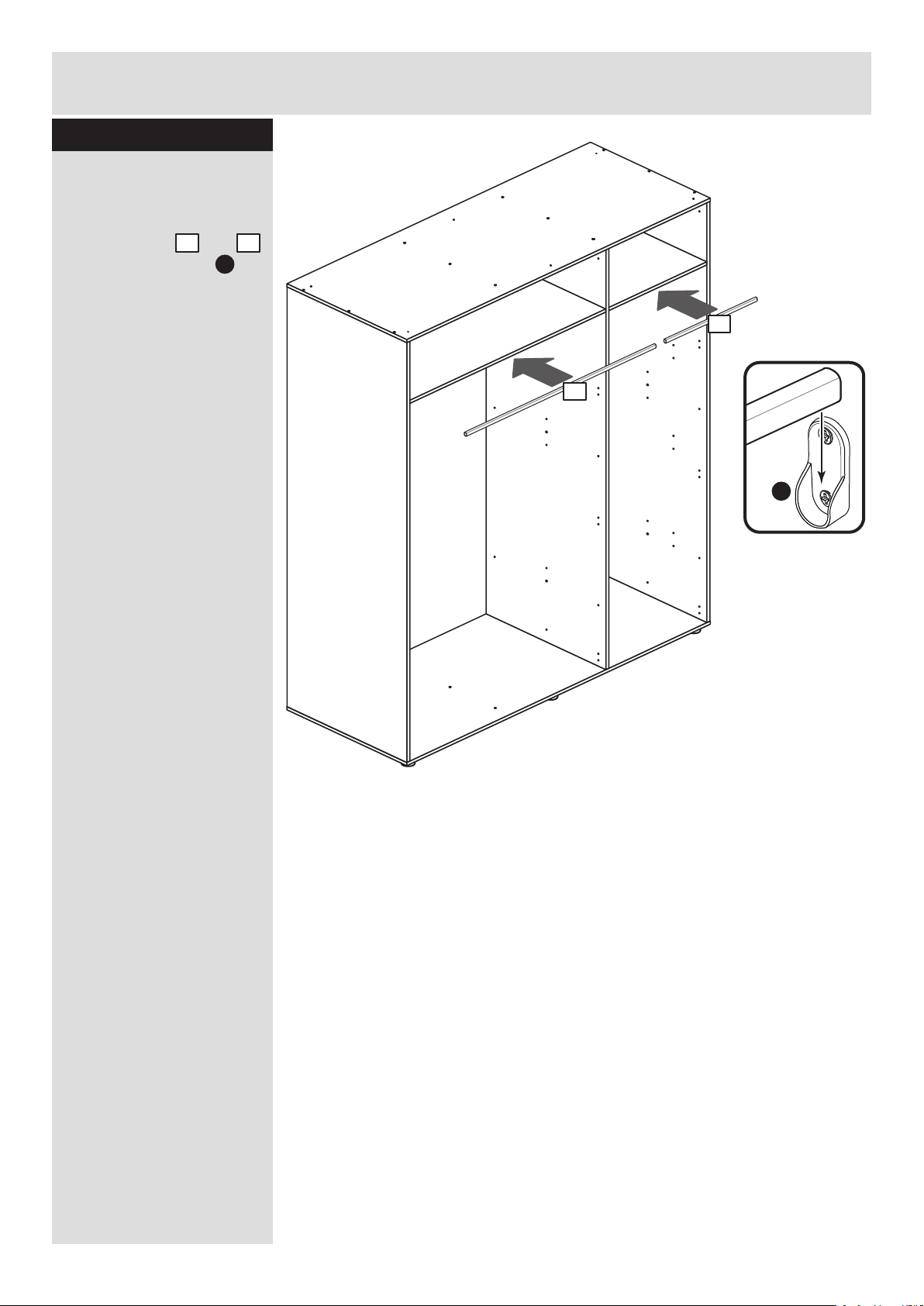

Fit the hanging rail(s)
If required, push the
hanging rail(s) and
into the rail holders
fitted to the panels.
6 7
K
7
6

L
I
Assembly Instructions
Step 21
17
Top of Unit
WALL WALL
Back of Unit
L
Fit the 2 brackets
To prevent possible
overbalancing, we
recommend that this unit
is secured to a suitable
wall by use of the 2
brackets fitted to the
top of the unit.
Fixings are not supplied,
as they will need to suit
the wall type and the
length of screws will
depend on the distance
from the back of the unit
to the wall.
Fix the brackets
loosely onto the top of
the unit using screws
and mark the wall for the
wall fixing.
Swivel the brackets
away from the wall and
drill the holes in the wall
using a suitable drill bit
and fit your wall fixings.
Swivel the brackets
back and fix the brackets
to the wall, then tighten
the screws .
Note: Take care when
drilling the wall that you
do not drill into any
pipes, wires etc.
If in doubt, consult an
expert.
Warning: The
unit is heavy.
Lift with care.
L
L
I
L
L
I
L
L
NOTE
The unused fittings from this assembly are used to fit the doors.
Please refer to the instructions packed with the doors.
IMPORTANT
This unit MUST be fixed to a wall
using both of the brackets supplied.
The unit must be level and square
before fitting the brackets.

Assembly Instructions
18
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
and quote the reference numbers on the component pages.
Argos Ltd, 489-499 Avebury Boulevard, Central Milton Keynes, MK9 2NW
Step 22
Chest
Loose
Shelf
Loose
Shelf
Loose
Shelf
Door
Fit the doors and, if
required, the shelf
pack and internal
chest
Please refer to the
instructions packed with
the doors, shelf pack or
internal chest.
Door
Door
IMPORTANT
The unused fittings from this assembly are used to fit the doors.
Please refer to the instructions packed with the doors.

ALR2956
