Argos Sywell 615/8482 User manual

MADE IN
BRITAIN
Dimensions
Width - 136.5cm
Depth - 49.5cm
Height - 175.5cm
Sywell - 4 Door Mirrored Robe
Assembly Instructions - Please keep for future reference
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
Issue 5 - 05/06/13
Important - Please read these instructions fully before starting assembly
615/8482
615/8475
615/8437
615/8451
615/8444
615/8468
ALR2630
01/08/11 - AI amended to show 2 different types of hinges being used.
10/04/12 - Updated the blow-up diagrams in Step 1 to also show the holes that shouldn’t be used for the Hinge Plates.
Issue 4 - 28/05/12
Updated the components page to remove shelf stud holes and re code upright. Hinge plate holes are blind.
Change images throughout to remove any through holes showing on upright.
Issue 5 - 05/06/13 - Title changed from Caspian to Sywell.
Side panels no longer have rebates - Left Side now D2377A and Right Side now D2378A.

Safety and Care Advice
Important - Please read these instructions fully before starting assembly
• Warning: This unit weighs
approximately 78kgs.
Please lift with care.
• Check you have all the
components and tools listed on
pages 2 and 3.
• Remove all fittings from the
plastic bags and separate them
into their groups.
• Keep children and animals
away from the work area, small
parts could choke if swallowed.
• Parts of the assembly will be
easier with 2 people.
• Make sure you have enough
space to layout the parts before
starting.
• Do not stand or put weight on
the product, this could cause
damage.
• Assemble the item as close to
its final position (in the same
room) as possible.
• Assemble on a soft level
surface to avoid damaging the
unit or your floor (use opened
out unit carton).
1
Care and maintenance
• Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.
• From time to time check that
there are no loose screws on
this unit.
• This product should not be
discarded with household
waste. Take to your local
authority waste disposal centre.
Note: If required the next page
can be cut out and used as
reference throughout the
assembly. Keep this page with
these instructions for future
reference.
• We do not
recommend the
use of power
drill/drivers for
inserting screws,
as this could damage the unit.
Only use hand screwdrivers.
• Safety note: It is
recommended that this unit is
secured to a wall using the
bracket supplied.
• Dispose of all packaging
carefully and responsibly.

Components - Panels
Please check you have all the panels listed below
2
80%
x 2
If you have damaged or missing components, call the
Customer Helpline: 08456 400800 quoting the reference
numbers below
1 2
67
Upright (D0943B)
(1642 x 473mm)
3 4
8
Hanging Rail (FHR648)
(648mm long) x 2
9
Top (D0945A)
(1333 x 489mm)
Base (D0944A)
(1333 x 474mm)
Plinth (D0942A)
(1333 x 80mm)
Plain Door
(D0262A)
(1652 x 330mm)
x 2
5Mirror Door
(D0941A)
(1652 x 330mm)
Mirror - SG17
(1648 x 275mm
4mm Safety
Back SAR) x 2
Back (X820)
(1670 x 677mm) x 2
10
Left Side (D2377A)
(1753 x 491mm)
Right Side (D2378A)
(1753 x 491mm)

Please check you have all the fittings listed below
3
Components - Fittings If you have damaged or missing components, call the
Customer Helpline: 08456 400800 quoting the reference
numbers below
Note: The quantities below are the correct amount to complete the assembly. In some cases
more fittings may be supplied than are required.
A
Wooden dowel (F22) x 6
B C
D E F
G
40mm Screw (F910) x 14
H
19mm Screw (F461) x 8
Rule
Nail (F51) x 40
mm 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170
O
Q
Tools required
Rule
ScissorsSquare
Spirit
level
Hammer Bradawl
Eye protection
(when using a
hammer or drill)
Cross-head
screwdriver
mm 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170
Step
ladder
Ruler - Use this ruler to help correctly identify the screws
13mm Screw (F79) x 11 13mm Screw (F63) x 24
Handle (F923) x 4
I
Electric drill
(only use
when drilling
into walls)
Rail holder
(F1014) x 4 Bracket (F327) x 1
M
K
Hinge (F522) x 6
L
Hinge plate
(F523) x 6
J
Hinge Plate
(F521) x 6 Hinge (F520) x 6
AHP1546
AHP0826

A
A
Finished
front edge
3
Assembly Instructions
4
If you have damaged or missing components, call the
Customer Helpline: 08456 400800 quoting the reference
numbers below
Step 1
B
3
J
J
J
J
3
J
Finished
front edge
3
B
J
J
J

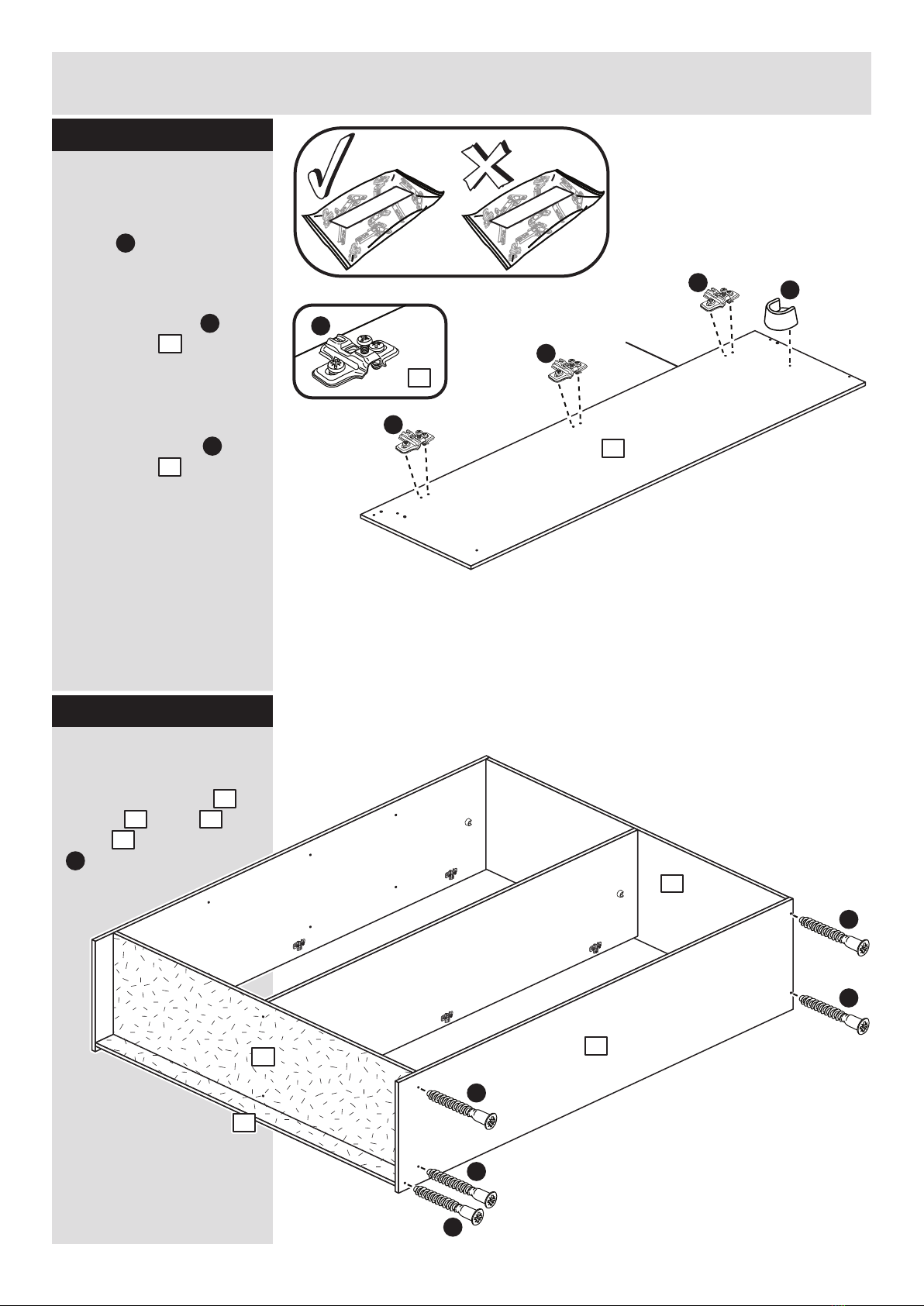

Prepare the upright
Important: The hinge
plates used in this
step are in the bag
marked as AHP0826.
a: Fit 3 hinge plates
onto the upright ,
making sure that the slot
is facing towards the
finished front edge.
Push a rail holder into
the upright . Make
sure that it is fitted
straight, in line with the
panel edges.
Turn the upright over
b: Fit 3 hinge plates
onto the upright ,
making sure that the slot
is facing towards the
finished front edge.
Push a rail holder into
the upright . Make
sure that it is fitted
straight, in line with the
panel edges.
J
3
B
3
J
3
B
3
Turn the
upright over
a:
b:
A
A
plain chipboard surface
6
7
Prepare the top and
base
a: Tap 2 wooden
dowels into the top
. .
b: Tap 2 wooden
dowels into the base
. .
Note: The base only has
one finished surface.
A
A
6
7
a:
b:
Step 2
Finished
front edge
Finished
front edge
AHP1546 AHP0826
J

Finished
front edge
Finished
front edge
Finished
front edge
G
G
Assembly Instructions
5
Step 3
Step 4
G
6
3
Fit the top to the
upright
Attach the top to the
upright using 2
screws .
plain chipboard surface
G
G
G
7
3
Fit the base to the
upright
Attach the base to
the upright using 2
screws .
7
6
3
3

G
G
G
G
Assembly Instructions
6
Step 5
2
L
Finished
front edge
L
L
L
B
Prepare the right side
Important: The hinge
plates used in this
step are in the bag
marked as AHP1546.
Fit 3 hinge plates onto
the right side , making
sure that the slot is
facing towards the
finished front edge.
Push a rail holder into
the right side . Make
sure that it is fitted
straight, in line with the
panel edges.
L
L
2
2
B
2
Step 6
Fit the right side
Attach the right side
to the top and base
. using 4 screws .
2
6
7G
2
6
7
AHP1546 AHP0826

Assembly Instructions
7
Step 7
Step 8
Fit the plinth
Attach the plinth to
the right side using
screw .
A
A
A
Prepare the plinth
Tap 2 wooden dowels
into the plinth .
8
8
G
8
Plain chipboard
surface
Plain chipboard
surface
8
2
G
2

Assembly Instructions
8
Step 9
Prepare the left side
Important: The hinge
plates used in this
step are in the bag
marked as AHP1546.
Fit 3 hinge plates onto
the left side , making
sure that the slot is
facing towards the
finished front edge.
Push a rail holder into
the left side . Make
sure that it is fitted
straight, in line with the
panel edges.
L
L
1
1
B
Step 10
Fit the left side
Attach the left side to
the top , base and
plinth using 5 screws
. .
Finished
front edge
B
1
L
L
L
L
1
8
G
G
G
G
G
1
6 7
8
G
1
6
7
AHP1546 AHP0826

Assembly Instructions
9
Step 11
Warning: The
unit is heavy.
Lift with care.
E
Fit back panels
a: Square up the unit by
making sure that
measurement x to x
equals y to y.
b: Place the 2 backs
coloured surface facing
down, onto the unit as
shown.
Make sure that the 2
backs are pushed up
tight against each other
and that they meet in the
centre of the upright’s
. back edge.
Nail around the
outside edges of the 2
backs .
Note: Do not nail where
the 2 backs meet.
Nails should be spaced
out evenly.
c: Using 10 screws ,
screw down between the
2 backs and into the
upright panel’s back
edge .
Stand the unit up for
the next step.
10
10
y
x
y
y
x
10
10
,
D
10
3
10
3
E
b: c:
D
The measurement from top corner X to bottom corner X must be
equal to the measurement from top corner Y to bottom corner Y
a:
10
E
10
3
Note: Only use 10 screws .
You will need 1 for step 16.
E

Assembly Instructions
10
Step 12
9
B
Fit the hanging rails
Push the 2 hanging rails
. into the rail holders
. fitted to the left side
. , right side and
both surfaces of the
upright .
9
1
3
2
B
9
9
1
3
2

Assembly Instructions
11
Step 13
Prepare the plain
doors
Important: The 6 hinges
used in this step are in
the bag marked as
AHP1546.
Push fit 3 hinges into
each plain door .
Secure each hinge with
2 screws .
Note: Before securing
with the screws, make
sure that the hinges are
positioned at 90 degrees
with the front edge of the
door.
F
M
4
90
M
M
F
F
M
F
F
M
F
F
4
5
Warning:
Glass! Handle
with care
x 2
x 2
Step 14
Prepare the mirror
doors
Important: The 3 hinges
used in this step are in
the bag marked as
AHP0826.
Push fit 3 hinges into
each mirror door .
Secure each hinge with
2 screws .
Note: Before securing
with the screws, make
sure that the hinges are
positioned at 90 degrees
with the front edge of the
door.
K
90
K
K
F
F
F
5
AHP1546 AHP0826
AHP1546 AHP0826
K
F
F
K
F
F

Assembly Instructions
12
Step 15

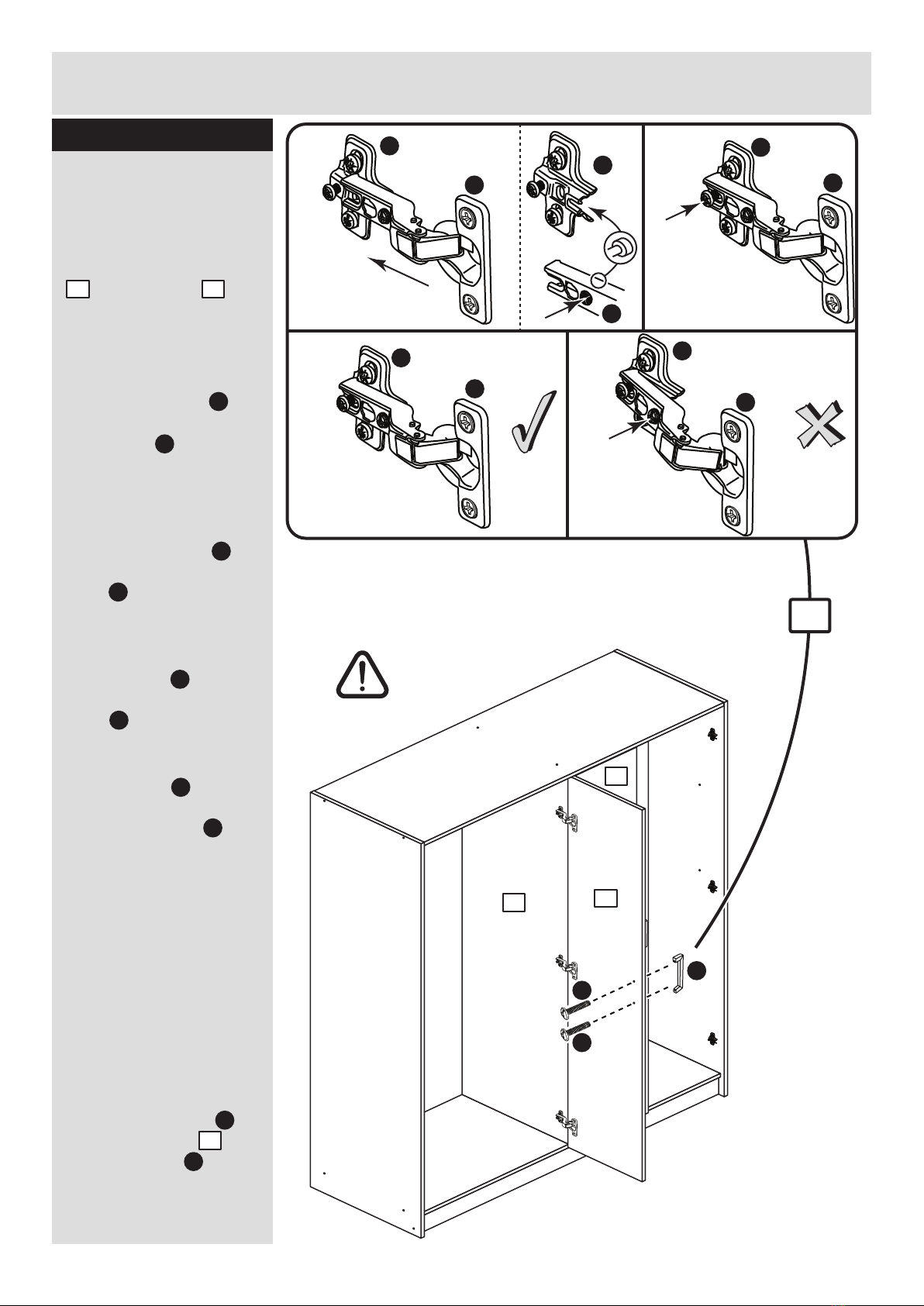

Fit the mirror doors
and handles
Note: The easiest way to
attach each mirror door
. to the upright is
to fit the top hinge first,
then align and fit the
other hinges.
a: Push the hinge
onto the front part of the
hinge plate .
The recess at the bottom
of screw B goes into the
slot in the hinge plate.
b: Keep the hinge
FLAT against the hinge
plate as you slide it
across as far as it will go.
Tighten screw A.
c: The hinge must be
flat against the hinge
plate prior to any
adjustment.
d: The hinge must
NOT be AT AN ANGLE
to the hinge plate
when assembled.
This would indicate that
the recess at the bottom
of screw B had not
located in the slot in the
hinge plate and the hinge
would not be secure.
Remove the hinge from
the hinge plate and then
re-assemble being
careful to follow
instructions a-c.
e: Attach a handle to
each mirror door
using 2 screws .
K
K
K
J
J
J
K
J
I
H
5 3
5
Warning:
Glass! Handle
with care
H
H
I
5
5
3
e:
a: b:
c: d:
B
J
K
A
J
K
J
J
K
K
K
J
B

Assembly Instructions
13
Step 16
H
H
I
I
I
I
Fit the plain doors and
handles
Note: The easiest way to
attach each plain door
. is to fit the top hinge
first, then align and fit the
other hinges.
a: Push the hinge
onto the front part of the
hinge plate .
The recess at the bottom
of screw B goes into the
slot in the hinge plate.
b: Keep the hinge
FLAT against the hinge
plate as you slide it
across as far as it will go.
Tighten screw A.
c: The hinge must be
flat against the hinge
plate prior to any
adjustment.
d: The hinge must
NOT be AT AN ANGLE
to the hinge plate
when assembled.
This would indicate that
the recess at the bottom
of screw B had not
located in the slot in the
hinge plate and the hinge
would not be secure.
Remove the hinge from
the hinge plate and then
re-assemble being
careful to follow
instructions a-c.
e: Attach a handle to
each plain door using
2 screws .
M
M
M
L
L
L
M
L
I
H
4
4
a: b:
c: d:
L
K
L
J
B
L
M
M
M
A
M
L
B
e:
4
5
5
4
4

Assembly Instructions
14
Step 17
b:
c:
d:
a:
Adjust the doors if
needed
a: Before adjusting the
doors, use a spirit level
to check the base (or
top) of the unit is level,
front-to-back and
side-to-side in the 3
positions shown.
Use suitable packing
pieces (not supplied) to
make the unit level
BEFORE making any
adjustment to the hinges,
as shown.
b: Height adjustment.
Loosen screws A on
hinge plates and move
door up or down as
required.
Retighten screw A.
c: Forward and Back
adjustment.
Loosen screw B on hinge
plate and move door in
or out as required.
Retighten screw B.
d: Sideways
adjustment.
To move door ‘out’
loosen screw C.
To move door ‘in’ tighten
screw C.
A
A
B
C

Assembly Instructions
15
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
and quote the reference numbers on the component pages.
Argos Ltd, 489-499 Avebury Boulevard, Central Milton Keynes, MK9 2NW
Step 18
ALR2630
Top of Unit
WALL WALL
Back of Unit
Attach bracket to top
To prevent possible
overbalancing, we
recommend that this unit
is secured to a suitable
wall by use of the
bracket fitted to the
top of the unit.
Fixings are not supplied,
as they will need to suit
the wall type and the
length of screw will
depend on the distance
from the back of the unit
to the wall.
Fix the bracket
loosely onto the top of
the unit using screw
and mark the wall for the
wall fixing.
Swivel the bracket
away from the wall and
drill a hole in the wall
using a suitable drill bit
and fit your wall fixing.
Swivel the bracket
back and fix the bracket
to the wall, then tighten
screw .
Note: Take care when
drilling the wall that you
do not drill into any
pipes, wires etc.
If in doubt, consult an
expert.
Warning: The
robe is heavy.
Lift with care.
Assembly is complete
C
C
E
C
C
E
C
E
C
C
IMPORTANT INFORMATION ABOUT THIS PRODUCT
This product complies with the requirements of BS 7449:1991 and has been
manufactured by DECORATIVE PANELS FURNITURE LTD, TEESSIDE
INDUSTRIAL ESTATE, THORNABY-ON-TEES, CLEVELAND, TS17 9LT .
The product code for this unit and the item code(s) for the glass
components are listed in the Assembly Instructions along with a description
of the type of glass used. All clear/tinted glass complies with the
requirements of BS 6206 Class A. All mirrors comply with the requirements
of BS 6206 Class C. If the glass component contained in this unit is chipped
or broken consult the furniture manufacturer, retailer, or agent with regard to
obtaining a manufacturing specification and shape for replacement glass
quoting the unit description and batch number or date of manufacture.
Do not place very hot or very cold items against or in close proximity to
glass surface(s) unless adequately thick insulating material is used to
prevent such items coming in contact with the glass.
Do not strike the glass with hard or pointed items.
Do not sit or stand upon horizontal glass surfaces.
When cleaning glass panels use a damp cloth or leather with washing up
liquid or soft soap if necessary - do not use washing powders or any other
substance containing abrasives since these substances scratch glass.
If stated in the instruction leaflet, it is essential that this unit is fixed to a wall.
KEEP THESE INSTRUCTIONS FOR FUTURE USE
