ARRI LMB 4x5 User manual

Lightweight Matte Box
LMB 4x5
USER GUIDE
Date: July 2017

2
Imprint
Copyright © 2017 Arnold & Richter Cine Technik GmbH & Co. Betriebs KG. All rights
reserved. No parts of this document may be reproduced without prior written consent of
Arnold & Richter Cine Technik GmbH & Co. Betriebs KG. Specications are subject to
change without notice. Errors, omissions, and modications excepted. ARRI and LENS
DATA SYSTEM are trademarks or registered trademarks of Arnold & Richter Cine Technik
GmbH & Co. Betriebs KG. All other brands or products are trademarks or registered
trademarks of their respective holders and should be treated as such. Original version.
For further assistance
Arnold & Richter Cine Technik
GmbH & Co. Betriebs KG
Türkenstraße 89
80799 Munich, Germany
Email: [email protected]
Scope
This User Manual applies to the following product: KK.0015177 LMB 4x5 Pro Set
Risk levels and alert symbols
Safety warnings, safety alert symbols, and signal words in these instructions indicate
different risk levels:
CAUTION indicates a potentially hazardous situation, which, if not avoided, may
result in minor or moderate injury.
CAUTION!
NOTICE banners indicate non-hazardous additional information and do not
require safety alert symbols.
NOTICE

3
Table of Contents
1 Introduction ...........................................................................................................4
2 LMB 4x5 Overview.................................................................................................5
3 Instructions............................................................................................................8
3.1 Fit Clamp Adapter .......................................................................................8
3.2 LMB 4x5 Clamp Adapter 143 mm ...............................................................9
3.3 LMB 4x5 Tilt and Flex Adapter ..................................................................10
3.4 LMB 4x5 Extra Non-Rotatable Filter Stage...............................................12
3.5 LMB 4x5 Extra Rotatable Filter Stage.......................................................13

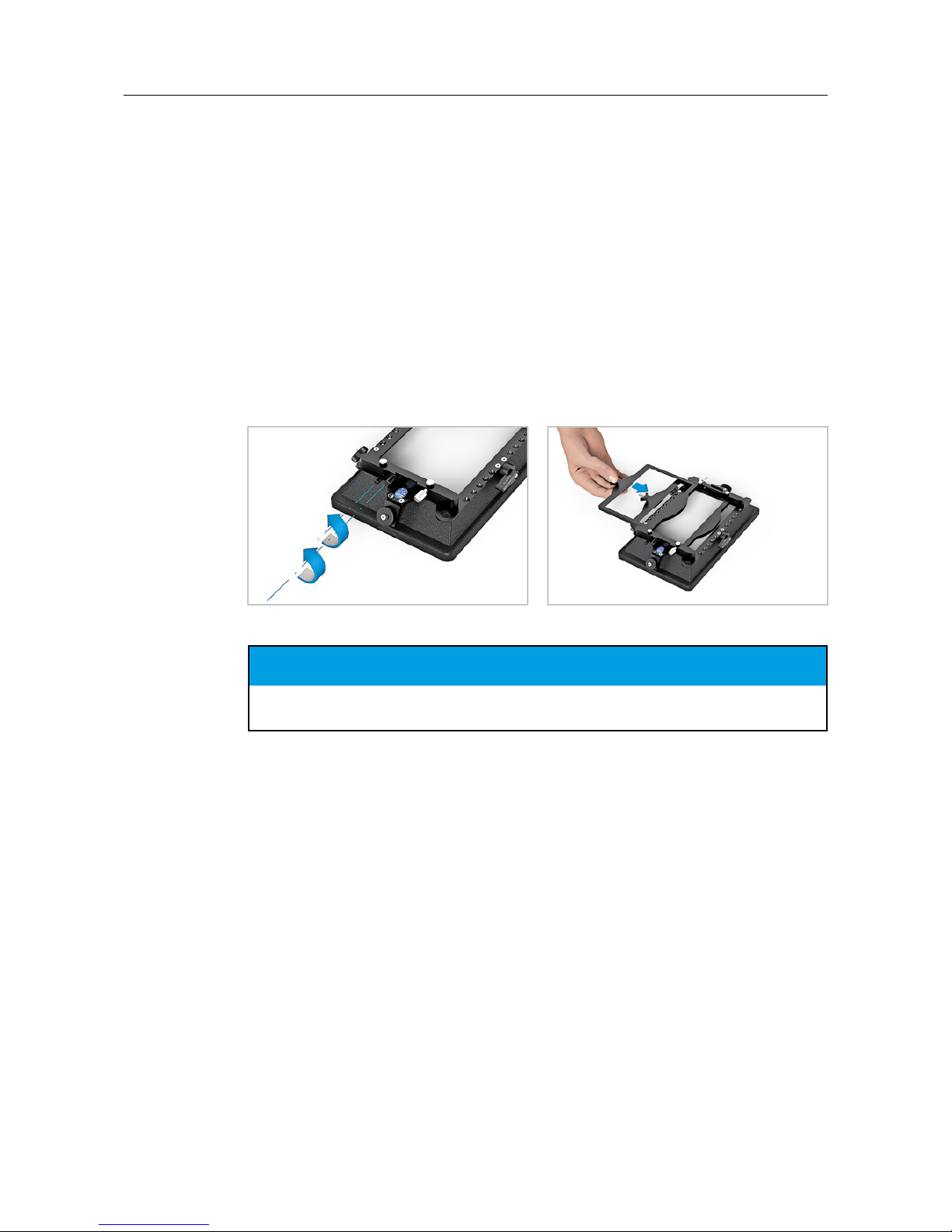

3.6 Filter Frame 4” x 5.65” / 4” x 4” .................................................................15
3.7 LMB 4x5 15 mm LWS Console ................................................................16
3.8 LMB 4x5 19 mm Studio Rod Adapter........................................................17
3.9 LMB 4x5 15 mm Studio Rod Adapter........................................................17

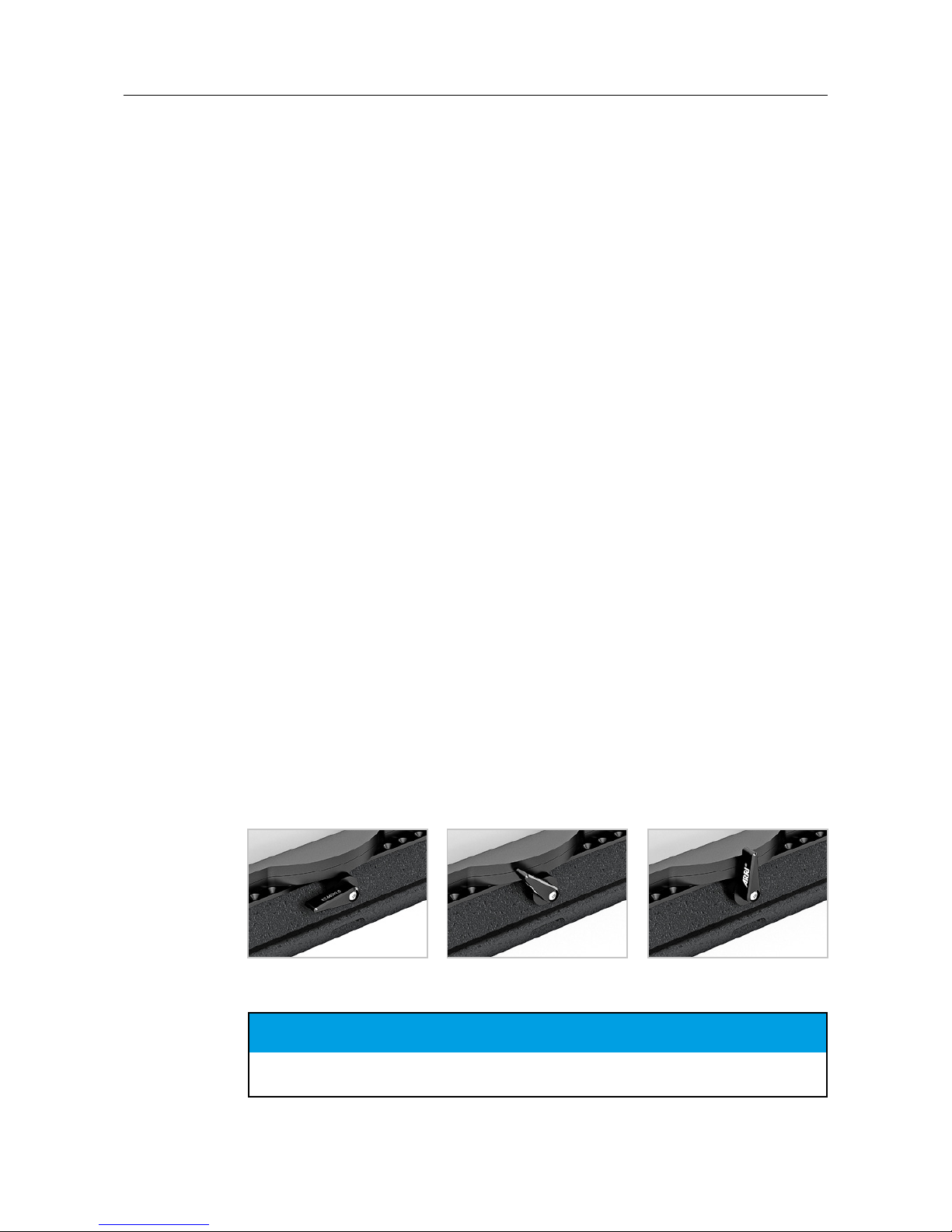

3.10 Tray Catcher .............................................................................................17

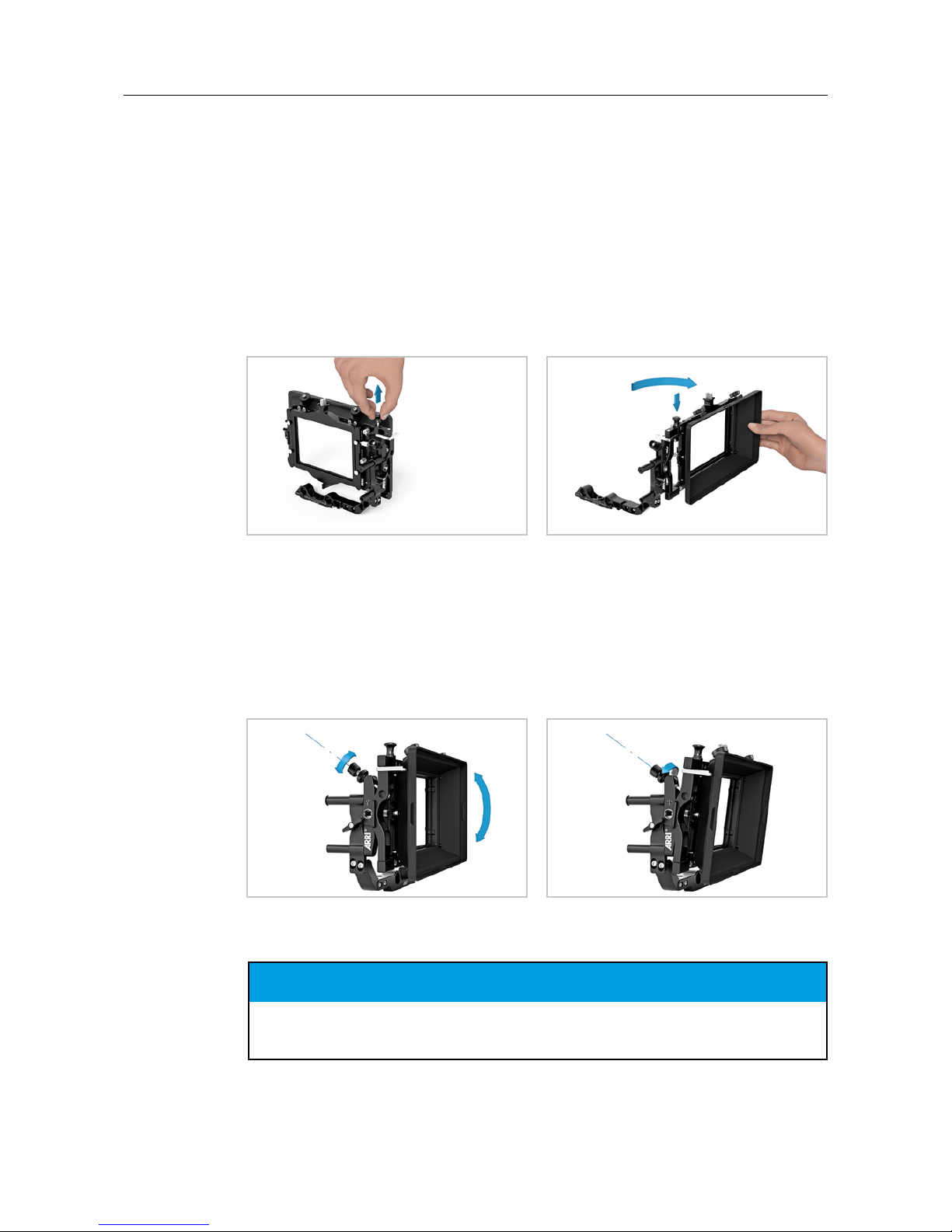

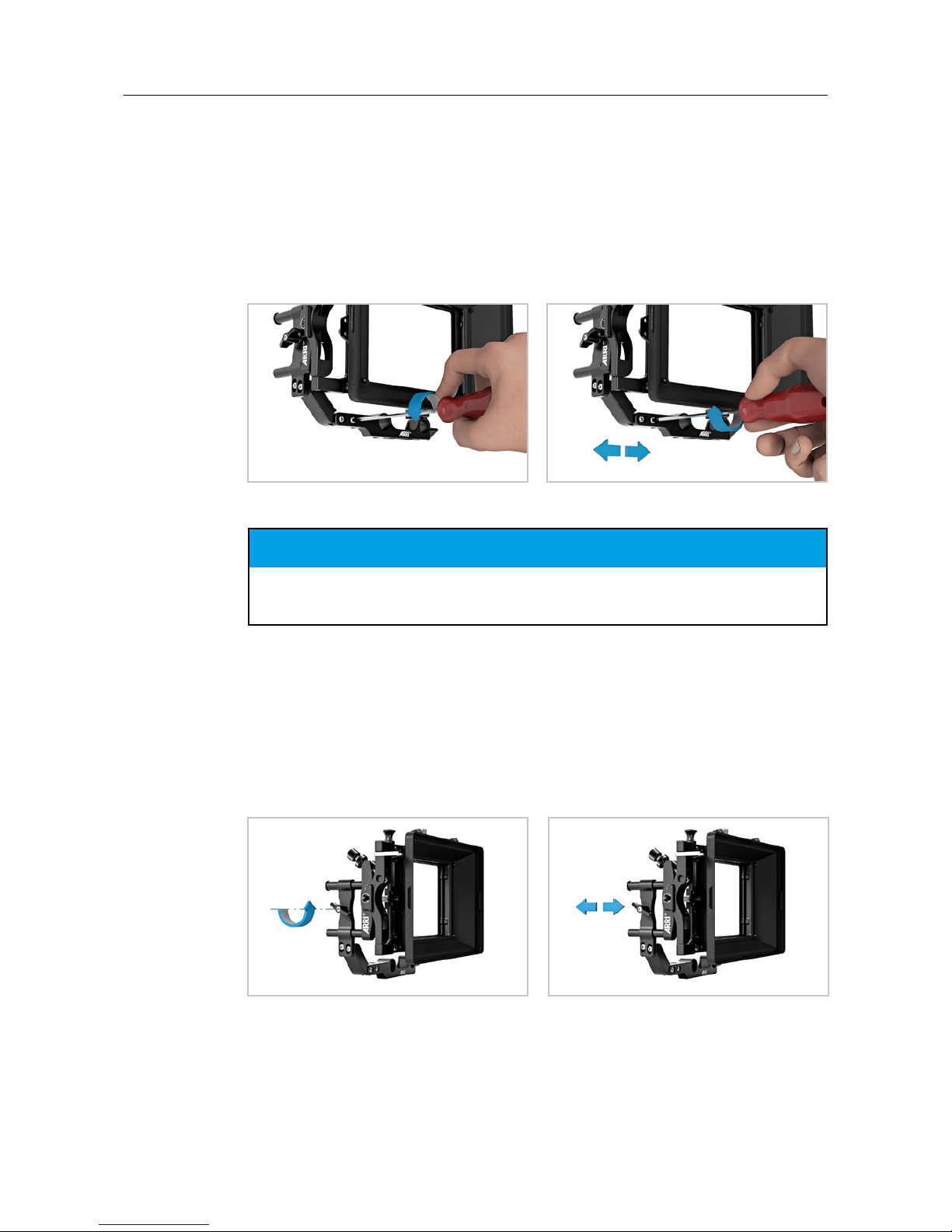

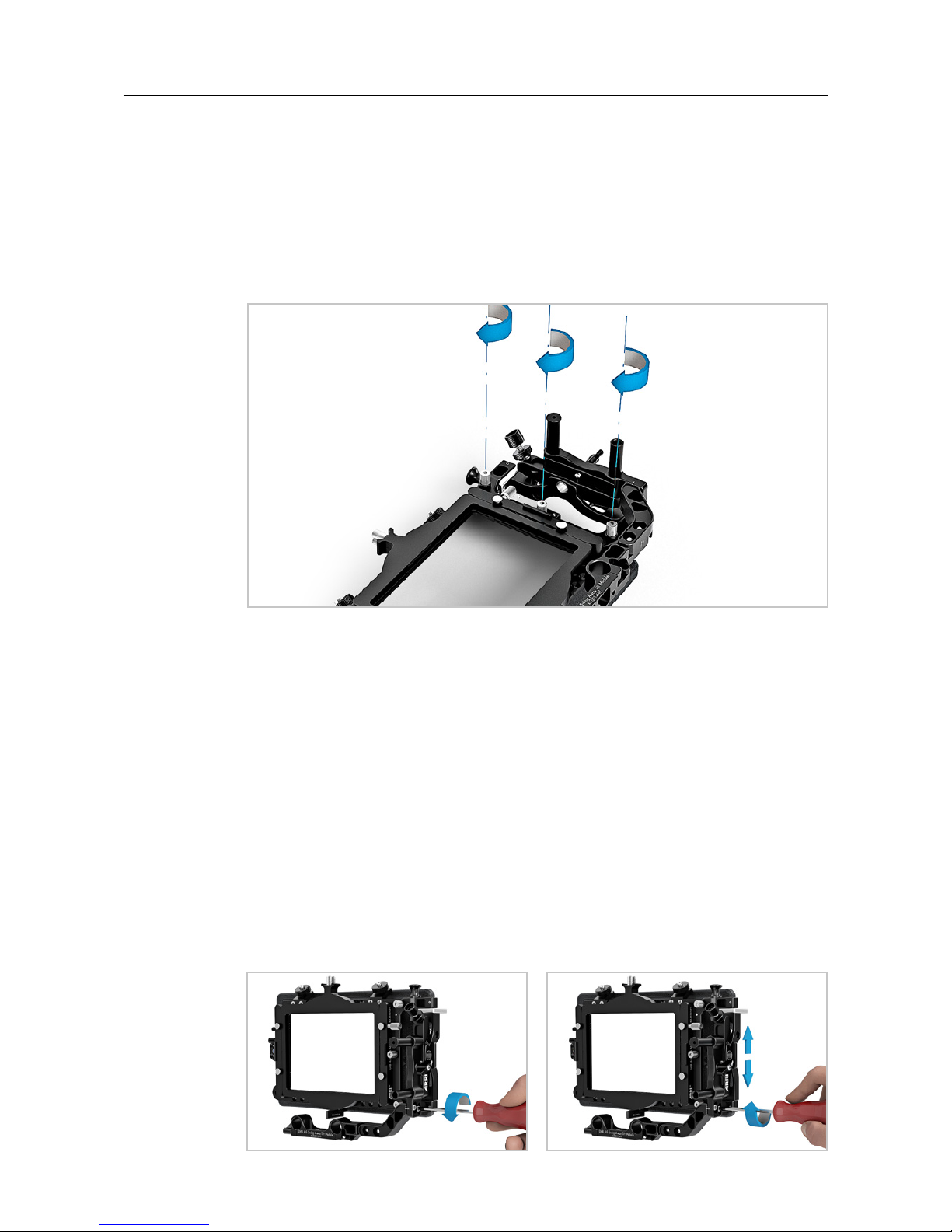

3.11 LMB 4x5 Swing Away Tilt Module .............................................................18
3.12 LMB Accessory Adapter............................................................................21
3.13 LMB 4x5 Top (Bottom) Flag ......................................................................23
3.14 LMB 4x5 Side Flags .................................................................................24
3.15 Adding Optional Bottom Flag Holder.........................................................25
3.16 Insert Mattes .............................................................................................25
3.17 Backplate with Filter Giudes......................................................................26
3.18 Sunshade..................................................................................................26
4 Congurations.....................................................................................................27
4.1 Filter Congurations..................................................................................27
4.2 Mounting Congurations...........................................................................27
5 Buy Sets & Parts ................................................................................................24
5.1 Basic .........................................................................................................28
5.2 Sets...........................................................................................................28
5.3 Upgrade Sets............................................................................................30
6 Inlay for Peli Case 1560 ......................................................................................31
6.1 Bottom ......................................................................................................31
6.2 Top ............................................................................................................32
7 Disclaimer ............................................................................................................33
8 Service Contacts .................................................................................................34
Table of Contents

4Introduction
1 Introduction
The modular matte box LMB 4x5 expands on the feature set and creative possibilities
of ARRI’s mechanical accessories line. Suited for a wide range of applications in just
one product, this robust but lightweight matte box allows for an unprecedented level of
exibility. From a single-lter conguration for gimbals, drones, or Steadicams to clamp-
on versions up to rod-mounted solutions (using either 15 mm lightweight, 15 or 19 mm
studio rods), the LMB 4x5 makes short work of challenging situations. Altering the various
applications does not necessitate any supplementary tools, making set-ups quick and
easy. The matte box is also highly compatible to legacy accessories; all clamp adapters
and lter frames from the former models LMB-5, LMB-15, and LMB-25 are compatible.
Main Features
• One product covering a wide range of applications
• Offers quick and easy set up without tools
• Compatable with 4” x 5.65” and 4” x 4” lter sizes

5Overview
2 LMB 4 x 5 Overview
+
3
4
1
2
6
8
9
11
5
7
10
12
13
14
9C
9B
9F
9A
9E
9D

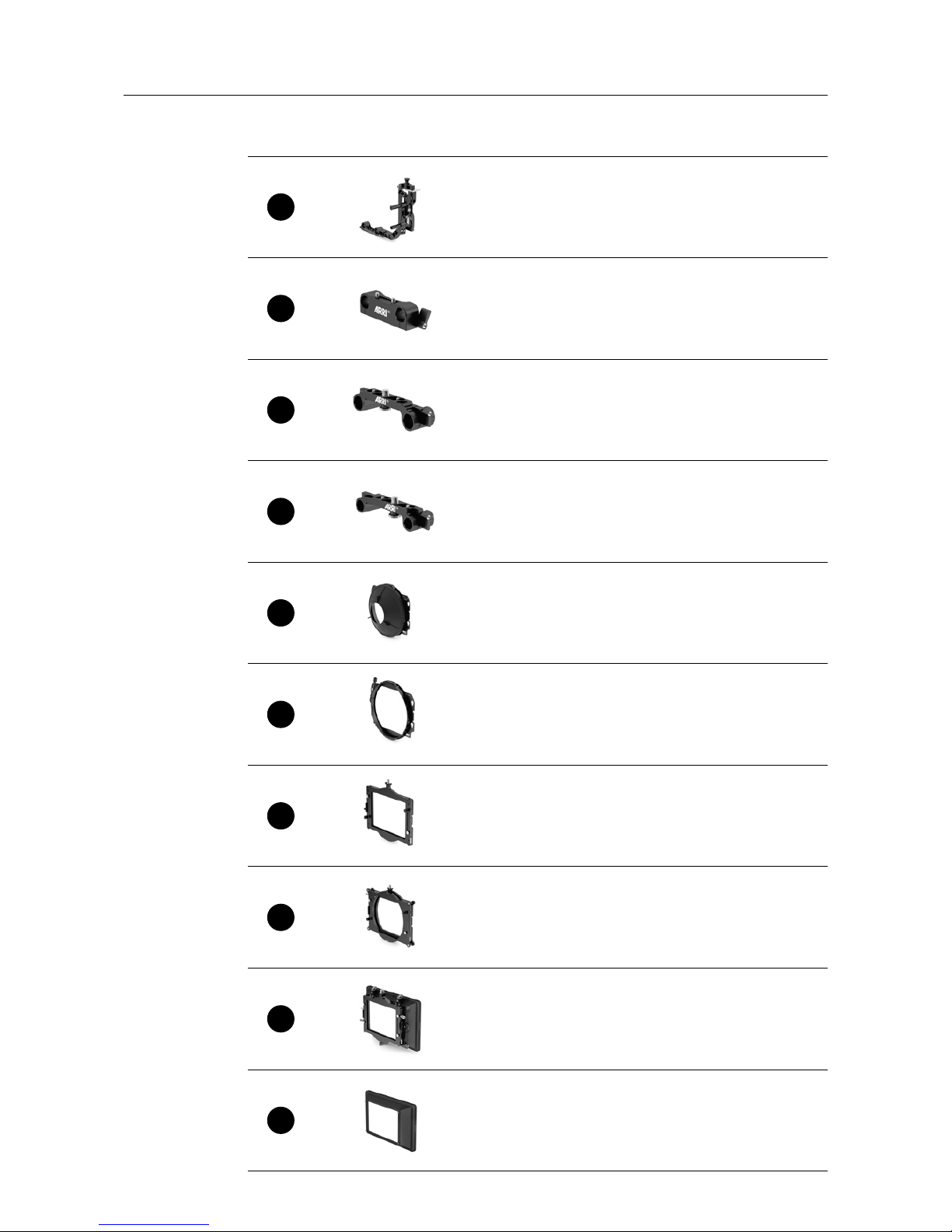

6Overview
1LMB 4x5 Swing Away Tilt Module
Product Number K2.0013447
Page
18
2LMB 4x5 15 mm LWS Console
Product Number K2.0013427
Page
16
3
LMB 4x5 19 mm Studio Rod
Adapter
Product Number K2.0013432
Page
17
4
LMB 4x5 15 mm Studio Rod
Adapter
Product Number K2.0013440
Page
17
5LMB 4x5 Tilt and Flex Adapter
Product Number K2.0014206
Page
10
6LMB 4x5 Clamp Adapter 143 mm
Product Number K2.0014168
Page
9
7
LMB 4x5 Extra Non-Rotatable Filter
Stage
Product Number K2.0014006
Page
12
8
LMB 4x5 Extra Rotatable Filter
Stage
Product Number K2.0013460
Page
13
9LMB 4x5 Basic Module
Product Number K2.0013589
9A Sunshade
Product Number K4.66251.0
Page
26

7
9B
LMB-4x5-Flag-Holders
(pair)
Product Number K2.0013825
Page
25
9C
Filter Frame
4” x 5.65” / 4” x 4”
Product Number K42.0014896
Page
15
9D Tray Catcher
Product Number K2.66202.0
Page
17
9E Backplate with Filter Guides Page
26
9F Mask 0
10 LMB 4x5 Side Flags
Product Number K2.0013750
Page
24
11 LMB 4x5 Top Bottom Flag
Product Number K2.0013724
Page
23
12 LMB Accessory Adapter
Product Number K2.0013014
Page
21
13
LMB-25 Set of Mattes
(spherical)
Product Number K2.0000069
Page
25
14
LMB-25 / MB-19 Set of Mattes
(anamorphic)
Product Number K2.0007992
Page
25

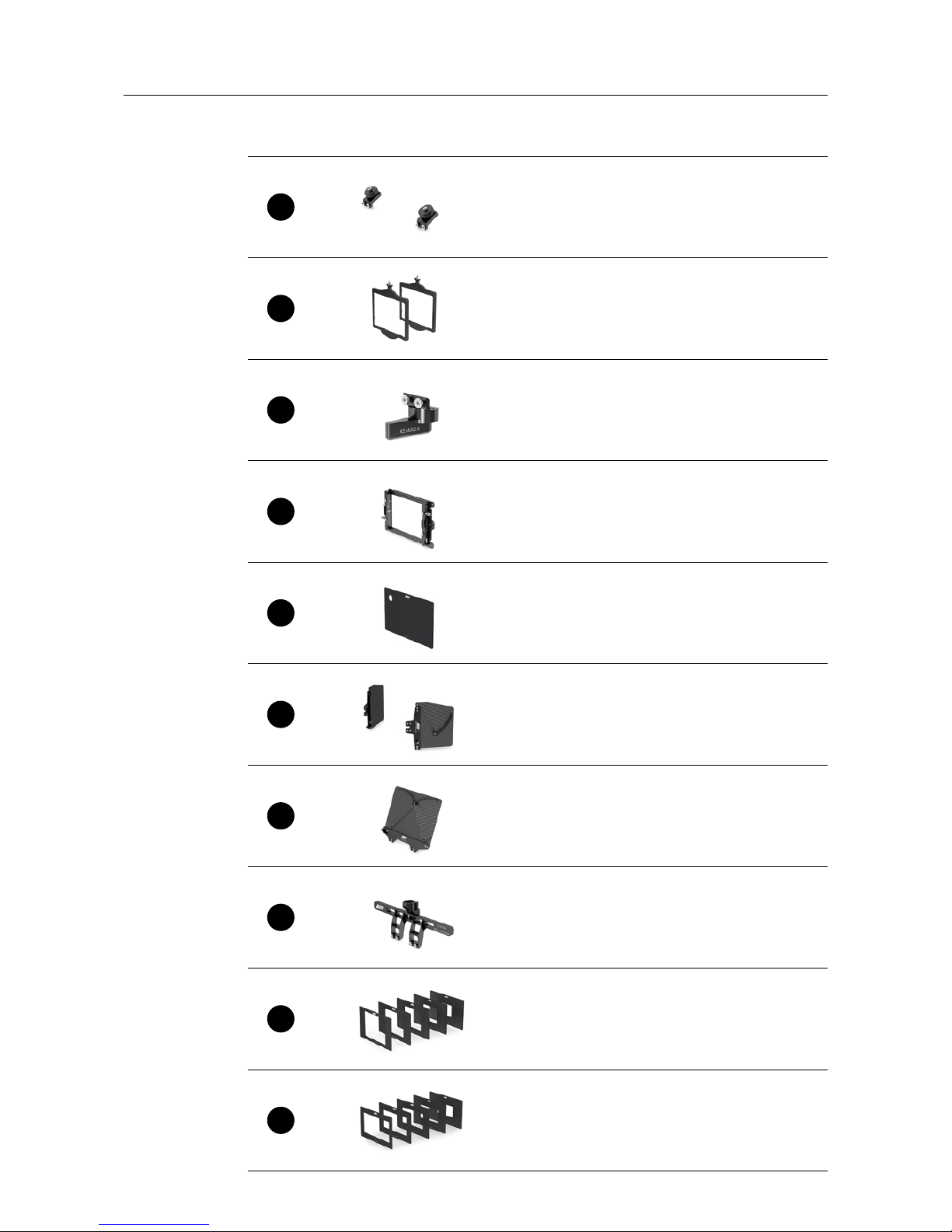

Overview
1LMB 4x5 Swing Away Tilt Module
Product Number K2.0013447
Page
18
2LMB 4x5 15 mm LWS Console
Product Number K2.0013427
Page
16
3
LMB 4x5 19 mm Studio Rod
Adapter
Product Number K2.0013432
Page
17
4
LMB 4x5 15 mm Studio Rod
Adapter
Product Number K2.0013440
Page
17
5LMB 4x5 Tilt and Flex Adapter
Product Number K2.0014206
Page
10
6LMB 4x5 Clamp Adapter 143 mm
Product Number K2.0014168
Page
9
7
LMB 4x5 Extra Non-Rotatable Filter
Stage
Product Number K2.0014006
Page
12
8
LMB 4x5 Extra Rotatable Filter
Stage
Product Number K2.0013460
Page
13
9LMB 4x5 Basic Module
Product Number K2.0013589
9A Sunshade
Product Number K4.66251.0
Page
26

8
3 Instructions
3.1 Fit Clamp Adapter
The LMB 4x5 matte box adapts to various lens diameters via a series of
interchangeable clamp adapters and the tilt and ex adapter.
Totaclampadapter:
• Open the metallic screws at the left and the right side to unlock the clamp device (Fig.1).
• Position the clamp adapter through the locking thumbscrews so it sits ush with the
lter stage (Fig.2).
• Slide the clamp adapter upwards (Fig.3).
• 2-stage version: Lock the clamp adapter using the two metallic thumbscrews
positioned sideways at the lter stages (Fig.4).
3- stage version: Lock the clamp adapter using the two black locking thumbscrews
positioned at the rear of the lter stage (Fig.5).
Instructions
Fig. 1 Fig. 2
Fig. 3 Fig. 4
Fig. 5

9Instructions
3.2 LMB 4x5 Clamp Adapter 143 mm
The 143 mm clamp adapter works with ARRI R2 rings in combination with the 15 mm
LWS console or with ARRI R11 clamp-on rings (Fig.1).
The 15 mm LWS console can be mounted either on top or at the bottom of the
clamp adapter (please see description 3.7)
NOTICE
Fig. 1

10

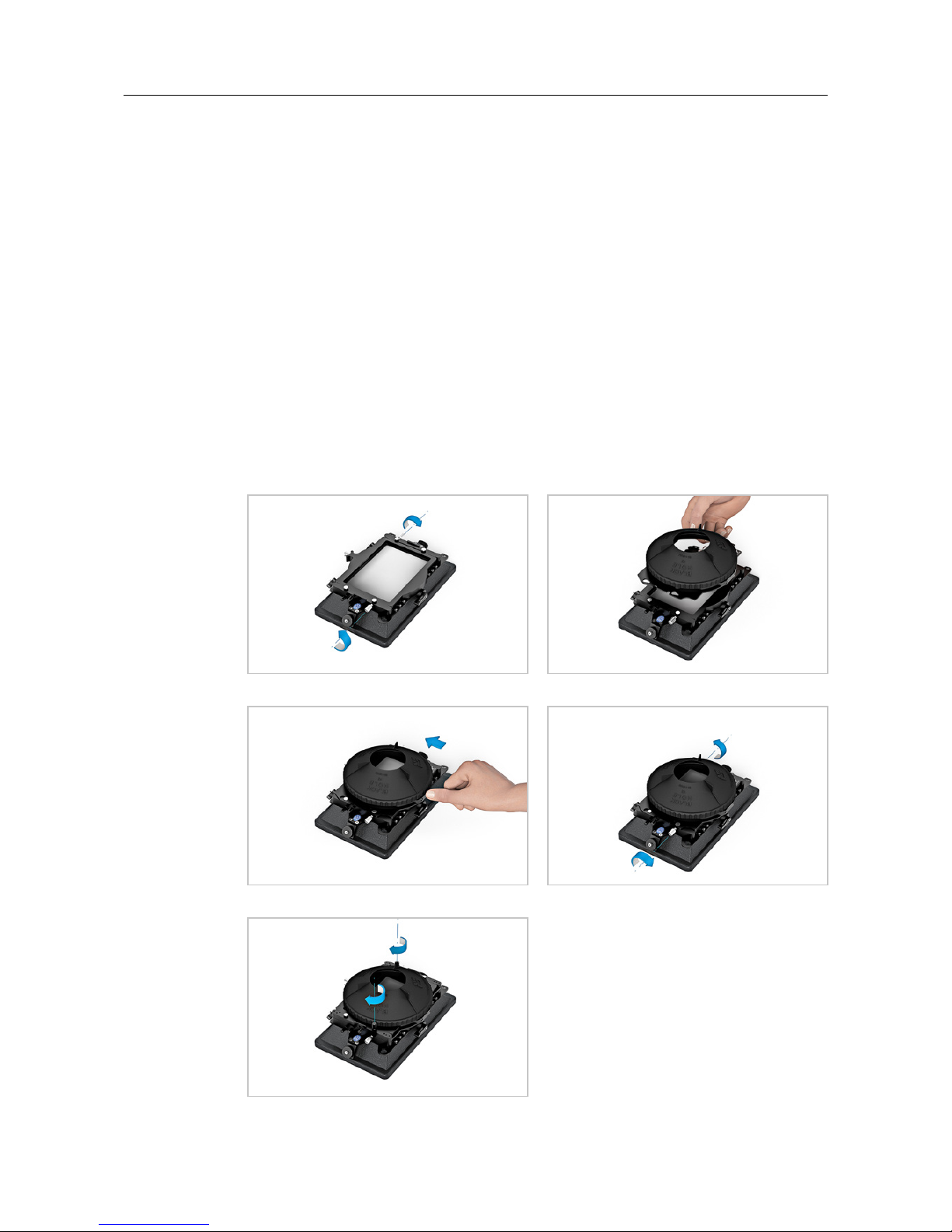

3.3 LMB 4x5 Tilt and Flex Adapter
The exible rubber donut adapter can be used for a variety of lenses with small to large
diameters and can be used with the LMB 4x5 swing away tilt module or with lenses
containing elements that extend.
ToattachthetiltandexadaptertotheLMB4x5:
• Open the metallic screws at the left and the right side to unlock the clamp device (Fig.1).
• Position the tilt and ex adapter through the locking thumbscrews so it sits ush with
the lter stage (Fig.2).
• Slide the clamp adapter upwards (Fig.3).
• 2-stage version: Lock the clamp adapter using the two metallic locking thumbscrews
positioned sideways at the lter stages (Fig.4).
3- stage version: Lock the clamp adapter using the two black locking thumbscrews
positioned at the rear of the lter stage (Fig.5).
Fig. 1 Fig. 2
Fig. 3 Fig. 4
Fig. 5
Instructions
