Aseptico ALU-40LED Manual

OPERATION AND MAINTENANCE
INSTRUCTION MANUAL
ALU-40LED
PORTABLE
DENTAL LAMP
ALU-40LED
PORTABLE
DENTAL LAMP

i.
TABLE OF CONTENTS:
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . .1
Package Contents . . . . . . . . . . . . . . . . . . . . .1
Safety Precautions . . . . . . . . . . . . . . . . . . . .2
Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-4
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Maintenance . . . . . . . . . . . . . . . . . . . . . . . 6-7
Parts Lists & Diagrams:
• Figure-9 Lamp Stand Boom . . . . . . . . . .8
• Figure-10 Lamp Stand & Pwr Supply .10
• Figure-11 Lamp Head . . . . . . . . . . . . .12
Troubleshooting . . . . . . . . . . . . . . . . . . . . . .14
Specifications . . . . . . . . . . . . . . . . . . . . . . . .15
Symbol Definitions . . . . . . . . . . . . . . . . . . .16
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . .17
P.O. Box 1548 • Woodinville, WA 98072
8333 216th Street S.E. Woodinville, WA 98072
International [phone] • Toll Free [phone]
www.aseptico.com • [email protected]
INFORMATION CONCERNING THE ACCURACY AND
PRECISION OF THIS PRODUCT MAY BE OBTAINED
UPON REQUEST BY CONTACTING ASEPTICO AT THE
ADDRESS SHOWN ON THIS PAGE.
To prevent injury to people and damage to
property, please heed relevant warnings and
remarks. They are marked as follows:
WARNING: Serious injury or death
may result if ignored.
CAUTION: Damage to property or
the environment may
result if ignored.
NOTE: Important additional
information and hints.
CONFORMS TO UL STD 60601-1;
CERTIFIED TO CSA STD C22.2 NO. 601.1

1
Your new Aseptico ALU-40LED Lamp is one of the finest operating lights available to
the dental and medical professions. The ALU-40LED uses an LED light source which
provides brilliant white light, reduced power consumption, and longer operating life.
The universal voltage input Lamp operates from 100VAC to 240VAC, 50 and 60Hz,
and it provides an auxillary DC input that allows 12V and 24V battery operation in the
field. The ALU-40LED features a compact lamp head with adjustable intensity and
spotlight aperature controls, flexible gooseneck, telescoping tripod stand and padded
carrying case.
Congratulations!
This System is engineered to provide many years of reliable service. Please read the
instructions provided in this manual to receive the best and longest service from your
Aseptico equipment.
Separate manuals may be provided to cover the operation and maintenance of
other accessories for your unit.
PACKAGE CONTENTS:
• Portable Dental Lamp Assembly, PN: 120369
• Color Filter, PN: 461974 (For use with light-activated composites.)
• Two 0.160A Spare Fuses, PN: 830046
• One Each 110V Power Cord, PN: 840107, and 220V Adapter, PN: 840115
• Soft Padded Carrying Case, PN: 410084
• Operation and Maintenance Manual, PN: 420841
• Setup Guide, PN: 420884
PURCHASED SEPARATELY:
• DC Battery-Power Clip Assembly (Optional), PN: AA-40DC-BC
• 12Vdc Automobile Power Adapter Assembly (Optional), PN: AA-40DC-LP
• Color Filter 5-Pack (Optional), PN: AA-40FK
• Lens Replacement Kit (Optional), PN: AA-40LK, Includes:
- Fresnel Lens, PN: 461935
- Color Filter, PN: 461974
- Lens Cover, PN: 461936
- Torx Key, PN: 490140 (For removing Fresnel Lens)
- Three (3) Torx Screws, PN: 510727 (For mounting Fresnel Lens)

2
SAFETY PRECAUTIONS:
Aseptico accepts no liability for direct or consequential injury or damage resulting from improper
use, arising in particular through the non-observance of the operating instructions, or improper
preparation and maintenance of this product.
CAUTION: Use for intended purposes only. Failure to observe the operating instructions may
result in the patient or user suffering serious injury or the product being damaged,
possibly beyond repair. Before using this product, make sure that you have studied
and understood the operating instructions.
CAUTION: Use of other Lamp filters or accessories from third-party manufacturers is the sole
responsibility of the user.
CAUTION: All repairs to the LED Assembly, Boom Arm, and Power Supply are to be performed
by authorized Aseptico service personnel only.
WARNING: Do not install where there is a risk of an explosion. The ALU-40LED is not intended
for operation in the presence of flammable anesthetics or gases.
CAUTION: Connect AC power supply mains cable to a properly grounded outlet only.
CAUTION: The ALU-40LED Lamp is sensitive to shock and may be damaged if dropped or
impacted against a hard surface.
WARNING: Do not disassemble or alter the Lamp's LED, Boom Arm, or Power Supply
subassemblies.
CAUTION: It is recommended to always have the patient wear darkened eyewear during
dental procedures. Avoid looking directly into the LED when Lamp is turned on.
CAUTION: If the Lens Cover and/or acrylic Fresnel Lens on the Lamp Head needs to be
cleaned, use reagent-grade isopropyl alcohol, professional lens cleaning solution, or
de-ionized water with a small amount of dish soap - do not use other solvents as
they might adversely react with the Lens materials.
To prevent injury to people and damage to property, please heed relevant warnings and
remarks. They are marked as follows:
WARNING: Serious injury or death may result if ignored.
CAUTION: Damage to property or the environment may result if ignored.
NOTE: Important additional information and hints.

3
1. Remove the ALU-40LED Lamp from its
carrying case. Unfold the tripod legs to a
horizontal position. Loosen the pedestal
adjustment knob and slide the legs to the
bottom of the post (see Figure 1). Secure
legs in place by firmly tightening the
knob. Set Lamp Assembly on a stable,
level floor surface.
2. Loosen the handgrip on the center post
(see Figure 1) and raise the post to the
desired height. Tighten the handgrip to
secure post in place. Loosen the boom
adjustment handle and extend boom to
desired length and/or pivot the lamp head
to the desired operating position. Tighten
handle to secure the boom in place.
SETTING UP THE UNIT:
Fig. 1 - System Components
POWER
SUPPLY
TELESCOPING
CENTER POST
FLEXIBLE GOOSENECK
LAMP HEAD
w/ADJUSTABLE
CONTROLS
PEDESTAL
PEDESTAL
ADJUSMENT KNOB
CENTER POST
HEIGHT
ADJUSTMENT
HANDGRIP
BOOM
ADJUSTMENT
HANDLE
LAMP
BOOM
FOLDING
LEGS
AC POWER
CONNECTOR
ON/OFF
SWITCH
DC POWER
CONNECTOR
FUSE
COMPARTMENT
Fig. 2 - Power Supply - Bottom View

4
3. Attach power cord to receptacle on
bottom of power supply housing (see
Figure 2, page 3) and plug cord into a
grounded electrical outlet. NOTE: The
ALU-40LED Lamp features auto-sensing,
global voltage compatibility for 100VAC,
115VAC, 230VAC, and 240VAC at 50Hz
and 60Hz. The fuses provided are correct
for these line voltages. NOTE: A USA
style 110V power cord and 220V adapter
are shipped with the unit. Power plug
adapters for the specific country of usage
may need to be purchased separately.
Optional DC Power:
If the power source is 12VDC or 24VDC,
use the optional DC Battery Clip or
Adapter Assemblies (see Figure 3) to
connect to the DC source. Insert the
Assemblies' Power Plugs into the DC
Power Jack located on the bottom of the
power supply housing (see Figure 2, page
3).
NOTE: When attaching the optional DC
Battery Clips to the battery, connect the
red cable clamp to the positive (+)
terminal, and the black clamp to the
negative (-) terminal.
SETTING UP THE UNIT - Cont'd
Fig. 3 - Optional DC Power Accessories
DC POWER PLUG
ASSEMBLY
(Optional)
DC BATTERY CLIP
ASSEMBLY
(Optional)

5
After the ALU-40LED Lamp has been set up,
the unit is ready to operate:
1. Ensure that the protective Lens Cover is
mounted onto the front of the Lamp Head
(see Figure 4).
IMPORTANT: If applying light-activated
composites, it is recommended that the
supplied Color Filter, PN: 461974, be
used to filter the light from the ALU-40LED
Lamp. To install the Filter, remove the
Lens Cover and place the Filter against
the inside of the Cover (see Figure 5,
page 6). Center the Filter so that it
completely covers the transparent shield
on the Cover. Replace the Lens Cover.
2. Turn On/Off switch located on bottom of
power supply housing to On (—) position
(see Figure 2, page 3).
3. Adjust light intensity and spot size by
rotating the two adjustment rings on the
Lamp Head (see Figure 4):
a) LED Intensity Adjustment Ring:
Provides variable brightness control.
When viewed from the rear of the
Lamp Head, rotate Ring clockwise to
increase lamp intensity, or counter-
clockwise to decrease intensity. The
intensity adjustment range is from 0%
to 100%. NOTE: The total adjustment
range of the Intensity Ring covers
approximately 90° of rotation -- do not
OPERATION:
attempt to force the Ring past the
stops at each end of this range.
b) LED Aperture Adjustment Ring:
Allows user to select from seven
different beam aperture sizes. When
viewed from the rear of the Lamp
Head, rotate the Ring counterclock-
wise to increase beam width, and
clockwise to decrease width. NOTE:
When the Aperture Ring is rotated
continuously in one direction, the
Lamp will repeatedly cycle through the
seven aperture sizes.
Fig. 4 - Illumination Controls
LED
INTENSITY
ADJUSTMENT
RING
LED
APERTURE SIZE
ADJUSTMENT RING
PROTECTIVE
LENS COVER
BRIGHTER
BEAM WIDER
BEAM
WARNING:
Avoid looking directly into LED lamp. Protect
patient with darkened eyewear when directing
light near patient's eyes.

6
NOTE: The Lens Cover, Color Filter,
Fresnel lens, Vertical Stand, Fuses, and
Power Cords are the only user replace-
able parts on the ALU-40LED Lamp. All
other Lamp components, such as the
LED Assembly, Power Supply, and Boom
Assembly are not field serviceable and
must be returned to Aseptico if repairs are
required.
1. FRESNEL LENS REPLACEMENT:
Procure the optional Fresnel Lens
Replacement Kit, PN: AA-40LK, from
Aseptico. Follow these steps to replace
the Lens (see Figure 5):
a) Turn ALU-40LED power Off and
unplug Lamp from power source.
b) Pull Lens Cover (461936) off the front
of Lamp Head to expose the Fresnel
Lens (461935).
c) Use the Torx Key (490140) to remove
the three Torx Fasteners (510727). Set
Fasteners aside temporarily.
d) Remove old Fresnel Lens and replace
with new Lens, positioning new Lens,
rough side out, on the outer shelf on
the Front Housing (see Figure 7).
e) Attach Lens to Housing with the three
Fasteners from Step 1c above.
f) Replace Lens Cover.
2. LENS ADJUSTMENT:
Follow these steps to adjust the position
of the Lens so that it emits the sharpest
beam (refer to Figures 6 & 7):
a) Position Lamp Head approximately
28" (71 cm) away from a flat test
surface. Turn Lamp On and observe
sharpness of projected light beam (see
Figure 5).
b) If outer edge of beam appears blurred
or undefined, reposition the Lens on
the next inboard shelf (see Figure 7) of
the Housing (refer to Step 1 for
complete instructions when detaching
and reattaching the Fresnel Lens).
c) Repeat Step 2b, moving the Lens
inward to the next shelf until the edge
of the beam shows optimum sharpness
and clarity. NOTE: There are a total of
five different Lens adjustment shelves
in the Front Housing (see Figure 7).

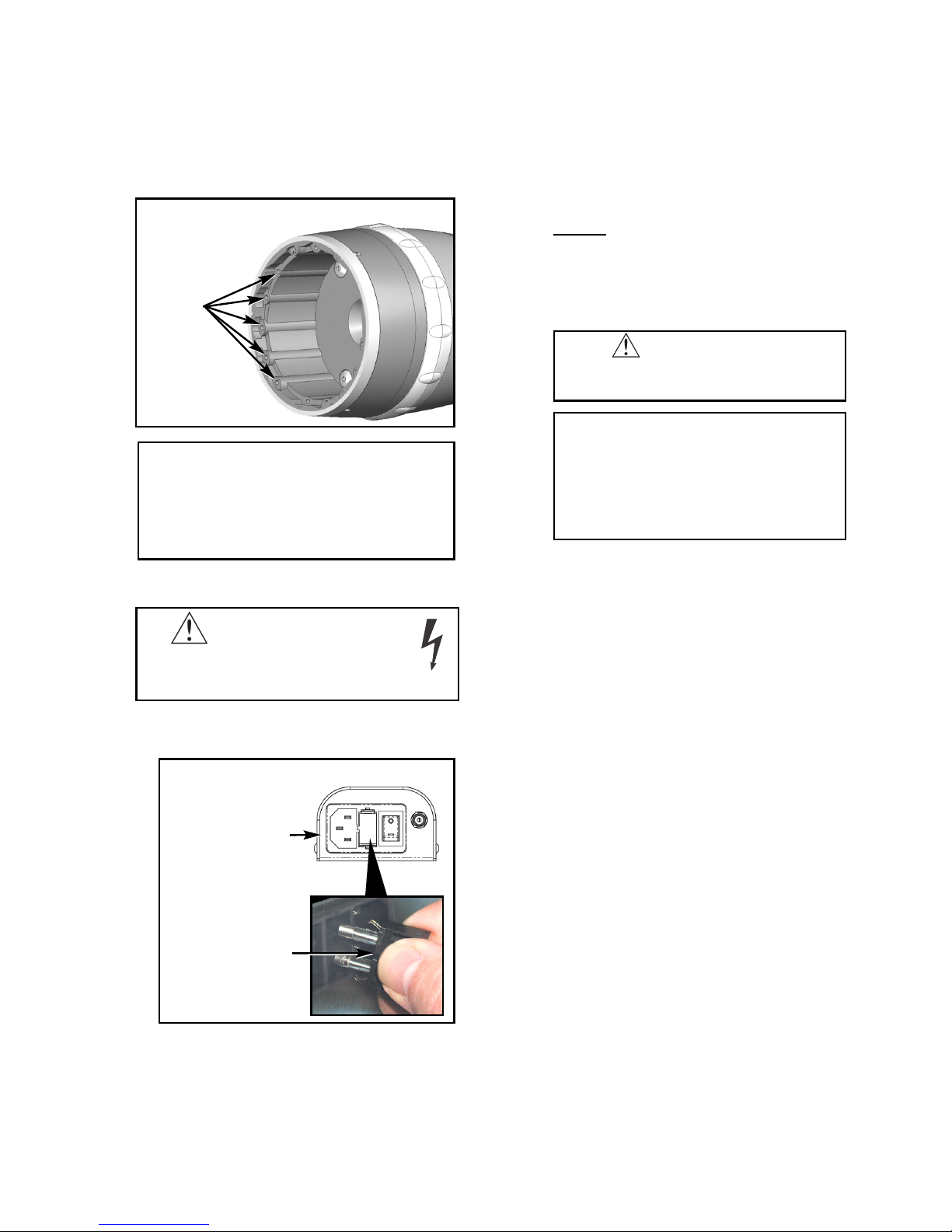

MAINTENANCE
Fig. 6 - Beam Adjustment
28" (71 cm)
Approx.
Fig. 5 - Fresnel Lens Replacement
PROTECTIVE
LENS COVER
FRESNEL
LENS
(FRONT
HOUSING)
FASTENER (X3)
(COLOR FILTER)
- If Required -

7
3. FUSE REPLACEMENT:
a) Remove the Fuse Holder from the
Power Inlet connector (see Figure 8).
b) Replace the two fuses in Fuse holder.
Replacement Fuses (2):
0.160A, 250V slo-blow fuse
(Fuse size: 5 x 20mm)
c) Reinstall the Fuse Holder.
NOTE: The ALU-40LED features auto-
sensing, global voltage compatibility.
The fuses indicated are correct for
100V-240V 50/60 Hz line voltages.
4. CLEANING:
a) Fresnel Lens:
Remove Lens Cover and Fresnel
Lens from Lamp Head. (IMPORTANT:
Handle the Fresnel Lens by its edges
-- do not handle the active surface of
the Lens.) The acrylic Fresnel lens is
fragile and can be scratched. Dust is
the most common contaminant and
should be removed using compressed
air. If additional cleaning is necessary,
apply a few drops of reagent-grade
isopropyl alcohol, professional lens
cleaning solution, or de-ionized water
with a small amount of dish soap, to a
lint-free lens tissue and gently wipe
Lens. Clean the Lens Cover using the
same method. Reinstall Fresnel Lens
and Lens Cover onto Lamp Head.
b) Metal Components:
The metal exterior may be cleaned by
wiping with a soft cloth moistened with
mild detergent or disinfecting solution
such as isopropal alcohol.
c) Gooseneck & Electrical Cords:
Turn Lamp power Off. Wipe down the
gooseneck and electrical cords with a
cloth moistened with disinfecting
solution.
Turn the power off and unplug the
unit before following the steps below.
IMPORTANT
The LED Assembly is a non-serviceable
component of the ALU-40LED Lamp.
Return the entire Lamp Assembly to
Aseptico if LED repairs are necessary.
Fig. 7 - Lens Adjustment Shelves
SHELVES
(5)
WARNING
CAUTION:
• Do not use excessive amounts of
fluid when cleaning.
• Do not introduce any fluids to the
inside of the Lamp Head Housing
or the Power Supply Assembly.
WARNING:
Turn the power off and unplug the
unit before following the steps below.
Fig. 8 - Changing Fuses
ALU-40LED
POWER SUPPLY
(BOTTOM VIEW)
FUSE HOLDER

8
ALU-40LED PARTS DIAGRAM
Figure 9 - Lamp Stand Boom
ALU-40LED LAMP HEAD:
Refer to Figure 11, page 12
123
4
5
6
7
9
11
10
8
12
13
5
14
11

9
PARTS LIST - Lamp Stand Boom
Item Description Part Number Qty
FINAL ASSY, ALU-40LED 120369 1
LAMP HEAD SUB ASSY 330355 1
SETSCREW 8-32X1/8 S/S CUP POINT 510278 1
GOOSENECK ALU-40LED DENTAL LAMP 461953 1
SET SCREW CONE PT HEX SOC M6 X 8MM BLK 510731 1
HEAT SHRINK 1/8 BLK 870118 1"
HEAT SHRINK 1/4 BLK 870120 2.5"
HOLE PLUG NYLON 1/2 IN BLACK 510202 1
M/S STNLS PHDPHL 10-24 X 5/8 THRD CUTTING 510732 1
END CAP, MODIFIED BOOM, ALU-40 461959 1
CABLE COILED 2 CONDUCTOR ALU-40LED 870319 1
HANDLE CLAMP LEVR, M8X1.0 FEM THRD, BLK 850076 1
CLAMP, BOOM ALU-40 LED 730646 1
BOOM, MODIFIED ALU-40LED 730645-01 1
1
2
3
4
5
6
7
8
9
10
11
12
13
Cont'd on page 11...
14

10
ALU-40LED PARTS DIAGRAM
Figure 10 - Lamp Stand & Power Supply
15
16 20
22
23
24
41 19
17
37
21
16 33
36
28
35
34
26
27
28
23
25
32
31
29
30
40
38
39
42
18

11
BRACKET POLE POWER SUPPLY ALU-40LED 461945 2
C/S BTNSOC BLK 6-32 X 1/4 510009 8
OVERLAY POWER SUPPLY ALU-40LED 420910 1
TOP HOUSING POWER SUPPLY ALU-40LED 461943 1
TIE WRAP 4" PICO WHT 510137 1
STRAIN RELIEF 1/4 BLK FLEX 840003 1
HEAT SHRINK 1/2 BLK 870121 0.29'
DIODE GENERAL 1N4004 1A 400V AXIAL DO-41 880030 2
CONN CRIMP CONTACT 30-24 AWG 860266 4
CONN .079 HSG/POL 2 PIN 860267 1
CONN .079 HSG/POL 3 PIN 860268 1
WIRE PVC #24 STRANDED WHITE 870304-01 0.46'
WIRE PVC #24 STRANDED BLACK 870304-02 0.54'
TERM FEM CONN .187 X .032 22-16 860053 3
NUT HEX 6-32 STNLS (FOR GRND STUD) 510293 1
WASHER, INT STAR #6 (FOR GRND STUD) 510419 1
TERM INSUL RING #6 22-16 860004 1
WIRE PVC #22 GRN/YEL (54) 870260 0.21'
CONN JACK DC POWER PANEL MOUNT 860258 1
FUSE 5 X 20 SLO-BLO 0.160 AMP 830046 2
FUSE DRAWER 2 POLE 840060 1
POWER INLET, FUSED SWITCHED 840059 1
POWER SUPLY 12VDC 0.83A INPUT 85-264 VAC 840112 1
NUT NYLON 4-40 510554 4
WASHER FLAT NYLON .120IDX.250 ODX.0 510127 4
SPACER NYLON 1/4 RND X 7/16 L #6 510267 4
BASE POWER SUPPLY ALU-40LED 461944 1
STAND ALU 27/29 AKG BLK 730150 1
NS COLOR FILTER ALU-40LED 461974 1
NS CASE CARRYING W/BLU LOGO 410084 1
NS ADAPTER AMERICAN-TO-GERMAN GRND PLUG 840115 1
NS LINECORD REMOTE US BLACK 840107 1
NS LABEL SERIAL NUMBER ALU-40LED 420295-09 1
PARTS LIST - Lamp Stand & Power Supply
35
37
38
39
40
36
Item Description Part Number Qty
15
16
17
18
19
20
21
22
23
24
25
27
28
29
30
31
32
33
34
26
41
(*NS = NOT SHOWN)
42

12
Figure 11 - Lamp Head
2
4
5
8
9
18
17
6
3
6
7
10
11
13
19 16
15
1
21
12
20
14

13
PARTS LIST - Lamp Head
Item Description Part Number Qty
LAMP HEAD SUBASSEMBLY ALU-40LED 330355 1
LENS COVER ALU-40LED 461936 1
LENS FRESNEL ALU-40LED 461935 1
M/S M2-4 X 6 SIX LOBE THREAD FORMING 510727 3
FRONT HOUSING ALU-40LED 461934 1
C/S BTNSOC BLK 6-32X3/4 510034 7
BALL STAINLESS 0.156 DIA 510738 1
APERTURE WHEEL ALU-40LED 461932 1
C/S BTNSOC BLK 4-40X3/16 510488 1
WASHER SHIM .43 OD X .115 ID X .01 STNLS 510726 1
APERTURE ADJUST RING ALU-40LED 461931 1
RES 100K TRIM POT 350V 1/2W 810430 1
WIRE #24 TEFLON 41/40 TINNED COPPER WHT 870314 2'
WIRE #24 TEFLON 41/40 TINNED COPPER BLK 870320 2'
PCB ASSY LAMP HEAD ALU-40LED 330578 1
FTN UNIVERSAL JOINT M10-1.0 MALE THRDS 730643 1
WASHER #6 NYL .140 ID X .312 OD X .032 THK 510573 1
REAR HOUSING PLATE ALU-40LED 461937 1
BRIGHTNESS ADJUSTMENT RING ALU-40LED 461941 1
BRIGHTNESS ADJUSTMENT GEAR ALU-40LED 461947 1
REAR HOUSING ALU-40LED 461933 1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21

14
TROUBLESHOOTING:
Problem:
Power is 'ON', but lamp does not
illuminate:
Light intensity appears dimmer than
normal:
Fuse is blown:
Correction:
- Turn intensity up.
- Replace fuses, 0.160 Amp, 5 x 20mm, 250V, slo-blow
- Check plug and electrical source.
- Turn intensity up.
- Clean Lens Cover and/or Fresnel Lens. (Note: Before
cleaning, turn power to Lamp ‘Off’.)
- Check plug and electrical source.
- LED Assembly might be damaged - Return entire Lamp
Assembly to Aseptico for repairs.
- Replace both fuses, 0.160 Amp, 5 x 20mm, 250V,
slo-blow

15
SPECIFICATIONS:
Lamp Height: 41" to 69" (Adjustable)
(104.1 cm to 175.3 cm)
Boom Length: 41" (104.1 cm)
Weight: 9.45 lbs (4.29 kg)
AC Input: 100-240V 0.160A
50-60 Hz
Auxiliary DC Input: 12-24V 0.6A
Fuses: 0.160 Amp, 250V, slo-blow
(5 x 20 mm)
Consumption: 7.5 W max
Duty Cycle: Continuous
LED Life: 10,000 Hrs minimum
(Lumen maintenance >70%
@ 30,000 Hrs - At worst
case operating temperature)
Lamphead Adjustments:
Intensity: 0% to 100% Adjustable
Aperture Size: 2-1/4" to 4-5/8" Diameter
(5.72 cm to 11.74 cm)
Adjustable @ 27.56 in.
(70 cm) focal length
Beam Characteristics:
Color temperature: 6,500 Kelvin
Light Output: 1,500 ft-c @ 24" Typ
(16,145 lux @ 61 cm Typ)
Light Distribution: 7 different aperture sizes
Nominal Working Distances:
16" (40.6 cm) w/large
aperture, or 36" (91.4 cm)
w/small aperture
Light Source: LED Emitter
1013.3
hPa
697
hPa
10%
90%
10°C
(50°F)
45°C
(113°F)
OPERATING
TEMPERATURE
-20°C
(-4°F)
60°C
(140°F)
TRANSPORT & STORAGE
TEMPERATURE
Environmental Conditions:
Operating Temperature: 10 to 45°C (50 to 113°F)
Transportation & Storage Temperature:-20 to 60°C
(-4 to 140°F)
Relative Humidity: 10 to 90% non-condensing
Altitude: 0 to 3,048 meters (0 to 10,000 ft.)

16
SYMBOL DEFINITIONS:
Alternating current
Dangerous Voltage
Attention, consult
accompanying documents
Type B Equipment
Do Not Throw Into Trash
Class II Equipment
Manufacturer
Authorized European
Representative
Protective Earth (Ground)
Temperature Limitation
Atmospheric Pressure Limitation
Humidity Limitation
Fuse Rating
0.160A
2X

17
Aseptico warrants this product against defects in material or workmanship for a period of
two (2) years, from date of original invoice. Some handpieces are warranted for one year
under the same conditions. Other handpieces and expendable components, such as air
turbines and light bulbs, are covered by shorter warranty periods, or have no warranty.
Aseptico's sole obligation under product warranty is (at its sole option and discretion) to
repair or replace any defective component or product in part or whole. Aseptico shall be
the sole arbiter of such action.
In the event of alleged defect under warranty, the purchaser is to notify Aseptico's
Customer Service Department promptly. Customer Service will provide instructions,
usually directing that the product be returned for service. Shipment to Aseptico and the
cost thereof is always the responsibility of the purchaser.
Accidental misuse, inappropriate installation, or failure to perform directed maintenance
voids the warranty. Deliberately defacing, modifying, or removing the serial number voids
the warranty.
Aseptico does not assume, under this warranty, any risks or liabilities arising from the
clinical use of its products, whether or not such use involves coincidental utilization of
products manufactured by others.
WARRANTY

P/N: 420841
Rev. F
ECO 13305
03/2014 PRINTED IN THE USA
P.O. Box 1548 • Woodinville, WA 98072
8333 216th Street S.E. • Woodinville, WA 98072
[phone] • [phone]
www.aseptico.com • [email protected]
