Asoni CAM416 User manual

Mega-Pixel Network Camera
CAM416
User’s Manual
Version: 3.1
Date: 5/22/2008

1
Content
1. Preface .................................................................................................................................2
2. Product Specifications...........................................................................................................2
3. Product Installation ...............................................................................................................4
A. Hardware Installation.........................................................................................................4
B. Monitor Setting..................................................................................................................6
C. IPAssignment ...................................................................................................................7
D. Install ActiveX Control .......................................................................................................9

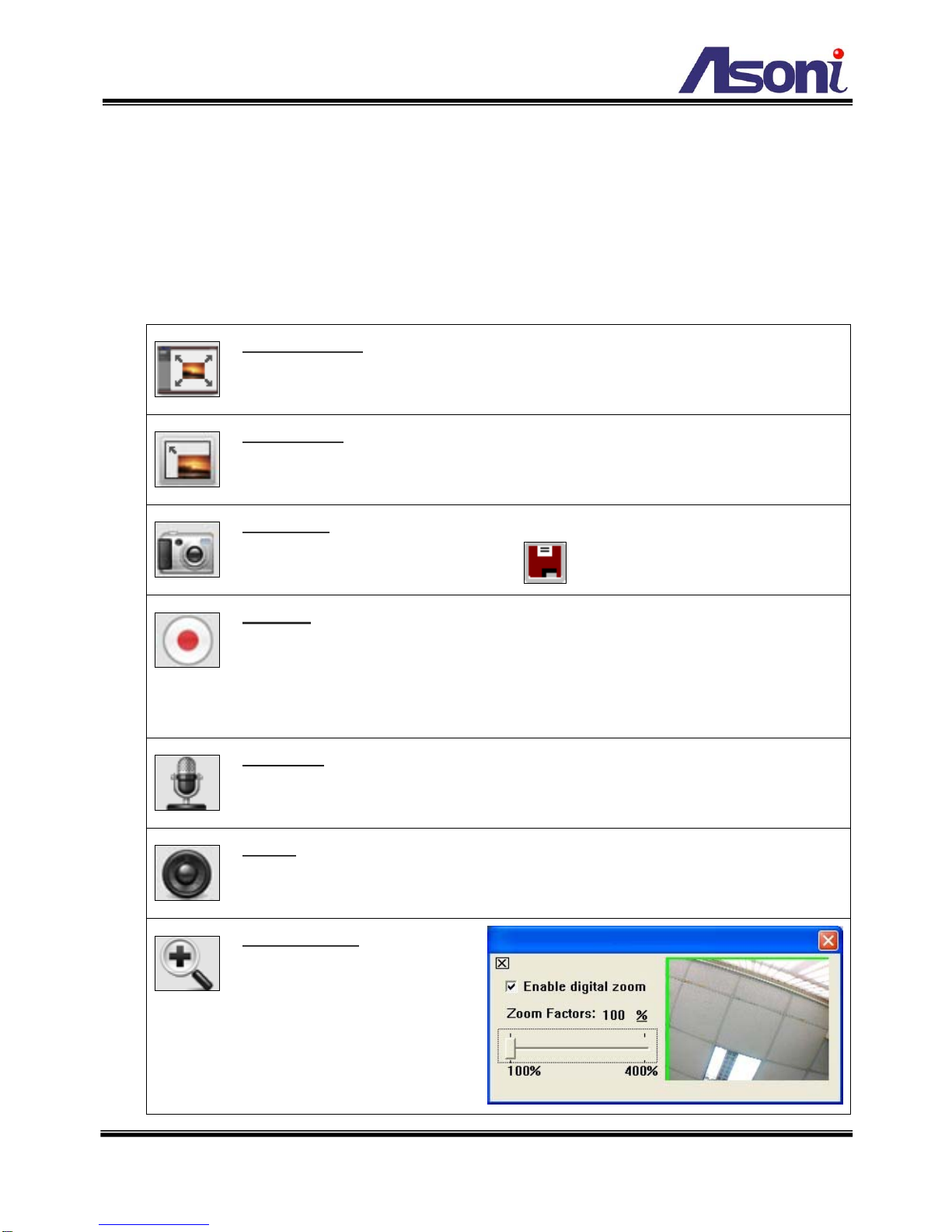

4. Live Video...........................................................................................................................11
5. Configuration ......................................................................................................................14
A. System............................................................................................................................14
B. Video/Audio Settings.......................................................................................................20
C. Network...........................................................................................................................25
D. Event Handling................................................................................................................29
6. Network Configuration ........................................................................................................34
7. Factory Default ...................................................................................................................36

2
1. Preface
CAM416 is a professional CMOS network camera which builds in web server. User views
real-time video via IE browser. It supports MPEG-4 & M-JPEG video compression which
provides smooth and high quality video. The recorded video file can be can be playback
remotely using Microsoft Media Player.
CAM416 is an easy-to-use IP camera which is designed for security application.
2. Product Specifications
zMPEG-4 / MJPEG compression formats. Supports resolution up to SXGA(1280x1024),
1.3Mega pixels.
zMPEG-4 / MJPEG dual streaming.
zSelf-Contained HTTP Web Server providing Internet capability for remote access
z2-way audio
zOnline firmware upgrade
zReal-time video recording
zRecorded files compatible with Microsoft Windows Media Player

3
Hardware
CPU ARM 9 ,32 bit RISC
RAM 64MB
ROM 4MB
Image Sensor 1/4” CMOS, 1.3 Mega pixel
Digital I/O 2 In / 2 Out
Microphone Built-in
Audio Out 1
Power Consumption DC 12V, 700mA
Network
Ethernet 10/ 100 Base-T
Network Protocol HTTP, TCP/IP, RTP/RTSP, 3GPP, SMTP, FTP, PPPoE, DHCP, DDNS, NTP
System
Video Resolution 1280x1024, 640x480, 320x240, 160x120
Video Adjustment Brightness, Contrast, Exposure, Sharpness
Image Snapshot Yes
Full Screen Monitoring Yes
Compression Format MPEG-4, MJPEG
Dual Streaming Yes, MPEG-4 / MJPEG
Video BitrateAdjustment CBR, VBR
Motion Detection Yes, 3 different areas
Triggered Action Mail, FTP, Digital out
Pre/ Post Alarm Yes, configurable
Security Password protection
Firmware Upgrade HTTP mode, can be upgraded remotely
Simultaneous Connection Up to 10
Audio Yes, 2-way
Web browsing requirement
OS Windows 2000, XP, 2003, Microsoft IE 6.0 or above
Hardware Suggested Intel-C 2.0G, RAM: 512MB, Graphic card: 64MB
Minimum Intel-C 1.6G, RAM: 256MB, Graphic card: 32MB

4
3. Product Installation
A. Hardware Installation
nNetwork Connector: The RJ-45 connector allows connect the Ethernet cable.
oPower Jack: To connect the included power adapter.
pAudio Out: The RCA connector allows connect to an amplified speaker,
you can hear the voice of the remote site from the speaker.
qDigital I/O: Digital In and Digital Out.
c12V
dGND
eAlarm Input 1
fAlarm Input 2
gAlarm Output 1
hD-
iD+
q
p
n
o

5
1. Connect the cable of Digital I/O and Audio output if you want to use these
functionalities.
2. Connect Ethernet cable for network connection.
3. Connect power adapter to turn on the camera.
4. Set up the network configurations according to the network environment. For further
explanation, please refer to chapter 6.

6
B. Monitor Setting
1. Right-Click on the desktop. Select [Properties]
2. Change color quality to “Highest (32bit)”.

7
C. IP Assignment
¾Always consult your network administrator before assigning an IP address to your
camera in order to avoid using a previously assigned IP address.
¾MAC Address: Each network camera has a unique Ethernet address (MAC address)
shown on the sticker of the camera.
¾One final note, although the IP Search is able to find and configure any network
camera on the LAN except those that are behind a router, it is a good idea to set the
host PC to the same subnet. In order to connect to the Web-based user interface of
the network camera, the host PC must be in the same subnet. For more information
about subnets, please consult your network administrator.
There are 3 kinds of IP configuration:
zFixed IP (Public IP or Virtual IP)
zDHCP (Dynamic IP)
zDial-up (PPPoE)
IP Search is a utility that provides an easier, more efficient way to configure the IP
address and network settings of the network camera. It even provides a convenient way
to set the network settings for multiple devices simultaneously. Moreover, IP Search can
save the network settings for all devices as a backup and restore them when necessary.
The software can be installed from the attached software CD.
1. Once IP Search has been successfully installed on the computer, double click the
IP Search icon on the desktop to run the software.

8
2. IP Search searches all the network devices which connect to the intranet and lists
on the window. Click [Search] button to search again.
3. From the list, select the device with the MAC Address that corresponds to the
device that is to be configured.
4. Click one of the network devices, the network configuration of this device will show
on the bottom.
5. After filling in the IPAddress, Subnet Mask, Gateway and the others, click [Set]
button to complete the configuration settings and save into the remote device.
6. You can assign a name to idetify the camera. Type the name in “Device Name” field,
click [Save] and then click [Search] button, the name will be displayed in the list.
7. Wait for 1 minute to let camera update the settings, and then click [Search] button
again to re-search the network devices. Click the network device listed on the
window and click [Open Web] button. It will open an IE browser and connect to this
device directly.

9
D. Install ActiveX Control

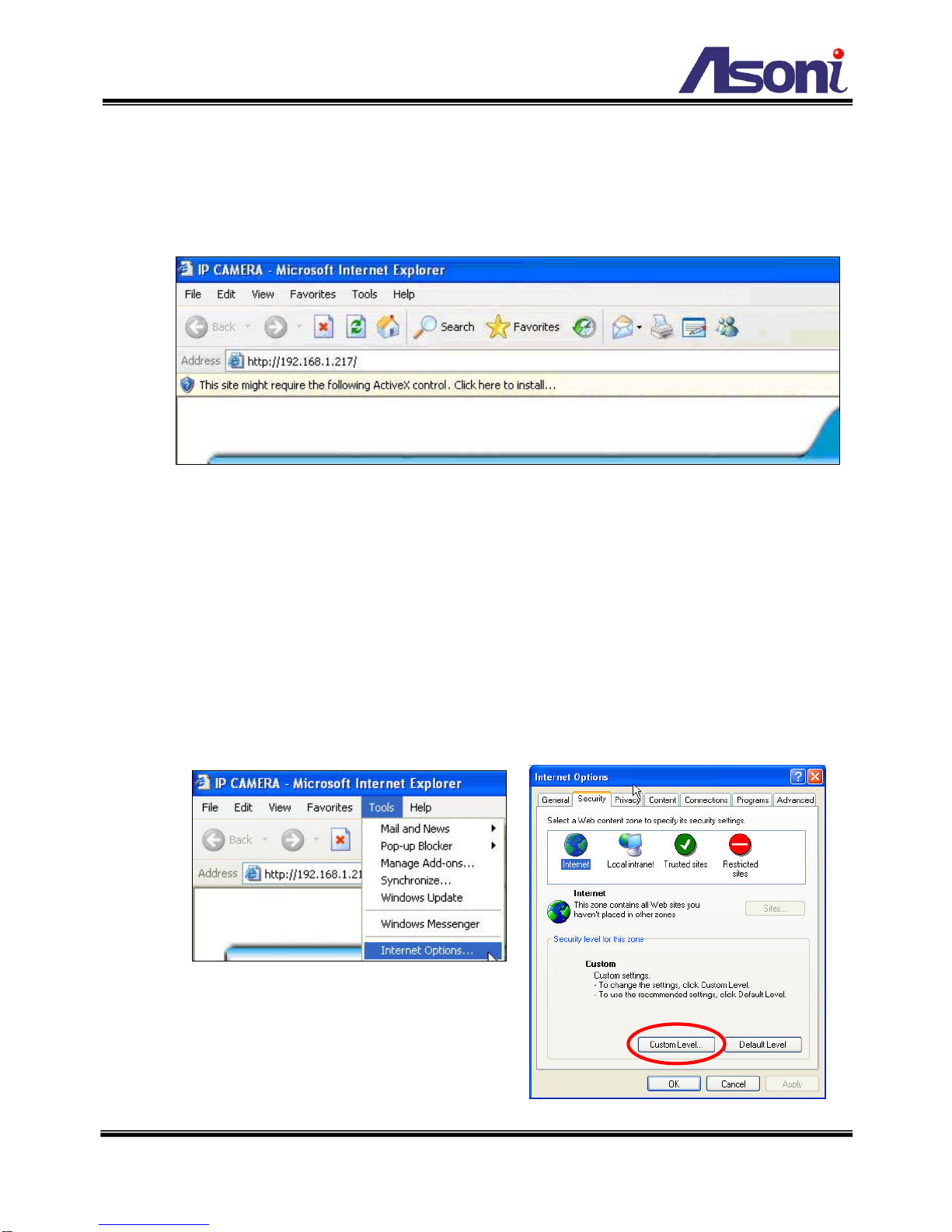

For the first time to view the camera video via IE, it will ask you to install the ActiveX
component.
If the installation failed, please check the security setting for the IE browser.
1. In IE, click on [Tools] Æ[Internet Options…]
2. Click on [Security] Tab Æ[Custom Level…]

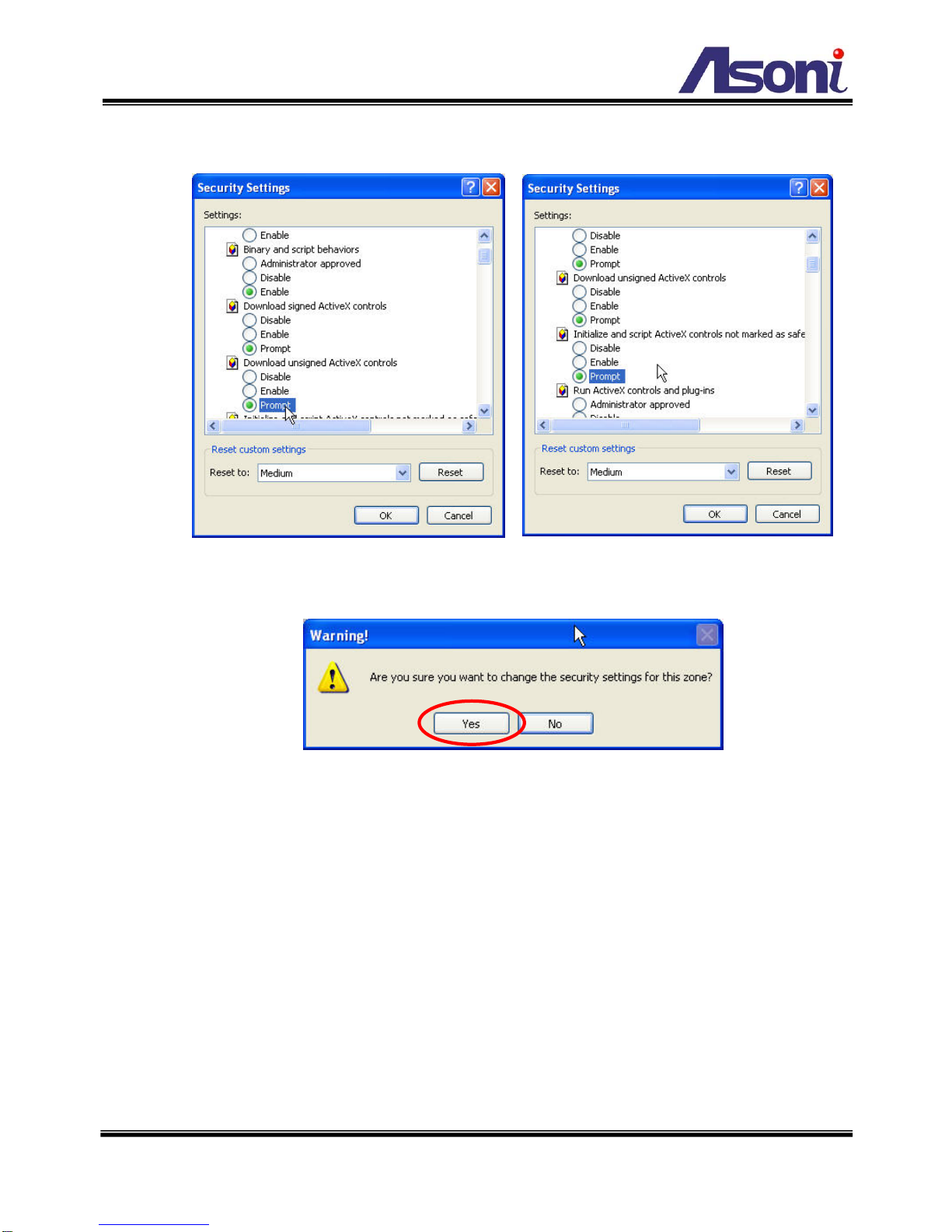

3. In Security Settings, under [Download unsigned ActiveX controls], select “Enable”
or “Prompt”.
4. In Security Settings, under [Initialize and script ActiveX controls not marked as safe],
select “Enable” or “Prompt”.
5. When pop-up window with warning message, click [Yes] to save the settings.
1 2
