Asoni CAM677G User manual

H.264 VGA CMOS Network Camera
CAM677G / CAM677G-W / CAM677G-PoE
User’s Manual
Date: 7/20/2012
Firmware Version: VB1.0.26

1
Content
Content .......................................................................................................................................1
1. Preface.................................................................................................................................3
2. Product Specifications.......................................................................................................3
3. Product Installation ............................................................................................................5
A. Hardware Installation......................................................................................................5
Cable Connections................................................................................................................5
I/O Connections....................................................................................................................6
B. Monitor Setting................................................................................................................8
C. IP Assignment..................................................................................................................9

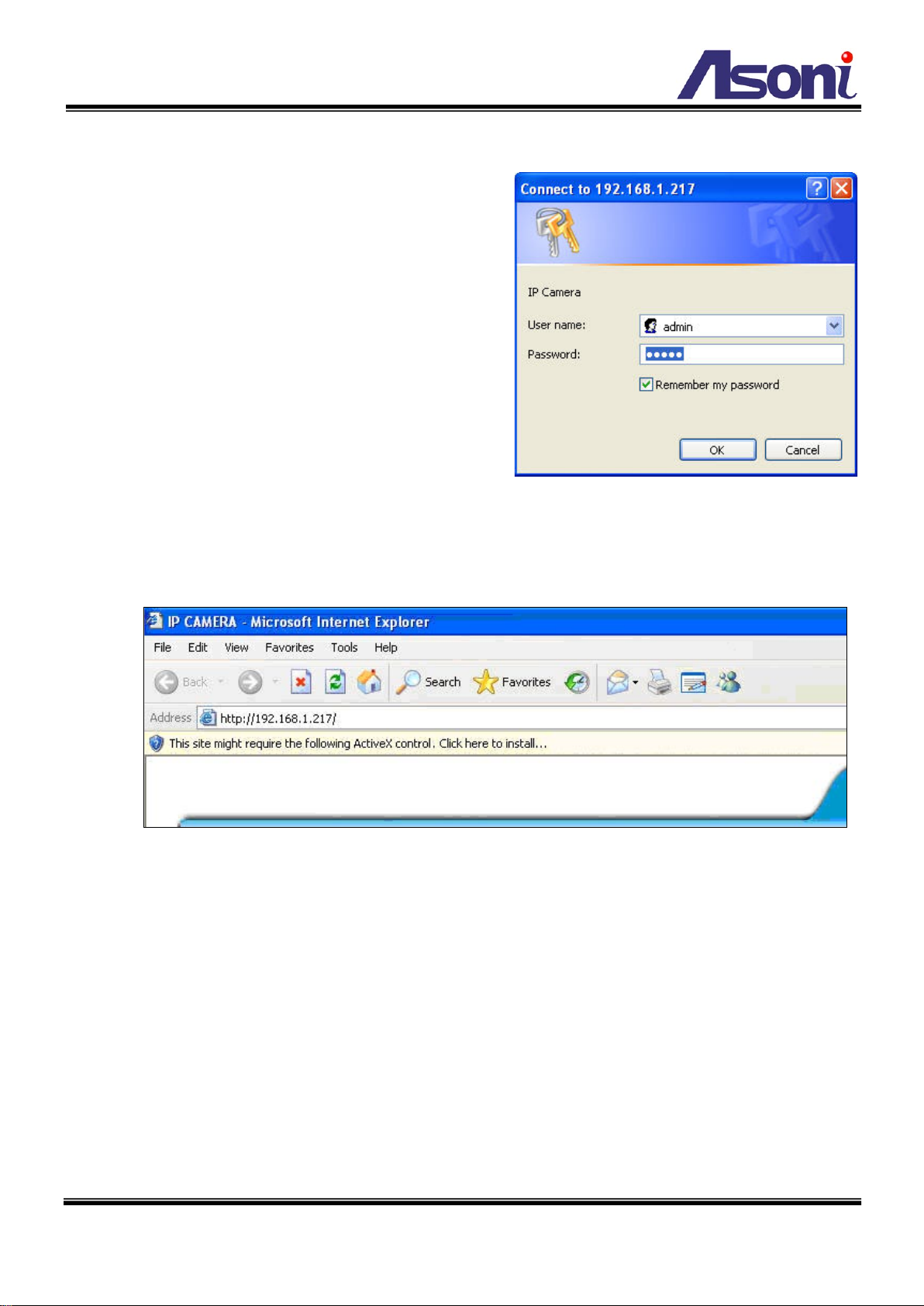

4. Live Video..........................................................................................................................11
5. Configuration ....................................................................................................................16
A. System ...........................................................................................................................16

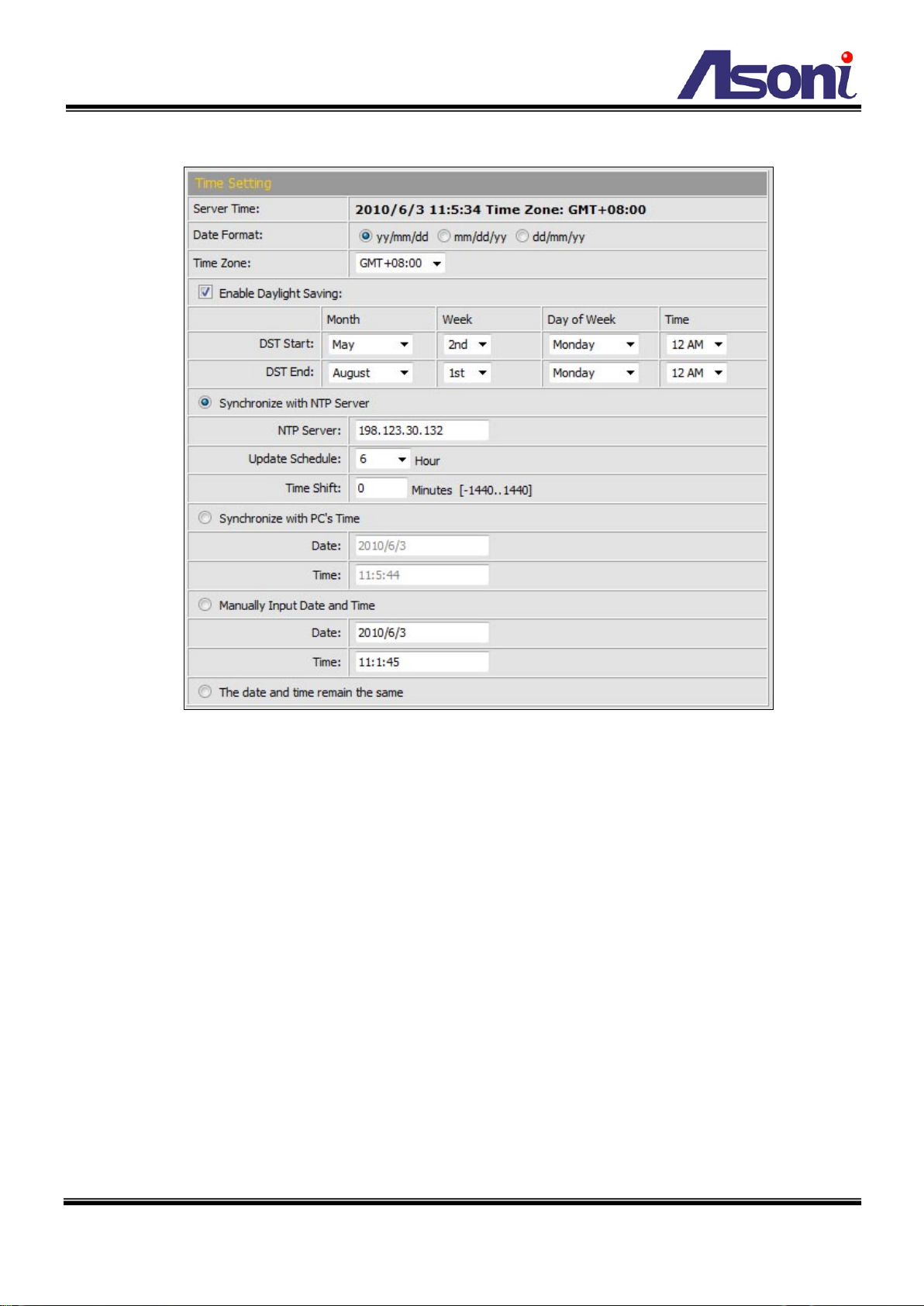

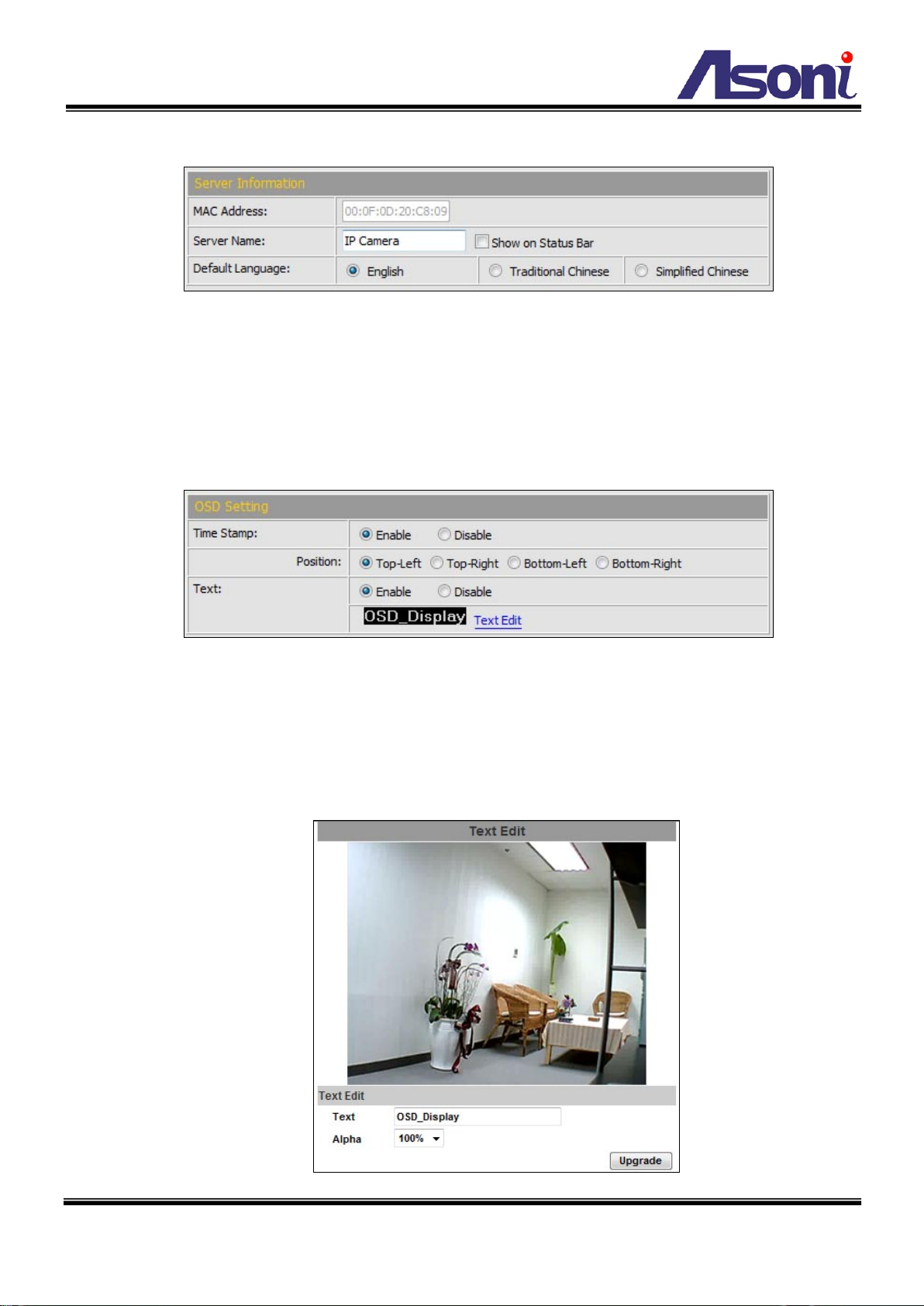

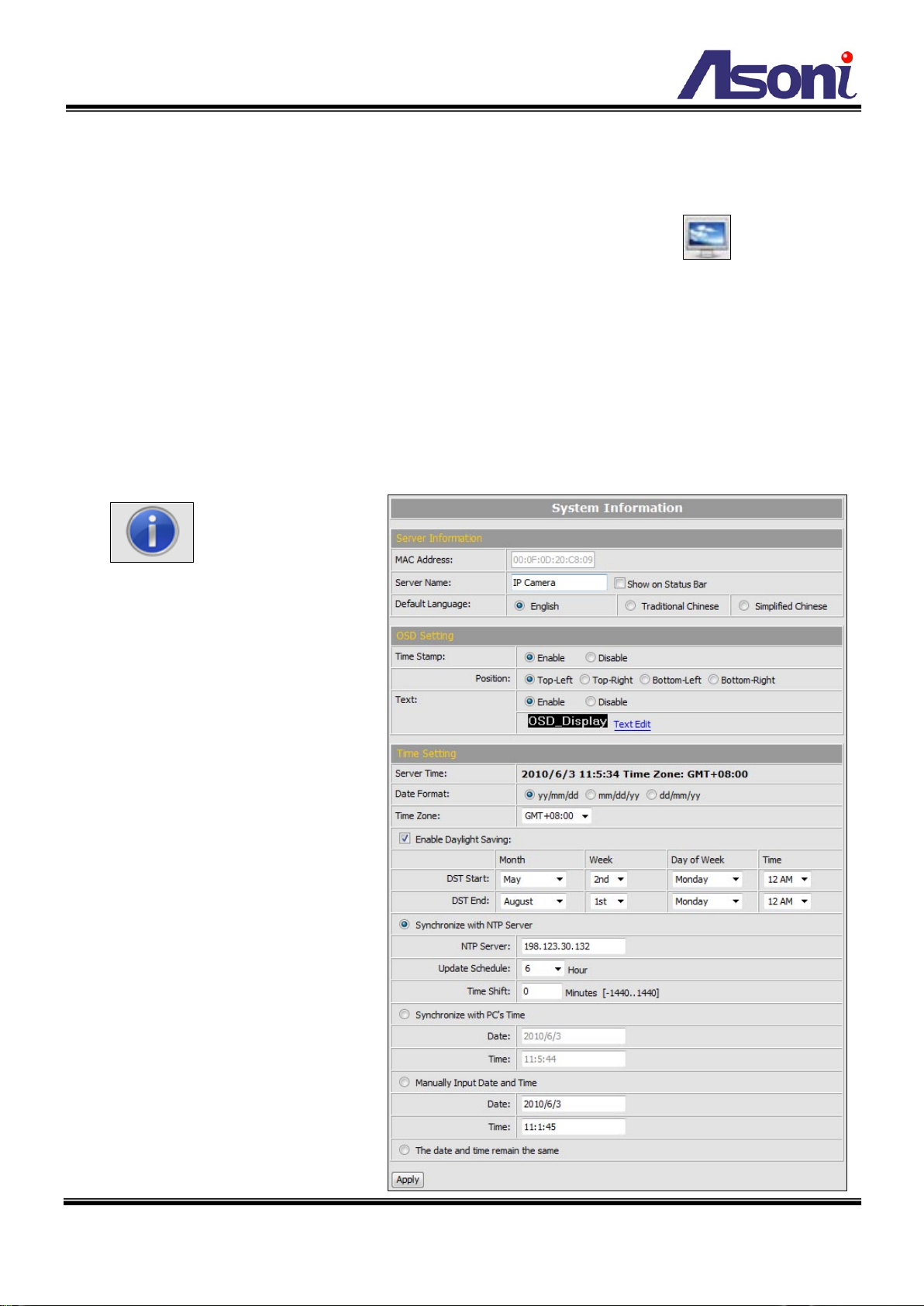

System Information.............................................................................................................16
User Management ..............................................................................................................20
System Upgrade.................................................................................................................22
System Logs.......................................................................................................................23
B. Video/Audio Setting ......................................................................................................24
Video Format ......................................................................................................................24
Image Setting......................................................................................................................28
Audio Setting ......................................................................................................................30
C. Network Setting.............................................................................................................32
Network Setting ..................................................................................................................32
Wireless Setting..................................................................................................................36
Mail / FTP / Samba Setting.................................................................................................39
PPPoE / DDNS Setting.......................................................................................................43
D. Network (Advance) Setting...........................................................................................46
HTTPS Setting....................................................................................................................46
SNMP Setting .....................................................................................................................48
IP Filter Setting ...................................................................................................................50
QoS/ DSCP Setting.............................................................................................................52
IEEE 802.1x Setting............................................................................................................53

2
E. Event Handling..............................................................................................................54
Event Setting ......................................................................................................................54
I/O Setting...........................................................................................................................59
Schedule.............................................................................................................................61
6. Network Configuration.....................................................................................................63
A. Intranet Only..................................................................................................................63
Connects to PC Directly......................................................................................................63
Connects to an Exist LAN...................................................................................................64
B. Internet Only..................................................................................................................65
Connects to ADSL with Fixed Public IPAddress.................................................................65
Connects to ADSL with Floating Public IPAddress (PPPoE)..............................................66
C. Intranet + Internet..........................................................................................................68
Connects to Internet with Fixed Public IPAddress..............................................................68
Connects to Internet with Floating Public IPAddress..........................................................70
7. Factory Default..................................................................................................................71

3
1. Preface
This camera is a CMOS network camera which builds in web server. User views real-time
video via IE browser. It supports H.264, MJPEG and MPEG4 video compression which
provides smooth and high quality video.
The PoE model built-in support for Power over Ethernet allows the camera to receive both
data and power over a single Ethernet cable.
This camera is an easy-to-use IP camera which is designed for security application.
2. Product Specifications
VGA CMOS Sensor
H.264 / MJPEG / MPEG4 compression formats and triple streaming
Supports resolution up to 640x480@30FPS real time
Self-Contained HTTP Web Server providing Internet capability for remote access
Wireless network connection (Wireless model)
Built-in PoE splitter, support for Power over Ethernet (PoE model)
2-way audio
Online firmware upgrade
Recorded files compatible with Microsoft Windows Media Player
Hardware
CPU / RAM / ROM ARM 9, 32 bit RISC / 128MB / 16MB
Image Sensor 1/4” VGA CMOS sensor
Lens 1/3”, Fixed Lens 6 mm, F1.6
Illumination 1 lux
Lens Changeable Yes, CS Mount
Audio In Built-in microphone
Audio Out 1 Line out (3.5mm phone jack for connecting external amplified speaker)
Digital I/O 1 Digital in / 1 Digital out
Power Supply Normal & Wireless model: DC 12V, 1A
PoE model (built-in PoE Splitter):
Use PoE: PoE Injector (IEEE 802.3af)
Or, use Power Adaptor: DC 12V, 1A

4
Power Consumption Max. 6 Watt
Dimensions W55 x H50 x D143 mm
Network
Ethernet 10/ 100 Base-T
Wireless (Wireless model) 802.11b/g/n, supports WPA-PSK, WPA2-PSK, WEP 64/ 128 bit
Network Protocol HTTP, HTTPS, TCP/IP, RTP/RTSP, UDP, 3GPP, SMTP, FTP, Samba, PPPoE,
DHCP, DDNS, NTP, UPnP, SNMP, QoS/DSCP, IP Filter, IEEE 802.1x
System
Video Resolution 640x480, 320x240, 176x144
Compression Format H.264 / MJPEG / MPEG4
Frame Rate Up to 30FPS
Triple Streaming Yes (2 for live view, 1 for 3GPP)
3GPP Yes, Live view with 3G mobile phone
Video Bitrate Adjustment CBR, VBR
Video Adjustment Brightness, Contrast, Saturation, Sharpness, Gain control, BLC, Exposure,
Frame Rate at Night, Video orientation, Indoor/Outdoor
Image Snapshot Yes
Privacy Mask Yes, 3 different areas
Motion Detection Yes, 3 different areas
Event Trigger Motion Detection, Digital In
Triggered Action Send Email, Send to FTP, Save to Samba HDD, Digital Out
Pre/ Post Alarm Yes, configurable
Security Password protection, IP address filtering, HTTPS encrypted data
transmission, IEEE 802.1x port-based authentication, QoS/DSCP
Firmware Upgrade HTTP mode, can be upgraded remotely
Connection Up to 10 clients simultaneously
Audio Yes, 2-way
Web browsing requirement
OS Windows 2000, XP, Vista, Windows 7
Web Browser Microsoft IE V7.0 (32-bit) or above, Mozilla Firefox V6.0 or above, Opera
V11.5 or above, Safari V5.1 or above, Google Chrome V13.0 or above
Suggested Hardware Intel Core 2 Duo 2.53GHz, RAM: 1GB
Graphic card: 128MB onboard RAM
* Specifications are subject to change without notice

5
3. Product Installation
A. Hardware Installation

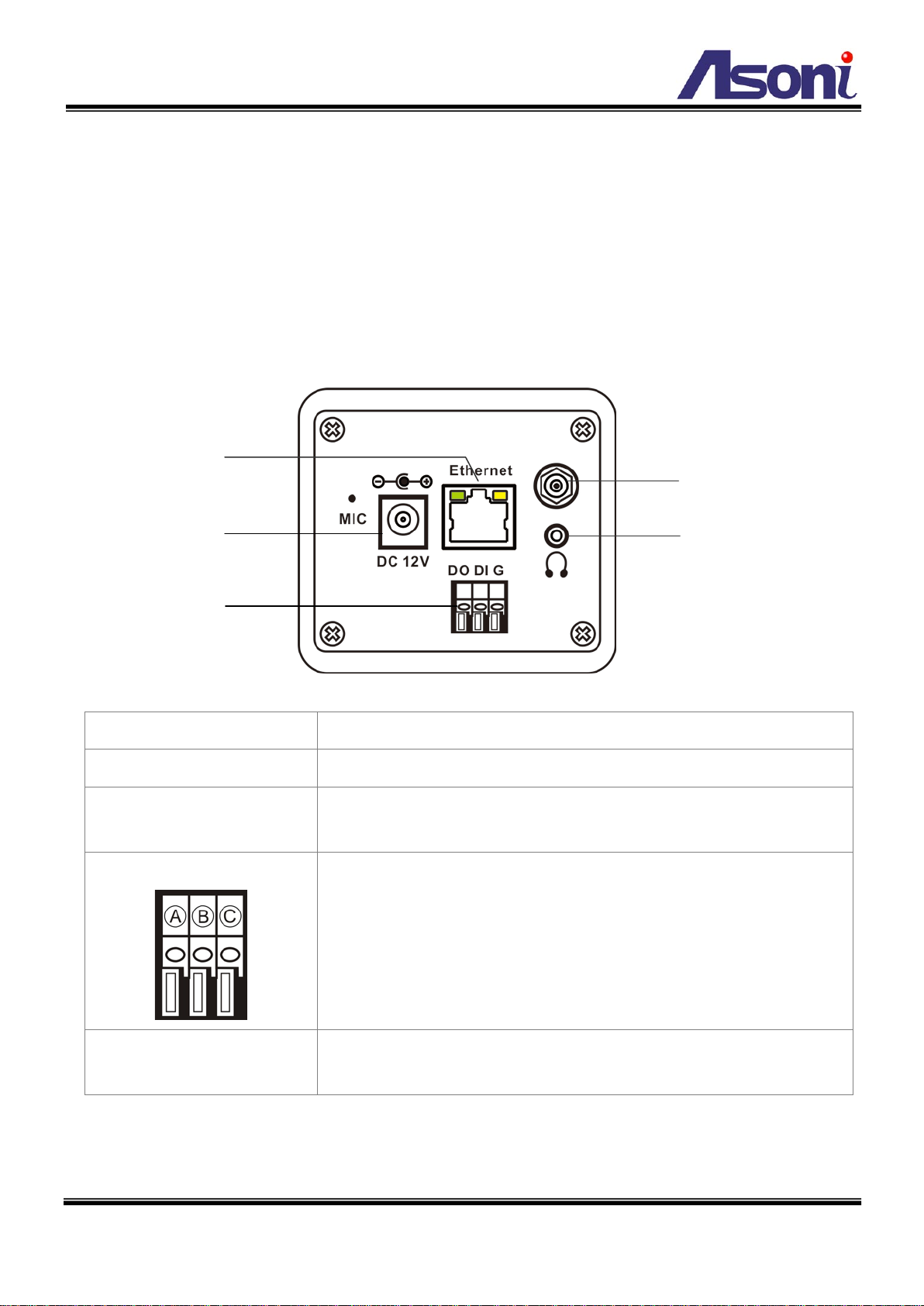

Cable Connections
Network Connector:
The RJ-45 connector allows connect the Ethernet cable.
Power Jack:
To connect the DC 12V power adapter.
Audio Output: The 3.5mm phone jack allows connect to an amplified speaker,
you can hear the voice of the remote site from the speaker.

Digital I/O:
The terminal block provides the Digital In and Relay Out. The
pin assignments are:
(A) Digital Output
(B) Digital Input
(C) GND:Ground pin for both Digital Input and Digital Output.

Antenna Connector: Available for Wireless model. To connect the included wireless
antenna.
1. Connect the cable of Digital I/O and Audio Output if you want to use these
functionalities.






6
2. Connect the wireless antenna for the Wireless camera.
3. Connect Ethernet cable for network connection.
4. Connect power adapter to turn on the camera.
5. If the camera is PoE model, the power adapter is not necessary. The camera will get
the power from the PoE injector or PoE switch.
PoE (Power over Ethernet) is a technology that integrates power into a standard LAN
infrastructure. It enables power to be provided to the network device, such as an IP
phone or a network camera, using the same cable as that used for network connection.
It eliminates the need for power outlets at the camera locations. Please follow the
below figure for the connection.
6. Set up the network configurations according to the network environment. For further
explanation, please refer to Network Configuration chapter.
7. After finish the configuration for the very first time, if you want to use wireless network,
plug out the Ethernet cable.
I/O Connections
I/O terminal connector – used in application, for e.g., motion detection, event triggering,
alarm notifications. It provides the interface to:
1 set of Digital Input (Digital In + GND) – The digital inputs for connecting devices
that can toggle between an open and closed circuit, such as PIRs, door/window
contacts, glass break detectors, etc. When a signal is received the status changes
and the input becomes active.
1 set of Digital Output (Digital Out + GND) – The output to Relay Box or Relay
Board, and switch on the alarm device such as LEDs, Sirens, etc.
PoE Switch or PoE Injector
Ethernet Cable
Data only
Ethernet Cable
Mixed data and power
PoE Network Camera
To Network

7
Digital Input (Alarm Input)
GND (Ground): Initial status is LOW.
Alarm: Max. 50mA, 12VDC.
Digital Output (Alarm Output)
Door/Window
Contacts
Relay Board
or
Relay Box
Digital IN
Digital OUT

8
B. Monitor Setting
1. Right-Click on the desktop. Select “Properties”
2. Change color quality to “Highest (32bit)”.

9
C. IP Assignment
Always consult your network administrator before assigning an IP address to your
camera in order to avoid using a previously assigned IP address.
MAC Address: Each network camera has a unique Ethernet address (MAC address)
shown on the sticker of the device.
One final note, although the IP Search is able to find and configure any network
device on the LAN except those that are behind a router, it is a good idea to set the
host PC to the same subnet. In order to connect to the Web-based user interface of
the network camera, the host PC must be in the same subnet. For more information
about subnets, please consult your network administrator.

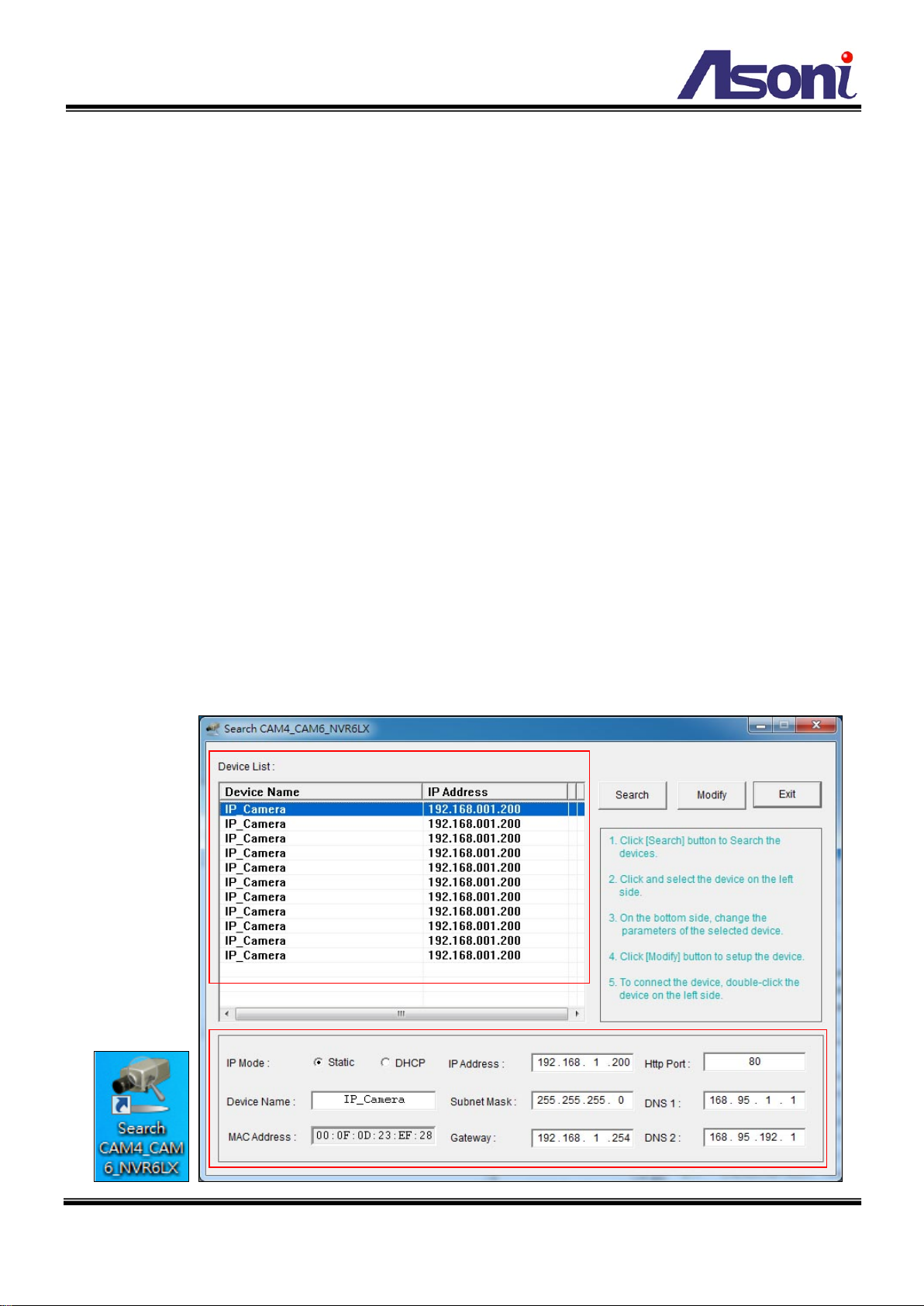

“Asoni IP Search” is a utility that provides an easier, more efficient way to configure the IP
address and network settings of the network camera in Local Network (LAN).
The software can be installed from the attached software CD.
1. Once “Asoni IP Search” has been successfully installed on the computer, double
click the “Search CAM4_CAM6_NVR6LX” icon on the desktop.





