Asoni CAM6709H User manual

5M-IR 720P HD H.264
CMOS Network Fixed Dome Camera
CAM6709H / CAM6709H-W / CAM6709H-PoE
User’s Manual
Date: 7/01/2014
Firmware Version: VE1.0.14

1
Content
Content .......................................................................................................................................1
1. Preface.................................................................................................................................3
2. Product Specifications.......................................................................................................3
3. Product Installation ............................................................................................................6
A. Hardware Installation......................................................................................................6
Cable Connections................................................................................................................6
Audio Connections................................................................................................................8
I/O Connections....................................................................................................................8
B. Monitor Setting..............................................................................................................10
C. IP Assignment................................................................................................................11
4. Live Video..........................................................................................................................13
5. Configuration ....................................................................................................................16
A. System ...........................................................................................................................16
System Information.............................................................................................................16
User Management..............................................................................................................20
System Upgrade.................................................................................................................22
System Logs.......................................................................................................................23
B. Video/Audio Setting ......................................................................................................24
Video Format ......................................................................................................................24
Image Setting......................................................................................................................30
Audio Setting ......................................................................................................................33
C. Network Setting.............................................................................................................35
Network Setting ..................................................................................................................35
Wireless Setting..................................................................................................................40
Mail / FTP / Samba Setting.................................................................................................43
PPPoE / DDNS Setting.......................................................................................................47
D. Network (Advance) Setting...........................................................................................50
HTTPS Setting....................................................................................................................50
SNMP Setting .....................................................................................................................52
IP Filter Setting ...................................................................................................................54
QoS/ DSCP Setting.............................................................................................................56

2
IEEE 802.1x Setting............................................................................................................57
E. Event Handling..............................................................................................................58
Event Setting ......................................................................................................................58
I/O Setting...........................................................................................................................65
Schedule.............................................................................................................................67
Micro-SD Card....................................................................................................................69
6. Network Configuration.....................................................................................................72
A. Intranet Only..................................................................................................................72
Connects to PC Directly......................................................................................................72
Connects to an Exist LAN...................................................................................................73
B. Internet Only..................................................................................................................74
Connects toADSL with Fixed Public IPAddress.................................................................74
Connects toADSL with Floating Public IPAddress (PPPoE)..............................................75
C. Intranet + Internet..........................................................................................................77
Connects to Internet with Fixed Public IPAddress..............................................................77
Connects to Internet with Floating Public IPAddress..........................................................79
7. Factory Default..................................................................................................................80
Compatible List of SD Card.....................................................................................................81

3
1. Preface
This camera is a 720P HD CMOS network camera which builds in web server. User views
real-time video via IE browser. It supports H.264 and MJPEG video compression which
provides smooth and high quality video. The event video can be stored in the Micro-SD
card, and can be playback remotely.
The IR model equips infrared illuminator to provide good image quality, even in darkness.
The PoE model built-in support for Power over Ethernet allows the camera to receive both
data and power over a single Ethernet cable.
This camera is an easy-to-use IP camera which is designed for security application.
2. Product Specifications
Onvif compliance
Mega-Pixel CMOS Sensor
H.264 / MJPEG compression formats and triple streaming
Supports resolution up to 1280x800, 720P@30FPS real time
Self-Contained HTTP Web Server providing Internet capability for remote access
Day & Night functionality for 24-hours surveillance, auto activate IR illuminator in low
illumination
Infrared radiant distance up to 5 meters
Digital Wide Dynamic Range
Shutter Speed adjustment
Sense Up adjustment
3D+2D Digital Noise Reduction
Day&Night Switch time control manually
Wireless network connection (Wireless model)
Built-in PoE splitter, support for Power over Ethernet (PoE model)
Supports Micro-SD card for local event recording
2-way audio
Online firmware upgrade
Free 36CH recording software

4
FreeApp (iCAM Smart) for monitoring viaAndroid/iOS smart phone
Hardware
CPU / RAM / ROM Multimedia SoC / 128MB / 16MB
Image Sensor 1/4” Mega-Pixel CMOS
Lens Fixed 2.8mm, Mega-Pixel Lens, F1.8
IR Distance 5 Meters
IR LED Built-in 6 IR LEDs
Minimum Illumination Color: 0.2 lux (when IR is off) Mono: 0 lux (when IR is on)
Day / Night Built-in Mechanism IR Cut Filter (ICR)
Shutter Time Auto: Indoor, Outdoor
Manual: 1/30 ~ 1/1000 sec
Audio Input 1 Built-in Microphone
Audio Output Internal terminal block provides 1 Line out for connecting external amplified
speaker
Digital In / Out Internal terminal block provides 1 Digital in / 1 Digital out
Power Supply Normal & Wireless model: DC 12V, 1A
PoE model (built-in PoE Splitter):
Use PoE: PoE Injector (IEEE 802.3af)
Or, use Power Adaptor: DC 12V, 1A
Power Consumption Max. 5 Watt
Dimensions Φ100 x H49 mm
Network
Ethernet 10/ 100 Base-T
Wireless (Wireless model) 802.11b/g/n, supports WPA-PSK, WPA2-PSK, WEP 64/ 128 bit
Network Protocol IPv4/IPv6, HTTP, HTTPS, TCP/IP, RTP/RTSP, UDP, 3GPP, SMTP, FTP,
Samba, PPPoE, DHCP, DDNS, NTP, UPnP, SNMP, QoS/DSCP, IP Filter,
IEEE 802.1x, Bonjour
Onvif Compliance Compliant with Onvif V2.20, 1.01
System
Video Resolution 1280x800, 1280x720, 640x480, 320x240, 176x144
Video Format H.264 / MJPEG
Frame Rate Up to 30FPS
Triple Streaming 2 for PC live view, 1 for mobile live view
3G Mobile View Supports Android/ iOS devices, Live view with free APP – iCAM SMART
Video Bitrate Adjustment CBR, VBR, up to 8Mbps
Video Adjustment Brightness, Contrast, Hue, Saturation, Sharpness, Gain control, Shutter time,

5
Sense Up, Digital WDR, Anti Fog, Lens Distortion Correction, White Balance,
3D/2D Digital Noise Reduction, Day/Night color mode, Video orientation
Audio Format G.711 (64Kbps), G.726 (24Kbps), G.726 (32Kbps)
Privacy Mask 3 definable areas
Security Password protection, IP address filtering, HTTPS encrypted data
transmission, IEEE 802.1x port-based authentication, QoS/DSCP
Firmware Upgrade HTTP mode, can be upgraded remotely
Event system
Event Trigger Motion Detection, Digital In, Tampering Detection
Triggered Action Send Email, Send to FTP, Save to SD Card, Save to Samba HDD, Digital Out
Motion Area 3 definable areas
Pre / Post Alarm Yes, configurable time
Micro-SD card management
Recording Trigger Motion Detection, Digital In, Tampering Detection, IP Check, Network
Disconnect
Schedule Snapshot with schedule
Video Format Video (AVI), Snapshot (JPEG)
Video Playback Yes
Remote client access
Client Software Microsoft IE V7.0 (32-bit) or above, Mozilla Firefox V6.0 or above, Opera
V11.5 or above, Safari V5.1 or above, Google Chrome V13.0 or above
Android / iOS smart phone: “iCAM Smart”
Connected Clients Up to 10 clients simultaneously
PC Requirement OS: Windows 7, Vista, XP
Suggested Hardware:
Intel Core 2 Duo 2.53GHz, RAM: 1GB
Graphic card: 128MB onboard
* Specifications are subject to change without notice

6
3. Product Installation
A. Hardware Installation

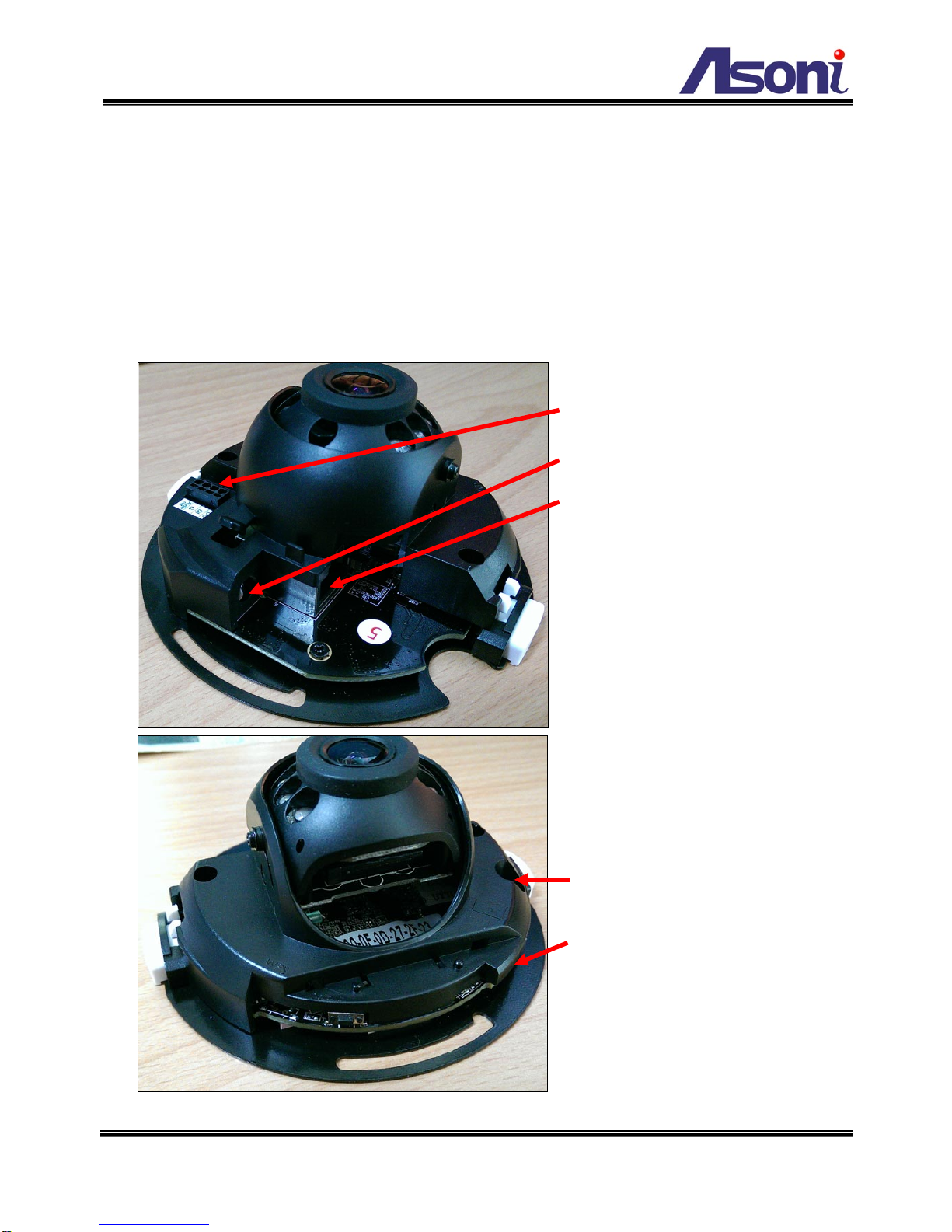

Cable Connections

Micro
-SD Card Slot

Terminal Block

Power Jack

Network Connector

Micro
phone

7
Power Jack:
To connect the DC 12V power adapter.
Network Connector:
The RJ-45 connector allows connect to the Ethernet network.
Terminal Block:
The terminal block provides the following functionalities:
DI/ DO:Digital In and Digital Out.
Audio Out:A
llows connect to an amplified speaker, you can
hear the voice of the remote site from the speaker.
Microphone:
The built-in microphone to receive the voice.

Micro-SD Card Slot: Insert a Micro-SD card if you want to do the event recording in
the camera.
1. Connect the cable of Digital I/O, Video output,Audio output and Microphone input if
you want to use these functionalities.
2. Connect Ethernet cable for network connection.
3. Connect power adapter to turn on the camera.
4. If the camera is PoE model, the power adapter is not necessary. The camera will get
the power from the PoE injector or PoE switch.
PoE (Power over Ethernet) is a technology that integrates power into a standard LAN
infrastructure. It enables power to be provided to the network device, such as an IP
phone or a network camera, using the same cable as that used for network connection.
It eliminates the need for power outlets at the camera locations. Please follow the
below figure for the connection.
5. Set up the network configurations according to the network environment. For further
PoE Switch or PoE Injector
Ethernet Cable
Data only
Ethernet Cable
Mixed data and power
PoE Network Camera
To Network

8
explanation, please refer to Network Configuration chapter.
6. After finish the configuration for the very first time, if you want to use wireless network,
configure the wireless settings, then, plug out the Ethernet cable to use the wireless
connection.
Audio Connections
The terminal block inside of the camera provides audio functionalities. You can connect
the wires of connector to this terminal block to output these signals.
Audio Output
I/O Connections
The terminal block inside of the camera also Digital Input and Digital Output. You can
connect the wires of connector to this terminal block to output these signals. The I/O
connector used in application, for e.g., motion detection, event triggering, alarm
notifications. It provides the interface to:
1 set of Digital Input (Digital In + GND) – The digital inputs for connecting devices
that can toggle between an open and closed circuit, such as PIRs, door/window
contacts, glass break detectors, etc. When a signal is received the status changes
and the input becomes active.
1 set of Digital Output (Digital Out + GND) – The output to Relay Box or Relay
Board, and switch on the alarm device such as LEDs, Sirens, etc.

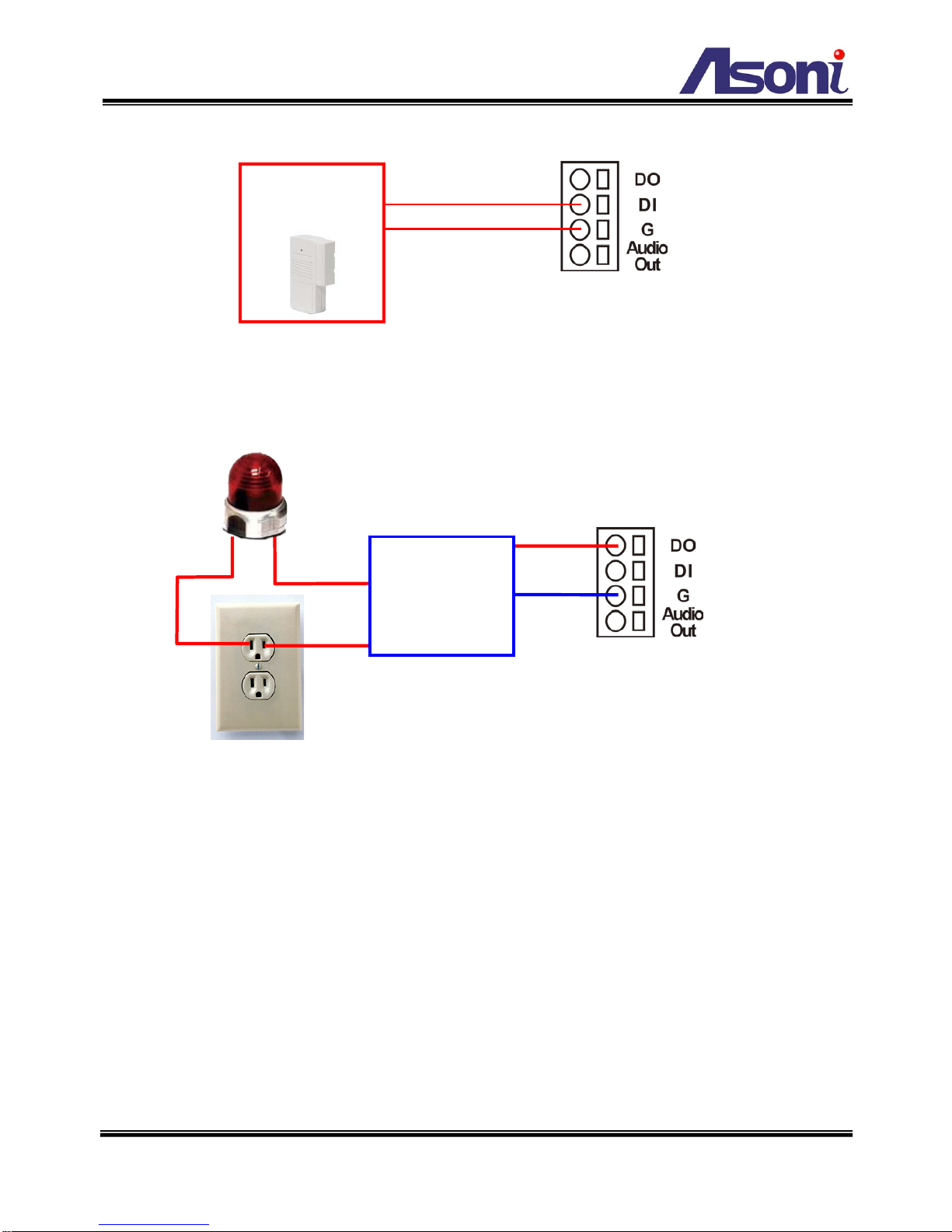

Digital Input (Alarm Input)
GND (Ground):Initial status is LOW.
Alarm: Max. 50mA, 3.3VDC.
Connects to an
amplified speaker

9
Digital Output (Alarm Output)
Door/Window
Contacts
Relay Board
or
Relay Box

10

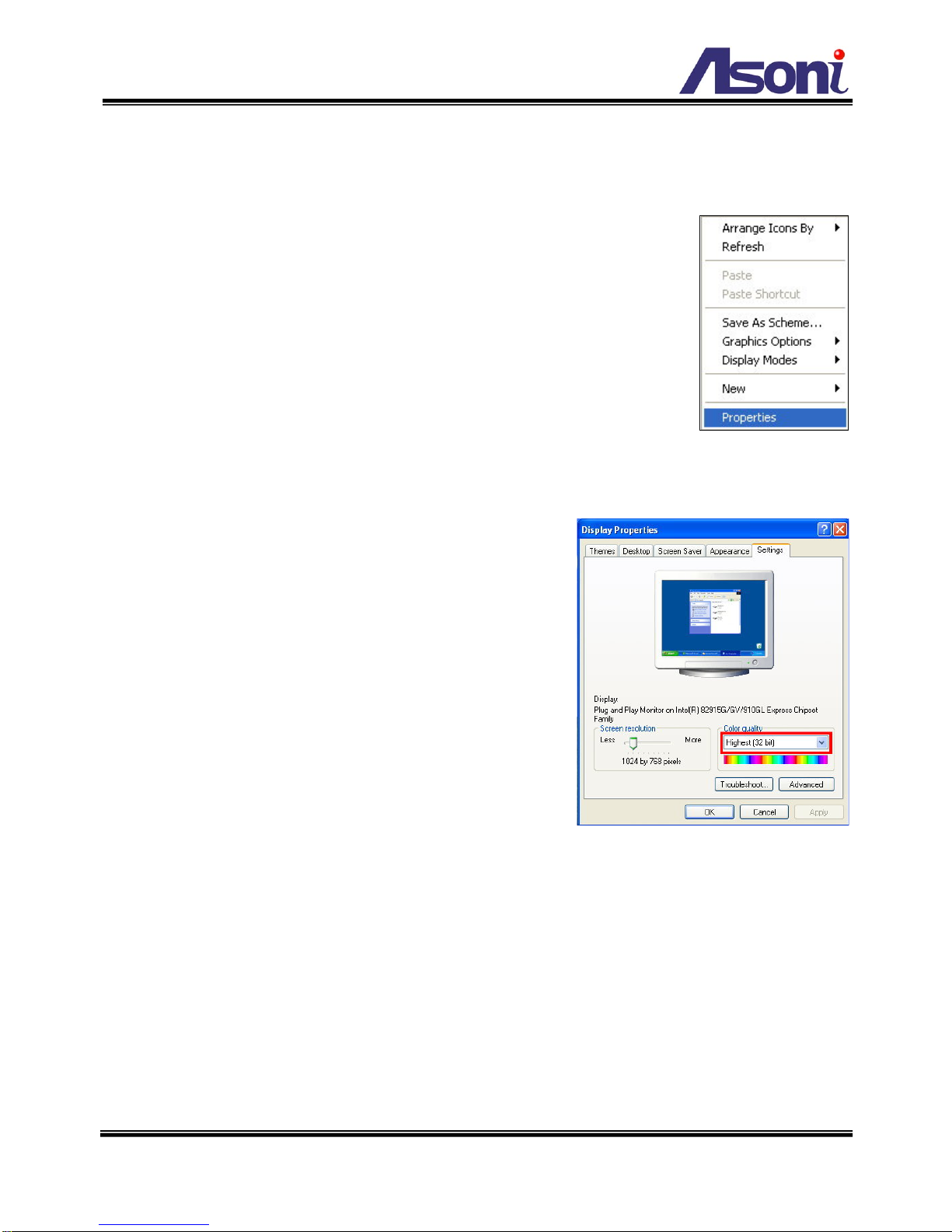

B. Monitor Setting
1. Right-Click on the desktop. Select “Properties”
2. Change color quality to “Highest (32bit)”.

11
C. IP Assignment
Always consult your network administrator before assigning an IP address to your
camera in order to avoid using a previously assigned IP address.
MAC Address: Each network camera has a unique Ethernet address (MAC address)
shown on the sticker of the device.
One final note, although the IP Search is able to find and configure any network
device on the LAN except those that are behind a router, it is a good idea to set the
host PC to the same subnet. In order to connect to the Web-based user interface of
the network camera, the host PC must be in the same subnet. For more information
about subnets, please consult your network administrator.
“Asoni IP Search” is a utility that provides an easier, more efficient way to configure the IP
address and network settings of the network camera in Local Network (LAN).
The software can be installed from the attached software CD.
1. Once “Asoni IP Search” has been successfully installed on the computer, double
click the “Search CAM4_CAM6_NVR6LX” icon on the desktop.






12
2. IP Search searches all the network devices which connect to the intranet and lists
on the window. Click [Search] button to search again.
3. From the list, click and select the device with the MACAddress that corresponds to
the device that is to be configured.
4. The network configuration of the selected device will show on the bottom, filling in
the Device Name, IP Address, Subnet Mask, Gateway and the others.
5. Click [Modify]button to save the settings into the device.
6. Wait for few seconds to let the device update the settings, and then click [Search]
button again to re-search the network devices.
7. Double-click the network device listed on the window, It will open an IE browser and
connect to this device directly.

13
4. Live Video
Start the IE browser, type the IP address of the
network camera in the address field:
http://<IP of camera>
If the “HTTP Port” has been changed from “80”,
type the URL as:
http://<IP of camera>:<HTTP Port>
After link to the camera, it will show a dialogue
box. Key-in the user name and password to
log-in and open the web page of camera.
The default user name and password are “admin” and “admin”.
For the first time links to camera by IE, it will ask you to install the ActiveX component,
please install this component.
If you are using IE 10, click “Compatibility View” icon to make this page works properly:
If you are using IE 11, click “Tool” icon (which is a gear wheel), and click “Compatibility
view settings”. In the dialog box, add the current IP address and then click “OK”, this web
page will be displayed properly.
The web page of the device shows as following.

14
Streaming : Select the streaming 1 or 2 from the pull-down list to display.
Language : Change the display language.
Configuration : Go into the configuration page to set the parameters if necessary.
Status Bar : Shows system date/time, video resolution and video refresh rate (FPS).
Online Visitor : Shows how many users connect to this network camera.
Function Buttons : Click these buttons will perform the following functions.
Full Screen : Click this button or double-click the video, the video will change
to full screen mode.
Press [Esc] key or double-click the video again, it will back to normal mode.
Snapshot : Click this button to take snapshot of the video. The image will be
displayed in a pop-up window, click to save as a jpg picture.
⑥
⑤
③
②
①
④

15

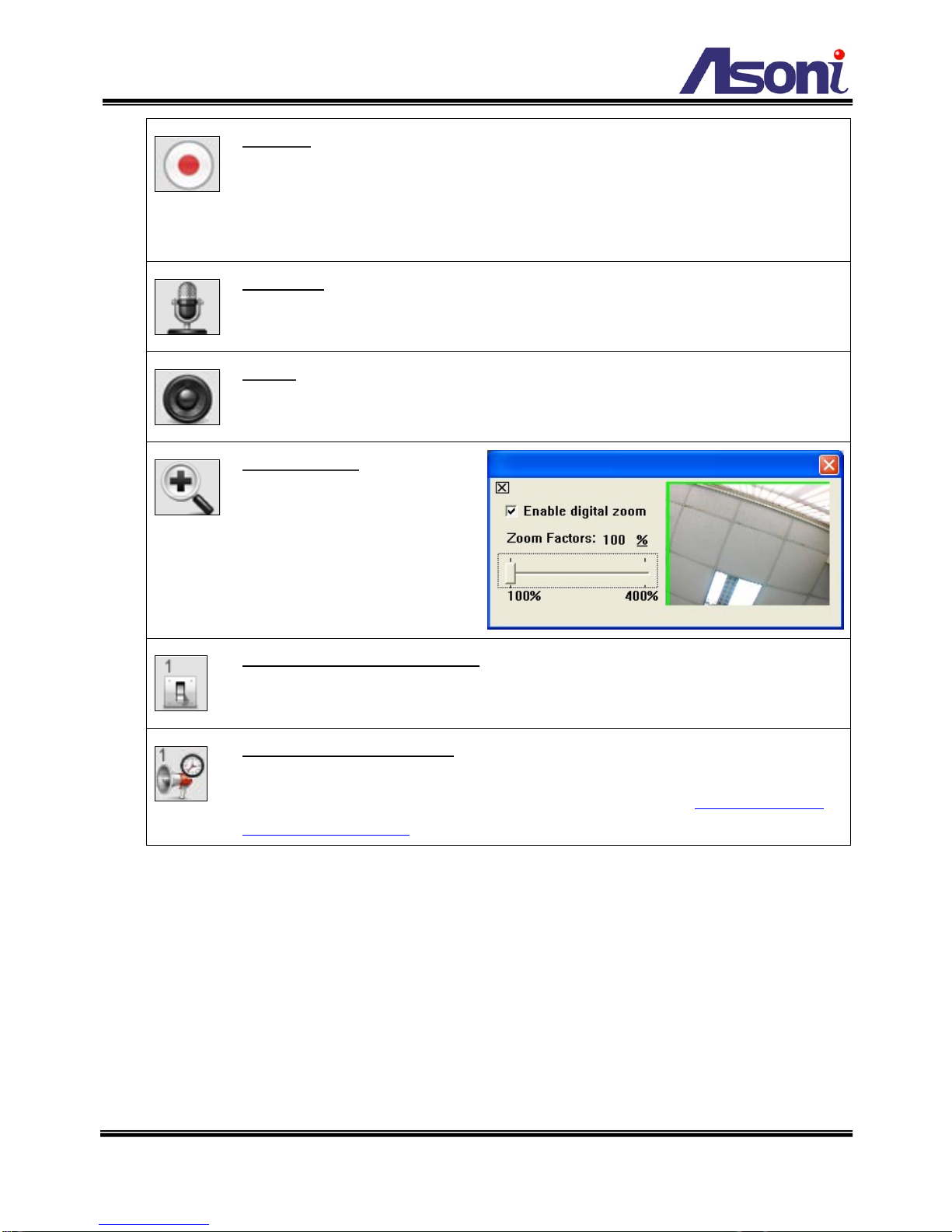

Record : Click this button to record the video into the local PC. It will ask you
where to save the video. To stop recording, click this button again.
The saved video format isAVI. The recorded file can be played by Microsoft
Media Player. Note, H.264
decoder must be installed to play the recorded file.
You can install “FFdshow” from the included CD for the decoder.
Chatting : The camera supports 2-way audio. Click this button, then you can
use microphone which connected to the PC to talk to the camera side.
Voice : Click this button to turn on the audio from camera. Click again to turn
off it.
Digital Zoom : Click this
button, a pop-up window
appears. You can enable /
disable the digital zoom, and
adjust the ratio.
Relay Out (ON/OFF Switch) : Click the button to manually turn on / off the
Relay via the built-in Digital Out.
Relay Out (Time Switch) : Click the button to manually turn on the Relay via
the built-in Digital Out, after the interval time is passed, the Relay will be
turned off automatically. The interval time can be set up in Configuration 
Event Handling I/O.

16
5. Configuration
Click [Configuration] button to get into the configuration page. Click [Live View]
button to back to the Live-View page.
A. System

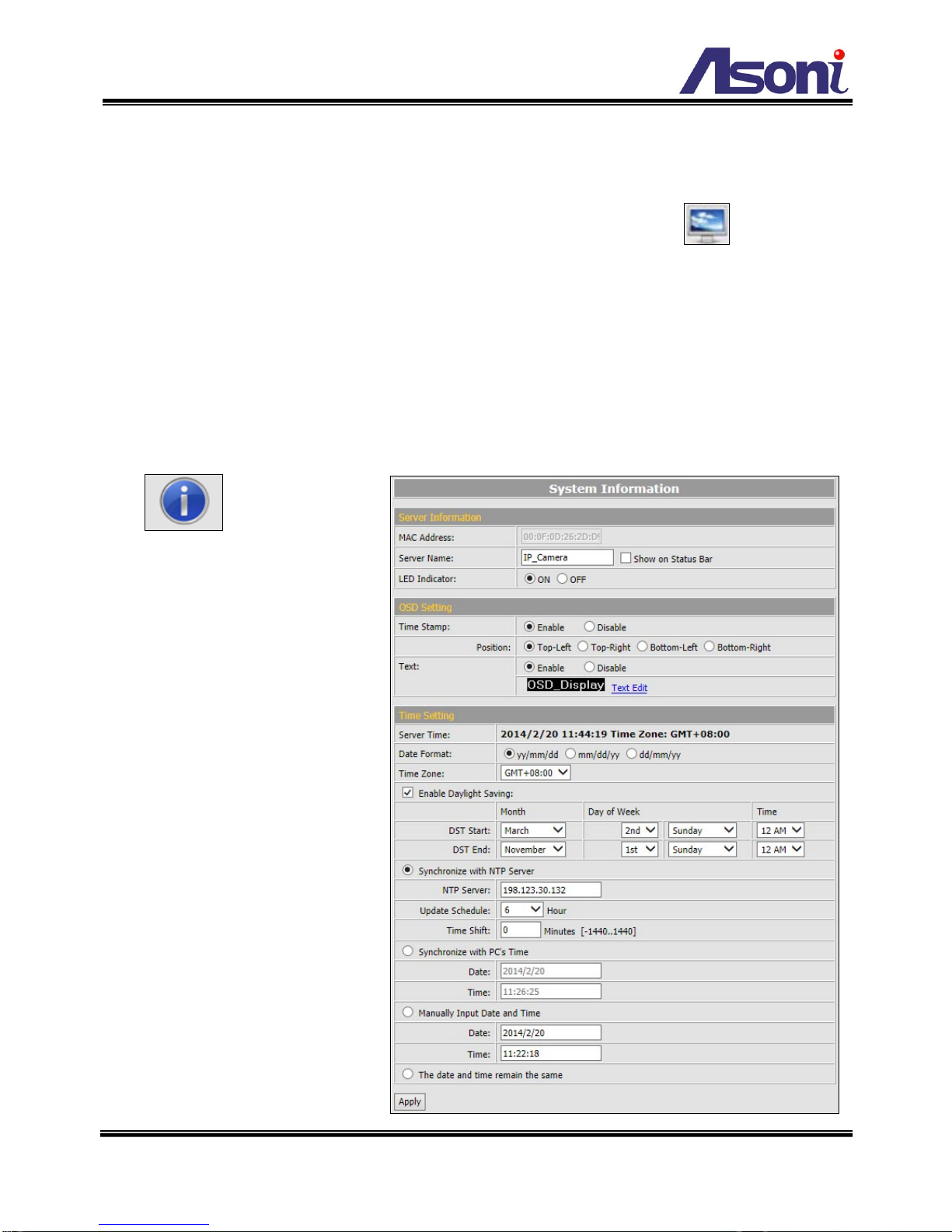

System Information
Set up the camera name, OSD (on screen display) information and the camera time.
System
Information

17

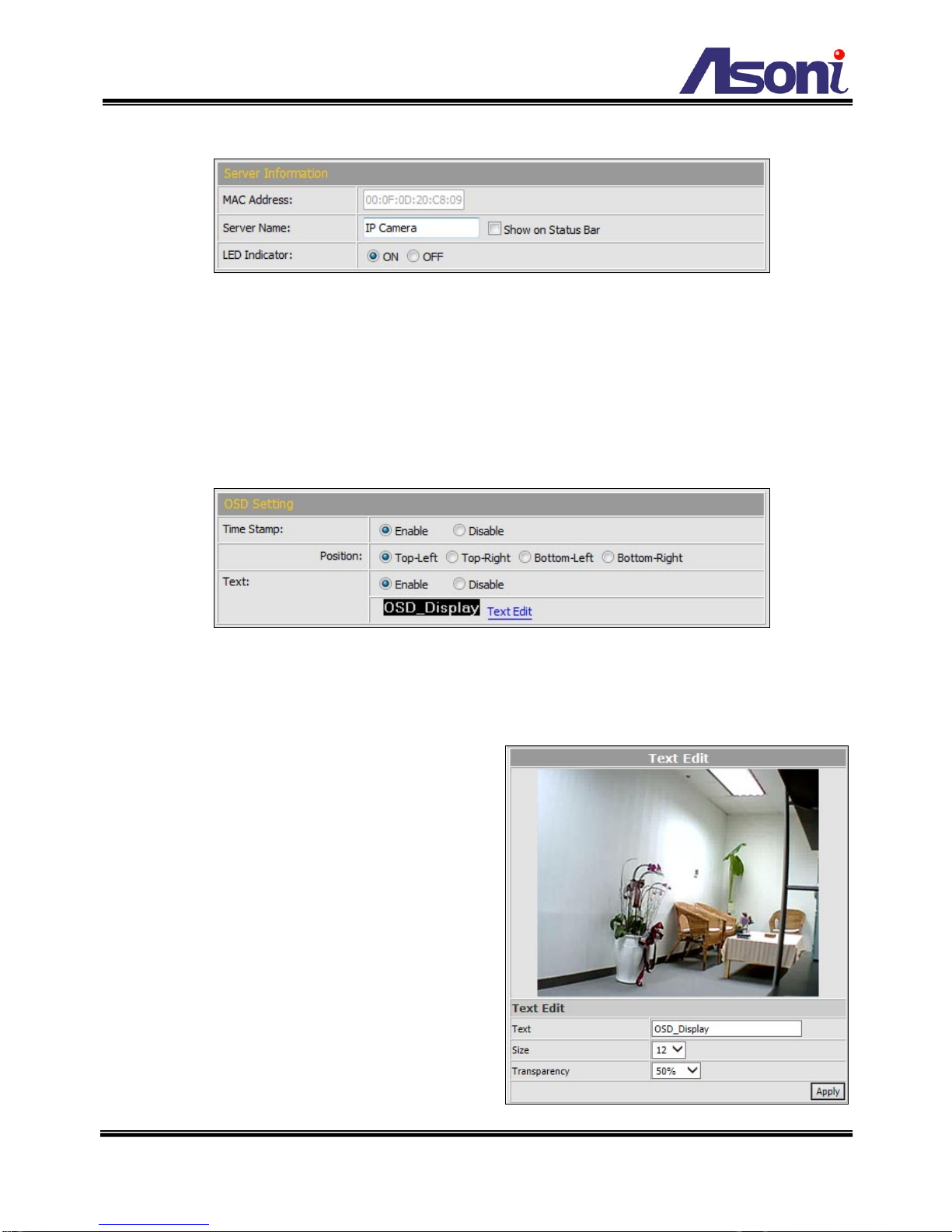

Server Information
MAC Address:The MAC address of the Ethernet network card in the device.
Server Name:You can type a name into this field to identify this device.
Show on Status Bar:Determine whether show the server name on the Status Bar.
LED Indicator:Determine whether light-on or turn-off the network and power status
LEDs on the device.
OSD Setting
Time Stamp:Enable this option will display the date and time on the video.
Position:Select the display position of Time stamp.
Text:Enable this option will display the OSD string on the video.
Text Edit:Click this button to open “Text
Edit” dialog window. You can change
the OSD string and adjust the
transparency of the text.After editing,
click [Apply]button.

18
Time Setting
Date Format: Select the format to display the date.
Time Zone: Select the GMT to match your time zone.
Enable Daylight Saving:If using “Daylight Saving”, enable this option and select the
start and end time.
Synchronize with NTP Server: Select this option and type the IP address of a NTP
(Network Time Protocol) server, this device will synchronize the time with the NTP
server via network.
NTP Server: Type the IP address or URL of the NTP server.
Update Schedule: Select the interval for the update time. For example, if
select “6 Hours”, this device will synchronize the date and time with the NTP
server every 6 hours.
Synchronize with PC’s time: Select this option will synchronize the device time with
the PC’s time.
Manually Input Date and Time: Manually input the date and time.
The date and time remain the same: Keep the current date and time without change.

19
After set up, click [Apply] to save the settings.
