For CL33800 TCWI1 & TCIP1 Series
Installation Instructions
Cylindrical Lockset
Attention Installer
Access 800
®
C A U T I O N
DOOR MUST REMAIN OPEN
DURING INSTALLATION.
USE DOOR STOP.
TEST
FOR PROPER
OPERATION
BEFORE
CLOSING
DOOR
For installation assistance contact Corbin Russwin Inc., at 1-800-810-WIRE (9473)
1 2 3
4
7
5
8
0
6
9
#
*
®
ASSA ABLOY
Please read these instructions carefully to prevent missing important steps.
Please Note: Improper installation may result in damage to the lock and void the factory warranty.
Important: The accuracy of the door preparation is critical for proper functioning and security of this lock.
Misalignment can cause premature wear and a lessening of security.
In U.S.:
Corbin Russwin, Inc.
225 Episcopal Road
Berlin, CT 06037 USA
www.corbinrusswin.com
In Canada:
ASSA ABLOY Door Security Solutions Canada
160 Four Valley Drive
Vaughan, Ontario, Canada L4K4T9
www.assaabloy.ca
WARNING
This product can expose
you to lead which is
known to the state of
California to cause cancer
and birth defects or other
reproductive harm. For
more information go to
www.P65warnings.ca.gov.
08/2018

®
ASSA ABLOY
ElectroLynx® is a registered trademark of ASSA ABLOY Inc.
Copyright © 2014 Corbin Russwin, Inc. All rights reserved.
Reproduction in whole or in part without the express written
permission of Corbin Russwin, Inc. is prohibited.
2
1) Warning ................................................................................ 2
2) General Description/Specifications/Features .................... 3
3) CL33800 TWC1 Series Trim Product Illustration ................ 4
4) Installation Instructions ...................................................... 5
5) PIP (PoE) Wiring Options .................................................. 11
6) Hard Wiring Options .........................................................14
7) Operational Check ............................................................20
Table of Contents
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that the interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and receiver
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected
• Consult the dealer or an experienced TV technician for help
This Class B digital apparatus complies with Canadian ICES-003.
Warning: To comply with “Fire Listed” doors, only alkaline batteries must be used.
Changes or modifications to this unit not expressly approved by the party responsible
for compliance could void the user's authority to operate the equipment.
1) Warning

®
ASSA ABLOY
ElectroLynx® is a registered trademark of ASSA ABLOY Inc.
Copyright © 2014 Corbin Russwin, Inc. All rights reserved.
Reproduction in whole or in part without the express written
permission of Corbin Russwin, Inc. is prohibited.
3
CL33800 WI1/IP1 Series Cylindrical Lock
Features
• WiFi IEEE 802.11 b/g/n enabled
• 2,400 users per lock
• 10,000 event audit trail
• Centralized lock management
• Real time door status monitoring
(Only applies when unit is hard powered)
• Supports HID 125kHz prox or 13.56 MHz iCLASS credentials (26-39 bit); supports CSN reads
for other common 13.56 MHz cards, including MiFare, DesFire, and Felica
• TCWI1 - Wireless
• DC9V, 1.5A (6 AA alkaline batteries or remote electrical power)
TCIP1 (PoE)
• Class 2 device, as defined by IEEE 802.3af, requires a maximum of 7 watts over structured cabling
The Access 800 series lock is available with either Power over Ethernet (PoE) (TCIP1) or WiFi
(TCWI1) technology. The TCIP1 version utilizes existing infrastructure and IEEE 802.af Power over
Ethernet technology as a proven alternative to traditional access control installations. The TCWI1is
able to utilize existing wireless LAN (802.11b/g) in order to communicate with the access control
® ®
system. Credential options include either an HID 125 kHz Prox or 13.56 MHz iCLASS technology
reader; available with or without a keypad.
The Access 800 cylindrical lock may be used for both indoor and exterior applications. A protective
weather kit (provided with the unit) is recommended for exterior applications.
HID and iCLASS are registered trademarks of HID Global Corporation.
Specifications
• Latch –1/2" standard
• Inside lever retracts latch 3/4” throw fire rated double doors
• Locks furnished for 1-3/4” to 2” doors
• (optional) (M16- prefix)
• U.L. Listed
• Deadlocking latch
• For 2-1/4" doors specify option D214
• Cylinder override
• Outside lever controlled by keypad, or key retracts latch
• TCIP1 (PoE) applications - wire from EAC Panel to door must be shielded with a drain (drain
terminated at EAC Panel controller)
2) General Descriptions/ Specifications/ Features
General Description
TCWI1 (WiFi)

®
ASSA ABLOY
ElectroLynx® is a registered trademark of ASSA ABLOY Inc.
Copyright © 2014 Corbin Russwin, Inc. All rights reserved.
Reproduction in whole or in part without the express written
permission of Corbin Russwin, Inc. is prohibited.
4
REX
Connector
Weather Gaskets

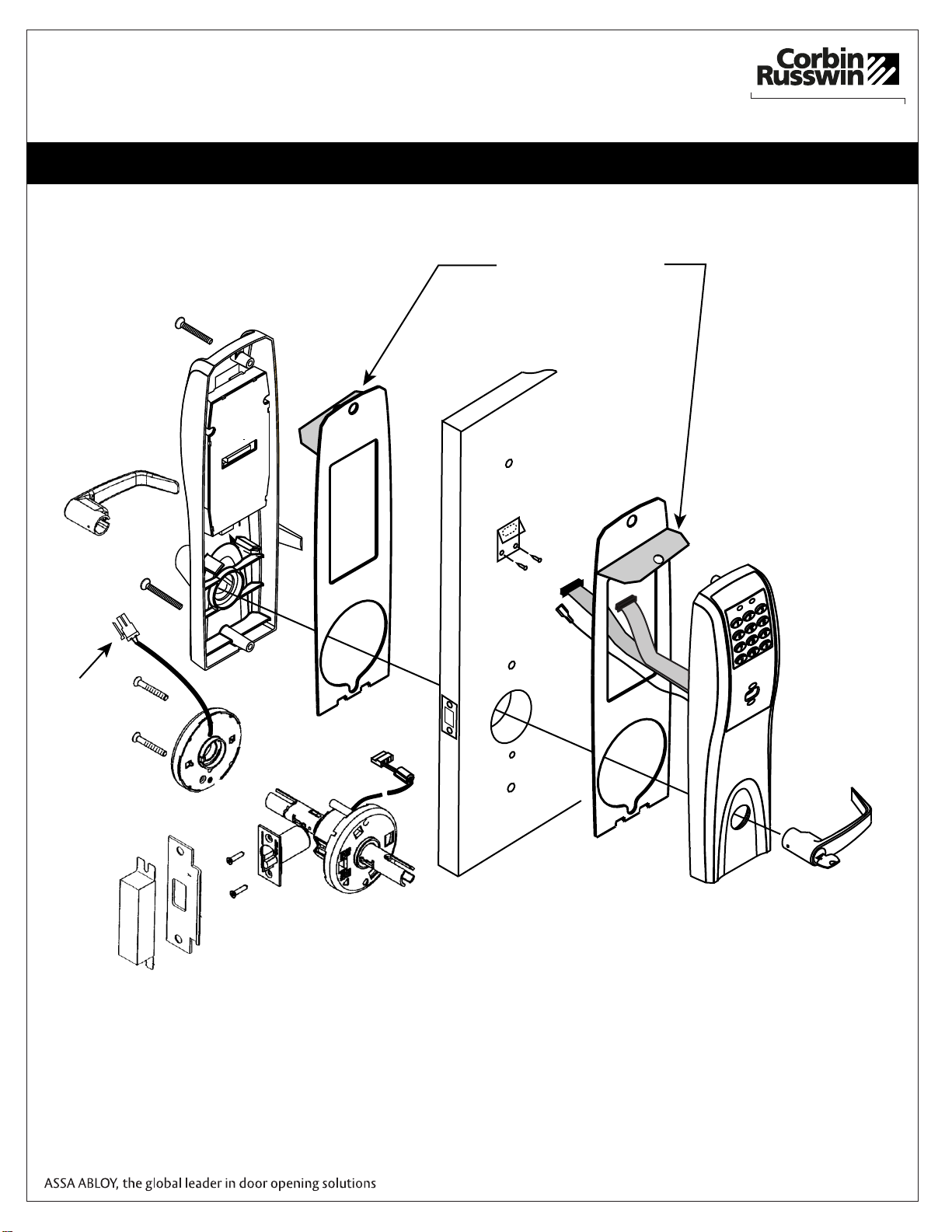

3) CL33800 Series Product Illustration

®
ASSA ABLOY
ElectroLynx® is a registered trademark of ASSA ABLOY Inc.
Copyright © 2014 Corbin Russwin, Inc. All rights reserved.
Reproduction in whole or in part without the express written
permission of Corbin Russwin, Inc. is prohibited.
5
1
2
3
4
Left Hand
Hinges Left.
Open Inward.
“LH”
Left Hand
Reverse Bevel
Hinges Left.
Open Outward
“LHR”
Right Hand
Hinges Right.
Open Inward.
“RH”
Right Hand
Reverse Bevel
Hinges Right.
Open Outward
“RHR”

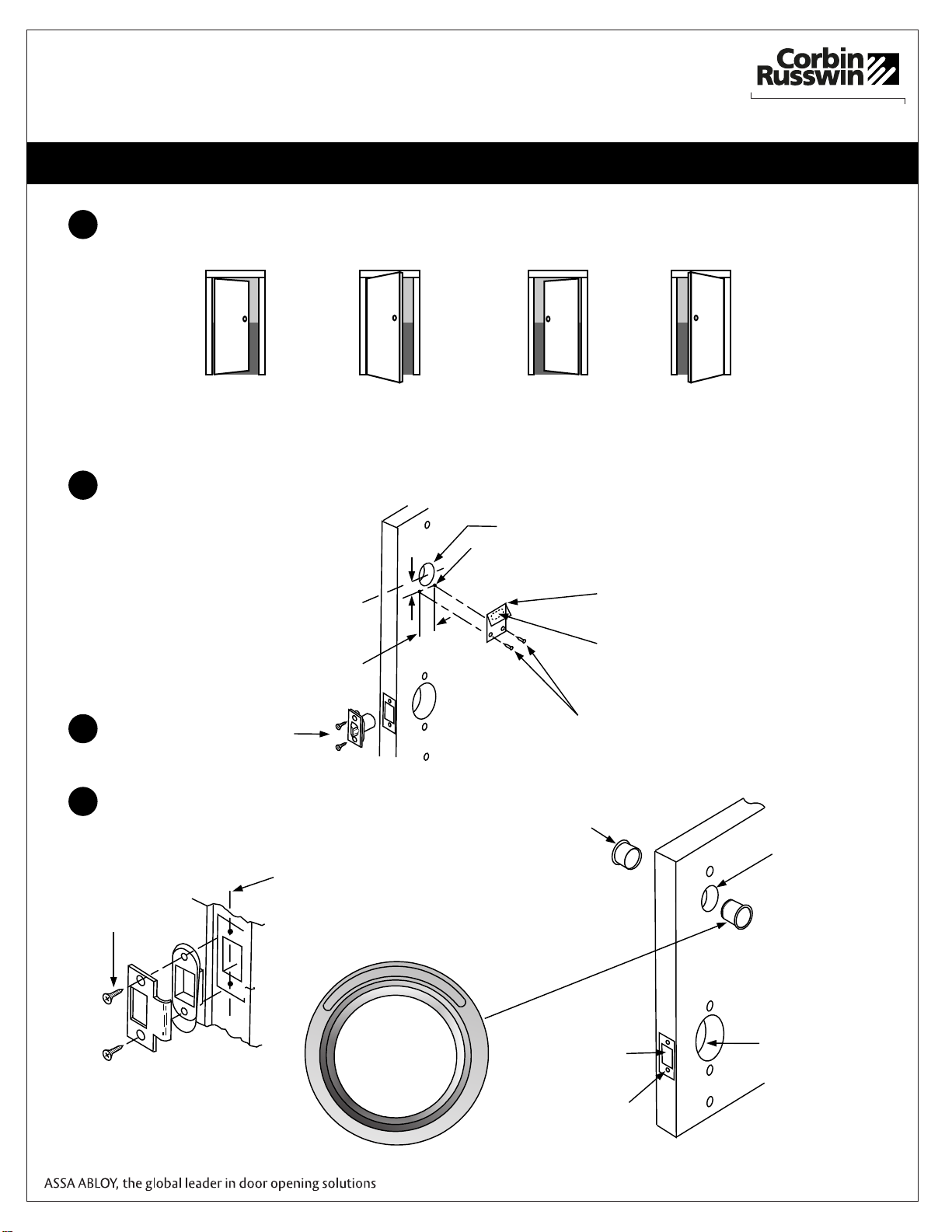

Prep door according to supplied door marker.
1-1/2
Install latch bolt using
two # 8x3/4” screws.
7/8”
Hole for ribbon cable 1/8”
Dia. holes (2) required
Outside
of Door
Install strike plate using two #8-32x3/4” screws.
Screws
#8-32x3/4”
Centerline of
latch front
and strike
Fire Stop Plate required for
fire rated doors
Slot
Attach fire stop plate
using self tapping screws
#8-32x1/2” long for wood &
metal doors.
Conduit (optional) is available to
provide weather protection for
exterior applications. Install
conduit half with recessed panel
Not For Use On Fire Door visible
from outside of door.
and/or tapped
holes, 2 places
Latch bolt
door prep
Pre-drilled
Hole for
ribbon
cable
Outside
of Door
Lock body
hole
Non Fire Rated
Doors
L
C of 1-1/2 Dia
FOR
USE
ON
FIRE
DOOR
NOT
4) Installation Instructions
Verify hand and bevel of door. Illustrations shown are as viewed from the outside
or secure side of opening.

®
ASSA ABLOY
ElectroLynx® is a registered trademark of ASSA ABLOY Inc.
Copyright © 2014 Corbin Russwin, Inc. All rights reserved.
Reproduction in whole or in part without the express written
permission of Corbin Russwin, Inc. is prohibited.
6
5 Installing chassis to door
Feed lock body wire harness through 2-1/8” diameter lock body hole and then install
lock body into door.
6
Inside of door
Harness Slot
Tighten latch
assembly screws
Ensure lock body wire harness is positioned in the vertical slot. Attach inside cassette
housing and secure with screws.
Inside of Door
Feed wires and
connector if metal
door
Connect the REX connector on I/S
cassette to connector on lock body
Making certain that both wires are in
harness slot
DPS connector wire should come out
between edge of cassette.
Collar is used only with metal doors.
Door Position Switch
I/S Cassette
Housing
7 Install door position switch into hole on edge of door.
4) Installation Instructions

®
ASSA ABLOY
ElectroLynx® is a registered trademark of ASSA ABLOY Inc.
Copyright © 2014 Corbin Russwin, Inc. All rights reserved.
Reproduction in whole or in part without the express written
permission of Corbin Russwin, Inc. is prohibited.
7
8

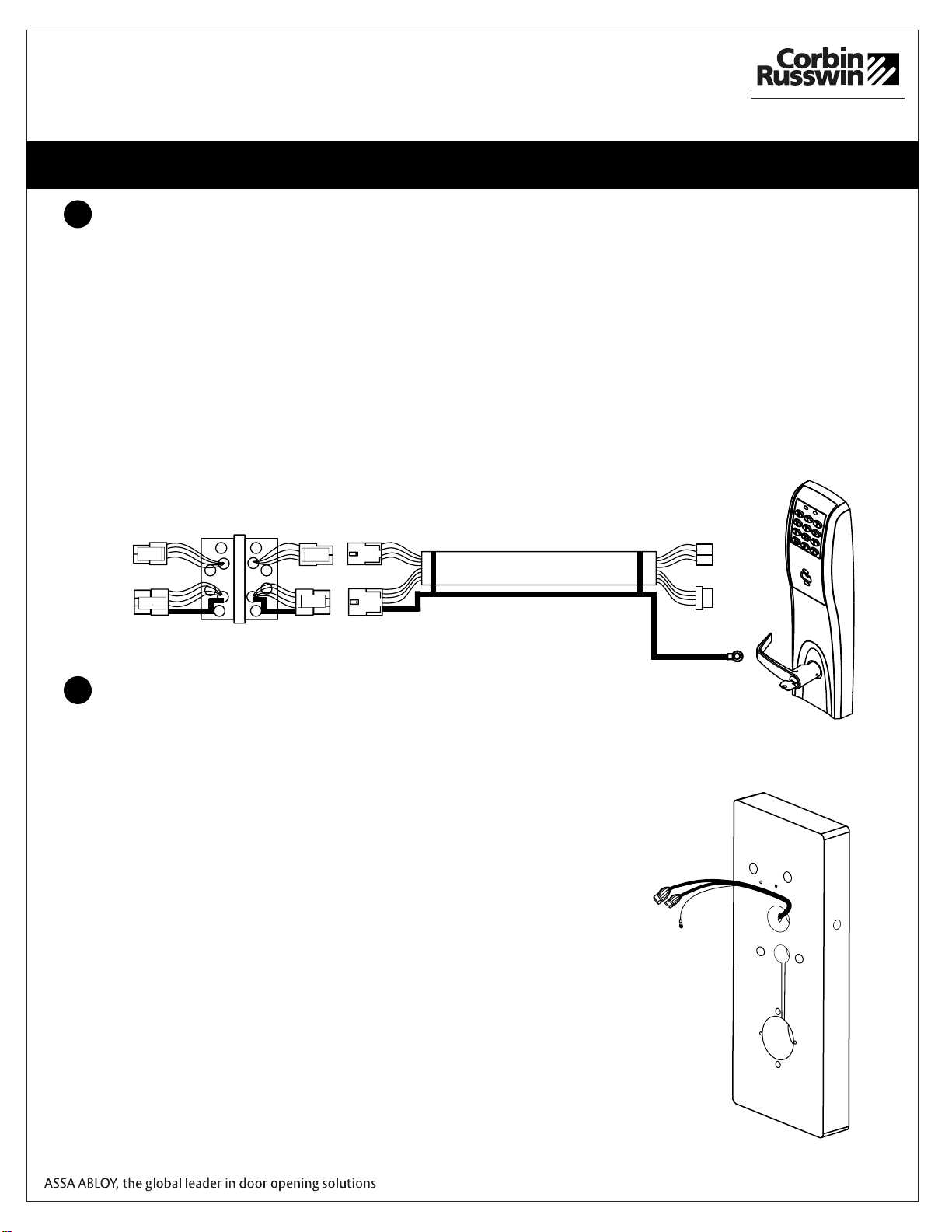

1A. For fire rated doors feed ribbon cable connector and ground wire from outside
escutcheon
through the fire stop plate.
1B. For non-fire rated door applications, optional gaskets may be used as a weather seal
between the escutcheon and the door surfaces. An optional conduit is also available for
further protection. Feed ribbon cable connector and ground through the conduit (if used).
2. Slide the outside escutcheon over the lock and hold the escutcheon to the door surface.
Gasket
(optional)
4) Installation Instructions
Installation of Outside Escutcheon
C A U T I O N
DOOR MUST REMAIN OPEN
DURING INSTALLATION.
USE DOOR STOP.
GASKET APPLICATION:
Peel off the adhesive protective paper
from gasket. Feed keypad ribbon cable
and ground wire through gasket
opening as shown and firmly press
gasket to escutcheon, aligning edge of
gasket with the edge of the escutcheon.

®
ASSA ABLOY
ElectroLynx® is a registered trademark of ASSA ABLOY Inc.
Copyright © 2014 Corbin Russwin, Inc. All rights reserved.
Reproduction in whole or in part without the express written
permission of Corbin Russwin, Inc. is prohibited.
8
98

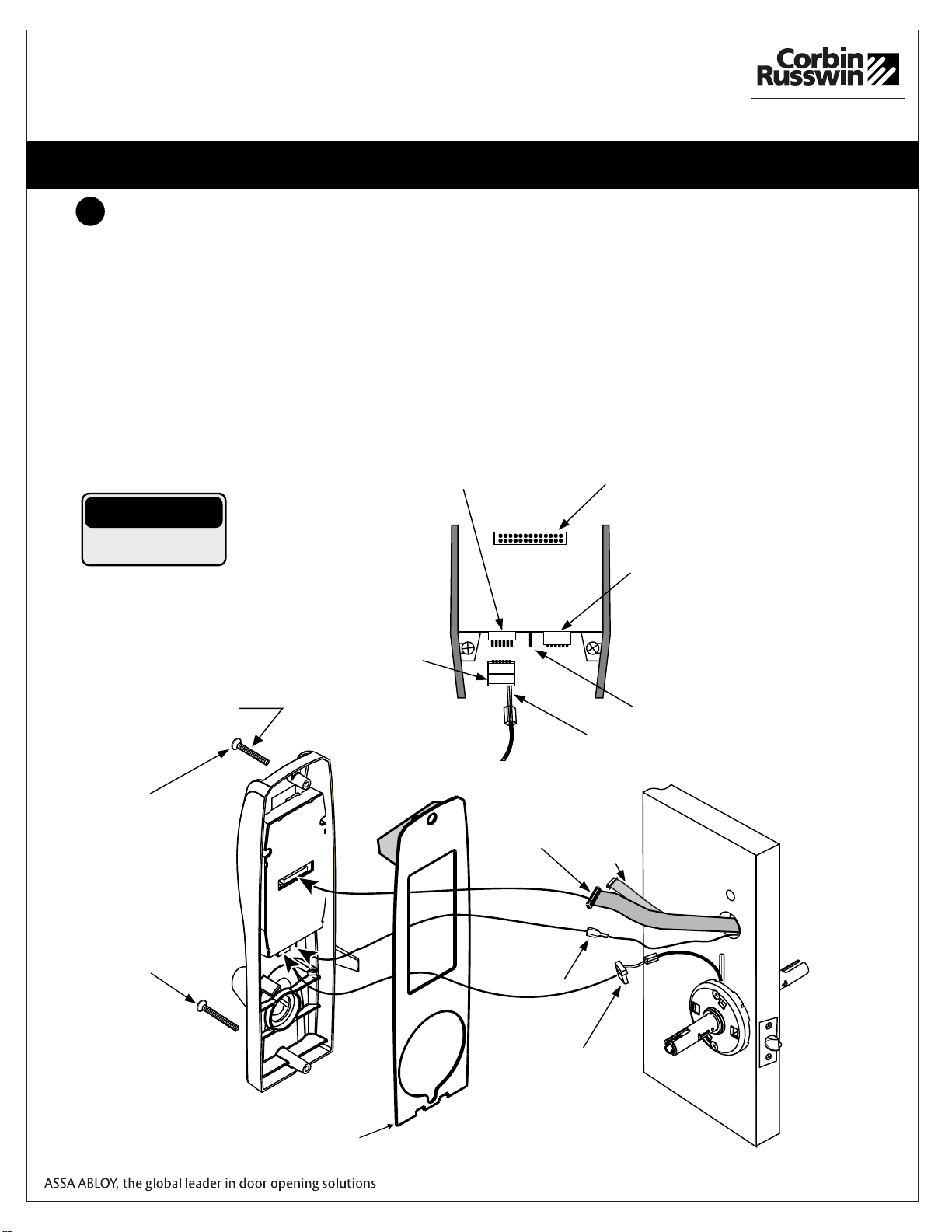

1. Remove black battery cover from the escutcheon with high security T20 Torx bit provided.
2. Connect ground wire to terminal, connect keypad ribbon cable to controller, connect lock
body harness to motor connector, connect DPS, and connect remote power if applicable.
3. Feed all excess wire through inside door hole and/into inside escutcheon cavity, being careful
not to pinch wires.
NOTE: Connectors go on only one way. Do not offset connectors and be sure they are
completely seated.
4. Insert 2 #10 x 24 screws through top and bottom of inside escutcheon (use painted screw on
top) and thread into outside escutcheon. Straighten escutcheons and tighten securely, being
careful to avoid pinching wires.
Locate (2) oval head screws and insert
through the escutcheon into the outside
escutcheon. Tighten firmly.
*Use screw with painted white
head in top hole. Failure to do this
will result in damage to
electronics.
# 10 x 24 Oval
Head Screw
# 10 x 24 Oval
Head Screw
Motor Connector
Lock Body Harness
Gasket
(optional)
1
Keypad Ribbon
Cable
Ground Wire
Lock Body Harness
Cable
Ground Terminal
Remote Power Connector
Remote Power
Ground Terminal
DPS
Inside of the Door
Remote Power
(if applicable)
4) Installation Instructions
Installation of Inside Escutcheon and Electrical Connections
C A U T I O N
DOOR MUST REMAIN OPEN
DURING INSTALLATION.
USE DOOR STOP.
Keypad Ribbon
®
iCLASS
Cable

®
ASSA ABLOY
ElectroLynx® is a registered trademark of ASSA ABLOY Inc.
Copyright © 2014 Corbin Russwin, Inc. All rights reserved.
Reproduction in whole or in part without the express written
permission of Corbin Russwin, Inc. is prohibited.
9
10 Installation and removal of Lever and Standard Cylinder
RELEASE
TOOL
RELEASE
TOOL
LEVER STYLE
PLAIN LEVER
CYLINDER LEVER
REMOVAL
PUSH RELEASE TOOL
Push release tool
Into release hole,
Remove lever
ROTATE KEY
Rotate key 45 clockwise
(from shed position),
Push in release tool into
Release hole, remove lever
Install Standard Cylinder
INSTALL
SLIDE LEVER OVER
Slide lever over
Lever catch
Pull on lever.
Make sure lever will
not pull off
INSERT KEY AND ROTATE
Insert key and rotate
45 (from Shed position),
slide lever on
Make sure lever will
not pull off
Make sure lock is unlocked.
A. Make sure cylinder tailpiece is aligned in same direction as cylinder bible. Slide cylinder all the
way into lever.
For 6 pin cylinder:Fold retainer at hinge and press fit retainer halves together as shown.
For 7 pin cylinder: Break retainer at hinge and discard spacer section. Also remove black
cylinder spacer from inside of chassis rollback for clearance.
Standard Cylinder Tailpieces
ACTUAL
SIZE
SHOWN
7/8”
(22) 6 PIN 11/16”
(17)
7 PIN
4) Installation Instructions
CL33800 WI1/IP1 Series Cylindrical Lock

®
ASSA ABLOY
ElectroLynx® is a registered trademark of ASSA ABLOY Inc.
Copyright © 2014 Corbin Russwin, Inc. All rights reserved.
Reproduction in whole or in part without the express written
permission of Corbin Russwin, Inc. is prohibited.
10
11 Installation (or Replacement) of Batteries, Battery Keeper and Cover
4) Installation Instructions
C A U T I O N
DOOR MUST REMAIN OPEN
DURING INSTALLATION.
USE DOOR STOP.
TEST
FOR PROPER
OPERATION
BEFORE
CLOSING
DOOR
CL33800 WI1/IP1 Series Cylindrical Lock

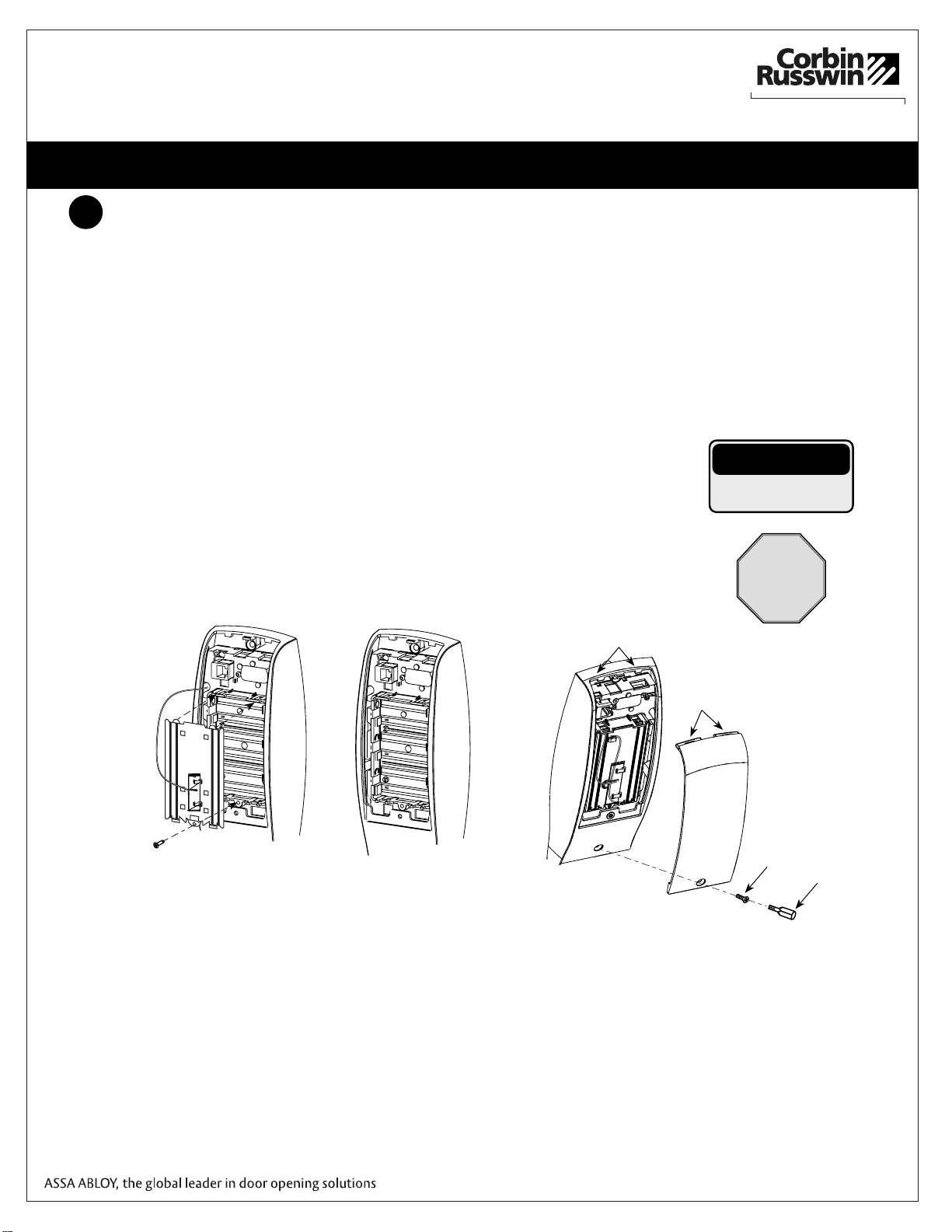

1. To install the batteries, first remove the battery cover using the T20 bit provided (Fig. 11C).
2. Unscrew the bottom screw of the battery keeper and remove the battery keeper, being
careful not to break the tabs at top holding it in place. (Fig 11A)
3. Place (6) "AA" batteries in the compartment, being careful to align polarity properly (Fig.
11B)
4. Replace battery keeper being careful to engage tabs at top to hold it in place. (Fig 11A)
5. Attach battery cover to inside escutcheon making sure to line up tabs with retaining slots in
battery cover.
6. Secure with the security screw and T20 bit. (Fig 11C)
Security Screw
T20 Bit
Retaining
Slots
Tabs
Fig. 11C
Fig. 11B
Fig. 11A

®
ASSA ABLOY
ElectroLynx® is a registered trademark of ASSA ABLOY Inc.
Copyright © 2014 Corbin Russwin, Inc. All rights reserved.
Reproduction in whole or in part without the express written
permission of Corbin Russwin, Inc. is prohibited.
11
Cable: CAT 5e or higher
24 AWG shielded with drain wire
JST
4-Pin
Molex-F Molex-F Molex-M
Cable: CAT 5e,
26 AWG stranded,
shielded, 100ohm
TIA/EIA-568B Standard Wiring
RJ45-M
Molex-M
RJ45-F Jack
Cable: CAT 5e or higher
24 AWG shielded, 100ohm
Approved Software
B-Splice
Certied Integrator (CI) supplies and terminates
Crimp Connector
the B-Splice connector and the
Male RJ45 connector from harness to
Supplied by End User
end user provided facility cable PoE Switch
PoE
Lock
Supplied by CI
Ceiling
C
B
A
PoE Patch Panel
Drain Wire Terminated on Rack
D
Ground
Ring Terminal
Secured to Lock
Drain Wire
Mounting Plate
PoE Switch
Rack is
Terminated to
Earth Ground
Patch Cable:
PoE Panel to
PoE Switch
4-Pin
Molex
PoE Frame harness assembly
(From McKinney)
PoE data hinge (U.S. Patent No. 7 ,824,200)
(From McKinney)
PoE Door harness
(From McKinney)
Access 800 IP1 (PoE Lock)
* Order of installation may vary.
Refer to appropriate sections for instructions.
Frame-Side
Harness
Assembly
(15' length)
24AWG
Stranded
Drain
Wire for
Earth
Ground in
15' Frame
Harness
Cable drain wire
concealed in
shrink tubing
1. PIP (PoE) Installation Wiring:
A
B
C
D
5) IP1 (PoE) Installation Wiring
CL33800 WI1/IP1 Series Cylindrical Lock

®
ASSA ABLOY
ElectroLynx® is a registered trademark of ASSA ABLOY Inc.
Copyright © 2014 Corbin Russwin, Inc. All rights reserved.
Reproduction in whole or in part without the express written
permission of Corbin Russwin, Inc. is prohibited.
12
A Frame Harness Installation
Components and wire harness supplied by McKinney: Suggested installation.
RJ45-M
Molex-M
Cable: CAT 5e or higher
24 AWG shielded, 100ohm
B-Splice
Crimp Connector
Supplied by CI
Ceiling
Each of the hinge-side harness connectors should end up threaded th-
rough a different access hole and matched to the same size pin connec-
tor from the door harness:
• 4-pin male Molex connector.
• 6-pin male Molex connector with ground wire.
Notes:
• Connectors only go on one way. They cannot be plugged to
incorrect position.
• Do not force and do not offset connectors.
•
Cut end / ceiling-side PoE harness:
TIA/EIA-568B Standard Wiring
Be sure they are completely seated (ush).
1
2
3
4
5
6
7
8
Pair Number Wire PIN
1 White/Blue White/Blue 5
Blue 4
2 White/Orange White/Orange 1
Orange 2
3 White/Green White/Green 3
Green 6
4 White/Brown White/Brown 7
Brown 8
Do not confuse pair numbers with pin numbers. A pair number is
used for reference only (eg: 10Base-T Ethernet uses pairs 2 & 3). The
pin numbers indicate actual physical locations on the plug and jack.
1. Feed cut end of harness into hole on hinge-side through single access
hole.
2. Push one of the connectors back through hole and feed into separate
Hinge side of PoE harness:
access hole.
B
6-pin F
4-pin M
6-pin M
4-pin F
B
Drain Wire
Frame
PoE Hinge (Patent Pending)
Frame-Side
Harness
Assembly
(15' length)
24AWG
Stranded
Drain
Wire for
Earth
Ground in
15' Frame
Harness
Cable drain wire
concealed in shrink
tubing
Hinge-side harness connectors:
• 4-pin male molex connector
• 6-pin male molex connector with ground wire
Lock-side harness connectors:
• Ring terminal
• (2) 4-pin connectors
CL33800 WI1/IP1 Series Cylindrical Lock
5) IP1 (PoE) Installation Wiring

®
ASSA ABLOY
ElectroLynx® is a registered trademark of ASSA ABLOY Inc.
Copyright © 2014 Corbin Russwin, Inc. All rights reserved.
Reproduction in whole or in part without the express written
permission of Corbin Russwin, Inc. is prohibited.
13
Hinge Installation
Order of installation may vary. Refer to appropriate sections for instructions.
Hinge-side harness connectors:
• 4-pin male Molex connector
• 6-pin male Molex connector with ground wire
Lock-side harness connectors:
• Ring terminal
• (2) 4-pin connectors:
• 4-pin Molex connector
• 4-pin connector
Notes:
• Connectors go on only one way. They cannot be plugged to incorrect position.
• Do not force and do not offset connectors.
• Be sure they are completely seated (flush).
C
Door Harness Installation
Order of installation may vary. Refer to appropriate sections for
instructions.
1. Prop door open.
2. Tape the two lock-side 4-pin connectors to the ring terminal.
3. Using the ring terminal, carefully fish the assembly through the
door channel to the lock.
4. Remove tape from ring terminal and door harness connectors.
Hinge-side harness connectors:
• 4-pin male Molex connector
• 6-pin male Molex connector with ground wire
Lock-side harness connectors:
• Ring terminal
• (2) 4-pin connectors:
• 4-pin Molex connector
• 4-pin connector
Notes:
• Connectors go on only one way. They cannot be plugged to
incorrect position.
• Do not force and do not offset connectors.
• Be sure they are completely seated (flush).
D
JST
4-Pin
6-pin F 6-pin F 6-pin M
Cable: CAT 5e,
26 AWG stranded,
shielded, 100ohm
4-pin M 4-pin F4-pin F
Drain Wire
PoE Hinge (Patent Pending)
Ring Terminal Secured
to Lock Mounting Plate
4-Pin
Ground
Molex
5) IP1 (PoE) Installation Wiring
CL33800 WI1/IP1 Series Cylindrical Lock

®
ASSA ABLOY
ElectroLynx® is a registered trademark of ASSA ABLOY Inc.
Copyright © 2014 Corbin Russwin, Inc. All rights reserved.
Reproduction in whole or in part without the express written
permission of Corbin Russwin, Inc. is prohibited.
14
6) CL33800 Hard Wiring Instructions
6.1) Important
1. Caution: Disconnect all input power before beginning installation to prevent electrical shock
and equipment damage.
2. Installer must be a trained, experienced service person.
3. All wiring must comply with applicable local electrical codes, ordinances and regulations.
6.2) Installation Notes
®
1. With new applications, an ElectroLynx door harness with 8 and 4 pin connectors will be pre-
installed inside door by ASSA ABLOY door manufacturer when specified during ordering
process.
®
2. Wiring to pigtail harness is per facility wiring requirement. ElectroLynx connector
terminations and wire colors all match.
®
3. If door does not have an ElectroLynx type door harness, cut connectors off product and hard
wire, or consult factory for appropriate mating harness.
®
6.3) ElectroLynx Connector System Notes:
The system is designed to be installation friendly with pluggable connectors from the electric
hinge through the door to the rail. The only wiring required is to the loose wires on the pigtail
harness assembly on the frame side of the electric hinge.
IMPORTANT:
The plug and receptacle connectors are designed to mate and lock together as shown in the
figure. Plug the connectors into each other with the locking mechanism aligned as indicated.
Do NOT Force connectors on any other way.
As part of their promise to provide
innovative, fast and effective high
security solutions to their customers,
certain ASSA ABLOY Group brands offer
®
ElectroLynx , a universal quick-connect
system that simplifies the electrification of
the door opening.
Receptacle
Locking Mechanism
Plug
Hardwiring Made Easy
ELECTRO
®
Hardwiring options include one or a combination of the following: M861
Forced Door Propped Door Option, M35 Power/Remote Unlocking Harness

®
ASSA ABLOY
ElectroLynx® is a registered trademark of ASSA ABLOY Inc.
Copyright © 2014 Corbin Russwin, Inc. All rights reserved.
Reproduction in whole or in part without the express written
permission of Corbin Russwin, Inc. is prohibited.
15
6.4) M861 Quick Code, Forced Door Propped Door Option

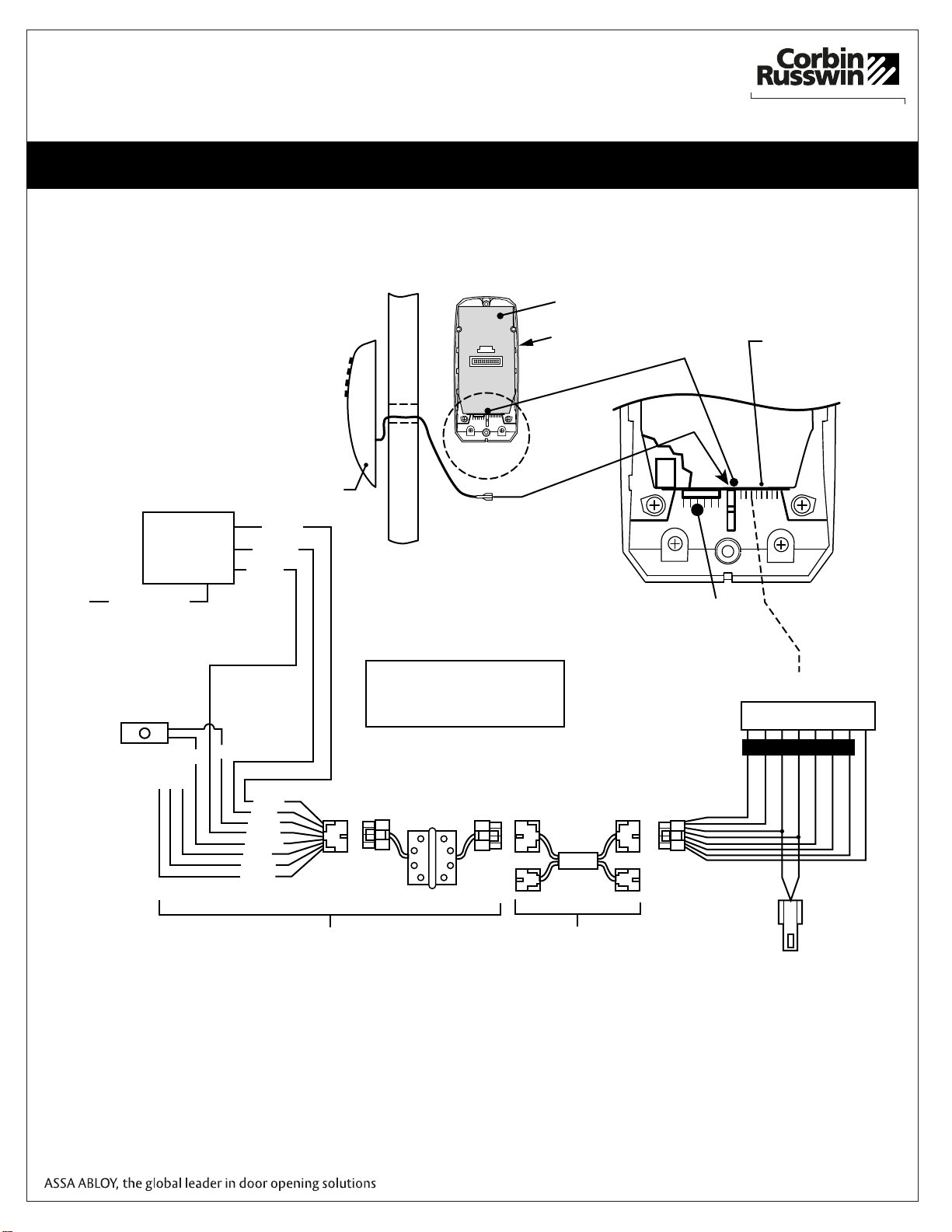

1. ElectroLynx System Wiring Instructions (refer to Fig. 1 and Fig. 2)
®
a. Look for the mating part on ASSA ABLOY doors and frames. Then plug in all
connectors as shown in Fig. 2 during product installation.
b. Hard wire DPS switch as shown.
2. Non-ElectroLynx System Wiring Instructions (refer to Fig. 1 and Fig. 2)
®
a. Cut the 4-pin connector off the Forced Door Propped Door harness and hard wire
®
to ElectroLynx two conductor door harness.
b. Hard wire door harness to power transfer device.
c. Hard wire DPS switch to power transfer device.
Installation:
B
A
Red, 1
Black, 2
White, 3
Green, 4
Fig. 2

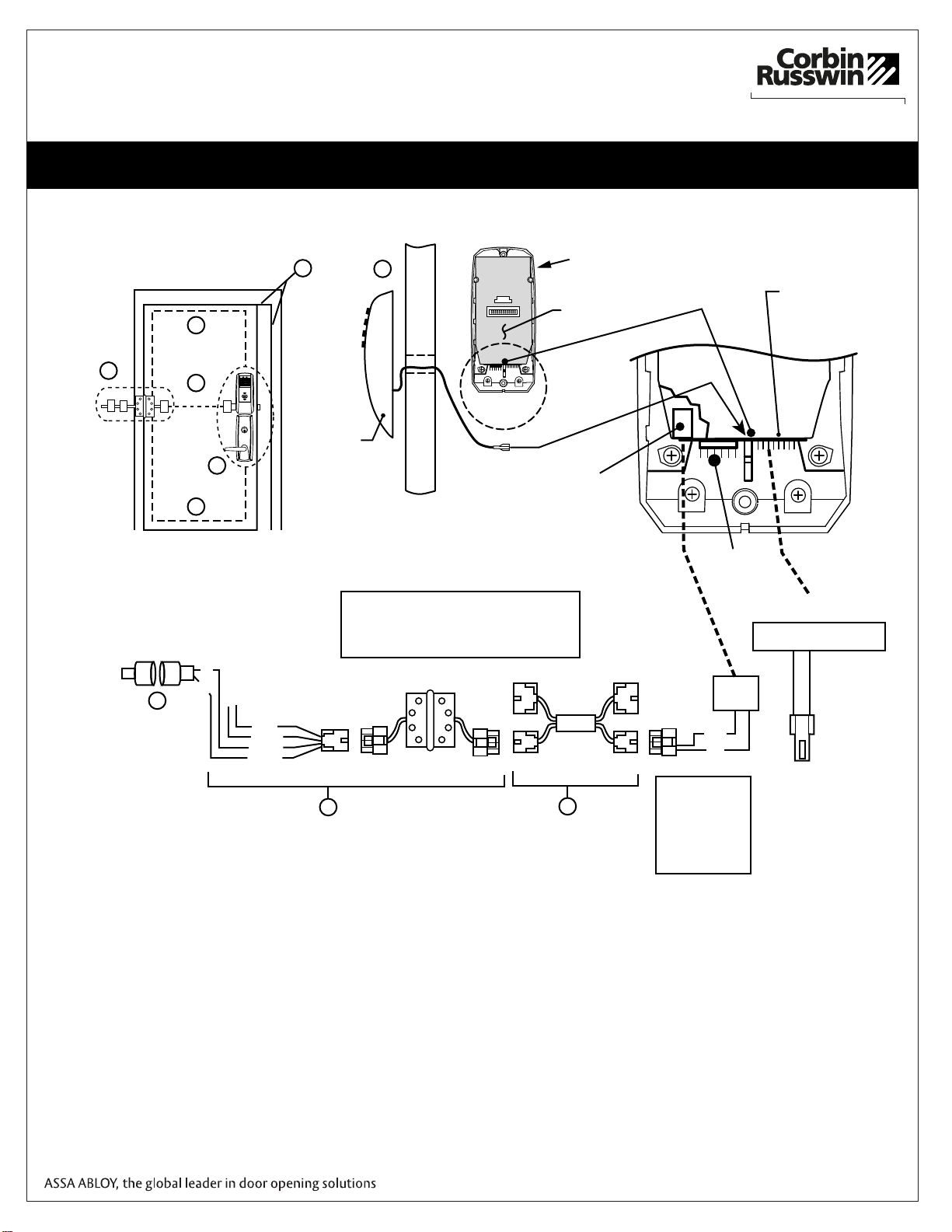

Forced Door/Propped Door Option
ElectroLynx™ Wiring System
QC4A Electric Hinge
with 4-pin connectors,
and pigtail harness
ElectroLynx Door
Harness with
8 & 4-pin
connectors.
Harness location
is dependent on
door type.
3 4
White Orange
(-) REX REX Data Out Data In RTS (EGND)
+9
C
*NC
D
Door
Outside
Escutcheon
Inside Escutcheon
Ground Tab REX Connector
TB2
Motor
Connector
TB1
M861 Forced
Door,
Propped Door
Harness
4-pin
connector
A
B
B
D
C
B
Fig. 1
1 2 3
4
7
5
8
0
6
9
#
*
C
127 8
5 6
3 2 1
4
Tan
3
Pink
DPS Switch
*Wire for switch
contact closure
when door is
opened. Typical
locations shown
in Fig. 1
REX
connector,
connect to
the
connector
coming
from the
device.
(See page 3)
Controller
DPS Connector
used for M861
Option
(Exit Device Escutcheons Shown)
6) CL33800 Hard Wiring Instructions

®
ASSA ABLOY
ElectroLynx® is a registered trademark of ASSA ABLOY Inc.
Copyright © 2014 Corbin Russwin, Inc. All rights reserved.
Reproduction in whole or in part without the express written
permission of Corbin Russwin, Inc. is prohibited.
16
6) CL33800 Hard Wiring Instructions
6.5) M35 Power/Remote Unlocking Harness
Black, 1
Red, 2
White, 3
Green, 4
Orange, 5
Blue, 6
Brown, 7
Yellow, 8
784
9VDC
Power Supply
Fig. 3
Power/Remote Unlocking
ElectroLynx Wiring System
QC8 Electric Hinge
with 8-pin connectors,
8 wires and pigtail harness
ElectroLynx Door Harness
with 8 & 4-pin connectors.
Harness location is
dependent on door type.
120 VAC L/N/G
EGND
+9 VDC
-9 VDC
1 2 3 4 5 6 7 8
Red Black White Orange Blue Brown Yellow Green
(-) REX REX Data Out Data In RTS (EGND)
+9
REX Input
Connect to
Device.
Only used in
combination
with the M861
Option.
It may be left
unconnected.
M35
Power/Remote
Unlocking
Harness
6 AA batteries MUST be removed from
controller if 784 Power supply is used.
Door
Outside
Escutcheon
Inside
Escutcheon Ground Tab Remote Power and
REX Connector TB2
Motor
Connector
TB1
CNO
Normally Open
momentary switch
(Remote unlock
- REX option)

®
ASSA ABLOY
ElectroLynx® is a registered trademark of ASSA ABLOY Inc.
Copyright © 2014 Corbin Russwin, Inc. All rights reserved.
Reproduction in whole or in part without the express written
permission of Corbin Russwin, Inc. is prohibited.
17
6) CL33800 Hard Wiring Instructions
1. ®
ElectroLynx System Wiring Instructions (refer to Fig. 1 and Fig. 3)
a. Look for the mating part on ASSA ABLOY doors and frames. Then plug in all
connectors as shown in Fig. 3 during product installation.
b. Hard wire 784 power supply as shown.
2. ®
Non-ElectroLynx System Wiring Instructions (refer to Fig. 1 and Fig. 3)
a. Cut the 8-pin connector off the Power/Remote Unlocking harness and hard wire
®
to non-ElectroLynx door harness. Remote power requires three conductors and
remote unlock requires two conductors.
b. Hard wire door harness to power transfer device.
c. Hard wire 784 power supply as shown.
Installation:

®
ASSA ABLOY
ElectroLynx® is a registered trademark of ASSA ABLOY Inc.
Copyright © 2014 Corbin Russwin, Inc. All rights reserved.
Reproduction in whole or in part without the express written
permission of Corbin Russwin, Inc. is prohibited.
18
6) CL33800 Hard Wiring Instructions
6.6) M35 Power/Remote Unlocking with M861 Propped Door, Forced Door.
1 2 3 4 5 6 7 8
Red Black White Orange Blue Brown Yellow Green
(-) REX REX Data Out Data In RTS (EGND)
+9
Black, 1
Red, 2
White, 3
Green, 4
Orange, 5
Blue, 6
Brown, 7
Yellow, 8
784
9VDC
Power Supply
Fig. 4
Power/Remote Unlocking
Forced Door, Propped Door
ElectroLynx Wiring System
QC12 Electric Hinge
with 8 and 4-pin connectors,
12 wires and pigtail harness
ElectroLynx Door Harness
with 8 & 4-pin connectors.
Harness location is
dependent on door type.
120 VAC L/N/G
EGND
+9 VDC
-9 VDC
Red, 1
Black, 2
White, 3
Green, 4
DPS Switch
*Wire for switch
contact closure
when door is opened.
Typical locations
shown in Fig. 1
C
*NC
REX Input
Connect to
Device
(See page 3)
M35
Power/Remote
Unlocking
Harness
4
Tan
3
Pink
6 AA batteries MUST be removed from
controller if 784 Power supply is used.
Door
Outside
Escutcheon
Inside
Escutcheon
Ground Tab
Remote Power and
REX Connector TB2
Motor
Connector
TB1
M861 Forced
Door,
Propped Door
Harness
4-pin
connector
3 2 1
Controller
CNO
Normally Open
momentary switch
(Remote unlock
- REX option)

®
ASSA ABLOY
ElectroLynx® is a registered trademark of ASSA ABLOY Inc.
Copyright © 2014 Corbin Russwin, Inc. All rights reserved.
Reproduction in whole or in part without the express written
permission of Corbin Russwin, Inc. is prohibited.
19
®
1. ElectroLynx System Wiring Instructions (refer to Fig. 1 and Fig. 4)
a. Look for the mating part on ASSA ABLOY doors and frames. Then plug in all
connectors as shown in Fig. 4 during product installation.
b. Hard wire forced/propped, hard power and/or remote unlock (REX) as shown.
®
2. Non-ElectroLynx System Wiring Instructions (refer to Fig. 1 and Fig. 4)
a. Cut the 8-pin connector off the Power/Remote Unlock harness and hard wire
®
to non-ElectroLynx door harness. Remote power requires three conductors
and remote unlock requires two conductors.
b. Hard wire door harness to power transfer device.
c. Hard wire forced/propped, hard power and/or remote unlock (REX), as shown.
Installation:
6) CL33800 Hard Wiring Instructions

®
ASSA ABLOY
ElectroLynx® is a registered trademark of ASSA ABLOY Inc.
Copyright © 2014 Corbin Russwin, Inc. All rights reserved.
Reproduction in whole or in part without the express written
permission of Corbin Russwin, Inc. is prohibited.
20
Lock Operational Check For devices with cylinders:
1. Insert key into cylinder and rotate.
2. The key will retract the latch.
3. Inside lever* retracts latch.
Use proximity card or PIN code set up with lock configuration tool. This should unlock outside
lever and allow latch to be retracted. Please see Network & Lock Configuration Tool User
Manual (WFMN1) for more information.
4.
C A U T I O N
DOOR MUST REMAIN OPEN
DURING INSTALLATION.
USE DOOR STOP.
TEST
FOR PROPER
OPERATION
BEFORE
CLOSING
DOOR
7) Operational Check
CL33800 WI1/IP1 Series Cylindrical Lock
