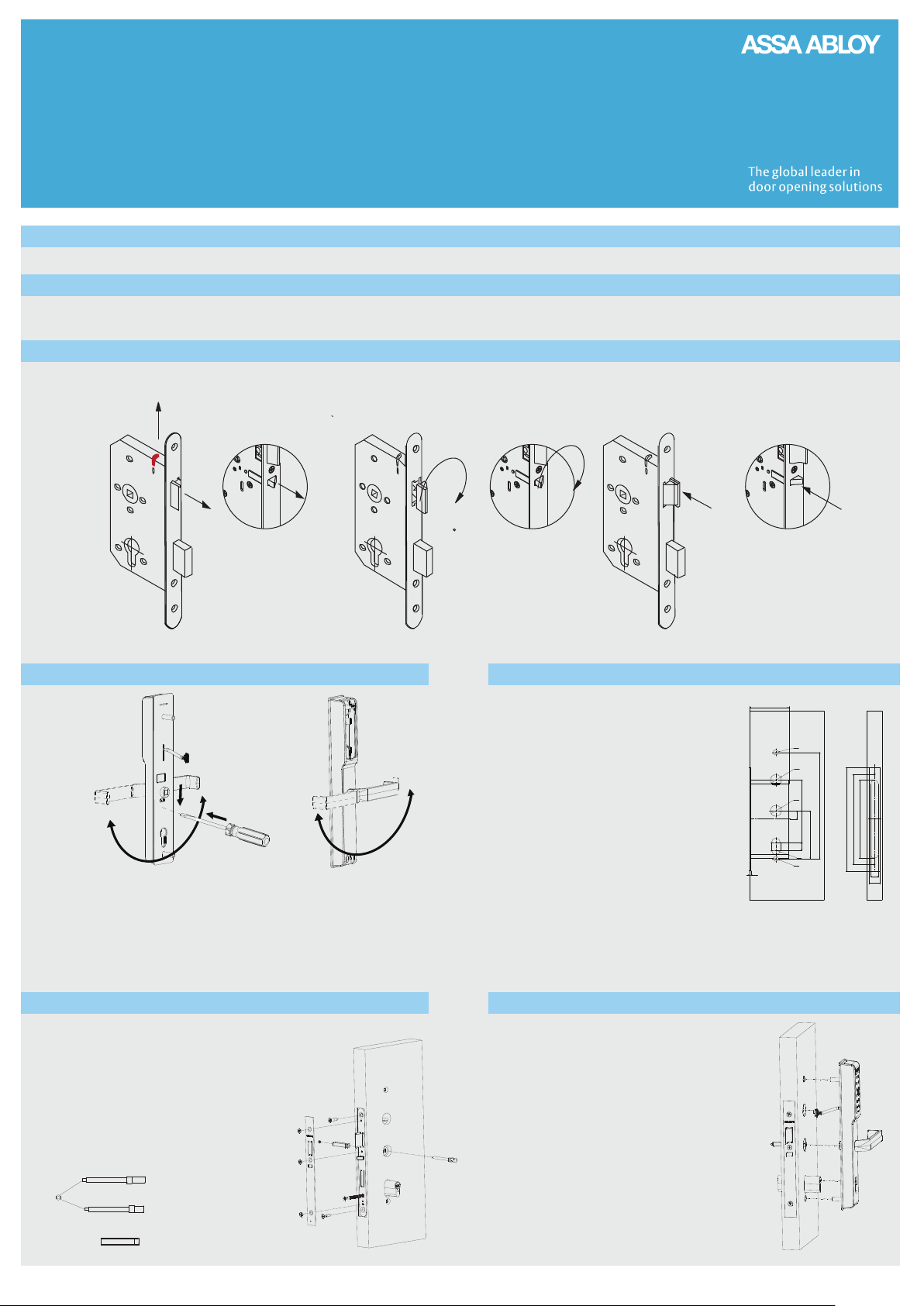

AUE100 Aperio and CTX/E3608 Cortex
European Mortice Locks Installation Guide
Product Applications:
Suitable for metal doors, wooden doors; Door thickness: 35~50mm, Ability for fire-proof test.
Pull the top tab
1) Pull the tab at top of lock, the latch will pop out 2) Turn the latch 180 degrees 3) Push back the latch along the latch hole
Push back
Rotate latch
180
When installing the lock case, the bevel of latch should face to the door opening direction.
When the latch is not facing the right direction, it needs to be rotated 180 degrees.
Pull


CTX/E3608SC / AUE103MUSC1 Installation Instructions
90
72
Ø25
Ø25
Ø12
Ø12
18
R10
70
109
242
3
19
205
24
18
235
178
1)The lockcase is made of high quality steel, high strength, high temperature resistance.
2)The latch can be opened by key and snib, convenient and reliable. Can change the direction of latch, easy to install.
Note:
1) Pull the lever when changing the direction to avoid scratching the base.
2) Don't remove the protective bag before rotating the lever to required position.
1) Insert the lockcase into door, secure the lockcase
with timber fix screws.
2) If cylinder is required, insert the cylinder into lockcase,
tighten the cylinder retaining screw, retract the latch
by key to check whether the latch is working smoothly.
3) Insert the spindles into lockcase, (use the correct
spindles for the right door thickness) tighten the
spindle nut.
4) Place lock faceplate on and secure with the metal
thread screws.
External Escutcheon
and Lever
Internal Escutcheon
and Lever
For External lever handing - Insert flat blade screwdriver in slot as shown
Engage with Internal tab and push down
Rotate lever to required position
For External lever handing - Rotate lever to required position
Door Preparation
IMPORTANT
Firstly, for the chosen mortice lock, please
prepare the door as per the manufacturer's
instructions.
Once the door has been morticed for the lock,
position the appropriate Aperio or Cortex
template on the door and prepare the door for
escutcheon/lockset.
Exterior Spindle A
(Thickness of door 43-50mm)
Exterior Spindle B
(Thickness of door 35-42mm)
Interior Spindle
(Thickness of door 35-50mm)
M3
Nut
Features:
Latch Adjustment
Handing of Lockset
Fitting the Mortice Locks Mounting the External Escutcheon
Assemble the external spindle into the lever hub.
Use either spindle A or B depending on the door
thickness into the external side of the door.
Place the loom completely through the door and
insert mounting posts into the required holes.
Engage spindle into latch or mortice lock hub.
Ensure spindle and hub are aligned with the
mortice lock hub.
ASSA ABLOY Australia Pty Limited ABN 90 086 451 907 ©2017_02



AUE100 Aperio and CTX/E3608 Cortex
European Mortice Locks Installation Guide
CTX/E3608SC / AUE103MUSC1 Installation Instructions
Installation of BatteriesMounting of Internal Lockset
Strike Hole Making Dimension Ready for Use
50
29
113
154
25
23
3
43.5
Fix bottom screw cover into place.
Insert the four supplied AA batteries.
Use the Cortex or Aperio
User Guide to program your
locksets to the desired function.
When complete, assemble battery
cover by engaging the small tabs near
the top of the battery opening with
the tabs on the cover.
Then slide the cover down and secure
with the hexhead screw supplied.
With the external lockset on the door
pass the main loom through the slot in
the rubber gasket. Assistance may be
required to ensure external escutcheon
is supported to the door in the process.
Plug the main loom into the main plug
on the internal escutcheon. Only the main
loom is required.
Bring the internal escutcheon to the door
and engage the spindle in the lever.
Using the supplied long mounting
screws, secure the escutcheons
together to the door. Ensure you use
the correct mounting hole position.
 







ASSA ABLOY Australia Pty Limited ABN 90 086 451 907 ©2017_02
