6000 Series
6010LAP / 6020LAP Replacement
Installation and Instruction Manual
ETL certified; conforms to ANSI/UL standard
325 for automatic closing doors and UL10C
Positive Pressure Fire Test for Door Assemblies.
Certified to ANSI/BHMA A156.19 for Low Energy
Door Operators.
WARNING: To reduce the risk of injury to person,
use this operator only with Pedestrian Swing doors.
For Indoor Use Only.
IMPORTANT INSTALLATION INSTRUCTIONS
1) READ AND FOLLOW ALL INSTALLATION
INSTRUCTIONS.
2) Install only on a properly operating and balanced door. A
door that is operating improperly could cause severe
injury. Have qualified service personnel make repairs to
any hardware before installing the operator.
3) Remove, or make inoperative, all locks (unless
mechanically and/or electrically interlocked to the
power unit) that are connected to the door before
installing the operator.
4) Do not connect the door operator to the source
power until instructed to do so.
!WARNING: Make sure that (120V, 60Hz) input power is turned off at facility’s main
circuit breaker before proceeding with installation.
For replacement of 6010LAP on
existing 6010 or 6050 installs,
see page 2.
For replacement of 6020LAP on
existing 6060 or 6070 installs,
see page 6.
For replacement of 6020LAP on
existing 6020 or 6030 installs,
see page 4.

Copyright © 2017 Yale Security Inc., an ASSA ABLOY Group company. All rights reserved.
Reproduction in whole or in part without the express written permission of Yale Security Inc. is prohibited. 80-9360-1020-020 Rev 1 02/17

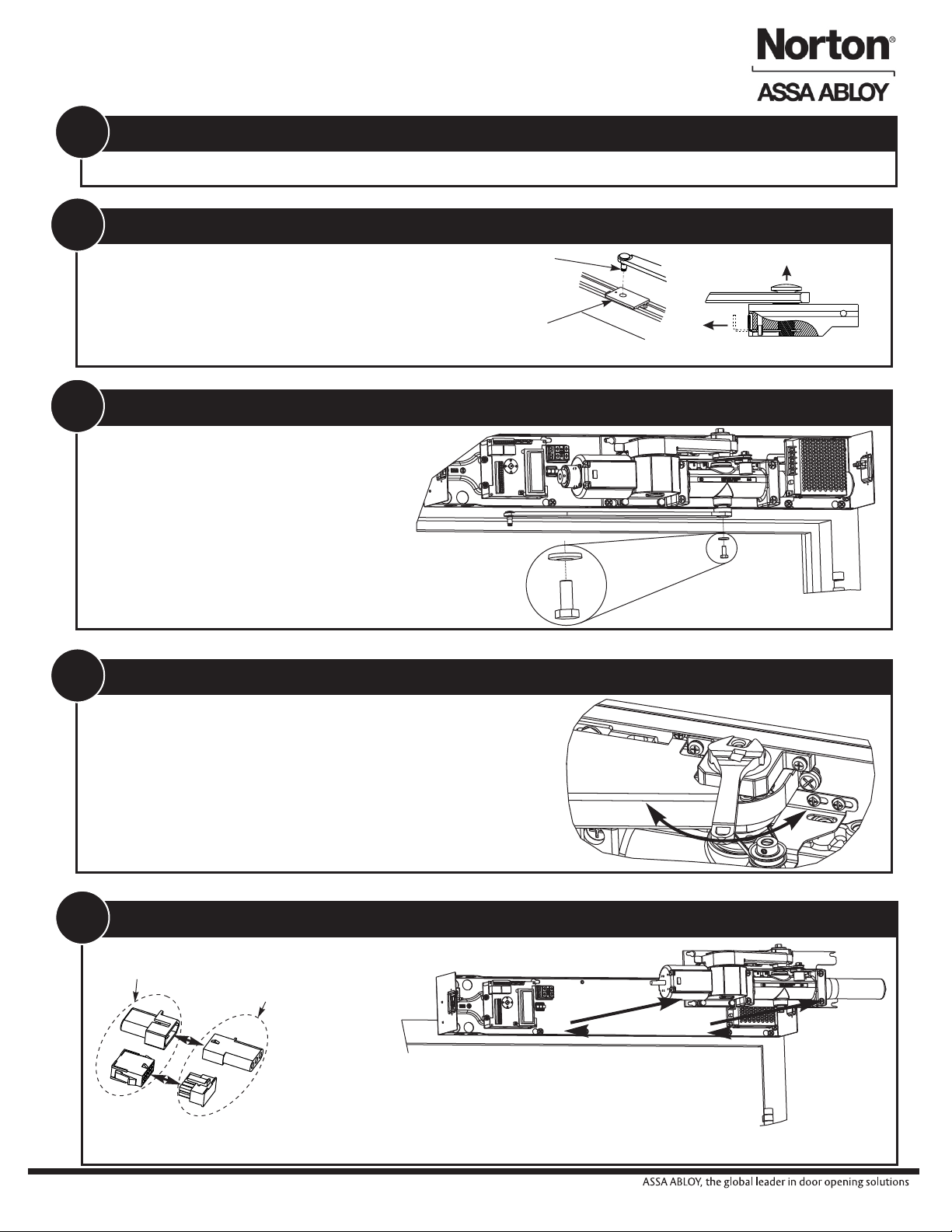

For 6010/6050 Units Only: Disconnect Arm From Track
2a
A. Use small flat blade screw driver to pull clip on
back side of Slide Assembly out to disengage
Arm Stud.
B. Pull up on arm until Arm Stud disengages from
Slide Assembly. CAUTION: Arm will try to close
due to spring power on closer.
Slide
Assembly
Arm Stud
A
B
Remove Arm Screw From Pinion
2b
A. Use 7/16” wrench to
loosen and remove
arm screw and washer.
Disassemble Arm From Pinion
2c
A. Use adjustable wrench to rotate pinion
square on top side of unit approximately 45°
so arm moves away from frame.
B. Remove arm from pinion.
C. Allow adjustable wrench to rotate back and
remove.
Turn off Power
1
A. Turn On/Off switch on end cap to the Off position before proceeding.
Page 2
Disassembe Closer Sub-Assembly
2d
A. Disconnect wiring harnesses from Closer Sub-
Assembly to Back Plate Assembly.
B. Loosen 4 screws holding the Closer Sub-Assembly.
C. Slide Closer Sub-Assembly to side and slide key hole
in back plate over screws to remove Sub-Assembly.
From Closer
Sub-Assembly From Back
Plate Assembly

Copyright © 2017 Yale Security Inc., an ASSA ABLOY Group company. All rights reserved.
Reproduction in whole or in part without the express written permission of Yale Security Inc. is prohibited. 80-9360-1020-020 Rev 1 02/17
Page 3
Assembly Closer Sub-Assembly
2e
A. i) Install new Closer Sub-Assembly over screws in Step 2d
with closer spring tube under power supply and ii) slide
Closer Sub-Assembly toward Hinge edge of door.
B. Secure screws for Closer Sub-Assembly from Step 2d.
C. Secure top of Sub-Assembly to Blocking (for masonry use
anchors and spacers).
D. Connect wiring harnesses from Closer Sub-Assembly to
Back Plate Assembly. Connectors are keyed and only
connect in one direction. Connectors will lock.
i
ii
i
ii
From Closer
Sub-Assembly From Back
Plate Assembly
Assemble Arm to Pinion
2f
Mount closer arm to pinion square
as shown.
RE-INSTALL
HERE LEFT
HAND
RIGHT
HAND
Align the pinion flat as
shown.
!
*All views from floor looking upward*
A. Use adjustable wrench to rotate pinion square
on top side of unit approximately 45°.
B. With arm parallel to frame, as at right, and
pinion flats oriented as at right mount arm
onto pinion square.
PINION
FLAT
LEFT
HAND
RIGHT
HAND
Secure Arm to Pinion
2g
A. Attach arm with
provided screw and
washer.
B. Tighten arm screw
with 7/16” wrench.

Copyright © 2017 Yale Security Inc., an ASSA ABLOY Group company. All rights reserved.
Reproduction in whole or in part without the express written permission of Yale Security Inc. is prohibited. 80-9360-1020-020 Rev 1 02/17
Connect Arm To Track
2h
A. Insert Arm Stud into Slide
Assembly
B. Press clip on back side of Slide
Assembly onto Arm Stud. Slide
Assembly
Arm Stud
B
A
Page 4
For 6020/6030 Units Only: Loosen Arm Assembly
3a
A. Loosen forearm screw.
B. Rotate Main Arm toward hinge
until Main Arm is perpendicular
(at 90 degrees) with the door.
Forearm Screw
Main Arm
Arm Slide Tube
Adjusting Rod
Remove Screw and Arm from Pinion
3b
A. Loosen and remove arm screw
with 7/16” wrench.
B. Remove Main Arm from
pinion.
For assistance, contact Norton Technical Product Support
at 800-438-1951 Ext 6030.
3000 Highway 74 East • Monroe, NC 28112
Tel: [phone] ext. 6030
ww w.no r to nd oo rc on tr ols.c om
su pp or t .a ad cg @as sa abloy. co m

Copyright © 2017 Yale Security Inc., an ASSA ABLOY Group company. All rights reserved.
Reproduction in whole or in part without the express written permission of Yale Security Inc. is prohibited. 80-9360-1020-020 Rev 1 02/17
Disassemble Closer Sub-Assembly
3c
A. Disconnect wiring harnesses from Closer Sub-Assembly to Back Plate Assembly.
B. Loosen 4 screws holding the Closer Sub-Assembly.
C. Slide Closer Sub-Assembly to side and slide key hole in back plate over screws to
remove Sub-Assembly.
From Closer
Sub-Assembly From Back
Plate Assembly
Assemble Closer Sub-Assembly
3d
A. i) Install new Closer Sub-Assembly over screws in Step 3c with closer spring tube
under power supply and ii) slide Closer Sub-Assembly toward Hinge edge of door.
NOTE: Valves on door closer should be facing away from chain.
B. Secure screws for Closer Sub-Assembly from Step 3c.
C. Secure top of Sub-Assembly to Blocking (for masonry, use anchors and spacers).
D. Connect wiring harnesses from Closer Sub-Assembly to Back Plate Assembly.
Connectors are keyed and only connect in one direction. Connectors will lock.
i
ii
i
ii From Closer
Sub-Assembly From Back
Plate Assembly
Page 5
Assemble Arm to Pinion
3e
A. i)Slide Adjusting Rod into Tube of Arm Slide and Tube
Assembly. ii) Place square of Main Arm onto pinion
with pinion flat and arm marking as shown below.
i
ii
Adjusting
Rod
Main Arm
Arm Slide Tube
Pinion Flat
Arm Marking

Copyright © 2017 Yale Security Inc., an ASSA ABLOY Group company. All rights reserved.
Reproduction in whole or in part without the express written permission of Yale Security Inc. is prohibited. 80-9360-1020-020 Rev 1 02/17
Page 6
Secure Arm to Pinion
3f
A. Attach arm with provided screw.
B. Tighten arm screw with 7/16”
wrench.
Secure Adjusting Rod and Arm Slide Tube
3g
A. Rotate Main Arm away from hinge until
Adjusting Rod and Arm Slide Tube are
perpendicular (at 90 degrees) with the door.
B. Secure with forearm screw.
Forearm Screw
Main Arm
Arm Slide Tube
Adjusting Rod
90°
For 6060/6070 Units Only: Loosen Adjusting Rod and Arm Slide Tube
4a
A. Loosen forearm screws.
B. Rotate Main Arm toward hinge until
Main Arm is perpendicular (at 90
degrees) with the door.
Forearm Screw
Main Arm
Arm Slide Tube
Adjusting Rod

Copyright © 2017 Yale Security Inc., an ASSA ABLOY Group company. All rights reserved.
Reproduction in whole or in part without the express written permission of Yale Security Inc. is prohibited. 80-9360-1020-020 Rev 1 02/17
Page 7
Remove Arm from Pinion
4b
A. Loosen and remove arm
screw from pinion with
7/16” wrench.
B. Remove Main Arm from
Pinion. Main Arm Screw
Main Arm
Pinion
Disassemble Closer Sub-Assembly
4c
A. Disconnect wiring harnesses from Closer Sub-Assembly to Back Plate Assembly.
B. Loosen (4) screws securing Closer Sub-Assembly.
C. Slide Closer Sub-Assembly to side and slide key hole in back plate over screws to
remove Sub-Assembly.
From Closer
Sub-Assembly From Back
Plate Assembly
Assembly Closer Sub-Assembly
4d
A. i) Install new Closer Sub-Assembly over screws in Step 4c with closer spring tube
under power supply and ii) slide Closer Sub-Assembly toward Hinge edge of door.
NOTE: Valves on door closer should be facing away from chain.
B. Secure screws for Closer Sub-Assembly from Step 4c.
C. Secure top of Sub-Assembly to Blocking (for masonry, use anchors and spacers).
D. Connect wiring harnesses from Closer Sub-Assembly to Back Plate Assembly.
Connectors are keyed and only connect in one direction. Connectors will lock.
i
ii
i
ii From Closer
Sub-Assembly From Back
Plate Assembly

Copyright © 2017 Yale Security Inc., an ASSA ABLOY Group company. All rights reserved.
Reproduction in whole or in part without the express written permission of Yale Security Inc. is prohibited. 80-9360-1020-020 Rev 1 02/17
Assemble Arm to Pinion
4e
Secure Arm to Pinion
4f
A. Secure Main Arm to Pinion
with provided screw.
B. Tighten arm screw with 7/16”
wrench.
Secure Adjusting Rod and Arm Slide Tube
4g
A. Rotate Main Arm away from hinge until
Adjusting Rod and Arm Slide Tube are
perpendicular (at 90 degrees) with the door.
B. Secure with forearm screws.
A. i)Slide Adjusting Rod into Tube of Arm Slide and Tube
Assembly. ii) Place square of Main Arm onto pinion
with pinion flat and arm marking as shown below.
i
ii
Adjusting Rod
Main Arm
Arm Slide
Tube
Pinion Flat
Arm Marking
Forearm Screw
Main Arm
Arm Slide Tube
Adjusting Rod
90°
Main Arm Screw
Main Arm
Pinion
Page 8

Copyright © 2017 Yale Security Inc., an ASSA ABLOY Group company. All rights reserved.
Reproduction in whole or in part without the express written permission of Yale Security Inc. is prohibited. 80-9360-1020-020 Rev 1 02/17
Closer Spring Force Adjustment
5
Pull side closers are shipped with spring force at maximum adjustment.
Spring force can be lowered as required.
NOTE: A closer set to the ADA required 5 lbs opening force may
not be strong enough to close the door due to latching hardware,
air pressure, or frame issues. -
+
Stronger
Weaker
Mechanical Closer Adjustments
6
!
Never Close
back check valve
completely
!
Do not remove valves
from closer. Hydraulic
oil will escape.
Closer Must function mechanically as a
standard door closer before applying any
power.
Closing Speed Controls
• Valve "S" Controls Sweep Range from full open to
5°.
• Valve "L" Controls Latch Range from 5° to closed.
Opening Cycle
• Valve "B" controls the strength of
cushioning in Back check Range.
NEVER close this valve completely – it is not to
provide a positive stop.
• Valve "P" adjusts the angle that back
check is felt in the open cycle.
+
-
1/8"
Hex
Key
"B"
Back check
75°
Weaker
Stronger
1/8"
Hex
Key
"P"
Back check
Position
75°
90°
"S"
Sweep
5°
1/8"
Hex
Key
w
o
e
l
r
S
F
a
r
s
t
e
"L"
Latch
0°
5°
1/8"
Hex
Key
w
o
e
l
r
S
F
a
r
s
t
e
Note: Valve location
S/D is not adjustable.
Page 9

Copyright © 2017 Yale Security Inc., an ASSA ABLOY Group company. All rights reserved.
Reproduction in whole or in part without the express written permission of Yale Security Inc. is prohibited. 80-9360-1020-020 Rev 1 02/17
Controller Interface
7
LCD
Screen
Joystick
See Page 12 for Controller
Adjustment Options.
A. To power unit, flip switch on end cap furthest from the hinge
from “OFF” to “ON” position.
B. To scroll thru menu items, push up or down on joystick.
C. To change setting of a menu item, when cursor is on that
item, push joystick right to increase or left to decrease value.
D. To permanently accept changes to settings, scroll down to
“Save Values” and press in on the joystick. NOTE: If power is
turned off to the unit before “Save Values” has been accepted
to “Saved”, any changes made to that point will be lost.
Set Home and Open Positions
8
A. With door closed and 3-position switch on end
of back plate in the “OFF” position, use joystick
to scroll down menu on LCD screen to “Home”.
B. Push in on joystick to activate menu feature.
Display changes to “Set Close Limit”.
C. Push in on joystick again, while door is still
closed, to set the Home or closed position.
Display changes to “Set Open Limit”.
D. Open door to desired open position and push
in on joystick again. Display changes to
“Closing to Home”.
E. Allow door to fully close again. Display
changes to “Home”.
F. Scroll to Save Values and push in on joystick to
permanently save open and closed positions.
E)
D)
C)
B)A)
Home
Page 10
IMPORTANT SAFETY INSTRUCTIONS - WARNING: To reduce the risk of severe injury or death
1) READ AND FOLLOW ALL INSTRUCTIONS.
2) Never let children operate or play with door
controls. Keep the remote control (where provided)
away from children.
3) Personnel should keep away from a moving door in
motion.
4) Test the door’s safety features at least once a
month. After adjusting either the force or the limit
of travel, retest the door operator’s safety features.
Failure to adjust the operator properly may
cause severe injury or death.
5) KEEP DOOR PROPERLY OPERATING. See
Door Manufacturer’s Owner’s Manual. An
improperly operating door could cause severe
injury or death. Have a trained door systems
technician make repairs.
6) SAVE THESE INSTRUCTIONS.

Copyright © 2017 Yale Security Inc., an ASSA ABLOY Group company. All rights reserved.
Reproduction in whole or in part without the express written permission of Yale Security Inc. is prohibited. 80-9360-1020-020 Rev 1 02/17
Page 11
Install Cover and Label
18
Cover surface
facing ceiling
2-7/8
1-5/8
7/8
Clearance for
Strain Relief
½
½
Left Hand
Door
Right Hand
Door
A. If using Surface Mount power input ONLY,
remove appropriate shaded area from cover,
see illustration below. Repaint cut edges as
necessary to prevent corrosion.
B. Place cover over unit and secure with (6) 6-32
screws taken out previously.
C. Attach label to cover as shown at right.
General Electrical Information
Power
On / Off
Switch
Circuit
Breaker
Powered
Output
Contacts
Auxiliary
Dry
Contacts
Power
Input and
Basic Aux
Connection
A. Power inputs at Power Input Connection and
Power Output Contacts must be made with
copper wire only.
B. Maximum wire size:
12 AWG at Power Input connection
14 AWG at all other terminals.
C. Power input at terminals LINE and NEUTRAL
must be 120VAC at 60 Hz (+10%, -15%).
D. Maximum current draw from auxiliary devices
is 1.3 amps.
E. All wiring and connections use standard
wiring practice conforming with local wiring
codes.
F. Labeled fire or smoke barrier door
assemblies require the 120VAC 60Hz
power input be supplied through normally
closed alarm contacts of the alarm
system / alarm panel.

Copyright © 2017 Yale Security Inc., an ASSA ABLOY Group company. All rights reserved.
Reproduction in whole or in part without the express written permission of Yale Security Inc. is prohibited. 80-9360-1020-020 Rev 1 02/17
Page 12
Controller Interface Description
Screen Display Adjustments Default Description
Mount: Push or Pull Pull Side of opening operator is mounted on
Push: OFF or PushNGo Off
Turn on or off Push N Go feature.If On, a slight push or pull of
the door starts it automatically opening.
Obst Delay: 0 - 5 sec in 1 sec increments 3s
Obstruction Delay: the amount of time the operator will push
against an obstruction before closing if during an opening cycle
or reopening and trying to close again if during a closing cycle.
Hold Open: 0 - 30 sec in 1 sec increments 6s Amount of time door will stay in full open position.
Open Speed: 0 - 100% in 1% increments 100 How fast the door opens to full open position.
Close Speed: 0 - 100% in 1% increments 60
How fast the motor returns to the home position. As Latch and
Sweep on the closer are adjusted, adjustments may be needed
for Close Speed to assure closer is not trying to backdrive the
motor.
Slow Speed: 0 - 100% in 1% increments 55
Speed up or slow down door during last few degrees of
opening.
Hold Speed: 0 - 100% in 1% increments 55
Increase or decrease hold open force (when in "ON" position
only, not "H/O") to compensate for spring force, wind
conditions, etc
Start Delay: 0 - 10 sec in 1 sec increments 0s
Time before operator begins to open door. This is to allow
accessories time to function and not hinder the opening of the
door.
Vestibule:
OFF, 5 - 30 in 5 sec
increments Off Amount of delay for opening 2nd vestibule door
Latch Rtrct:
OFF, 3 - 45 in 3 sec
increments Off Amount of time power is supplied to a latch retraction device.
Alarm Delay: OFF, 30 sec, 60 sec Off Used only for alarm accessories.
A2
Standard, Presence Off,
Presence On Standard
A2 input can be used for Alarm Delay or Input for door mounted
presence detector: Presence Off - door will not reactivate;
Presence On - door will reopen if presence detected during
closing cycle.
Rly2:
Alarm, Activation, On
Opened, On Closed Alarm
How Relay 2 is used: Alarm - used with above Alarm Delay;
Activation - acts as an additional NO / NC contact; On Opened -
relay trips (closed contacts) when door is in opened position;
On Closed - relay trips (closed contacts) when door reaches
the fully closed position.
Cycles: not adjustable - Number of electrical cycles on the operator.
Days: not adjustable -
Number of full days electricity have been supplied to the
operator.
Open Time not adjustable -
Time it took for previous opening cycle to go from Home to fully
open position.
Close Time not adjustable -
Time it took for previous closing cycle to go from fully open
position to Home.
Errors not adjustable -
Error code seen by controller. See below for Troubleshooting
codes.
Home see Setting Open Position -
Used to set the Home position and the Fully Open positions of
the operator.
Save Values Save Values or Saved - Used to permanently add adjustments to controller's memory.
