700™
Installation Instructions
ML20700 TCPWI1 & TCPIP1Series
Mortise Lockset FM324 04/16
Please read these instructions carefully to prevent missing important steps.
Please Note: Improper installations may result in damage to the lock and void the factory warranty.
Important: The accuracy of the door preparation is critical for proper functioning and security of this lock.
Misalignment can cause premature wear and a lessening of security.
For Technical Assistance call Corbin Russwin at 1-800-810-WIRE (9473)
Copyright © 2016 Corbin Russwin, Inc., an ASSA ABLOY Group company.
All rights reserved. Reproduction in whole or in part without the
express written permission of Corbin Russwin, Inc. is prohibited.
Attention Installer
TCPWI1/TCPIP1

ML20700 PWI/PIP Series Mortise Lock
2
Copyright © 2016 Corbin Russwin, Inc., an ASSA ABLOY Group company.
All rights reserved. Reproduction in whole or in part without the
express written permission of Corbin Russwin, Inc. is prohibited.
1) Warning
Table of Contents
1) Warning................................................................................3
2) General Description.............................................................4
3) Specifications / Features ....................................................4
4) Product Illustration .............................................................5
5) Installation Instructions......................................................6

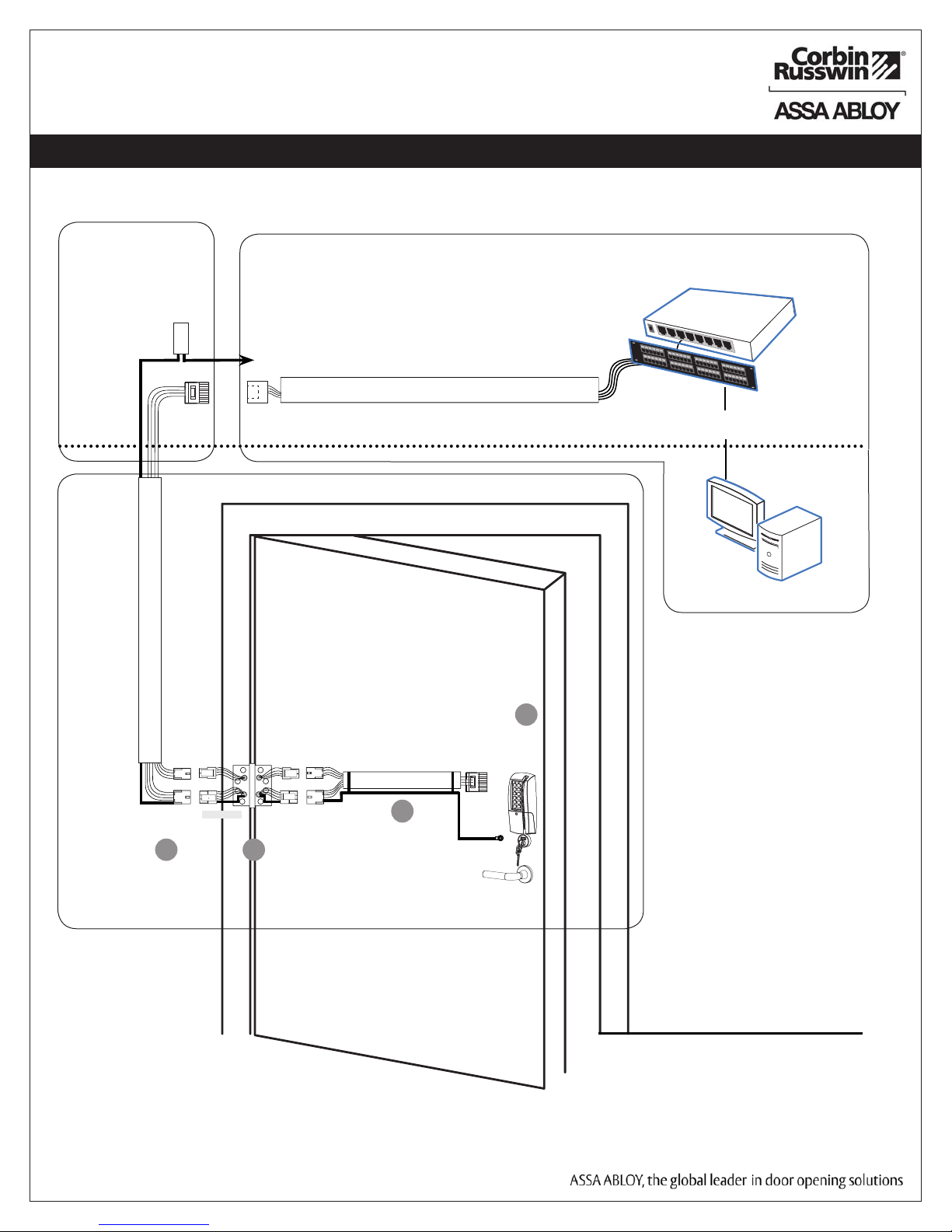

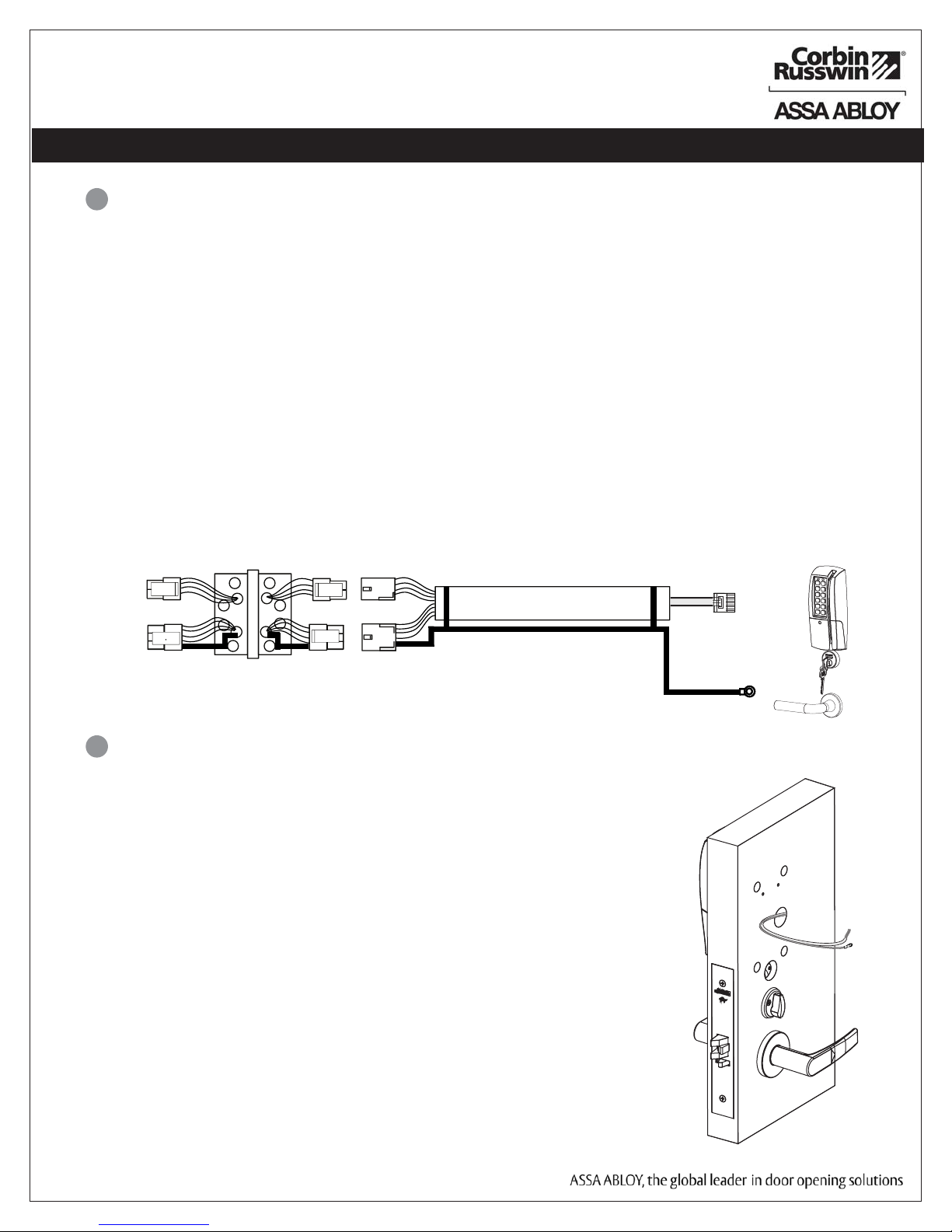

6) TCPIP (PoE) Wiring & Installation......................................16
7) TCPWI (Wireless) Wiring & Installation.............................24
8) Operational Check.............................................................28
Warning: Changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user’s authority to operate the equipment.
!
To comply with “Fire Listed” doors, the batteries must be replaced with alkaline batteries only.
!
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause
harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired opera-
tion.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instruc-
tions, may cause harmful interference to radio communications. However, there is no guarantee that the interference will not occur in
a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and receiver
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected
• Consult the dealer or an experienced technician for help
The term “IC:” before the radio certification number only signifies that Industry Canada technical specifications were met. This Class B
digital apparatus meets all requirements of the Canadian Interference Causing Equipment Regulations. Operation is subject to the fol-
lowing two conditions: (1) this device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may cause undesired operation.
Cet appareillage numérique de la classe B répond à toutes les exigences de l’interférence canadienne causant des règlements
d’équipement. L’opération est sujette aux deux conditions suivantes: (1) ce dispositif peut ne pas causer l’interférence nocive, et (2) ce
dispositif doit accepter n’importe quelle interférence reçue, y compris l’interférence qui peut causer l’opération peu désirée.
!
!
To avoid possible damage from electrostatic discharge (ESD), some basic precautions should be used when handling
electronic components:
• Minimize build-up of static by touching and/or maintaining contact with unpainted metal surfaces such as door hinges,
latches, and mounting plates especially when mounting electronic components such as readers and controllers onto
the door.
• Leave components (reader and controller) protected in their respective anti-static bags until ready for installation
• Do not touch pins, leads or solder connections on the circuit boards
*Any retrofit or other field modification to a fire rated opening can potentially impact the fire rating of the opening, and Corbin Russwin, Inc.
makes no representations or warranties concerning what such impact may be in any specific situation. When retrofitting any portion of an
existing fire rated opening, or specifying and installing a new fire-rated opening, please consult with a code specialist or local code official
(Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings.

ML20700 PWI/PIP Series Mortise Lock
3
Copyright © 2016 Corbin Russwin, Inc., an ASSA ABLOY Group company.
All rights reserved. Reproduction in whole or in part without the
express written permission of Corbin Russwin, Inc. is prohibited.
To comply with “Fire Listed” doors, the batteries must be replaced with alkaline batteries only.
2) General Description
3) Specifications / Features
• Latch – Stainless Steel
Field reversible (without disassembling lockbody)
• Deadbolt – Stainless Steel
• Door Thickness – 1-3/4” Standard; can be
furnished for other door thicknesses upon request.
Consult factory.
Electrical Specifications:
• Case – 12 gauge heavy duty wrought steel
• Outside lever controlled by any combination of keypad,
magnetic swipe, iCLASS reader, or mechanical key
• Inside lever retracts latch
• ANSI/BHMA A156.25 Listed Grade 1 Compliant
• May be used for indoor and outdoor* applications
Hardware Specifications
*UL testing was conducted on product powered by
UL Listed model 9001GR/AC injector; manufactured
by Microsemi Corp.
• HID®multiCLASS SE®technology offers support
for the following credentials:
• 2.4 GHz credential compatibility:
• 125 kHz credential compatibilty:
• HID Prox®
• 13.56 MHz credential compatibility:
• iCLASS®
• iCLASS SE®(SIO-enabled)
• iCLASS Seos®
• SIO on MIFARE®Classic
• SIO on MIFARE®DESfire®EV1
• MIFARE®Classic
• DESfire®EV1
• NFC-enabled mobile phones
• Secure Identity Object™(SIO) on
Mobile IDs (Bluetooth Smart)
• UL 294 Access Control Performance Ratings:
Destructive Attack Level I
Line Security Level I
Endurance Level IV
Standby Power Level I
• UL Listed* - UL 294 Indoor Use
• CUL Listed - S319: Class 1
• WiFi (IEEE 802.11 b/g/n)
• Support for most advanced wireless encryption and
authentication standards such as WEP, WPA, WPA2
and 802.1x**
• Power Requirements:
• Alkaline AA Batteries: 9V, 300mA
PWI (Wireless)
PIP (PoE)
• PoE Class 1 Device, as defined by IEEE 802.3af,
requires less than 3.84 watts over structured cabling
• Power Requirements: 55VDC, 90mA
• Privacy button
• 2,400 users per lock; 10,000 event audit trail
• First-in unlock or automatic unlock configuration, based on
specified time schedule
• Multiple time zone and holiday access scheduling
*For specific security information, please contact your local
ASSA ABLOY Door Security Solutions sales consultant or
call 800-810-WIRE.
• Optional Hard Power
(UL294 Listed Power Supply required): 9-24VDC, 300mA
Designed specifically for the campus market, the Corbin Russwin Access 700 PoE and WiFi locks offer
simultaneous support for multiple industry-leading credentials and support HID Mobile Access®powered by Seos®.
Ideal for mixed credential environments, these locks enable an easy, cost-effective transition from magnetic stripe
credentials to smart cards and mobile access. Using the facility’s Ethernet network, the Access 700 PIP1 Power over
Ethernet (PoE) provides full online access control with standard network cabling and minimizes energy consumption,
while the Access 700 PWI1 WiFi lock uses 802.11b/g/n infrastructure to significantly reduce hardware and labor costs.
*Weather-protective gasket required for outdoor applications.

ML20700 PWI/PIP Series Mortise Lock
4
Copyright © 2016 Corbin Russwin, Inc., an ASSA ABLOY Group company.
All rights reserved. Reproduction in whole or in part without the
express written permission of Corbin Russwin, Inc. is prohibited.

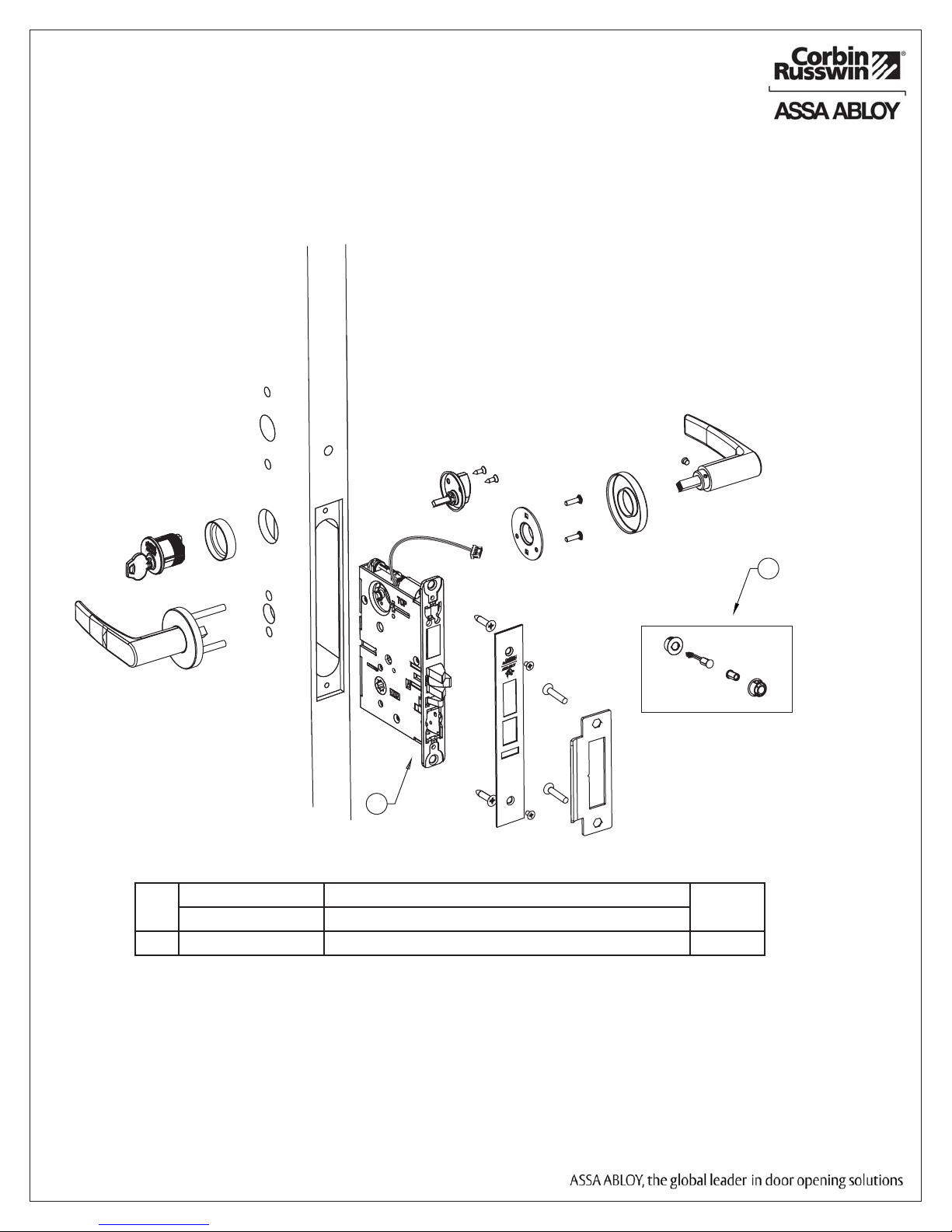

4) Product Illustration
12
3
4
5
6
*Bluetooth® Smart option
ITEM No. PART No. DESCRIPTION
1
784F565 FIN Outside Escutcheon Assembly, Mag Swipe
784F575 FIN Outside Escutcheon Assemby, Mag Swipe and Keypad
784585 FIN Outside Escutcheon Assemby, Mag Swipe, Keypad, HID 125kHz Prox, and 13.56 MHz Prox
784595 FIN Outside Escutcheon Assemby, Mag Swipe, HID 125kHz Prox, and 13.56 MHz Prox
784F605 FIN Outside Escutcheon Assemby, Mag Swipe, Keypad, HID 125kHz Prox, and 13.56 MHz Felica
784F615 FIN Outside Escutcheon Assemby, Mag Swipe, HID 125kHz Prox, and 13.56 MHz Felica
725F325 FIN* Outside Escutcheon Assemby, Standard Reader and Keypad
725F335 FIN* Outside Escutcheon Assemby, Standard Reader
2782F788 Mounting Plate Assembly
3795F368 Screw Pack
4783F519 WiFi Controller Assembly
783F509 PoE Controller Assembly
5 784F515 FIN Inside Escutcheon Assembly with Privacy Button

ML20700 PWI/PIP Series Mortise Lock
5
Copyright © 2016 Corbin Russwin, Inc., an ASSA ABLOY Group company.
All rights reserved. Reproduction in whole or in part without the
express written permission of Corbin Russwin, Inc. is prohibited.
Tools Required:
• Phillips Screw Driver #2, #3
• Flat Blade Screw Driver (Standard size)
• 1/8” Allen Wrench (supplied)
• 7/64” Allen Wrench (supplied** )
• T20 Security torx driver (supplied)
1 816F048* [handing] 26D ML20733/ML20734 Lock Case (No Deadbolt) 1
816F058* [handing] 26D ML20735/ML20736 Lock Case (With Deadbolt)
2 783F619 DPS (Door Position Switch) Kit 1
*Replace with handing (L, LR, R, RR)
** When ordering Museo trim
1*
2
For parts not listed, refer to ML2000 Parts and Service Manual

ML20700 PWI/PIP Series Mortise Lock
6
Copyright © 2016 Corbin Russwin, Inc., an ASSA ABLOY Group company.
All rights reserved. Reproduction in whole or in part without the
express written permission of Corbin Russwin, Inc. is prohibited.
1. Verify Hand and Bevel of door:
Illustrations shown are as viewed from the outside or secure side of opening.
5) Installation Instructions
2. Door Preparation
Left Hand
Hinges Left.
Open Inward.
“LH”
Left Hand
Reverse Bevel
Hinges Left.
Open Outward
“LHRB”
Right Hand
Hinges Right.
Open Inward.
“RH”
Right Hand
Reverse Bevel
Hinges Right.
Open Outward
“RHRB”
Outside of Door
Backplate Mount Holes
Lock Harness Hole
Mortise
Pocket
Keypad Cable Holes
Thumb Turn Hole
Lever Handle Holes
Inside of Door
Lever Handle Holes
Through Bolt Holes
Through Bolt Holes
Cylinder Hole
Remote Power and PoE
Raceway
Prep door according to supplied Door Marker (FM414). For door manufacturer templates visit
www.corbinrusswin.com and reference Template # T31077.
Remote Power and PoE
Raceway
Fig. 1
Fig. 2

ML20700 PWI/PIP Series Mortise Lock
7
Copyright © 2016 Corbin Russwin, Inc., an ASSA ABLOY Group company.
All rights reserved. Reproduction in whole or in part without the
express written permission of Corbin Russwin, Inc. is prohibited.
5) Installation Instructions (Continued)
a. Push in latch while gently pushing on catch plate with screwdriver (Fig. 3a).
b. Release latch and remove from lock body.
c. Turn over latch and re-install in lock body; Be sure anti-friction latch tail hooks into front (Fig. 3b).
d. Hold screwdriver behind tail socket while pushing in latch. Push latch until ‘click’ is heard (Fig. 3c).
Note: Pull on latch to make sure it is secure.
e. Rotate lock front to match bevel of door by inserting screwdriver into lock mounting holes
and twisting (Fig. 3d).
Fig. 3a Fig. 3c
Move the RED-HEADED screw to
the Locking Side of the door
Fig. 3b
Anti-friction Latch Tail
Fig. 3d
Lock Front
3. Handing of Lock Body

ML20700 PWI/PIP Series Mortise Lock
8
Copyright © 2016 Corbin Russwin, Inc., an ASSA ABLOY Group company.
All rights reserved. Reproduction in whole or in part without the
express written permission of Corbin Russwin, Inc. is prohibited.
Fig. 4a
5) Installation Instructions (Continued)
4. Install Lock Body:
a. Feed wires into mortise pocket and through hole on inside face of door while installing
lock body (Fig. 4a).
b. Pull wires through hole while inserting lockbody (Fig. 4a).
DO NOT push wires back into cylinder hole.
IMPORTANT: Door must remain open during installation. Use door stop.
c. Install, but do not tighten two #12 x 1” combination screws through lock body (Fig. 4b).
(2) #12 Combination Screws
Inside Face of Door
Fig. 4b

ML20700 PWI/PIP Series Mortise Lock
9
Copyright © 2016 Corbin Russwin, Inc., an ASSA ABLOY Group company.
All rights reserved. Reproduction in whole or in part without the
express written permission of Corbin Russwin, Inc. is prohibited.

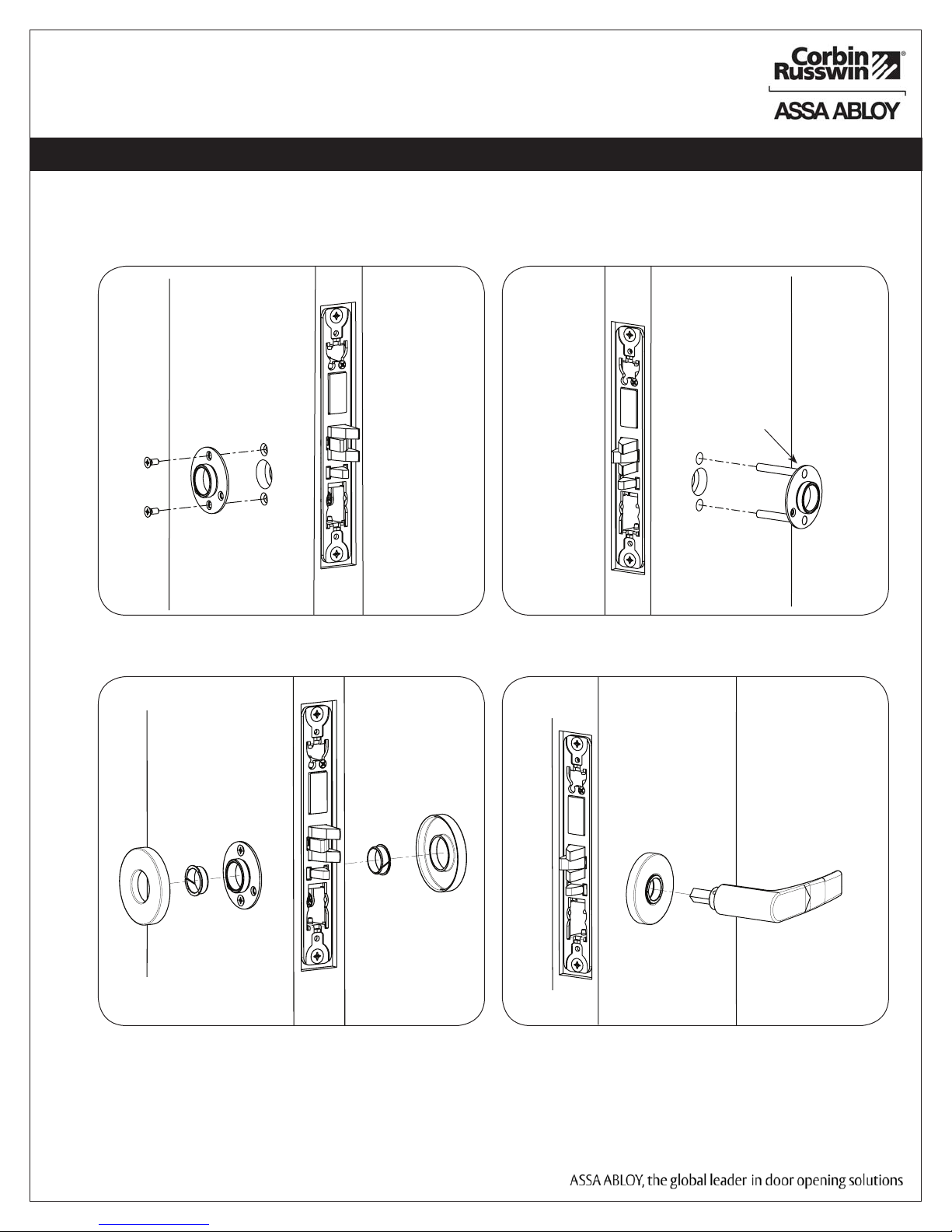

5) Installation Instructions (Continued)
5. Install Standard Lever Trim Instructions:
Step 2 Step 3
Step 1a Step 1b
Inside Face of Door Outside Face of Door
Outside Face of Door
Outsdide Adapter Plate
Inside Face of Door

ML20700 PWI/PIP Series Mortise Lock
10
Copyright © 2016 Corbin Russwin, Inc., an ASSA ABLOY Group company.
All rights reserved. Reproduction in whole or in part without the
express written permission of Corbin Russwin, Inc. is prohibited.

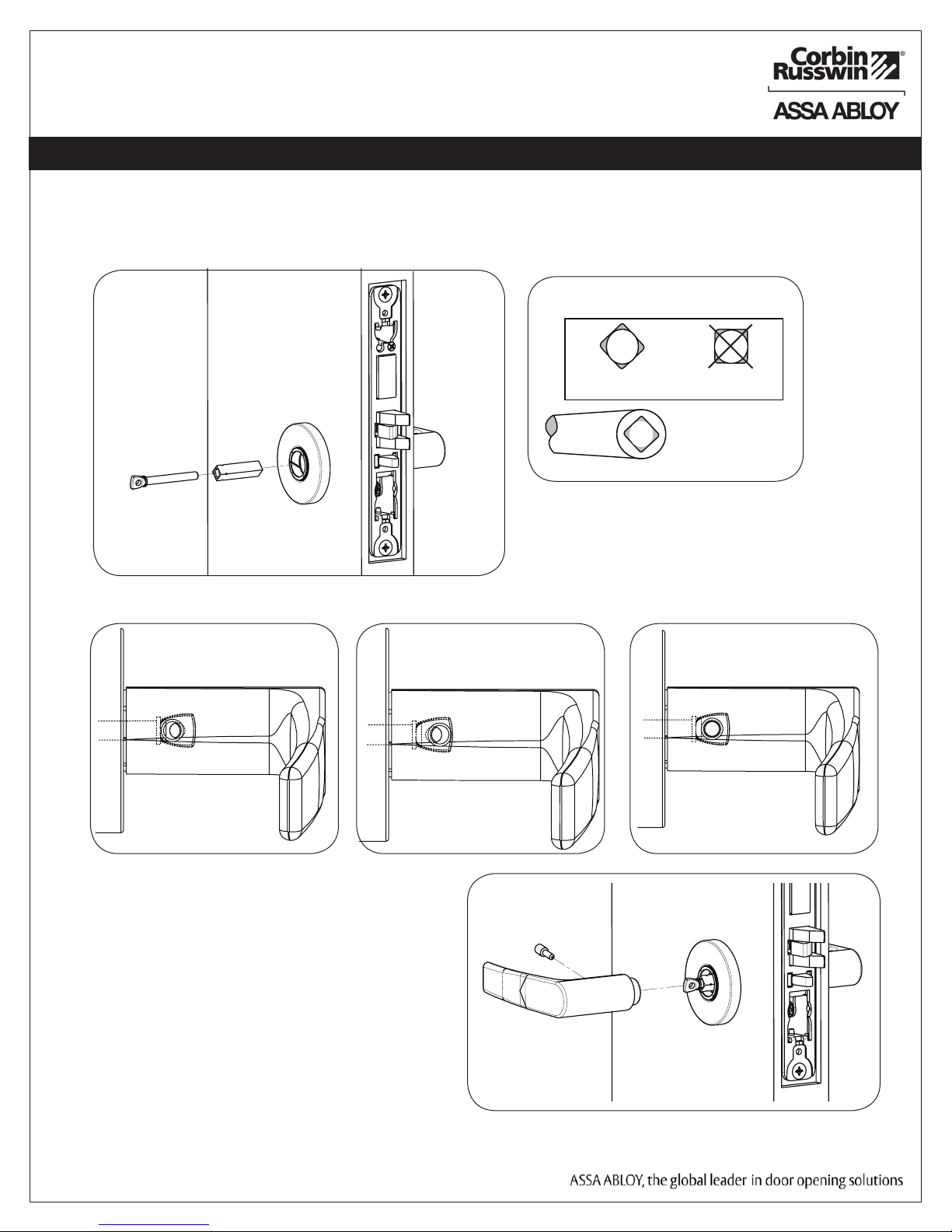

5) Installation Instructions (Continued)
Inside Face of Door
Step 4A
Step 5 - Align adjustment bolt with threaded hole in lever
Adjustment bolt needs
to be threaded in farther.
Adjustment bolt needs
to be unthreaded.
Adjustment bolt
fully aligned.
Notes:
• Unthread Adjustment Bolt approximately four turns
for a good starting point (After being fully tightened)
• Make sure O/S lever is fully inserted into adapter
plate before aligning adjustment bolt.
Step 6
STANDARD MUSÉO
Use Correct Spindle Orientation
Good Bad
Lever
5. Install Standard Lever Trim Instructions (continued):
Step 4B
Inside Face of Door

ML20700 PWI/PIP Series Mortise Lock
11
Copyright © 2016 Corbin Russwin, Inc., an ASSA ABLOY Group company.
All rights reserved. Reproduction in whole or in part without the
express written permission of Corbin Russwin, Inc. is prohibited.

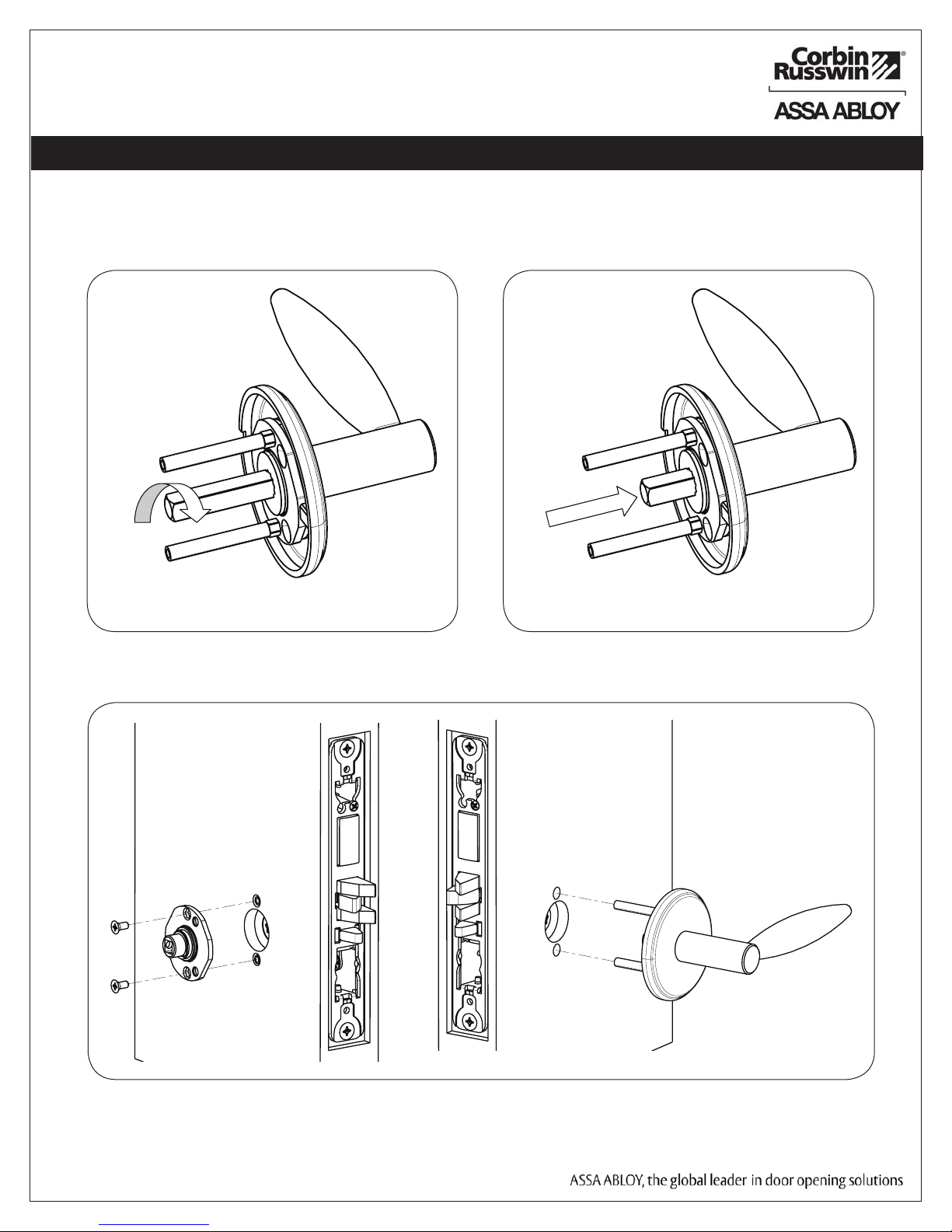

Step 1
Step 2
Inside Face of Door
Outside Face of Door
Thread hub into
lever using spindle
until snug
Unthread hub 1/2
turn then push
spindle into lever
5) Installation Instructions (Continued)
7b. Install Museo®Trim:

ML20700 PWI/PIP Series Mortise Lock
12
Copyright © 2016 Corbin Russwin, Inc., an ASSA ABLOY Group company.
All rights reserved. Reproduction in whole or in part without the
express written permission of Corbin Russwin, Inc. is prohibited.

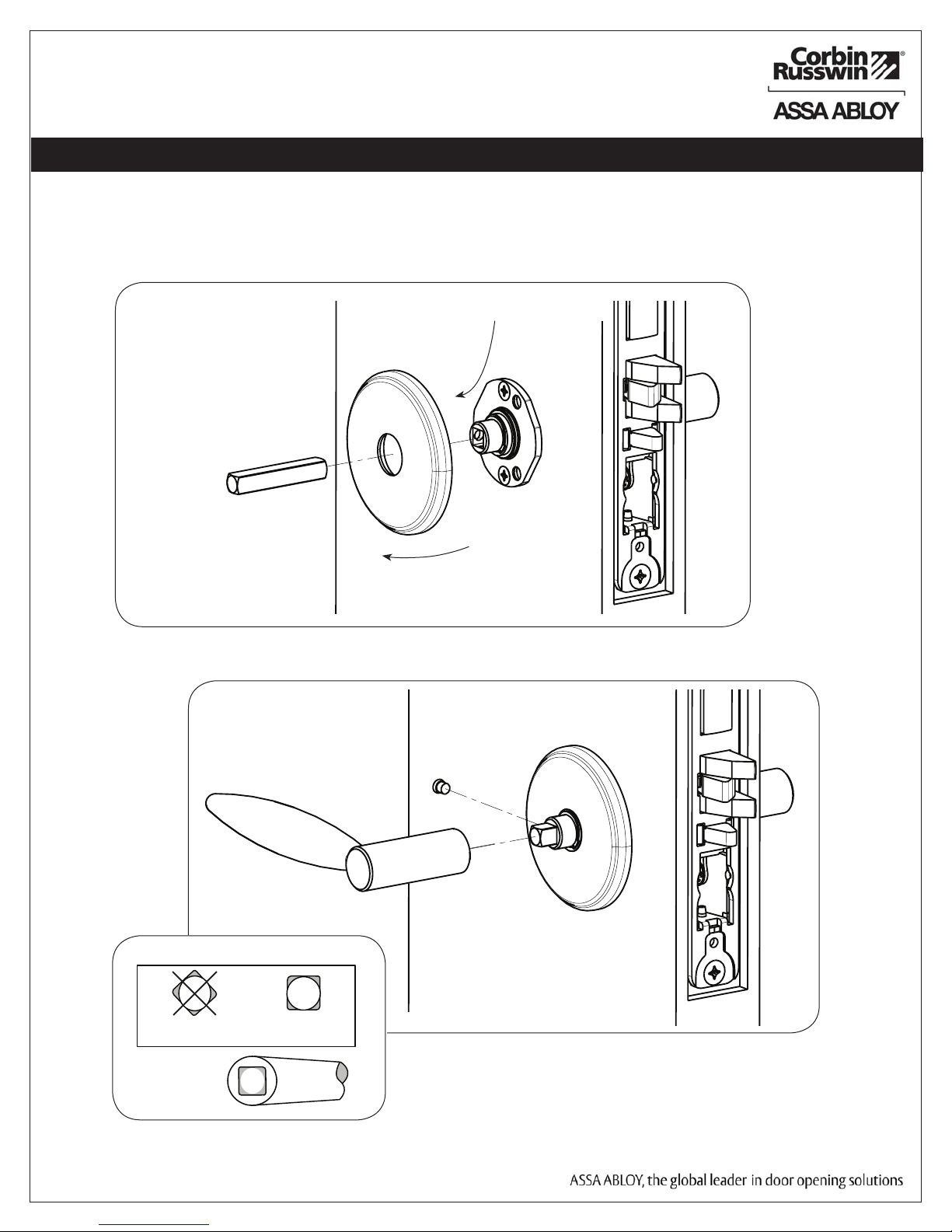

Outside Face of Door
5) Installation Instructions (Continued)
STANDARD MUSÉO
Use the Correct Spindle Orientation
Bad Good
Lever
Step 3
Inside Face of Door
Set screw in hub faces
away from door edge
Step 4

ML20700 PWI/PIP Series Mortise Lock
13
Copyright © 2016 Corbin Russwin, Inc., an ASSA ABLOY Group company.
All rights reserved. Reproduction in whole or in part without the
express written permission of Corbin Russwin, Inc. is prohibited.
Outside Face of Door
7/64" Allen Wrench
Key and cylinder
must be rotated.
Incorrect Correct
Step 1
5) Installation Instructions (Continued)
Step 2
Step 3
7. Install Cylinder and Scalp:

ML20700 PWI/PIP Series Mortise Lock
14
Copyright © 2016 Corbin Russwin, Inc., an ASSA ABLOY Group company.
All rights reserved. Reproduction in whole or in part without the
express written permission of Corbin Russwin, Inc. is prohibited.
Step 1
8. Install Turn Piece:
5) Installation Instructions (Continued)
Step 2
Step 3

ML20700 PWI/PIP Series Mortise Lock
15
Copyright © 2016 Corbin Russwin, Inc., an ASSA ABLOY Group company.
All rights reserved. Reproduction in whole or in part without the
express written permission of Corbin Russwin, Inc. is prohibited.
9. Install (optional) Weatherseal Gasket:
For non-fire rated door applications, an optional gasket may be
used as a weatherseal between the escutcheon and the
outside door surface.
Peel off the adhesive backing on the gasket and
install the gasket along the edge of the outside
escutcheon assembly (Fig. 9). Access Gasket
Outside Access Trim
Fig. 9
5) Installation Instructions (Continued)
If you are installing PIP (PoE)
If you are installing PWI (Wireless) go to Page 24 Section 7
Important Note: If you are installing PWI (Wireless)
If you are installing PIP (PoE) continue to next page
Section 6 - PIP (PoE) Wiring & Installation
a. Insert the mounting posts through holes (Fig. 9).
10. Install Outside Escutcheon

ML20700 PWI/PIP Series Mortise Lock
16
Copyright © 2016 Corbin Russwin, Inc., an ASSA ABLOY Group company.
All rights reserved. Reproduction in whole or in part without the
express written permission of Corbin Russwin, Inc. is prohibited.
6) PIP (PoE) Installation Wiring & Installation
Overview
Corbin Russwin ML20700 PIP (PoE) Typical Application
LMT: Lock Management Tool
A. PoE frame harness assembly
B. PoE data hinge from McKinney
C. PoE door harness* from McKinney
D. CL33700 PIP PoE Lock
E. DPS: Door Status Switch
(not required for ML207xx)
* Door width determines length
Network Cable
Network Switch (802.3af) Surface Mount RJ45
A
B
C
E
D

ML20700 PWI/PIP Series Mortise Lock
17
Copyright © 2016 Corbin Russwin, Inc., an ASSA ABLOY Group company.
All rights reserved. Reproduction in whole or in part without the
express written permission of Corbin Russwin, Inc. is prohibited.
6) PIP (PoE) Wiring & Installation
Molex-F Molex-F Molex-M
Cable: CAT 5e,
26 AWG stranded,
shielded, 100ohm
RJ45-M
Molex-M
Cable: CAT 5e or higher
24 AWG shielded, 100ohm
B-Splice
Crimp Connector
PoE
Lock
Ceiling
Supplied by CI
Ground
Ring Terminal
Secured to Lock
Mounting Plate
Frame-Side
Harness
Assembly
(15' length)
24AWG
Stranded
Drain
Wire for
Earth
Ground in
15' Frame
Harness
Cable
drain wire
concealed
in shrink
tubing
Patch Panel
Cable: CAT 5e or higher
24 AWG
RJ45-F Jack
Approved Software
Certified Integrator (CI) supplies and terminates
the B-Splice connector and the
Male RJ45 connector from harness to
end user provided facility cable
Supplied by End User
PoE Switch
PoE Switch is
Terminated to
Earth Ground
Patch Cable
Patch Panel to
PoE Switch
Wiring to TIA/EIA 568-B Standard
A B
C
D
To building or electrical ground
RJ45-M
Notes:
• Connectors go on only one
way. They cannot be placed
in an incorrect position.
• Do not force and do not
offset connectors
• Be sure they are completely
seated (flush)
• PoE power source cannot
be connected to a receptacle
controlled by a switch

ML20700 PWI/PIP Series Mortise Lock
18
Copyright © 2016 Corbin Russwin, Inc., an ASSA ABLOY Group company.
All rights reserved. Reproduction in whole or in part without the
express written permission of Corbin Russwin, Inc. is prohibited.
6) PIP (PoE) Wiring & Installation (Continued)
Components and wire harness supplied by McKinney. Suggested installation:
RJ45-M
Molex-M
B-Splice
Crimp Connector
Ceiling
Supplied by CI
Cut end / ceiling-side PoE harness:
TIA/EIA 568-B Standard Wiring
1
2
3
4
5
6
7
8
Do not confuse pair numbers with pin numbers. A pair number is
used for reference only (eg: 10BaseT Ethernet uses pairs 2 & 3). The
pin numbers indicate actual physical locations on the plug and jack.
Frame-Side
Harness
Assembly
(15' length)
24AWG
Stranded
Drain
Wire for
Earth
Ground in
15' Frame
Harness
Cable
drain wire
concealed
in shrink
tubing
Frame Harness Installation
Hinge side of PoE (Frame) harness:
4-pin M
6-pin M
Frame
PoE Hinge
PoE Data Hinge
Hinge-side harness connectors:
• 4-pin female molex connector
• 6-pin female molex connector with ground wire
Lock-side harness connectors:
• 4-pin female molex connector
• 6-pin female molex connector with ground wire
B
A
1. Feed cut end of harness into hole on hinge-side through single access hole.
2. Push one connector back through the hole and feed into the other access hole.
Each of the hinge-side harness connectors should end up threaded through
a different access hole and matched to the same size pin connector from
the door harness:
• 4-pin male molex connector
• 6-pin male molex connector with ground wire
PIN Wire Pair
Number
1 White/Orange 2
2 Orange 2
3 White/Green 3
4 Blue 1
5 White/Blue 1
6 Green 3
7 White/Brown 4
8 Brown 4
18
pin 81 pin
4-pin F
6-pin F
4-pin F
6-pin F
Cable: CAT 5e or higher
24 AWG 100ohm

ML20700 PWI/PIP Series Mortise Lock
19
Copyright © 2016 Corbin Russwin, Inc., an ASSA ABLOY Group company.
All rights reserved. Reproduction in whole or in part without the
express written permission of Corbin Russwin, Inc. is prohibited.
6) PIP (PoE) Wiring & Installation (Continued)
PoE harness
Order of installation may vary. Refer to appropriate sections for instructions.
Hinge-side harness connectors:
• 4-pin male Molex connector
• 6-pin male Molex connector with ground wire
Lock-side harness connectors:
• Ring terminal
• Male RJ45 connector (crimped after cable is fed through door)
Notes:
• Connectors go on only one way. They cannot be plugged to incorrect position.
• Do not force and do not offset connectors.
• Be sure they are completely seated (flush).
Order of installation may vary. Refer to appropriate sections for instructions.
1. Prop door open.
2. Using the ring terminal, carefully route the assembly through the door
channel toward lock.
PoE Door Harness
PoE Lock
4-pin F 4-pin M4-pin F
6-pin F 6-pin F 6-pin M
Cable: CAT 5e,
26 AWG stranded,
100ohm
Drain Wire
PoE Lock
D
C
RJ45-M
PoE Hinge
PoE Door Harness

ML20700 PWI/PIP Series Mortise Lock
20
Copyright © 2016 Corbin Russwin, Inc., an ASSA ABLOY Group company.
All rights reserved. Reproduction in whole or in part without the
express written permission of Corbin Russwin, Inc. is prohibited.
Mounting Plate
11. Install Inside Mounting Plate
Fig. 10a
Mounting Plate
6) PIP (PoE) Wiring & Installation (Continued)
Cat5e cable
from hinge
(4) #8 - 32 x 1-7/8" Flat
Head Machine Screws
(2) #8 - 3/8" flat head
Wood Screws
Fig. 10b
1. On the inside of the door, position the mounting plate over the indicated holes.
2. Feed reader, ground ring terminal and DPS cables through central opening on mounting plate (Fig. 10a1).
3. Route PoE Harness through alternate opening (to the right of the central opening).
4. Route ground ring terminal from lock body through bottom of mounting plate and attach to bottom left
corner using (1) #8-32 x 1-7/8” flat head machine screw.
5. Insert other three #8-32 x 1-7/8” flat head machine screws and tighten, fastening the outside escutcheon
to the door (Fig. 11).
IMPORTANT: If the following step is skipped, the product
will not be UL-compliant:
6. Attach two (2) #8 x 3/8” flat head wood screws for
wood doors or (2) #8-32 x 3/8” flat head machine
screws for metal doors (Fig. 10a).
