Assa Abloy DC3210 User manual

IMPORTANT:
BEFORE
INSTALLING:
TO DETERMINE
HAND OF
YOUR DOOR:
An improperly installed or incorrectly adjusted door closer may cause property
damage or personal injury; and will void product warranty.
To avoid personal injury, DO NOT DISASSEMBLE THIS DOOR CLOSER BODY.
Door closers must be securely fastened to a properly reinforced door and frame
with fasteners provided.
Door closers with the “A1” HOLD OPEN ARM option are not permitted to be
installed in fire door assemblies.
LEFT
HAND
DOOR
RIGHT
HAND
DOOR
Size of Door & Door Closer
Type
of
Installation Interior Exterior
In-swinging
Exterior
Out-swinging
Recommended
Closer Size
**Max.
Opening
Force
lbs/f
2 4
3 0
3 6
4 0
4 6
5 0
' "
' "
' "
' "
' "
' "
2 4
2 6
3 0
3 6
4 0
4 6
' "
' "
' "
' "
' "
' "
2 6
3 0
3 6
*4 0
' "
' "
' "
' "
2 6
3 0
*3 6
*4 0
' "
' "
' "
' "
3 0
3 6
4 0
*4 6
' "
' "
' "
' "
1
2
3
4
5
6
8
14
16
22
24
26
8
14
16
22
24
26
1
2
3
4
5
6
Regular &
Top Jamb
Parallel
Arm
Universal Door Closers
RHR LHR
The door closer's power size adjustment feature may require adjustment to its
lowest setting to comply with ADA opening force guidelines.
Regular Arm Parallel Arm Jamb Mount
80-9330-3000-152 Rev. 05/12
Installation Instructions
For Non-Hold Open or “A1”
Hold Open Arm Options
See pages
2 & 3
See pages
4 & 5
See pages
6 & 7
®
ASSA ABLOY
DC3200 Series
Multi-Sized 1 thru 6
DC3200 DC3210 DC3220
ADA compliant closers are: DC3200, DC3210, DC3220
The Americans with Disabilities Act (ADA) requires that doors having door closers
have an opening force not to exceed 5 lbf. for interior doors, 8.5 lbf exterior doors.
Use standard templating for regular arm and parallel arm applications. Jamb
mounted applications use the template for 140° door opening to achieve the
required opening force.
**NOTE: These forces are for standard templating with bearing type hinges and do not account for pressure differentials and draft.

Installation Instructions
Regular Arm Application
CLOSER BRACKET
Mark Door and Jamb (for closer bracket and arm bracket)
If top rail is 2-1/2 (64mm) or greater, use template FM131C provided.
If top rail is 1-3/4 (44mm) to 2-7/16 (62mm), see MOUNTING DIMENSIONS chart.
"
"
MOUNTING DIMENSIONS
TOP RAIL AB
MIN. CLEARANCE
REQUIRED OVER
DOOR
NHO
2-1/2 & OVER
(64mm)
"1
(25.4mm)
"7/8
(23mm)
"
1-3/4 MIN.
(44mm)
" 5/8
(16mm)
"1-1/4
(32mm)
"
1-1/2
(39mm)
"
1-7/8
(48mm)
"
1-11/16
(43mm)
"
2-1/16
(53mm)
"
1. Template
HO
Regular Arm
NOTES:
Check hand of door, see page 1.
Right Hand Application Shown. Left Hand Opposite.
Dimensions given in inches (mm). Do Not Scale Drawing.
Closer must be installed in a true horizontal plane to ensure proper closer performance.
Door opening (up to 180°) is dependent upon door, frame, wall and hinge/pivot conditions permitting.
2. Install Closer Bracket 3. Mount Closer Body to Closer Bracket
Pin Hole
End
Countersunk
Hole End
Pins
(2)
Page 2
To obtain extra closing force add 3 (77mm) to dimensions marked.
This will limit degree of door opening to 110°.
"
B
A
2-1/4
(57.2)
*10-5/8
(270)
*7-1/2
(191)
FRAME LINE
TOP OF DOOR
C
LHINGE OR PIVOT
ARM BRACKET
*
4-5/16
(109.5)
1
(25.4)
L
3/8
(10)
1/4-20 THREAD
Drill thru 9/32 (7.1) Enlarge to
3/8 (9.5) Dia. This Side Only
(4 Places)
DOOR
THICKNESS
SEX NUT
LENGTH “L”
1-3/8 (35mm)"
1-3/4 (44mm)
& OVER
"
1-9/32 (33mm)"
1-21/32 (42mm)"
MOUNTING SCREW SPECIFICATIONS
ARM AND CLOSER BRACKET
}
or{Option M54:
Sex nuts, furnished
when ordered
1/4-20 oval head machine screw
or 1/4-14 self-drilling screw.
3/16 (4.8) diameter pilot hole
required for Wood Applications.
1/4-20 x 1/2 OHMS (2)
1/4-14 x 1-1/2 OH Self-Drilling (4)
or
1/4-20 x 3/4 OHMS w/ Sex Nuts (4)
(M54 Option)
®
ASSA ABLOY
80-9330-3000-152 Rev. 05/12
DC3200 Series

NON-HOLD OPEN ARM ONLY:
Normal mounting position.
Position with pivot point
away from hinge.
Away from
hinge
4a. Attach Arm Bracket to Frame
For Additional 15% Closing Force
Reposition arm mounting bracket so that
pivot point is toward hinge.
FOR MAXIMUM
POWER
FOR REGULAR
POWER
Hinge
Standard Position
HOLD OPEN ARM (A1 OPTION ONLY):
4b. Attach Arm Bracket to Frame
HOLD OPEN ARM:
Position so that dial
screw is on
UNDERSIDE of bracket
For Adjustments See Page 8
Page 3
Regular Arm Application (Continued)
5a. Position Arm on Closer
Main arm projects straight out at 90° angle to door.
5b. Position Arm on Closer
Main arm projects straight out at 90° angle to door. Remove main
arm screw from elbow joint and disassemble arm. Thread the rod
into the Arm Bracket as shown below.
NON-HOLD OPEN ARM ONLY: HOLD OPEN ARM ONLY:
MAIN ARM MAIN ARM
THREADED
ROD
ARM
BRACKET
6a. Preload and Adjust Arm
Open door and slide arm rod into arm loop. Close door, swing arms
so adjusting arm is 90° to frame. With 7/16 wrench INSTALL and
TIGHTEN SCREW SECURELY.
"
Extended Maintenance
Lubricate Arm periodically
shaded points with a drop or
two of appropriate lubricant.
NOTE: When lubricating a
Hold Open Arm, DO NOT
use any lubricant on the
Holding Surface components.
at
ARM
LOOP
ARM ROD
SCREW
90°
NON-HOLD OPEN ARM ONLY: 6b. Preload and Adjust Arm
While door is closed, adjust the Threaded Arm in the Arm Bracket
until the bearing fits back onto the elbow joint on the Main Arm at 90°
as shown below. RE-INSTALL AND TIGHTEN SCREW SECURELY.
HOLD OPEN ARM ONLY:
ARM
BRACKET
THREADED
ARM
SCREW
90°
DIAL
SCREW
MAIN ARM
1/4-14 x 1-1/2 OH Self-Drilling (4)
Pivot (away from hinge)
1/4-14 x 1-1/2 OH Self-Drilling (4)
®
ASSA ABLOY
80-9330-3000-152 Rev. 05/12

Installation Instructions
Parallel Arm Application
Parallel Arm
5/8
(16)
2-3/4
(70)
FRAME STOP
TOP OF DOOR
C
L
HINGE
OR
PIVOT
6-1/8
(156)
DOOR
FRAME STOP
5/8
(16)
REF.
DOOR
FRAME
ADAPTER
PLATE
L
3/8
(10)
1/4-20 THREAD
Drill thru 9/32 (7.1) Enlarge to
3/8 (9.5) Dia. This Side Only
(4 Places)
DOOR
THICKNESS
SEX NUT
LENGTH “L”
1-3/8 (35mm)"
1-3/4 (44mm)
& OVER
"
1-9/32 (33mm)"
1-21/32 (42mm)"
Mark Door and Jamb (for closer bracket and adapter plate)
Use template FM131C provided or use dimensions in this template.
1. Template
*
To obtain extra closing force add 3 (77mm) to dimensions marked.
This will limit degree of door opening to 110°.
"
*
MOUNTING SCREW SPECIFICATIONS
ARM AND CLOSER BRACKET
}
or{Option M54:
Sex nuts, furnished
when ordered
NOTES:
Check hand of door, see page 1.
Right Hand Application Shown. Left Hand
Opposite.
Dimensions given in inches (mm). Do Not
Scale Drawing.
Closer must be installed in a true horizontal
plane to ensure proper closer performance.
Door opening (up to 180°) is dependent
upon door, frame, wall and hinge/pivot
conditions permitting.
2-3/4
(70) 5/8
(16)
1-1/2
(38.1)
1/4
(6.35)
2. Install Closer Bracket 3. Mount Closer Body to Closer Bracket
Page 4
7-1/2
(191)
CLOSER
BRACKET *
Pin Hole End
Countersunk Holes
Holding Pins
1/4-20 oval head machine
screw or 1/4-14 self-drilling
screw. 3/16 (4.8) diameter
pilot hole required for Wood
Applications.
SPACER BLOCK
(When required)
1
(25.4)
4-5/16
(109.5)
1/4-20 x 1/2 OHMS (2)
1/4-14 x 1-1/2 OH Self-Drilling (4)
or
1/4-20 x 3/4 OHMS w/ Sex Nuts (4)
(M54 Option)
®
ASSA ABLOY
80-9330-3000-152 Rev. 05/12
DC3210 Series

4. Mount Adapter Plate
Bracket on Jamb
Using holes spotted on
soffit or stop in Step 1
mount adapter plate
bracket.
5. Mount Arm Bracket
NON-HOLD OPEN ARM:
Pivot point must
be AWAY from hinge
edge of door.
HOLD OPEN ARM ONLY (A1 Option)
7. Connect and Position Arms
Open door and slide arm rod into arm loop.
door, swing arms so that they form a “V” position,
as in Step 8. With 7/16 wrench, INSTALL AND
TIGHTEN SCREW SECURELY.
Close
"
1-1/2
(38) MIN.
3-0
(76) MAX.
HOLD OPEN ONLY
Remove main arm screw from elbow joint and disassemble
arm. Thread the rod into the Arm Bracket as shown below.
While door is closed, adjust the Threaded Arm in the Arm
Bracket until the bearing fits back onto the elbow joint on
the Main Arm and forms a "V" as shown below.
RE-INSTALL AND TIGHTEN SCREW SECURELY.
ARM LOOP
ARM ROD
SCREW
8. Power Adjustment
To increase the power of the closer, re-adjust the arm so it is nearer the door.
To decrease power, re-adjust the arm so it is farther away from the door and
then secure screw in arm loop (non-hold open) or elbow joint (hold open).
MINIMUM POWER MAXIMUM POWER
For Adjustments See Page 8
Page 5
Parallel Arm Application (Continued)
LATCHING
SPEED VALVE
CLOSING
SPEED
VALVE
6. Position Arm onto Closer
Using hex wrench provided, turn closing speed and latching speed
valves clockwise until completely closed. DO NOT OVER TIGHTEN.
Using wrench, turn under side of spindle 45° toward the closer
tube until it reaches the diamond position (fig. 2). Immediately
place arm on spindle so that it is parallel to the closer body.
Install and tighten arm screw and washer assembly.
Reopen valves.
R
O
O
D
F
O
E
G
D
E
E
G
N
I
H
M
O
R
F
Y
A
W
A
CLOSER TUBE
Fig. 1 Fig. 2
Square position
At rest
Diamond position
Rotated 45°
Rotate 45°
5/16 Hex Head
Screw & Washer Assembly
Extended Maintenance
Lubricate Arm periodically with a drop
or two of appropriate lubricant.
NOTE: When lubricating a Hold Open Arm, DO NOT use
any lubricant on the Holding Surface components.
at shaded points
Install with dial
screw facing down.
DIAL SCREW
THREADED
ARM ARM
BRACKET
MAIN ARM
1/4-20 x 1-1/2 OHMS (2)
1/4-20 x 1-1/2 OHMS (2)
®
ASSA ABLOY
80-9330-3000-152 Rev. 05/12

Installation Instructions
Jamb Mount Application
Jamb Mount
CEILING LINE
3
(76)
1-3/4
(44) MIN.
MIN.
MOUNTING SCREW SPECIFICATIONS
or
Sex nuts, Option
M54, furnished
when ordered
L
3/8”
(10)
1/4-20 THREAD
Drill thru 9/32 (7.1) Enlarge to
3/8 (9.5) Dia. This Side Only
(4 Places)
DOOR
THICKNESS
SEX NUT
LENGTH “L”
1-3/8 (35mm)"
1-3/4 (44mm)
& OVER
"
1-9/32 (33mm)"
1-21/32 (42mm)"
}
{
Mark Door and Jamb (for closer bracket and arm bracket)
use dimensions in template below.
1. Template
OPENING
MAXIMUM AB
8-7/8
(225)
13-3/8
(340)
HINGE
CONDITION
7-3/8
(187)
11-7/8
(302)
7-3/8
(187)
11-7/8
(302)
5-7/8
(149)
10-3/8
(264)
Butts, Offset
Pivots, and
Swing Clear
Hinges
110°
140°
180°
140° CENTER
HUNG
*
Dimensions “A” and “B” are taken from
centerline of hinge as shown and apply to
pivot point of swing clear hinges. Offset
and centerhung pivots.
*Must be single acting door.
2. Install Closer Bracket to Jamb
Pin Hole End
Countersunk
Hole End
Page 6
Holding Pins
3. Mount Closer Body to Closer Bracket
NOTES:
Check hand of door, see page 1.
Right Hand Application Shown. Left Hand Opposite.
Dimensions given in inches (mm). Do Not Scale Drawing.
Closer must be installed in a true horizontal plane to ensure proper closer performance.
All degrees of door opening are dependent upon door, frame, wall and hinge/pivot conditions permitting.
1-9/16
(40)
A
FRAME
STOP
TOP OF
DOOR
CLOSER
BRACKET
2-1/4
(57.2)
ARM BRACKET
FRAME
LINE
B
FRAME TOP OF FRAME
ARM AND CLOSER BRACKET
1/4-20 oval head machine
screw or 1/4-14 self-drilling
screw. 3/16 (4.8) diameter
pilot hole required for Wood
Applications.
1/2
(12.7)
4-5/16
(109.5)
1
(25.4)
1/4-20 x 1/2 OHMS (2)
1/4-14 x 1-1/2 OH Self-Drilling (4)
®
ASSA ABLOY
80-9330-3000-152 Rev. 05/12
DC3220 Series

Normal mounting position.
Position with pivot point
away from hinge.
Away from hinge
For Additional 15% Closing Force
Reposition arm mounting bracket so that
pivot point is toward hinge.
Standard Position
NON-HOLD OPEN ARM ONLY:
4a. Attach Arm Bracket to Door HOLD OPEN ARM (A1 Option):
4b. Attach Arm Bracket to Door
5a. Position Arm on Closer
6a. Preload and Adjust Arm
Open door and slide arm rod into arm loop. Close door,
swing arms so adjusting arm is 90° to frame. With 7/16
wrench, INSTALL and TIGHTEN SCREW SECURELY.
"
Main arm projects
straight out at 90°
angle to door.
For Adjustments See Page 8
Page 7
Jamb Mount Application (continued)
MAIN ARM
ARM ROD
SCREW
ARM
LOOP
90°
Extended Maintenance
Lubricate Arm periodically
shaded points with a drop or
two of appropriate lubricant.
NOTE: When lubricating a
Hold Open Arm, DO NOT
use any lubricant on the
Holding Surface components.
at
FOR MAXIMUM
POWER
FOR REGULAR
POWER
Hinge
Install with dial screw
facing down
DIAL
SCREW
FRAME STOP
5b. Position Arm on Closer
Main arm projects straight
out at 90° angle to door.
Remove main arm screw
from elbow joint and
disassemble arm. Thread
the rod into the Arm Bracket
as shown below.
6b. Preload and Adjust Arm
While door is closed, adjust the Threaded Arm in
the Arm Bracket until the bearing fits back onto the
elbow joint on the Main Arm at 90° as shown below.
RE-INSTALL and TIGHTEN SCREW SECURELY.
90°
NON-HOLD OPEN ARM ONLY: HOLD OPEN ARM ONLY (A1 Option):
MAIN ARM
THREADED
ROD
ARM
BRACKET
ARM
BRACKET
THREADED
ARM
SCREW
MAIN ARM
NON-HOLD OPEN ARM ONLY: HOLD OPEN ARM ONLY (A1 Option):
1/4-14 x 1-1/2 OH Self-Drilling (2)
or
1/4-20 x 3/4 OHMS w/ Sex Nuts (2)
(M54 Option)
Pivot
(away from Hinge)
1/4-14 x 1-1/2 OH Self-Drilling (2)
or
1/4-20 x 3/4 OHMS w/ Sex Nuts (2)
(M54 Option)
®
ASSA ABLOY
80-9330-3000-152 Rev. 05/12

Interior Exterior
In
Swing
Exterior
Out
Swing
LATCHING
SPEED
VALVE
BACKCHECK
INTENSITY VALVE
BACKCHECK
LOCATION VALVE
OPTION M71
DELAYED
ACTION VALVE
CLOSING
SPEED VALVE
SPRING POWER ADJUSTER
(5/16 WRENCH or SOCKET)"
Size of Door No. of Full
(360°) Turns
Clockwise
of Power
Adjuster
Equivalent
Closer Size
(Approx.)
DC6200 SPRING POWER ADJUSTMENT CHART
2 4 (712)
2 6 (764)
3 0 (915)
3 6 (1067)
' "
' "
' "
' "
4
8
12
16
2
3
4
5
2 6 (764)
3 0 (915)
' "
' "
2 6 (764)
3 0 (915)
3 6 (1067)
4 0 (1219)
' "
' "
' "
' "

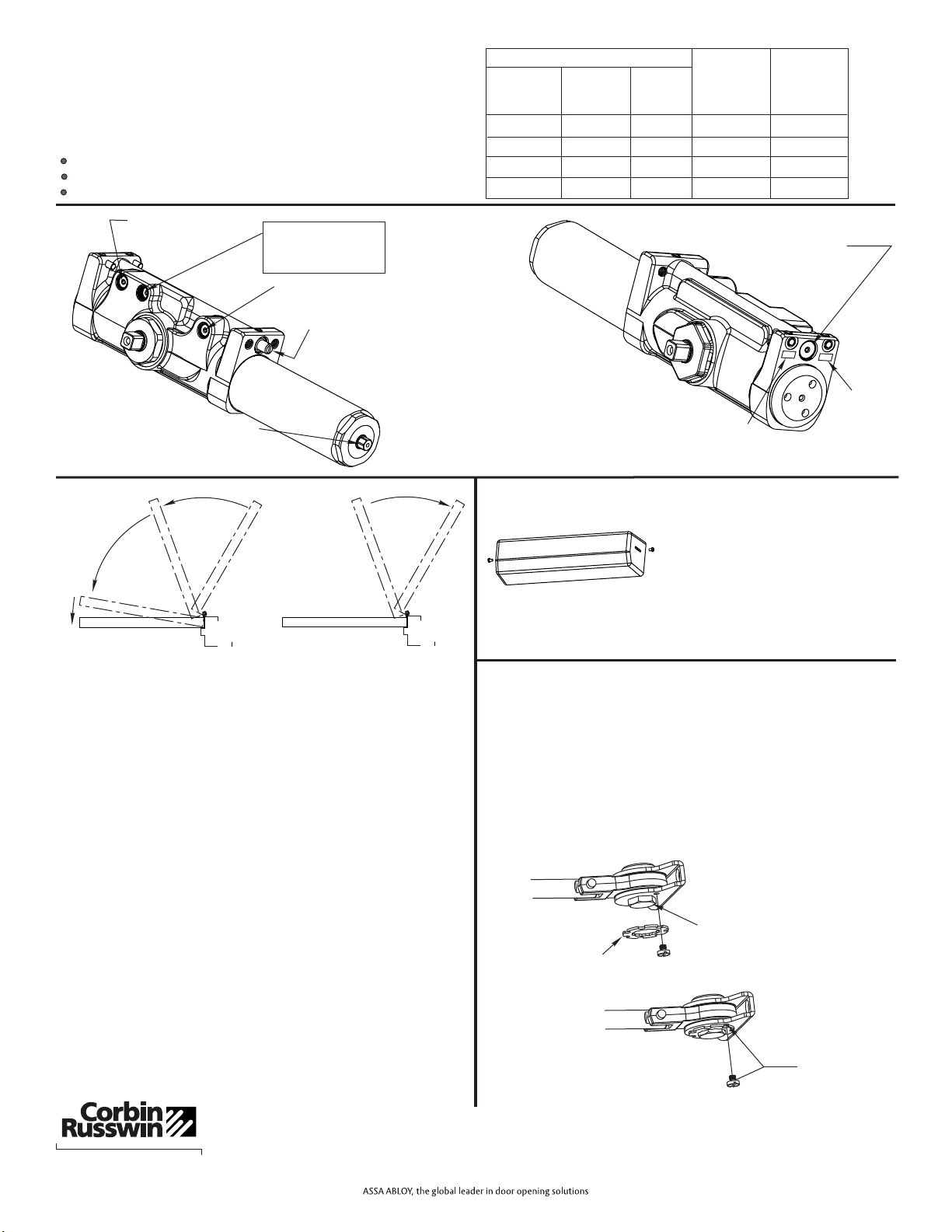

Spring Power Adjustment
All DC6200 closers are factory set at an approximate Size 3.
Adjust closer as necessary for door size using this chart.
Readjustment may be required to suit prevailing conditions.
Locate spring power adjuster from Illustration below
Backcheck Intensity Valve
Turn valve COUNTER-CLOCKWISE to reduce backcheck
or CLOCKWISE to increase backcheck. (Backcheck should
be set to give a soft cushioning action, not a sudden stop.)
Page 8
To Adjust Hold Open (A1 Option)
Open the door to desired position and tighten the hold open
screw firmly (For RH application, turn screw on underside
CLOCKWISE. For LH application, turn screw COUNTER-
CLOCKWISE.) Place the hold open dial over the hex head
of the bracket screw so that one of the slots in the dial is
directly over small screw hole tapped in bracket. Seat the
dial tightly over the bracket. INSERT DIAL SCREW AND
TIGHTEN SECURELY.
(FLAT TIP SCREWDRIVER
W/ 5 (127mm) Min. Shaft Length)"
Latching Speed Valve
After closing speed has been obtained, turn latching speed valve
CLOCKWISE to SLOW latching or COUNTER-CLOCKWISE to
SPEED latching for last 2 to 5 of door travel.
NOTE: Set combination of CLOSING and LATCHING speeds to
between 3 and 7 seconds Use of door by handicapped,
elderly or small children may require even greater
closing time.
" "
Closing Speed Valve
To adjust speed of door closing from fully open to a position
2 to 5 from closed, turn Closing Speed Valve CLOCKWISE
to SLOW closing, COUNTER-CLOCKWISE to SPEED
closing.
" "
Delayed Action Valve
Turn valve CLOCKWISE to SLOW closing, COUNTER-
CLOCKWISE to SPEED closing. Delayed action may be
adjusted from 20 seconds to 90 seconds, depending on
degree of door swing. Delay occurs at the beginning of the
door closing cycle from fully open down to 70°, where the
closing speed valve then begins its control.
hc
t
a
L
d
e
e
p
S
g
n
i
s
o
l
C
h
e
k
c
c
c
k
a
B
y
e
l
a
d
e
D
t i
o
c
n
A
Option
M-71
Full Cover
(Standard)
Slip cover over closer. Hold tightly
against closer mounting surface.
Secure on each side with 6-32 x
1/4 PBHMS screws."
(3/32 Allen Wrench Provided)
(3/32 Allen Wrench Provided)
(3/32 Allen Wrench Provided)
Installing Cover
Power
Size
Stamp
Date Stamp
HOLD OPEN
SCREW
DIAL
DIAL
SCREW
®
ASSA ABLOY
Copyright© 2005, 2012 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved.
Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited.
80-9330-3000-152 Rev. 05/12
DC3200 Size 1 thru 6 Adjustment See Chart
