Assa Abloy Yale HSA6610 User manual

HSA6500 GSM alarm
Installation · Programming · Operating
Keep this manual safe for reference and future maintenance
Introduction Contents
Thank you for choosing the Yale Wireless Alarm System.
This simple to install system has been designed with the
user in mind.
All the components are self contained and no connections
are needed between the units. There is no need to
damage the home decor, lift carpets or run cables.
You can install up to 20 devices in this system. As well as
extra door/window contacts, PIRs and smoke detectors,
you can add keyfob remote controls and keypads for
added control convenience.
There is no need to wire into the mains supply or seek
the services of a qualified electrician. The control unit is
powered by a plug top supply and all other components
are powered by battery (all batteries included).
Batteries will operate for 2 years or more before they need
changing. Regular testing and battery changes (when
notified by the system) will ensure reliability and peace of
mind.
The security detectors, control panel and external siren
are ‘tamper’ protected. Any unauthorised tampering with
these items will result in an alarm. This feature can be
turned off by the user when a battery change is required.
Display extreme caution when using ladders or steps,
please follow manufacturer’s instructions.
Be careful when using hand and power tools and follow
the manufacturer’s guidelines when using them. Take care
that the correct tools are used. Wear goggles or protective
clothing where required.
The external Siren is extremely loud, please ensure you
replace the cover and retreat to a safe distance before
testing.
The dialling/SMS facilities must only be used with persons
who have consented to being contacted by the system.
The system is not to be used to make 999 emergency
calls directly. Yale do not hold responsibility for any actions
taken by emergency services for incorrect use of the
dialling/SMS facility.
Special Notes on Compatibility:
This alarm system is NOT compatible with SmartHome
Alarm and Easy Fit alarm accessories. Please note the
prefix “HSA” on the front of the model number to indicate
compatibility. Information and illustrations are subject to change within this
document. Yale reserves the right to alter the specification and
product design at anytime without notice. Yale® is a registered
trademark. © 2015 ASSA ABLOY. All rights reserved.
Contents
1 Location planning 2
2 Unpack all the parts 4
3 First Time Easy Install 6
4 Mounting alarm devices 8
5 Control Panel Menu System in Detail 11
6 Using the System 17
Adding and using Accessories 20
Changing the batteries 22
Troubleshooting 24
Sensor response table 27
Specifications 28
Remote SMS control 30
Recommended Installation Sequence
We recommend you follow the simple install
sequence, headings numbered 1-6.

2
Y a le
ale
Y
ale
Y
Text Display
Text Display
ale
Y
R
12
3
6
5
4
789
0

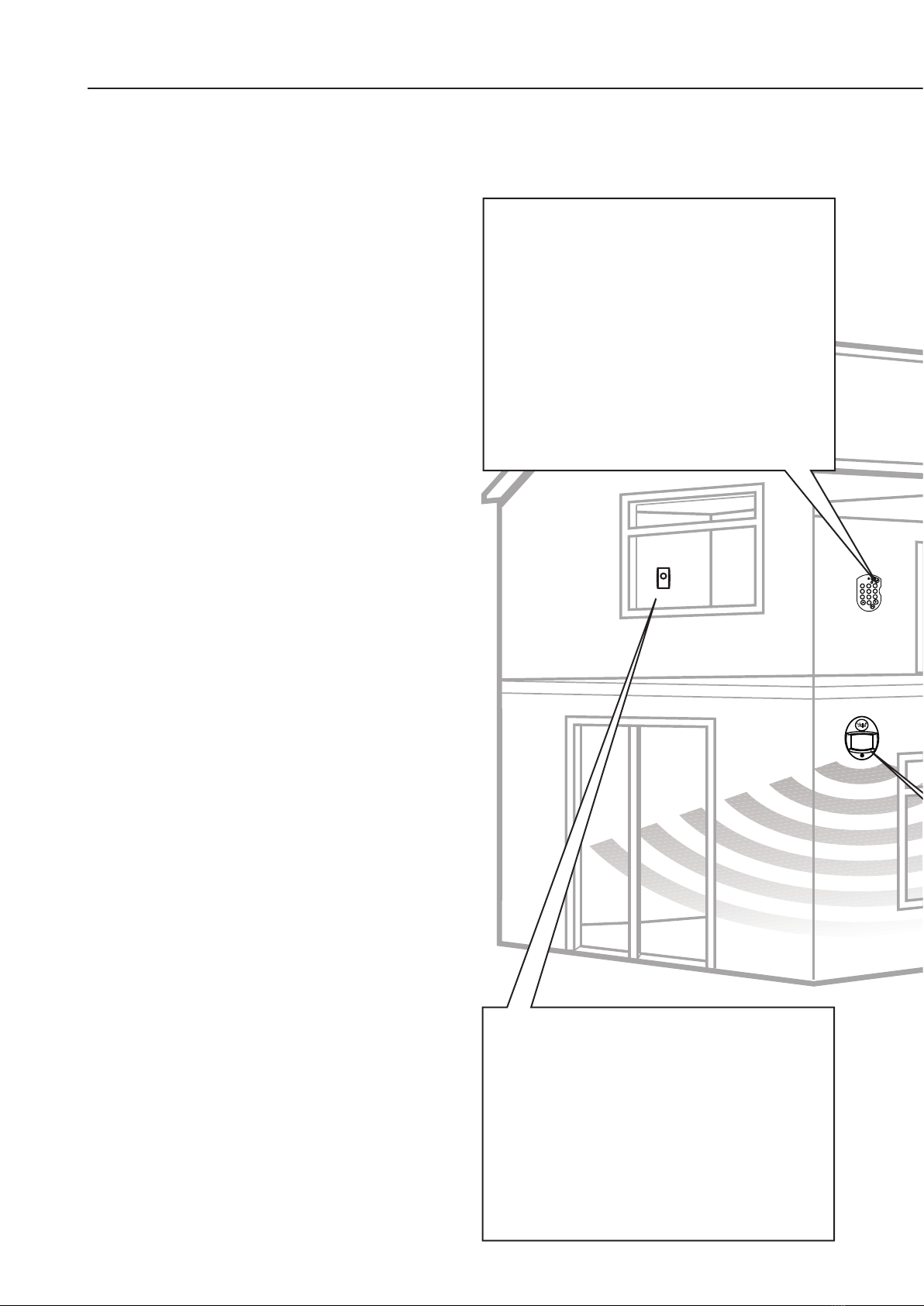

Location planning
Home and Away Mode Planning
The home arming mode allows the premises to be
part armed so that no one can get inside without
warning the occupier, yet the person already inside
the house can move freely without triggering the
alarm. For example the downstairs of a house can
be armed while upstairs can be disarmed allowing
the user to go to bed without causing an alarm.
If this feature is to be used, then it should be
planned now, before installation.
Decide what areas can be occupied when in home
arming mode, the sensors for these areas should be
ignored using the “Home-arm set” option (see page
11); and the sensors activated on the path to access
the control unit should be set to either Entry or Away
Entry as explained in Chapter 5.
Operating Range
All devices must be within 30 metres of the control
unit and must not be mounted on or near large
metal objects. Avoid obvious sources of electrical
interference such as fridges and microwave ovens.
Tamper Switches
When mounting devices ensure that any tamper
switches close fully. On uneven surfaces it may be
necessary to place packing behind the switch for
reliable operation.
Extend The System
Extend the system in the future to increase your
security or as your needs change.
For example, add extra PIR detectors and
extra door/window contacts.
Choosing Location
To minimise interference, avoid locating devices
close to metal framework, glass, electrical
appliances (especially wireless devices) and electric
cables.
Please note that the present of high density material
(metal, glass etc) in the transmission path will
significantly reduce the wireless transmission range.
1Work out the best places to locate the devices for maximum protection. Having chosen the
locations do not mount at this stage.
Keypad remote control accessory
When used as second keypad, it is ideal in
bedrooms or at the top of a stairwell so the
ground floor can be armed when going to bed
for the night. Or, at a side or back door for
alternative entry.
•Mountatchestheightforeaseofuse
•Designedforindooruseonly
•Keypadshouldbeaccessiblefromaprotected
entry/exit point
•Ensurethatthekeypadisnotvisiblefromthe
outside of the premises.
PIR movement detector
•Mountinapositionsuchthatanintruderwould
normally move across the PIRs field of view.
•Heightshouldbebetween1.9and2metres
above floor level.
•Locationinacornerwillensurewiderroom
coverage.
•DonotmountthePIRwhereitseldofviewwill
be obstructed e.g. by curtains, ornaments etc.
•Donotpointdirectlyatsourcesofheate.g.res
or boilers, and do not position directly above
radiators.
•AvoidmountingthePIRdirectlyfacinga
window.
•DonotpointthePIRatadoorprotectedbya
door/window contact.
Help button accessory
The help button provides extra protection for you
and your family. When help is needed the button
can activate your alarm immediately - even when
the system is disarmed.
•Mountonatwallsurface
•Designedforindooruseonly
•Outofreachofchildren
•Hiddenfromviewwhileeasilyaccessible.

3
Y a le
ale
Y
ale
Y
Text Display
Text Display
ale
Y
R
12
3
6
5
4
789
0
Keyfob remote control accessory
Can be used inside or outside the property and
can be kept on your keyring.
Smoke detector
•Mountinthemiddleoftheceilingatthetopof
a stairwell, or on the centre of hallway ceilings
where smoke would most likely be detected.
•Donotmountincornersorabovecooking
appliances and heaters.
•Installadditionaldetectorsifthereareclosed
doors preventing smoke from reaching
detectors.
Door/Window contact
Select a door that will be the main point of entry
and exit, usually your front door.
•Mountashighaspossible
•DonotaimaPIRatthisdoororwindow
PIR movement detector
•Mountinapositionsuchthatanintruderwould
normally move across the PIRs field of view.
•Heightshouldbebetween1.9and2metres
above floor level.
•Locationinacornerwillensurewiderroom
coverage.
•DonotmountthePIRwhereitseldofviewwill
be obstructed e.g. by curtains, ornaments etc.
•Donotpointdirectlyatsourcesofheate.g.res
or boilers, and do not position directly above
radiators.
•AvoidmountingthePIRdirectlyfacinga
window.
•DonotpointthePIRatadoorprotectedbya
door/window contact.
Control unit
•Ensureitishiddenfromviewwhileaccessible.
•Accesstomainssocket.
Siren
Choose a position on an external wall where the
siren would be most prominent. Mount as high as
possible, out of easy reach.

4

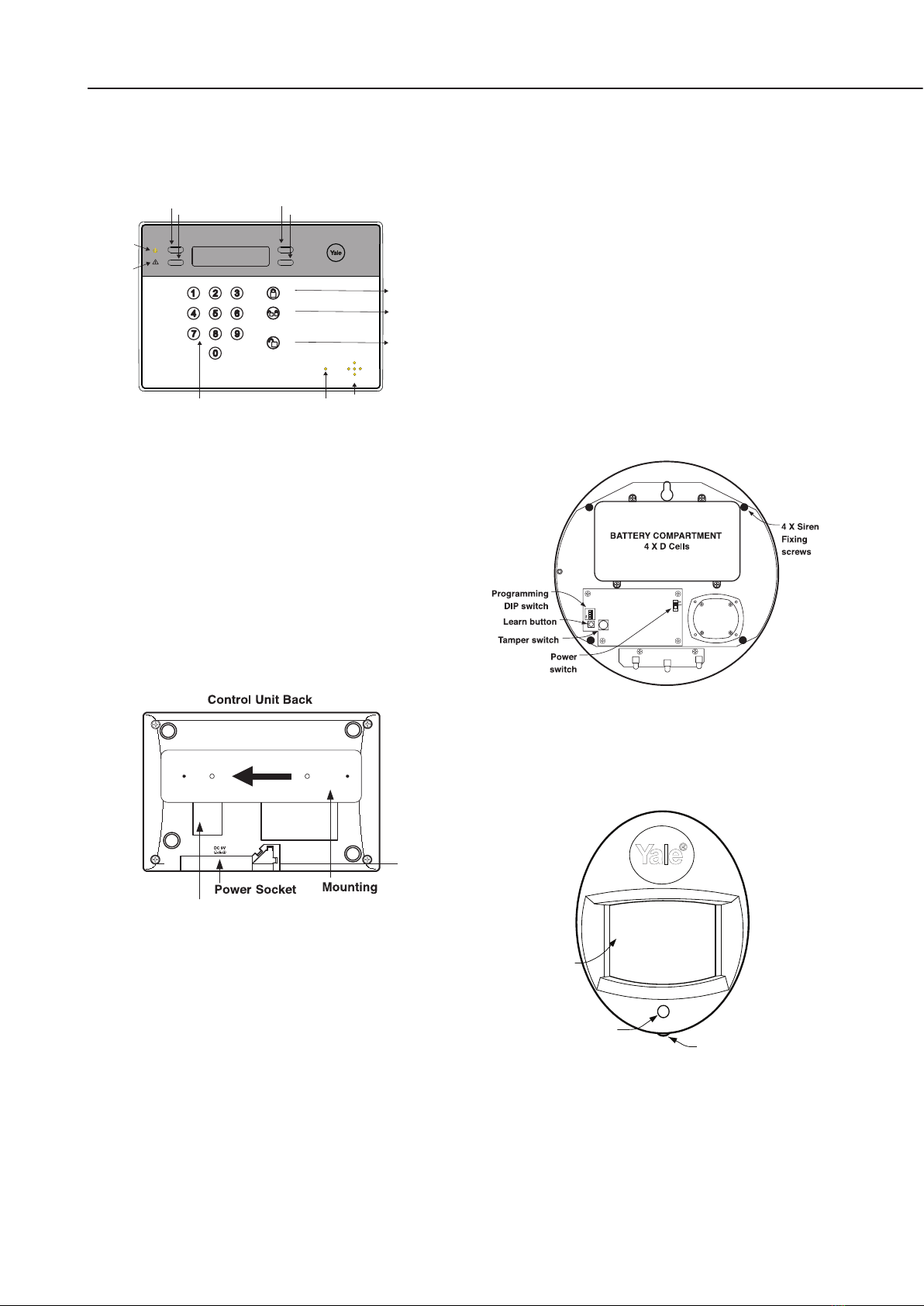

Unpack all the parts
Control unit
Unpack the kit content on a table. Remove the
mounting plate (if fitted) from the control unit by
sliding plate downwards. A power adaptor is
supplied that plugs into the main wall socket and
control unit. Do not plug in at this stage, this will be
done at Section 3.
•Inadditiontotheadapter,thereisarechargeable
battery inside the control unit that serves as a
backup in case of a power failure. A fully charged
battery can provide backup power for a period of
10 hours. It takes approximately 72 hours to fully
charge the battery. The control unit is equipped
with a backlit LCD display and keypad for easy
operation in the dark. To conserve backup battery
duration the backlights will be switched off during
mains power failure.
•Removethe“Simcard&Powerswitch”coverand
switch the internal battery to “on”.
•InsertastandardsizeGSMsimcard(not
provided), and replace the back cover. Please
ensure the sim card is not pin protected.
2
Siren
WARNING
The siren is very loud, be prepared! Take care not to
activate the siren tamper switch unnecessarily.
1The siren comes in two shapes, rectangle or round
depending on the kit purchased. Remove the
cover by unscrewing the single screw located on
the lid.
2Power switch to ON position.
PIR movement detectors
1Pull out the plastic pull tab on the back of the PIR.
This will activate the batteries.
Siren
Microphone
Power LED
Fault LED
Home Arm
Numeric
keys
Disarm
Arm
Text Display
Down
Backspace/Return
OK
Up
Plate
SIM CARD & POWER SWITCH
Cover screw
Learn/Test
Button
Status
LED

5

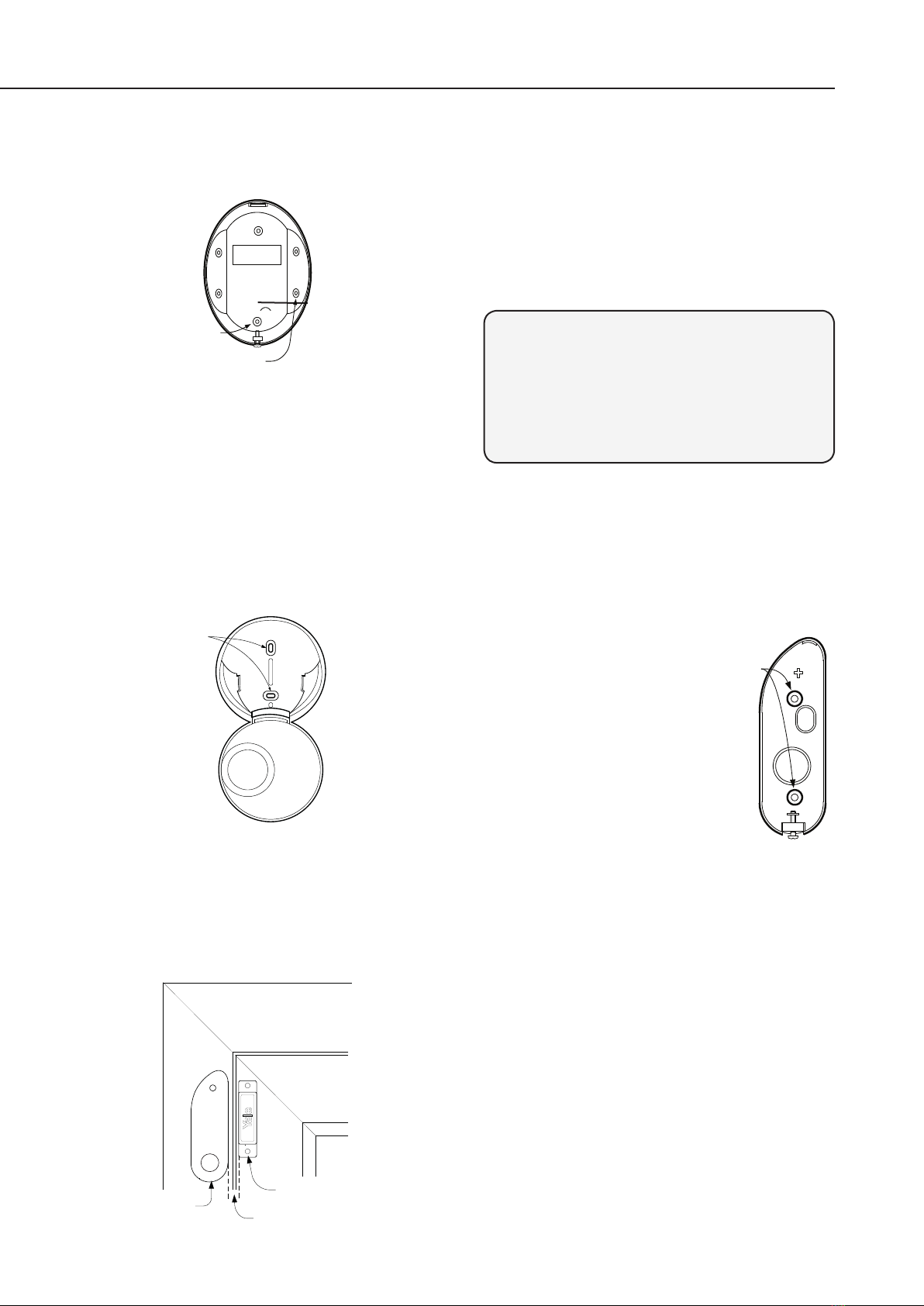

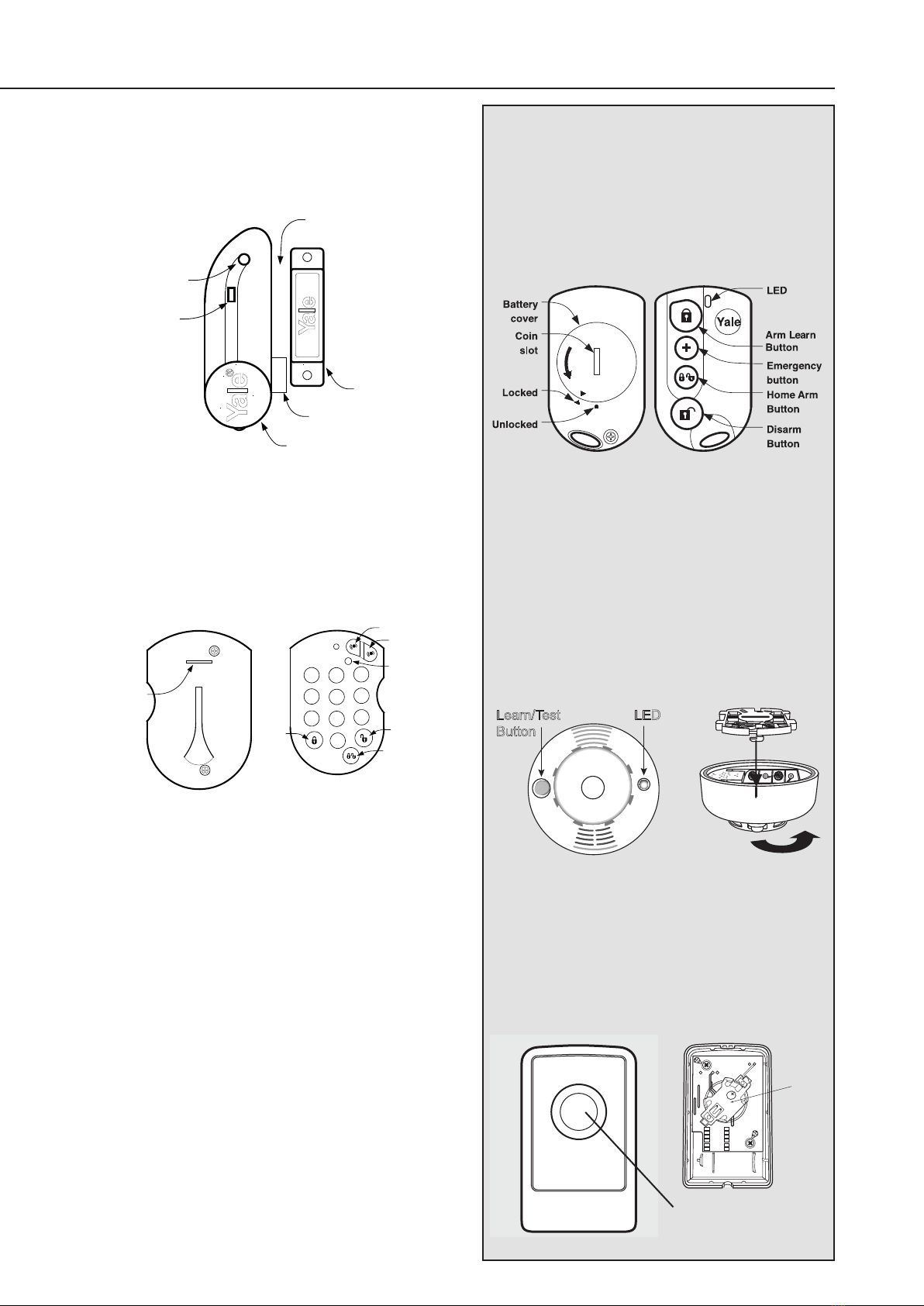

Door/window contacts
1Pull out the battery saver tab on the side to activate
the battery.
Keyfob remote control accessory
1Open the battery compartment using a coin by
turning cover in the direction of the big arrow so
the cover small arrow is next to round dot.
2Insert CR2032 battery and replace cover.
Smoke detector accessory
1Remove the cover and insert three AA batteries
2The Smoke detector will now enter into self-
calibration mode for 15-20 minutes. It will
resume normal operation after this period.
Help button accessory
Remove the cover by loosening the fixing screw
and insert the CR2032 battery (supplied) as
shown (1). Please ensure you observe battery
polarity.
Door/window contacts
1Remove the cover of each door/window contact
by loosening the fixing screw.
2Insert two AAA batteries into each detector as
shown.The indicator LED will flash briefly.
7
Keypad remote control
Remove the cover and insert the 3 AAA alkaline
batteries as shown.The ‘Tx’ LED will flash briefly
while components initialise.
Please note, the Home button on the operating
panel and the jumper switch inside (do not move)
have no function on this model.
Smoke detector accessory
Remove the cover and insert the four AAA
batteries as shown.
Keyfob remote control accessory
Slide off the battery cover, insert the
23A/MN21 battery as shown, and replace
battery cover. Switch to ‘on’.
Help button accessory
Remove the cover by loosening the fixing
screw and insert the 12V battery (supplied) as
shown. Please ensure you observe battery
polarity.
Tamper
switch
Jumper
switch
Tamper
switch
Jumper
switch
Magnet
Extension terminals
Learn/Test button
Learn/Test
button
On/Off switch
Keypad remote control accessory
1 Pull out the plastic battery saver tab at the back of
the remote keypad. This will activate the batteries.
/
Learn/Test
Button
LED
ale
Y
1
Panic/Learn
button
Battery
saver tab
Gap no more
than 8mm
Magnet
Sensor
Learn/Test
button
LED
Battery
saver tab
ale
Y
R
12
3
6
5
4
789
0
A
B
Disarm
Home
Arm
Arm
LED

6
First Time Easy Set-up
  •Anyomissionsormistakescanberectied 
later. Once the first time install has been
successfully completed it will not be shown
again.
  •Moreadvancedprogrammingcanbedone 
at a later stage including adding and naming
sensors and changing various settings.
Connect the mains power adaptor to the control
panel (in the intended location). After the welcome
screen, the display will show:
3 Steps easy
setup (ok?)
Press OK (3) to continue. You are 3 steps away
from completing the initial set-up.
3The installation guide will provide you with prompts to easily set-up the system.
i
1. Set Time/Date
Set date/time
(ok?)
Press OK (3) to continue.
Set date,press
ok when done(ok)
Press OK (3) to continue.
date setting
01 jan (pqOK)
Set the current month using the p/qkey.
Press OK (3) to confirm setting. Set the day
using the p/qkey. Press OK (3) to confirm
setting. After setting the day, it will now
prompt you to set the time.
Set the current time using the p/qkey. Press
OK (3) to confirm the hour, follow by setting
the minutes.
2. Set the phone number to alert
Set 1 phone num
for alert (ok?)
Enter a phone number to be alerted in the
event of an alarm.
Press “Up arrow” key for +key or enter
numbers.
Press OK (3) to continue.
Press Return button to clear the entered
number or skip if you do not want any alert
through the phone.
3. Set the Pincode
Set pin code
....
Enter the four digit pincode you would like to
use (e.g. 1234). Press OK (3) to continue.

7
Next, the screen will display:
.Exit setup
Repeat Setup
Upon selecting “Exit Setup”, you will now be
prompted with:
mount devices,
see Manual
Please leave it on this screen and proceed to
mount all your devices (see Chapter 4).
Note: If a different prompt is shown, please see
section on the right.
Error Condition
(Upon selecting Exit setup)
If there are no device/accessory (accidentally
deleted) in the system and you selected “Exit
Setup”, you will be prompt with “Please add at
least one device”.
Please add at
least one device
If you see this message, please press the test/
learn button on all your accessories (please add
Siren later) one at a time.
Every time a button is pressed, the screen will
prompt the device and you will need to press OK
on the panel to acknowledge/add. It would then
be reverted to the “Exit Setup, Repeat setup”
screen. Please press the learn button on the
next device and repeat the above steps. Please
ensure all the devices are added one by one.
Choose “Exit setup” once everything is added.
i
Alternatively, should you wish to finish initial setup
with no device learnt-in, you can force exit by
pressing disarm and then followed by the pincode.
You will now be prompted with:
mount devices,
see Manual
Please leave it on this screen and proceed to
mount all your devices (see Chapter 4).

8
Post Installation/Mounting Devices
4Note: Tamper is disabled during initial set-up. For details on disabling tamper see Section 6
Control Unit Mounting
Wall Mounting
Using the two holes on the mounting back plate,
mark the position of the holes. Drill two holes and
fix with the screws and plugs provided. Hook the
control panel onto the plate. Ensure that the control
unit is fitted at approximately chest height where
the display can be easily seen and the keypad
convenient to operate.
•The control unit tamper protection will
automatically arm when mounted on the back
plate.
NOTE: At this point, the control panel
screen should be showing:
mount devices,
see manual
Mounting other devices
Find a location where the device is to be mounted,
see section “Location Planning” for suggestions.
Before proceeding to mount the devices physically,
check that the control unit will receive the system
radio transmissions by doing a simple radio range
test.
Please make sure the control unit screen is
displaying:
mount devices,
see manual
Hold the devices in the desired location and press the
Test/Learn button (see below) on the accessories.
•KEYPAD: press arm button.
• ALL OTHER DEVICES: Hold the device in the
desired location and press the learn/test button,
the control unit should respond with a chime.
If the sensor signal reached the control unit, the
screen will briefly display:
dc zone01 b 6
........
*Note: this screen shot is use as example only.
The radio signal strength is shown by a number on
the upper right (6 in this case). this number ranges
from 1 to 9 (strongest). Where possible please ensure
sensor shows 3 or above for optimal performance.
When you are happy that all your devices can
communicatewiththepanel,presstheGreen
“Disarm” button and enter your pincode that you
previously defined. The screen will now show:
Alarm Off
00:00 01 jan
Leave it at this screen and proceed to mounting the
accessories as detailed below. The fault light/beep
maybe activating periodically and you can ignore that
until you finish mounting.
Mounting the siren
Ensure the tamper switch is fully depressed when
the siren is mounted. If there is a gap, pack with a
suitable spacing material.
Round
Siren
Base
Wall
Spring Guide
Spring compressed
firmly against wall
1 Using the large screws and wall plugs provided,
screw the siren onto the wall through the 4
mounting holes on the siren base.
2 Fix the siren cover with the securing screw.
Mounting the PIR
1 Open the PIR by loosening the bottom screw.
Knock out the relevant holes on the base where
the plastic is thinner. The center two knockout
holes are for flat wall mounting while the 4 side
holes are for corner mounting.

9
2 Drill holes into the wall using the knockout holes on
the base as a template.
3 Fit wall plugs and secure the PIR base with the
screws provided.
4 Fit the PIR back together and tighten bottom
screw, the PIR installation is complete.
Mounting the Keypad:
1 Drill holes into the wall using the fixing holes as a
template.
2 Fit wall plugs into the wall and fix back cover with
the screws provided. Put the keypad into the
bracket.
Mounting the Door Contact
Frame
Door/Window
Gap no more
than 10mm
Magnet
Sensor
Sensor
ale
Y
1 Find a location on the door/window where you
would like the device to be mounted. The sensor
should be on the frame while the magnet should
be on the door/window. Once mounted make sure
the tamper switch spring is fully depressed.
The gap between the magnet and sensor should
be no more than 10mm when closed (maybe
shorter depending upon the actual environment).
Simple test to see whether the magnet is in range
of the sensor: hold the magnet and sensor in
place and then pull them apart. If the sensor LED
lights up it implies the two items are within range.
i
-Mounting using adhesive pads
Clean the mounting surface with a suitable
degreaser agent. Please note that some surface
or environment (i.e. exposure to Sunlight) maybe
unsuitable for this mounting method. Please use
screw mounting in these cases.
-Mounting using screws and wall plugs
Loosen the bottom screw
and open the door/window
contact. Knock out the holes
on the base as shown. Drill
holes into the mounting
surface using the holes in
the knockouts on the base
as template. Fit wall plugs
(if required) and secure with
the screws provided.
Mounting the Help button
1Break through the knockouts (where the plastic is
thinner).
2Using the holes as a template, drill holes in the
surface and insert wall plugs if fixing into plaster or
brick. Screw the rear case to the wall.
3Replace the cover and tighten the screw.
Mounting the Smoke Detector
1The base has two mounting slots. Using the slots
as a template, drill holes and insert the wall plugs if
fixing to plaster. Screw the rear case to the ceiling
using the screws provided.
2Replace the main unit onto the bracket.
Knockouts
Corner fixing
knockouts X 4
Wall fixing
knockouts X 2
Fixing Slots X 2
Keypad
Cradle Open

10
About your alarm system (default settings)
To set up more telephone numbers (maximum
6 in total), please see Chapter 5, Tel. Settings.
i
To change, please see Chapter 5, Adv.
Settings, Alarm Length.
i
To change the exit and entry timer, see Chapter
5, Adv. Settings.
To change the property of individual sensor (i.e.
Burglar attribute where the individual sensor will
instantly alarm when triggered), see Chapter 5,
Devices, Edit Devices.
Home arming is disabled by default. If you need
Home arming function, see Chapter 5, Home-
arm set.
i
All accessories were pre-set to
“entry” attributes.
When the system is first armed, user will have 30
seconds to exit the building. System will ignore any
sensors triggering in this duration.
If the system is already armed, triggering any
sensors will cause an entry countdown to begin.
When the alarm is triggered, the
system will dial out to alert the
owner.
Siren length is set to 3 minutes.
Jamming and interference
detection disabled as default.
If Jamming and interference is of concern,
please see Chapter 5, Adv. Settings, Jamming
Det for option.
i

11
Control Panel Menu System in Detail
Entering Programming Mode
The programming mode is for you to configure
the system, and make any changes to the pre-set
functions.
If the system is in Disarmed (Alarm off) mode, follow
the steps below to enter the programming mode.
1 Press Disarm key on the control panel.
The screen will prompt you to enter the PIN code.
E n t e r C o d e
....
2 Key in your PIN code within 30 seconds.
Note
•PressPto clear the entered PIN. If the code field
is empty, it will return to the Alarm Off screen.
3 Then the Programming Main Menu will typically be
displayed.
* S y s t e m t e s t
H o m e - a r m s e t
Note
•Thecursorisindicatedbyaashingdotontheleft
upper corner. It can be moved up and down by
pressing pq respectively.
4 The following items can be selected:
·Fault log (only if there is a fault condition)
·System Test
·Home-arm set.
·Devices
·Log
·Adv. Settings
·Tel. Setting
· GSMSettings
5 After making a selection by moving the cursor to
the desired item, press 3to confirm the selection.
Selecting Pwill return to the Alarm Off screen.
Important Note
•Inprogrammingmode,ifnokeyispressedwithin
5 minutes, the panel will exit the programming
mode and return to the Alarm Off screen.
System Test
When System Test is selected, you will be given 4
different options: Sensor Test, External Siren (test),
Panel Siren (test) and Phone alert.
Sensor Test:
three beeps will sound during a screen self test.
This allows you to test the system without causing
an alarm. To test if the control panel is receiving a
signal, do one of the following depending on the
device:
1 Press Arm on the keypad
2 Press the test/learn button on the sensor
3 Press the help button
A chime will sound and the display will show you
which device is transmitting.The upper right corner
will show the radio signal strength ranging from 1 to
9 (strongest). Relocate the sensor if this is below 2
(unstable).
Ext. Siren and Panel Siren (test):
•Theexternalsirenandcontrolunit(panel)sirencan
be tested by pressing 3 when prompted. Press 3
once more to stop the siren.
Phone alert:
•Selectthisoptionforatestcallviaphonedialler.
Home-arm set.
The home mode allows the home to be partially
armed so that no one can get inside without first
disarming the system. However, the person inside
the house can move freely around without triggering
the alarm. Home mode is usually used to protect the
ground floor when you are upstairs in bed.
To enable home arm, you will first need to choose
the sensors to be ignored during this mode. It would
typically be the bedroom PIR etc if you want to arm
your system during the night.
Selecting this option, the screen will display:
Press test on
sensor to ignore
5

12
If you press any test/learn button on any learnt-in
sensor (confirm by pressing 3), these sensors will be
ignored during the Home Arm mode.
Repeat this step to ignore additional sensors.
Devices
Select ‘Devices’ in the main programming menu to
add or remove a device. From here you will be able
to view a list of all the devices being installed and
you can add or delete devices. The following items
can be selected.
·Add Device
·Edit Devices
·Remove Device
·Program Siren
Add Devices
1 To learn-in a new device select ‘Add Device’
then press 3, a “Push Button on Device to Add”
message will be shown.
2 Press the learn button on the device within 30
seconds (see Chapter 2 for location).
3 If a signal is detected, the screen will show the
type of device found. Press 3to confirm
•Devicesarelabelledbythefollowingcodeswithin
the control unit:
· Door Contact DC
· PIR Sensor IR
· Smoke Sensor SD
· Remote Keyfob RC
· External Siren BX
· Remote Keypad KP
· Help Button FP (Fix-Panic)
•Whenasensorisaddedtothesystemfora
second time, an error “Already exists in System”
message will be briefly displayed and the control
unit will wait for another learn-in signal.
4 Press 3to confirm the device type.
5 Thefollowingzonetypeswillneedsettingfordoor
contacts and PIRs:
· Burglar
· Home Omit
· Entry
The following devices have a fixed emergency
zone type:
· Smoke Detector
· Remote Controller emergency Button
· Help Button
· Remote Keypad dual emergency buttons
· Control Unit dual key emergency (1 and 3) keys
Zone Type List
Burglar
•Whenthesystemisinhomeorawayarmedmode
and a burglar device is triggered, a burglar alarm
will be activated immediately.
•Adevicesettoburglarwillnottriggeranalarm
during entry or exit delay periods.
Home Omit
•Ahomeomitdevicewillbeignoredwhenthe
system is home armed.
•Ahomeomitdevicewillgiveaburglaralarmwhen
the system is away armed.
Entry
•Ifanentrydeviceistriggeredwhenthesystemis
either away or home armed, it will start an entry
delay period to give enough time to disarm the
system.
•Ifthedelayperiodexpireswithoutbeingdisarmed,
the control panel will respond with a burglar alarm.
•Ifthedevicehasbeensettoentryandtriggered
when the system is in disarmed mode, the control
unit will make a ‘ding-dong’ door chime sound if
the door chime feature is enabled.
Emergency (Auto assign)
•Anemergencydevicethatisactiveallofthe
time does not have to be armed or disarmed, if
triggered an emergency alarm will be activated
immediately.
Edit Devices
To edit all of the devices that has already been
installed, choose ‘edit devices’ in the device +/-
menu. All of the devices included in the system will
be displayed.
1 Use st keys to scroll the display and choose the
device for editing. Press 3 to select. Depending
onthedevicealistofzonetypeswillbegiven,
otherwise you will be asked to enter a name.
2 Ifavailableselectazonetypeandpress3 to
confirm.

13
3 You are now asked to enter a name. Press 3 to
confirm or Pto cancel without naming.
Device Naming
•Eachdevicecanbegivena12charactername.
Names can be given either when first adding a
device or by editing them later.
•Whenthe“Enter New Name” screen is displayed
the numeric keyboard can be used to enter text.
Simply find the corresponding numeric key with
the required character and press repeatedly until
the wanted character appears. Release the key
and the flashing cursor automatically jumps to
the next position for you to continue with the next
character by the same method.
•Thekeyshavethefollowingfunctions:
11
22ABCabc
33DEFdef
44GHIghi
5 5JKLjkl
66MNOmno
7 7PQRSpqrs
88TUVtuv
99WXYZwxyz
00<space>/&’.”+
PBackspace and delete
•Thenamecanbeerasedbyclearingthedisplayby
pressing Prepeatedly, followed by 3.
4 Press 3 when completed to confirm the name and
return to the device list.
Remove Device
To delete a device choose ‘remove device’ in the
“Edit device” menu. A list of all programmed devices
will be shown.
1 Use st keys to select the device you wish to
delete and press 3.
2 The selected device will be displayed again, press
3to confirm deletion or Pto return to the device
list without deleting.
•Ifadevicenamehasnotbeenprogrammedthe
screenwillshowthepresetzonenumberinstead.
Program Siren
To program the siren, select ‘Program siren’ under
the “Devices” menu. The following items are
available in this menu:
• Learn Siren
• Siren Tamp. On
• Siren Tamp. Off
• Conrm On
• Conrm Off
• Entry Snd On
• Entry Snd Off
Learn Siren
•Thecontrolunitrequiresthatatleastonedevice
is programmed into the system before the siren is
added.
•Putthesirenintolearnmodebypressingthelearn
button on the siren. The siren LED will flash.
•Onthecontrolunit,usest keys to select the
“Learn Siren” menu.
•Press3on the control unit.
•Thecontrolpanelwillgivealongbeepand
transmit a signal to the bell box. The bell box
should respond by activating its siren and strobe
lights momentarily when any command is sent
to it. Press learn button on the siren to exit learn
mode.
Siren Tamp. On, Siren Tamp. Off
The siren tamper switch can be enabled and
disabled remotely.
•Thesirentamperprotectionautomaticallyswitches
back on after one hour.
Confirm On, Confirm Off
The siren can be enabled for arming and disarming
confirmation where one pip and flash is given for
arming, with two pips and flashes from side to side
for disarming.
Entry Snd On, Entry Snd Off
The entry and exit warning beeps can be echoed on
the siren.
Log
The alarm log memorises recent system events
including:
· All alarm events with device names and type
· All fault warning events
· All arming and disarming events
•Theloggedeventsaredisplayedinreversed
chronological order (most recent event first).
•Thelogismarkedwitha‘start’labelbeforethe
most recent entry and ‘end’ after the oldest entry.
To view log:

14
1 Select the Log menu and press 3.
2 The log can now be scrolled up and down and
viewed with the st keys; the most recent event
will be at the start.
3 The first line displays the time and date of the
event, the second line displays the type of event
and the third line either states the user or the
device that caused the event. Abbreviations used
are:
· “LB”: low battery
· “Tamp”: tamper
· “R”: restore.
· AC: mains power
· Panic: emergency
· Perimeter: entry or away entry device
· Cancel: silencing an alarm with a help button
Adv. Settings
The settings will initially have factory default values.
If you do not want to change them then you can
escape any menu by pressing Pwithout making
changes.
The following items are available in this menu:
· Pin Code
· Entry Time
· Exit Time
· Entry Sound
· Exit Sound
· Door Chime
· Alarm Length
· C.U. Siren
· Jamming Det
· KF Entry
· Time
· Date
· Final Door
Pin Code
The PIN Code (password) is used to configure the
control unit and to disarm the system.
•Todisarm,pressthe‘disarm’keyfollowedbyyour
PIN code.
•Toentertheprogrammenupressthe‘menu’key,
enter a PIN code followed by 3.
•Upto4Pincodescanbestored.
1Select ‘Pin Code’ then press 3, a list of 4 PIN
codes will be shown, occupied codes are shown
with ****. The list can be scrolled up and down
using thest keys.
2Select the code you want to change and press
3, enter your new PIN code and press 3. You will
be asked to repeat the PIN code, enter it again
and confirm by pressing 3, You will now be asked
to name the PIN code. The new code is now
programmed.
•Pcan be used to correct entry errors, pressing P
repeatedly will return you to the PIN code list.
•User1codecanonlybechangedandcannotbe
erased. All other codes can be erased by selecting
them and pressing 3.
•Anerrormessagewillbeshownifeitheran
incorrect repeat code is used or a duplicate code
is entered for another user. All codes have to be
different.
Entry Time
Note: Ensure device is set to entry on control unit for
the entry time to work (see section 5, Add Devices)
Entry time gives you a delay to allow you time to
enter your premises and disarm the system. Times
can be set from 00 seconds (no delay) up to 70
seconds in 10 second increments.
•20secondsisthefactorydefault.
Exit Time
Exit time gives you a delay to allow you to leave your
premises before the system arms. Times can be set
from 00 seconds (no delay) up to 70 seconds in 10
second increments.
•30secondsisthefactorydefault.
Entry Sound
The control unit will beep during the entry delay
period as an entry warning, you can switch the
sound on and off with this setting.
•Entrysoundonisthefactorydefault.
Exit Sound
The control unit will beep during the exit delay period
as an exit warning, you can switch the sound on and
off with this setting.
•Exitsoundonisthefactorydefault.
Door Chime
Any door contact or PIR set to entry will cause
the control unit to chime when activated when the
system is disarmed. This is used to signal when
anyone has entered your premises. You can switch
the sound on and off with this setting.
•Chimeoffisthefactorydefault.

15
Alarm Length
The siren (both external and built-in) will sound when
an alarm is activated. The length of the alarm can be
set from 1 to 15 minutes in 1 minute increments with
this setting.
•3minutesisthefactorydefault.
C.U. Siren
You can disable the control unit’s built-in siren with
this setting.
•Sirenonisthefactorydefault.
Jamming Det
Enable or disable Jamming/Interference detection on
the control panel. Confirmed by pressing the 3key.
Default setting is Disable (recommended).
KF Entry
When selected as Off, user must first trigger an entry
sensor before the keyfob can disable the system.
Please select On if you wish to disarm the system
without first triggering an entry sensor.
•KFEntryOnisthefactorydefault.
•IftheKeyfob’sPanicbuttonistriggered,the
same keyfob cannot be use for disarming the siren.
Time
The control unit uses a 24 hour clock. The time
is set by using the pq keys and confirmed by
pressing the 3key.
Date
The day and month are set by using the pq keys
and confirmed by pressing the 3key.
Final Door
If this is turned On, a system counting down under
the full arm mode will immediately arm when user
exit and triggers the Door contact’s close position
(Applies to door contact with “entry” attribute only).
•FinalDoorOffisthefactorydefault.
Tel. Settings
This menu allows you to program up to 3 telephone
numbers, record an address message and place
test calls, The following items can be selected.
•Tel.Numbers
•Rec.Msg
•TestReport
Tel. Numbers
This menu has a list of 6 telephone numbers (notify
via voice dial or SMS). These numbers are dialled/
SMS in order, a maximum of 20 digits per number
can be stored. Only one number is required to
enable the control unit to report over the telephone
line.
1Use the pq keys to select a number from the list.
2Press 3to confirm. If there was a number already
stored then you will be asked to change the
number, if the slot was empty you will be asked to
enter a new number, confirm by pressing 3.
3Enter your phone number and confirm by
pressing 3. Errors can be corrected by pressing
Pto backspace, pressing Prepeatedly will take
you back the telephone number list. Telephone
numbers can be deleted in the same manner.
4Once a number is entered, you will be ask whether
to use voice or SMS reporting. Please note
that SMS reporting can only work with mobile
numbers. If you select SMS reporting, it will further
ask you what type of event should trigger a report.
Rec. Msg
This menu allows the recording of your message.
The maximum length of message is 10 seconds
which is ample for most messages, when recording
remember to speak clearly and slowly into the
microphone.
1Press 3and you will be either asked to record a
new message or change an old one.
2Press 3again and follow the on screen
instructions. When you finish recording remember
to press 3 to stop recording. If you go over the
10 second recording time (indicated by a beep)
just repeat the recording procedure again taking
care not to go over the 10 second time limit. The
recording is complete.
Test report
This menu allows you to test the telephone reporting
feature.
•Pleasecheckwiththecallrecipientsbeforemaking
a test call.
•Ensurethatthesimcardisinsertedandworking.
The sim card should not have pin code protection.

16
1Select Test report and press 3.
2A list of numbers will be displayed, select the
number you want to test and press 3.
3The control unit will now display test progress.
•Thetestcanbecancelledatanytimebyeither
pressing the Pbutton or the call recipient pressing
“9” on their phone to acknowledge the call. If a
radio DECT or mobile phone is used, remember to
press 9 repeatedly until the call closes.
•Checkthatthecall/SMShasbeensuccessfully
received.
GSM Settings
ThismenuallowsyoutocongureGSMspecic
settings, The following items can be selected.
•PeriodicSMS
•GSMsignal
•SMSKeyword
•ResetGSM
Periodic SMS
Use this feature to avoid pre-paid sim card credit
expiring.
•Thecreditinapre-paidGSMsimcard(PAYG)
often expires after 90 days of inactivity (please check
with your provider). This option allows you to set
an automatic SMS period (between 10 days to 180
days). By sending out SMS periodically it will keep
the sim card live and avoid credit expiring.
GSM signal strength
YoucancheckyourGSMsignalstrength(strongest
= 9), Please relocate your panel should the value fall
below 4.
SMS Keyword
If you want to control your system remotely using
SMS, you need to set a keyword for security
reasons.
•PROGisthefactorydefault.
Reset GSM
ShouldyourGSMdevelopfaults,youcanresetthe
GSMsimcardusingthisoption.

17
Using the System
The PIRs have a built-in sleep timer to save
battery power. If there is no movement in front
of the PIRs for 1 minute, the PIRs will become
‘ready to signal’ and movement will now be
reported. The PIRs will sleep for 1 minute after
reporting.
Any movement detected in sleep time will not be
reported and will extend the sleep period by a
further 1 minute.
i
Away Arm
Arming the System
1When the system is disarmed (alarm off), press the
arm key on the control unit, keypad or keyfob.
2The control unit will start its countdown.
3When the exit delay time is up, the control unit will
sound a long beep. The siren will beep once and
the strobe will flash once after the exit delay has
expired. ‘Alarm on’ will be displayed on the screen
and the system is now in away armed.
4If there are faults within the system, i.e. the tamper
switch of a sensor left opened, the user will not be
able to arm the system with a single press. The
user can use the control panel, keypad and keyfob
to force arm the system by pressing arm twice.
Stopping the Exit Delay by Disarming
1Press the disarm key on the keyfob or press the
disarm key followed by a PIN code on the control
unit and keypad.
2‘Alarm off’ will be displayed on the screen and the
system will return to disarmed mode.
Extending the Exit Delay
•Theexitdelaytimecanbeextendedduringthe
exit delay period by pressing the arm button on
the keypad or keyfob. Each time the arm button
is pressed, the delay time starts counting from the
beginning.
Alarm Activation
•IfanyDoor/WindowcontactorPIRsensorsetto
entry or away entry is triggered, the entry timer will
be started. If the entry timer is allowed to expire
the alarm will be activated.
•Ifothersensorsnotsettoentryorawayentryis
triggered, the alarm will be activated immediately.
Disarm
Disarming the System
1Press the disarm key on the keyfob or press the
disarm key followed by a PIN code on the control
unit and keypad.
•Thekeyfobwillonlydisarmthesystemduring
entry time after an entry or away entry door/
window contact or PIR has been triggered.
2The control unit will sound two beeps. The siren
will beep twice and the strobe will flash side to
side. ‘Alarm off’ will be displayed on the screen
and the system is now disarmed.
3The control panel will lock out for 5 minutes with 5
beeps if the PIN code had been entered incorrectly
for five times.
Home Arm
The home mode allows the home to be partially
armed so that no one can get inside without first
disarming the system. However, the person inside
the house can move freely around without triggering
the alarm. Home mode is usually used to protect the
ground floor when you are upstairs in bed.
Arming in Home Mode
1When the system is disarmed (Alarm off), press
the home arm key on the control unit, keypad or
keyfob.
2The control unit will start its countdown.
3When the exit delay time is up, the control unit
will sound three short beeps. The siren will beep
once and the strobe will flash once after the exit
delay has expired. ‘Home’ will be displayed on the
screen and the system is now home armed.
4If there are faults within the system, i.e. the tamper
switch of a sensor left opened, the user will not be
able to arm the system with a single press. The
user can use the control panel, keypad and keyfob
to force arm the system by pressing arm twice.
Extending the Exit Delay
•Theexitdelayperiodcanbeextendedinasimilar
manner as described in Away Arm.
Alarm Activation
•Ifanydoor/windowcontactorPIRsensorsetto
entry is triggered, the entry timer will be started. If
the entry timer is allowed to expire the alarm will
be activated.
•Homeomitandawayentrysensorswillbe
ignored.
•Ifothersensorsnotsettohomeomit,entry
6Arm and disarm the system and practice using it. Trigger the alarm by arming the system and
opening protected door/windows and walking past PIRs. Now is the time to show the rest of
the family how simple it is to use.

18
or away entry are triggered, the alarm will be
activated immediately.
Stop the Alarm and Alarm
Display
During an alarm, the control panel and outside siren
will sound and dial the emergency phone number.
The control unit will display “ALARM! ALARM!” to
notify the user.
Stopping the Alarm
1Press the disarm key and enter a user code on the
control unit or keypad. The control unit will sound
a long beep and display the device that caused
the alarm. The siren will beep twice and the strobe
will flash side to side.
•Thekeyfobcannotstopanalarmcausedby
burglar or emergency device.
2 When the control unit is displaying the source
of the alarm, pressing any key will display
the telephone number that it dialled out and
acknowledged (if any). If there were more than 2
numbers that were acknowledged the numbers
will be shown by pressing further keys.
3When “Alarm off” is displayed the system is
disarmed.
Alarm Memory
•Ifanalarmwasraisedduringyourabsence,and
the alarm sequence has been carried out, the
screen will continuously show “ALARM! ALARM!”.
•Thisindicatesthattheremightstillbeanintruder
still in the house. Disarm the system as normal.
•Toclearthe“ALARM!ALARM!”display,followthe
same steps as ‘Stopping the Alarm’ described
above.
Dialling & Call Acknowledgement
Auto Dialling
•Ifthesystemisinawayarmmode,whenanalarm
occurs the control unit will immediately dial the
preset phone numbers (Voice call or SMS)
•Ifthesystemisinhomemodeordisarmedmode
when an audible alarm is initiated, the control unit
will wait for 15 seconds before dialling the preset
phone numbers.
•Forvoicecall,thecontrolpanelwillwait5seconds
then playback the messages in a loop. It will first
play the recorded address message then the
pre-recorded messages (Burglar, Emergency)
depending on the nature of the alarm and finally an
acknowledgement request message.
•Therecipientshouldacknowledgethemessageby
pressing ‘9’ on their telephone when prompted.
•RecipientsusingradioDECTphonesormobiles
should press the numbers repeatedly until the call
is closed.
•Ifthecontrolunitdoesnotreceivean
acknowledgement, the messages will be repeated
for a period of 80 seconds before attempting to
dial again. Each number will have 5 call attempts.
•Thecontrolpanelwillcontinuetodialthe
number(s) until a call is successfully answered with
a ‘9’ acknowledgement.
•Systemauto-diallingfeaturesonlyoperateunder
tone-dialling method.
•Whennotelephonenumberisstored,thecontrol
panel will not dial out.
Remote Dial-in Access
The control unit allows you to control your system
remotely through the telephone line.
1Dial the phone number associated with the Control
panel.
2Hang up on the first ring.
3Wait 5-10 seconds.
4Dial the number again.
5The control unit will answer the phone on the first
ring of that second call. You will hear two beeps.
6Enter your PIN Code within 3 seconds.
7If the PIN code is correct, you will hear another
two beeps. A list of different functions is detailed
below:
Press 01 Listen-in through the panel microphone
Press 10 Disarm the system.
Press 11 Full/Away arm
Press 12 Part/Home arm
Press 00 Disconnect, or the control unit will hang
up automatically after 30 seconds.

19
Disabling the system tamper
Before mounting it is important to disable the
siren and system tamper to avoid the siren
sounding an alarm.
1Press the Menu key and enter a user PIN code
followed by 3.
2The control unit is now in programming mode,
Select Devices, then Program Siren and Siren
Tamp. Off using the pq3 keys.
3Press 3 when in the Siren Tamp. Off menu
and the control unit will beep followed by an
acknowledgement pip from the siren.
• Siren programming is described fully in “Control
Panel Menu System in Detail” in section 5.
• The siren tamper will now be disabled for 1
hour after which it will automatically arm again.
If longer is needed to t the siren then simply
repeat the steps above.
• Leave the control unit in programming
mode to stop the system responding to
tampers. If the control unit automatically
times out, re-enter programming mode
again.
i
Enabling the system tamper
After mounting the siren and detectors,
please enable the system tamper by:
1Press the menu key and enter a user PIN
code followed by 3.
2The control unit is now in programming
mode, Select Devices, then Program Siren
and Siren Tamp. On using the pq3 keys.
3Press 3 when in the Siren Tamp. On menu
and the control unit will beep followed by
an acknowledgement pip from the siren.
4Quit programming mode and system
tamper protection will be automatically
restored.
i

20
Adding and using Accessories
Preparation
See section 2, for battery insertion or activation and
part identification. See also section 1 and section 4
for installation details and suggestions.
Adding siren to your system
• See Section 5, Devices ->Program Siren ->
Learn Siren
Adding accessories to your
system
1From the programming menu of the control unit,
select the ‘Devices’ and press 3, select ‘Add
Device’ and press 3again.
2Press the Learn button on the device when
prompted and confirm it is the correct detector by
pressing 3.
Learn buttons (see Chapter 2 for location):
• Keyfob: Press arm
• PIR: Press the test button
• Door/Window contact: Press the test button
• Help button: Press the emergency button
• Smoke detector: Press the test button
• Keypad: Press arm. The keypad will need
initialising rst, see “Keypad code changing and
setting” on the right.
3Depending on the device learnt in, finish the
programming as prompted.
Using your keyfob
• ThekeyfobcanbeusedtoAwayArm,Home
Arm, and Disarm the system using the buttons as
shown.
• Anemergencyalarmcanbeactivatedbypressing
the emergency button for 3 seconds until LED
stops flashing.
• Anemergencyalarmcanonlybestoppedbyusing
the control unit keypad or a remote keypad.
• Thesystemcanonlybedisarmedafteranentryor
away entry sensor is activated (in the entry period).
/
Keypad
Keypad code changing and setting
The keypad comes with a factory default code of
‘0000’. This code will need to be changed to the
same code used in the control panel for the keypad
to disarm the system. To do this, you will need to:
1Press the ‘Panic button A’ key followed by factory
default keypad code ‘0000’.
2The LED will now flash slowly indicating it is in test
(programming) mode.
3Press the ‘Panic button A’ key followed by the ‘8’
key to set the keypad into secondary mode.
4Quit test mode by pressing the disarm key twice.
The keypad code and mode setting has been
completed. The Keypad will now use the same
pincode that is set for the control panel unit.
ale
Y
R
123
6
5
4
789
0
A
B
Disarm
Home
Arm
Arm
LED
Forgotten keypad code (different to control
panel code)
If the keypad code is accidentally forgotten, the
keypad can be reset to factory default using the
following steps:
1Unscrew the two keypad case screws and remove
keypad back cover. Locate and remove the
battery.
2Press the number ‘3’ key at the same time as
reinserting the battery.
3Screw the keypad case together and re-learn the
keypad into the system using the steps described
above in this section.
To provide additional protection you can add extra door/window contacts, PIRs, keyfob
remote controls, keypad remote controls, help buttons and smoke detectors. These are
available separately from your local stockist.
