Asus HDP-R3 User manual

HD Media Player
User Manual
O!Play Air HDP-R3

ii
E4955
First Edition
October 2009
Copyright © 2009 ASUSTeK COMPUTER INC. All Rights Reserved.
No part of this manual, including the products and software described in it, may be reproduced,
transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any
means, except documentation kept by the purchaser for backup purposes, without the express written
permission of ASUSTeK COMPUTER INC. (“ASUS”).
Product warranty or service will not be extended if: (1) the product is repaired, modied or altered, unless
such repair, modication of alteration is authorized in writing by ASUS; or (2) the serial number of the
product is defaced or missing.
ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS
OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS
DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL,
INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS,
LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE),
EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY
DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.
SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR
INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE,
AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO
RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS
MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.
Products and corporate names appearing in this manual may or may not be registered trademarks or
copyrights of their respective companies, and are used only for identication or explanation and to the
owners’ benet, without intent to infringe.

iii
Contents ...................................................................................................... iii
Safety information ....................................................................................... v
License notice and trademark acknowledgement for Dolby Digital...... vi
License notice and trademark acknowledgement for DTS..................... vi
About this user guide................................................................................ vii
Chapter 1: Getting started
Welcome .................................................................................................... 1-1
Package contents ..................................................................................... 1-1
Specications summary .......................................................................... 1-2
System requirements ............................................................................... 1-3
Getting to know your O!Play HD media player ...................................... 1-3
Front/left panel ............................................................................... 1-3

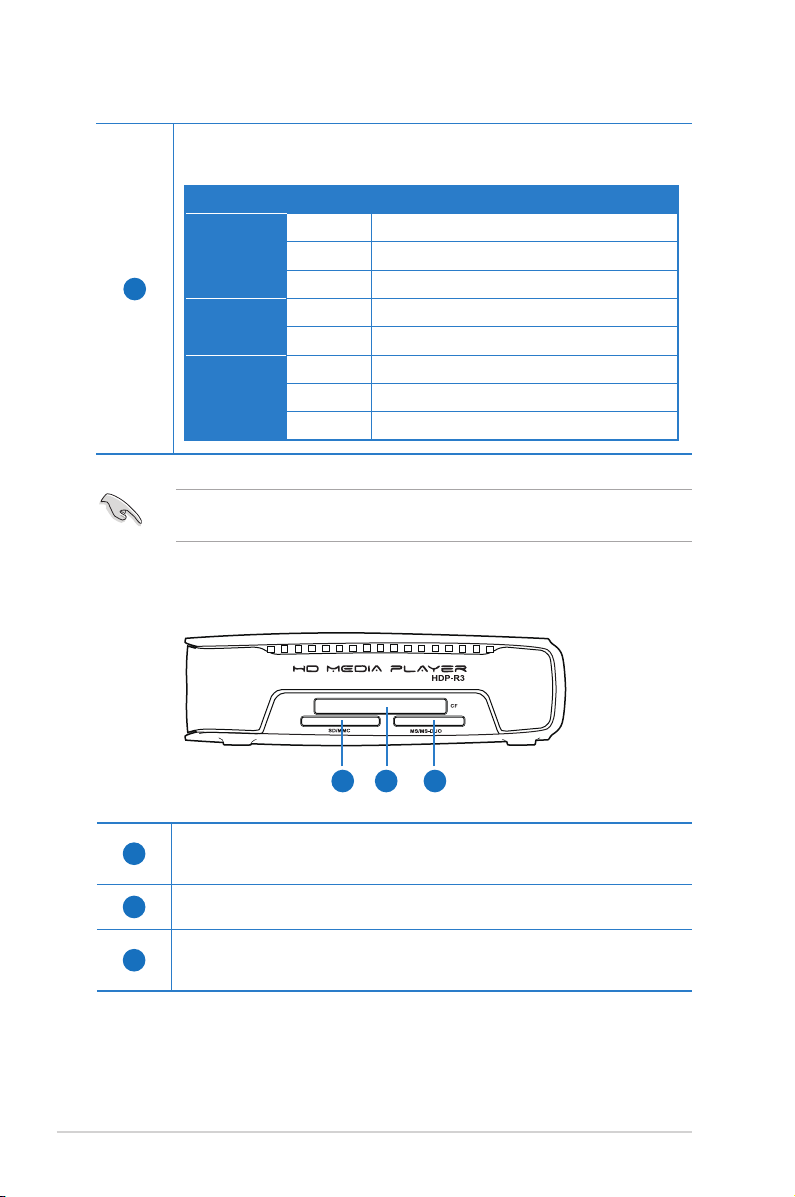

Right panel..................................................................................... 1-4
Rear panel...................................................................................... 1-5
Remote control............................................................................... 1-6
Getting your O!Play HD media player ready .......................................... 1-8

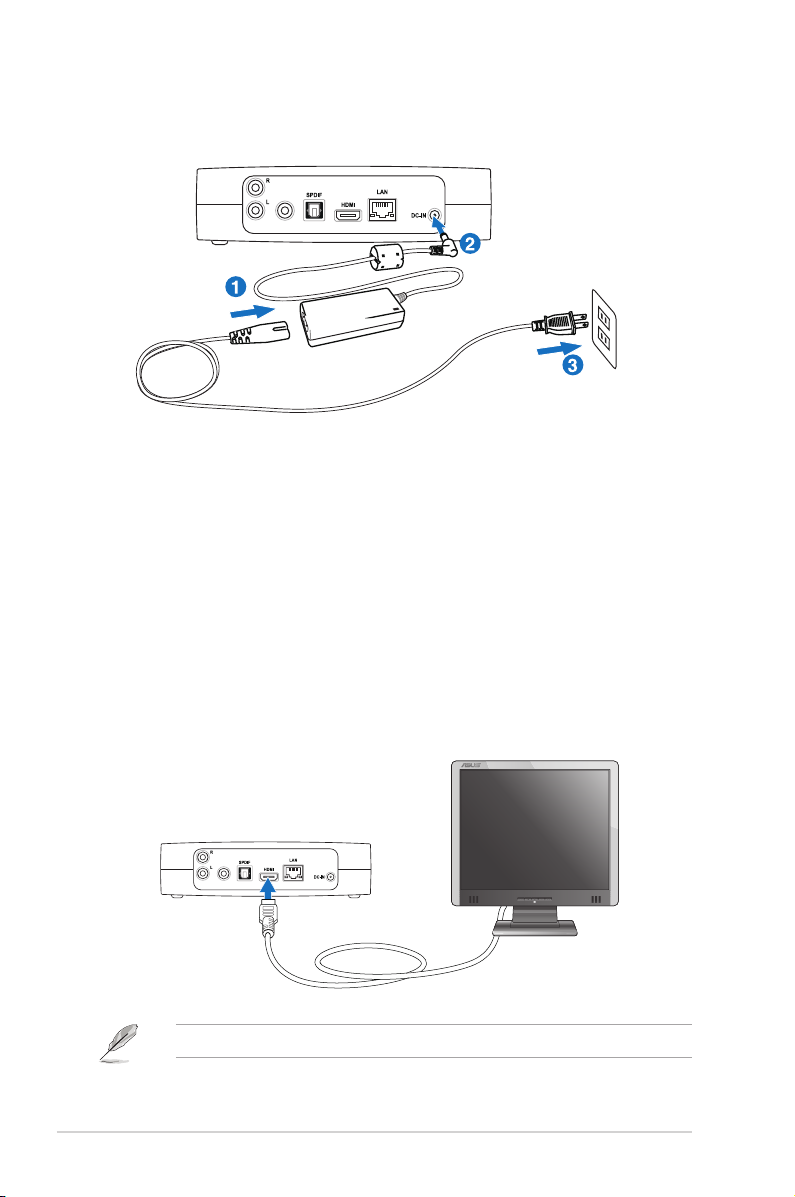

Connecting the power adapter....................................................... 1-8
Connecting devices to your HD media player................................ 1-8
Starting for the rst time............................................................... 1-10
Chapter 2: Getting connected
Connecting to a network.......................................................................... 2-1

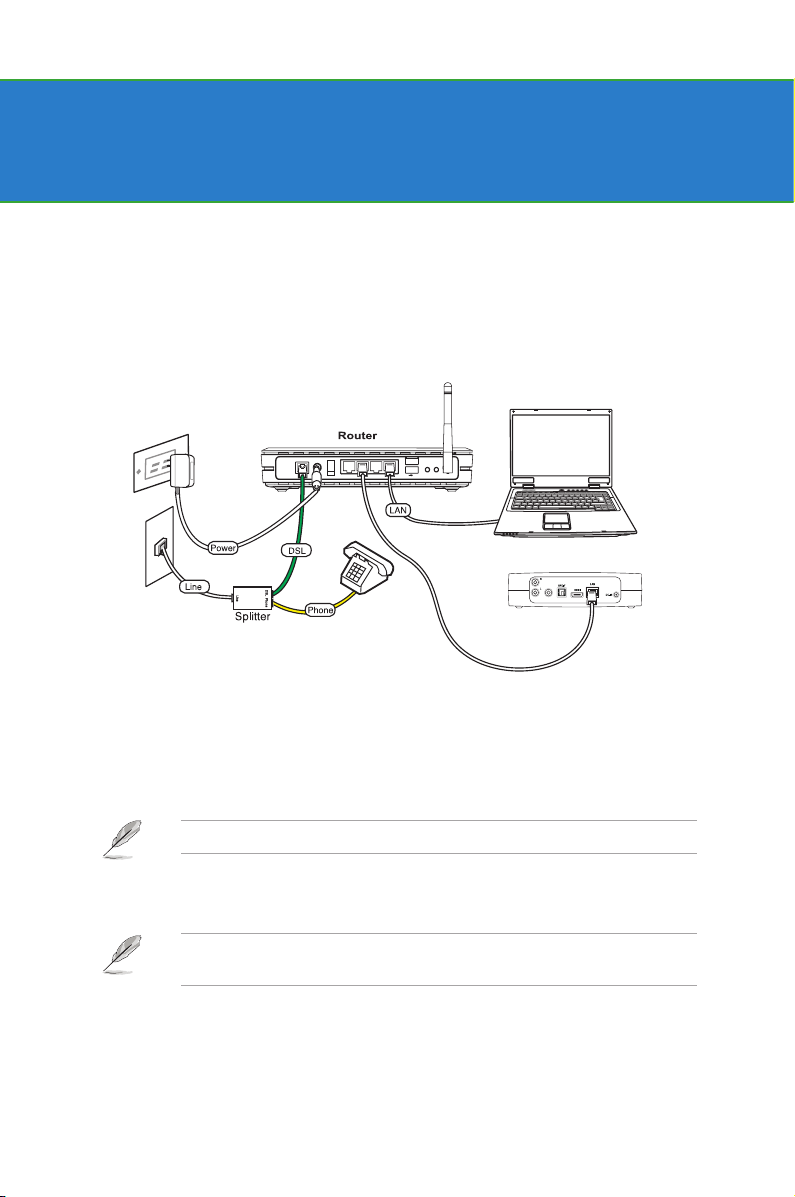

Wired connection ........................................................................... 2-1
Wireless connection....................................................................... 2-3
Connecting to a wireless local area network (WLAN).................... 2-4
Conguring the network clients...................................................... 2-5
Sharing les over the network ................................................................ 2-7
Sharing les under Windows®XP OS ............................................ 2-7
Sharing les under Windows®Vista OS......................................... 2-8
Chapter 3: Using your O!Play HD media player
The Home screen...................................................................................... 3-1
Conguring the system settings............................................................. 3-1
Playing a video le ................................................................................... 3-2
Video control buttons on the remote control .................................. 3-2
Contents

iv
Playing a video le ......................................................................... 3-3
Conguring the subtitle settings..................................................... 3-4
Conguring the video settings........................................................ 3-4
Playing music............................................................................................ 3-5
Music control buttons on the remote control .................................. 3-5
Playing a music le ........................................................................ 3-5
Conguring the audio settings........................................................ 3-6
Viewing photos ......................................................................................... 3-7
Viewing photos............................................................................... 3-7
Viewing photos in slideshow mode ................................................ 3-8
Setting the background music for the slideshow............................ 3-8
Conguring the slideshow settings................................................. 3-8
Copying les ........................................................................................... 3-10
Sharing les via your media player ...................................................... 3-10
Chapter 4: Troubleshooting
Troubleshooting........................................................................................ 4-1
Display ........................................................................................ 4-1
Audio ........................................................................................ 4-3
USB storage device ....................................................................... 4-3
Remote Control.............................................................................. 4-3
Firmware Update............................................................................ 4-4
Wi-Fi and Internet connections ...................................................... 4-4
Operation/function failure............................................................... 4-5
Appendices
Notices.......................................................................................................A-1
GNU General Public License ...................................................................A-2
ASUS contact information .......................................................................A-8

v

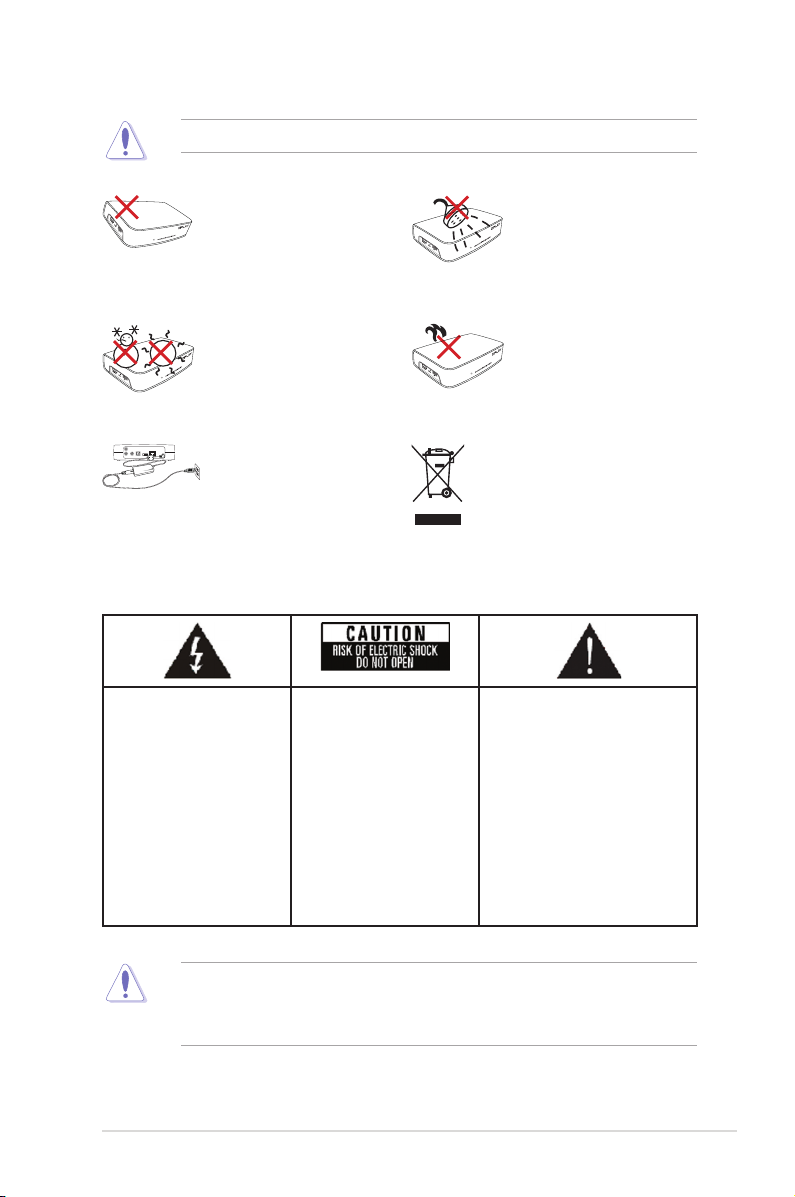

DO NOT place on uneven
or unstable work surfaces.
Seek servicing if the casing
has been damaged. Refer all
servicing to qualied service
personnel.
DO NOT expose to or
use near liquids, rain, or
moisture.
SAFE TEMP: This device
should only be used in
environments with ambient
temperatures between 5oC
(41oF) and 35oC (95oF).
DO NOT install near any
heat-producing devices or
sources such as radiators,
heat registers, stoves, or
ampliers.
DO NOT throw the device in
municipal waste. This device
is designed to enable proper
reuse and recycling. Check
local regulations for disposal
of electronic products.
Ensure that you plugged
the device into the correct
power input rating (12Vdc,
2A).
Safety information
• Danger of explosion if battery is incorrectly replaced. Replace only with the
same or recommended battery type.
• Dispose of used batteries according to local regulations.
The lightning ash with
arrowhead symbol,
within an equilateral
triangle, is intended
to alert the user to the
presence of uninsulated
dangerous voltage within
the product’s enclosure
that may be of sufcient
magnitude to constitute
a risk of electric shock to
persons.
To reduce the risk of
electric shock, do not
remove the back cover.
No user serviceable parts
inside. Refer servicing
to qualied service
personnel.
The exclamation point within
an equilateral triangle is
intended to alert the user to
the presence of important
operating and maintenance
(servicing) instructions in the
literature accompanying the
appliance.
Use only a dry cloth to clean the device.
Warning labels

vi
License notice and trademark
acknowledgement for Dolby Digital
Manufactured under license from Dolby Laboratories. Dolby and the double-D
symbol are trademarks of Dolby Laboratories.
License notice and trademark
acknowledgement for DTS
Manufactured under license under US Patent #s: 5,451,942; 5,956,674;
5,974, 380; 5,978,762; 6,487,535 & other US and worldwide patents issued &
pending. DTS and DTS 2.0 + Digital Out are registered trademarks and DTS
logos and symbol are trademarks of DTS, Inc. © 1996-2008 DTS, Inc. All Rights
Reserved.

vii
DANGER/WARNING: Information to prevent injury to yourself
when trying to complete a task.
NOTE: Tips and additional information to help you complete a
task.
IMPORTANT: Instructions that you MUST follow to complete a
task.
Where to nd more information
Refer to the following sources for additional information and for product and
software updates.
1. ASUS Support site
Download the latest rmwares, drivers, and utilities from the ASUS Support
site at http://support.asus.com.
2. Optional documentation
Your product package may include optional documentation, such as warranty
yers, that may have been added by your dealer. These documents are not
part of the standard package.
CAUTION: Information to prevent damage to the components when
trying to complete a task.
About this user guide
How this user guide is organized
• Chapter 1: Getting started
Provides the basic information about your ASUS O!Play HD Media Player.
• Chapter 2: Getting connected
Provides information on connecting your ASUS O!Play HD Media Player to a
home or LAN network.
• Chapter 3: Using the ASUS O!Play HD Media Player
Provides information on using your ASUS O!Play HD Media Player.
• Chapter 4: Troubleshooting
Provides solutions to frequently-asked questions about your ASUS O!Play
HD Media Player.
Conventions used in this guide
To enure that you perform certain tasks properly, take note of the following symbols
used throughout this user guide.

1-1
Chapter 1
Getting started
Welcome
Thank you for buying the ASUS O!Play HD Media Player!
ASUS O!Play HD Media Player allows you to enjoy digital media les from your
computer via UPnP function, portable USB/eSATA storage devices, memory cards,
or over the network to your TV or entertainment system.
If any of the above items is damaged or missing, contact your retailer.
DISPLAY
O!Play Air HDP-R3 HD Media Player Remote control with two AAA
batteries
Power cord AC adapter Support CD
(User Manual/utilities)
Quick Start Guide
O!Play
HD Media Player
Composite AV (audio-video) cable Quick Start Guide
Package contents

Chapter 1: Getting started
1-2
Specications summary
Wireless standard Wi-Fi 802.11n
Supported video formats MPEG1/2/4, H.264, VC-1, RM/RMVB
Supported video le
extension
.mp4, .mov, .xvid, .avi, .asf, .wmv, .mkv, .rm, .rmvb, .v,
.ts, m2ts, .dat, .mpg, .vob
Supported audio formats MP3, WAV, AAC, OGG, WAV, FLAC, AIFF, Dolby Digital,
DTS Digital Surround
Supported image formats JPEG, BMP, PNG, GIF, TIFF
Supported subtitile
formats
SRT, SUB, SMI, SSA
I/O ports 1 x Power (DC) input
1 x USB 2.0 port
1 x USB/eSATA combo port
1 x LAN port (10/100Mbps)
1 x HDMI port
1 x Composite audio-video (AV) port
1 x Optical digital (S/PDIF) port
1 x CF card reader
1 x SD/MMC card reader
1 x MS/MS-Duo card reader
Dimensions W x D x H: 181.0mm x 125.32mm x 47.73mm
Weight: 480g
Power input rating 12Vdc, 2A
Power Consumption 10W
Operating Temperature 5˚C (41˚F) – 35˚C (95˚F)
Specications are subject to change without notice.

ASUS O!Play HD media player 1-3
Getting to know your O!Play HD media player

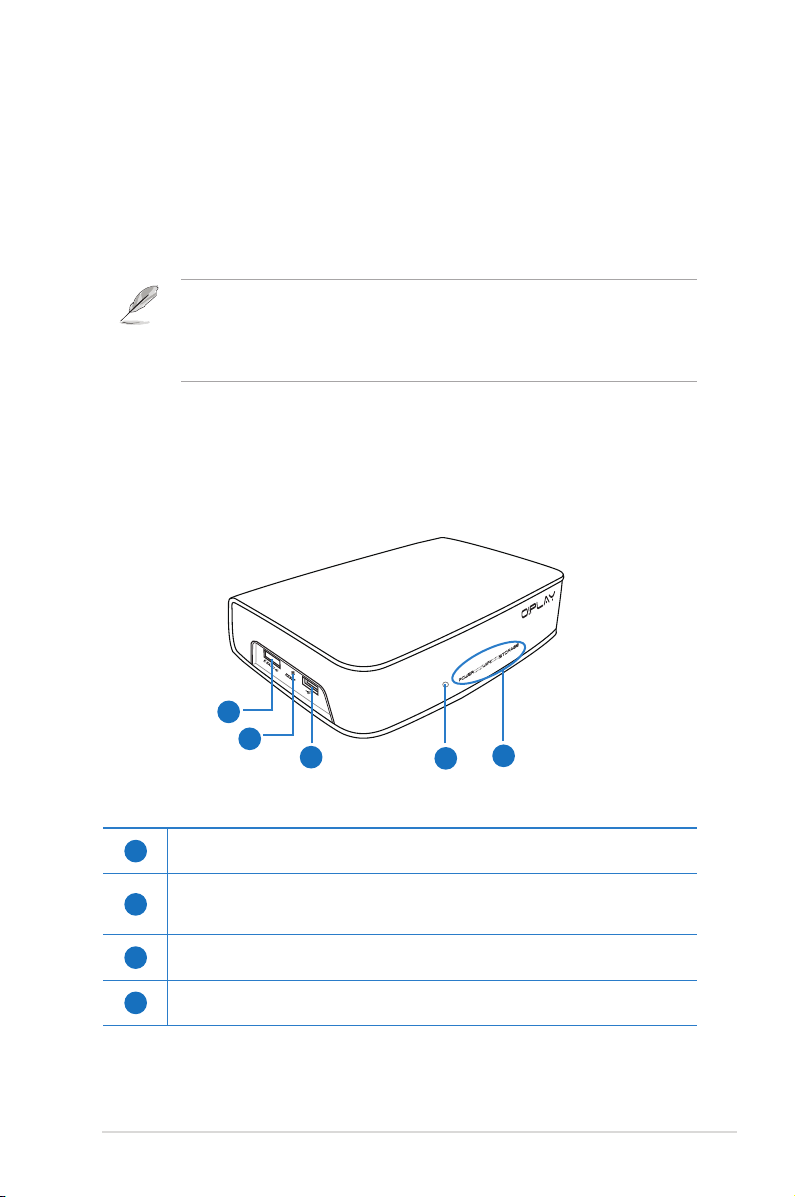

Front/left panel
1
345
2
1
eSATA/USB 2.0 combo port
Connect a USB 2.0/eSATA device such as an external hard drive into this port.
2
Reset button
Using a pin or a paper clip, press this button to reset the device to its factory
default settings.
3
USB 2.0 port
Connect a USB 2.0 device into this port.
4
IR (Infra-red) Receiver
Allows you to control the HD media player using the IR remote control.
System requirements
• High-denition TV (HDTV), standard TV, or HDMI monitor
• Storage device (USB ash drive / USB HDD/ eSATA ash drive/ eSATA HDD)
• Memory card (SD/MMC, CF, or MS/MS-Duo card)
• RJ-45 cable to connect to a home or an ofce network (Optional)
• Wi-Fi connection (Optional)
• Use an HDMI cable to connect your HD media player to an HDTV or HDMI
monitor.
• Use the bundled composite AV cable to connect your HD media player to a
standard TV.
