ATCOM AT530P User manual

AT530P User Manual
1/49
AT530P User Manual

AT530P User Manual
2/49
1AT530P Features....................................................................................................... 4
1.1Appearance.......................................................................................................................4
1.2Interface.............................................................................................................................4
1.3Electricity characteristic...................................................................................................4
1.4Software.............................................................................................................................4
1.5Standard and Protocols...................................................................................................5
1.6Compliant Standard..........................................................................................................5
1.7Operating requirement.....................................................................................................5
1.8Package.............................................................................................................................6
1.9Installation..........................................................................................................................6
2Web Configuration .................................................................................................... 6
2.1Access Web setting page.....................................................................................................6
2.2Current state......................................................................................................................7
2.3Network..............................................................................................................................8
2.3.1Wan Config .....................................................................................................................8
2.3.2LAN Config ....................................................................................................................9
2.4VoIP SIP Config................................................................................................................10
2.5Advance...........................................................................................................................12
2.5.1DHCP Server .......................................................................................... 12
2.5.2NAT ......................................................................................................... 13

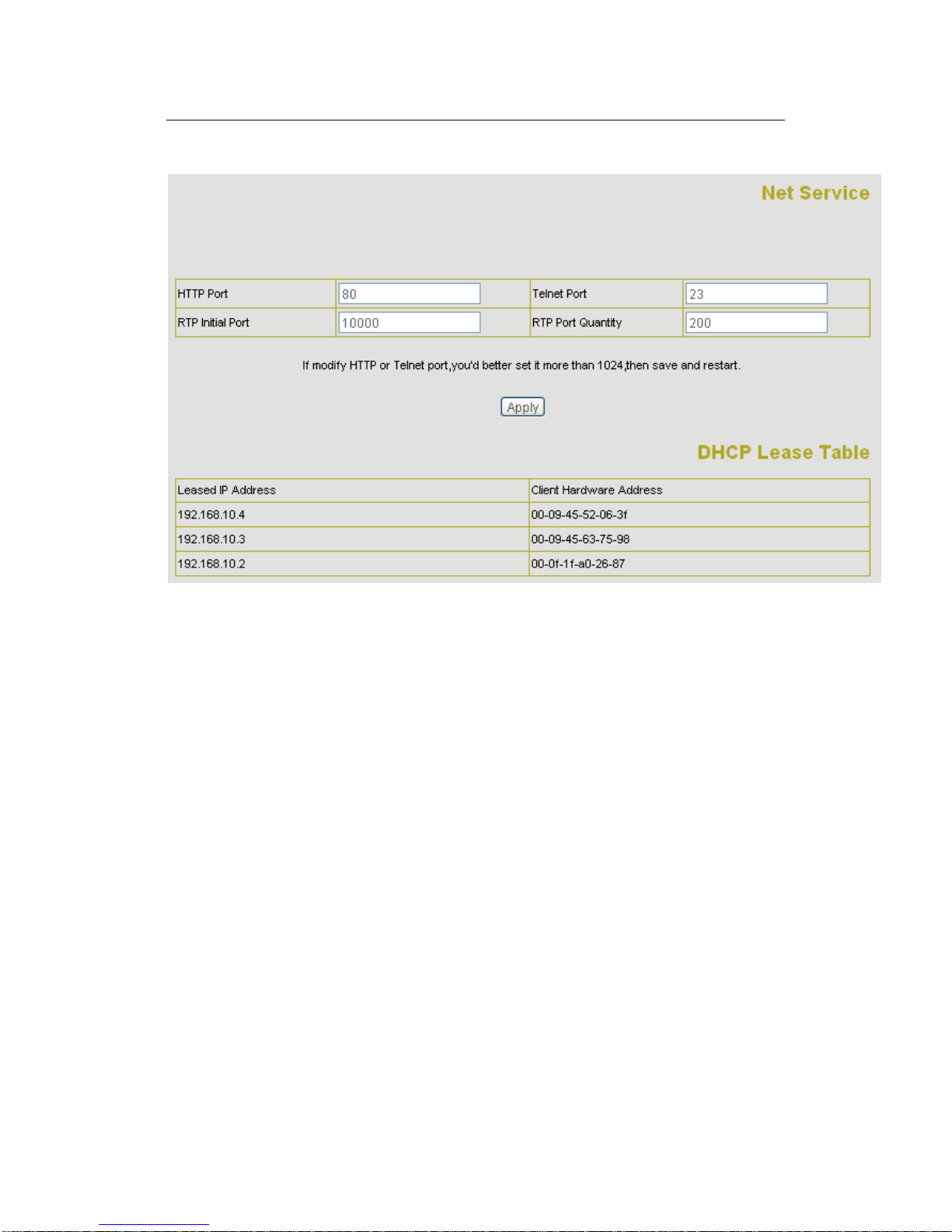

2.5.3Net Service ............................................................................................. 14
2.5.4Firewall settings ...................................................................................... 15
2.5.5QoS settings ........................................................................................... 16
2.5.6Advance SIP settings .............................................................................. 17
2.5.7Digital Map .............................................................................................. 18
2.5.8Call Service Settings .............................................................................. 20
2.5.9MMI Filter ................................................................................................ 22
2.5.10Audio Settings ......................................................................................... 22
2.5.11VPN ........................................................................................................ 23
2.5.12Memory Key ............................................................................................ 24
2.6Dial-Peer..........................................................................................................................24
2.7Config Manage................................................................................................................25
2.8Update...............................................................................................................................25
2.8.1Web Update: ........................................................................................... 25
2.8.2TFTP/FTP Update: .................................................................................. 25
2.8.3Auto Provisioning: ................................................................................... 25
2.9System Manage..............................................................................................................27
2.9.1Account Manage ..................................................................................... 27
2.9.2Phone Book: ........................................................................................... 27
2.9.3Syslog Config: ......................................................................................... 27
2.9.4Time Set: ................................................................................................. 28
2.9.5Reboot: ................................................................................................... 28
3Use keypad configure AT530P IP phone............................................................. 29
3.1Keypad function..............................................................................................................29
3.2Keypad Menu..................................................................................................................30
4Telnet Console......................................................................................................... 32
4.1Introduce..........................................................................................................................32
4.2Global Command............................................................................................................33
5Tree Structure.......................................................................................................... 34

AT530P User Manual
3/49
6Network Diagnosis.................................................................................................. 40
7Restore to factory default....................................................................................... 41
8POST Mode(safe mode)........................................................................................ 42
9FAQ............................................................................................................................ 43
9.1.1How many servers may AT530P register simultaneously? ....................... 43
9.1.2Why the settings vanish after reboot? ...................................................... 43
9.1.3How to use the dial rule? ......................................................................... 43
9.1.4How to use speed dial function? .............................................................. 4 4 
9.1.5How to configure digital map? ................................................................. 44
9.1.6How to use Call Forward, Call Transfer and 3-way Conference calls? ..... 44
9.1.7How to use the record function? .............................................................. 4 5 
9.1.8How to use set the IP type via keypad? ................................................... 46
9.1.9VLAN implement ..................................................................................... 46
9.1.10How to connect RJ9 headset to AT-530P ................................................. 49

AT530P User Manual
4/49
1 AT530P Features
1.1 Appearance

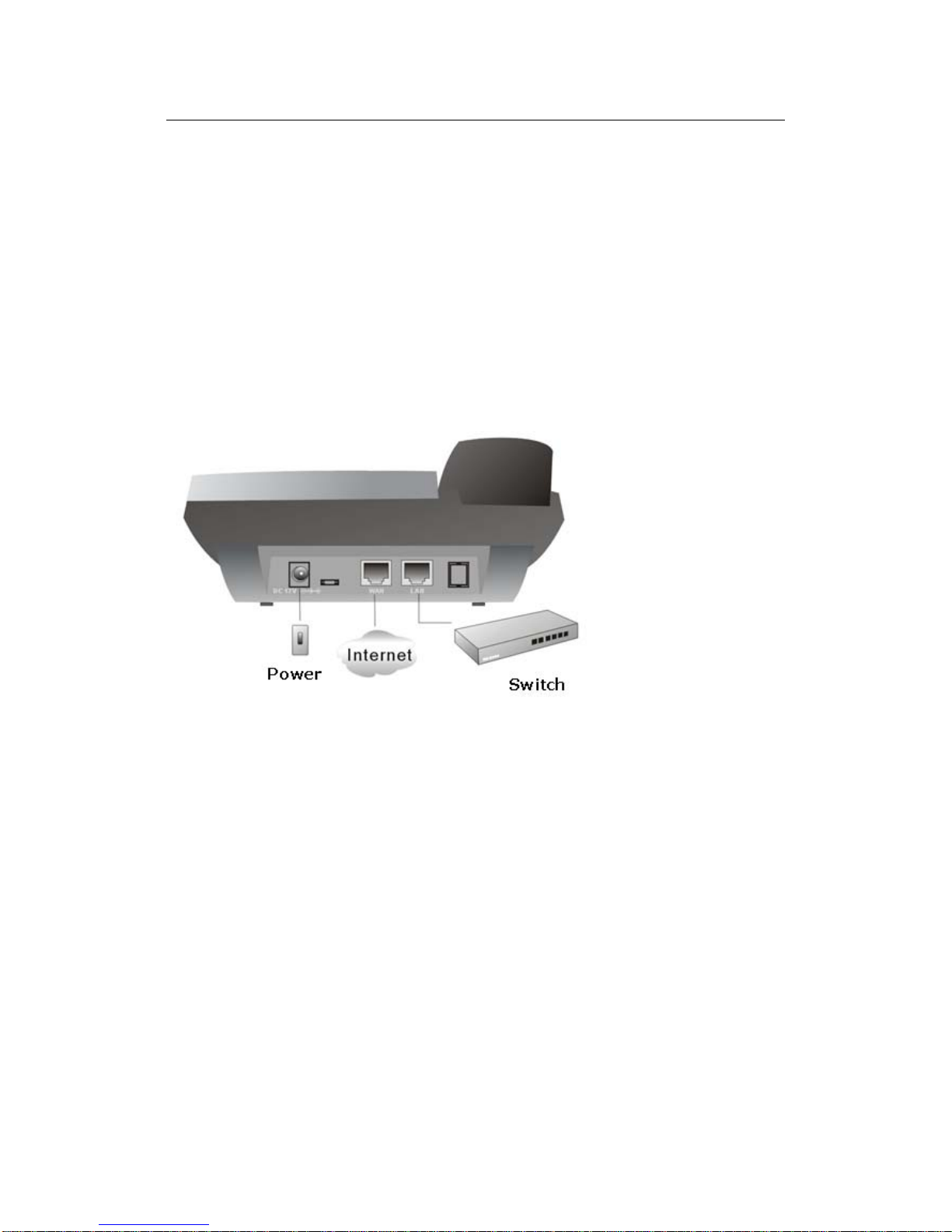

1.2 Interface
Power: Output Power:12VDC,500mA.
WAN: RJ45 port.
LAN: RJ45 port.
1.3 Electricity characteristic
zSpeciality of electric: output the 12V 500mA DC
zThe network connects:2 RJ45 connect, a WAN, a LAN
zSupport POE function
1.4 Software
zSupport two sip accounts at the same time.
zRedundancies server support.
zNAT, Firewall.
zDHCP client and server.
zSupport PPPoE, (used for ADSL, cable modem connecting).
zSupport major G7.xxx CODEC.

AT530P User Manual
5/49
zVAD,CNG.
zG.168 compliant 32ms echo cancellation
zTone generation and Local DTMF re-generation according with ITU-T
zE.164 dial plan and customized dial rules
zHotline.
zSpeed Dial
zCall Forward, Call Transfer, 3-way conference calls
zRecord
zCaller ID display
zDND(Do Not Disturb),Black List,Limit List
zUpgrade firmware through FTP, TFTP or HTTP,.
zWeb management.
zTelnet remote management.
zadjustable user password and super password
1.5 Standard and Protocols
zIEEE 802.3 /802.3 u 10 Base T / 100Base TX
zPPPoE: PPP Protocol over Ethernet
zDHCP Client and Server: Dynamic Host Configuration Protocol
zG.711 u/a; G729, G7231 5.3/6.3 audio Codec
zSIP RFC3261, RFC 2543
zIAX2
zTCP/IP: Internet transfer and control protocol
zRTP: Real-time Transport Protocol
zRTCP: Real-time Control Protocol
zVAD/CNG save bandwidth
zTelnet: Internet's remote login protocol
zDNS: Domain Name Server
zTFTP: Trivial File Transfer Protocol
zHTTP: Hyper Text Transfer protocol
zFTP: File Transfer protocol
1.6 Compliant Standard
zCE：EN55024,EN55022
zFCC part15
zcomply with ROHS in EU
zcomply with ROHS in China
z
Explanation:
The letter “e” is the first letter of “environment: and “electronic”, The rim is a round with two
arrow , stands for recycle. The number 20 stands for the years of environment protection.
Please note the years of environment protection is not discarding year nor usage life
1.7 Operating requirement
zOperation temperature: 0 to 40° C (32° to 104° F)
zStorage temperature: -30° to 65° C (-22° to 149° F)
zHumidity: 10 to 90% no dew

AT530P User Manual
6/49
1.8 Package
zSize: 338×220×85mm
zPacking List
9AT530P IP phone
9Power adaptor (out put 12v ,500mA)
9Manual CD
1.9 Installation
Use ethernet cable to connect AT530P’s LAN port and your computer. Set your computer’s ip
to the network 192.168.10.x or using dynamic obtain IP. Open your web browser and key in
192.168.10.1. Then you will see the logon page of AT530P, the default username and
password is admin/admin for administrator and guest/guest for guest.
Set up page for VoIP use only:
2 Web Configuration
2.1 Access Web setting page
Enter AT530P IP address in the web browser and press ENTER to go to the log on page, and
key in the username and password to access AT530P setting page.
Default username and password is:
Administrator: Username: admin password: admin
User: Username: guest Username: guest

AT530P User Manual
7/49
2.2 Current state
This page showsAT530P’s running state.
Network shows the WAN and LAN port connecting state and current settings.
VoIP part show the working state of VoIP, you can see whether AT530P has registered the
public sip server

AT530P User Manual
8/49
Phone Number public sip and private sip phone numbers.
2.3 Network

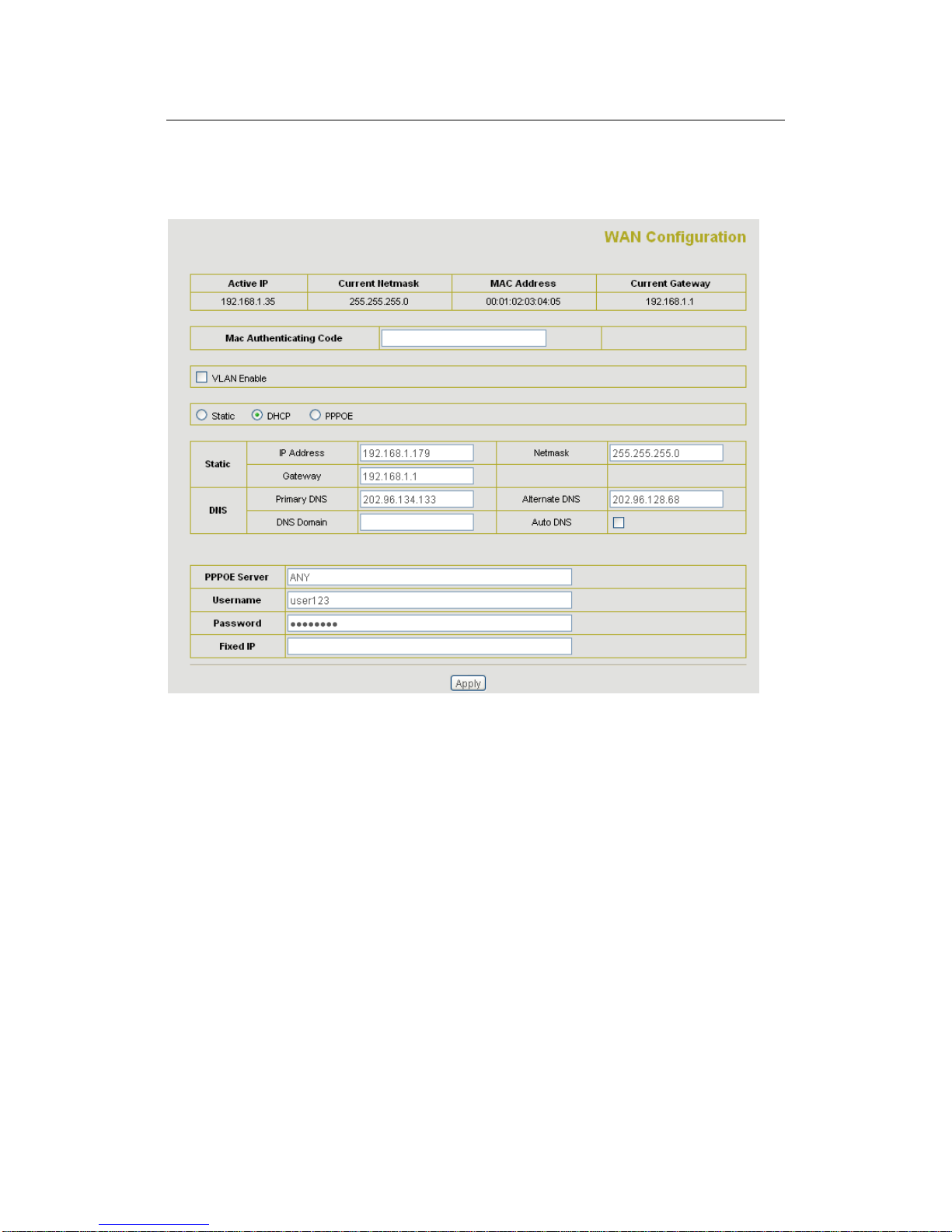

2.3.1 Wan Config
WAN port network setting page.
Support static IP, dynamic obtain IP and PPPoE.
VLAN Enable: Enable Vlan
¾Configure Static IP:
----Enable Static;
----Set AT530P’s IP address in the IP Address;
----Set netmask in the Netmask field;
----Set router IP address in the Gateway;
----DNS Domain:
----Set local DNS server in the Preferred DNS and the Alternate DNS
----Auto DNS：DNS select it to get the DNS address automatically
¾Configure to dynamic obtain IP
----Enable DHCP;
If there is DHCP server in your local network, AT530P will automatically obtain WAN port
network information from your DHCP server.
¾Configure PPPoE:
----Enable PPPoE
----PPPoE server: Enter “ANY” if no specified from your ITSP.
----Enter PPPoE username and pin in the username and password.
-----Fixed IP: use the fixed IP address
AT530P will automatically obtain WAN port network information from your ITSP if PPPoE

AT530P User Manual
9/49
setting and the setup are correct.
Notice: If user accesses the IP phone through WAN port. He/She should use the new IP address to
access the IP phone when the WAN port address was changed.

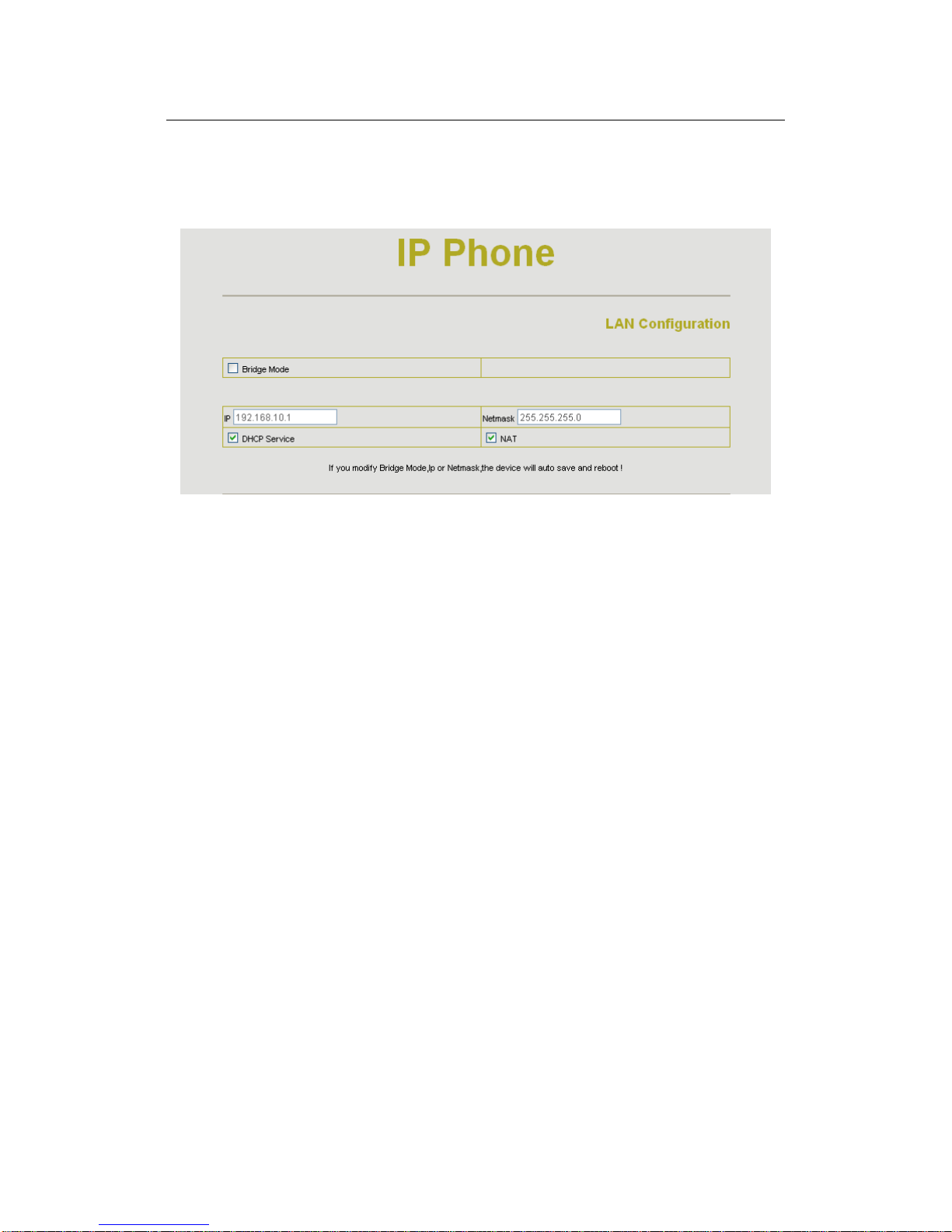

2.3.2 LAN Config
Bridge Mode: Enable this option to switch to bridge mode. IP phone won’t assign IP for its
LAN port in bridge mode and its LAN and WAN port will be in the same network. (This setting
won’t take effect unless you save the config and reboot the device)
IP Netmask: Set the IP and Netmask for the LAN
DHCP Server: Enable DHCP service in LAN port
NAT: Enable NAT.

AT530P User Manual
10/49

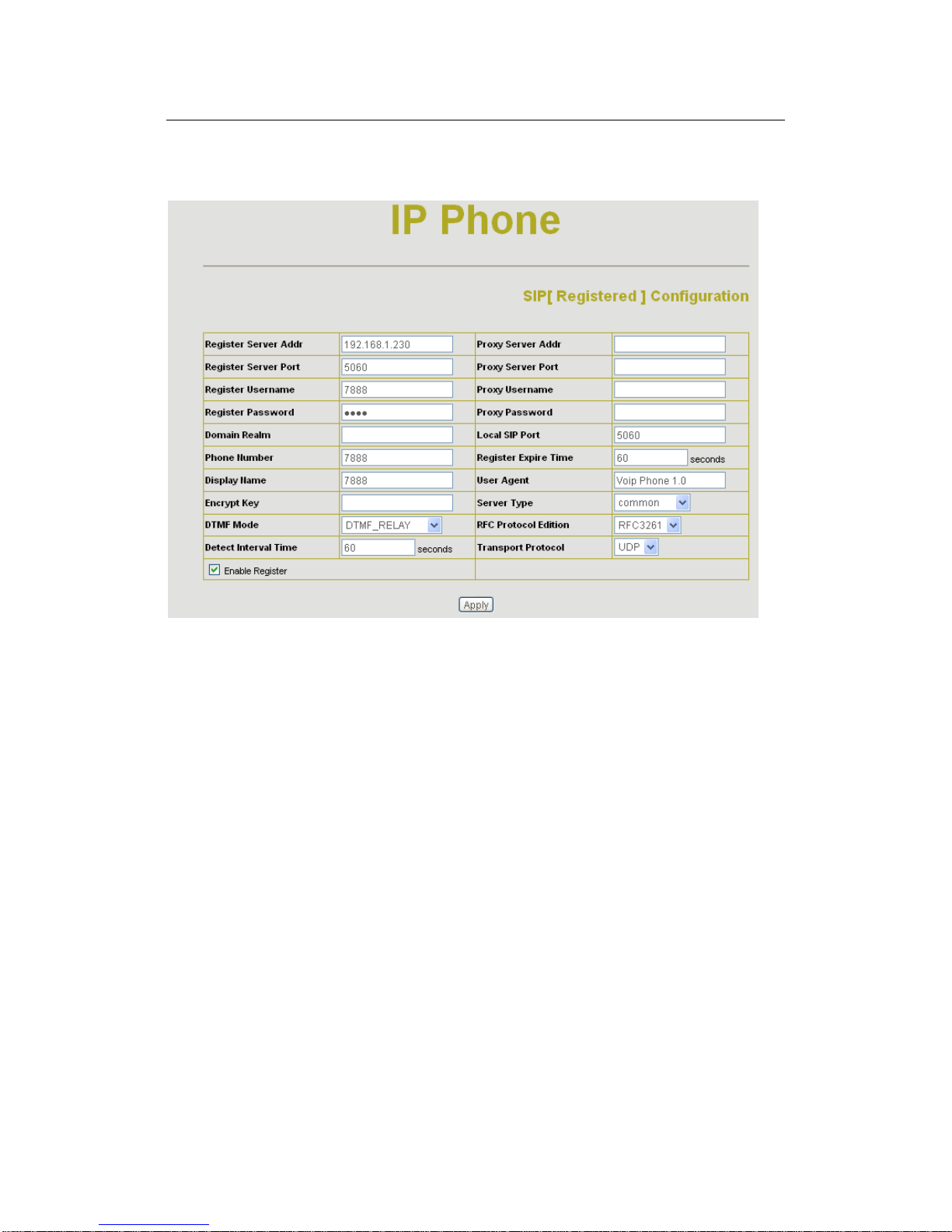

2.4 VoIP SIP Config
2.4.1 SIP config
Setting page of public SIP server:
Register Server Addr: Register address of public SIP server
Register Server Port: Register port of public SIP server，default port is 5060
Register Username: Username of your SIP account (Always the same as the phone
number)
Register Password: Password of your SIP account.
Proxy Server Addr: IP address of proxy SIP server (SIP provider always use the same
IP for register server and proxy server, in this case you don’t need to configure the proxy
server information. )
Proxy Server Port: Signal port of SIP proxy
Proxy Username: proxy server username
Proxy Password: proxy server password
Domain Realm: SIP domain, enter the sip domain if any, otherwise AT530P will
use the proxy server address as sip domain.
Local SIP port: Local SIP register port, default 5060
Phone Number: Phone number of your SIP account
Display name: config the diaply name , it can be displayed at the callee's side . only
letter and number input is allowed here
Register Expire Time: register expire time, default is 600 seconds. AT530P will auto
configure this expire time to the server recommended setting if it is different from the SIP
server.
Detect Interval Time:Co-work with the Auto Detect Server, if Auto Detect Server is enable,
AT530P will periodically detect if the SIP server is available according this setting.
User Agent:
Encrypt Key: The particular service system decrypts of the key , matching with the server
Type usage, the key provide by the particular service system supplier, default is empty

AT530P User Manual
11/49
Server Type：The particular service system supplier carries out the sign and speeches to
encrypt, default is common
DTMF Mode: DTMF signal sending mode: support RFC2833, DTMF_RELAY (inband audio)
and SIP info
RFC Protocol Edition: Current AT530P SIP version. Set to RFC 2543 if the gate need to
communicate to devices (such as CISCO5300) using the SIP 1.0. Default is RFC 3261.
Enable Register: Enable/Disable SIP register. AT530P won’t sent register info to
SIP server if disable register.
Transport Protocol: config the transfer protocol, TCP or UDP.
2.4.2 Iax2 Config
Setting page of public IAX server:
IAX Server Addr: Register address of public IAX server
IAX Server Port: Register port of public IAX server，default port is 4569
Account Name: Username of your SIP account (Always the same as the phone
number)
Account Password:Password of your IAX account.
Local port: Signal port of local, default port is 4569
Phone Number: Phone number of your IAX account
Voice mail number: If the IAX support voice mail, but your username of the voice mail is
letters which you can not input with the ATA , then you use the number to stand for your
username
Voice mail text: if IAX support voice mail, config the domain name of your mail box here.
Echo test number: If the platform support echo test , and the number is test form , the config
the test number to replace the text format The echo test is to test the woring status of
terminals and platform
Echo test text: echo test number in text format
Refresh time: IAX refresh time

AT530P User Manual
12/49
Enable Register: enable or disable register
IAX(Default Protocol): Set IAX 2 as the default protocol , if not the system will choose SIP as
default
Enable G.729: Using G.729 speech coding mandatory consultations
2.5 Advance
2.5.1DHCP Server
DHCP server manage page.
User may trace and modify DHCP server information in this page.
DNS Relay: enable DNS relay function.
User may use below setting to add a new lease table.
Lease Table Name: Lease table name.
Lease Time: DHCP server lease time.
Start IP: Start IP of lease table.
End IP: End IP of lease table. Network device connecting to the AT530P LAN port can
dynamic obtain the IP in the range between start IP and end IP.
Netmask: Netmask of lease table.
Gateway: Default gateway of lease table
DNS: default DNS server of lease table.
Notice: This setting won’t take effect unless you save the config and reboot the
device

AT530P User Manual
13/49

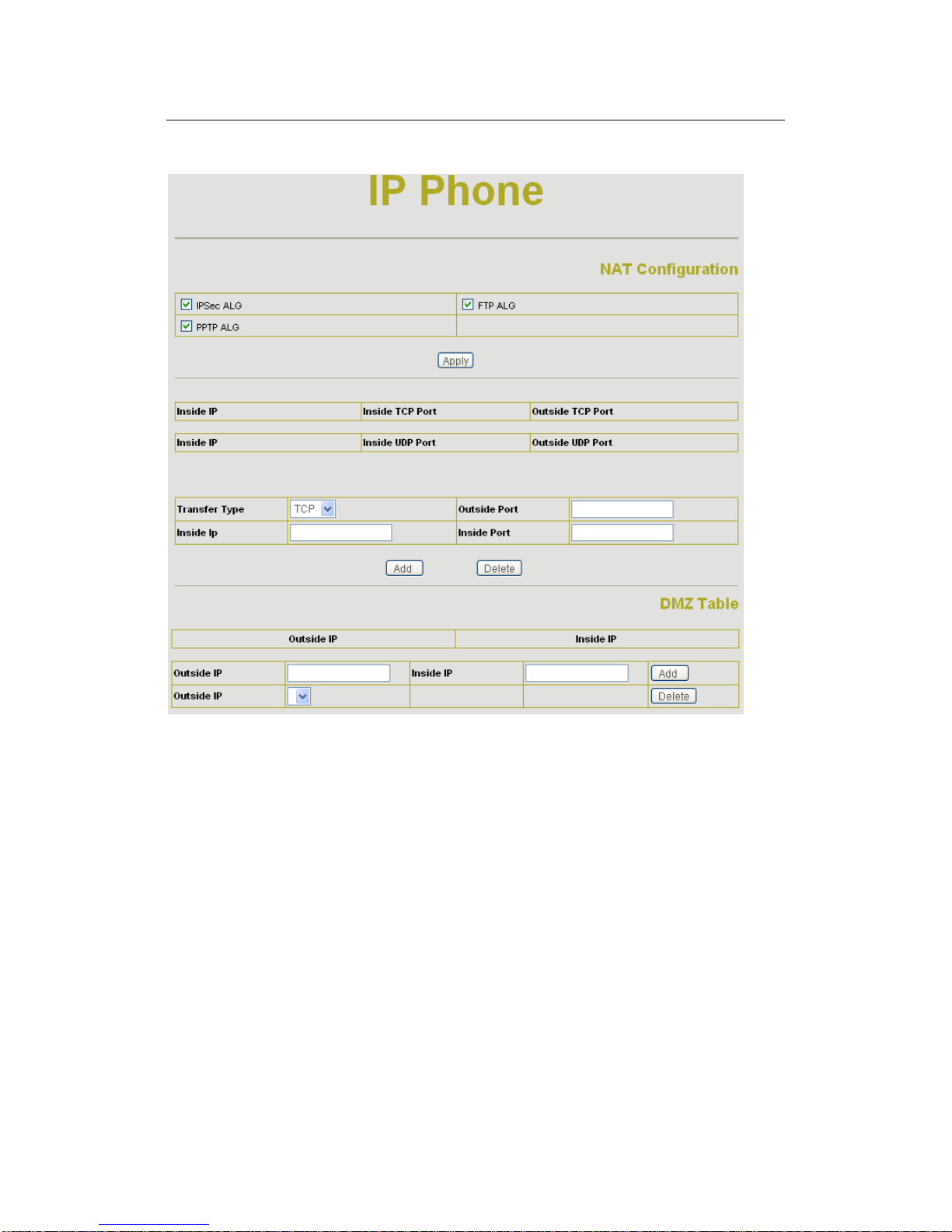

2.5.2NAT
Advance NAT setting. Maximum 10 items for TCP and UDP port mapping.
IPSec ALG: Enable/Disable IPSec ALG;
FTP ALG: Enable/Disable FTPALG;
PPTP ALG: Enable/Disable PPTPALG;
Transfer Type: Transfer type using port mapping.
Inside IP: LAN device IP for port mapping.
Inside Port: LAN device port for port mapping.
Outside Port: WAN port for port mapping.
Click Add to add new port mapping item and Delete to delete current port mapping item.

AT530P User Manual
14/49
2.5.3Net Service
HTTP Port: configure HTTP transfer port, default is 80.User may change this port to
enhance system’s security. When this port is changed, please use
http://xxx.xxx.xxx.xxx:xxxx/ to reconnect.
Telnet Port: configure telnet transfer port, default is 23.
RTP Initial Port: RTP initial port.
RTP Port Quantity: Maximum RTP port quantity, default is 200
Notice:
Settings in this page won’t take effect unless save and reboot the device.
If you need to change telnet port or HTTP port, please use the port greater than
1024, because ports under 1024 is system remain ports.
HTTP service if HTTP is set to 0.

AT530P User Manual
15/49

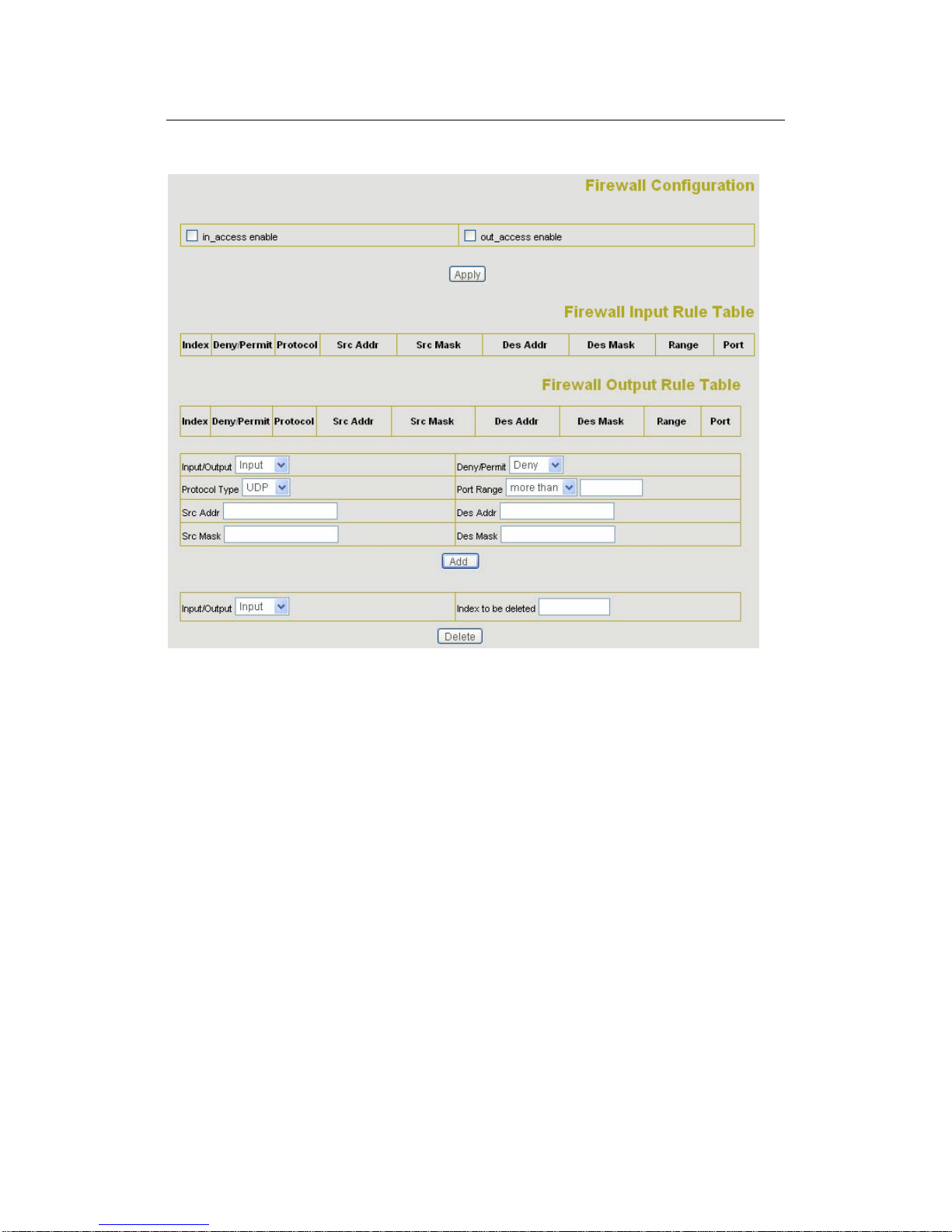

2.5.4Firewall settings
Firewall setting page. User may set up firewall to prevent unauthorized Internet users from
accessing private networks connected to the Internet (input rule), or prevent unauthorized
private network devices to access the internet.
Access list support two type limits: input_access limit or output_access limit. Each type
support 10 items maximum.
AT530P firewall filter is base WAN port. So the source address or input destination address
should be WAN port IP address.
Configuration:
in_access enable enable in_access rule
out_access enable enable out_access rule
Input/Output: specify current adding rule is input rule or output rule.
Deny/Permit: specify current adding rule is deny rule or permit rule.
Protocol Type: protocol using in this rule: TCP/IP/ICMP/UDP.
Port Range: port range if this rule
Src Addr: source address. Can be single IP address or network address.
Dest Addr: destination address. Can be IP address or network address.
Src Mask: source address mask. Indicate the source is dedicate IP if set to
255.255.255.255. Otherwise is network ID
Des Mask: Destination address mask. Indicate the source is dedicate IP if set to
255.255.255.255. Otherwise is network ID

AT530P User Manual
16/49
2.5.5QoS settings
AT530P IP phone implement QoS based on 802.1p, The QoS is used to mark the network
communication priority in the data link/MAC sub-layer. AT530P will sorted the packets using
the QoS and sends it to the destination.
1. Voice 802.1p Priority --- Configure the priority of the voice packets in 802.1p protocol.
2. VLAN Enable --- Disable/Enable VLAN function
3. Voice VLAN ID --- configure the Voice/signaling VLAN ID
4. DiffServ Enable --- Disable/Enable Diffserv service
5. DiffServ Value --- Configure Diffserv parameter. The value range : value range：
0x28,0x30,0x38,0x48,0x50,0x58,0x68,0x70,0x78,0x88,0x90,0x98,0xb8.default is 0xb8 ,oxb8
stands for best fast transmission; 28-30 is guaThrantee for the transmission priority for the 1st
rank , 48-58 is guarantee for the transmission priority for the 2nd rank, 68-78 is guarantee for
the transmission priority for the 3rd rank, 88-98 is guarantee for the transmission priority for
the 4th rank.
6. Data VLAN ID---Assign VLAN id for data stream.
7. Data 802.1P Priority --- Configure the priority of the data packets (non-voice/signaling
data) in 802.1p protocol.
8. Data/Voice DiffServ differentiated --- undifferentiated for Date and voice VLAN is not
distinction VLAN tag, Tag differentiated for Date and Voice VLAN is distinction VLAN tag,
Date untagged for Date VLAN is distinction VLAN tag
Please refer to VLAN implement for detail

AT530P User Manual
17/49
2.5.6Advance SIP settings
This page is used to set the private sip server, stun server, and back up sip server
information.
STUN Server setting:
STUN Server Addr: configure stun server address;
STUN Server Port: configure stun server port default 3478
STUN Effect Time: stun detect NAT type circle, unit: minute.
Enable SIP STUN: enable/disable stun.
Enable PRACK: Whether to make gateway or IP phone support Prack function in SIP , we
suggest you keeping default setting
Enable Keep Authentication: registering signal together with the authentication information.
If enable it, the server will confirm the registering and send back the confirmation massage
directly instead of requesting the terminals to send authentication information if needed.
Auto Detect Server: Whether to enable the function of auto detecting the server. With this
function yourATA and IP phone will send information to auto detect the server at every period
of time. If find the server is not available it will try to register the server again.
Enable Session Timer：Whether to enable te RFC4028
Signal Encode: Wherther to enable the signal encrypt
Rtp Encode: Whether to enable the voice encrypt
Enable Private Register: Whether to enable the second SIP Server to register
Please refer to SIP_Config for the setting for how to set the public alter server.
User can register two sip servers: public sip server and private sip server.these two sip servers are
independent from each other and running in the same time.
For how to configure private sip server. Please refer to SIP_Config
Enable URI Convert: transfer the # into %23 when sending URI

AT530P User Manual
18/49
Enable Strict Proxy: compatible with special server ( when the message is returned , they use
original address but not the address in via field
Enable Quote Name: To work with the server , config here to use quotation mark to include the
displayname
Enable Subscibe: subscribe the message such as other side's status or the voice mail after
successful registration

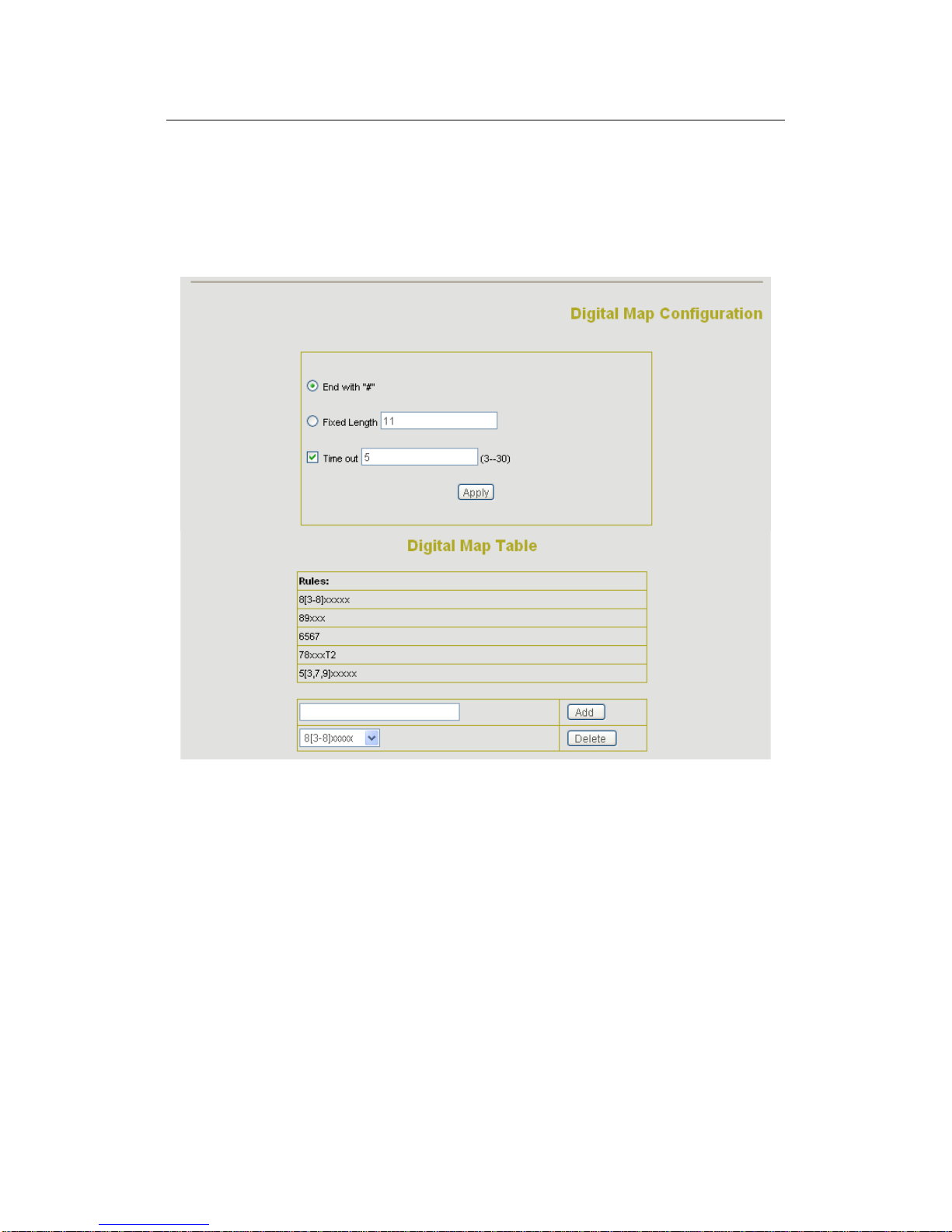

2.5.7 Digital Map
Digit map is a set of rules to determine when the user has finished dialing.
AT530P support below digital map:
Digital Map is based on some rules to judge when user end their dialing and send the number
to the server. AT530P support following digital map:
----End With “#”: Use # as the end of dialing.
----Fixed Length: When the length of the dialing match, the call will be sent.
----Timeout: Specify the timeout of the last dial digit. The call will be sent after timeout
----Prefix: User define digital map:
[ ] represents the range of digit, can be a range such as [1-4], or use comma such as [1,3,5], or
use a list such as [234]
x represents any one digit between 0~9
Tn represents the last digit timeout. n represents the time from 0~9 second, it is necessary. Tn
must be the last two digit in the entry. If Tn is not included in the entry, we use T0 as default, it means
system will sent the number immediately if the number matches the entry.
Example:
[1-8]xxx All number from 1000 to 89999 will be sent immediately.
9xxxxxxx 8 digits numbers begin with 9 will be sent immediately.
911 Number 911 will be sent will be immediately

AT530P User Manual
19/49
99xT4 3 digits numbers begin with 99 with be sent after four seconds.

AT530P User Manual
20/49
2.5.8 Call Service Settings
User configure the value add service such as hotline, call forward, call transfer, 3-way
conference call .etc in this page
Hotline: configure hotline number. AT530P immediately dials this number after hook-off if it is
set.
Call Forward: Please refer to Value_add_service for detail.
No Disturb: DND, do not disturb, enable this option to refuse any calls.
Ban Outgoing: Enable this to ban outgoing calls.
Enable Call Transfer: Please refer to Value_add_service for detail.
Enable Three Way Call: Please refer to Value_add_service for detail.
Enable Call Waiting: Enable/disable Call Waiting
Accept Any Call:If this option is disable, AT530P refuse the incoming call when the called
number is different from AT530P’s phone number.
No Answer Time: no answer call forward time setting.
Auto Answer: Enable/disable auto answer function.
Enable Voice Record: Enable/disable answering machine function. Please refer to Record
Function for detail.
User-defined Voice: Use customized greeting message.
Incoming Record Playing: simultaneously play the message when recording.
P2P IP Prefix: Config the point to point calling. For example , if you want to call IP
192.168.1.119 Just defin 192.168.1. here and you can dial #119 to make the point to point call
with the IP phone of 192.168.1.119
Use Record Server: Config the supporting of server recording , transfer all the recording to
