Atlas FM9SL User manual

Read this entire manual before operation begins.
Record below the following information which is located on the serial number
data plate.
Serial No.
Model No.
Date of Installation

Contents
General Information. . . . . . . . . . 5
Product Identification . . . . . . . . . 8
Packing; Transport; Storage . . . . . . 10
Product Description . . . . . . . . . . 12
Technical Specification. . . . . . . . . 14
Safety . . . . . . . . . . . . . . . . 25
Installation . . . . . . . . . . . . . . 29
Operation And Use . . . . . . . . . . 40
Maintenance . . . . . . . . . . . . . 44
Troubleshooting. . . . . . . . . . . . 46
Parts Breakdown . . . . . . . . . . . 49
Warranty . . . . . . . . . . . . . . . 63

4
FM9SL
Printing Characters And Symbols
Throughout this manual, the following symbols and printing characters are used
to facilitate reading:
Indicates the operations which need proper care
Indicates prohibition
Indicates a possibility of danger for the operators
Indicates the direction of access for motor vehicles to the lift
BOLD
TYPE Important information
WARNING: before operating the lift and carrying out
any adjustment, read carefully chapter 7 “Installation”
where all proper operations for a better functioning of
the lift are shown.

General Information 5
FM9SL
General Information
This chapter contains warning instructions to operate the lift properly and
prevent injury to operators or objects. This manual has been written to be used
by shop technicians in charge of the lift (operator) and routine maintenance
technician (maintenance operator). The operating instructions are considered to
be an integral part of the machine and must remain with it for its whole useful
life.
Read every section of this manual carefully before operating the lift and
unpacking it since it gives helpful information about:
• safety of people
• safety of the lift
• safety of lifted vehicles
The company is not liable for possible problems, damage, accidents, etc.
resulting from failure to follow the instructions contained in this manual. Only
skilled technicians of AUTHORISED DEALERS or SERVICE CENTRES AUTHORISED
by the manufacturer shall be allowed to carry out lifting, transport, assembling,
installation, adjustment, calibration, settings, extraordinary maintenance,
repairs, overhauling and dismantling of the lift.
The manufacturer is not responsible for possible damage to people,
vehicles or objects if said operations are carried out by unauthorized
personnel or the lift is improperly used.
Any use of the machine made by operators who are not familiar with the
instructions and procedures contained herein shall be forbidden.
1.1 Manual Keeping
For a proper use of this manual, the following is recommended:
• keep the manual near the lift, in an easily accessible place.
• keep the manual in an area protected from the damp.
• use this manual properly without damaging it.
• any use of the machine made by operators who are not familiar with the
instructions and procedures contained herein shall be forbidden.

General Information 6
FM9SL
This manual is an integral part of the lift: it shall be given to the new owner if
and when the lift is resold.
1.2 Obligation In Case Of Malfunction
In case of machine malfunction, follow the instructions
contained in the following chapters.
1.3 Cautions For The Safety Of The Operator
Operators must not be under the influence of sedatives, drugs or alcohol when
operating the machine.
Before operating the lift, operators must be familiar with
the position and function of all controls, as well as with the
machine features shown in the chapter “Operation and Use”
1.4 Warnings
Unauthorized changes and/or modifications to the machine
relieve the manufacturer of any liability for possible damages
to objects or people. Do not remove or make inoperative the
safety devices, as this would cause a violation of safety at
work laws and regulations.
Any other use which differs from that provided for by the
manufacturer of the machine is strictly forbidden.
The use of non genuine parts may cause damage to people
or objects

General Information 7
FM9SL
1.5 Scrapping
When your machine’s working life is over and it can no longer be used, it must
be made inoperative by removing any connection to power sources.
These units are considered as special waste material, and should be broken
down into uniform parts and disposed of in compliance with current laws and
regulations.
If the packing are not polluting or non-biodegradable, deliver them to
appropriate handling station.
DECLARATION OF WARRANTY AND
LIMITATION OF LIABILITY
The manufacturer has paid proper attention to the preparation of this manual.
However, nothing contained herein modifies or alters, in any way, the terms
and conditions of manufacturer agreement by which this lift was acquired, nor
increase, in any way, manufacturer’s liability to the customer.
TO THE READER
Every effort has been made to ensure that the information contained in this
manual is correct, complete and up-to date. The manufacturer is not liable for
any mistakes made when drawing up this manual and reserves the right to make
any changes due the development of the product, at any time.

Product Identification 8
FM9SL
Product Identification
The identification data of the machine are shown in the label placed on the
control unit.
LOGO
Type: ………………
Model: ………………
Serial Number: ………………
Year of manufacturing: ………………
Capacity: ………………
Voltage: ………………
Power: ………………
Use the above data both to order spare parts and when
getting in touch with the manufacturer (inquiry). The
removal of this label is strictly forbidden.
Machines may be updated or slightly modified from an aesthetic point of view
and, as a consequence, they may present different features from these shown,
this without prejudicing what has been described herein.

Product Identification 9
FM9SL
2.1 Warranty Certificate
The warranty is valid for a period of 12 months starting from the date of the
purchase invoice.
The warranty will come immediately to an end when unauthorized modifications
to the machine or parts of it are carried out.
The presence of defects in workmanship must be verified by the Manufacturer’s
personnel in charge.
2.2 Technical Servicing
For all servicing and maintenance operations not specified or shown in these
instructions, contact your Dealer where the machine has been bought or the
Manufacturer’s Commercial Department.
Only skilled personnel who are familiar with the lift and this manual shall
be allowed to carry out packing, lifting, handling, transport and unpacking
operations.

Packing; Transport; Storage 10
FM9SL
Packing; Transport; Storage
3.1 Packing
The packing of the lift is delivered in following components:
• 2 base units each packed in a steel frame, wrapped up in non-scratch
material
• 1 power unit packed in a plywood box, including 8 rubber pads and 8
anchor bolts
(If requested, optional accessories are available to satisfy each customer’s
requirements).
The average weight of the package is 2,025 lbs.
3.2 Lifting And Handling
When loading/unloading or transporting the equipment to the site, be sure to
use suitable loading (e.g. cranes, trucks) and hoisting means. Be sure also to
hoist and transport the components securely so that they cannot drop, taking
into consideration the package’s size, weight and centre of gravity and it’s fragile
parts.
Hoist and handle only one package at a time
3.3 Storage And Stacking Of Packages
Packages must be stored in a covered place, out of direct sunlight and in low
humidity, at a temperature between -10°C and +40°C.
Stacking is not recommended: the package’s narrow base, as well as its
considerable weight and size make it difficult and hazardous.

Packing; Transport; Storage 11
FM9SL
3.4 Delivery And Check Of Packages
When the lift is delivered, check for possible damages due to transport and
storage; verify that what is specified in the manufacturer’s confirmation of order
is included. In case of damage in transit, the customer must immediately inform
the carrier of the problem.
Packages must be opened paying attention not to cause damage to people (keep
a safe distance when opening straps) and parts of the lift (be careful the objects
do not drop from the package when opening).

Product Description 12
FM9SL
Product Description
4.1 Lift Description (Ref. Figure 1)
The flush mounted lift has been designed for the lifting of motor-vehicles for
wheel alignment and maintenance. The maximum lifting weight is as specified
on the serial plate.
All mechanical frames, such as platforms, extensions, base frames and arms
have been built in steel plate to make the frame stiff and strong while keeping
a low weight. The electro hydraulic operation is described in detail in the
“Operation And Use” chapter.
This chapter describes the lift’s principal elements, allowing the user to be
familiar with the machine.
As shown in figure 1, the lift is composed of two platforms: P1 (1) and P2 (2),
each equipped with the telescopic extension (3) on front and rear sides, anchored
to the pit foundation by means of two bases (4). Platforms are linked to the base
frame by means of a scissor lifting system. The lifting system of each platform is
composed of a pair of scissors (5) and a cylinder (6). Lifting and lowering motion
of the lift is controlled by the push buttons on the control unit (7) placed next to
the lift.
The mechanical safety operating by a pneumatic cylinder is installed under each
runway. Two limit switches are installed in the P2 base: for top position limit and
for the safety height limit.

Product Description 13
FM9SL
Figure 1 – Lift
4.2 Operation

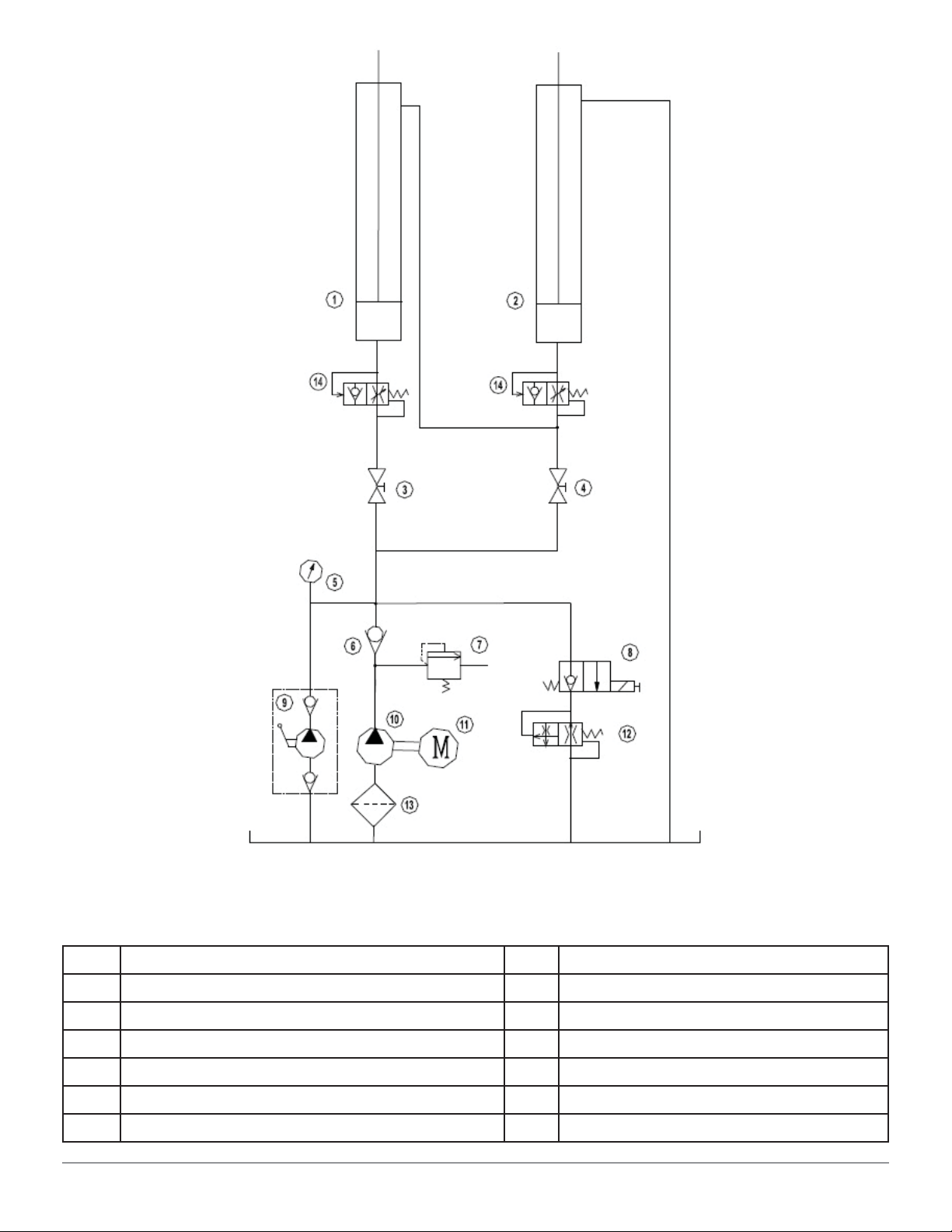

Platform lifting is carried out by the hydraulic unit which acts upon the cylinders.
The platforms are raised simultaneously owing cross feeding of the hydraulic
cylinders. Lowering, even though electrically controlled, is carried out by the
weight of both the platforms and the load lifted.
The hydraulic system is protected by a max pressure valve thus preventing
pressure from exceeding the maximum fixed safety limit. The synchronization of
the platforms is carried out by a master/slave circuit.
Whenever the lift has to be lowered to the ground and the lowering button is
pressed, the lift will stop at about 16” from the ground.
In this way, the operator must verify that neither persons nor objects are within
the safety area. If so, the final lowering button can be pressed and the lift be
lowered. A beeping sound is heard during the last travel.
7
4
5
6
3
2
1

Technical Specification 14
FM9SL
Technical Specification

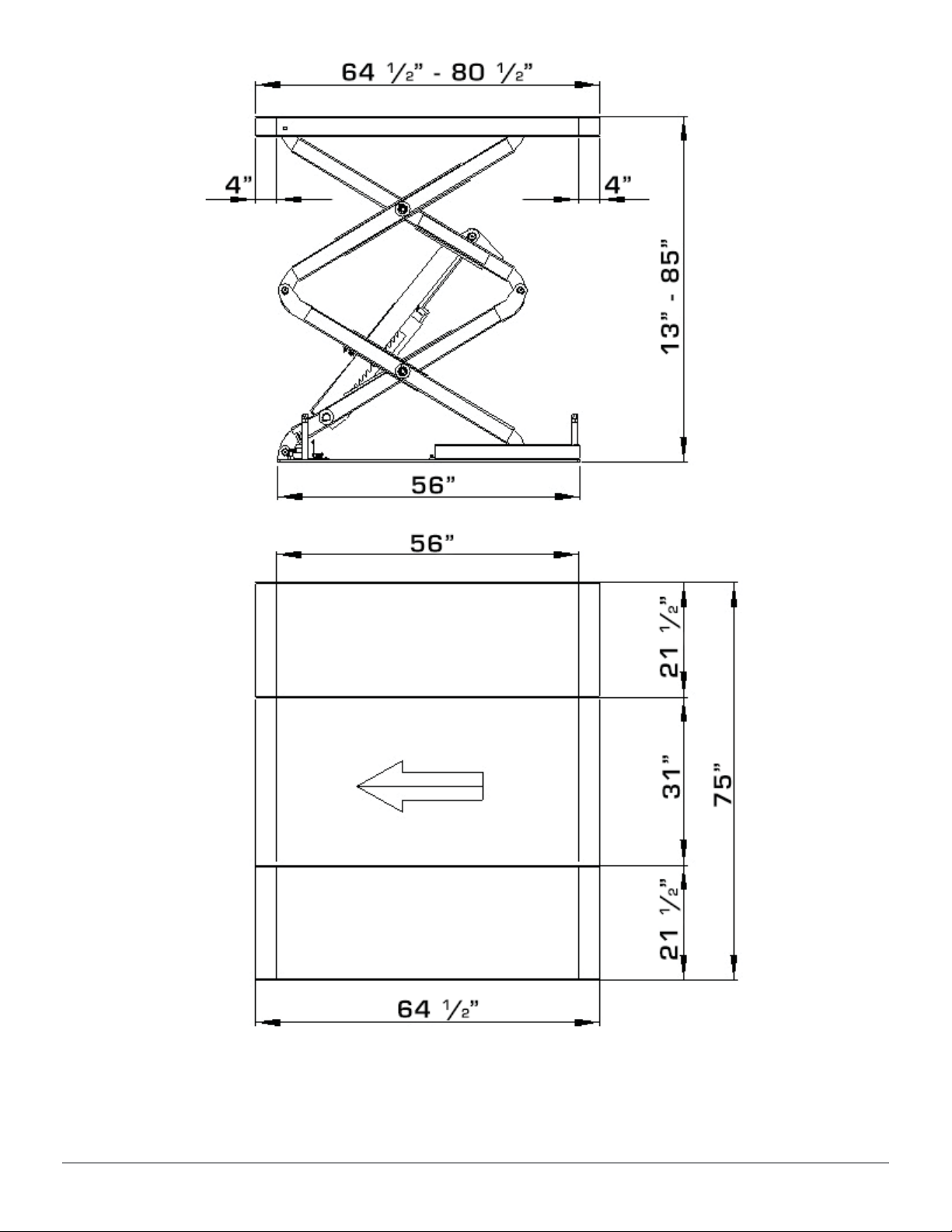

5.1 Size And Main Features (Ref. Figure 2)
Capacity 9,000 lbs
Maximum Lifting Height 85” (7’ 1”)
Pit Depth 13”
Length Of The Platform 64 ½” (5’ 4 ½”) - 80 ½” (6’ 8 ½”)
Width Of Platform 21 ½”
Max Overall Width 77" (6’ 5”)
Width Between Platforms Adjustable up to 31" (2’ 7”)
Lifting Time 60 s
Compressed Air Pressure 6bar – 8bar
Noise Level 80 dB(A)/1m
Total Weight Of The Lift 2,025 lbs
Working Temperature -10 °C ÷ 40 °C
5.2 Electric Motor
Type ML90L2 G90N4
Voltage 230V/220V-1Ph 400V/380V-3Ph
Power 2.2 KW 2.6 KW
N° Poles 2 4
Speed 2800 rpm 1375 rpm
Motor enclosure type B14
Insulation class IP 54

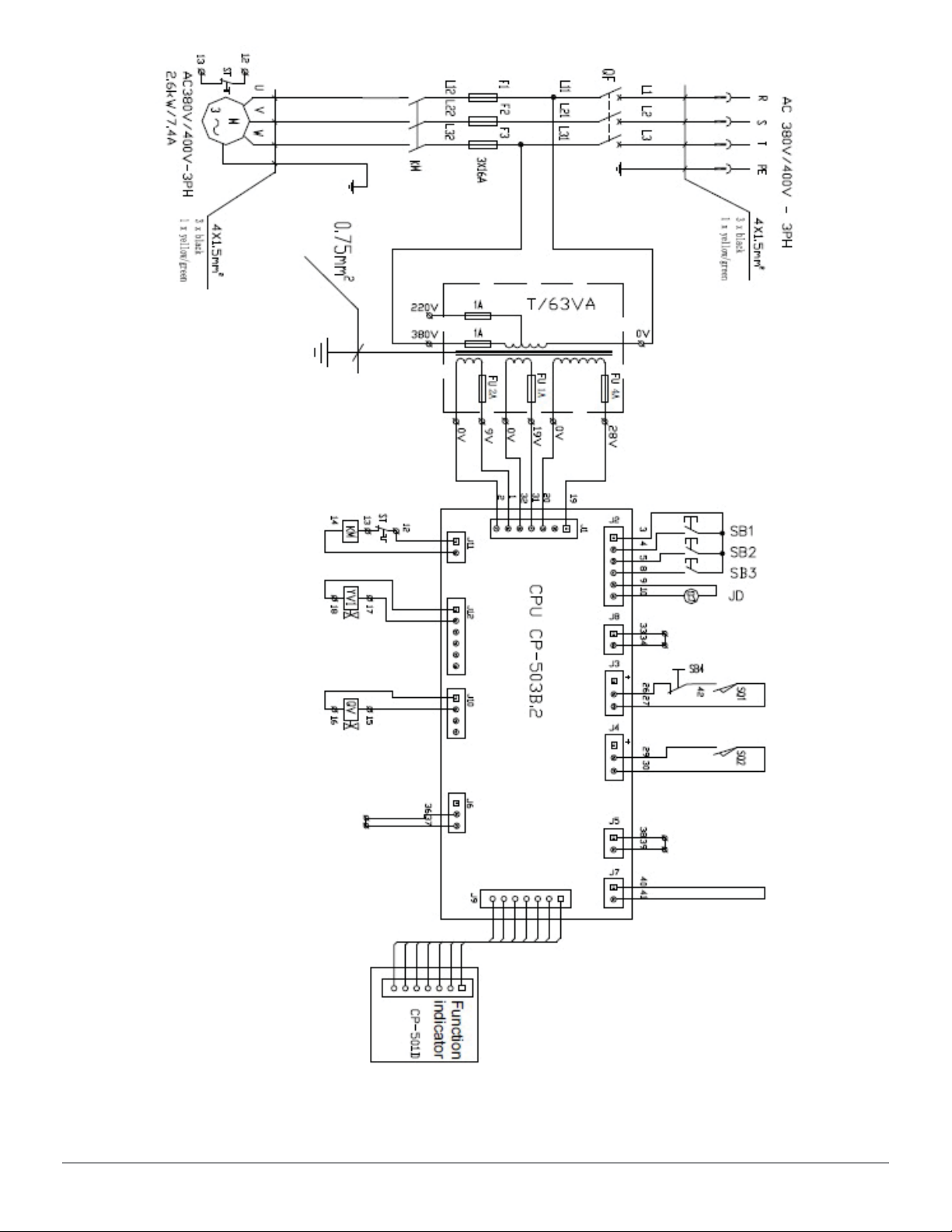

Motor connection must be carried out referring to the attached wiring diagrams
(Figure 5).
The motor direction of rotation is shown in the label placed on the motor.
Before use of the lift, make sure to check if the motor specification shown in the
nameplate of the motor conforms to the local electric supply.

Technical Specification 15
FM9SL
If there is over 10% fluctuation on the electrical power supply, it is suggested to
use the voltage stabilizer to protect the electrical components and system from
overloading.
5.3 Pump
Type Gear
Flow rate 2.1 cm3/g 4.8 cm3/g
Continuous working pressure 240 bar
Peak pressure 250 bar

Technical Specification 16
FM9SL
Figure 2 - Layout

Technical Specification 17
FM9SL
5.4 Hydrualic Power Unit
Figure 3 – Hydraulic Power Unit
Emergency
hand pump
Lowering
solenoid
valve
Emergency
lowering
screw
Pressure
gauge
Leveling cock N.O
(normally open)
Leveling cock N.C
(normally close)
Motor

Technical Specification 18
FM9SL
5.5 Oil
Use wear proof oil for hydraulic drive, in conformity with ISO 6743/4 rules (HM
class). The oil with features similar to those shown in the table is recommended.
Test standards Features Value
ASTM D 1298 Density 20°C 0.8 kg/l
ASTM D 445 Viscosity 40°C 32 cSt
ASTM D 445 Viscosity 100°C 5.43 cSt
ASTM D 2270 Viscosity index 104 N°
ASTM D 97 Pour point ~ 30 °C
ASTM D 92 Flash point 215 °C
ASTM D 644 Neutralization number 0.5 mg KOH/g
Change hydraulic oil at 1 year intervals

Technical Specification 19
FM9SL
Figure 4 – Hydraulic Plan
1 Master platform cylinder P1 8 Lowering solenoid valve
2 Slave platform cylinder P2 9 Emergency hand pump
3 Leveling cock N.O (normally open) 10 Gear pump
4 Leveling cock N.C (normally close) 11 Motor
5 Pressure gauge 12 Lowering speed control
6 Non return valve 13 Oil filter
7 Pressure overload valve 14 Parachute valve (optional)

Technical Specification 20
FM9SL
Figure 5a – Electric Diagram (380V/400V - 3PH)
