Auriol AFT 77 A1 User manual

IAN 315163
RADIO-CONTROLLED
TEMPERATURE STATION AFT 77 A1
RADIO-CONTROLLED
TEMPERATURE STATION
Operating instructions
FUNK-TEMPERATURSTATION
Bedienungsanleitung

GB/IE/NI Operating instructions Page 1
DE/AT/CH Bedienungsanleitung Seite 35
Before reading, unfold both pages containing
illustrations and familiarise yourself with all func-
tions of the device.
Klappen Sie vor dem Lesen die beiden Seiten
mit den Abbildungen aus und machen Sie sich
anschließend mit allen Funktionen des Gerätes
vertraut.

– +
AA
+ −
AA
A

+
−
–
+
AA AA
B

AFT 77 A1 GB│IE│NI │ 1 ■
Introduction................... 3
Information about these
operating instructions ..................3
Intended use.........................3
Warning notices ......................4
Safety ....................... 5
Basic safety instructions ................5
Safety information for batteries ..........6
Package contents .............. 7
Description of components ...... 8
Setting up .................... 9
Requirements for the set-up location.......9
Operating the outdoor sensor ......... 10
Operating the temperature station ...... 10
Displays in basic mode......... 13
Operation and use ............ 16
Basic settings ...................... 16
Setting the alarm time................ 18
Activating/deactivating the alarm ...... 19
Switching off the alarm............... 20
Snooze function .................... 20
Displaying the maximum/
minimum temperature ................ 21
Changing the temperature unit......... 21
Battery display ..................... 22
Changing the radio channel........... 22
Contents

AFT 77 A1
■ 2 │ GB│IE│NI
Troubleshooting .............. 24
Cleaning. . . . . . . . . . . . . . . . . . . . . 25
Storage ..................... 25
Disposal..................... 26
Appendix.................... 27
Technical details .................... 27
Simplified EU Declaration of Conformity . 28
Ordering replacement parts........... 29
Kompernass Handels GmbH warranty .. 30
Service ........................... 33
Importer .......................... 33

AFT 77 A1 GB│IE│NI │ 3 ■
Introduction
Information about these
operating instructions
Congratulations on the purchase of your new
appliance. You have selected a high-quality
product. The operating instructions are part of
this product. They contain important informa-
tion about safety, usage and disposal. Before
using the product, please familiarise yourself
with all operating and safety instructions.
Use the product only as described and for the
range of applications specified. Retain these
instructions for future reference. Please also
pass these operating instructions on to any
future owner.
Intended use
The radio temperature station shows you the
indoor and outdoor temperatures in Celsius
(°C) or Fahrenheit (°F) in addition to the
maximum and minimum values. Displayed
values also include the time in 12/24-hour
format in addition to the date. In addition,
the radio temperature station has two alarms.
The appliance is intended solely for private
households and not for the commercial sector.

AFT 77 A1
■ 4 │ GB│IE│NI
Warning notices
The following warning symbols are used in
these operating instructions:
DANGER
A warning at this hazard level
indicates a potentially hazardous
situation.
Failure to avoid this hazardous situation
could result in injuries or death.
► Follow the instructions in this warning
notice to prevent injury.
CAUTION
A warning notice of this hazard level
indicates a risk of property damage.
Failure to avoid this situation could result in
property damage.
► Follow the instructions in this warning
notice to prevent property damage.
NOTE
► A note provides additional information
that makes handling the appliance easier
for you.

AFT 77 A1 GB│IE│NI │ 5 ■
Safety
This section contains important safety instruc-
tions for using the appliance. Improper use
may result in personal injury and property
damage.
Basic safety instructions
To ensure safe operation of the appliance,
follow the safety guidelines set out below:
■ This appliance may be used by children
aged 8 years and above and by persons
with limited physical, sensory or mental
capabilities or lack of experience and
knowledge, provided that they are under
supervision or have been told how to use
the appliance safely and are aware of the
potential risks. Do not allow children to use
the appliance as a toy. Cleaning and user
maintenance tasks must not be carried out
by children unless they are supervised.
■ Before use, ensure that the product is un-
damaged! Never operate an appliance
that is damaged.
■ Operate the temperature station only in
dry indoor rooms.
■ Do not expose the temperature station to
moisture or direct sunlight.

AFT 77 A1
■ 6 │ GB│IE│NI
Safety information for batteries
DANGER
Mishandling the batteries can cause
fires, explosions, leakages or other
hazards!
► Keep batteries out of the hands of children.
Store batteries out of the reach of children.
► If a battery has been swallowed, seek
medical assistance immediately.
► Batteries must never be short-circuited, tak-
en apart, deformed or thrown into a fire.
► Never try to charge non-rechargeable
batteries.
► Chemicals from leaking or damaged
batteries can cause skin irritations when
touched, so please use suitable protective
gloves in this case. In event of contact with
your skin, rinse off with plenty of water.
If the chemicals come into contact with
your eyes, rinse thoroughly with plenty of
water, do not rub and consult a doctor
immediately.
► Always use batteries of the same type.
Never mix old batteries with new ones!
► Only ever use the stated battery type.
► Ensure that the batteries are inserted with
the correct polarity. This is indicated in the
battery compartment.
► Clean the battery and appliance contacts
before inserting the batteries if necessary.

AFT 77 A1 GB│IE│NI │ 7 ■
DANGER
► Remove the batteries if you do not intend
to use the appliance for a long time.
► Always remove discharged batteries from
the appliance immediately.
Package contents
The product includes the following components:
1 temperature station
1 outdoor sensor
4 batteries type AA
2 wall plugs (Ø 5 mm)
2 screws
1 set of operating instructions
NOTE
► Check the package for completeness and
signs of visible damage.
► If the contents are incomplete or damaged
due to defective packaging or through
transportation, contact the Service Hotline.
♦ Unpack all parts of the appliance from
the packaging and remove all packaging
materials.
DANGER
► Do not allow children to play with pack-
aging materials. Risk of suffocation.

AFT 77 A1
■ 8 │ GB│IE│NI
Description of components

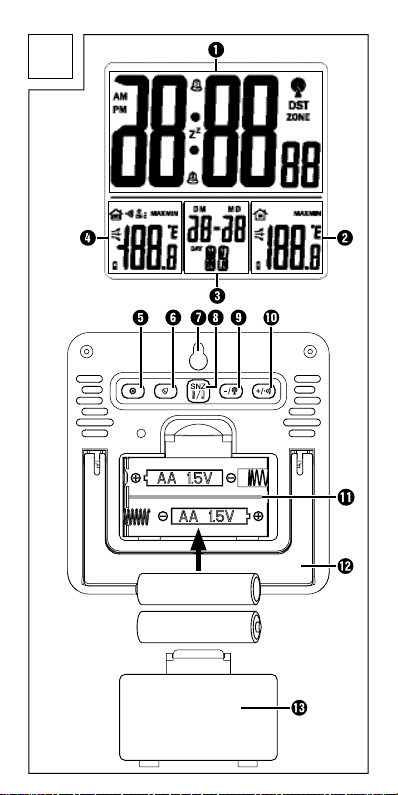

For illustrations see fold-out pages
Figure A
Display
1Time panel
2Internal temperature panel
3Date panel
4Outdoor temperature panel
Temperature station
5 button
6button
7Hanger
8button
9button
0button
qBattery compartment
wStand
eBattery compartment cover
Figure B
Outdoor sensor
rControl LED
tHanger
zTX button
uChannel selector
iBattery compartment
oBattery compartment cover
pStand

AFT 77 A1 GB│IE│NI │ 9 ■
Setting up
NOTE
During set-up, first insert the batteries into the
outdoor sensor and then into the temperature
station.
Requirements for the set-up location
CAUTION
► When selecting the installation location,
ensure that the appliances are not sub-
jected to direct sunlight, vibration, dust,
heat, cold and moisture.
► Do not set the appliance up in the vicinity
of heat sources such as radiators.
► Fit the outdoor sensor at a maximum
distance of 30 m from the temperature
station. Ensure that there are no disruptive
obstacles between the outdoor sensor
and the temperature station. Otherwise,
transmission can be disrupted.
♦ Both the temperature station and the
outdoor sensor can be suspended from
a screw using the hangers 7and t.
♦ Alternatively, you can fold out the stands w
and pof the temperature station and the
outdoor sensor to place them on a horizon-
tal and level surface.

AFT 77 A1
■ 10 │ GB│IE│NI
Operating the outdoor sensor
♦ Open the battery compartmention the
rear of the appliance by pushing the bat-
tery compartment coveroin the direction
of the arrow.
♦ Insert two type AA batteries into the appli-
ance’s battery compartmentias shown.
♦ Close the battery compartment i again.
The control LED r  on the front of the
outdoor sensor lights up briefly.
Afterwards, the control LEDrlights up
once every minute to signal that transmis-
sion is in progress.
Operating the temperature station
♦ Open the battery compartmentqon
the rear of the appliance by removing the
battery compartment covere.
♦ Insert two type AA batteries into the appli-
ance’s battery compartmentqas shown.
♦ Close the battery compartmentqagain.
Once the power supply has been established,
the display will light up and go through a brief
check of the display elements.
The temperature station will now attempt to
connect to the outdoor sensor. The reception
symbol flashes on the outdoor temperature
panel 4.

AFT 77 A1 GB│IE│NI │ 11 ■
NOTE
If no outdoor temperature is displayed within
around 3minutes, the temperature station
will stop the reception search. The reception
symbol goes out and is displayed on
the outdoor temperature panel4.
It is possible that no signal can be received
due to the surrounding buildings or because
the distance is too great.
If you are unable to establish an automatic
connection to the outdoor sensor, you can
do this manually:
♦ Press and hold the button0until
the reception signal flashes on the
outdoor temperature panel4.
♦ Press the TX buttonzto manually initi-
ate the outdoor sensor radio signal.
The temperature station automatically starts to
receive the MSF signal after 3minutes, irre-
spective of whether the outdoor sensor recep-
tion search has been successful or not.
The reception symbol flashes on the time
panel1. If the reception symbol ( ) does not
flash completely on the display, the reception
of the MSF signal is too weak and the time
cannot be synchronised. Try and find a set-up
location in which the reception symbol ( )
flashes completely on the display.

AFT 77 A1
■ 12 │ GB│IE│NI
Once the appliance successfully receives the
MSF signal, the time panel 1displays the
current coordinated world time (UTC) and the
date and weekday are displayed on the date
panel 3. In addition, the reception symbol
is permanently displayed on the time panel1.
If the appliance is unable to synchronise with
the MSF signal, you can also set the time
manually (see section Basic settings) or you
can attempt the reception again.
♦ Press and hold the button9for about
3 seconds to attempt the reception search
again. The reception symbol flashes on
the time panel1.
The MSF signal
The MSF radio signal is a time transmission
which accurately and reliably transmits the
official time in the United Kingdom. This is
done on the basis of the UTC time scale of the
NPL atomic clock. The signal can be received
anywhere in the UK and beyond its borders.
It operates at a frequency of 60 kHz and
transmits a time and date signal that can be
received and decoded by the temperature
station. The reception of the MSF signal usually
takes about 3 to 5 minutes. If the reception of
the MSF signal fails, the temperature station
will abort the reception attempt after approx.
7 minutes.

AFT 77 A1 GB│IE│NI │ 13 ■
Reception can be considerably restricted by
obstacles (e.g. concrete walls) or interference
sources (e.g. other electronic appliances). If
necessary, you should change the location of
the temperature station (e.g. put it by a win-
dow) if reception problems continue.
Displays in basic mode
Once the temperature station has received the
outdoor sensor signal and the MSF signal, it is
in basic mode. In basic mode, the temperature
station shows the following information on its
display:

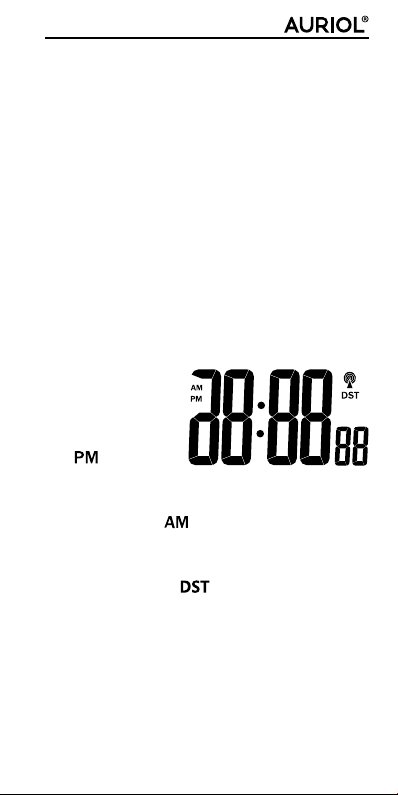

The time panel1
The time is shown in
12-hour format by
default. In 12-hour
format, the abbrevia-
tion (Latin: “post
meridiem” = afternoon) is shown in front of the
time between 12 noon and 11.59 at night.
The abbreviation (Latin: “ante meridiem” =
morning) is shown in front of the time between
12 midnight and 11.59 in the morning. During
the summer period, (daylight saving time)
is displayed. This display is only shown if the
MSF signal is being received.

AFT 77 A1
■ 14 │ GB│IE│NI
The date panel3
The current date appears under
the display and the current
month under the display . The
abbreviation for the current
weekday is shown to the right of
the display . The language for this abbrevi-
ation is preset to English but can be changed if
required. Please refer to the section Basic set-
tings for details.
The indoor temperature panel2
The indoor temperature
measured by the temperature
station is displayed to one
decimal place. The tempera-
ture unit (degrees Celsius)
is shown top right. The temperature unit can
also be changed to (degrees Fahrenheit).
If the temperature drops below the measuring
range of 0°C to 50°C (or 32°F to 122°F)
is shown; is shown if the temperature rises
above this range.
The temperature trend is shown to the left of
the temperature display. The following displays
are possible:
= the temperature is rising.
= the temperature is constant.
= the temperature is dropping.

AFT 77 A1 GB│IE│NI │ 15 ■
If the battery symbol appears to the left of
the temperature display, you should replace
the batteries of the temperature station as
soon as possible (see section Operating the
temperature station).

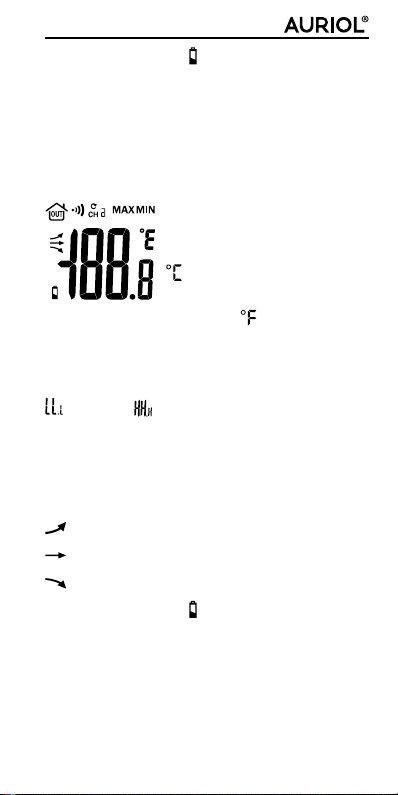

The outdoor temperature panel4
The outdoor temperature is
displayed to one decimal
place. The temperature unit
(degrees Celsius) is shown
top right. The temperature
unit can also be changed to (degrees Fahr-
enheit).
If the temperature drops below the measuring
range of -20°C to 60°C (or -4°F to 140°F)
is shown; is shown if the temperature
rises above this range.
The temperature trend is shown to the left of
the temperature display. The following displays
are possible:
= the temperature is rising.
= the temperature is constant.
= the temperature is dropping.
If the battery symbol appears to the left of
the temperature display, you should replace
the batteries of the outdoor sensor as soon as
possible (see section Operating the outdoor
sensor).

AFT 77 A1
■ 16 │ GB│IE│NI
Operation and use
Basic settings
If the appliance is unable to synchronise with
the MSF signal, you can also set the time
manually.
♦ To make the basic settings, press and hold
the button5for around 3 seconds.
(time zone setting) flashes on the time
panel1.
♦ Press the button9or the button0
to set the desired value.
NOTE
► If you are in a country where the MSF
signal is still being received but the current
time is different, you can use the Time
Zone setting to set the temperature station
to the current time in your country.
► For example, if you are in a country
where the local time is one hour behind
the coordinated world time (UTC), set the
time zone to . Although the temperature
station is still controlled by the MSF signal,
it displays the time one hour before UTC.
♦ Press the button5to confirm your
entry. (year display) flashes on the
time panel1.
♦ Press the button9or the button0
to set the desired value.
