AVer M70Wv2 User manual

M70Wv2
Instruction Manual |安裝指南
取扱説明書| Bedienungsanleitung
Mode d'emploi | Manual de instrucciones
Manuale d'uso

English……..……………………………………………………….…......1
繁體中文……………………………………………………………….…24
日本語…..……………………………..……………………………….…46
Deutsch.............................................................................................61
Français…………………………………………………..………....…....83
Español...……………………………………………..……….…….….105
Italiano..........…………………………….….……………..……….…..127

English-1
Package Contents
M70Wv2*
Power Adaptor
Power cord**
Remote controller
AAA Battery (x2)
USB Cable
Quick Start Guide
Warranty card
(Europe, Japan,
Taiwan only)
2nd Wi-Fi Dongle
*The M70Wv2 comes with a pre-installed Wi-Fi dongle.
**The power cord will vary depending on the standard power outlet of the country where it is sold.
Optional Accessories
Carrying Bag
Anti-glare Sheet
Microscope Adapter
( 28mm and 34mm Rubber Coupler are included)

English-2
Parts Info
1
3
2
45
789
6
1. Camera head
2. LED lamp
3. Arm
4. IR sensor
5. Control panel
6. Handle
7. Built-in mic
8. Battery indicator
9. USB mini port
10. USB port
11. Wi-Fi dongle
12. Kensington lock
13. HDMI input
14. HDMI output
15. DC power jack
Compound Key
Reset to factory default settings.
With each press, cycle through the following resolutions:
Auto detection (4K, 720P, 1080P)
1024x768 (in supported HDMI device)
4K 60Hz (in supported HDMI device)
With each press, cycle through Normal, Motion, High quality, Microscope, Infinity,
and Marco modes.

English-3
Remote Control
1
2
3
4
5
6
7
8
9
10
12
11
14
16
17
21
22
19
20
13
15
18
Control Panel
Name
Function
1. POWER
Turn the camera on or off.
2. Wi-Fi/USB
Switch between Wi-Fi and USB modes.
3. CAPTURE
Capture still image in Camera mode. In
continuous capture mode, press this button
again to stop.
4. FREEZE
Freeze live images.
5. ROTATE
Rotate the image by 0/180°in Camera
mode.
6. INFO/
Press to view system information and battery
power status.
7. ▲,▼,◄, & ►
Pan and zoom-in image in live streaming.
8. AUTO FOC
Adjust the focus automatically.
9. ZOOM +/-
Increase/decrease the image magnification
in camera mode.
10. ZOOM 1X
Reset zoom level to 100%.
11. MUTE
Set the volume to mute.
12. CAMERA / PC
Switch the video signal between camera and
computer from the HDMI Input port
13. RECORD
Start/Stop audio & video recording. Video
recording can only be saved in a USB flash
drive.
14. RESOULTION
Press to switch between following modes:
- Auto detects the best resolution(4K, 720P,
1080P)
- 1024x768 (in supported HDMI device)
- 4K 60Hz (in supported HDMI device)
15. AE LOCK
Lock the exposure to stop M70Wv2
attempting to find optimal exposure.
16. LAMP
Turn the overhead light on/off.
17. DEL
Delete the selected picture/video in
Playback mode.
18. MODE
Press to switch between Normal, High
frame, and High quality, Microscope, Infinity,
or Marco mode.
19.
Make a selection.
20. VOLUME +/-
Adjust the volume.
21. BRIGHTNESS
+/-
Adjust the brightness.
22. RESET +/-
Reset to factory default setting.
23. Wi-Fi Indicator
Wi-Fi status indicator: Refer to <LED
Indicator>.

English-4
LED Indicator
Name
Status indicator
Power
Solid green: Power on
No light: Power off
Solid red: Standby (Camera is connected to power but not
in operation.)
Battery
Solid green(x3): Battery is full(100%-60%)
Solid green(x2): Battery is 60%-30%
Solid green(x1): Battery is 30%-5%
Solid red (x1): Battery is 5%-0%
Flashing red (x1): Battery is out of power
Solid orange(x3): Battery is abnormal
Wi-Fi
Solid blue: AP Mode Ready / STA connected
Slow flashing blue: Software connection with camera
Short flashing blue: Create AP mode / STA connecting
Solid green: Miracast mode ready
Slow flashing green: Miracast streaming start
Quick flashing green: Miracast device scan / connecting
[Note]
The battery will be exhausted for long-term usage. Do not replace the battery yourself. Please contact
your dealer.
P/N: 300AU8D0-EA9

English-5
Device Connection
Charge Your Camera
Your camera comes with a built-in battery. Before using it for the first time, charge it for at least 3 hours.
Connect to a power outlet using the included power adapter and power cord.
3 flashing green lights: Charging
3 solid green lights: Charged
You can also use a computer to charge your camera.
- Your camera must not be in operation. A solid red light on the power button indicates that it is in
Standby mode.
- Connect the included USB cable to the mini USB port on the camera and connect the other end
to a USB port on a computer. Charging with a computer will be slower.
If your camera is frozen, press +to restart.

English-6
USB Connection
Connect to a computer using the included USB cable to work with video conferencing software.
You can also plug in a USB flash drive to save images and videos. Press the Capture button to capture
images and the Record button to record videos.

English-7
HDMI Connection
1. By connecting a computer to the HDMI in port and a monitor or projector to the HDMI out port,
images and videos from the computer can be projected.
2. Press the Camera/PC button to switch between camera input and computer input.

English-8

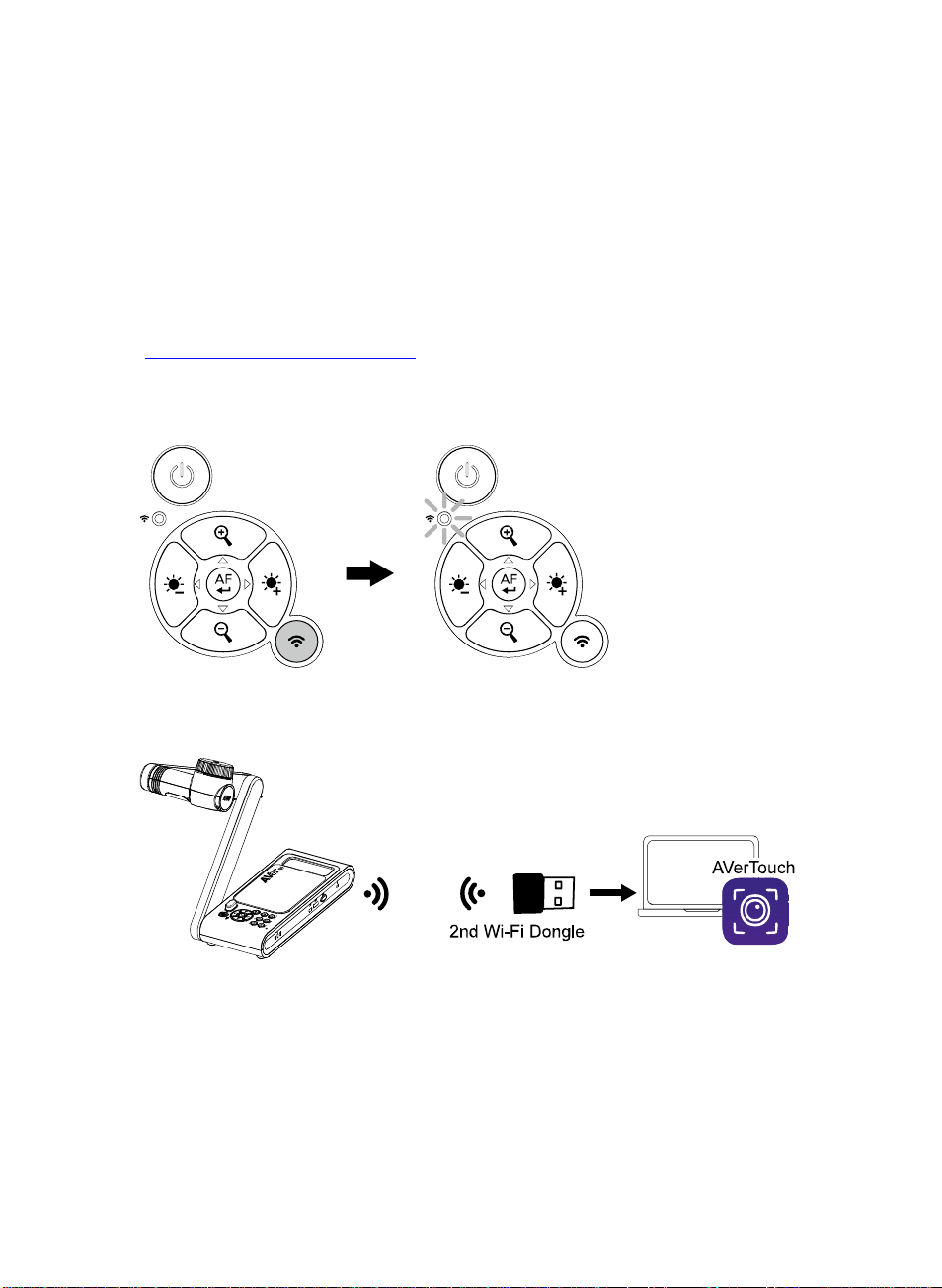

Peer-to-Peer (P2P) Connection via Wi-Fi Dongle
(Windows only)
Method 1
1. Download and install AVerTouch software to your computer from AVer Download Center.
(https://www.aver.com/download-center).
Do not connect your camera to a computer with the included USB cable.
2. Press the Wi-Fi button to turn on Wi-Fi mode. The Wi-Fi indicator will be solid blue.
3. Plug in the second Wi-Fi dongle to your computer.
Your camera comes with 2 Wi-Fi dongles, one pre-installed in the camera. If you don’t find a
second dongle, it may be an optional accessory in your region or country. Contact your local
reseller.

English-9
4. Open AVerTouch.
A white camera card will appear when your camera is detected.
Your camera name is “AVer model name - Wi-Fi dongle MAC address”. Find the MAC address
on the bottom of your camera.
5. Click the Connect icon to connect your camera. When prompted, click Done.
If an IP conflict error message appears, see <IP Conflict> to troubleshoot.
6. Camera live view will start immediately. Or click the Play icon to start live view.

English-10

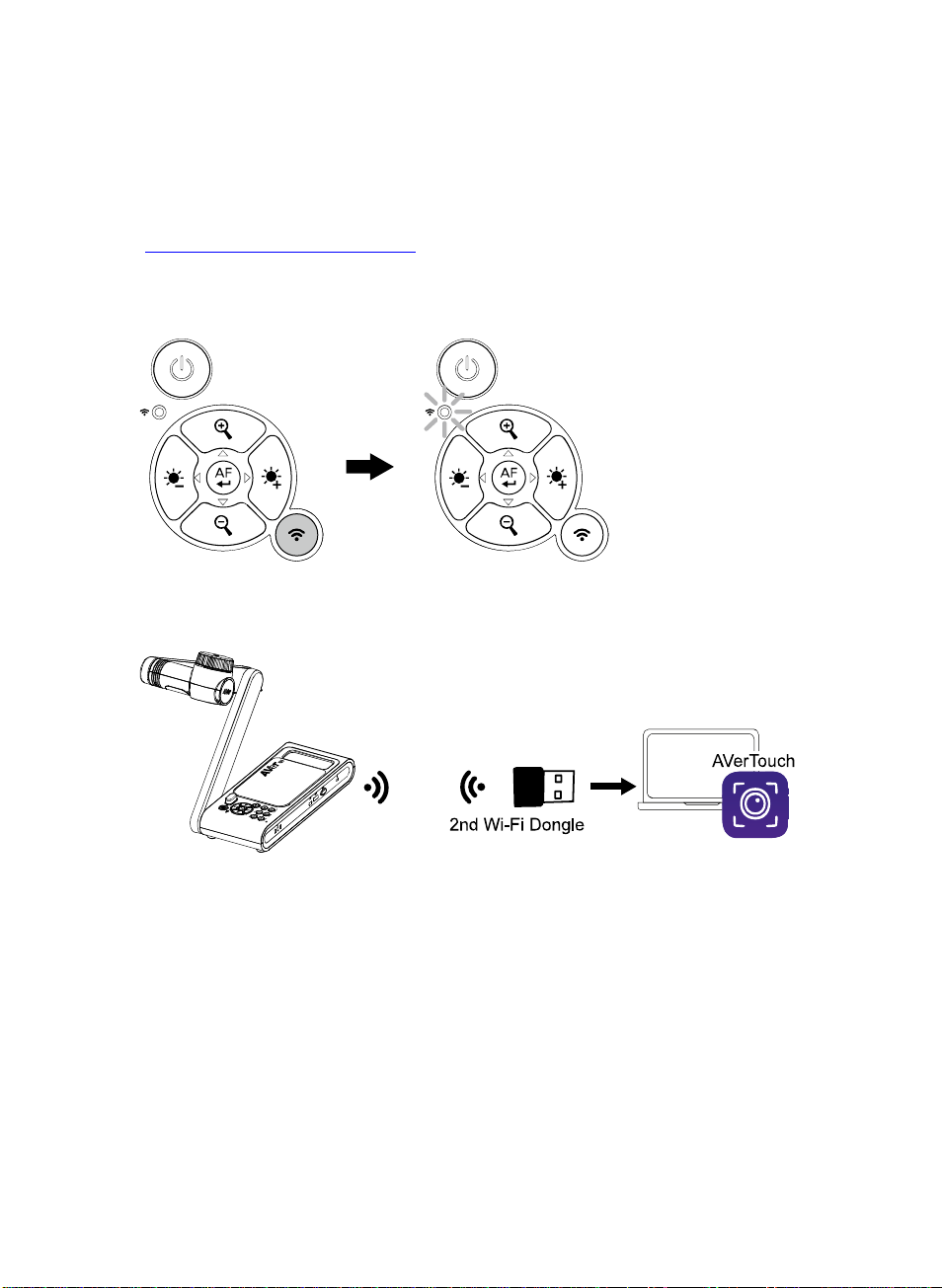

Method 2
1. Download and install AVerTouch software to your computer from AVer Download Center.
(https://www.aver.com/download-center).
Do not connect your camera to a computer with the included USB cable.
2. Press the Wi-Fi button to turn on Wi-Fi mode. The Wi-Fi indicator will be solid blue.
3. Plug in the second Wi-Fi dongle to your computer.
Your camera comes with 2 Wi-Fi dongles, one pre-installed in the camera. If you don’t find a
second dongle, it may be an optional accessory in your region or country. Contact your local
reseller.

English-11
4. Select the Network icon on the taskbar. The icon that appears depends on your current connection
state.
5. Choose your camera from the list of networks, then select Connect.
Make sure you select the network of the Wi-Fi dongle. If your computer has built-in Wi-Fi or you
are also using other non-AVer Wi-Fi dongles, you may see a drop-down list (Wi-Fi 2, Wi-Fi 3 and
so on).
Your camera name is “AVer model name - Wi-Fi dongle MAC address”. Find the MAC address
on the bottom of your camera.

English-12
6. Enter the network password AVeradmin, then select Next.
7. Select Yes to allow your computer to be discoverable.
8. Open AVerTouch. A purple camera card will appear when your camera is detected. Click the Play
icon to start live view.

English-13
Troubleshooting Peer-to-Peer (P2P) Connection
Your camera remembers the connection setting last time you connected it wirelessly. If you are
changing connection method, such as from Peer-to-Peer (P2P) to Wi-Fi, press the factory reset
compound key + to clear previous frequency band setting.
IP Conflict
1. Connect your camera to the computer using the included USB cable.
2. Open AVerTouch.
A purple camera card (USB mode) will appear when your camera is detected.

English-14
3. Click the Camera information icon. Choose a different IP address from the IP address drop down
list. Click Done
4. Unplug the USB cable. Click Sync to refresh. A white camera card will appear when your camera is
detected. Go back to Step 5 in <Peer-to-Peer (P2P) Connection> to connect again.

English-15
Wi-Fi Connection
1. Download and install AVerTouch software to your computer from AVer Download Center.
(https://www.aver.com/download-center).
Make sure your computer has Wi-Fi.
Do not plug in the second Wi-Fi dongle to your computer.
Do not connect your camera to a computer with the included USB cable.
2. Press the Wi-Fi button to turn on Wi-Fi mode. The Wi-Fi indicator will be solid blue.
3. Open AVerTouch.
A white camera card will appear when your camera is detected.
Your camera name is “AVer model name - Wi-Fi dongle MAC address”. Find the MAC address
on the bottom of your camera.

English-16

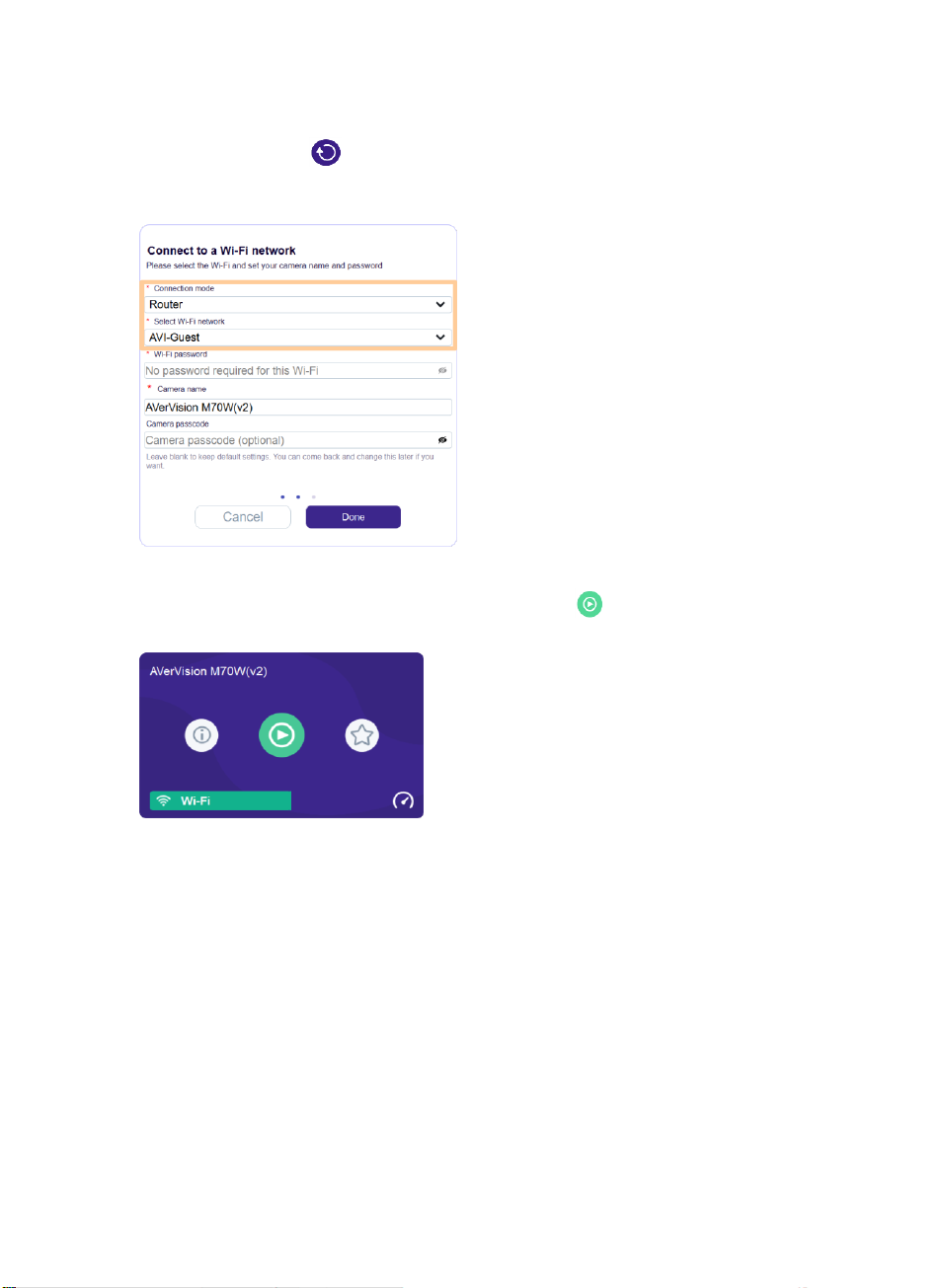

4. Click the Connect icon to connect your camera.
Choose Router from the Connection mode drop-down list. Then choose your Wi-Fi network and
enter the password. Click Done.
5. Camera live view will start immediately. Or click the Play icon to start live view.

English-17
Miracast Connection
Your display device must support Miracast. If the display device does not support Miracast, you can use
a Miracast wireless display adapter that connects to an HDMI port on your device.
1. Press the Info button to open the on-screen display menu.
2. Go to Wireless > Mode > Miracast to turn on Miracast mode.
3. Go back to Miracast Setup to select your display device.

English-18
Using the Camera
Orientation Ring
Shooting Area
When camera position is 470mm high, the shooting area will be A3 size.
470mm
PC
