B-K lighting MB2 User manual

TOOLS
NEEDED:
By Others
MB2
Standard Installation
Warning Hot Surface
Installation Instructions
Waterproof Wire Connectors
Screwdriver
High Voltage
RELEASED
5-17-16
REFERENCE NUMBER
INS-2505-00
40429 Brickyard Drive • Madera, CA 93636 • USA
559.438.5800 • FAX [phone]
www.bklighting.com • [email protected]
B-K LIGHTING
THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION OF B-K LIGHTING, INC. AND ITS RECEIPT OR POSSESSION DOES NOT CONVEY ANY RIGHTS TO REPRODUCE, DISCLOSE ITS CONTENTS, OR TO MANUFACTURE, USE OR SELL ANYTHING IT MAY
DESCRIBE. REPRODUCTION, DISCLOSURE OR USE WITHOUT SPECIFIC WRITTEN AUTHORIZATION OF B-K LIGHTING, INC. IS STRICTLY FORBIDDEN.
IMPORTANT SAFETY INFORMATION - READ, FOLLOW, AND SAVE THESE INSTALLATION INSTRUCTIONS
• Product must be installed by a qualified person in a manner
consistent with its intended use and in compliance with the
NationalElectricalCode,CanadianElectricalCode,andallLocal
andProvincialCodes.
• Followproductlabelinformationandinstructions.
• QualifiedPersonnel mustperform allservicing orrelamping of
thisproduct.
• Beforewiringtopowersupplyandduringservicingorrelamping,
turnoffpoweratfuseorcircuitbreakerbeforeservice.
• The use of accessory equipment not recommended by the
manufacturerorinstalledcontrarytoinstructionsmaycausean
unsafecondition.Theuseofdamagedcomponentsmaycause
anunsafeconditionandvoidproductwarranty.
IMPORTANT SAFETY INFORMATION - READ, FOLLOW, AND SAVE ALL SAFETY
AND INSTALLATION INSTRUCTIONS
• Donotblocklightemanatingfromproductinwholeorpart,
asthismaycauseanunsafecondition.
• Never operate the fixture with missing or damaged lens.
Lensmustbecleanedonregularbasis.
• Entire fixture may become extremely hot. Do not touch hot
lensorfixturebody.Donottouchthelampatanytime.Use
aclean,dry,softclothtohandlethelamp.Oilfromskinmay
damagethelampandcauseittorupture.
• Replace lamp only with correct wattage and type of lamp
markedonfixturelabel.
• All gaskets, o-rings and sealing surfaces must be kept clean
duringinstallationandservice;failuretodothismaycausean
unsafeconditionandvoidproductwarranty.
INSTRUCTIONS PERTAINING TO
A RISK OF FIRE, OR INJURY TO
PERSONS IMPORTANT SAFETY
INSTRUCTIONS
LightedlampisHOT!
WARNING-ToreducetheriskofFIREORINJURYTOPERSONS:
Turnoff/unplugandallowtocoolbeforereplacinglamp.
LampgetsHOTquickly!Contactonlyswitch/plugwhen
turningon.
Donottouchhotlens,guard,orenclosure(seediagram/
picture).
Keeplampawayfrommaterialsthatmayburn.
Donotouchthelampatanytime.Useasoftcloth.Oil
fromskinmaydamagelamp.
Donotoperatetheluminairefittingwithamissingor
damagedshield.
SAVE THESE INSTRUCTIONS
· Suitable for wet location · Additionally suitable for mounting within 4 ft. of the ground
IMPORTANT LISTINGS AND CERTIFICATIONS

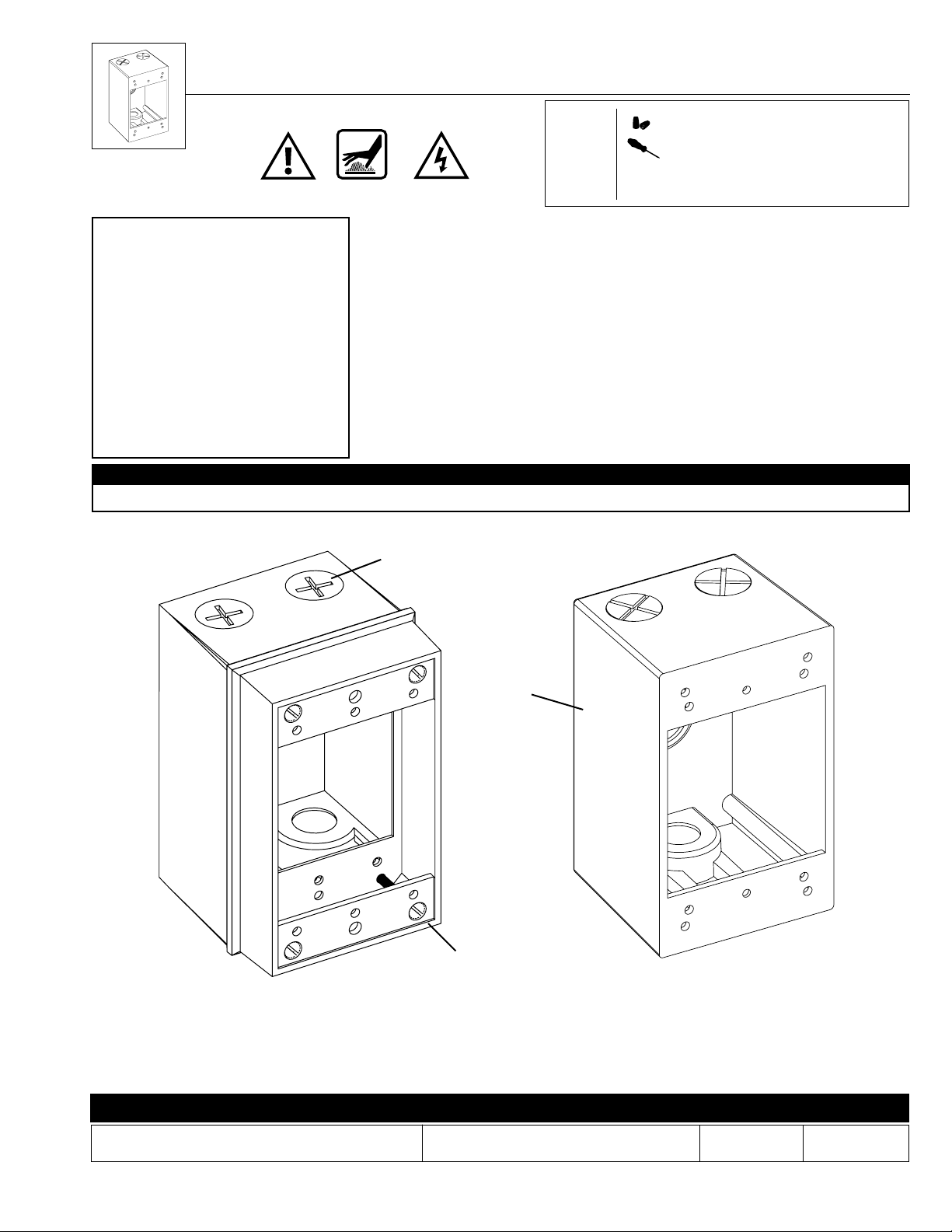

MB2
(Specify Canopy,
Cover and/or Fixture
Separately)
MB2 with Extension
(Specify Canopy,
Cover and/or Fixture
Separately)
 ThreadedHubfor1/2”
Conduit(WithPlug)
 Extension
 Aluminum
Housing

Installation Instructions
40429 Brickyard Drive • Madera, CA 93636 • USA
559.438.5800 • FAX [phone]
www.bklighting.com • [email protected]
B-K LIGHTING
IMPORTANT SAFETY INFORMATION LISTED ON REVERSE
READ, FOLLOW, AND SAVE ALL SAFETY AND INSTALLATION INSTRUCTIONS
RELEASED
5-17-16
REFERENCE NUMBER
INS-2505-00
Installation
1. Remove canopy and/or fixture from MB2 housing.
Ensure unused tapped holes are plugged to
maintainseal.Plugsareprovided.
5. Place wire connectors and/or power supply
inside MB2 box, then secure canopy and/or
fixturetoMB2.
4. Run conduit (By Others) to MB2 box location.
Pull wiring to MB2 box location. Use waterproof
wire connectors (By Others) to connect incoming
primarywiringtopowersupply.Connectincoming
groundwiringtogroundconductorinhousing.See
wiring diagram.
WIRING DIAGRAM
LINE (+)
FIXTURE
COM
WIRING DIAGRAM
POWER
SUPPLY
(-)
GROUND GROUND
MB2
Standard Installation
2. To prepare MB2 for mounting, align
mounting brackets on back of box. Brackets
can be aligned to vertical, horizontal or 45°
orientation. Secure with mounting screw
usingscrewdriver.
3. Mount MB2 box to surface using mounting
hardware (Provided) using the mounting
bracketsattachedtobackofMB2box.
Alternative mounting methods may
compromise integrity of MB2 against water
intrusion and will void warranty.
NOTE: Surface conduit is a common entrance
for water if not properly sealed. Seal connector
threads and conduit with a suitable sealant
(Teflon tape, adhesive, etc.). Sealing the conduit
after knockouts are removed is required to
maintain warranty.
