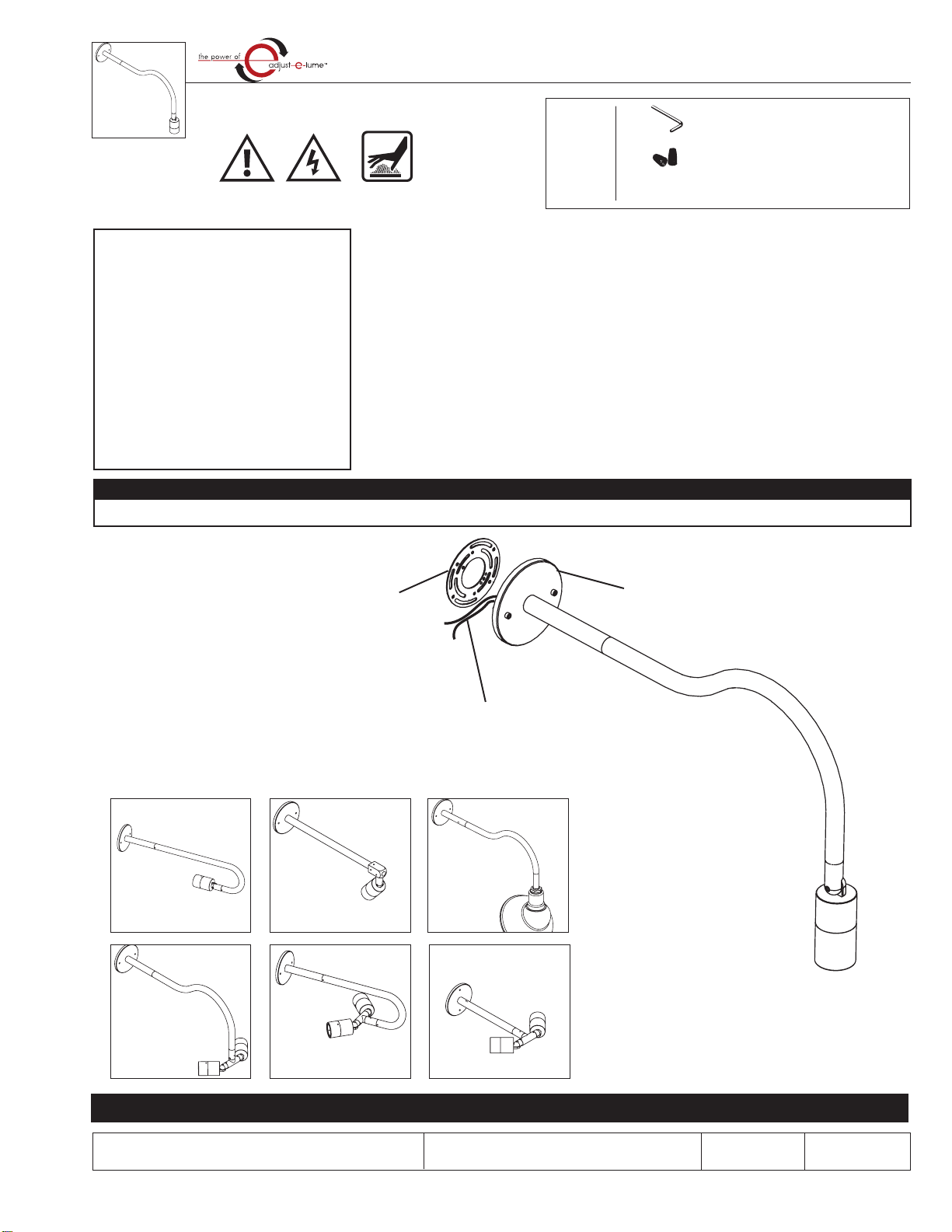

SIGN STAR™ AND TWIN SIGN STAR™
Sign Lighting Installation Instructions
IMPORTANT SAFETY INFORMATION - READ, FOLLOW, AND SAVE THESE INSTALLATION INSTRUCTIONS
SN-B SN-C SN-D
TOOLS
NEEDED:
By Others
1/8” & 5/64” & 5/32” Allen wrench
Wire connectors
(recommended silicone filled wire connectors)
ST-B ST-C
ST-A
This set of instructions works for:
SN-A - Sign Star™ Style “A”
SN-B - Sign Star™ Style “B”
SN-C - Sign Star™ Style “C”
SN-D - Sign Star™ Style “D”
ST-A - Sign Star™ Style “A
ST-B - Sign Star™ Style “B”
ST-C - Sign Star™ Style “C”
SN-A
Canopy
Universal Ring
18 Gauge Wire
TECHNOLOGY
with
• Product must be installed by a qualified person in a manner
consistent with its intended use and in compliance with the
National Electrical Code, Canadian Electrical Code, and all Local
and Provincial Codes.
• Follow product label information and instructions.
• Qualified Personnel must perform all servicing or relamping of
this product.
• Before wiring to power supply and during servicing or relamping,
turn off power at fuse or circuit breaker before service.
• The use of accessory equipment not recommended by the
manufacturer or installed contrary to instructions may cause an
unsafe condition. The use of damaged components may cause
an unsafe condition and void product warranty.
IMPORTANT SAFETY INFORMATION - READ, FOLLOW, AND SAVE ALL SAFETY
AND INSTALLATION INSTRUCTIONS
• Do not block light emanating from product in whole or part,
as this may cause an unsafe condition.
• Never operate the fixture with missing or damaged lens.
Lens must be cleaned on regular basis.
• Entire fixture may become extremely hot. Do not touch hot
lens or fixture body. Do not touch the lamp at any time. Use
a clean, dry, soft cloth to handle the lamp. Oil from skin may
damage the lamp and cause it to rupture.
• Replace lamp only with correct wattage and type of lamp
marked on fixture label.
• All gaskets, o-rings and sealing surfaces must be kept clean
during installation and service; failure to do this may cause an
unsafe condition and void product warranty.
INSTRUCTIONS PERTAINING TO
A RISK OF FIRE, OR INJURY TO
PERSONS IMPORTANT SAFETY
INSTRUCTIONS
Lighted lamp is HOT!
WARNING - To reduce the risk of FIRE OR INJURY TO PERSONS:
Turn off/unplug and allow to cool before replacing lamp.
Lamp gets HOT quickly! Contact only switch/plug when
turning on.
Do not touch hot lens, guard, or enclosure (see diagram/
picture).
Keep lamp away from materials that may burn.
Do no touch the lamp at any time. Use a soft cloth. Oil
from skin may damage lamp.
Do not operate the luminaire fitting with a missing or
damaged shield.
SAVE THESE INSTRUCTIONS
· Suitable for wet locations
IMPORTANT LISTINGS AND CERTIFICATIONS
Hot Surface
Warning High Voltage

40429 Brickyard Drive • Madera, CA 93636 • USA
559.438.5800 • FAX [phone]
www.bklighting.com • [email protected]
B-K LIGHTING
PROJECT:
TYPE:
Phase 1 - Rough In
Installation of Back box
1. Install Conduit and Junction Box (by others)
to be used with this product.
2. Install junction box so that front face is flush
with finished wall or ceiling.
3. Connect box to conduit and pull wires for
connections (See Wiring diagram).
Additional Info
• Please follow National and Local electrical codes for your area.
Please refer to the low voltage design guide at www.bklighting.com/
lvguide before installation for proper wire selection.
IMPORTANT SAFETY INFORMATION LISTED ON REVERSE
READ, FOLLOW, AND SAVE ALL SAFETY AND INSTALLATION INSTRUCTIONS
3167387
ETL LISTED
CONFORMS TO ANSI/UL STANDARD 1838,
CERTIFIED TO CSA STD C22.2 NO.250.7
CSA STD C22.2 TIL B-58A
RELEASED
12-12-11
REFERENCE NUMBER
INS000971
SIGN STAR™ AND TWIN SIGN STAR™
Sign Lighting Installation Instructions
LINE 12V
FIXTURE
COM
Remote
Transformer
(by others)
COM
Wiring Diagram
Phase 2 - Finish Installation of Fixture with Remote Transformer.
1. Install universal mounting ring (supplied with
fixture) to junction box using appropriate
hardware (By Others). Align canopy mounting
holes to final mounting position.
2. Make two connections from remote 12V
transformer to LED source leads (18 gauge
wire) using proper wire connectors (By Others).
See wiring diagram.
3. Mount fixture canopy using two (2) #10-24 hex
screws using 1/8” allen wrench. Do not over
tighten.
4. Use 5/32” allen wrench to loosen #10-32
stainless steel black oxide socket head cap
screw at the knuckle. Aim fixture to desired
vertical location. Tighten to secure aiming
position.
5. Use 5/64” allen wrench to loosen stainless steel
set screw on the 360SL™ rotational system and
rotate to desired horizontal location. Tighten to
secure aiming position.
TECHNOLOGY
with

RELEASED
12-12-11
REFERENCE NUMBER
INS000971
40429 Brickyard Drive • Madera, CA 93636 • USA
559.438.5800 • FAX [phone]
www.bklighting.com • [email protected]
B-K LIGHTING
IMPORTANT SAFETY INFORMATION LISTED ON REVERSE
READ, FOLLOW, AND SAVE ALL SAFETY AND INSTALLATION INSTRUCTIONS
3167387
ETL LISTED
CONFORMS TO ANSI/UL STANDARD 1838,
CERTIFIED TO CSA STD C22.2 NO.250.7
CSA STD C22.2 TIL B-58A
THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION OF B-K LIGHTING, INC. AND ITS RECEIPT OR POSSESSION DOES NOT CONVEY ANY RIGHTS TO REPRODUCE, DISCLOSE ITS CONTENTS, OR TO MANUFACTURE, USE OR SELL ANYTHING
IT MAY DESCRIBE. REPRODUCTION, DISCLOSURE OR USE WITHOUT SPECIFIC WRITTEN AUTHORIZATION OF B-K LIGHTING, INC. IS STRICTLY FORBIDDEN.
PROJECT:
TYPE:
SIGN STAR™ AND TWIN SIGN STAR™
Sign Lighting Installation Instructions
TECHNOLOGY
with
To Change Lumen Output (when required).
1. Use 5/64” Allen wrench to loosen #8-32
stainless set screw and remove cap.
3. Place cap on fixture and tighten set screw.2. With flat head screw driver rotate dial to
desired lumen output.
This product is available with Adjust-e-Lume™ (Patent Pend.) for Dynamic Lumen Output Control
Warning! The light output of this product may be dynamically adjusted as desired to raise and lower light levels. Please ensure the xture is set
to the appropriate light level desired during installation.

RELEASED
12-12-11
REFERENCE NUMBER
INS000971.1
40429 Brickyard Drive • Madera, CA 93636 • USA
559.438.5800 • FAX [phone]
www.bklighting.com • [email protected]
B-K LIGHTING
THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION OF B-K LIGHTING, INC. AND ITS RECEIPT OR POSSESSION DOES NOT CONVEY ANY RIGHTS TO REPRODUCE, DISCLOSE ITS CONTENTS, OR TO MANUFACTURE, USE OR SELL ANYTHING IT MAY
DESCRIBE. REPRODUCTION, DISCLOSURE OR USE WITHOUT SPECIFIC WRITTEN AUTHORIZATION OF B-K LIGHTING, INC. IS STRICTLY FORBIDDEN.
IMPORTANT SAFETY INFORMATION - READ, FOLLOW, AND SAVE THESE INSTALLATION INSTRUCTIONS
TOOLS
NEEDED:
By Others
1/8” & 5/64” Allen wrench
Wire connectors
(recommended silicone filled wire connectors)
18 Gauge Wire
Wall Plate with
attached Transformer
Power Canopy
This set of instructions works for:
SN-A - Sign Star™ Style “A”
SN-B - Sign Star™ Style “B”
SN-C - Sign Star™ Style “C”
SN-D - Sign Star™ Style “D”
ST-A - Sign Star™ Style “A
ST-B - Sign Star™ Style “B”
ST-C - Sign Star™ Style “C”
SN-A
SN-B SN-C SN-D
ST-B ST-C
ST-A
SIGN STAR™ AND TWIN SIGN STAR™
Sign Lighting Installation Instructions
TECHNOLOGY
with
• Product must be installed by a qualified person in a manner
consistent with its intended use and in compliance with the
National Electrical Code, Canadian Electrical Code, and all Local
and Provincial Codes.
• Follow product label information and instructions.
• Qualified Personnel must perform all servicing or relamping of
this product.
• Before wiring to power supply and during servicing or relamping,
turn off power at fuse or circuit breaker before service.
• The use of accessory equipment not recommended by the
manufacturer or installed contrary to instructions may cause an
unsafe condition. The use of damaged components may cause
an unsafe condition and void product warranty.
IMPORTANT SAFETY INFORMATION - READ, FOLLOW, AND SAVE ALL SAFETY
AND INSTALLATION INSTRUCTIONS
• Do not block light emanating from product in whole or part,
as this may cause an unsafe condition.
• Never operate the fixture with missing or damaged lens.
Lens must be cleaned on regular basis.
• Entire fixture may become extremely hot. Do not touch hot
lens or fixture body. Do not touch the lamp at any time. Use
a clean, dry, soft cloth to handle the lamp. Oil from skin may
damage the lamp and cause it to rupture.
• Replace lamp only with correct wattage and type of lamp
marked on fixture label.
• All gaskets, o-rings and sealing surfaces must be kept clean
during installation and service; failure to do this may cause an
unsafe condition and void product warranty.
INSTRUCTIONS PERTAINING TO
A RISK OF FIRE, OR INJURY TO
PERSONS IMPORTANT SAFETY
INSTRUCTIONS
Lighted lamp is HOT!
WARNING - To reduce the risk of FIRE OR INJURY TO PERSONS:
Turn off/unplug and allow to cool before replacing lamp.
Lamp gets HOT quickly! Contact only switch/plug when
turning on.
Do not touch hot lens, guard, or enclosure (see diagram/
picture).
Keep lamp away from materials that may burn.
Do no touch the lamp at any time. Use a soft cloth. Oil
from skin may damage lamp.
Do not operate the luminaire fitting with a missing or
damaged shield.
SAVE THESE INSTRUCTIONS
· Suitable for wet locations
IMPORTANT LISTINGS AND CERTIFICATIONS
Hot Surface
Warning High Voltage

40429 Brickyard Drive • Madera, CA 93636 • USA
559.438.5800 • FAX [phone]
www.bklighting.com • [email protected]
B-K LIGHTING
Phase 1 - Rough In
Installation of Back box
1. Install conduit and junction box (by others) to
be used with this product.
2. Install junction box so that front face is flush
with finished wall or ceiling.
3. Connect box to conduit and pull wires for
connections (See Wiring diagram).
Additional Info
• Please follow National and Local electrical codes for your area.
• Suitable for through wire
• Rated for 90° C.
Please refer to the low voltage design guide at www.bklighting.com/
lvguide before installation for proper wire selection.
IMPORTANT SAFETY INFORMATION LISTED ON REVERSE
READ, FOLLOW, AND SAVE ALL SAFETY AND INSTALLATION INSTRUCTIONS
3167387
ETL LISTED
CONFORMS TO ANSI/UL STANDARD 1838,
CERTIFIED TO CSA STD C22.2 NO.250.7
CSA STD C22.2 TIL B-58A
RELEASED
12-12-11
REFERENCE NUMBER
INS000971.1
120V 12V
FIXTURE
COM
GROUND
Transformer
COM
GROUND IN T-HOUSING
Wiring Diagram
Phase 2 - Finish Installation of Fixture with Power Canopy.
1. Remove one or two wire entrance knockouts on
wall plate. Pull primary branch circuit through
knockout(s). Attach wall plate to junction box
using appropriate hardware (By Others).
2. Ground primary branch circuit to wall plate
per NEC. Make two connections from remote
12V transformer to primary branch circuit
using proper wire connectors. (By Others).
See wiring diagram.
3. Connect fixture to transformer with provided
quick disconnect.
4. Mount canopy to wall plate using four (4)
#8-32 stainless steel button head screws with
5/64” allen wrench. Do not over tighten.
4. Use 5/32” allen wrench to loosen #10-32
stainless steel black oxide socket head cap
screw at the knuckle. Aim fixture to desired
vertical location. Tighten to secure aiming
position.
5. Use 5/64” allen wrench to loosen stainless steel
set screw on the 360SL™ rotational mounting
system and rotate to desired horizontal
location. Tighten to secure aiming position.
PROJECT:
TYPE:
SIGN STAR™ AND TWIN SIGN STAR™
Sign Lighting Installation Instructions
TECHNOLOGY
with

RELEASED
12-12-11
REFERENCE NUMBER
INS000940
40429 Brickyard Drive • Madera, CA 93636 • USA
559.438.5800 • FAX [phone]
www.bklighting.com • [email protected]
B-K LIGHTING
IMPORTANT SAFETY INFORMATION LISTED ON REVERSE
READ, FOLLOW, AND SAVE ALL SAFETY AND INSTALLATION INSTRUCTIONS
3167387
ETL LISTED
CONFORMS TO ANSI/UL STANDARD 1838,
CERTIFIED TO CSA STD C22.2 NO.250.7
CSA STD C22.2 TIL B-58A
THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION OF B-K LIGHTING, INC. AND ITS RECEIPT OR POSSESSION DOES NOT CONVEY ANY RIGHTS TO REPRODUCE, DISCLOSE ITS CONTENTS, OR TO MANUFACTURE, USE OR SELL ANYTHING
IT MAY DESCRIBE. REPRODUCTION, DISCLOSURE OR USE WITHOUT SPECIFIC WRITTEN AUTHORIZATION OF B-K LIGHTING, INC. IS STRICTLY FORBIDDEN.
PROJECT:
TYPE:
SIGN STAR™ AND TWIN SIGN STAR™
Sign Lighting Installation Instructions
TECHNOLOGY
with
To Change Lumen Output (when required).
1. Use 5/64” Allen wrench to loosen #8-32
stainless set screw and remove cap.
3. Place cap on fixture and tighten set screw.
2. With flat head screw driver rotate dial to
desired lumen output.
This product is available with Adjust-e-Lume™ (Patent Pend.) for Dynamic Lumen Output Control
Warning! The light output of this product may be dynamically adjusted as desired to raise and lower light levels. Please ensure the xture is set
to the appropriate light level desired during installation.
