Balluff BES M12EN-PFC40F-S04G-D11 User manual

english
BES M12EN-PFC40F-S04G-D11
BES M18EN-PFC80F-S04G-D11
BES M18MN-PFC50B-S04G-D11
BES M30EN-PFC15F-S04G-D11
BES M30MN-PFC10B-S04G-D11
Inductive Safety Sensors
User's Manual
Courtesy of CMA/Flodyne/Hydradyne ▪Motion Control ▪Hydraulic ▪Pneumatic ▪Electrical ▪Mechanical ▪[phone] ▪www.cmafh.com

www.balluff.com
Original user's guide
All rights reserved. Protected within the legally permissible
limits of the United States and internationally. This
document may not be copied or modified without prior
written permission from Balluff.
All the trademarks and names appearing here are for
identification purposes only. Some of these trademarks
may be registered trademarks of the respective owners.
Balluff is not liable for any technical or printing errors,
removal of the text contained herein or unintended
damage resulting from use of the material.
2
BES M…-D11 Inductive Safety Sensors
Courtesy of CMA/Flodyne/Hydradyne ▪Motion Control ▪Hydraulic ▪Pneumatic ▪Electrical ▪Mechanical ▪[phone] ▪www.cmafh.com

1 About This User's Guide 4
1.1 Typographical Convention 5
1.2 Abbreviations 6
1.3 Warnings 6
2 About This Product 8
2.1 Scope of delivery 8
2.2 Function 9
2.3 Release zone 11
2.4 Relevant standards 12
3 General Safety Notes 13
3.1 Approved Use 13
3.2 Non-approved Use 14
3.3 Personnel Requirements 14
3.4 Obligations of the Operating Company 14
4 Installation 17
5 Electrical Connection 20
5.1 Operation as 4-conductor 20
5.2 Operation as 3-conductor 21
6 Operation 23
6.1 Switching state of the outputs 23
6.2 Response times 24
6.3 LED display 25
7 Technical Data 26
8 Maintenance, Care, and Disposal 30
8.1 Troubleshooting 31
www.balluff.com 3
BES M…-D11 Inductive Safety Sensors
Courtesy of CMA/Flodyne/Hydradyne ▪Motion Control ▪Hydraulic ▪Pneumatic ▪Electrical ▪Mechanical ▪[phone] ▪www.cmafh.com

1 About This User's Guide
This user's guide contains all the information you need for operating
the following inductive safety sensors:
– BES0574
– BES0575
– BES0576
– BES0578
– BES0579
For questions that go beyond the scope of this user's guide, our
Technical Customer Service is available for any function-related
information.
1. Read this user's guide completely and follow the instructions
contained in it.
2. In particular, follow the safety and warning instructions.
3. Retain this user's guide and ensure that it is always available
directly at the location of the use.
4. Make this user's guide available to third parties as necessary.
Note
In the interest of continual product improvements the
technical data for this product and the contents of this
user's guide are subject to change without notice. The latest
status of this user's guide is available on Balluff website
www.balluff.com.
4
BES M…-D11 Inductive Safety Sensors
Courtesy of CMA/Flodyne/Hydradyne ▪Motion Control ▪Hydraulic ▪Pneumatic ▪Electrical ▪Mechanical ▪[phone] ▪www.cmafh.com

1.1 Typographical Convention
Actions
Individual action instructions are indicated by a preceding triangle:
►Action instruction 1
⇒Result of action
►Action instruction 2
Action sequences are numbered in order:
1. Step 1
2. Step 2
3. Step 3
Symbols
Note
The symbol and the word Note indicate information which is
helpful or important for use of the product.
www.balluff.com 5
BES M…-D11 Inductive Safety Sensors
Courtesy of CMA/Flodyne/Hydradyne ▪Motion Control ▪Hydraulic ▪Pneumatic ▪Electrical ▪Mechanical ▪[phone] ▪www.cmafh.com

1.2 Abbreviations
CCF Common Cause Failure
Failure as a consequence of as common cause
DC Diagnostic Coverage
Diagnostic Coverage
MTTFDMean Time To Dangerous Failure
Mean Time To Dangerous Failure
OSSD Output Signal Switch Device
Output Signal Switching Device
PFH
(PFHD)
Probability of (dangerous) Failure per Hour
Probability of (dangerous) Failure per Hour
PL Performance Level
PL according to ENISO13849-1
SIL Safety Integrity Level
Safety Integrity Level SIL 1-4 according to IEC61508.
The higher the SIL, the less the probability for failure
of a safety function.
SILcl Safety Integrity Level claim limit
Safety Integrity Level Suitability (according to IEC62061)
TMMission time
Life expectancy (=max. time of use)
1.3 Warnings
Warning notes are especially safety-relevant and are used for
accident avoidance. This information must be read thoroughly and
followed exactly. The warning notes are constructed as follows:
6
BES M…-D11 Inductive Safety Sensors
Courtesy of CMA/Flodyne/Hydradyne ▪Motion Control ▪Hydraulic ▪Pneumatic ▪Electrical ▪Mechanical ▪[phone] ▪www.cmafh.com

SIGNAL WORD
Type and source of the hazard
Consequences of non-observance
►Measures for hazard avoidance
The signal words used have the following meaning:
NOTICE
The warning word NOTICE indicates a risk which can result in
damage to or destruction of the product.
CAUTION
The general warning symbol combined with the signal word
CAUTION indicates a risk which can result in slight or moderate
injuries.
WARNING
The general warning symbol combined with the signal word
WARNING indicates a risk which can result in serious injury or
death.
DANGER
The general warning symbol combined with the signal word
DANGER indicates a risk which can result directly in serious
injury or death.
www.balluff.com 7
BES M…-D11 Inductive Safety Sensors
Courtesy of CMA/Flodyne/Hydradyne ▪Motion Control ▪Hydraulic ▪Pneumatic ▪Electrical ▪Mechanical ▪[phone] ▪www.cmafh.com

2 About This Product
2.1 Scope of delivery
The inductive safety sensor version BES0574, BES0575, BES0576,
BES0578 and BES0579 detects metal without contact.
Typ Scope of delivery Order
code
BES M12EN-PFC40F-S04G-D11: 1 Safety sensor
2 Mounting nuts M12
1 Original user's guide
BES0574
BES M18EN-PFC80F-S04G-D11: 1 Safety sensor
2 Mounting nuts M18
1 Original user's guide
BES0575
BES M18MN-PFC50B-S04G-D11: 1 Safety sensor
2 Mounting nuts M18
1 Original user's guide
BES0576
BES M30EN-PFC15F-S04G-D11: 1 Safety sensor
2 Mounting nuts M30
1 Original user's guide
BES0578
BES M30MN-PFC10B-S04G-D11: 1 Safety sensor
2 Mounting nuts M30
1 Original user's guide
BES0579

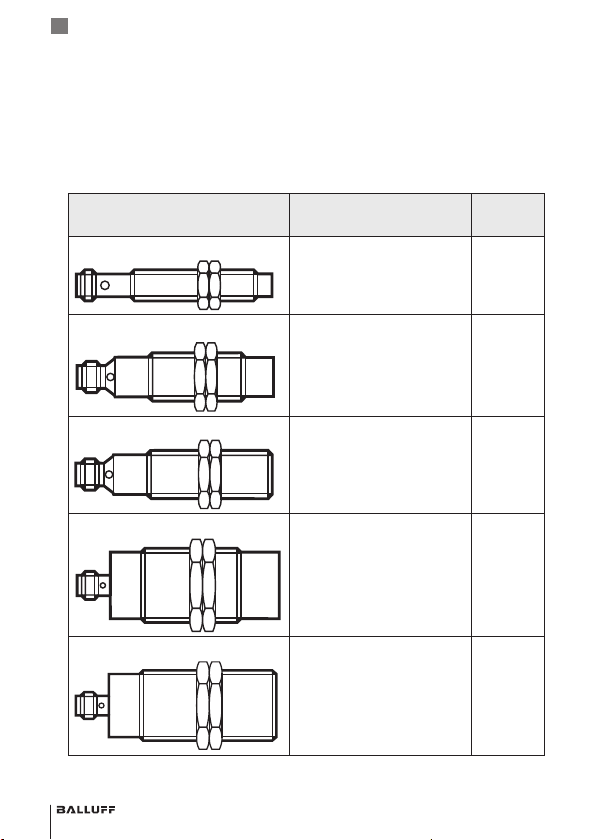

Figure 1 Scope of delivery by type
8
BES M…-D11 Inductive Safety Sensors
Courtesy of CMA/Flodyne/Hydradyne ▪Motion Control ▪Hydraulic ▪Pneumatic ▪Electrical ▪Mechanical ▪[phone] ▪www.cmafh.com

Note
Should one of the components listed be missing or damaged,
please contact one of the Balluff subsidiaries.

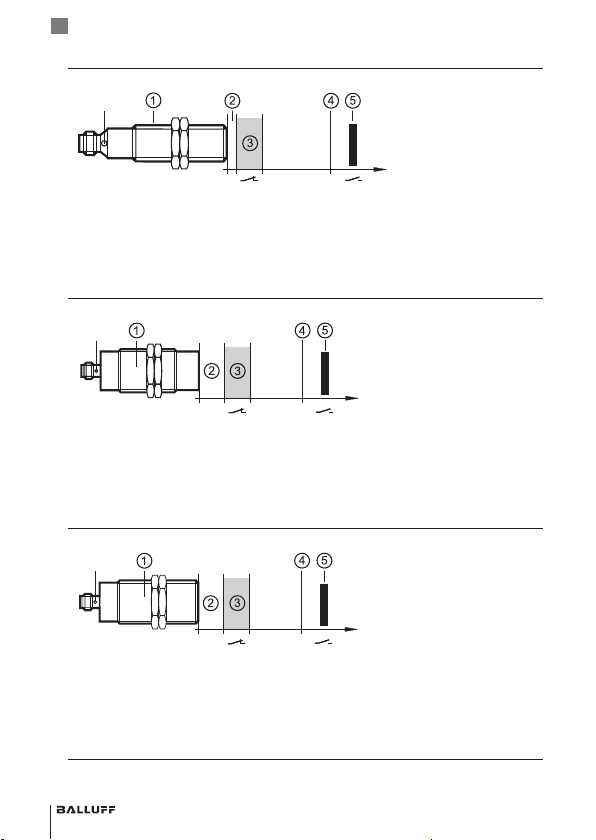

2.2 Function
BES0574:
"0"
"1"
LEDs
1Safety sensor
2Close zone
3Release zone
4Assured turn-off
distance sar
5Damping element
Yellow signal LED:
Switching state
Green power LED:
Operating voltage
BES0575:
LEDs
"0"
"1"
1Safety sensor
2Close zone
3Release zone
4Assured turn-off
distance sar
5Damping element
Yellow signal LED:
Switching state
Green power LED:
Operating voltage
www.balluff.com 9
BES M…-D11 Inductive Safety Sensors
Courtesy of CMA/Flodyne/Hydradyne ▪Motion Control ▪Hydraulic ▪Pneumatic ▪Electrical ▪Mechanical ▪[phone] ▪www.cmafh.com

BES0576:
"0"
"1"
LEDs
1Safety sensor
2Close zone
3Release zone
4Assured turn-off
distance sar
5Damping element
Yellow signal LED:
Switching state
Green power LED:
Operating voltage
BES0578:
"0"
"1"
LEDs
1Safety sensor
2Close zone
3Release zone
4Assured turn-off
distance sar
5Damping element
Yellow signal LED:
Switching state
Green power LED:
Operating voltage
BES0579:
"0"
"1"
LEDs
1Safety sensor
2Close zone
3Release zone
4Assured turn-off
distance sar
5Damping element
Yellow signal LED:
Switching state
Green power LED:
Operating voltage
Figure 2 Function overview
10
BES M…-D11 Inductive Safety Sensors
Courtesy of CMA/Flodyne/Hydradyne ▪Motion Control ▪Hydraulic ▪Pneumatic ▪Electrical ▪Mechanical ▪[phone] ▪www.cmafh.com

2.3 Release zone
The outputs (OSSDs) are only released when damping occurs in the
release zone. Outside this release zone the outputs remain off.
NOTICE
Improper damping elements
Changes or deviations in the release zone may occur.
►Use only standardized targets which correspond to the standardized
target in shape and size.
Please refer to the following table for the assured turn-off distance
sar for the various sensors:
Order code Turn-off distance
BES0574 > 6mm
BES0575 > 12mm
BES0576 > 7mm
BES0578 > 22mm
BES0579 > 15mm
Release zone for selected materials
Material Release zone1)
BES0574 BES0575 BES0576 BES0578 BES0579
FE360
(=ST37K)
0.5…4 mm 1…8 mm 1…5 mm 1…15 mm 1…10 mm
Stainless
steel 1.4301
(V2A)
0…3.1 mm 0…5.6 mm 0…3.5 mm 0…11.4 mm 0…7.4 mm
AIMg3G22 0…1.8 mm 0…3.2 mm 0…2 mm 0…6.8 mm 0…4.3 mm
CuZn37 0…2 mm 0…3.2 mm 0…2 mm 0…7.2 mm 0…4.6 mm
Cu 0…1.2 mm 0…2.4 mm 0…1.5 mm 0…5.5 mm 0…3.3 mm
www.balluff.com 11
BES M…-D11 Inductive Safety Sensors
Courtesy of CMA/Flodyne/Hydradyne ▪Motion Control ▪Hydraulic ▪Pneumatic ▪Electrical ▪Mechanical ▪[phone] ▪www.cmafh.com

1) Typical values for damping with a reference target
(according to EN60947-5-2 at an ambient temperature of 20°C):
– BES0574: 12x12x1mm and non-flush installation
– BES0575: 24x24x1mm and non-flush installation
– BES0576: 18x18x1mm and flush installation
– BES0578: 45x45 x1mm and non-flush installation
– BES0579: 30x30x1mm and non-flush installation
Note
Depending on the composition of the damping element the
close zone may be absent.
2.4 Relevant standards
The following directives and standards were applied:
– 2006/42/EC
European Machine Directive
– 2014/30/EU
EMC Directive
– EN ISO 13849-1:2015
Safety of machinery – Safety-related parts of control systems –
Part 1: General principles for design
– IEC 60947-5-2:2007 + A1:2012
Low-voltage switching devices: Control devices and switching
elements – Proximity switches
– IEC 61508:2010
Functional Safety of Electrical/Electronic/Programmable
Electronic Safety-related Systems
– EN : 62061/: 2013
Safety of machinery – Functional safety of safety-related
electrical, electronic and programmable electronic control
systems
– UL 508
– IEC 60947-5-3:2013
12
BES M…-D11 Inductive Safety Sensors
Courtesy of CMA/Flodyne/Hydradyne ▪Motion Control ▪Hydraulic ▪Pneumatic ▪Electrical ▪Mechanical ▪[phone] ▪www.cmafh.com

3 General Safety Notes
3.1 Approved Use
Safety function SF: The safe condition (final stage turned off, logical
"0") is achieved when there is undamping greater than or equal
to the safe turn-off condition sar (see Section 7 Technical Data on
page26). Also observe the instructions for installing the sensor
(see Section 4 Installation on page17).
The safety sensor meets Performance Level d per ENISO13849-1
as well as the requirements for SIL2 per IEC61508 and meets
SILcl2 per IEC62061.
The device corresponds to the classification:
– I2A12SP2, I2A18SP2 and I2A30SP2 per IEC60947-5-2 for
non-flush mounting (BES0574, BES0575 and BES0578).
– I1A18SP2 and I1A30SP2 per IEC 60947-5-2 for flush mounting
(only BES0576 and BES0579).
For more information refer to see Section 4 Installation on page17.
The inductive safety sensor has been certified by TÜV NORD.
Note
The EU Declaration of Conformity as well as the certificates for
EN/IEC 61508 and EN/ISO 13849-1 from TÜV NORD can be
found at www.balluff.com.
www.balluff.com 13
BES M…-D11 Inductive Safety Sensors
Courtesy of CMA/Flodyne/Hydradyne ▪Motion Control ▪Hydraulic ▪Pneumatic ▪Electrical ▪Mechanical ▪[phone] ▪www.cmafh.com

3.2 Non-approved Use
Warranty and liability claims against the manufacturer are rendered
void by:
– Unauthorized tampering
– Improper use
– Use, installation or handling contrary to the instructions provided
in this User's Guide.
– The sensor is not permitted to be used as a mechanical stop.
– Measures must be taken against the foreseeable defeating of the
interlocking device (see DINENISO14119).
3.3 Personnel Requirements
Installation and startup are to be performed only by skilled
professionals. The specifications contained in this user's guide as
well as the prevailing standards and directives must be followed.
Skilled professionals are persons who are familiar with the work
such as installation and the operation of the product and have the
necessary qualifications for these tasks.
3.4 Obligations of the Operating Company
Follow the instructions in the user's guide.
– Improper use may result in malfunction of the device. Equipment
damage and/or personal injury during operation may then result.
Therefore observe all instructions for installation and handling of
the device as described in this document. Observe the safety
instructions for operation of the overall system.
– Non-observance of instructions and standards, especially for
manipulation and/or changes to the device will result in loss of
liability and warranty.
– If the sensor is damaged the safety function can no longer be
guaranteed.
– Errors caused by damage cannot be detected by the sensor.
14
BES M…-D11 Inductive Safety Sensors
Courtesy of CMA/Flodyne/Hydradyne ▪Motion Control ▪Hydraulic ▪Pneumatic ▪Electrical ▪Mechanical ▪[phone] ▪www.cmafh.com

– The device may be installed, connected and put into service only
by a person trained in safety technology and electronics.
– The relevant technical standards must be considered as part
of the respective application.
– Observe the requirements of EN60204 when installing.
– If the device malfunctions, contact the manufacturer.
Opening of and tampering with the device are not permitted.
– Disconnect the device from power before working on it.
If appropriate also turn off independently powered relay circuits.
– Perform a complete function test after installation, maintenance
or repair.
– Use the device only in specified ambient conditions (see
Section8 Maintenance, Care, and Disposal on page30).
Contact the manufacturer for any special ambient conditions.
– Use only within the specified application description.
– Safety requirements for the application
– The safety requirements for the respective application must agree
with the requirements laid out here.
www.balluff.com 15
BES M…-D11 Inductive Safety Sensors
Courtesy of CMA/Flodyne/Hydradyne ▪Motion Control ▪Hydraulic ▪Pneumatic ▪Electrical ▪Mechanical ▪[phone] ▪www.cmafh.com

Observe the following conditions:
►Take measures which prevent metallic objects from unknowingly
contacting the active surface.
►For interlocking devices together with guards observe
DINENISO 14119.
►Maintain specified application conditions
(see Section 7 Technical Data on page26).
►Use of the sensor in the vicinity of chemical and biological media
as well as ionizing radiation is not permitted.
►Maintain the rest current principle for all safety circuits connected
externally to the system.
►For faults within the safety sensor which result in a change to
the condition defined as safe: Take measures which maintain the
safe condition for continued operation of the host controller.
►Replace damaged devices.
Functional impairments
In the event of defects and device malfunctions that cannot be
rectified, the device must be immediately taken out of operation and
protected against unauthorized use.
Intended use is ensured only when the housing is fully installed.
16
BES M…-D11 Inductive Safety Sensors
Courtesy of CMA/Flodyne/Hydradyne ▪Motion Control ▪Hydraulic ▪Pneumatic ▪Electrical ▪Mechanical ▪[phone] ▪www.cmafh.com

4 Installation
Depending on the model the sensor may be installed flush
(per IEC60947-5-2) or non-flush (per IEC60947-5-2).
WARNING
Failure of the safety function
The safety function of the sensor cannot be assured when using
outside of the defined ambient conditions.
►Use only in accordance with the defined ambient conditions
(see Section 8 Maintenance, Care, and Disposal on page30).
►Use of the sensor in the vicinity of chemical and biological media as well
as ionizing radiation is not permitted.
NOTICE
Improper installation
Flush mounting of the safety sensor BES0574, BES0575 and BES0578
can result in an increase of the switching distance before the outputs
(OSSDs) are released.
►Install the safety sensor according to the specifications described in this
section.
NOTICE
Intended or unintended circumventing of the safety function.
Metallic objects which directly contact the active surface or are in
the release zone of the sensor can result in an unintended activation
of the machine function.
►Prevent intentional circumventing of the safety functions by means such
as covered installation.
►Protect the active surface of the sensor against falling metallic objects
(e.g. by having the active surface pointing down).
►Otherwise use the sensor only after strict evaluation of the accident risk
and documented risk assessment.
www.balluff.com 17
BES M…-D11 Inductive Safety Sensors
Courtesy of CMA/Flodyne/Hydradyne ▪Motion Control ▪Hydraulic ▪Pneumatic ▪Electrical ▪Mechanical ▪[phone] ▪www.cmafh.com

►Secure the device against coming loose (observe tightening
torque in the table).

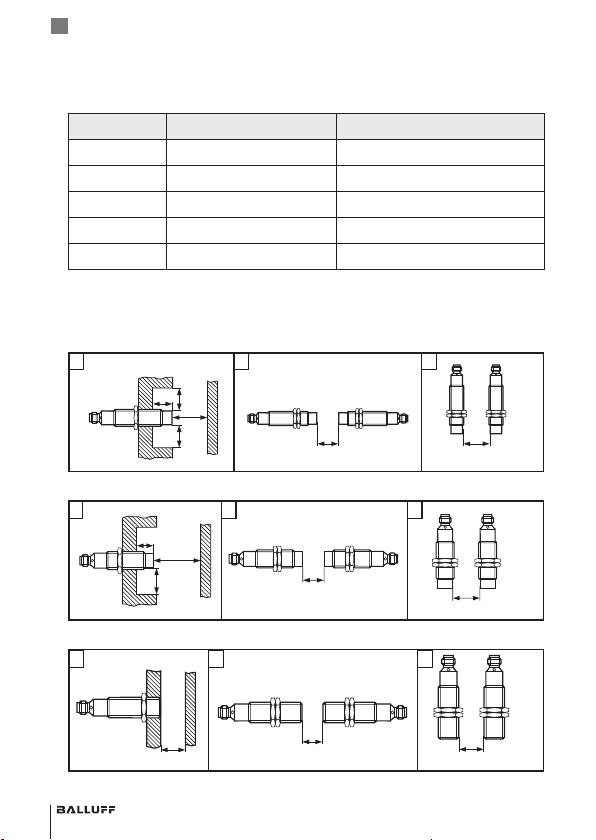

Order code Installation Tightening torque
BES0574 Non-flush mount ≤7Nm
BES0575 Non-flush mount ≤25Nm
BES0576 Flush-mounted ≤25Nm
BES0578 Non-flush mount ≤50Nm
BES0579 Flush-mounted ≤50Nm
►Observe the installation conditions depending on the model
according to the associated illustrations 1 to 3:
BES0574:

 
 
  
BES0575:
 






BES0576:

  
 
18
BES M…-D11 Inductive Safety Sensors
Courtesy of CMA/Flodyne/Hydradyne ▪Motion Control ▪Hydraulic ▪Pneumatic ▪Electrical ▪Mechanical ▪[phone] ▪www.cmafh.com

BES0578:





  
BES0579:
  




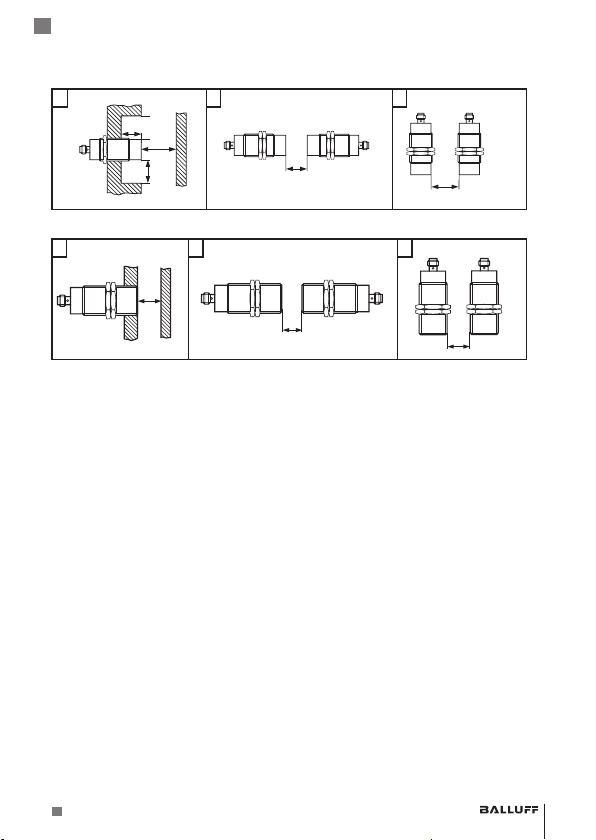

Figure 3 Installation dimensions by type
www.balluff.com 19
BES M…-D11 Inductive Safety Sensors
Courtesy of CMA/Flodyne/Hydradyne ▪Motion Control ▪Hydraulic ▪Pneumatic ▪Electrical ▪Mechanical ▪[phone] ▪www.cmafh.com

5 Electrical Connection
NOTICE
Exceeding maximum voltage
In case of a single fault, exceeding the maximum supply voltage of
40VDC can result in destruction of the device and loss of the safety
functionality.
►Ensure separation of the supply voltage and transformer.
Connecting the safety sensor:
1. Disconnect the equipment from power.
2. If appropriate also turn off independently powered relay circuits.
3. Connect the supply voltage: +UBto terminal 1 and 0V to
terminal 3 of the plug.
Note
The nominal voltage is 24VDC. This voltage may fluctuate
according to EN61131-2 between 19.2V and 30V incl. 5%
ripple.
5.1 Operation as 4-conductor
DANGER
High electrical voltage
Contact with current carrying components will result in severe injury
or death.
►Turn off power to the device before working on it.
20
BES M…-D11 Inductive Safety Sensors
Courtesy of CMA/Flodyne/Hydradyne ▪Motion Control ▪Hydraulic ▪Pneumatic ▪Electrical ▪Mechanical ▪[phone] ▪www.cmafh.com
