Troubleshooting Guide

Troubleshooting Strategy
Use common sense and a systematic method of troubleshooting to determine the exact
problem, probable cause and remedy. Use the process of elimination to find the faulty
component. Always check for the simple and obvious causes first such as unplugged, loose
or broken wires and bad sensors, bent, pinched, stuck or jammed components.
Troubleshooting Chart
Problem Probable Cause Remedy
No power to the game.
No lights on at all.
a. Unplugged.
b. Circuit breaker tripped.
c. ower strip faulty.
d. Faulty cable/power supply.
a. Check wall outlet.
b. Reset power strip breaker switch or
building circuit breaker.
c. Change plug position, replace if
needed.
d. See ower Supply diagnostic below.

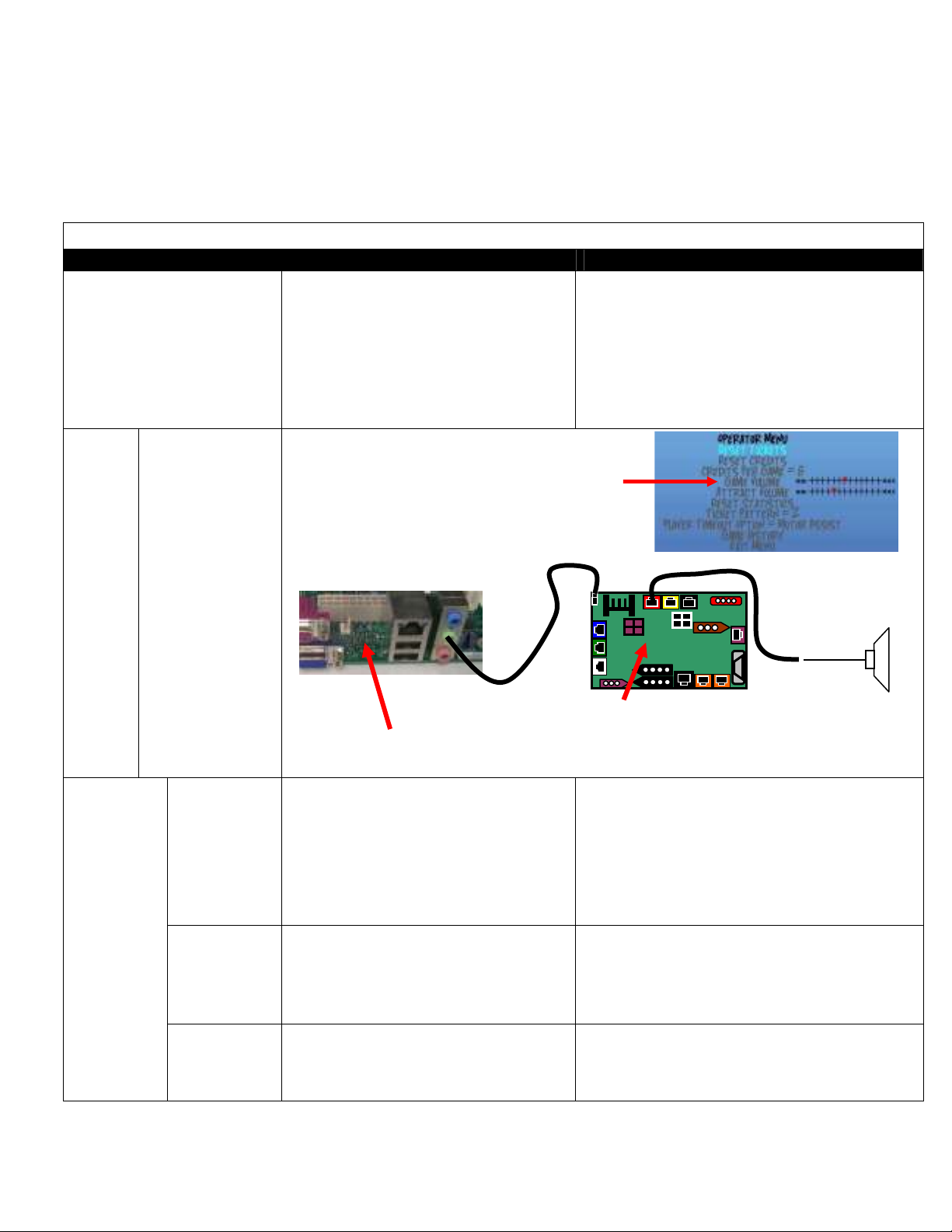

No
Audio
a. Volume too
low.
b. Loose wire.
c. Faulty I/O
Board
d. Faulty
motherboard
a. Increase the volume by pressing
Menu button, scroll to volume slider bar
and adjust.
b. Check audio cable connections
from main board to I/O board to speakers.
c. Replace I/O Board. (AACB1900)
d. Replace Motherboard. (AAMB6)
Both side
lights do not
work.
a. Cable problem.
b. Check large power in cable on
motherboard.
c. ower Supply faulty.
a. Check connections from Jumper cable
(AACE1620) to power supply
(AACE1621)
b. Re-seat connector.
c. See ower Supply diagnostic below.
One side
light does
not work.
a. Cable problem.
b. Faulty light strip.
a. Check cables from Light Strip
(AACE1622), and jumper cable
(AACE1620) to power supply.
b. Replace light strip. (AACE1622)
Wheel
Lighting
not
functioning.
Some lights
on strip do
not work.
a. Faulty light strip. a. Replace light strip. (AACE1622)
A5CEAU010
AACE1605
AACE8811
SPEAKER

Troubleshooting Chart
Problem Probable Cause Remedy
Dollar Bill Acceptor not
functioning.
a. Ensure bill acceptor has 110
Volts AC.
b. Dirt or debris in acceptor slot.
c. Ensure acceptor dipswitch is set
to “always enable”
d. inched, broken, or
disconnected wiring.
e. Bill acceptor problem.
a. Acceptor should cycle stacker at game
power up. If not, check cable
connections to power strip. Caution –
110 Volts AC
b. Clean with bill reader cleaning card.
(A5CC9000)
c. There are dips on side of acceptor. Set
to “always enable” (not harness
enable)
d. Check wiring
from bill acceptor
to I/O board.
Repair or replace
wiring harness.
(AACE1611)
e. Refer to troubleshooting section of
dollar bill acceptor manual included with
this game or the diagnostics label of the
back of the unit.

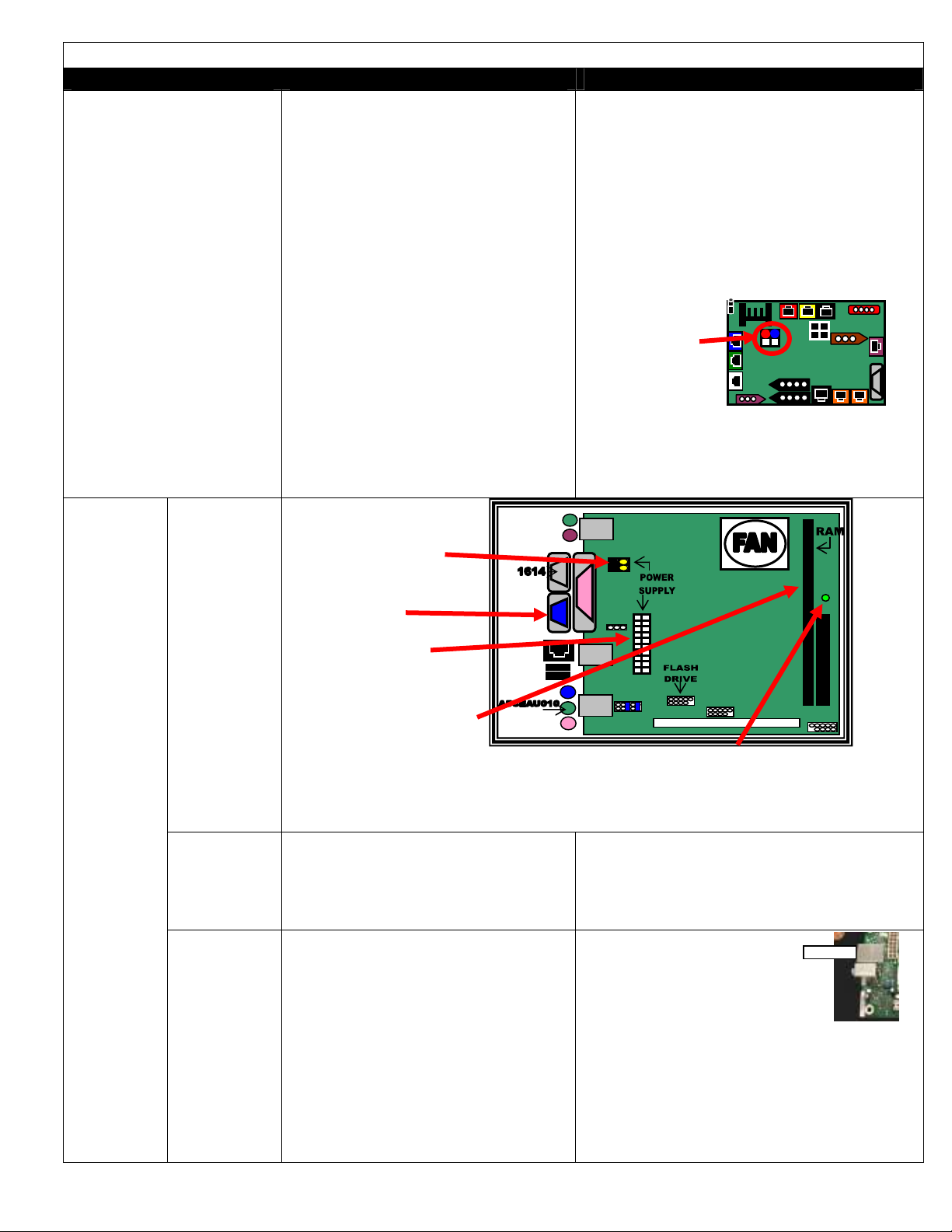

Monitor says
“NO
SIGNAL” for
5 seconds
after power-
up.
Then dark.
a. Small 12 Volt power
connector unplugged
on motherboard.
b. Monitor VGA cable
unplugged.
c. Large power
connector unplugged
on motherboard
d. Faulty or loose RAM
e. Faulty power supply - Check for 12 Volts and green LED on motherboard.
Check for fan spinning on power supply.
f. Faulty motherboard - Replace faulty board. (AAMB6)
Monitor has
nothing at all
on power
up.
a. ower cable unplugged from
monitor.
b. Faulty monitor.
a. Ensure power is plugged into back of
monitor, down to power strip.
b. Replace monitor. (A5CBDI030)
Monitor not
working.
ower
down, wait
10 seconds
and power
up again.
Error on
screen at
power up.
Re-Boot
game to see
if problem
still exists.
a. Display stops at "No bootable
device -- insert boot disk and
press any key"
b. Display shows “ uppy Video
Wizard” or “Xorg”
c. Display shows “Kernel panic –
unable to mount root”
a. USB stick unplugged
from board or faulty.Re-seat and
Try power on to game again.
b. Game is not recognizing
monitor. Ensure VGA cable is secure to
I/O board.
Refer to uppy Video Wizard Section
below.
c. Faulty or loose RAM

Troubleshooting Chart
Problem Probable Cause Remedy
Monitor problems.
Blurry Monitor
Too bright, or dim.
Monitor will have to be removed from game,
and adjusted from front of screen.
a. Remove fish head.
b. Remove 2 wood braces holding monitor.
c. eel monitor back away from sticky tape.
d. Use menu buttons to access monitor
adjustments.
Game plays but some of
the functions do not work.
a. None of inputs work. No coin up,
no test buttons, display may say
door open.
b. Display is OK, but does not show
some screens. No volume
c. Game freezes, locks up.
a. I/O Serial cable unplugged from I/O
board to motherboard
b. Flashdrive loose, or faulty.
c. Faulty RAM, or motherboard.
Game does not coin up. a. One of coin switches jammed, or
held down.
b. Short in coin door harness.
c. I/O Serial cable unplugged from
I/O board to motherboard.
d. I/O board faulty.
a. If one coin switch is “closed” the other
one will not work either.
b. Unplug white molex from door, and
jump between white and black wires to
simulate coin-up.
c. Ensure serial cable is tight and
connected. Replace AACE1614 cable
if needed.
d. Replace I/O board. (AACB1900)
Low tickets displays on
monitor.
a. Stack of tickets not resting
properly on either of the low
ticket switches
b. Faulty switch.
c. Faulty wire or connection.
d. Faulty I/O board.
a. Adjust stack of tickets so they hold
both the switch actuators down.
b. Replace low ticket switch. (AASW200)
c. Check for proper
connection from
switch to I/O board.
Check continuity.
d. Replace I/O board. (AACB1900)

Troubleshooting Chart
Problem Probable Cause Remedy
a. Game says you won tickets even
though wheel is still spinning.
b. Game gives tickets as soon as money
is inserted during attract mode.
c. Game ends after slow spin, and gives
no tickets.
a. Weak encoder sensor. Replace sensor.
(AACB1901)
b. Attract mode spinning wheel should slow
down enough so it will not trigger win.
Tighten brake assy. (see Brake Adjustment)
c. Motor assist should spin wheel for slow
spins. Check menu screen – ensure it is not
set to “Abandon Game”. (see Motor Assist)

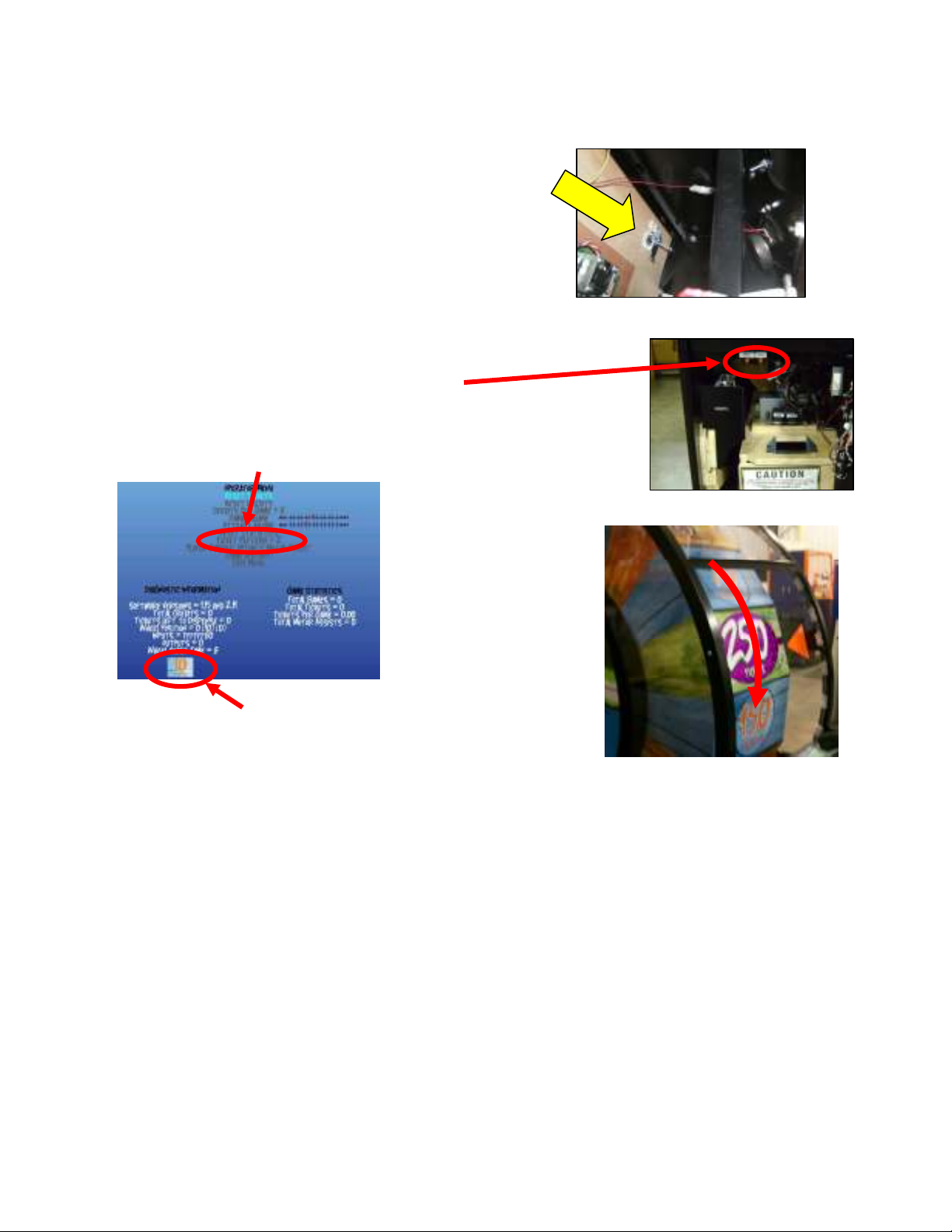

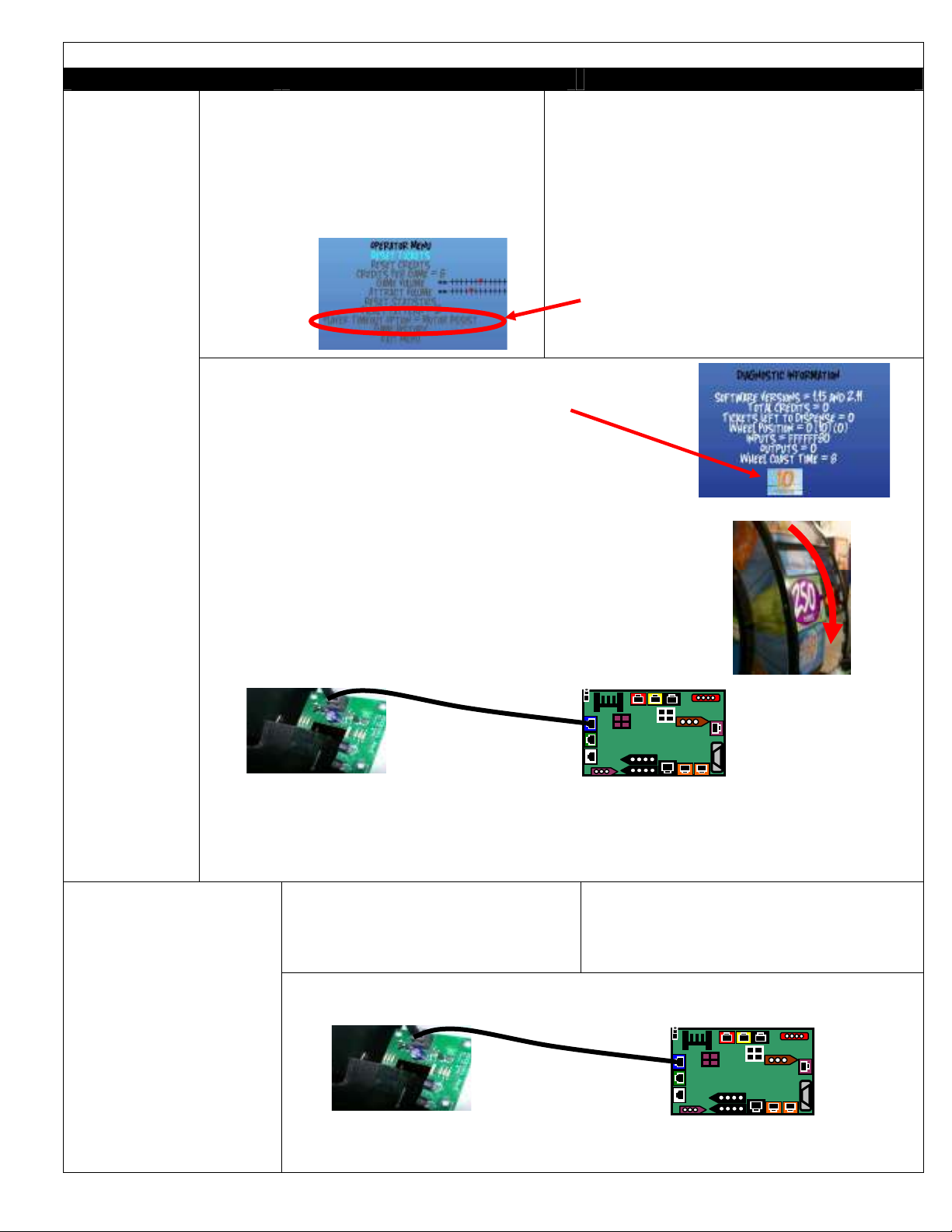

Scoring
Issues
Open le t ront door and push menu button to enter menu
Check i value on monitor matches wheel position.
I it does match:
1.) Look for “motor watchdog error” on screen. Refer to
Motor Watchdog Error section
2.) Encoder sensor not reading properly.
Go to Wheel Encoder Sensor section below to adjust sensor.
Replace encoder sensor if needed. (AACB1901)
I does not match:
Manually spin wheel 1 complete revolution to ensure
home sensor is being read. Important: Always spin downward
Encoder sensor signal not reaching I/O board.
1.) Check cable AACE1616 from encoder sensor to I/O board.
2.) Go to Wheel Encoder Sensor section below to adjust sensor.
Replace encoder sensor. (AACB1901)
3.) Replace I/O board. (AACB1900)

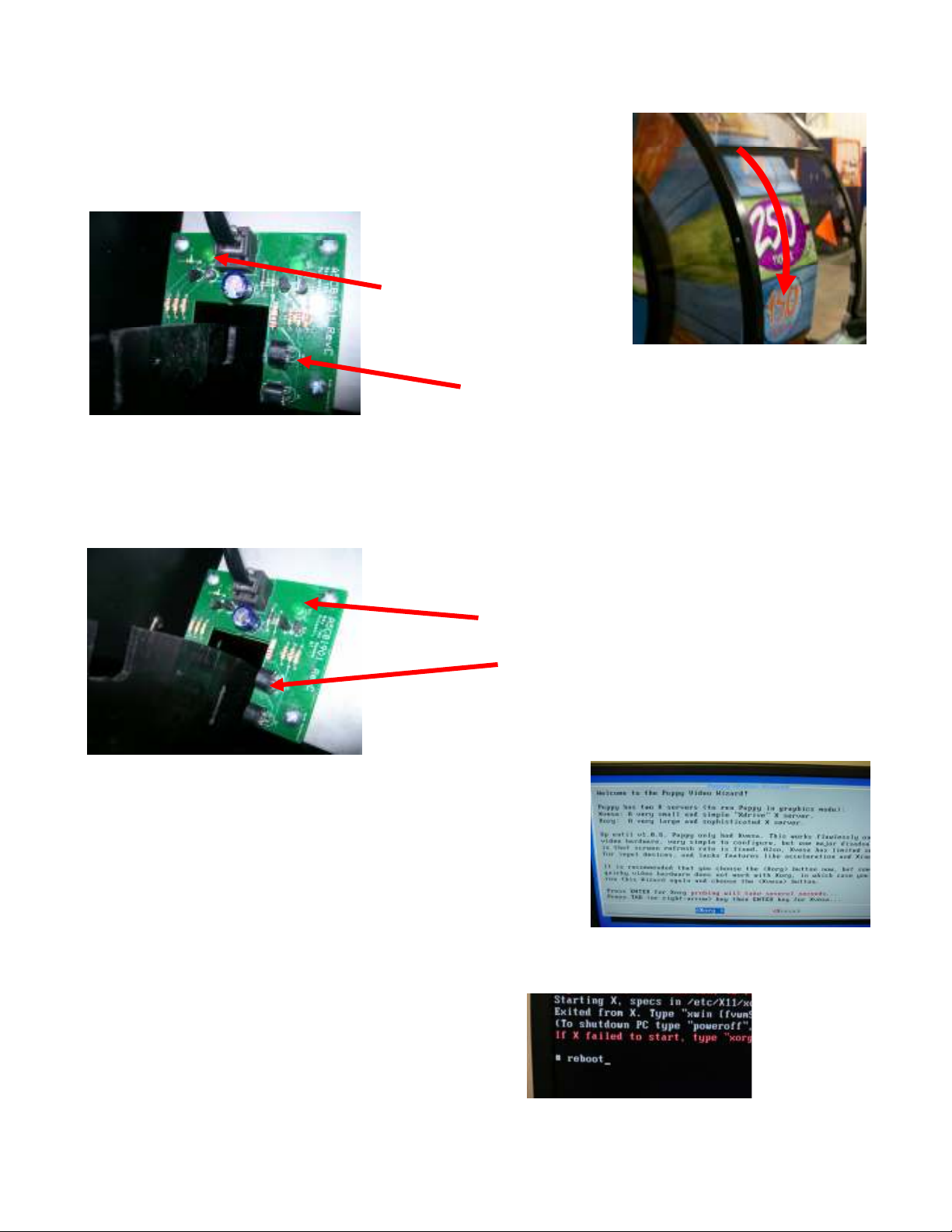

Encoder sensor always “sees” home
position.
If either green LED on board is always ON
as you spin wheel - Replace encoder
sensor. (AACB1901)
Game pays 10 or 75
tickets every game.
Encoder sensor signal not reaching I/O board.
1.) Check cable AACE1616 from encoder sensor to I/O board.
2.) Replace encoder sensor. (AACB1901)
3.) Replace I/O board. (AACB1900)
AACE1608
AAC
B1900
AACB1901
AACE1608
AAC
B1900
AACB1901

Troubleshooting Chart
Problem Probable Cause Remedy

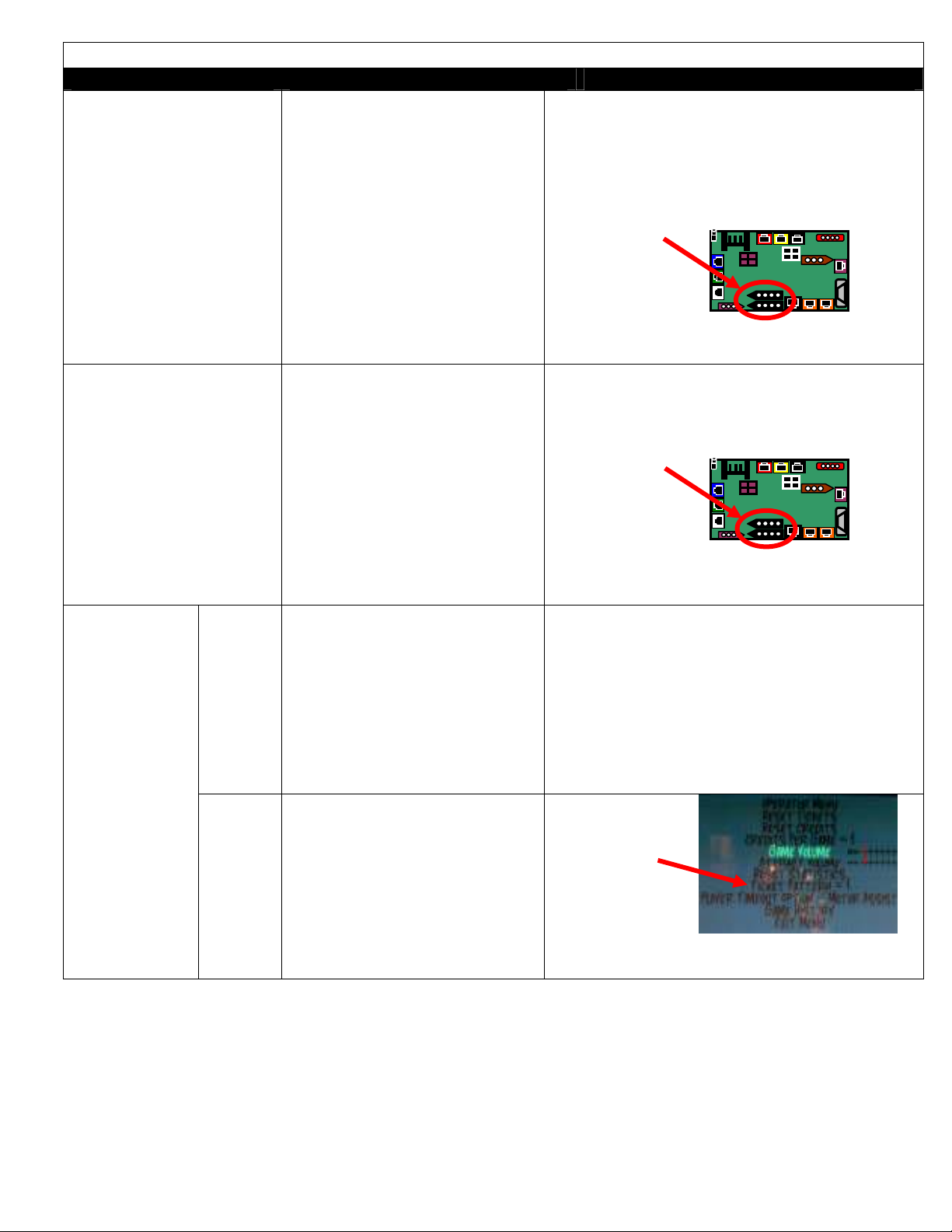

Tickets not dispensing
from either ticket
dispenser.
a. Verify game is registering a
win.
b. Ensure “Door Open” is not
showing on monitor.
c. Faulty wires from dispensers
to I/O board.
d. Faulty I/O board.
a. Display monitor will show ticket value won.
If not – see “wheel sensor troubleshooting.”
b. Game will not dispense with any door open.
See “Door Open Error”
c. Inspect wires as they plug into I/O board.
d. Replace I/O board. (AACB1900)
One ticket dispenser
working, but
One ticket dispenser is
not working.
a. More than 5 tickets to
dispense?
b. Faulty cable from Ticket
Dispenser to I/O board.
c. Faulty I/O board.
(AACB1900)
a. If game has less than 5 tickets to dispense,
only one side will pay out.
b. Inspect wires as they plug into I/O board.
c. Swap ticket dispenser cables on I/O board
to determined that one socket is faulty.
Monitor
showing
correct
ticket
payout.
a. Disconnected, loose or
broken wires.
b. Opto Sensor on ticket
dispenser dirty.
c. Faulty ticket dispenser.
d. Notch on tickets cut too
shallow.
a. Check connectors. Check for continuity.
b. Blow dust from sensor and clean with
isopropyl alcohol.
c. Replace with working dispenser to isolate
the problem.
d. Flip tickets and load upside-down to have
large cut notch toward opto sensor.
Wrong ticket
amount
dispensed.
Check or the
correct
amount o
tickets
showing on
monitor.
Monitor
showing
different
ticket
payout.
a. Incorrect ticket pattern
selected.
b. Wheel position not being
read correctly.
a. Enter menu,
and ensure
correct ticket
pattern selected.
b. Refer to “Encoder Sensor Diagnostics”
below.

Troubleshooting Chart
Problem Probable Cause Remedy
a. Enter menu, ensure this is
not set to “Abandon Game”.
b. Enter menu,
check diagnostic
information for
“motor watchdog
error”
c. Door open
d. Faulty encoder sensor.
e. Auto-spin
catch broken.
f. Drive chain broken.
g. Cable problem.
h. I/O board faulty.
i. Game is set to “New Jersey”
mode.
a. Change to
“Motor Assist”
b. Change “abandon game” to “Motor Assist”.
Turn game off, and then back on to clear
error. Enter menu to verify change.
c. Motor assist will not engage if game thinks
door is open. Close all doors.
d. Assist motor will try for 2 seconds, not “see”
the wheel turning, and then deactivate.
Replace encoder sensor. (AACB1901)
e. Inspect mechanism on left side door.
Replace spring if needed.(A5SREX040)
f. Inspect drive chain that powers wheel.
Replace if needed. (A5CH1003)
g. Inspect cable from
Assist Motor to
I/O board.
h. Replace I/O board. (AACB1900)
i. New Jersey law does not allow wheel to
auto-spin.
Motor will not
assist the slow
spin.
Game should always try to
assist a slow spin.
It helps the smaller child
play the game.
Attract Mode – The big
spinning wheel attracts
players to game.
If not, the reason can be
any one of these problems
making game go to
“Abandon Game”
Motor roblem
As motor starts, 5 Volts DC is present at connector. (It builds to 12 Volts as
wheel gains speed)
AACE1616
RED
BLACK
RED
YELLOW
GREEN
BLACK
MOTOR
TO I/O BOARD:
Phon cabl s ar doubl d up
for r dundancy – Motor will
still work with 1 wir off

Troubleshooting Chart
Problem Probable Cause Remedy
Wheel always spinning. a. Brake assembly very loose
or broken.
b. Solenoid Assy. on right
side of wheel is broken or
faulty so player can spin
wheel anytime.
c. Spin motor receiving 12
Volts DC all the time. Spin
meter screen stays on.
d. Spin Meter does not
increase. Stays on
autospin.
a. See “Brake Adjustment” section.
b. Solenoid should only engage when game is
coined up. Refer to “Wheel Engaging
Solenoid”
c. Faulty I/O Board. Replace AACB1900.
d. Faulty encoder sensor. It does not see wheel
spinning. Refer to Encoder Sensor section.
Spin meter never
increases.
Encoder sensor not
seeing wheel spin.
a. Encoder sensor dirty or
faulty.
b. inched, broken, or
disconnected wiring.
c. I/O board faulty.
a. Clean sensor and replace if needed.
(AACB1901)
b. Inspect wiring and replace cable if needed.
(AACE1608)
c. Replace I/O board. (AACB1900)
a. Door open
b. Solenoid Assy Faulty.
(Solenoid resistance is
approximately 13 ohms)
c. Cable problem.
d. I/O board faulty.
a. Wheel will not engage if game thinks door is
open.
b. Inspect mechanism in right side door.
Inspect springs and engaging action.
Replace if needed.(AASO4150)
c. Inspect cable from Solenoid to I/O board.
d. Replace I/O board. (AACB1900)
Wheel not spinning when
player moves handle.
Solenoid roblem
As game starts 12 Volts DC is present at solenoid.
Solenoid always stays on.
layers can spin wheel
without inserting money.
During attract mode- game
will make loud clicking
sound.
a. Jammed Solenoid.
b. Missing/Broken Springs.
c. inched Cable.
d. I/O board faulty.
a. Inspect solenoid. Ensure it operates
smoothly.
b. Look for missing springs. Replace Assy if
needed. (AASO4150)
c. Inspect phone cables for smashed cable.
May also have to replace I/O Board.
d. Replace I/O board. (AACB1900)
AACE16
0
6
RED
BLACK
RED
YELLOW
GREEN
BLACK
SOLENOID
TO I/O BOARD:
Phon cabl s ar doubl d up
for r dundancy – Sol noid
will still work with 1 wir off

Troubleshooting Chart
Problem Probable Cause Remedy
Meters do not work.
a. Ticket meter should click
as ticket exits ticket mech.
b. Game meter should click
as game starts.
c. I/O board faulty.
a. Watch as tickets come out of mech. Replace
counters (AACO1000)
b. Watch as next game starts.
Replace counters (AACO1000)
c. Replace I/O board. (AACB1900)
Monitor shows “Out of
Order Door Open “
a. One or more doors open.
b. Faulty door switch
c. I/O Serial Cable
unplugged.
d. I/O board faulty.
a. Refer to Door Open Section below.
b. Replace door switch. (A5SW7000)
c. Inspect and re-seat serial cable from
motherboard to I/O board.
d. Replace I/O board. (AACB1900)
a. Encoder Sensor Faulty.
b. Motor Faulty.
a. Clean Encoder sensor
on left side of wheel.
b. Refer to “Motor will not assist a slow spin”
section above.
Motor Watchdog Error
After problem is found and fixed:
1.) Enter menu and ensure layer Timeout
option is set to “Motor Assist”
2.) Turn game off, then back on, enter menu
and again ensure layer Timeout
option is set to “Motor Assist”
3.) Verify Motor Watchdog Error is not present.
4.) Coin game, but do not spin wheel.
Let game try to spin wheel own it’s own.

Door Open Error
There are 5 switches total:
1 in back, 1 in left side door, 1 in right side door, 1 in left front door, and 1 in right front door.
What happens i door is open?
Tickets will not dispense.
Game will not start.
Auto spin will not engage
layer can not spin wheel
Handle will still move solenoid assy. – Make sure to remove handle when working on
game!
Door switches are Push/Pull type
Switch can be pulled out when door is open and game will think door is closed.
Troubleshooting Door Open Problem:
Door Open
message stays.
a. Faulty door switch. (A5SW7000) – It could be anyone of the five.
b. Check all wires on switches.
c. Check crimps on wires.
d. Check connection to I/O Board
e. Replace I/O board if needed.
Open all
5 doors
and pull
all 5
switches
out.
Door Open
message
clears.
a. Individually check each switch by pushing in on each switch one by
one and verify the door open message is not on screen.
b. If a door switch shows the message when pushed in, that switch is
faulty. Replace switch (A5SW7000)
Front Right Side Door Front Left Side Door Back Door
Right Game Side Door Left Game Side Door
AACE1602
AACE1603
AACE1601
AACE1602
AACE1600
AACE1604
AACE1600
AACE1601
AACE1603
AACE1604
This is a sa ety matter and switches
must not be disabled or injury to
player or technician may occur.

Encoder Wheel Sensor
This t lls wh r th wh l is and d t rmin s th payout of th wh l.
S nsors s s thin slot as boundary b tw n larg scor pan ls.
It s s th larg slots as high scor valu s in middl of scor pan ls.
As wh l spins, Gr n light com s on as n xt scor pan l starts
Home Position Sensor
Th hom position s nsor is on sam board and r ads a notch to calibrat hom position.
Pupp Video Wizard Error
If th monitor has b n chang d, or gam loos s monitor s ttings,
This scr n will com up on pow r up.
Th s ttings will hav to b r -sav d.
1.)
Plug a PS/2 k yboard into th k yboard port of th moth rboard. (purpl color d port)
2.) Push “Ent r” on th initial XORG scr n.
3.) Th gam softwar should now startup.
Wait about 10 s conds and push
Q on th k yboard.
4.) At th black scr n with r d and whit t xt,
typ REBOOT and pr ss “Ent r”.
5.) Th gam should sav th vid o s ttings.
Th gam softwar should now start normally.
IMPORTANT: ONLY SPIN WHEEL DOWNWARD
Wh l ncod r s nsor (AACB1901) is mount d so
th top s nsor r ads th outsid cut-out notch s.
Gr n LED Indicator
Gr n LED Indicator
Th low r s nsor r ads th 1 hom
position notch on wh l.

Adjusting Wheel Sensor
Th arrow point r will show th custom r which tick t valu th y hav won.
Remember: There is a ½ inch buffer zone between panels that provide a small margin of error.
This space is also present on the big bonus values.
It allows a big bonus value to score even though the pointer ma be slightl above or below the
actual sticker on the wheel.
Check the wheel position
1.) Op n front doors and unlatch clasps holding
front pl xiglass in plac . Th r ar 2 locat d b hind
th sp ak rs.
2.) Front pl xiglass will now slid up lik a roll-top d sk.
3.) Push m nu button to nt r m nu.
4.) Ch ck if valu on monitor match s wh l position point r.
5.) Watch bottom l ft of display as you manually turn th wh l down.
Th wh l may hav to go a full r volution so th gam can
find hom position.
Spin th wh l downward by hand, watch th display chang
as th wh l mov s to th n xt scor pan l.
5.) Slowly rotat th wh l downward as it approach s a bonus s ction.
Watch th display as it turns to a 4, th n slowly mov wh l down.
Stop th wh l as soon as th display chang s to th bonus.
6.) Look at point r and v rify that it is on th boundary b tw n th
4 spac and bonus valu .
If the pointer is more than ¼ inch off:
1.) Op n l ft sid door of gam .
2.) Locat 2 phillips scr ws on brack t.
3.) Th r ar slots on this brack t to allow adjustm nt.
4.) Loos n 2 scr ws and slightly mov brack t.
5.) Tight n scr ws and r -ch ck wh l position.
IMPORTANT: ONLY SPIN WHEEL DOWNWARD

Brake Adjustment
Wh l coast tim is a numb r r lat d to how long th wh l spins as it coasts to a stop.
A long coast tim will incr as th tim p r gam , and custom r will wait too long to play gam .
Th high r th numb r, th fast r th wh l stops.
Th wh l coast tim should b 30-40
This can also b adjust d p riodically to pr v nt a v ry skill d play r from m morizing th coast and
win bonus aft r bonus.
Performing Wheel Coast test
Coin gam up and giv th wh l a good fast spin.
Quickly pr ss th m nu button insid front door.
Watch display as wh l turns
– It should show “good spin” as th wh l turns.
Onc th wh l coasts to a stop, it will show:
Brak OK
Tight n Brak
Loos n Brak
Adjusting Wheel Brake
Lift ach of th two thr ad d rods, and spin nuts:
Clockwis to incr as t nsion – d cr as wh l coast tim .
Count r-clockwis to d cr as t nsion – incr as wh l coast tim .
Adjust both rods v nly.
R -t st aft r adjustm nt
If custom r ins rts mon y during autospin
and wh l coast is too much, it may r ad th
autospin as a play r spin and giv tick ts for that autospin.

Removing Handle
Th handl is d sign d to b r mov d from gam .
This will allow t chnician to work on sol noid with
handl off to r duc chanc of m chanism moving.
Tools needed:
½ inch sock t and ½ inch wr nch
Th r is a bolt, lock wash r, and nut locat d und r
front pan l.
It is clos st to front of gam on this assy.
Cleaning Plexiglass
1.) Op n front doors and unlatch clasps holding
front pl xiglass in plac .
Th r ar 2 locat d b hind th sp ak rs.
2.) Front pl xiglass will now slid up lik a roll-top d sk.
3.) R mov back door. Th top dg of pl xiglass is now acc ssibl .
4.) Us swiff r dust r to cl an all pl xiglass.
B sur to r mov all dust and dirt on pl xiglass
from front and back of gam .
5.) Slid down pl xi back down and r -latch clasps.
6.) Cl an outsid of pl xiglass with Wind x Glass Cl an r.
R mov bolt and pull out handl .
Remember to replace lock
washer so handle will not loosen
and fall out!

Power Suppl Diagnostics:
1.) Ch ck pow r cabl to gam .
2.) Ch ck conn ctions on pow r sock t on bottom r ar of gam
3.) Ch ck conn ction to pow r supply.
4.) Ensur Pow r Supply switch is s t to 115V
(Som pow r suppli s may not hav this)
5.) Ensur Pow r switch is on.
6.) Ensur fan is turning.
Verif power to motherboard:
Ch ck for 12 Volts DC b tw n black and y llow wir s.
1.) Ensur fan is turning.
2.) Gr n LED should b ON.
Not : Th location of this
conn ctor may vary
d p nding on which v rsion
moth rboard is in gam .

Circuit Board Wiring Pinouts
I/O Board – Part # AACB1900
Mother Board – Part # AAMB6
SPEAKER
LINE IN
(A5CEAU010)
SPEAKER
OUT
(AACE1605)
DOOR OPEN
SWITCHES
(AACE1604)
NOT
USED
ENCODER SENSOR
(AACE1608)
MOTOR
(AACE1616)
SOLENOID CABLE
(AACE1606)
COUNTERS
(AACO1000)
BILL ACCEPTOR
CABLE (AACE1611
)
LOW TICKET
SWITCHES
(AACE16
09
)
COIN DOOR
(AACE1610
)
POWER IN
(AACE1621)
2 BOBBER
CHASELIGHTS
(AACE16
24
)
NOT
USED
2 TICKET
DISPENSERS
(AACE1609)
MENU
BUTTONS
(AACE16
13
)
SERIAL PORT TO
MOTHERBOARD
(AACE16
14
)
SERIAL PORT TO
MOTHERBOARD
(AACE1614)
SPEAKER LINE OUT
(A5CEAU010)
MONITOR CABLE
(A5CORD11
)

Changing Ticket Patterns
Th Big Bass Wh l Pro com s with a factory d fault tick t patt rn alr ady install d.
This patt rn has shown through fi ld t sting to provid a good ratio of tick ts out vs. mon y in.
Th tick t amount th play r r c iv s ncourag s r p at gam play.
B for changing tick t patt rn, b sur to consid r th following points:
1.) Pric p r play
2.) Tick t valu (1 c nt tick t or 2 c nt tick t)
3.) Comparativ gam data
Bayt k Gam s would b happy to assist in r comm nding tick t patt rns to suit your n ds.
Phon # 920-822-3951
Th r ar 12 Tick t Patt rns availabl for th Big Bass Wh l Pro Gam :
AVERAGE TICKETS PER GAME
(ESTIMATED TICKETS BASED ON CUSTOMER FEEDBACK AND MAY VARY DEPENDING ON SKILL OF PLAYER)
TICKET PATTERNS

TICKET PATTERN CHANGE INSTRUCTIONS
1.) Op n front doors and unlatch clasps holding
front pl xiglass in plac . Th r ar 2 locat d b hind
th sp ak rs.
2.) Front pl xiglass will now slid up lik a roll-top d sk.
3.) M nu buttons ar locat d insid of l ft door.
Pr ss m nu button to acc ss op rator m nu on th gam display.
Us s l ct button to chang function.
4.) Scroll down to Tick t Patt n and chang to d sir d tick t patt rn.
5.) Watch bottom l ft of display as you manually turn th wh l down.
Th wh l will hav to go a full r volution so th gam can find hom
position. Spin th wh l by hand, watch th display chang as
th wh l mov s to th n xt scor pan l.
6.) Install n w d cal cov r ov r xisting pan l. Mak sur wh l do s not mov backward, or gam may think
th wh l mov d to n xt pan l!
Not : Spin wh l downward a compl t r volution to r calibrat hom position and continu with d cals.
IMPORTANT: ONLY SPIN WHEEL DOWNWARD
