Beko BEKOMAT 31U IF built-in F User guide

EN - english
Instructions for installation and operation
Condensate drain
BEKOMAT®31U IF built-in F (BM31UIFBIF)
01-1609

2 BEKOMAT® 31U IF built-in F
Dear customer,
Thank you for deciding in favour of the BEKOMAT® 31U IF built-in F condensate drain.
Please read the installation and operating instructions carefully before mounting and
starting up the BEKOMAT® 31U IF built-in F, and follow our directions. Perfect functioning of
the BEKOMAT® 31U IF built-in F, and thus reliable condensate discharge, can only be guaranteed
when the provisions and notes stipulated here are strictly adhered to.

BEKOMAT® 31U IF built-in F 3
1Pictograms and symbols ........................................................................................................................ 4
2Safety instructions .................................................................................................................................. 4
3Proper use .............................................................................................................................................. 6
4Exclusion from the scope of application ................................................................................................. 6
5Technical data ........................................................................................................................................ 7
6Electrical data ......................................................................................................................................... 7
7Dimension drawing ................................................................................................................................. 8
8Function .................................................................................................................................................. 9
9Installation ............................................................................................................................................ 10
10Electrical installation ............................................................................................................................. 13
11Inspection and maintenance ................................................................................................................ 15
12Troubleshooting and fault elimination .................................................................................................. 18
13Elements and components ................................................................................................................... 19
14Recommended spare parts .................................................................................................................. 19
15Declaration of conformity ..................................................................................................................... 20

Pictograms and symbols
4 BEKOMAT® 31U IF built-in F
1 Pictograms and symbols
Observe the installation and operating instructions
Observe the installation and operating instructions (on the type plate)
General danger symbol (danger, warning, caution)
2 Safety instructions
Please check whether or not these instructions correspond to the device type.
Adhere to all advice given in these operating instructions. They include essential information
which must be observed during the installation, operation and maintenance. Therefore it is
imperative for the service technician and the responsible operator / technical staff to read
these operating instructions prior to installation, start-up and maintenance.
The operating instructions must be accessible at any time at the place of application
of the BEKOMAT® 31U IF .
In addition to these operating instructions, local or national regulations must be complied
with, if necessary.
Make sure that the BEKOMAT® 31U IF is operated only within the permissible limit values
indicated on the type plate. Any deviation involves a risk for persons and materials, and
may result in malfunction and service failures.
If you have any queries regarding these installation- and operating instructions, please
contact BEKO TECHNOLOGIES GMBH.

Safety instructions
BEKOMAT® 31U IF built-in F 5
Danger!
Compressed air!
Risk of serious injury or death through contact with quickly or suddenly escaping
compressed air or through bursting plant components or plant components which
are not secured.
Measures:
• Do not exceed the maximum operating pressure (see type plate).
• Only carry out service measures when the system is pressureless.
• Use pressure-resistant installation material only.
• The feed pipe must be tubed firmly.
Discharge pipe: short, fixed pressure hose onto pressure-resistant pipe.
• Make sure that persons or objects cannot be hit by condensate or escaping compressed air.
Further safety instructions:
• For installation and operation, the national regulations and safety codes in force
must also be adhered to.
• Do not use the BEKOMAT® 31U IF in hazardous areas.
• Regarding the inlet screw joints, excessive tightening forces must be avoided.
This applies in particular to conical screw joints.
• The BEKOMAT® 31U IF will only function when voltage is applied.
• Use genuine spare parts only. This is imperative to ensure perfect functioning.
Additional advice:
• The removed control unit has no IP degree of protection.
• During installation, use spanner flat at the feed pipe (wrenchsize SW27) as a back rest.
• The service unit must not be dismantled.
Caution!
Malfunction during operation!
Through incorrect installation and poor maintenance, malfunction may occur at the
BEKOMAT® .
Condensate which is not discharged may cause damage to plants and in production
processes.
r
Measures:
• Condensate drainage which is reliable in performance directly optimises the compressed-air quality.
• To prevent damage and breakdowns, it is imperative to observe the following:
• Exact compliance with the specifications of use and with the performance parameters of
the BEKOMAT®, in connection with the case of application (see "Proper use" section)
• Exact compliance with the installation- and operation instructions in this manual
• Regular maintenance and control of the BEKOMAT® in accordance with the instructions
in this operating manual

Proper use
6 BEKOMAT® 31U IF built-in F
3 Proper use
• The BEKOMAT® 31U IF built-in F is an electronically level-controlled condensate drain for
compressed-air plants.
• The device is employed within the permissible performance parameters (see "Technical data").
• The BEKOMAT® 31U IF built-in F is able to drain condensate under operating pressure from
the plant components virtually without compressed-air loss.
• For its function, the BEKOMAT® 31U IF built-in F requires a supply voltage and an operating pressure
(see "Technical data").
• As far as the employment in plants with increased demands on compressed air is concerned
(food industry, medical technology, laboratory equipment, special processes etc.), the operator
must decide on measures for the monitoring of the compressed-air quality. These have an effect
on the safety of the subsequent processes and may prevent damage to persons and plants.
• It is the task of the operator to ensure that the indicated conditions are met during the entire
operating time.
4 Exclusion from the scope of application
• The BEKOMAT® 31U IF built-in F as a condensate drain alone cannot guarantee a defined
compressed-air quality, for this purpose, other additional technical devices are required.
• BEKOMAT® 31U IF built-in F is not suitable for use in plants carrying vacuum or atmospheric
ambient pressure or in ex-areas.
• The BEKOMAT® 31U IF built-in F must not be exposed to permanent direct solar or thermal radiation.
• The BEKOMAT® 31U IF built-in F must not be installed and operated in areas with an aggressive
atmosphere.
• The BEKOMAT® 31U IF built-in F is not heatable and, therefore, not suitable for the use in areas
where frost is likely to occur.
• The BEKOMAT® 31U IF built-in F is not suitable for CO2 plants.

Technical data
BEKOMAT® 31U IF built-in F 7
5 Technical data
min./max. operating pressure 0,8...16 bar (12...230 psi)
min./max. temperature +1...+70 °C (+34...+158 °F)
Condensate inflow G ½ (NPT ½) internal
max. screw-in depth 13,5 mm (½")
Condensate outflow G ¼ Ø 8 ... 10 mm hose connector
Condensate oil-contaminated + oil-free
Housing aluminium + plastic, glass fibre-reinforced
Weight (empty) 0.6 kg (1.3 lbs)
This product has been tested to the requirements of CAN/CSA-C22.2 No. 61010-1-12, third edition, inclu-
ding a later version of the same standard incorporating the same level of testing requirements.
6 Electrical data
Supply voltage 24 VDC ± 10 % from a power supply unit with safe (mains) separation
(see type plate) P < 2 W
Power consumption device has an internal
self-resetting fuse 0.3 A
Fusing Ø 5.0…10 mm (0.20“…0.39“)
Recommended 0.25...1.5 mm² (AWG 16...24)
cable-jacket diameter ~ 50 mm (~ 1.97")
Recommended ~ 8 mm (~ 0.31 inch)
wire cross-section IP 67

Dimension drawing
8 BEKOMAT® 31U IF built-in F
7 Dimension drawing
mm (inch)
0,9 ± 0,1 Nm

Function
BEKOMAT® 31U IF built-in F 9
8 Function
Via the inlet line (1) the condensate flows into the
BEKOMAT® 31U IF and accumulates in the housing
(2).
A capacitively functioning sensor (3) continuously
registers the filling level and releases a signal to
the electronic interface (output Sen), as soon as
the container is filled.
(See also Chapter "Electrical installation")
The pilot valve (4) is triggered by an external signal
(input Drn). When this signal is available, the valve
is activated and the membrane (5) opens the outlet
line (6) to discharge the condensate.
With the reset of the signal, the outlet line is reclosed
tightly.
1 2 3
4
4
5
6

Installation
10 BEKOMAT® 31U IF built-in F
9 Installation
Danger!
Compressed air!
Risk of serious injury or death through contact with quickly or suddenly escaping
compressed air or through bursting plant components or plant components which
are not secured.
Measures:
• Do not exceed the maximum operating pressure (see type plate).
• Only carry out service measures when the system is pressureless.
• Use pressure-resistant installation material only.
• The feed pipe must be tubed firmly.
Discharge pipe: short, fixed pressure hose onto pressure-resistant pipe.
• Make sure that persons or objects cannot be hit by condensate or escaping compressed air.
Caution!
Malfunction during operation!
Through incorrect installation and poor maintenance, malfunction may occur at the
BEKOMAT® .
Condensate which is not discharged may cause damage to plants and in production
processes.
r
Measures:
• Condensate drainage which is reliable in performance directly optimises the compressed-air quality.
• To prevent damage and breakdowns, it is imperative to observe the following:
• Exact compliance with the specifications of use and with the performance parameters of
the BEKOMAT®, in connection with the case of application (see "Proper use" section)
• Exact compliance with the installation- and operation instructions in this manual
• Regular maintenance and control of the BEKOMAT® in accordance with the instructions
in this operating manual

Installation
BEKOMAT® 31U IF built-in F 11
Note:
It is imperative to observe all hazard statements and warnings listed here.
Please also observe all regulations and notes regarding industrial safety and fire prevention at the place
of installation.
As a matter of principle, only use suitable and appropriate tools and materials in a proper condition.
Do not use aggressive cleaners and improper devices such as high-pressure cleaners.
Please note that condensates may contain aggressive or harmful components.
Therefore, skin contact should be avoided.
Condensate is subject to mandatory waste disposal. As such, it must be collected in suitable containers,
and disposed of or processed properly.
Installation instructions:
• Only the displayed installation position of the
BEKOMAT® (3) is permissible. Never install
in a horizontal or any other tilted position.
• Feed pipe (1) and ball valve (2) at least G½.
• No filter or screen in the inlet line.
• Slope in the inlet line >1%.
• Use ball valves (2) only.
• Operating pressure: min. 0,8 bar (12 psig), max. 16
bar (230 psig). See type plate.
• Short pressure hose (4) fixed
on a pressure-resistant pipe.
• The required minimum pressure increases
by 0,1 bar (1,4 psi) per metre gradient in
the discharge pipe (5).
• Discharge pipe (5) rising by max. 5 m (16,4ft).
• Install manifold (6) ½" with a slope of 1%.
• Introduce the discharge pipe (5)
from the top into the manifold (6).
• Prior to the start-up, always carry out a leak test
and verify the correct engagement of the control
unit.
1 2 3 4 5 6

Installation
12 BEKOMAT® 31U IF built-in F

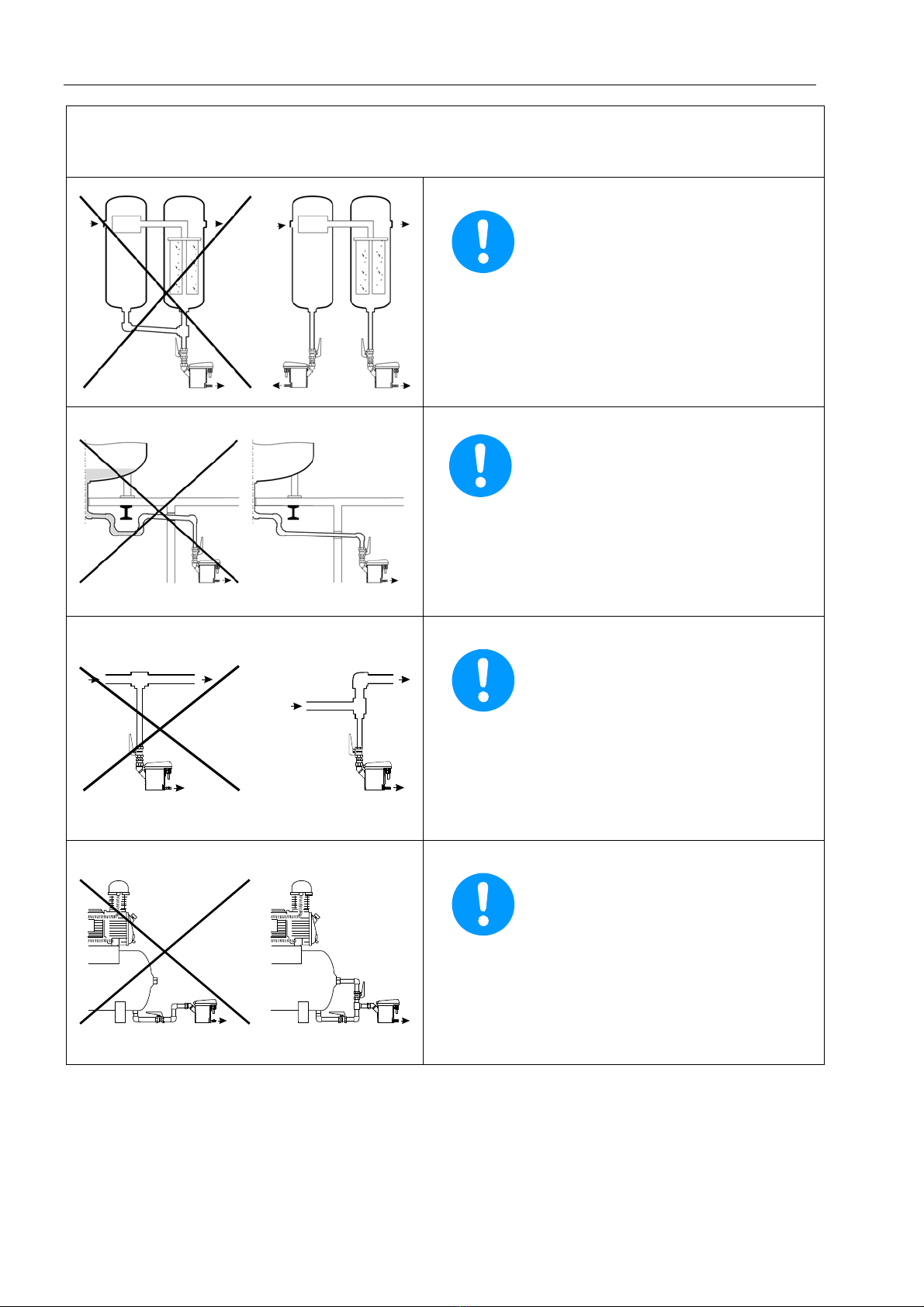

wrong correct
Pressure differences!
Each condensate accumulation point must be drained
separately.
Continuous slope!
Avoid a water pocket when installing the feed pipe
Deflector area!
If drainage is to be carried out directly from the pipe,
deflection of the air flow will be useful.
Ventilation!
If the slope in the inlet line is not sufficient or if any
other inflow problems occur, a venting line needs to
be installed.

Electrical installation
BEKOMAT® 31U IF built-in F 13
10 Electrical installation

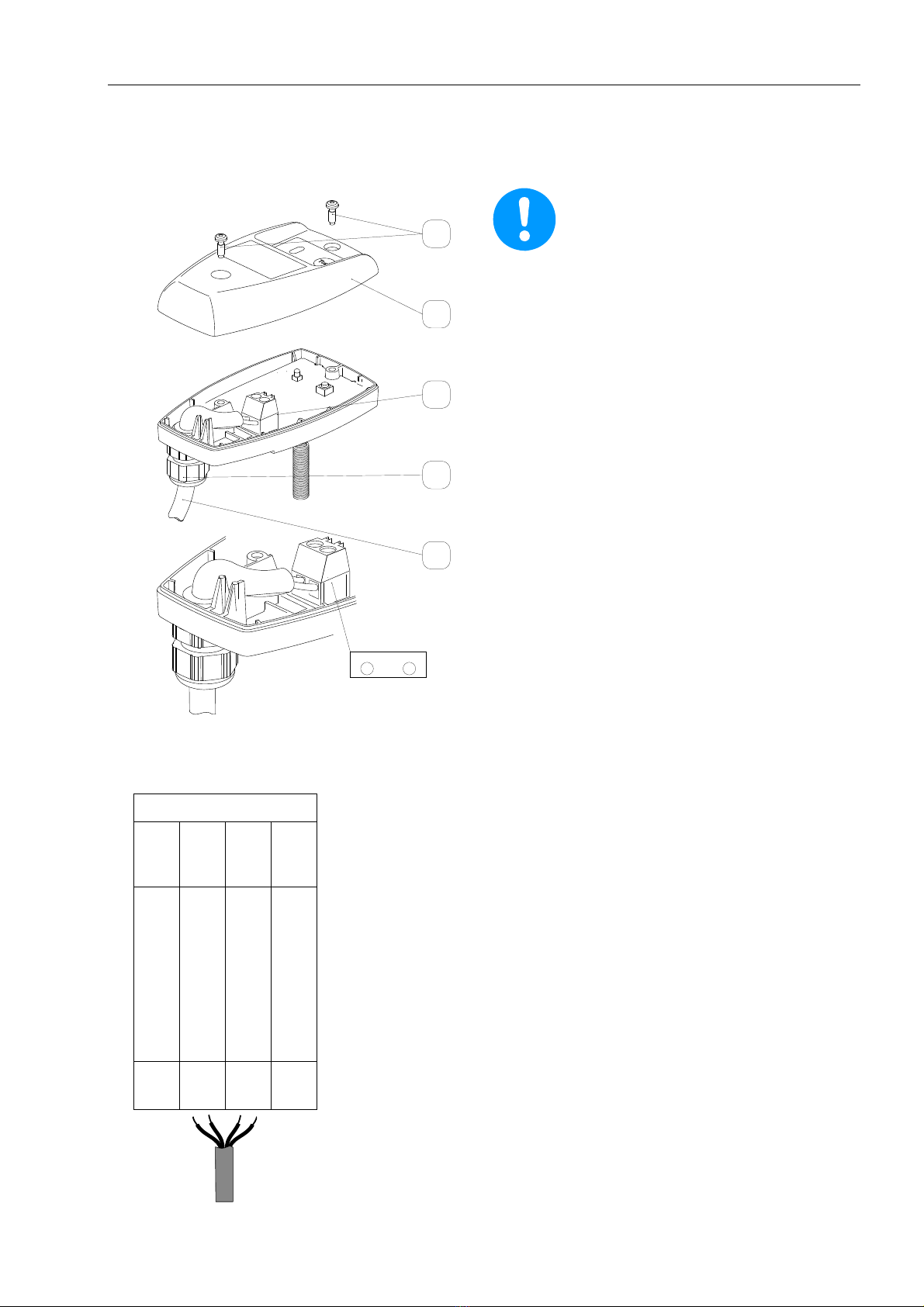

Note:
1.Only use a protective extra-low voltage (PELV)
in accordance with IEC 60364-4-41.
2. Carry out installation in accordance
with VDE 0100 / IEC 60364.
3. Observe the terminal assignment.
4. Unscrew the screw (1) and
remove upper part of the cover (2).
5. Unscrew the threaded cable connection (3),
remove the plug (if there is one) and lead
the cable (4) for the supply voltage through.
6. Connect the cable (4) with the terminals (5).
7. Install the cables as shown (see also
terminal assignment in the following text).
8. Tighten the threaded cable connection (3)
with a slightly sealing effect.
9. Put on the upper part of the cover (2)
and tighten the screw (1) fingertight.
10. Between the Gnd connection and the piping,
a potential difference is not admissible.
If required, potential equalisation in accordance
with VDE 0100 / IEC 60364 must be provided for.
Terminal assignment
X1
+24 Drn Sen Gnd
• +24 supply voltage + 24 Vdc
• Drn Input, triggering of the solenoid valve
internal pull-up resistance (4.4 kOhm) after +24V
input signal "low": valve triggered
input signal "high": valve not triggered
(input open)
• Sen Output, open-drain output
transistor switched through (Gnd potential):
sensor uncovered
transistor open (open-drain):
sensor covered
• Gnd supply voltage 0 V / mass
DC Only Input w. Pull-Up Output / Open Drain 0 V / Mass
1.1 1.2 1.3 1.4
X1.2 X1.1
N/- L/+
1
2
5
3
4

Electrical installation
14 BEKOMAT® 31U IF built-in F
Note:
Between the terminals and the housing or the condensate connections, there is no galvanic isolation.
The provided 24 VDC voltage must comply with the requirements for protective extra-low voltages (PELV)
in accordance with IEC 60364-4-41.
Tighten the threaded cable connection with a slightly sealing effect.
Electric diagram

Inspection and maintenance
BEKOMAT® 31U IF built-in F 15
11 Inspection and maintenance
Danger!
Compressed air!
Risk of serious injury or death through contact with quickly or suddenly escaping
compressed air or through bursting plant components or plant components which
are not secured.
Measures:
• Do not exceed the maximum operating pressure (see type plate).
• Only carry out service measures when the system is pressureless.
• Use pressure-resistant installation material only.
• The feed pipe must be tubed firmly.
Discharge pipe: short, fixed pressure hose onto pressure-resistant pipe.
• Make sure that persons or objects cannot be hit by condensate or escaping compressed air.
Caution!
Malfunction during operation!
Through incorrect installation and poor maintenance, malfunction may occur at the
BEKOMAT® .
Condensate which is not discharged may cause damage to plants and in production
processes.
r
Measures:
• Condensate drainage which is reliable in performance directly optimises the compressed-air quality.
• To prevent damage and breakdowns, it is imperative to observe the following:
• Exact compliance with the specifications of use and with the performance parameters of
the BEKOMAT®, in connection with the case of application (see "Proper use" section)
• Exact compliance with the installation- and operation instructions in this manual
• Regular maintenance and control of the BEKOMAT® in accordance with the instructions
in this operating manual

Inspection and maintenance
16 BEKOMAT® 31U IF built-in F
Note:
It is imperative to observe all hazard statements and warnings listed here.
Please also observe all regulations and notes regarding industrial safety and fire prevention
at the place of installation.
As a matter of principle, only use suitable and appropriate tools and materials in a proper condition.
Do not use aggressive cleaners and improper devices such as high-pressure cleaners.
Please note that condensates may contain aggressive or harmful components.
Therefore, skin contact should be avoided.
Condensate is subject to mandatory waste disposal. As such, it must be collected in suitable containers,
and disposed of or processed properly.
Maintenance recommendation:
Replace the service unit (5)
after 8,000 operating hours or max. one year:
1.Remove the control unit (1)
by pressing the arresting hook (2).
2.Unfasten the BEKOMAT® 31U IF from the outlet
(3).
3.Remove the design shell (4) (if there is one)
using a screwdriver (10).
4.Detach the service unit (5) from the tubing
at the inlet by removing the union nut.
5.or remove the screws (6) from the angle nozzle
(7).
6.Check whether or not the new service unit (5)
goes with the control unit (1)
(model designation and colour of the arresting
hook (2)).
7.Installation of the new service unit (5)
in reverse order.
1
5
2
1
8
5
3

Inspection and maintenance
BEKOMAT® 31U IF built-in F 17
Installation of the control unit on the service unit:
1.Check whether or not the service unit (5) goes
with the control unit (1) (model designation and
colour of the arresting hook).
2.Check whether or not the sealing mat (11)
and the contact springs (13) are clean,
dry, and free from impurities.
3.Introduce the sensor (12)
into the sensor tube plate (14).
4.Hang the hook (15) of the control unit (1)
in the sensor tube plate (14).
5.Press the control unit (1) against the
service unit (5) and snap into place.
Start-up subsequent to maintenance measures:
Always carry out prior to the start-up:
• Leak test of the screwed connector
• Check of the electrical connections
• Check of the correct engagement of the control unit
1
15
12
11
13
14
5

Troubleshooting and fault elimination
18 BEKOMAT® 31U IF built-in F
12 Troubleshooting and fault elimination
Symptoms Possible reasons Measures
No detectable function
Supply voltage incorrect
Circuit board defective
External control defective
Check the connections and the supply
voltage
Check the circuit board for possible
damage
Replace the circuit board
Input signal "Drn"
is "low",
but no condensate
discharge
Feed and/or discharge pipe
blocked or obstructed
Wear and tear
Circuit board defective
Service unit defective
Minimum pressure not reached
Maximum pressure exceeded
Check feed and discharge pipe
Check whether or not the valve opens
audibly
Check the circuit board for possible
damage
Replace the circuit board
Check the operating pressure
No sensor signal "Sen"
(transistor switched,
Gnd potential)
with covered sensor
Feed pipe without sufficient slope
Cross-section not large enough
Condensate accumulation too high
(surge)
Circuit board defective
Install feed pipe with a slope
Check the circuit board for possible
damage
Replace the circuit board
Sensor signal "Sen"
(transistor open)
at the empty device
Sensor dirty
Wire breakage at the sensor
Circuit board defective
Replace the service unit
Check the circuit board for possible
damage
Replace the circuit board
Device blows off
continuously
Service unit defective or dirty Replace the service unit

Elements and components
BEKOMAT® 31U IF built-in F 19
13 Elements and components
1 Screw 3.5 x 10
2 Upper part of the cover
3 Moulded gasket
4 Circuit board
5 Sensor
6 Lower part of the cover
7 Cable bushing
8 Sealing mat
9 Service unit
10 Hose connector
11 O-ring 20 x 2
14 Recommended spare parts
Available sets of spare parts Contents Order number
Service unit F 8, 9, 11* 4023608
Gasket kit 3, 8, 11* 4024386
* Not for BEKOMAT 31U IF
2
3
6
7
10 911
8
5
4
1

Declaration of conformity
20 BEKOMAT® 31U IF built-in F
15 Declaration of conformity
