Belanger H2AIR ARCH User manual

H2AIR®ARCH
Belanger, Inc®.
P.O. Box 5470
Northville, MI 48167-5470
Customer Service Phone [phone]
Fax [phone]
www.Belangerinc.com
1MANUL958
REV 00

Belanger® Equipment Owner’s Manual
H2AIR®Arch
Copyright 2017
Belanger, Inc®
This manual and the accompanying equipment are protected by United States trademark, copyright, and patent laws. You
may make one copy of this manual. Do not make additional copies of this manual or electronically transmit it in any form
whatsoever, in whole or in part, without the prior written permission of Belanger, Inc.®
The registered trademarks used in this document are the property of their respective owners. The use of such trademarks is
for reference purposes only and does not imply sponsorship or approval of Belanger, Inc.®by these companies or any
companies affiliated with their respective owners.

H2AIR®ARCH
1MANUL958 Belanger®, Inc. *PO BOX 5470 *Northville, MI 48167-5470 * Ph [phone] * Fax [phone]
Table of Contents
Belanger Incorporated® Limited Warranty.......................................................3
Operational Warning...........................................................................................4
Introduction .........................................................................................................5
Important Safety Information .....................................................................................................5
Safety Symbols and Signal Words............................................................................................5
IMPORTANT Safety Information –MUST READ......................................................................6
Overview....................................................................................................................................8
Before You Get Started .............................................................................................................9
Available Leg Manifold Cover Choices....................................................................................10
Specifications....................................................................................................11
Requirements ..........................................................................................................................11
Physical ............................................................................................................................................11
Utility.................................................................................................................................................11
Electrical Specifications for Motors:..................................................................................................11

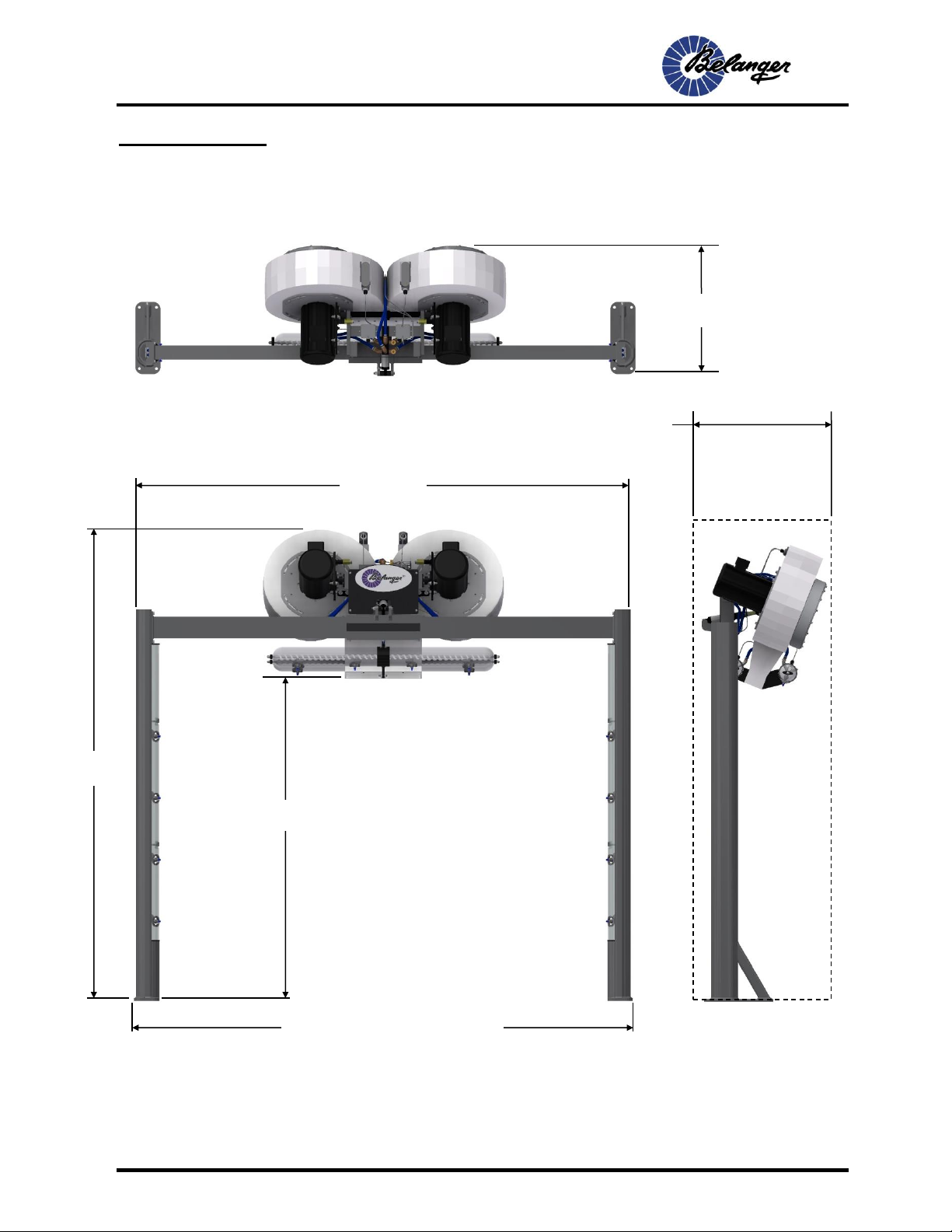

Dimensions..............................................................................................................................12
Installation.........................................................................................................13
Inspection Shipment & Install Airis® Assemblies onto Air Cannon™ Dryer Housings ...........13
Prepare to Assemble Arch.......................................................................................................18
Attach Leg Assemblies to Head Beam Assembly...................................................................19
Tunnel Placement....................................................................................................................21
Connect Water Hoses from Leg Assemblies to Water Manifold .............................................25
Route LED Cables from Leg Assemblies to Electrical Box .....................................................26
Utilities...............................................................................................................27
Electrical Connection: Main Power to DryLite™ Dryer Motors................................................27
Electrical Connection: H2Air® Air Panel to Controller.............................................................28
Electrical Connection: Airis® Air Panel to Controller...............................................................28
Electrical Connections: Overview for LEDs.............................................................................29
Electrical Connections: Main Power for DryLite™ Dryers & Top Manifold LEDs....................29
Electrical Connections: Main Power for Leg Assembly LEDs .................................................30
Air Connections: Air Panel to H2AIR® Top Flip Cylinder........................................................31
Air Connections: Air Panel to Airis® Assemblies ....................................................................32
Water Connection: Main Feed to H2AIR® Water Manifold.....................................................33
Initial Startup Procedures.................................................................................34
Install Spray Nozzles & Verify Proper Function of Top Assembly and Airis®.........................34
Maintenance ......................................................................................................38
Routine Procedures.................................................................................................................38
H2AIR® Arch (Daily).........................................................................................................................38
H2AIR® Arch (Monthly) ....................................................................................................................38

H2AIR®ARCH
2Belanger, Inc.® *PO BOX 5470 *Northville, MI 48167-5470 * Ph [phone] * Fax [phone]MANUL958
Table of Contents
Maintenance (continued)
Trouble Shooting..................................................................................................................... 39
Powder Coating Maintenance .................................................................................................40
Powder Coating Repair ...........................................................................................................41
Exploded Parts View ...............................................................................................................43
H2AIR®Arch Assembly: Overview....................................................................................................43
Head Beam: Silver PC 111506 or Aluminum 111505........................................................................43
H2AIR®Dryer Assembly: Overview...................................................................................................44
H2AIR®Dryer Assembly: Mount Bracket, Push Bar & Cylinder Assembly........................................45
H2AIR®Dryer Assembly: Motor, Mount Plate, Bearing & Positive Stop Assembly............................46
H2AIR®Dryer Assembly: Push Bar to Nozzle Mount Plate...............................................................47
H2AIR®Dryer Assembly: Mount Bracket Cover & Logo Assembly ...................................................48
H2AIR®Dryer Assembly: Motor and Impeller Assemblies.................................................................49
H2AIR® Dryer Assembly: DryLite™ Air Cannon™Nozzle Assembly...............................................50
Airis® Air Cannon™ Dual Kit Overview: 111391...............................................................................51
Airis® Clock-Wise Assembly: 111385...............................................................................................52
Airis® Counter-Clockwise Assembly: 111388...................................................................................53
Air Panel for H2AIR®Dryer Assembly: 110469.................................................................................54
Air Panel for Airis® Assembly: 111389..............................................................................................54
H2AIR®Top Assembly: Overview .....................................................................................................55
Water Manifold Assembly: 111533....................................................................................................56
Top Manifold Assembly: 111528.......................................................................................................57
Top Manifold: Manifold Mount & Hose Connectors...........................................................................58
Top Manifold LED RGB Assembly: Overview ...................................................................................58
H2AIR®LED RGB Kit 111532: Top Manifold LED Assembly............................................................59
H2AIR®LED RGB Kit 111532: DryLite™AirCannon™LED Cables.................................................59
Top Manifold Cover Kit: 111524........................................................................................................60
Leg Assembly: Overview...................................................................................................................61
Leg Assembly: Manifold Mounting.....................................................................................................62
Leg Assembly: Manifold & Center Manifold Clamp ...........................................................................63
Leg Assembly RGB LED Kit: 111532................................................................................................64
Leg Assembly: Manifold Cover Kit 111517........................................................................................65

H2AIR®ARCH
1MANUL958 Belanger®, Inc. *PO BOX 5470 *Northville, MI 48167-5470 * Ph [phone] * Fax [phone]
Belanger Incorporated® Limited Warranty
LIMITED WARRANTY: Equipment: Seller warrants to the original purchaser that the goods sold hereunder, which are fabricated
by Seller, shall be free from defects in workmanship and material under normal use and service for a period of 1 year plus 30 days
from the date of invoice - CATPumps will be warranted for 2 years from the date of invoice. All warranties, express,
implied, or statutory, pertaining to Seller’s machinery, parts, and equipment are fully set forth herein. This limited
warranty applies to the original purchaser only and is not transferable. No addition to or modification of any of the
provisions of this stated Limited Warranty shall be binding upon the Seller, unless made in writing and signed by a duly
authorized employee of Seller. This warranty is subject to the following limitations: (1) This warranty shall be void if the
factory specifications for operation and maintenance, found in original equipment manuals, and component manuals, are
not followed, or if other than factory authorized erection, alterations or modifications are made to any parts or equipment;
(2) Defective parts are warranted to the Purchaser for repair or replacement through an authorized distributor of Seller or
direct with Seller for a period of 13 months from the date of invoice. Parts warranty excludes all claims for failure resulting
from normal wear and tear to the depreciable parts, improper installation, omission of factory specified preventative
maintenance, misuse, abuse, negligence, third party damages, or acts of God. Purchaser agrees to submit to and assist
Seller or its authorized distributor in conducting in-warranty inspections of the machinery and equipment including
inspection of any part claimed to be defective by the Purchaser; (3) Labor to repair or replace parts is warranted to
Purchaser during normal business hours through an authorized distributor of Seller or direct with Seller, for 120 days
from date of invoice. Labor warranty excludes all claims for failure resulting from normal wear and tear to the depreciable
parts, improper installation, and omission of factory specified preventative maintenance, misuse, abuse, negligence, third
party damages, or acts of God. Seller reserves the sole right to make determinations on the above stated limitation. All
labor and service provided beyond the labor warranty period shall be subject to labor charges at the rates established by
the local authorized distributor or direct with Seller; (4) This warranty shall be void for all equipment failures and
premature component wear caused by the use of corrosive chemicals in the wash process. The following list includes
some, but not all, of the particularly corrosive chemicals that if used in conjunction with Belanger® equipment will void
the warranty: Hydrofluoric Acid, Ammonium Bi-flouride, Bromic Acid, Muriatic Acid, Sulfonic Acid, Phosphoric Acid,
Hydrogen Cyanide, Hydrochloric Acid, Sodium Hydroxide and Chlorinated Solvents. (5) Seller makes no warranty,
express or implied, with respect to the design or operation of any entire system, in which Seller’s goods sold hereunder
are mere components. (6) In no event shall Seller be liable for any incidental, special, consequential or exemplary
damages resulting from the furnishing, performance or use of any goods or services sold pursuant hereto, whether due
to a breach of contract, breach of warranty, the negligence of Seller or to otherwise; not for loss of business;
inconvenience, or property damage of any kind; not for any damages of whatever nature resulting in any way from the
purchaser’s selection and use of any chemicals not manufactured exclusively by seller but used with the purchased
goods; or for any service not expressly provided herein related to or arising from the equipment or goods sold. This
limitation of liability extends to purchaser’s use of any engineering recommendations, sales representations, technical
assistance, advice or data supplied by seller to purchaser in connection with the goods or services supplied, other than
that information contained in Belanger® manuals.
Parts: Seller warrants to the original purchaser that the Replacement Parts sold hereunder, shall be free from defects in
workmanship and material under normal use and service for a period of 30 days from the date of invoice. This limited
warranty applies to the original purchaser only and is not transferable. (1) This warranty shall be void if the factory
specifications for operation and maintenance are not followed; (2) Parts warranty excludes all claims for failure resulting
from normal wear and tear to the depreciable parts, improper installation, omission of factory specified preventative
maintenance, misuse, abuse, negligence, third party damages, or acts of God. (3) This warranty shall be void for all
replacements parts failures and premature component wear caused by the use of corrosive chemicals in the wash
process. The following list includes some, but not all, of the particularly corrosive chemicals that if used in conjunction
with Belanger® replacement parts will void the warranty: Hydrofluoric Acid, Ammonium Bi-flouride, Bromic Acid, Muriatic
Acid, Sulfonic Acid, Phosphoric Acid, Hydrogen Cyanide, Hydrochloric Acid, Sodium Hydroxide and Chlorinated
Solvents.
THIS LIMITED WARRANTY FOR EQUIPMENT AND REPLACEMENT PARTS IS EXPRESSLY IN LIEU OF
ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, WHETHER STATUTORY OR OTHERWISE,
INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE.
Copyright © 2000 by Belanger, Inc.® All rights reserved. No part of this work may be reproduced or transmitted in any
form or by any means, electronic or mechanical, including photocopying and recording, or by any information storage or
retrieval system, except as may be expressly permitted by the 1976 Copyright Act. Revised as of 8-15-01. Belanger®
reserves the right to change or modify the Belanger Inc.® Limited Warranty without notice.

H2AIR®ARCH
4Belanger, Inc.® *PO BOX 5470 *Northville, MI 48167-5470 * Ph [phone] * Fax [phone]MANUL958
Operational Warning
Formulations containing the chemicals listed below are particularly dangerous and should not be
used even at low concentrations:
Hydrofluoric Acid
Ammonium Bi-fluoride
Bromic Acid
Muriatic Acid
Sulfonic Acid
Phosphoric Acid
Hydrogen Cyanide
Hydrochloric Acid
Chlorinated Solvents
Belanger, Inc.®, does not endorse or condone the use of chemicals that are potentially dangerous to human health, the
environment or property. Belanger® recognizes that it is the right and sole decision of the end user operators of our
equipment as to the type and dilution ratio of the chemicals used in their facilities. We strongly recommend that the end
user does not select products containing any of the chemicals listed above as an ingredient in the wash solutions. The
chemicals listed above are potentially dangerous to human health, and have a detrimental, deteriorating effect on the
equipment and the facility. Be advised that a portion of, or all of your warranty will be voided if you determine to use any of
the chemicals listed above as an ingredient in the wash solutions in conjunction with your Belanger® automatic car wash
equipment:
Limitation (4), of Paragraph (8), Limited Warranty, of the Belanger® Terms and Conditions of Sales describes the
potential limitation of warranty due to your chemical selection:
(4) This warranty shall be void for all equipment failures and premature component wear caused by the use of
corrosive chemicals in the wash process. The following list includes some, but not all, of the particularly corrosive
chemicals that if used in conjunction with Belanger® equipment will void the warranty: Hydrofluoric Acid, Ammonium
Bi-fluoride, Bromic Acid, Muriatic Acid, Sulfonic Acid, Phosphoric Acid, Hydrogen Cyanide, Hydrochloric Acid, and
Chlorinated Solvents. The Purchaser also agrees to accept the responsibility and liability for the selection and use of
any chemicals listed above;
However, should the end user decide to use formulations containing any of the above ingredients, the end user should
institute a comprehensive training program and implement detailed operational parameters within their organization for the
proper handling and treatment of such products to minimize the potential dangers involved. Consult your chemical supplier
for assistance in establishing operational guidelines in the use of their products. MSDS (Material Safety Data Sheet) should
be obtained from the chemical supplier before using any chemical formulation.
CAUTION
During the installation process the installer is responsible for re-tightening ALL
lugs, set screws and terminals located in the electrical panels. Components may
vibrate loose during shipping.

H2AIR®ARCH
1MANUL958 Belanger®, Inc. *PO BOX 5470 *Northville, MI 48167-5470 * Ph [phone] * Fax [phone]
Introduction
Important Safety Information
This section introduces the hazard and safety precautions associated with installing, maintaining or
servicing this product. Before performing any task on this product, read this safety information and the
applicable sections in this manual, where additional hazards and safety precautions for your task may be
found. Electrical shock could occur and cause death or serious injury if these safe service procedures are
not followed.
Safety Symbols and Signal Words
Alert Symbol
This safety alert symbol is used in this manual and on warning labels to alert you
to precautions which must be followed to prevent potential personal safety
hazards. Obey safety directives that follow this symbol to avoid possible injury or
death.
Signal Words
The signal words used in this manual and on warning labels tell you the seriousness of particular
safety hazards. The precautions that follow must be followed to prevent death, injury or damage to
the equipment.
DANGER
This signal word is used to alert you to a hazard or unsafe practice which WILL RESULT IN
DEATH OR SERIOUS INJURY
This alerts you to a hazard or unsafe practice which COULD RESULT IN DEATH OR SERIOUS
INJURY
CAUTION
This signal word designates a hazard or unsafe practice which MAY RESULT IN MINOR INJURY
CAUTION
When used by itself, CAUTION designates a hazard or unsafe practice which MAY RESULT IN
PROPERTY OR EQUIPMENT DAMAGE
Before You Begin
Only trained or authorized individuals knowledgeable in the related procedures should install,
inspect, maintain or service this equipment.
Read the Manual
Read, understand and follow this manual and any other labels or related materials supplied with this
equipment. If you do not understand the procedure, call a Belanger, Inc.® representative at 248-349-
7010. It is imperative to your safety and the safety of others to understand the procedures before
beginning work.

H2AIR®ARCH
6Belanger, Inc.® *PO BOX 5470 *Northville, MI 48167-5470 * Ph [phone] * Fax [phone]MANUL958
Introduction
IMPORTANT Safety Information –MUST READ
Safety Warnings
DISCONNECT THE MAIN POWER SUPPLY AND
DISSIPATE ALL POTENTIALLY HAZARDOUS
ENERGY SOURCES PRIOR TO SERVICING OR
MAINTAINING EQUIPMENT
Belanger® recommends that all workers observe the OSHA (U.S. Department of
Labor Occupational Safety & Health Administration) Lockout / Tagout procedure to
dissipate all potentially hazardous energy sources (i.e. - electrical, mechanical,
hydraulic, pneumatic, chemical, thermal, etc.) prior to performing service or
maintenance on machinery and equipment.
Note: Reference the OSHA standard for the Control of Hazardous Energy (Lockout/Tagout), Title 29 Code
of Federal Regulations (CFR) Part 1910.147 and the example provided in 1910.147 Appendix A for
practices and procedures necessary to disable machinery or equipment, thereby preventing the release
of hazardous energy while employees perform servicing and maintenance activities. The standard
outlines measures for controlling hazardous energies –electrical, mechanical, hydraulic, pneumatic,
chemical, thermal, and other energy sources.
Note: Reference the OSHA standard 29 CFR 1910.331 to 29 CFR 1910.335 for safe work practices to
protect employees working on electrical circuits and equipment. This section requires workers to use
safe work practices, including lockout and tagging procedures. These provisions apply when
employees are exposed to electrical hazards while working on, near, or with conductors or systems that
use electrical energy.
Note: Both referenced OSHA standards can be found at the following website: http://www.osha.gov/law-
regs.html. Browse to the General Industry tab under the Find an OSHA Standard heading, scroll
down to the link of interest and click on it.
Doing so will prevent unexpected energization, startup, or release of hazardous
energy while maintenance and servicing activities are being performed.

H2AIR®ARCH
1MANUL958 Belanger®, Inc. *PO BOX 5470 *Northville, MI 48167-5470 * Ph [phone] * Fax [phone]
Important Safety Information
Safety Warnings
BE SURE TO OBSERVE OPERATING ENVELOPE.
EQUIPMENT MAY START UNEXPECTEDLY. OVERHEAD,
ROTATING AND/OR MOVING COMPONENTS COULD RESULT
IN SERIOUS INJURY OR DEATH.
BE AWARE OF FOREIGN OBJECTS IN THE AREA
SURROUNDING A ROTATING PIECE OF EQUIPMENT. OBJECTS
MAY BECOME TANGLED WITH EQUIPMENT AND COULD
RESULT IN SERIOUS INJURY OR DEATH.
BE AWARE OF HAZARDS ASSOCIATED WITH
EQUIPMENT INSTALLED ON THE FLOOR
THAT MAY BE A TRIP HAZARD.
It is imperative to your safety and the safety of others to always follow safe work
procedures.

H2AIR®ARCH
8Belanger, Inc.® *PO BOX 5470 *Northville, MI 48167-5470 * Ph [phone] * Fax [phone]MANUL958
Introduction
Overview
The H2AIR® Arch is a rinsing and defoaming arch positioned at the end of a tunnel wash. It uses Top Flip
Air Cannon™ DryLite™ Dryers and low pressure water to efficiently remove any foam remaining on the
vehicle.
The H2AIR Arch has a dual regulator Air Panel with a 4-way pneumatic valve that operates the Top Flip
Assembly and requires one programmed output from the system controller. The default home position of
the Top Manifolds and Dryers is 20° toward the entrance of the tunnel. The speed at which the Top
Assembly rotates is user defined and can be adjusted by changing the air pressure on the Air Panel or
the Control Valves on the Cylinder. The system controller will activate the 4-way pneumatic valve and
rotate the Top Assembly 20° toward the exit of the tunnel.
The H2AIR® Arch frame utilizes an engineered aluminum structure designed especially for Belanger®
equipment. Each Leg Assembly has two spray manifolds; one manifold is positioned to have the spray
nozzles at an angle of 25° toward the entrance and in the other manifold the nozzles are at an angle of
25° toward the exit of the tunnel. The Top Assembly also has two spray manifolds that rotate with the Top
Flip Assembly. Together the Leg Manifolds and Top Manifolds provide a complete rinising on all of the
surfaces of the vehicle.
In order to maximize rinsing and drying on rear surfaces, Belanger® recommends setting the manifold
rotation toward the exit of the tunnel early enough that the water direction can also be concentrated on
the back of the vehicle mirrors. An Airis® Air Cannon™ Dual Kit, an air flow management systerm with
rapid max-airflow delivery, is included with the H2AIR® Arch and will provide quick and efficent removal
of foam from the vehicles.
The H2AIR® Arch also features RGB LED-illuminated spray manifolds in the Leg and Top Assemblies
and Air Cannon™ Dryer Housings.
View of H2AIR®Arch from
Entrance of Tunnel
View of H2AIR®Arch from
Exit of Tunnel
Air Cannon™ DryLite
Housings with Airis® Asy
Top Manifolds
Top Flip
Cylinder
Top Flip Assembly
with Dryers, Housings
& Manifolds
Leg Assembly with
Manifold & LED Lights

H2AIR®ARCH
1MANUL958 Belanger®, Inc. *PO BOX 5470 *Northville, MI 48167-5470 * Ph [phone] * Fax [phone]
Introduction
Before You Get Started
Tools needed for installation:
hammer drill with 1/2” bit
safety glasses
tape measure (25 foot or greater)
work gloves
level
forklift
miscellaneous hand tools
ladder
25 foot extension cord
Equipment included:
Description
Quantity
H2AIR® Arch Head Beam Assembly
1
H2AIR® Arch Driver Side Leg & Manifold Assembly with LED
Assembly and Manifold Cover
1
H2AIR® Arch Passenger Side Leg & Manifold Assembly with LED
Assembly and Manifold Cover
1
H2AIR® Arch Dryer Assembly with two (2) Electrical Boxes &
Water Manifold; installed on Head Beam
1
Clockwise DryLite™ Air Cannon™ Dryer Housing
1
Counterclockwise DryLite™ Air Cannon™ Dryer Housing
1
Airis® Air Cannon™ Dual Kit
1
H2AIR® Top Manifold Assembly with LED Assemblies and
Manifold Covers; installed on Head Beam
1
H2AIR® Arch Accessory Box: 111504
1
H2AIR® Arch Accessory Box contents: 111504
Part Number
Qty
Description
1FSTNR-ST750
8
Kwick Bolt 3 Zinc 5/8” x 6”
1CLAMP467
4
Clamp Single Ear for 1/2" Hose
1CLAMP478
2
Clamp Single Ear for 3/4” Hose
1NOZZL-FJ348
24
Plastic Nozzle Fan Jet 1.0GPM x 40D
Note: Uncrate and inspect shipment for damage, and to verify that all pieces are there. If there is any
damaged equipment, file a claim with the trucking company immediately. Receiving party is
responsible for filing claim with trucking company. Notify your local distributor or Belanger,
Inc.® immediately if shipment is determined damaged or incomplete.

H2AIR®ARCH
10 Belanger, Inc.® *PO BOX 5470 *Northville, MI 48167-5470 * Ph [phone] * Fax [phone]MANUL958
Introduction
Available Leg Manifold Cover Choices
Leg Manifold Covers
Kit with Both Manifold
Covers
Color
1PLSTC-CV238
111517
Natural
Hardware components that are used with the Leg Manifold Covers:
Part Number
Quanity
Description
1WASHR-FL415
4
5/16 Stainless Steel Flat Washer (2 Per Cover)
1WASHR-LC270
4
5/16 Stainless Steel Lock Washer (2 Per Cover)
1FSTNR-HK275
4
5/16-18 x 5/8 Black Hand Knob (2 Per Cover)
1GRMIT850
16
SBR 60A 2-1/2”PHD x 2-1/4”ID 1/4P 30D 5/8W: Black (8 Per Cover)

H2AIR®ARCH
1MANUL958 Belanger®, Inc. *PO BOX 5470 *Northville, MI 48167-5470 * Ph [phone] * Fax [phone]
Specifications
Requirements
Physical
Tunnel space required
36”
Vehicle clearance, height
90-1/4”
Unit height
131-3/4”
Vehicle clearance, width
124”
Unit width
139-1/2”
Utility
Electrical:
DryLite™ Air Cannon™ Dryer Motors:
Two (2) 10HP, 3-Phase Motors; see chart below for requirements
H2AIR® Top Flip Assembly:
120VAC for Air Panel
Airis® Dual Kit:
120VAC for Air Panel
H2AIR® Top Assembly:
24V for LED Package (DryLite™ Dryer Nozzles & Top Manifolds)
H2AIR® Leg Assemblies:
24V for LED Package (both Leg Manifolds)
Water:
H2AIR® Top & Leg Assemblies:
Two (2) 3/4" Main Water Feeds for Top & Leg Manifolds
Pneumatic:
H2AIR® & Airis® Air Panels:
Two (2) 1/4” poly-flow Main Feed airlines one to H2AIR® Air Panel & one to Airis® Air Panel
H2AIR® Top Flip Cylinder:
Two (2) 1/4" poly-flow airlines from H2AIR® Air Panel to H2AIR® Top Flip Cylinder ports
Airis® Extend & Retract Airlines:
Two (2) 3/8” poly-flow airlines from Airis® Air Panel to top center of the H2AIR® Arch
Airis® Extend & Retract Airlines:
FFour (4) 1/4” poly-flow airlines tee off of 3/8” airlines; route appropriate lines to ports on Airis® Assemblies
Electrical Specifications for Motors:
Voltage
Hz
FLA per Motor
208
60
32
380
50
18
460
60
14
575
60
11
DISCONNECT AND LOCKOUT ELECTRICAL POWER AND DISSIPATE ALL POTENTIALLY
HAZARDOUS ENERGY SOURCES BEFORE SERVICING ANY EQUIPMENT!
CAUTION
Always wear safety glasses when performing maintenance on any equipment
CAUTION
It is recommended that a licensed electrician is contracted to perform all electrical installations.
CAUTION
A compressed Air System should be set correctly to support 90 PSI necessary to operate equipment,
but should never be set to deliver more than 120 PSI air pressure to the Belanger® specified
equipment.

H2AIR®ARCH
12 Belanger, Inc.® *PO BOX 5470 *Northville, MI 48167-5470 * Ph [phone] * Fax [phone]MANUL958
Specifications
Dimensions
131-3/4”
Unit Height
138-5/16”
Unit Width
90-1/4”
Vehicle Clearance
139-1/2”
Outside of Base Plate to Outside of Baseplate
36”
Tunnel Space
40” Operating Envelope
(Includes Pivot of DryLite Dryers)
Not To Scale

H2AIR®ARCH
1MANUL958 Belanger®, Inc. *PO BOX 5470 *Northville, MI 48167-5470 * Ph [phone] * Fax [phone]
Installation

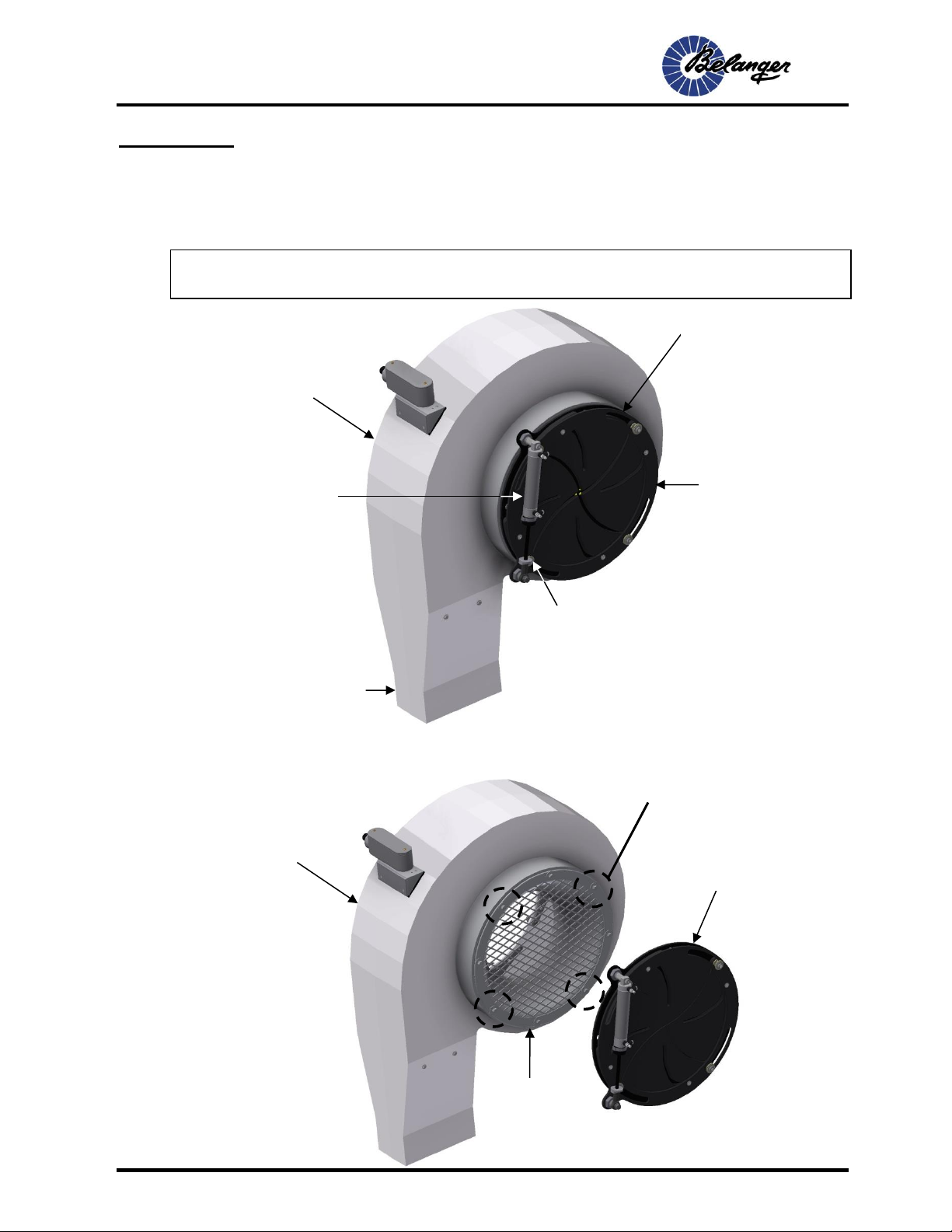

Inspection Shipment & Install Airis® Assemblies onto Air Cannon™ Dryer Housings
1) Uncrate and inspect the shipment for damage and verify that all of the pieces are there.
2) Locate the H2AIR® Top Assembly which includes the Head Beam, Top Flip Dryer Assembly
with DryLite™ Air Cannon™ Housings and Top Manifold Assemblies with LED lights and
Covers.
3) Before removing the H2AIR® Top Assembly from the shipping pallet install the Airis®
Assemblies onto the Air Cannon™ Dryer Housings.
4) Locate the Airis® Air Cannon™ Dual Kit, shown below.
Note: If there is any damaged equipment, file a claim with the trucking company immediately.
Receiving party is responsible for filing claim with trucking company. Notify your local
distributor or Belanger, Inc. immediately if shipment is determined damaged or incomplete.
Shipping
Bracket
Shipping
Bracket
DryLite™ Air Cannon™
Housings (2)
H2AIR® Top Assembly
Top Flip Dryer Assembly
Head Beam
Top Manifolds
with LED Lights
Airis® Air Panel
Airis® Mounting Studs (8)
3/8” Lock Washer (8)
Airis®
Clockwise (CW)
Assembly
Union-Y 3/8”T x 1/4” Fitting (2)
Airis®
Counter-Clockwise (CCW)
Assembly
3/8”-16 Nyloc Nuts (8)

H2AIR®ARCH
14 Belanger, Inc.® *PO BOX 5470 *Northville, MI 48167-5470 * Ph [phone] * Fax [phone]MANUL958
Installation
Install Airis® Assemblies onto Air Cannon™ Dryer Housings
5) The Airis® Assemblies will be mounted to the inlet of the Air Cannon™ Housing with the
Cylinder parallel with the outlet of the housing and the Cylinder Bumper facing down, refer to the
image below.
Note: A clockwise (CW) Airis® is to be attached to a CW Air Cannon™ Blower Housing and a
counter-clockwise (CCW) Airis® is to be attached to a CCW Air Cannon™ Blower Housing.
6) Hold the Airis® over the top of the Inlet Cone and select the four holes that will be used to
mount the Airis® assembly.
Air Cannon™
Blower Housing
Air Cannon™ Outlet
DryLite™ Air Cannon™ with
Airis®CW Assembly Shown
Air Cannon™
Housing Inlet
Airis®
Cylinder for Airis®
Cylinder Bumper
Four (4) Holes to be used to
mount the Airis® Assembly
Airis® Assembly
Air Cannon™
Blower Housing
Inlet Cone

H2AIR®ARCH
1MANUL958 Belanger®, Inc. *PO BOX 5470 *Northville, MI 48167-5470 * Ph [phone] * Fax [phone]
Installation
Install Airis® Assemblies onto Air Cannon™ Dryer Housings
7) Some parts have to be removed from the Air Cannon™ assembly in order to properly install the
support mounting studs for the Airis® assembly. Remove the eight fasteners that hold the Air
Cannon™ Inlet Cone (1IMPLR-CO500) onto the Housing Inlet Adapter Flange (1IMPLR275) and
set them aside.
8) Remove the Inlet Cone (1IMPLR-CO500) and set aside, shown in the above right image.
9) Use a flat screwdriver to remove the four Nut Retainers (1RETNR650) from the holes that the
Airis® will be mounted to; these four retainers (1RETNR650) will not be reused in the assembly.
Inlet Cone
Flat Washers (8)
Lock Washers (8)
5/16”-18 x 1” HHCS (8)
1RETNR650
Remove the four (4) Nut
Retainers circled; the holes are
to be used to mount the Airis®.

H2AIR®ARCH
16 Belanger, Inc.® *PO BOX 5470 *Northville, MI 48167-5470 * Ph [phone] * Fax [phone]MANUL958
Installation
Install Airis® Assemblies onto Air Cannon™ Dryer Housings
10) Remove the 3/8”-16 Nyloc nuts, flat washers and bolts that are located on the interior flange and
in-line with the four Nut Retainers (1RETNR650) that were just removed, refer to the images
below.
11) Locate the Airis® accessory box and retrieve the 3/8” lock washers. Using the 3/8”-16 x 1”
fasteners that you just removed install a lock washer and then one of the flat washers onto each
of the four fasteners as shown below.
12) In the Airis® accessory box locate the Airis® Support Mounting Stud Assemblies (111382). Install
a Mounting Stud into each of the four open holes in the Adapter Flange (1IMPLR275) with the
threaded stud facing out, as shown above.
Images made
transparent for clarity.
Adapter Flange: 1IMPLR275
3/8”-16 x 1” HHCS (4)
3/8” Lock Washer (4)
3/8” Flat Washer (4)
Airis® Mounting Stud:
111382 (4)
Remove the four(4) sets
of fasteners circled these
are in-line with the Nut
Retainers just removed.
