BEMIS bioBidet HD-7000 User manual

OWNER’S MANUAL
HD-7000

2 3
TABLE OF CONTENTS
PRODUCT INFORMATION
Important Safeguards & Cautions......................4
Cautions Before Installation...................................6
Main Unit & Parts.........................................................8
Remote Control...........................................................10
Dimensions.....................................................................11
PRODUCT INSTALLATION
Installation......................................................................12
PRODUCT OPERATION
Operation.......................................................................16
Maintenance & Cleaning........................................24
Settings..........................................................................26
Specifications..............................................................29
WARRANTY
Warranty........................................................................30

4 5
IMPORTANT SAFEGUARDS & CAUTIONS
This unit was manufactured for household use only. Read all
operating instructions before installation.
NOTES:
•This product should be installed according to this manual.
•Please read this manual carefully and install properly.
•Please save this manual and place at an easily accessible location.
•Do not attempt to service this appliance yourself. Doing so could void
the warranty.
IMPORTANT SAFEGUARDS
•When using electrical products, Basic electrical safety precautions should
always be followed.
READ ALL INSTRUCTIONS BEFORE USING
•For use with 120V 60Hz: Power supply must be a 15 Amp GFCI outlet.
•The electrical cord must be connected to a GFCI outlet.
•The GFCI outlet should be 1ft. above the floor.
•Install only in well-ventilated areas to avoid excess humidity.
•Do not install in narrow toilet stalls or in shower stalls.
•Install only where direct contact with water is minimized.
•Do not install near any heat source.
•Avoid using extension cords if possible. Consult with a certified
electrician where extension cords are necessary.
DANGER - To reduce the risk of electrocution:
•Do not use while bathing.
•Do not place or store product where it can fall or be pulled into a
tub or sink.
•Do not place in or drop into water or other liquid.
•Do not reach for a product that has fallen into water. Unplug immediately.
WARNING- To reduce the risk of burns, electrocution, fire, or
injury to persons:
•Close supervision is necessary when this product is used by, on,
or near children.
•Use this product only for its intended use as described in this manual.
Only use attachments recommended by the manufacturer.
•Never operate this product if it has a damaged cord or plug, if it is not
working properly, has been dropped or damaged, or dipped into water.
Return the product to a service center for examination and repair.
•Keep the cord away from heated surfaces.
•Never drop or insert any object into any opening or hose.
•Do not use outdoors or operate where aerosol (spray) products are
being used or where oxygen is being administered.
•Connect this product to a properly grounded outlet only.
See grounding instructions.
•Unplug this product before filling. Fill (reservoir) with water only.
SAVE THESE INSTRUCTIONS

6 7
CAUTIONS BEFORE INSTALLATION
GROUNDING INSTRUCTIONS
DANGER- Improper use of the grounding plug can result in a risk
of electric shock.
•This product has a three-prong grounding plug, which must be plugged
into an outlet that is properly installed and grounded. In the event of an
electrical short circuit, grounding reduces the risk of electric shock by
providing an escape wire for the electric current. If repair or replacement
of the cord or plug is necessary, do not connect the grounding wire to
either flat blade terminal. The wire with insulation having an outer surface
that is green with or without yellow stripes is the grounding wire. Check
with a qualified electrician or serviceman if the grounding instructions are
not completely understood, or if in doubt as to whether the product is
properly grounded.
•This product is for use on a nominal 120V circuit, and has a grounding
plug that looks like the plug illustrated in sketch A in Figure 1. A
temporary adapter, which looks like the adapter illustrated in sketches B
and C, may be used to connect this plug to a 2-pole receptacle as shown
in sketch B if a properly grounded outlet is not available.
•The temporary adapter should be used only until a properly
grounded outlet (sketch A) can be installed by a qualified electrician.
The green colored rigid ear, lug, or the like extending from the
adapter must be connected to a permanent ground such as a
properly grounded outlet box cover. Whenever the adapter is used,
it must be held in place by a screw.

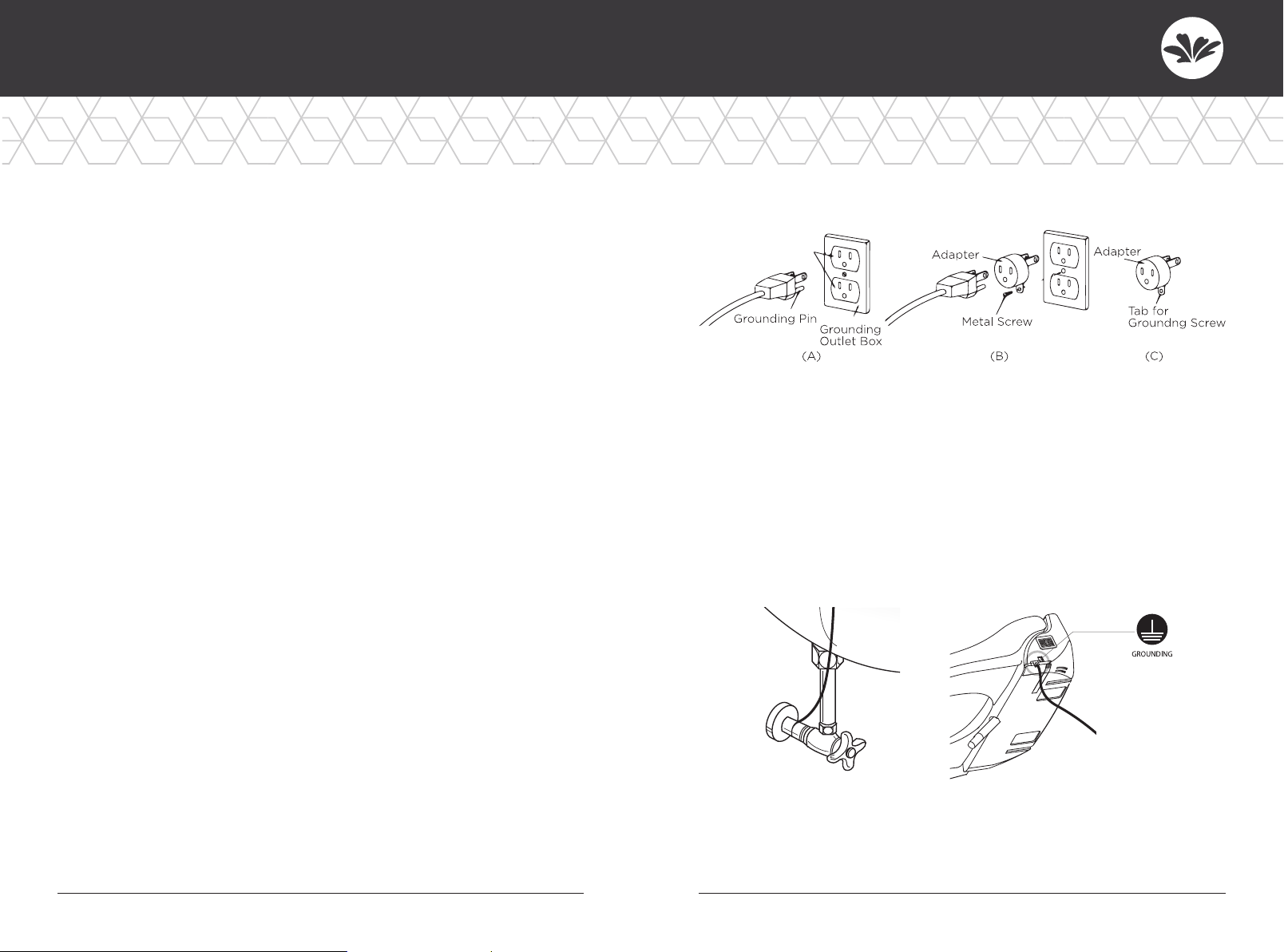

Optional Grounding Instructions
Figure 1

8 9

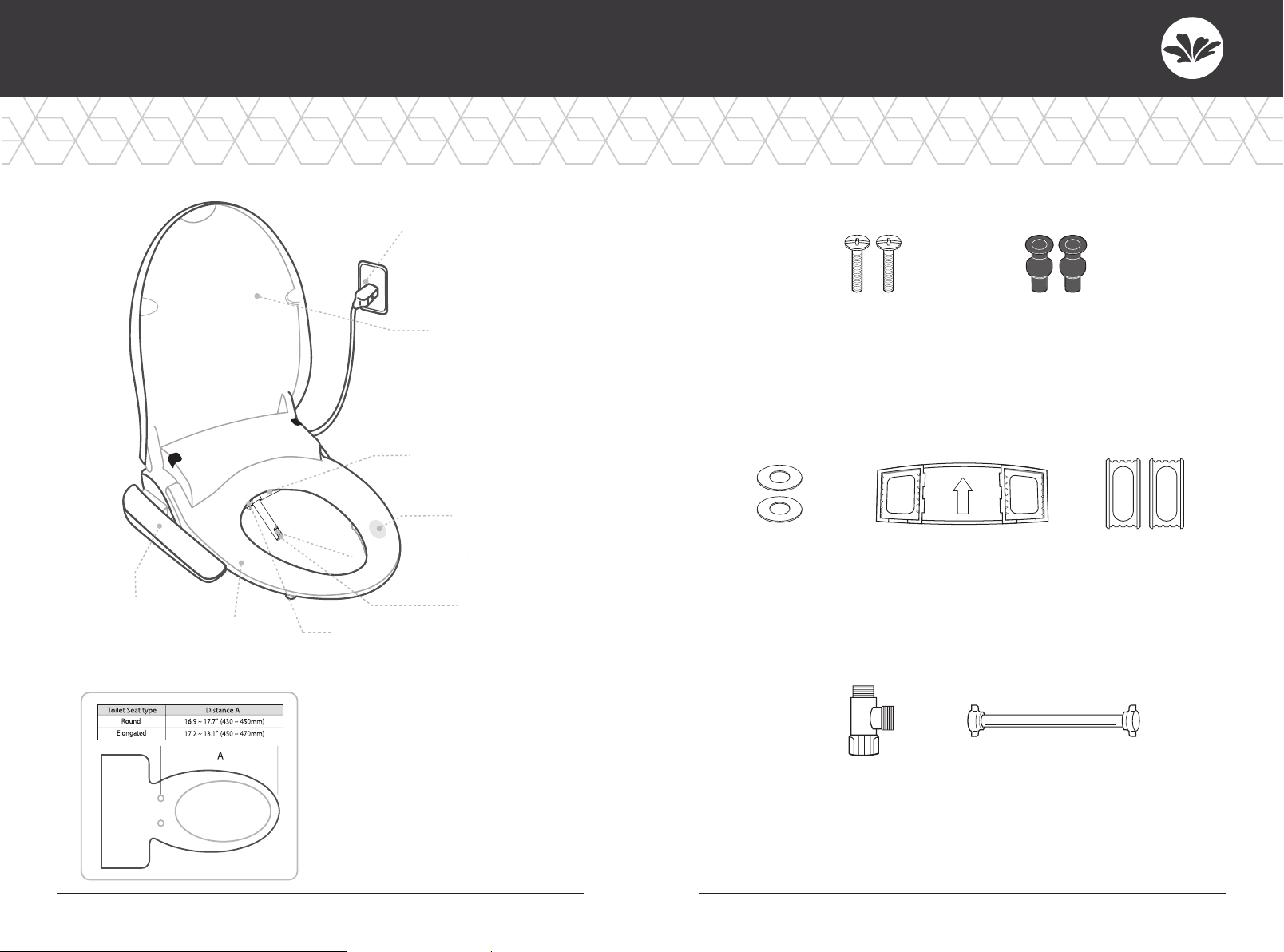

MAIN UNIT & PARTS
Top Mount
Metal Bolt (x2)
T-Valve 7/8”
Top Mount
Rubber Nut (x2)
Bidet Water
Supply Hose
Washer (x2) Catch Plate Bracket Holder
Side Control Panel Heated Seat
Bidet
Occupied Sensor
Wash & Turbo
Lid
Power Plug
Dryer
Night Light

10 11

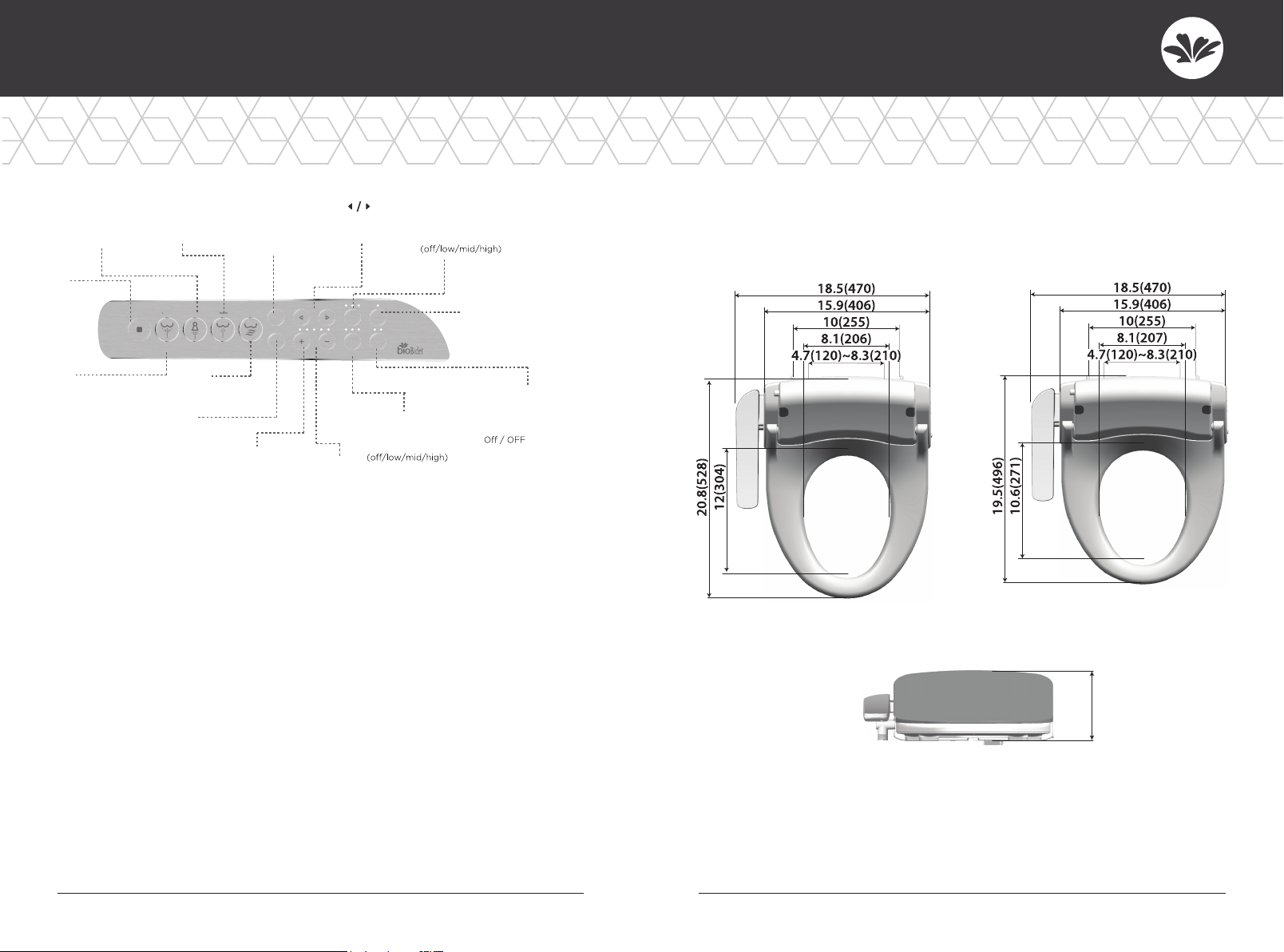

REMOTE CONTROL DIMENSIONS
Elongated Type Round Type
op as Bide bo
ea
Ch
HD-7000
SEAT TEM P
NOZZLE CLEANIN G
ENERGY SAVIN G
WATER TEM PCHILD
+/-
WASH
STOP
BIDET
To run the bidet
function. (1 minute)
TURBO
To run the turbo
function. (1 minute)
DRY
Start Dry function.
(3 minutes)
To control the
nozzle position.
PULSE
To run the pulse function
during wash/bidet/
turbo operation.
To control seat
temperature.
Selecting nozzle cleaning while
not seated, the nozzle cleans
itself 3 times.
Then nozzle extends and stop
for manual cleaning process.
Yellow / ECO 1
Green / ECO 2
To control water
temperature.
Children safety and
automatic mode.
NIGHT LIGHT
Press “+” for longer than
3 seconds while not seated.
- To control water pressure.
- To control dry temperature
To run the wash function.
(1 minute)
To stop any
operations.
7.0(178)
Check beforer equesting repair service.

12 13
•Place the catch plate on the
toilet with the arrows pointing
towards the toilet tank.
•Align the bolts guides over the
toilet bolt holes.
•Secure the catch plate to
the toilet by hand tightening
the bolts.
•Push it until you hear a “click.”
•When the product is
not installed well, it may
cause leakage.
•Adjust as needed before
tightening bolts.
*Do not over tighten bolts
3. Fix the catch plate onto
the toilet.
4. Push the main body
towards the catch
plate completely.
INSTALLATION
1. Remove the seat from the
existing toilet body.
•Release the nuts, and
then remove the seat and
cover from it.
•Store the seat in a proper
place for future use.
•Turn off the water and flush
the toilet.
•Disconnect the existing
water hose.
•Attach the T-valve to the
bottom of the toilet.
•Ensure the rubber washer
is properly seated and
attach the original water
hose to the T-valve.
2. Install the T-valve.
Cone washer
Align

14 15
Don’t plug the power cord with wet
hands. Risk of electric shock.
5. After installing the T-valve,
connect the supplied
bidet hose from the center
of the T-valve to the bidet.
6. Turn on the water and
check for leaks
7. Plug in and be sure that
the nozzle comes out and
retracts when powered on.
INSTALLATION (CONT.)
Using inline carbon filter
Use of external water filter is only
recommended in areas with known
hard water issues. If a filter is used,
it must be replaced every 3 months.
This product is designed and
intended for use exclusively with
Bio Bidet DIB water filters. The
purchase or use of any other
water filter is not the responsibility
of BBC Innovation LLC. As such,
any use of non DIB water filters is
prohibited and will void the warranty
for those Bio Bidet products.
Bio Bidet will not be responsible
for any resulting damages or claims
related to the misuse or distribution
of non Bio Bidet DIB filters.
*Do not overtighten connections.

16 17
OPERATION
1. Sit on the toilet seat 2. Wash, Bidet, Turbo
•Be sure to sit on the seat sensor.
If the sensor is not occupied, all
functions will not operate.
•Skin to seat contact needs to
occur to activate the seat.
•Activate a cleansing
function by pressing the
corresponding button.
•When pressing the selected
function again, the nozzle will
oscillate back and forth to wash
a wider range.
•Press the button once again to
stop oscillate function.
•The specialized water
spray in Turbo function helps
relieve constipation.
3. Dry Temperature Control 4. Pulse
•Dryer operates for 3 minutes.
•Dryer temperature is adjustable
by pressing “+” or “-” buttons.
(5 Levels).
•Dryer effect will be improved
if you wipe the moisture
lightly before operating the
drying function.
•When pressing the Massage
button during the operation of
Wash, Bidet, and Turbo, water
pressure will repeat high and
low for smooth pulsating wash.
•Pulse function will not
operate during the operation
of Sitz bath*
*See how to use in page 26

18 19
OPERATION (CONT.)
5. Child Function 6. Nozzle Position Control
•When selecting Child Function
settings adjust to low pressure.
•1 min Bidet - 30 sec Bidet
Oscillating - 30 sec Bidet Pulse
What it does
•Extra extended nozzle position
•Lower water pressure
•Lower seat temperature
•Lower water temperature
•Nozzle position is adjustable.
(5 positions)
7. Water Pressure Control 8. Stop
•All operations will stop.
•When pressing the stop button
for 3 seconds, unit will turn off.
•Press Stop, Wash, Bidet, or
Turbo to turn on.
•Water pressure is
adjustable (5 levels)
•If the water or screen
filters become blocked,
it may cause low water
pressure. Regularly check
the water and screen filters.

20 21
OPERATION (CONT.)

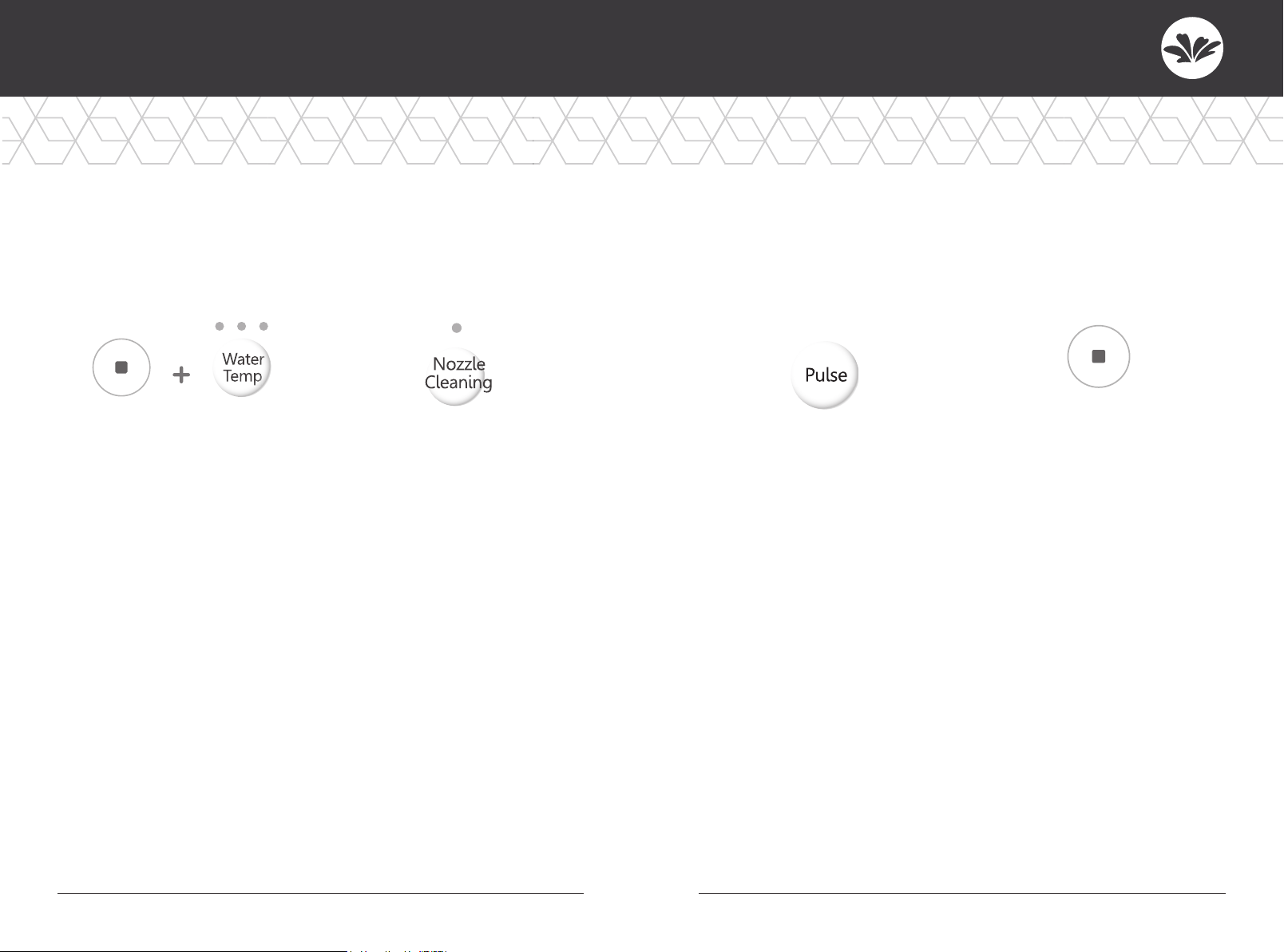

9. Seat/Water
Temperature Control
10. Energy Saving Function
Eco 1
•This mode is activated
by pressing the Energy
Saving button until the
yellow LED lamp lights up.
(Seat and water temperature
will be kept at 32°C)
Eco 2
•This mode is activated
by pressing the Energy
Saving button until the
green LED lamp lights up.
(Seat and water heater will
be kept off until seated)
Eco Off
•Press the Energy Saving button
until LED lamp turns off.
When the unit is occupied, it adjusts
to the present temperature and it
returns to the saving mode when the
seat is unoccupied.
If the seat and water temperature are
off, they will remain off.
•Seat/Water temperature is
adjustable. (4 levels)
(Off - Low - Middle - High)
•To reduce the chance of low
temperature burns, the seat has
a safety feature that tuns to low
temperature (35°C, 95°F) when
seat is occupied for more than
15 minutes consecutively.
•When selecting Nozzle Cleaning
while not seated, the nozzle
cleans itself 3 times. The nozzle
extends and stops for manual
cleaning process.
•Clean the nozzle with a brush
and press STOP button after
completion of manual cleaning.
Then nozzle cleans itself for 3
times and retracts.
•NOZZLE CLEANING will
not operate if the seat sensor
is activated.
11. Nozzle Cleaning 12.Night Light
•Blue LED night light provides
enough brightness to see the
toilet without turning on the
bathroom light.
•Night light can be turned on
and off by pressing “+” for 3
seconds while not seated.
•Night light setting cannot be
adjusted if seat sensor bypass
feature is activated.
3 Seconds

22 23
OPERATION (CONT.)
13.Automatic Tank Draining 14. Sitz Bath
•Wash or Bidet is switched to
Wash Sitz Bath or Bidet Sitz
Bath if Nozzle Cleaning button
is pressed during use.
•Water pressure is switched to
1st level regardless of preset
water pressure settings and Sitz
Bath operates for 5 minutes.
•LED of Nozzle Cleansing
turns on during the operation
of Sitz Bath.
•Select the Nozzle Cleaning
again to switch to normal
Wash or Bidet.
•The seat sensor can be
activated and deactivated
by pressing Massage button
for 3 seconds.
•If the seat sensor is deactivated,
the unit works without
occupying the seat and select
features* cannot be controlled.
*Features: Night Light, Silent
mode, Nozzle cleaning.
15.Seat Sensor Bypass 16. Reset
•Press and hold the Stop
button on the auxiliary panel
for 5 seconds.
•After 3 seconds, the seat will
power off. Keep holding another
2 seconds and the seat will
power back on. This completes
the factory reset process.
•To protect from water
contamination, the water tank
will be drained (replaced) for 2
minutes if the seat is not used
for 48 consecutive hours.
•This feature is deactivated from
the factory. To activate this
feature, press Stop and Water
Temp. button for 3 seconds.
3 Seconds
Stop
ul
3 Seconds 3 Seconds
Stop

24 25
MAINTENANCE & CLEANING
1. Screen Filter Cleaning 2. Seat Cleaning
•Close the water valve.
•Disconnect the water supply
hose. Take the screen filter out
and clean it with a soft brush.
•Return the filter after
cleaning and reconnect
the water supply hose.
•Open the water valve.
•Exterior surface of unit is made
of plastic material, which may
be damaged by scrubber,
chemicals, etc.
•Wipe the surface with a soft
damp cloth. Do not spray water
directly onto the surface.
•Clean the body after removing
the power plug from the outlet.
Be sure no water splashes onto
the power plug or outlet.
•Be careful of not dropping any
chemical detergents or toilet
cleaner on the main body or
supply hose to avoid damage.
3. Extended Non-Use 4. Draining of Tank
•When the bidet seat is not
being used for an extended
period of time, unplug the unit
and drain the tank.
•Remove the power plug from
the outlet.
•Close the water feed valve.
•Press the release button and
gently pull to remove the unit
from the catch plate.
•Use a flat-head screwdriver to
open the drain plug.
Waters upply hose
Screen filter

26 27
SETTINGS
User settings with the remote control Please check the following points before requesting
repair service
Seat sensor “off” Seat sensor “on” Regardless of on/off
*The unit will work without sitting on the seat if the occupied seat sensor is
deactivated. (turn off)
*If the seat sensor is deactivated, some features cannot be controlled. (Night
light on/off, silent mode on/off, and nozzle cleaning.)
Puls
No. Function Seat
Status
Switch
Operation
Description Initial
Status
1Silent
mode
“-” for longer
than 3 seconds.
To turn on/off
the operating
chime sound.
ON
2Power Off “ ” for longer
than 3 seconds.
Press one of Stop,
Wash, Bidet,
Intensive or Dry to
power on.
3Seat
Sensor
Bypass
“ ” for longer
than 3 seconds.
Seat sensor feature
will be deactivated
OFF
4Night
Light
“+” for longer
than 3 seconds.
To turn on/off the
night light.
ON
5Factory
reset
Press and
hold the Stop
button for 5
seconds.
After 3 seconds,
the seat will power
off. Keep holding
another 2 seconds
and the seat will
power back on.
This completes
the factory
reset process.
ON
6Automatic
tank
draining
“ ” and “ ”
for longer than
3 seconds.
Automatic tank
draining feature will
be deactivated.
OFF
Problem Check List
Completely out of order. •Check if the power plug is not connected.
•Check if the power supply or outlet
has failed.
Water does not spray out. •Check if the water supply is turned on.
•Check if the water valve is open.
•Check if the nozzle is blocked by
foreign material.
•Check if connection hose is bent.
Water pressure is low. •Check if screen filter is blocked and clean
if needed.
•Check if the water pressure is set at too
low level.
Water is not
warm enough.
•Check if its temperature is set at off or low
level, or economy mode.
Seat is not warm enough. •Check if its temperature is set at off or low
level, or economy mode.
Water tank is drained
intermittently.
•Check if the automatic water draining
feature activates.
TROUBLESHOOTING GUIDE

28 29
TROUBLESHOOTING GUIDE (CONT.) SPECIFICATIONS
Item HD-7000
Rated Voltage AC 120V, 60Hz
Max. Power Consumption 870W
Power cord length 1.2m
Water feed method Directly connects to water pipe
Recommended inlet water pressure 99~106.6 psi
Wash Feed
Volume
Wash 0.13~0.21 gal/min
Bidet 0.13~0.18 gal/min
Turbo 0.13~0.18 gal/min
Child 0.13~0.16 gal/min
Pressure control 5 Levels
Temperature Control 4 Levels (off - low - middle - high)
Heater capacity 800W
Safety device Water level sensor, Thermal fuse,
Bi-metal, temperature sensor
Heated
Seat
Temperature control 4 levels (off - low- middle - high)
Heater capacity 55W
Safety device Thermal fuse
Dry Temperature control Room temp. ~ 122°F
Heater capacity 250W
Safety device Thermal fuse, Bi-metal
Feed water temp. tolerance range 37 ~ 95°F (recommended 54 ~ 95°F)
Usage room temp. tolerance range 37 ~ 104°F (recommended 50 ~ 95°F)
Dimension Elongated 18.6” (470) x 20.8” (528) x 7.0” (178)
Round 18.6” (470) x 19.5” (496) x 7.0” (178)
Weight
Net
weight
(Gross
weight)
Elongated 17.4 lb (17.4)
Round 17.1 lb (17.2)
Please check the following table and inform the exact status
when requesting repair service.
No. Self Diagnosis Indication
1Water temp sensor is disconnected or
not inserted
LEDs of water low + middle
level blinking
2Water temp sensor is short-circuited
or overheated
LEDs of water high + middle
level blinking
3Seat temp sensor is disconnected or
not inserted
LEDs of water low
level blinking
4Seat temp sensor is short-circuited
or overheated
LED of water high
level blinking

30 31
WARRANTY
•We hereby guarantee the product as follows in accordance with the
regulation of consumer damage compensation.
•In case of product failure, please contact Bio Bidet
•Product warranty will be effective for one year from the date of purchase.
Regarding Product Warranty Regulation
•We will repair the product free of charge in case it fails under normal
operating circumstances in accordance with the user guide during the
warranty period.
•Although it is within the warranty period, we will charge the repair
service fee etc. (repair + parts + travel expense) if it falls under the
following cases:
Voiding Warranty
•Defects occurred from the user’s careless handling
•Defects occurred from usage with incorrect power voltage (E.g. 220V
was used to the 110V product.)
•Defects occurred from the improper repair done by the person other
than our service engineer.
•Defects occurred from Force Majeure (fire, salt, flood, etc.)
•Failure or damage due to mishandling during operation after installed.
•Defect occurred from interior modification at user’s discretion.
•In case the life cycle of the part expired.

Thank You
Technical Support/Customer Service
7900 S Route 31 Crystal Lake, IL 60014
T: 847.458.2334
U.S. TOLL FREE: 877.339.5214
[email protected]om
www.biobidet.com
