OWNER’S MANUAL
ULTIMATE 770

2 3
TABLE OF CONTENTS
PRODUCT INFORMATION
Important Safeguards & Cautions.......................5
Cautions Before Installation...................................7
Main Unit & Parts.........................................................9
Remote Control...........................................................10
Dimensions.....................................................................11
PRODUCT INSTALLATION
Installation.....................................................................12
Remote Installation....................................................16
PRODUCT OPERATION
Operation.....................................................................20
Maintenance & Cleaning........................................28
Settings.........................................................................30
Specifications.............................................................33
WARRANTY
Warranty........................................................................34

4 5
IMPORTANT SAFEGUARDS & CAUTIONS
IMPORTANT SAFEGUARDS
•Basic electrical safety precautions should always be followed.
READ ALL INSTRUCTIONS BEFORE USING
•For use with 120V 60Hz: Power supply must be a 15 Amp GFCI outlet.
•The electrical cord must be connected to a GFCI outlet.
•The GFCI outlet should be 1ft. above the floor.
•Install only in well-ventilated areas to avoid excess humidity.
•Do not install in narrow toilet stalls or in shower stalls.
•Install only where direct contact with water is minimized.
•Do not install near any heat source.
•Avoid using extension cords if possible. Consult with a certified electrician
where extension cords are necessary.
DANGER - To reduce the risk of electrocution:
•Do not use while bathing.
•Do not place or store product where it can fall or be pulled into a
tub or sink.
•Do not place in or drop into water or other liquid.
•Do not reach for a product that has fallen into water. Unplug immediately.
WARNING- To reduce the risk of burns, electrocution, fire, or
injury to persons:
•Close supervision is necessary when this product is used by, on,
or near children.
•Use this product only for its intended use as described in this manual.
Only use attachments recommended by the manufacturer.
•Never operate this product if it has a damaged cord or plug, if it is not
working properly, has been dropped or damaged, or dipped into water.
Return the product to a service center for examination and repair.
•Keep the cord away from heated surfaces.
•Never drop or insert any object into any opening or hose.
•Do not use outdoors or operate where aerosol (spray) products are being
used or where oxygen is being administered.
•Connect this product to a properly grounded outlet only.
See grounding instructions.
•Unplug this product before filling. Fill (reservoir) with water only.
SAVE THESE INSTRUCTIONS

6 7
CAUTIONS BEFORE INSTALLATION
GROUNDING INSTRUCTIONS
DANGER- Improper use of the grounding plug can result in a risk
of electric shock.
•This product has a three-prong grounding plug, which must be plugged
into an outlet that is properly installed and grounded. In the event of an
electrical short circuit, grounding reduces the risk of electric shock by
providing an escape wire for the electric current. If repair or replacement
of the cord or plug is necessary, do not connect the grounding wire to
either flat blade terminal. The wire with insulation having an outer surface
that is green with or without yellow stripes is the grounding wire. Check
with a qualified electrician or serviceman if the grounding instructions are
not completely understood, or if in doubt as to whether the product is
properly grounded.
•This product is for use on a nominal 120V circuit, and has a grounding
plug that looks like the plug illustrated in sketch A in Figure 1. A temporary
adapter, which looks like the adapter illustrated in sketches B and C, may
be used to connect this plug to a 2-pole receptacle as shown in sketch B if
a properly grounded outlet is not available.
•The temporary adapter should be used only until a properly
grounded outlet (sketch A) can be installed by a qualified electrician.
The green colored rigid ear, lug, or the like extending from the
adapter must be connected to a permanent ground such as a
properly grounded outlet box cover. Whenever the adapter is used,
it must be held in place by a screw.
THIS APPLIANCE HAS TO BE EARTHED.
Optional Grounding Instructions
Figure 1

8 9
MAIN UNIT & PARTS
Top Mount
Metal Bolt (x2)
T-Valve 7/8”
AAA size
Batteries (x2)
Top Mount
Rubber Nut (x2)
Catch Plate
Bidet Water
Supply Hose
Washer (x2)
Bracket Holder
Remote Control
and Holder

10 11

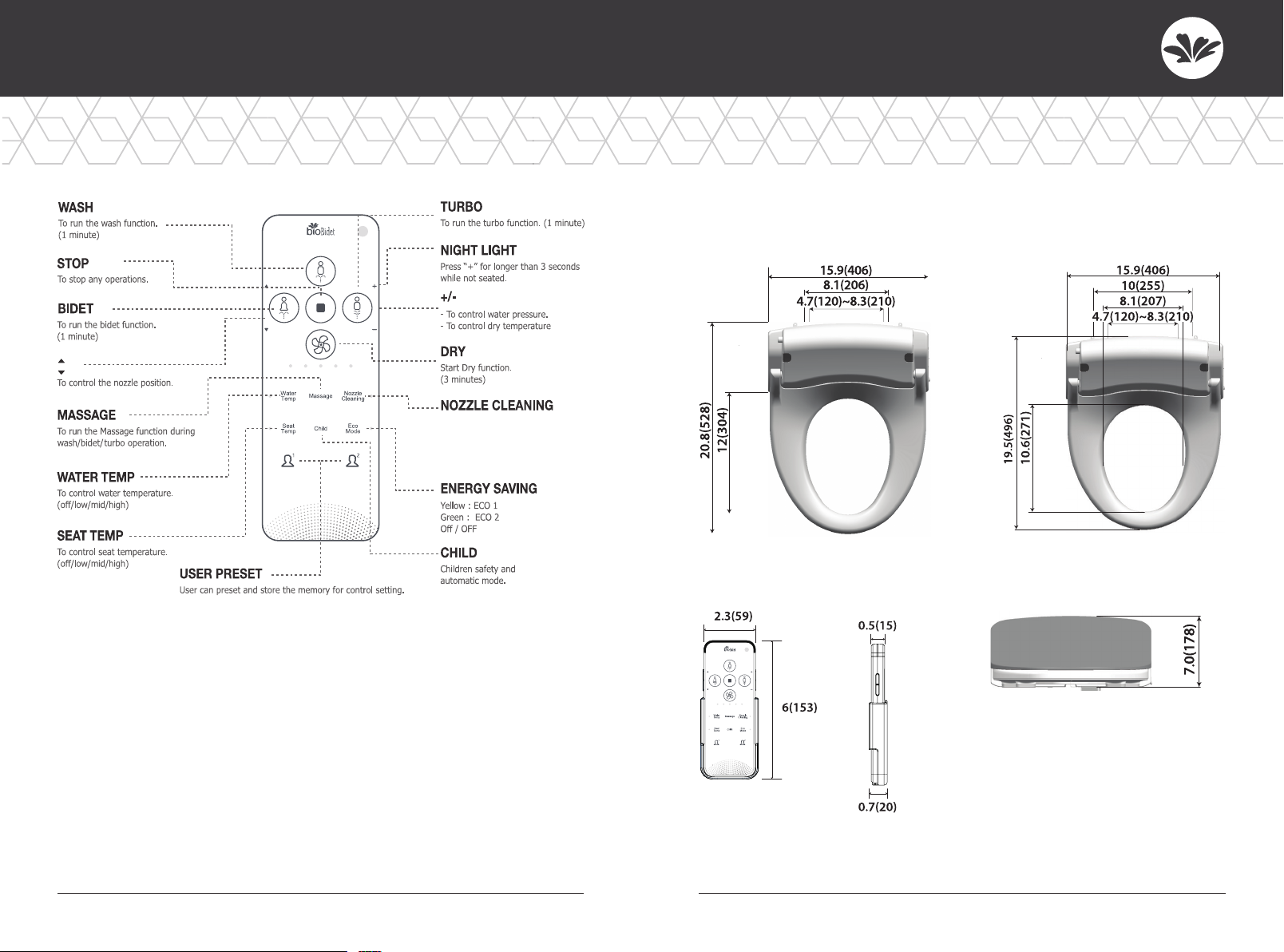

REMOTE CONTROL DIMENSIONS
Rinses nozzle 3 times and extends
for manual cleaning.
Elongated Type Round Type

12 13
•Place the catch plate on the
toilet with the arrows pointing
towards the toilet tank.
•Align the bolts guides over the
toilet bolt holes.
•Secure the catch plate to
the toilet by hand tightening
the bolts.
•Push it until you hear a “click.”
•When the product is not installed
well, it may cause leakage.
•Adjust as needed before
tightening bolts.
*Do not over tighten bolts
3. Fix the catch plate onto
the toilet.
4. Push the main body
towards the catch
plate completely.
INSTALLATION
1. Remove the seat from the
existing toilet body.
•Release the nuts, and
then remove the seat and
cover from it.
•Store the seat in a proper
place for future use.
•Turn off the water.
•Disconnect the existing
water hose.
•Attach the T-valve to the bottom
of the toilet.
•Connect the water hose to the
T-valve.
2. Install the T-valve.
Cone washer

14 15
Don’t plug the power cord with wet
hands. Risk of electric shock.
5. After installing the T-valve,
connect the supplied bidet
hose from the center of the
T-valve to the bidet.
6. Turn on the water and
check for leaks
7. Plug in and be sure that
the nozzle comes out and
retracts when powered on.
INSTALLATION (CONT.)

16 17
Caution Do not use old and new batteries together. This could cause damage
or failure of the remote control.
3. When the batteries have reached the end of service life, all
LEDs (5 points) will blink. Replace the batteries with new
AAA size x 2 pcs.
REMOTE INSTALLATION
1. Remove the adhesive
protection to attach the
remote control bracket to
the wall or other surface
2. Insert two “AAA” type
batteries (included) as
indicated inside the
battery compartment.
•Clean and dry the area
thoroughly before attaching
the bracket.
•Identify a location in the
bathroom for the remote control
that is visible and reachable from
the toilet.

18 19

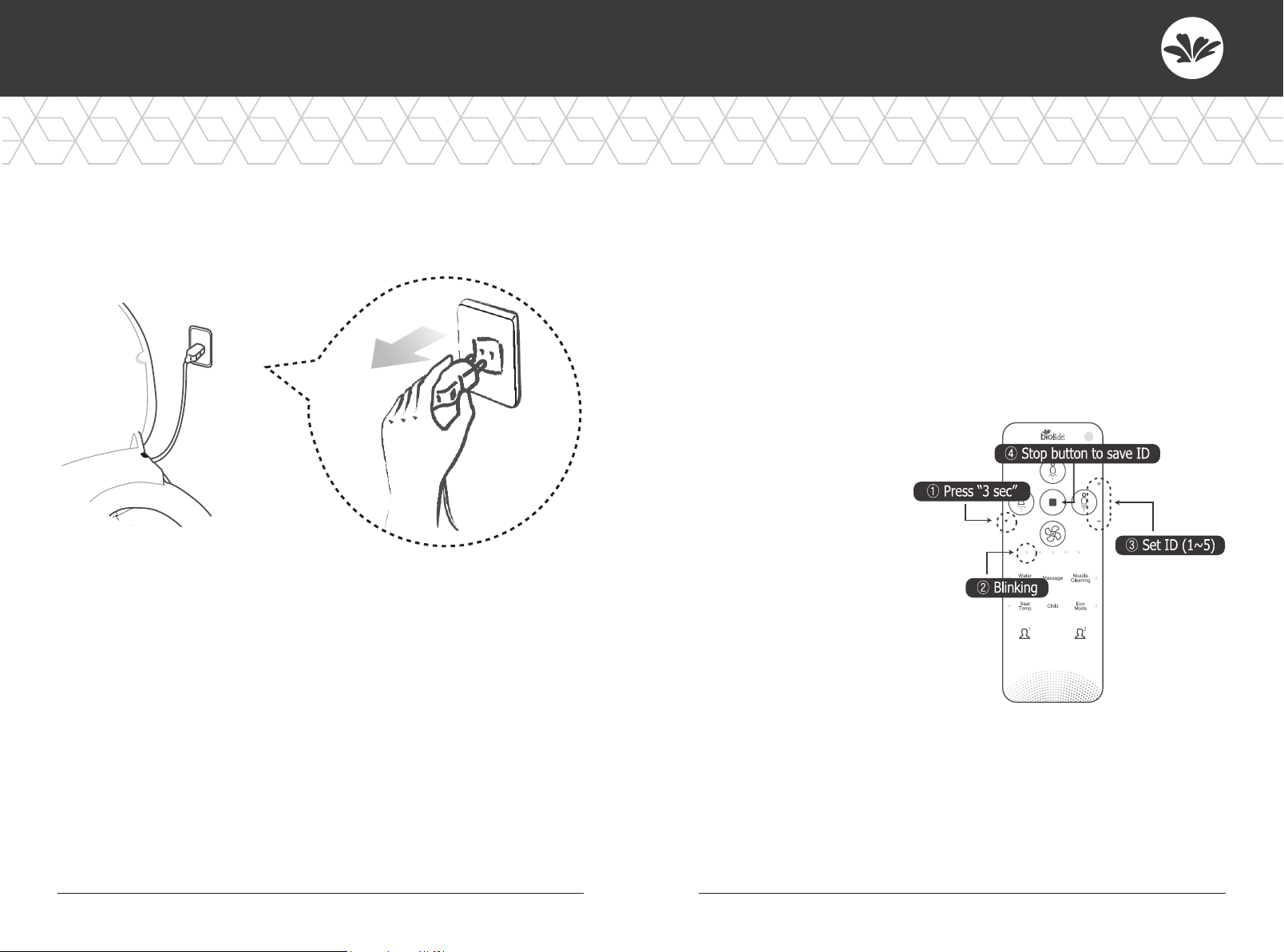

4. If the unit does not work after replacing the batteries, unplug
and wait for 3 seconds. Plug in again.
5. Remote Control ID Setting
ID setting is required to protect the remote signal interruption if more than one
bidet seat is installed at one place (public toilets)
•After replacing the batteries, ID of the unit will be initialized as “00”
(factory initialization) and its ID will be equalized ID of the remote control
that reaches the unit first. This ID assigning function will be needed to
prevent signal interruption of more than 2 units are used at one place. In
case of using one unit only, no setting is needed.
•If you want to change the ID, please refer to “Remote Control ID Setting”
•The remote should be located near by the main unit when ID is set.
•Default ID of remote is “0”
•In case of battery replacement, power resetting of main unit or
factory initialization, ID will be initialized, “0,” and setting process
should be done again.
1. Press Nozzle Control
“Down” for 3 seconds.
The indicator of
“Nozzle Cleaning”
blinks and the unit
is ready for ID setting.
2. Set the ID by pressing
Power Control “+” or “-”
(1~5 IDs available)
3. Press “Stop” to save
the ID. The main unit
will be synchronized
simultaneously.
REMOTE INSTALLATION (CONT.)

20 21
OPERATION
1. Sit on the toilet seat 2. Wash, Bidet, Turbo
•Be sure to sit on the seat sensor.
If the sensor is not occupied, all
functions will not operate.
•Skin to seat contact needs to
occur to activate the seat.
•Activate a cleansing
function by pressing the
corresponding button.
•When pressing the selected
function again, the nozzle will
oscillate back and forth to wash
a wider range.
•Press the button once again to
stop oscillate function.
•The specialized water
spray in Turbo function helps
relieve constipation.
3. Dry Temperature Control 4. Massage
•Dryer operates for 3 minutes.
•Dryer temperature is adjustable
by pressing “+” or “-” buttons.
(5 Levels).
•Dryer effect will be improved
if you wipe the moisture
lightly before operating the
drying function.
•When pressing the Massage
button during the operation of
Wash, Bidet, and Turbo, water
pressure will repeat high and low
for smooth pulsating wash.
•Pulse function will not
operate during the operation
of Sitz bath*
*See how to use in page 26

22 23
OPERATION (CONT.)
5. Child Function 6. Nozzle Position Control /
Water Pressure Control
•When selecting Child Function
settings adjust to low pressure.
•1 min Bidet - 30 sec Bidet
Oscillating - 30 sec Bidet Pulse
What it does
•Extra extended nozzle position
•Lower water pressure
•Lower seat temperature
•Lower water temperature
•Nozzle position is adjustable.
(5 positions)
•Water pressure is adjustable.
(5 positions)
•If the water or screen filters
become blocked, it may cause
low water pressure.
7. Stop 8. Seat/Water
Temperature Control
•All operations will stop.
•When pressing the stop button
for 3 seconds, unit will turn off.
•Press Stop, Wash, Bidet, or Turbo
to turn on.
•Seat/Water temperature is
adjustable (4 levels)
(Off - Low - Middle - High)
•To reduce the chance of low
temperature burns, the seat has
a safety feature that turns to low
temperature (35°C, 95°F) when
seat is occupied for more than 15
minutes consecutively.

24 25
OPERATION (CONT.)
9. Energy Saving Function 10. Nozzle Cleaning
•Automatic energy
saving mode.
This mode is activated by
pressing the Energy Saving
button until yellow LED lights up.
(Seat and water temperature will
be kept at 89°F)
•Powerful energy saving mode
This mode is activated by
pressing the Energy Saving
button until green LED lights up.
(Seat and water heater will be
kept off)
•Deactivated energy
saving mode
Press the Energy Saving button
until LED lamp turns off.
•When the unit is occupied, it
adjusts to the preset temperature
and it returns to the saving mode
when seat is unoccupied.
•If the seat and water temperature
are off they will remain off.
•When selecting Nozzle Cleaning
while not seated, the nozzle
cleans itself 3 times. The nozzle
extends and stops for manual
cleaning process.
•Clean the nozzle with a brush
and press STOP button after
completion of manual cleaning.
Then nozzle cleans itself for 3
times and retracts.
•NOZZLE CLEANING will
not operate if the seat
sensor is activated.
11. Night Light 12. Automatic Tank Draining
•Blue LED night light provides
enough brightness to see the
toilet without turning on the
bathroom light.
•Night light can be turned on and
off by pressing “+” for 3 seconds
while not seated.
•Night light setting cannot be
adjusted if seat sensor bypass
feature is activated.
•To protect from water
contamination, the water tank
will be drained (replaced) for 2
minutes if the seat is not used for
48 consecutive hours.
•This feature is deactivated from
the factory. To activate this
feature, press Stop and Water
Temp. button for 3 seconds.

26 27
OPERATION (CONT.)
13. Sitz Bath 14. Seat Sensor Bypass
•Wash or Bidet is switched to
Wash Sitz Bath or Bidet Sitz
Bath if Nozzle Cleaning button is
pressed during use.
•Water pressure is switched to 1st
level regardless of preset water
pressure settings and Sitz Bath
operates for 5 minutes.
•LED of Nozzle Cleansing turns on
during the operation of Sitz Bath.
•Select the Nozzle Cleaning
again to switch to normal
Wash or Bidet.
•The seat sensor can be activated
and deactivated by pressing
Massage button for 3 seconds.
•If the seat sensor is deactivated,
the unit works without occupying
the seat and select features*
cannot be controlled.
*Features: Night Light, Silent
mode, Nozzle cleaning.
15. Reset 16. User Preset
•Press and hold the Stop
button on the auxiliary panel
for 5 seconds.
•After 3 seconds, the seat
will power off. Keep
holding another 2 seconds
and the seat will power
back on. This completes the
factory reset process.
•Nozzle position, water pressure,
dry/water/seat temperature can
be preset and stored for 2
different users.
How to preset
1. Adjust nozzle, position,
water pressure,
dry/water/seat
temperature to
your preference.
2. Preset 1: Press Stop
button and “ ”
simultaneously for
3 seconds.
Preset 2: Press stop
button and “ ”
simultaneously for
3 seconds.
3. Press “Stop”
button or just
wait to complete.
Using the Preset Features
1. Press selected preset button
2. Preset nozzle position, water
pressure and temperatures will
be activated.

28 29
MAINTENANCE & CLEANING
1. Screen Filter Cleaning 2. Seat Cleaning
•Close the water valve.
•Disconnect the water supply
hose. Take the screen filter out
and clean it with a soft brush.
•Return the filter after
cleaning and reconnect
the water supply hose.
•Open the water valve.
•Exterior surface of unit is
made of plastic material,
which may be damaged by
scrubber, chemicals, etc.
•Wipe the surface with a soft
damp cloth. Do not spray water
directly onto the surface.
•Clean the body after removing
the power plug from the outlet.
Be sure no water splashes onto
the power plug or outlet.
•Be careful of not dropping any
chemical detergents or toilet
cleaner on the main body or
supply hose to avoid damage.
3. Extended Non-Use 4. Draining of Tank
•When the bidet seat is not being
used for an extended period of
time, unplug the unit and drain
the tank.
•Remove the power plug from
the outlet.
•Close the water feed valve.
•Press the release button and
gently pull to remove the unit
from the catch plate.
•Use a flat-head screwdriver to
open the drain plug.

30 31
SETTINGS
User settings with the remote control
No.
Function Seat
Status
Switch
Operation
Description Initial
Status
1Silent mode “-” for longer
than 3 seconds.
To turn on/off
the operating
chime sound.
ON
2Seat Sensor
Bypass
“Massage” for
longer than
3 seconds.
Seat sensor feature
will be deactivated
OFF
3Night Light “+” for longer
than 3 seconds.
To turn on/off the
night light.
ON
4Automatic
tank
draining
“ ” for longer
than 3 seconds.
Automatic tank
draining feature
will be deactivated.
OFF
Seat sensor “off” Seat sensor “on” Regardless of on/off
*The unit will work without sitting on the seat if the occupied seat sensor is
deactivated. (Turn off)
*If the seat sensor is deactivated, some features cannot be controlled. (Night
light on/off, silent mode on/off, and nozzle cleaning.)
User settings with the side control (auxiliary panel)
No.
Function Seat
Status
Switch
Operation
Description Initial
Status
1Factory
reset
Press and hold
the Stop button
for 5 seconds.
After 3 seconds,
the seat will power
off. Keep holding
another 2 seconds
and the seat will
power back on.
This completes
the factory
reset process.
ON
2Power off “ ” for longer
than 3 seconds.
Press one of Stop,
Wash, Bidet,
Intensive or Dry
to power on.

32 33
TROUBLESHOOTING GUIDE
Problem Check List
Completely out of order. •Check if the power plug is not connected.
•Check if the power supply or outlet
has failed.
Water does not spray out. •Check if the water supply is turned on.
•Check if the water valve is open.
•Check if the nozzle is blocked by
foreign material.
•Check if connection hose is bent.
Water pressure is low. •Check if screen filter is blocked and
clean if needed.
•Check if the water pressure is set at
too low level.
Water is not
warm enough.
•Check if its temperature is set at off or low
level, or economy mode.
Seat is not warm enough. •Check if its temperature is set at off or low
level, or economy mode.
Water tank is drained
intermittently.
•Check if the automatic water draining
feature activates.
Using inline carbon filter
Use of external water filters is only recommended in areas with known hard
water issues. If a filter is used, it must be replaced every 3 months. This
product is designed and intended for use exclusively with Bio Bidet water
filters. The purchase or use of any other water filter is not the responsibility
of BBC Innovation LLC. As such, any use of non Bio Bidet water filters is
prohibited and will void the warranty for those Bio Bidet products. Bio Bidet
will not be responsible for any resulting damages or claims related to the
misuse or distribution of non Bio Bidet filters.
SPECIFICATIONS
Item U770, U770R
Rated Voltage AC 120V, 60Hz
Max. Power Consumption 870W
Power cord length 1.2m
Water feed method Directly connects to water pipe
Recommended inlet water pressure 99~106.6 psi
Wash Feed
Volume
Wash 0.13~0.21 gal/min
Bidet 0.13~0.18 gal/min
Turbo 0.13~0.18 gal/min
Child 0.13~0.16 gal/min
Pressure 5 Levels
Temperature Control 4 Levels (off - low - middle - high)
Heater capacity 800W
Safety device Water level sensor, Thermal fuse, Bi-
metal, temperature sensor
Heated
Seat
Temperature control 4 levels (off - low- middle - high)
Heater capacity 55W
Safety device Thermal fuse
Dry Temperature control Room temp. ~ 122°F
Heater capacity 250W
Safety device Thermal fuse, Bi-metal
Feed water temp. tolerance range 37 ~ 95°F (recommended 54 ~ 95°F)
Usage room temp. tolerance range 37 ~ 95°F (recommended 50 ~ 95°F)
Dimension Elongated 15.9” (406) x 20.8” (528) x 7.0” (178)
Round 15.9” (406) x 19.5” (496) x 7.0” (178)
Weight
Net
weight
(Gross
weight)
Elongated 10.5 lb (15.2)
Round 10.2 lb (14.9)

34 35
WARRANTY
•We hereby guarantee the product as follows in accordance with the
regulation of consumer damage compensation.
•In case of product failure, please contact Bio Bidet
•Product warranty will be effective for one year from the date of purchase.
Regarding Product Warranty Regulation
•We will repair the product free of charge in case it fails under normal
operating circumstances in accordance with the user guide during the
warranty period.
•Although it is within the warranty period, we will charge the repair service
fee etc. (repair + parts + travel expense) if it falls under the following
cases:
Voiding Warranty
•Defects occurred from the user’s careless handling
•Defects occurred from usage with incorrect power voltage (E.g. 220V was
used to the 110V product.)
•Defects occurred from Force Majeure (fire, salt, flood, etc.)
•Failure or damage due to mishandling during operation after installed.
•Defect occurred from interior modification at user’s discretion.

Thank You
Technical Support/Customer Service
7900 S Route 31 Crystal Lake, IL 60014
T: 847.458.2334
U.S. TOLL FREE: 877.339.5214
[email protected]om
www.biobidet.com
