Bennett 3000 Series User manual

107932 Rev G 4-24-17
Bennett 1218 E. Pontaluna Road, Spring Lake, MI 49456
USA 800-235-7618 Outside USA 231-798-1310 [e-mail] www.bennettpump.com
READ THIS MANUAL
This manual has important information for safe installation and
operation of this equipment. Read and understand this manual
before applying power. Keep this manual and tell all service
personnel to read this manual. If you do not follow the
instructions, you can cause bodily injury, death or damage to
the equipment.
For new manuals visit our web page at:
http://www.bennettpump.com
Bennett 3000 Series Electronic
Commercial/Industrial Dispensers with 531 Electronics
Service Manual
Only Trained Personnel May Work on This Equipment
Includes Instructions For:
Standard 3700 Electronic Commercial/Industrial Dispensers
3700 Little Squirt - High Capacity Commercial/Industrial Dispensers
3700 Big Squirt - High Capacity Commercial/Industrial Dispensers
Remote Dispensers
and
Self-Contained Pumps

2107932 Rev G 4-24-17
Table of Contents
NOTICE
Not all equipment covered in this manual is listed by Underwriters Laboratories. Only those products that
bear the Listing Mark of Underwriters Laboratories are listed.
IMPORTANT
Examine the shipment immediately upon arrival to make certain there has been no damage or loss in transit.
Bennett Pump Company, as shipper, is not liable for the hazards of transportation. Please make damage claims
directly to the truck line.
Safety 3Motor Control 44
Introduction 4Cross Phasing - Diagram 45
Product Specifications 4Testing for Cross-Phasing 46
Features and Capabilities 4Master / Satellite Truck Stop Applications 47
Determining the Model Number 8 Master / Satellite Valve Control 48
The Pump Control Devices 9 Satellite Board 49
How to Operate the Dispenser 10 Jumper on the Satellite Board 50
How to Read Electronics Totals 11 Auxiliary Display 51
How to Read the Last Sale During a Power Failure 12 Backlighting 52
How to Prepare the Dispenser for Programming 12 Dual Phase Pulser 53
Dispenser Programming Instructions 13 Handle Switch 55
Dispenser Addressing Jumper Settings Chart 15 Connecting the Handle Switch 56
Modes of Operation 16 Two Stage Valve 57
How to View Dispenser Electronic Calibration 17 Testing a Valve 59
How to Program Mechanical Pulse Output 17 Error Codes 61
Setting the Jumpers on the Pulse Output Board 18 Troubleshooting 62
How to Mechanically Calibrate the SB-100 Meter 19 Electronically Calibrating the SB-100 Meter (E-Cal) 71
How to Electronically Calibrate the SB-100 & FPP Meters 20 Wiring Diagrams 73
Service Instructions 22 Audit Form 81
CPU System Block Diagram 24 Warranty Statement 84
System Operation - Overview 25 International Warranty Statement ...................................... 85
Turning the Power ON to the Dispenser 29
If System Looses Power 29
Battery Over-ride Switch 29
Testing the Battery 29
Normal Fueling Transaction 30
CPU Board 31
Power 32
Measuring Voltage 32
Test Points 32
Testing the System Fuse 32
RAM Clear Procedure 33
System Software 34
Connecting to the Barrier Circuit 34
Connecting to the Console 35
Connecting to the Pulse Output Board 36
Block Diagram 37
Connecting to a Tank Gauge 38
Setting the Jumpers on the Pulse Output Board 38
Pulse Ratio and Pulse Width 38
Handle Switch to Fleet System Signal 39
Pulse Output Test Circuit 40
Authorization Signal from the Fleet System 42

3107932 Rev G 4-24-17
DANGER: Fire, explosion, injury or death
will occur if fuel filters are changed by untrained
personnel. Make sure only trained personnel
change filters.
CAUTION: Do not drill holes in fuel
dispensers. Holes can cause failure of the
electronic equipment. The warranty will become
void. Use only adhesive backed sign mounting
brackets.
WARNING: When anchoring the
dispenser, always level the dispenser with shims
before bolting to the island. DO NOT shim just
the middle of the dispenser and bolt down.
WARNING: Make sure this equipment is
correctly grounded. Failure to do will cause
injury or damage equipment or improper
operation. Improper grounding voids the
warranty.
WARNING: You must have training in the
operation and programming of this dispenser
before using it. READ THE OPERATORS
MANUAL.
WARNING: The emergency shut-off valve
(also called the fire valve, shear valve or impact
valve) must be closed when service or
maintenance is performed on this equipment.
WARNING: Electronic components are
static sensitive. Use proper static precautions
(static straps) before working on the equipment.
WARNING: To prevent electric shock,
keep the electrical parts of the dispenser dry.
WARNING: You must have training in the
installation, service or maintenance of this
equipment (dispenser, pump, console, control
box or submerged pump) before working on it.
Maintenance repairs must be done by
authorized personnel only. Warranty work may
only be performed by Bennett certified
technicians.
DANGER: Disconnect all power to this
equipment and associated submerged pump(s)
during installation, service or any maintenance,
i.e., changing filters.
DANGER: Gasoline is flammable.
NO SMOKING OR OPEN FLAME.
DANGER: To prevent injury to you from
vehicles and onlookers, always place a barrier
around this equipment before performing service
or maintenance.
WARNING ADVERTISSEMENT ADVERTENCIA
For the safe installation of this equipment, read and understand all warning and cautions. Look for these
warnings:
“DANGER” means: If you do not follow the instructions, severe injury or death will occur.
“WARNING” means: If you do not follow the instructions, severe injury or death can occur.
“CAUTION” means: If you do not follow the instructions, damage can occur to the
equipment.
READ AND UNDERSTAND ALL WARNING LABELS ATTACHED TO THE DISPENSER
Safety Instructions

4107932 Rev G 4-24-17
All of the dispensers shown in this manual can be operated in the “Stand Alone” mode (no control
console), OR RS485 interface to a Fleet Management System where only volume data is recorded OR
Dual Phase Pulse Output to a Fleet Management System where only volume data is required.
AC Power Input, Electronic .............................................Universal Input 85-270 Volts A.C. 50/60 Hz.
DC Power Supply Outputs .............................................+5VDC 100mA Max, +12 VDC 100mA Max.
DC Power Supply Outputs ................................+24 VDC 1.0 Amps Max., +5VDC Isolated 50mA Max
Nickel-Cadmium Battery Output +10.8VDC, 40 Milliamp Hours
NOTE: Self-Contained dispenser motors are set at the factory at 115V.
ENVIRONMENTAL REQUIREMENTS
Operating Temperature Range: .......................................................-30°C to +50°C (-22°F to +122°F)
Humidity ................................................................................................................. 0-95% Condensing
DIMENSIONS
3700/3800 Series Low Hose (height, width, depth).......................................*60” H x 30” W x 20” D
3700/3800 Series High Hose (height, width, depth)......................................*88” H x 30” W x 20” D
*Without Valance.
1. A self-monitoring pulser will prevent product flow in the event of a malfunction.
2. 1” high LCD displays which are lighted from the back with high efficiency, low power LEDs for easier
viewing.
3. A +3.6 volt DC nickel-cadmium battery retains totals and programmed information in the RAM
memory during power failures for up to 10 days.
4. On board battery that maintains last sale information for 15 minutes in the event of power loss.
5. All units have conformal coated electronic boards to help protect them from moisture or foreign
material damage. All major electronic board assemblies are environmentally tested and
temperature cycled.
6. The dispenser meets or exceeds FCC Emission Standards and UL specifications.
7. Dispenser programming is done with jumpers on the CPU board.
Introduction
Features and Capabilities
Product Specifications

5107932 Rev G 4-24-17

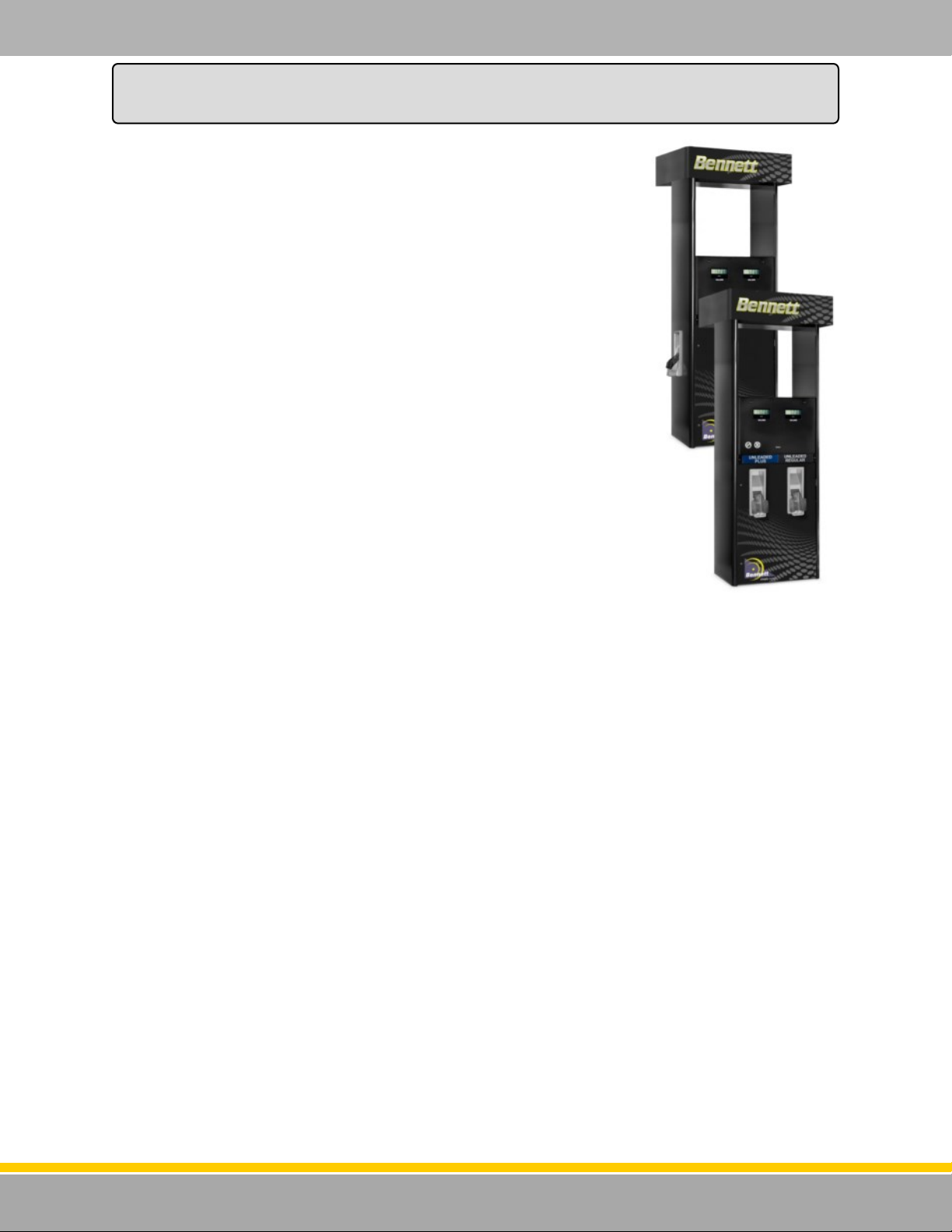

Standard Features
 Simple electronic computer
 Stand-alone or Interfaced to Control Device
 RS485 interface or dual pulse output
 Exclusive eCalTM (Electronic Calibration)
 Magnet activated totals display
 Programmable unit of measure for US
gallons, liters, or imperial gallons
 Operates from 115/230Vac, 60/50Hz, or
380 Vac, 50Hz
 Self contained (suction) models feature
standard 1-HP continuous duty motor(s)
 Back lit LCD displays
 Satellite Outlet Connection (except Quad)
 Self-contained (suction) models: single,
1-product twin, or 2-product twin
 Remote models: single, 1-product twin, or
2-product twin
 Quad “Active-4 hose” remote or suction
Construction
 Low Hose Cabinet Design or
 High Hose Cabinet Design
 Front or side mount nozzle boots
 Long-life cabinet construction using
galvaneal components and powder coated
panels
 Black end panels & top
 Black dial face covers
 Red lower doors (optional colors available)
 Hinged swing out lower door
 Hinged swing down upper door
 Heavy duty hose hook (optional internal
spring rewind retractor available)
Computer
 Simple single board design electronics.
Includes CPU, power, display, eCal, RS485
connection, electromechanical analog
totalizer, push-button programming
switches, wiring terminal strip
 LED Backlighting board for the LCD display
 Optical pulser
 Designed for temperature extremes—no
heaters or cooling fans required
 Long life, highly visible back lit LCD display,
1” (2.54cm) numerals
 Battery Backup for last sale recall during
power outage (required for resale of fuel)
 Simple 2-command protocol via RS485
interface to fleet management systems
supplies pump status, pulses, volume sale
& volumetotals
 Field wiring goes directly to terminal strip on
Computer (for new installations pull 72” of
wire above grade level)
 Transaction display of: 999.999 for gallons,
9999.99 for liters
Computer (cont’d)
 Electronic hose totals of:
 99999999.999 for gallons (8.3)
 999999999.99 for liters (9.2)
 Built-in diagnostics with error codes
Hydraulics
 Precision Bennett SB100 Meter, 4-piston,
positive displacement design
 Type 75 or type 75-HD Bennett sliding vane
pumping unit with integral vortex air
eliminator
 SB100 meter is electronically calibrated
(eCal). Mechanically calibrated meter is
optional.
 All remote units include built-in inlet check
valves to keep the hydraulics full and
prevent meter/pulser count-up when the
submersible pump pressurizes the system
 Remote units use replaceable paper filter
 Suction pumps use a reusable strainer
 All units feature 1” hose outlets with a
1”x3/4” reducer bushing
 1-1/2” ground joint union inlet
Options
 Programmable Dual Pulse Output Board to
interface to fleet management systems &
tank monitoring system if RS485 is not used
 2-Stage prepay/preset electric solenoid
valve for 1-product, 1-hose or 2-product, 2-
hose suction pumps. (valve is standard on
all other models)
 Internal spin-on filter & adapter for remote
models
 For high hose models: balance vapor coax
hose outlet & internal vapor return piping
 Healy active vapor system for high hose
 Subpump relay 3-phase contactor
 Intercom speaker for high hose models
 Brushed stainless steel lower doors
 Brushed stainless end panels
 Custom lower door colors and/or graphics
 Mechanical calibration dial for SB100 meter
 Hose clamp for 5/8”, 3/4”, or 1” I.D. hose
 Explosion proof junction box for lower
hydraulic area
 380 Volt 3-Phase Motors
 E85 alcohol blend compatibility option
 Internal hose retractor
 Strainer in lieu of filter w/ or w/o cloth sack
 Satellites (requires satellite board in master.
Order from service parts.)
GoPump-C 3K Marketing Specs Rev 2—102604
GoPump-C 3000 Electronic Dispensers Specification Sheet
Commercial/Industrial Volume Only Display
Units have been tested and
found to comply with the limits
for a Class A computing device
in accordance with Subpart J of
Part 15 of FCC Rules regarding
radio frequency interference.
For information on flow rates,
motor sizes, and model
configurations see our Model
Configuration Chart &
Specification Sheet
ULTM listed
Certified for resale applications.
The N.T.E.P. Certificate of
Conformance is available upon
request
Specifications in this document
are subject to change without
notice.

6107932 Rev G 4-24-17
Standard Features
 Simple electronic computer
 Stand-alone or Interfaced to Control Device
 Retail Version: RS485 interface or current
loop or dual pulse output
 Commercial/Industrial Version: RS485
interface or dual pulse output
 Exclusive eCalTM (Electronic Calibration)
 Magnet activated totals display
 Programmable unit of measure for US
gallons, liters, or imperial gallons
 Operates from 115/230Vac, 60/50Hz, or
380 Vac, 50Hz
 Back lit LCD displays
 Satellite Outlet Connection
 Remote dispensers only
 Single Master, dual master, or master/
satellite combination
 Field configurable for single point or
simultaneous master & satellite fueling
Construction
 Low Hose Cabinet Design or
 High Hose Cabinet Design
 Front or side mount nozzle boots
 Heavy duty lift-to-start nozzle boots
 Long-life cabinet construction using
galvaneal components and powder coated
panels
 Black end panels & top
 Black dial face covers
 Green lower doors (optional colors
available)
 Hinged swing out lower door
 Hinged swing down upper door
 Heavy duty hose hook
Computer
 Simple single board design electronics.
Includes CPU, power, display, eCal, RS485
connection, electromechanical analog
totalizer, push-button programming
switches, wiring terminal strip
 LED Backlighting board for the LCD display
 Optical pulser
 Designed for temperature extremes—no
heaters or cooling fans required
 Long life, highly visible back lit LCD display,
1” (2.54cm) numerals
 Battery Backup for last sale recall during
power outage (required for resale of fuel)
 Simple 2-command protocol via RS485
interface to fleet management systems
supplies pump status, pulses, volume sale
and volume totals
Computer (cont’d)
 Field wiring goes directly to terminal strip on
Computer (for new installations pull 72” of
wire above grade level)
 Transaction display of: 999.999 for gallons,
9999.99 for liters
 Electronic hose totals of:
 99999999.999 for gallons (8.3)
 999999999.99 for liters (9.2)
 Built-in diagnostics with error codes
Hydraulics
 Rotary meter rated at 60gpm maximum
 Built-in inlet check valves to keep the
hydraulics full and prevent meter/pulser
count-up when the submersible pump
pressurizes the system
 1-1/2” 2-Stage prepay/preset electric
solenoid valve
 Metal Y-strainer
 1-1/4” elbow hose outlet(s) with 1-1/4” x 1”
reducer bushing
 1-1/2” ground joint union inlet.
Options
 Programmable Dual Pulse Output Board to
interface to fleet management systems &
tank monitoring system if RS485 is not used
 2-Stage prepay/preset electric solenoid
valve for 1-product, 1-hose or 2-product, 2-
hose suction pumps. (valve is standard on
all other models)
 Subpump relay 3-phase contactor
 Intercom speaker for high hose models
 Explosion proof junction box for lower
hydraulic area
 Brushed stainless steel lower doors
 Brushed stainless end panels
 Custom lower door colors and/or graphics
 Hoses, nozzles, swivels
 Satellite-in-use light
 Satellites (requires satellite board in master.
Order from service parts)
Big Squirt 3K Marketing Specs Rev 2—102604
Big Squirt 3000 Electronic Dispensers Specification Sheet
Commercial/Industrial Volume Only Display
Units have been tested and
found to comply with the limits
for a Class A computing device
in accordance with Subpart J of
Part 15 of FCC Rules regarding
radio frequency interference.
For information on flow rates,
motor sizes, and model
configurations see our Model
Configuration Chart &
Specification Sheet
ULTM listed
Certified for resale applications.
The N.T.E.P. Certificate of
Conformance is available upon
request
Specifications in this document
are subject to change without
notice.

7107932 Rev G 4-24-17
Standard Features
 Simple electronic computer
 Stand-alone or Interfaced to Control Device
 Retail Version: RS485 interface or current
loop or dual pulse output
 Commercial/Industrial Version: RS485
interface or dual pulse output
 Exclusive eCalTM (Electronic Calibration)
 Magnet activated totals display
 Programmable unit of measure for US
gallons, liters, or imperial gallons
 Operates from 115/230Vac, 60/50Hz, or
380 Vac, 50Hz
 Back lit LCD displays
 Satellite Outlet Connection
 Remote dispensers only
 Single Master, dual master, or master/
satellite combination
 Field configurable for single point or
simultaneous master & satellite fueling
Construction
 Low Hose Cabinet Design or
 High Hose Cabinet Design
 Front or side mount nozzle boots
 Heavy duty lift-to-start nozzle boots
 Long-life cabinet construction using
galvaneal components and powder coated
panels
 Black end panels & top
 Black dial face covers
 Green lower doors (optional colors
available)
 Hinged swing out lower door
 Hinged swing down upper door
 Heavy duty hose hook
Computer
 Simple single board design electronics.
Includes CPU, power, display, eCal, RS485
connection, electromechanical analog
totalizer, push-button programming
switches, wiring terminal strip
 LED Backlighting board for the LCD display
 Optical pulser
 Designed for temperature extremes—no
heaters or cooling fans required
 Long life, highly visible back lit LCD display,
1” (2.54cm) numerals
 Battery Backup for last sale recall during
power outage (required for resale of fuel)
 Simple 2-command protocol via RS485
interface to fleet management systems
supplies pump status, pulses, volume sale
and volume totals
Computer (cont’d)
 Simple 2-command protocol via RS485
interface to fleet management systems
supplies pump status, pulses, volume sale
and volume totals
 Field wiring goes directly to terminal strip on
Computer (for new installations pull 72” of
wire above grade level)
 Transaction display of: 999.999 for gallons,
9999.99 for liters
 Electronic hose totals of:
 99999999.999 for gallons (8.3)
 999999999.99 for liters (9.2)
 Built-in diagnostics with error codes
Hydraulics
 Rotary meter rated at 40gpm maximum
 1” 2-Stage prepay/preset electric solenoid
valve for Remote models (optional on
Suction models)
 Built-in inlet check valves to keep the
hydraulics full and prevent meter/pulser
count-up when the submersible pump
pressurizes the system
 Metal Y-strainer
 1” elbow hose outlet(s)
 1-1/2” ground joint union inlet
Options
 Programmable Dual Pulse Output Board to
interface to fleet management systems &
tank monitoring system if RS485 is not used
 1” 2-Stage prepay/preset electric solenoid
valve for 1-product, 1-hose Suction model.
(valve is standard on all other models)
 Subpump relay 3-phase contactor
 Intercom speaker for high hose models
 Explosion proof junction box for lower
hydraulic area
 Brushed stainless steel lower doors
 Brushed stainless end panels
 Custom lower door colors and/or graphics
 Hoses, nozzles, swivels
 Satellite-in-use light
 Satellites (requires satellite board in master.
Order from service parts)
Little Squirt 3K Marketing Specs Rev 2—102604
Little Squirt 3000 Electronic Dispensers Specification Sheet
Commercial/Industrial Volume Only Display
Units have been tested and
found to comply with the limits
for a Class A computing device
in accordance with Subpart J of
Part 15 of FCC Rules regarding
radio frequency interference.
For information on flow rates,
motor sizes, and model
configurations see our Model
Configuration Chart &
Specification Sheet
ULTM listed
Certified for resale applications.
The N.T.E.P. Certificate of
Conformance is available upon
request
Specifications in this document
are subject to change without
notice.

8107932 Rev G 4-24-17
Determine the model number of the dispenser from the serial plate located on the dispenser. Utilizing
the chart below determine the features of the dispenser to be installed. Understanding the features of
the dispenser to be installed will be helpful in understanding the proper installation of the dispenser.
How a Model for the 3700 Series Dispensers is Made Up.
Pump Mod-
el Retail Commercial Electronics Flow Rate # Products # Hoses Motor
See Note 1 See Note 2
3711 X531 Package All 11
3712 X531 All 12
3722 X531 All 22
3724 X531 All 24
Note 1 - Flow Rate -
Standard - *23gpm (Remote) , 15 gpm (Self Contained)
Heavy Duty Suction - 24 gpm
Little Squirt - 35 gpm (nominal with one hose active, 40 gpm total with Master and Satellite in
simultaneous flow ) with 1” valve (remote or suction).
Big Squirt - 35 gpm (nominal with one hose active, 60 gpm total with Master and Satellite in
simultaneous flow) with 1-1/2” valve (remote only).
*Flow rates are “nominal” (under ideal test conditions without accounting for system restrictions
such as hanging hardware. Actual flow rates will vary depending on conditions of installation.
Note 2 - Motor -The hydraulic arrangement can be as follows-
Remote (submerged pump)
Suction with Standard 1 phase 115/230 VAC 50/60 Hz.
Suction with 1 phase 115/230 VAC 50/60 Hz with prepay valves.
Suction with 3 phase 380 VAC 50 HZ.
Suction with 3 phase 380 VAC with pre-pay valves.
Determining the Model Number

9107932 Rev G 4-24-17
Fig. 5 -
Electromechanical Totalizer
Fig. 6 - Lift Lever Start
Fig. 4 - Key Locks
Fig. 3 - Last Sale
Fig. 1 - Error Message
Fig.2 - Power Fail Message
The Error Messages. See Figure 1.
When an error message appears, there is a fault condition in the
dispenser. If the problem persists, contact your local service provider.
NOTE: When an error message appears the error message can be
reset by turning the pump handle on and back off.
The Power Failure Message. See Figure 2.
The Power Fail message occurs whenever the power has been
interrupted or turned off to the dispenser. If the power is turned off and
the P Fail message does not appear, the charge is low on the 12-volt
battery. Recharge or replace the battery. Failure to replace the battery
could result in loss of dispenser electronic totals and stand alone
operating data.
The Last Sale Recall Switch. See Figure 3.
The last sale will alternate with the power fail message for 15 minutes
after the dispenser has lost power. After 15 minutes the dispenser
display will go blank.
The Electronic Door Key Locks. See Figure 4
The key locks for the electronic door are located on either outside top
edge of the door. The Key locks for the lower door of the 3000 Series
are located on the left side (top and bottom) of the lower door panel. A
key is shipped with each dispenser. The same key is used for all the
locks.
To lock the upper door, insert the key in one of the locks and turn
clockwise until it stops. Repeat this step for the other lock. To lock the
lower door, turn the key clockwise until it stops in one of the locks.
Repeat this step for the other lock. To unlock either door, turn the key
counterclockwise until it stops.
The upper door swings down on bottom hinges and the lower door
swings out on right hand hinges.
The Electro-Mechanical Totalizers. See Figure 5.
The electro-mechanical totalizers are located below the main display.
The total is cumulative and reads in whole unit (gallon or liter)
increments.
The Pump Handle. See Figure 6.
(Lift Lever Operation)
The pump handles are located on the front or side of the dispenser. To
operate the dispenser, remove the nozzle from the holder and lift the
pump handle up for the ON position. Push the pump handle down for
the OFF position. These are referred to as “Lift to Start nozzle” boots.
See figure 6.
Pump Control Devices

10 107932 Rev G 4-24-17
How to Dispense Fuel - See Figure 1.
To dispense fuel, follow this procedure:
1. Remove the nozzle from the holder.
2. Lift the handle to the ON position. See Figure 1. Note: be sure the
pump is authorized by the console or is in stand alone.
3. Wait for the displays to go to all 8’s and then all 0’s. This is called
the “reset”.
4. Squeeze the nozzle trigger to dispense fuel into the vehicle or
approved container. See Figure 2.
5. Release the nozzle trigger when the desired amount of fuel has
been dispensed.
6. Lower the handle to the OFF position.
7. Put the nozzle in the holder.
If the dispenser stops during the delivery of fuel, check the display for
an error code. If one is present, refer to the section in this manual
entitled “How to Use Diagnostics”.
How to Read the Electro-Mechanical Totalizer
The dispenser is equipped with an electro-mechanical totalizer for each
hose which records the volume dispensed for each sale. The volume
recorded is an accumulative total that cannot be reset. The electro-
mechanical totalizers are located at the top of the main display aligned
below the main display. The total is cumulative and reads in whole unit
(gallon or liter) increments. See Figure 3.
Note: Because of rounding methods used and the nature of
electronic totals versus an analog device such as an electro-mechanical
totalizer, electronic totals and electro-mechanical totals will rarely match
exactly.
The explanations given in the menus listed in this section are intended
for use by the operator, manager or service technician.
Fig. 1 - Lift the lever
Fig. 3 - Mechanical Totalizer
Fig. 2 - Begin fueling.
How to Operate the Dispenser

11 107932 Rev G 4-24-17
Magnet
Fig. 3 - On a commercial / industrial
dispenser, only volume totals are
displayed. The display shows current
electronic volume for 10 seconds and
then returns to the normal display.
Fig. 2 - The display will show the
current money electronic total (Retail
system only) for 10 seconds. Then the
volume electronic total will be
displayed. See Fig. 3
Fig. 1 - Although this example shows a
retail dispenser, the commercial works
the same way. Place a magnet in the
upper right area of the display as
shown.
How to Display Electronic Totals - To display electronic totals on the
3000 series commercial dispenser you must use a magnet. See figure
1.
Using a magnet, place the magnet on the right edge of the (Money /
Volume) display window. The magnet activates the electronic totals
display and the Audit Trail. The magnet activates a switch on the CPU
and the money and volume totals will be displayed along with an audit
report for 30 seconds.
Note - The nozzle lever must be in the “Off” position while accessing
electronic totals.
How to read the Electronic Totals - See Figures 1,2, and 3. When a
magnet is used to display the electronic totals, the first total displayed
will be “Money” totals (Only in a retail dispenser. Since this is a
“Commercial/Industrial” dispenser, money will NOT be displayed. This
example does show a retail dispenser. In this case the top row shows
the 6 most significant digits and the lower row shows the least most
significant digits. This example shows a total of $666,674,638.90 for
this hose / product).
After displaying the money total for 10 seconds, the display shows
“Volume” totals. This example shows 66,670,709.149 (gallons or
volume units). After several seconds, the display returns to normal.
How to Operate the Dispenser

12 107932 Rev G 4-24-17
Fig. 6 - After 15 minutes (or when the
battery over ride is pressed, the
display goes blank.
Fig. 4 - Last sale volume display
Fig. 5 - Power Fail Message
How to Read Last Sale During a Power Failure
If an A.C. power failure occurs, the dispenser will display the last sale in
progress at the time of the failure. This display will alternate with the
“Power Fail Message” (PPPPPP). This will continue for 15 minutes after
the dispenser has lost power. If power is returned, the display will go
back to it’s normal display.
NOTE: The battery will display data for 15 minutes.
Example : The customer is dispensing fuel and the dispenser / site
loses power. The customer has pumped 27.019 gallons to this point.
See Figure 4. At this point the dispenser valve closes and the customer
cannot continue fueling. The display will continue to alternate between
showing the amount (along with the volume amount) and the Power Fail
message for 15 minutes or until the battery over ride switch is pressed.
After the 15 minutes if power is still out, the display goes blank until
power is returned.
How to Prepare the Dispenser for Programming
How to Prepare the Dispenser for Programming
NOTE: When a control console is used, some of the functions can be programmed and are
downloaded to the dispenser from the console. Examples are maximum delivery and slow flow
offset.
Setting the jumpers on the CPU board - The 3000 commercial electronic dispenser has a very simple
programming procedure. There is a 9 position jumper header labeled JP1 that will be used for
programming the hose position. See
Figures 1 & 2.
Programming the Commercial 3700
series is done using “jumpers”.
Refer to the information on the
following pages to program each hose
position.
Fig. 1 - Jumper header Jp1 is located
on the upper right corner of the CPU
board.
Fig. 2 - Jumpers must be set with pow-
er turned OFF to the dispenser.

13 107932 Rev G 4-24-17
Dispenser Programming - CPU Board Jumper Configuration
The 3700 series dispensers are programmed using “jumpers” or “shunts”. The jumper header JP1 is a
9 position header and is located on the top right corner on the back of the CPU/Board. This jumper
header is used to program the dispenser. Jumper configuration changes may be required on the
CPU circuit board at the site. See the chart below for a quick reference of what the jumpers do. See the
next page for an explanation of each jumper setting.
The 3700 Series can operate in two different modes, Console or Stand Alone, which must be defined
by setting a jumper on the CPU board:
RS485 Mode - RS485 mode allows the 3700 Series to imitate a mechanical pump and interface to a
Fleet System in conjunction with a Pulse Output Board. For this type of interface, a separate “pulse
output” board must be ordered with the system and the RS485 mode must be selected. So, to put the
system into “RS485 Mode” you would install a Pulse Output Board and select the RS485 Mode with the
jumper. The field wires between the Fleet System and the dispenser would be connected to the Pulse
Output Board. This board would be used to output pulse data, handle switch status information and
would receive authorization signals from the Fleet System. When setting the system up to imitate a
mechanical dispenser, select RS485 mode. See the following section.
RS485 Mode—Setting Jumpers
The 3700 Series is shipped from the factory configured for the RS485 mode of operation. In the
“RS485” mode, the 3700 electronic commercial dispenser can communicate with any console that can
communicate using RS485 communication. It is also set for RS485 when using the Pulse Output board.
When in the “RS485” mode, after the handle is lifted, the dispenser must receive the “authorization”
command from the console or controlling device before the dispenser resets and begins the sale.
Jumper Header JP1 is a 9 position jumper header. Position 5 is for setting the dispenser in the RS485
or Stand Alone mode. Placing the jumper across the pins on position 5 puts the dispenser in RS485
mode.
This jumper configures the CPU for RS485 output on TS1 (Field wire connection to the Console).
TS1-7 = DATA (–)
TS1- 6 = DATA (Common)
TS1 - 5 = Data (+)
JP1-1 through JP1-4 - Fueling Point
Address .
See Next Page.
JP1-5 - RS485 or Stand Alone Mode
Open - Stand Alone
JP1-6 - Suction Pump Motor Delay
Open—No Delay
JP1-7 - Leak Detector Pre-charge
Open - 3 second delay
JP1-8 - Imperial Gallons
Open - Gallons
JP1-9 - Units
Open - Gallons
Jumper Header JP1
is located on the top
right of the back of
the CPU / Control
board. This board is
mounted to the
upper door. It has 9
positions. Jumpers
should be set with
dispenser power off.
The jumper settings
are only read on
“power up”.
CPU Jumper Header JP1 is used to
program the dispenser

14 107932 Rev G 4-24-17
Dispenser Programming - CPU Board Jumper Configuration
Stand Alone Mode - Setting Jumpers
In the Stand Alone mode, the dispenser does not require an outside “authorization” signal from any
console or control unit. When the handle is lifted, the dispenser “authorizes” itself and the dispenser
resets and the sale begins.
Jumper Header JP1 is a 9 pin jumper header. Position 5 is for putting the dispenser in the “Stand
Alone” or “Console” mode. Removing the jumper from JP1 position 5 puts the dispenser in the Stand
Alone mode.
Setting the jumpers— The jumpers should be set with power off and are only “read” at boot-up (power
up).
WARNING - DO NOT SET OR REMOVE JUMPERS WITH DISPENSER POWER TURNED ON!
DAMAGE TO THE DISPENSER MAY RESULT. ALWAYS MAKE SURE DISPENSER POWER IS OFF
WHEN ADDING OR REMOVING JUMPERS!
The 9 position Jumper Header is located on the CPU board. It is used to set the hose position address
and to program the dispenser.
Jumper positions 1 - 4 - (Fueling Point Address - Up to 16 fueling position addresses). Use jumper
positions 1 through 4 to set the dispenser address. Normally, Bennett pumps do not need an address
set when using current loop communications, but, with this RS 485 style communication, an address
must be set for the 3rd party device or console to know which fueling point it is talking to. The first four
rows of pins ( on jumper header JP1) represent a binary number whose greatest value is 16 ( or 0-15 if
you prefer). The fueling point address must be set to identify each hose position / fueling point using
these jumpers. See the chart on the next page for details on how to set the address for a specific fueling
point number using the jumpers on the first four rows of jumper header JP-1.
Jumper position 5 - Console or Stand Alone -
In - RS485 Mode - Use this when communicating with a RS485 console or when you have a pulse
output board to a Fleet System.
Out - Stand Alone
Jumper Position 6 - Motor delay (suction pumps without valves). This function allows a 2 second delay
preventing the dispenser from turning on immediately when the pump handle is lifted. This would be
used on a dispenser with self contained pumps and no valves. You would set the dispenser for the two
second delay so that the motor does not come on immediately when the handle is turned on allowing the
dispenser to pump through a hose without a valve before the dispenser resets.
In - 2 second delay
Out - No Delay
Jumper Position 7 - Leak Detector Pre-charge - This function allows the system to energize the
submerged pump pressurizing the line to check for leaks before the valve opens. The jumper should be
out in most cases unless the leak detectors routinely trip (very slow flow from the nozzle - then use 6
seconds).
In - 6 seconds
Out - 3 seconds
Jumper Position 8 - Imperial Gallons
In - Imperial Gallons
Out - Gallons
Jumper Position 9 - Units
In - Liters
Out - Gallons

15 107932 Rev G 4-24-17
Dispenser Programming - CPU Board Jumper Configuration
Row 1
Row 2
Row 3
Row 4
Address 1 - No Jumpers
Address 12 Address 16Address 15Address 14Address 13
Address 6Address 5Address 4Address 3Address 2
Address 7 Address 8 Address 9 Address 10 Address 11
Setting the Fueling Point Address using jumpers on
jumper header JP1 top right corner of the CPU/Control
Board. The dark line indicates the shunt jumper
installed.
Jumper Header JP1 on the CPU board is used to program the dispenser and to set the hose position
address. The first 4 rows are used to set the hose position address. Addresses from 1 - 16 are available.
Here is how to set the address using the first four rows of the Jumper Header.
Figure 11 - Jumpers 1 through 4. Setting the Fueling Point Address.
JP1 header - First four rows - Top of Board

16 107932 Rev G 4-24-17
Modes of Operation
Dual Product Dispenser
Dual Product Dispenser
Address 1
Address 4 Address 3
Address 2
(common)
(+)
(-)
(-)
(+)
(common)
RS485 Communication for Fleet
Management System
RS485 communication uses 3 wire to
the first CPU in the dispenser and
daisy chains to any other cup's in that
same dispenser. This is for Fleet Sys-
tems that use RS485 communication.
So, each CPU must be programmed
with a unique address in mode 22. In
this case, each CPU was programmed
with a different address so that the
console knows which one it is talking
to. Single CPU dispenser address the
CPU with 1.
A Dual CPU dispenser you will ad-
dress side 1 with address 1 and side 2
with address 2. A “Quad” or 4 CPU
dispenser will have addresses 1, 2, 3,
and 4.
Side 1
Side 2
CPU
CPU
Pulse Output Bd.
Address 2 Address 1
Fleet System
Fleet System Communication
Pulse Output As an alternative, with a Fleet System,
the dispenser has a Pulse Output
board. This board is field wired to the
Fleet System. This board also
connects to up to 2 CPU ’s in the
dispenser. It talks to the CPU ’s using
RS485 communication. Therefore,
mode 21 should be set for RS485.
Also, when using RS485 you must
give each CPU an address so that the
Pulse Output board knows which one
it is talking to. So, when using a Pulse
output board with a Fleet System,
address side 1 with address 1 and
side 2 with address 2 always. A Dual
CPU dispenser you will address side 1
with address 1 and side 2 with
address 2. A “Quad” or 4 CPU
dispenser will have addresses 1, 2, 3,
and 4. 1&2 will be connected to the
first pulse output board and 3&4 will
be connected to the second pulse
output board.
Figure 2
Figure 1
Dual Product Dispenser
RS485 Fleet System
Pulse Output
Pulse Output
Tank Monitor
There are two basic modes of operation. Console (RS485) OR Stand Alone. In console, (and it really
means Fleet System) you must be connected to a console (Fleet System) that communicates using
RS485 protocol. OR, you have a pulse output board and connect to the Fleet System using the pulse
output type communication.
In Stand Alone, the dispenser is usually not connected to any console of any type. In Stand Alone, the
dispenser authorizes itself.
The diagrams below show the different types of “Console” mode block diagrams. This means that in
either case, the jumper should be set across JP1 position 5 to put the hose position in the “Console”
mode.

17 107932 Rev G 4-24-17
The 3000 Series retail dispenser can come with one of two types of
meters. The Bennett SB-100 or the High Flow Electronic Meter. The
Bennett SB-100 meter comes with either the mechanical adjuster which
means Electronic Calibration is not used and is calibrated the traditional
way, or without the adjuster which means the meter must be calibrated
electronically through a sealed switch. The High Flow meter can only be
calibrated electronically. Electronic Calibration is standard with the SB-
100 meter and the High Flow meter. The SB-100 meter can be
purchased with the optional mechanical calibration feature.
Since there are no Menu Codes, you can only view the current e-cal
setting by activating (turning “On”) the e-cal switch. See Figure 1. To do
this, you must unlock the upper dispenser door and lower the door.
Then, break the seal on the e-cal switch and remove the seal. Then,
turn the switch on. The current setting is displayed on the display. See
Figure 2 for an example. If calibration must be done on the meter see
the Electronic Calibration Section of this manual.
Note:
If the dispenser is not equipped with the electronic calibration
feature the display will have a value 0.00 for calibration (this will
never change). If the dispenser is equipped with electronic calibration the factory will do an initial
calibration of the meter. The initial calibration value will be displayed. Before start-up each meter
must be re-calibrated at the site.
There is no menu code for pulse output on the 3000 series dispenser. Instead, a Pulse Output board is
used that allows the dispenser to be connected to a Fleet System like a mechanical dispenser. The
dispenser will generate pulse and handle signals to the Fleet System. There are jumpers on this Pulse
Output Board which determine what the pulse rate will be and what the pulse width will be. This Pulse
Output board is capable of sending out pulses at the following ratios:
1:1
10:1
100:1
1000:1
Also, the pulse width selections can be set with jumpers for selections as follows:
.5 milliseconds
1 millisecond
2 millisecond
4 millisecond
8 millisecond
16 millisecond
32 millisecond
64 millisecond
Also, when using a Pulse Output board, the dispenser should be programmed for RS485 communication
(mode 21).
See the information on the following page that describes how to set up the Pulse Output Board for use
with a 3rd party Fleet System.
Fig. 2 - The current electronic
calibration setting is shown in
the display window.
Fig. 1 - Turning on the E-cal
switch to view the current
setting.
How to View a Dispenser’s Electronic Calibration
How to Program the Mechanical Pulse Output

18 107932 Rev G 4-24-17
Setting the Jumpers on the Pulse Output Board
The Pulse Output board is ordered as an option with the 3000 series. This board is where the field wires
connect the 3rd party Fleet System to the Pulse Output functions of the dispenser. This board also has
jumpers that need to be set to determine the Pulse Rate and the Pulse Width. Whatever pulse rate is set
will send the same pulse rate and width to both the Fleet System and the Tank Gauge (if one is
connected). This section describes how to set these jumpers. Refer to the Figures below:
This is the Pulse Output Board. It has the terminal
strips for the field wire connections along the bottom
of the board to communicate with the Fleet System
using a pump handle output signal, an authorize
input signal and a pulse train signal. The Jumper
Header JP1 is at the top left of the board. These
jumpers must be set to determine the pulse rate and
the pulse width. See information below.
The top left of the Pulse Output board has a
jumper header called JP1. It has 8 jumper
positions. You can set the Pulse Rate with the
first two jumpers and the Pulse Width with the
3rd, 4th and 5th. See information below.
To set the Pulse Rate Output, set jumpers JP1-1 and JP1-2 as follows:
JP1-1JP1-2Pulses Per Gallon Pulses per Liter
OUT OUT 1000 100
IN OUT 100 10
OUT IN 10 1
IN IN 11/10TH
To set Pulse Width, set jumpers JP1-3, JP1-4, JP1-5 as follows (PULSE WIDTH’S ARE IN
MILISECONDS):
JP1-3JP1-4JP1-5Pulse Width Pulses Per Minute
OUT OUT OUT .5 ms 60000
IN OUT OUT 1 ms 30000
OUT IN OUT 2 ms 15000
IN IN OUT 4 ms 7500
OUT OUT IN 8 ms 3750
IN OUT IN 16 ms 1875
OUT IN IN 32 ms 9378
IN IN IN 64 ms 467
JP1-1,2,3,4,and 5 are used to set the pulse rate and pulse width.
JP2 is currently not used.

19 107932 Rev G 4-24-17
The Bennett SB-100 Meter is built to maintain accurate measurement under normal operating
conditions. The meter is a positive displacement device with rods and pistons, which require a break in
period. The meter is calibrated at the factory using a solvent for safety purposes, and must be
calibrated after it has been installed. We strongly suggest recalibration of the meter after a 90 day break
in period.
With the 3700 series electronic dispenser, mechanical calibration is optional. The standard 3700 is
calibrated electronically. That means that the meter in the dispenser that you have may not be able to
be calibrated mechanically (it will not have a mechanical calibration wheel). If the meter on the dispenser
that you have does not have the mechanical calibration wheel on it, you have the electronic calibration
option. Go to the next section in this manual that explains how to perform an electronic calibration.
Example 1
1. A fast flow test at 11 GPM shows a +3 cu. in.
reading in a five gallon test measure.
2. Remove the existing seal and pin and turn the
dial clockwise (-)five minimum adjustments
(half holes) and reinsert the pin.
3 cu. in. = 5 half holes (-)CW
.6 cu. in./adjustment
3. Test and reseal.
Each SB-100 meter is provided with the following
calibration information:
 The dial adjusting cover has (+) and (-) arrows
to indicate the correct direction to rotate the
dial to either increase or decrease delivery.
 A self-adhesive metal label listing the minimum
incremental adjustment is attached to the
collector housing immediately above the
adjusting dial.
The dial cover has two pin hubs, one to the left of
the shaft and one to the right. The seal pin may be
inserted in either hub. See Figure 21. The
smallest adjustment (.6 cu. in.) occurs when the pin
is pulled from one side and inserted in the other
side by moving the dial the least amount or half a
hole. A 1.2 cu. in. adjustment is made by pulling
the pin and turning the dial until the next adjacent
hole aligns with the same hub and reinserting the
pin.
To calibrate the meter, follow this procedure:
1. Measure the actual delivery of the meter at fast
flow in an accurate test measure. Dispense a
minimum of 5 gallons (20 liters).
2. Cut and remove the existing seal wires and
remove the seal pin. See Figure 22.
3. Turn the dial the necessary amount in the (+)
or (-) direction to increase or decrease the
quantity of fuel delivered.
4. Re-insert the seal pin in the desired pin hub.
5. Dispense 5 gallons (20 liters) of fuel to allow
the meter to adjust to the new settings. Do not
make any adjustments based on this delivery.
6. Make sure the meter is properly calibrated.
Dispense another 5 gallons (20 liters) of fuel
into an official test measure to check the
calibration.
Example 2
1. A fast flow test at 11 GPM shows a -2 cu. in.
reading in a five gallon test measure.
2. Remove the existing seal and pin and turn the
dial counterclockwise (+) three minimum
adjustments (half holes) and reinsert the pin.
2 cu. in. = 3 half holes (+) CCW
.6 cu. in./adjustment
3. Test and reseal
How to Mechanically Calibrate the SB-100 Meter
(M-Cal Option)

20 107932 Rev G 4-24-17
Fig. 4 - “Enter”, “Up” and
“Down” keys used to input da-
ta.
Fig. 1 - Open the upper door.
Fig. 3 - Remove the seal and
turn the ecal switch “ON”.
Fig. 2 - Follow the valve wires
from the meter you are cali-
brating to make sure you are
calibrating the correct meter.
Electronically Calibrating the SB-100 (Standard Flow) and
FPP (High Flow) METER (E-CAL)
How to set the Electronic Calibration - Electronic calibration is a
simple method to calibrate the meters in the dispenser. Electronic
calibration is the same for either the standard flow SB-100 meter or the
high flow FPP meter. This method uses a mathematical algorithm in
the software to account for meter wear rather than mechanical methods
to limit the piston throw within the meter..
This method also eliminates the parts associated with mechanical
calibration in the meter. The result is a more symmetrical meter that
will be intrinsically more accurate.
Follow these steps to electronically calibrate the meter:
Step 1 - Pump 5 gallons as displayed on the dispenser display into your
test can. Make sure to stop pumping at exactly 5.000 gallons.
Step 2 - Read the plus / minus value in the test can.
Step 3 - Unlock and open the electronics door on the side with the
meter that you want to calibrate (See Figure 1). IMPORTANT - Make
sure you are calibrating the correct meter! (See Figure 2). To make
sure, locate the meter you are working on and the valve that is
connected to it. Follow those valve wires to the correct CPU/Control
Board to ensure you are electronically calibrating the correct meter.
With the power on, locate the electronic calibration switch on the top of
the CPU/Display board (mounted to the door) See Figure 3.
Step 4 - Break the seal and move the switch to the calibrate position.
Close the door and you should see the display read the current
calibration value.
Step 5 - Press the “Enter” button along the top edge of the CPU/Display
board. See Figure 4. Figure 4 shows that there are 3 buttons nest to the
electronic calibration switch. The functions of the buttons are “Enter”,
“Up”, and “Down”. You will be using these buttons to enter electronic
calibration data.
