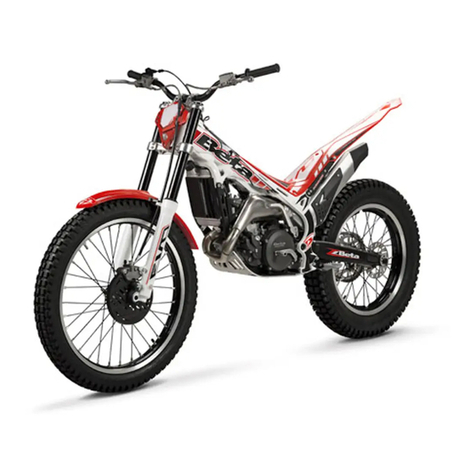

Beta EVO 2T User manual

1GB
EVO 2T
Thanks for you preference, and have a good time! This hand-
book contains the information you need to properly operate and
maintain your motorcycle.
The data and specifications provided in this manual does not constitute an
engagement on the part of BETAMOTOR S.p.A. BETAMOTOR reserves the
right to make any changes and improvements to its models at any moment
and without notice.

2
GB
IMPORTANT
We recommend you to check all the tightenings after the first one
or two hours’ ride over rough ground. Special attention should
be paid to the following parts:
•rear sprocket
•ensure that the footrests are properly fixed
•front/rear brake levers/calipers/discs
•check that the plastics are properly fastened
•engine bolts
•shock absorber bolts/swingarm
•wheel hubs/spokes
•rear frame
•pipe connections
•tensioning the chain
IMPORTANT
For any servicing requirements, please get in contact with Beta-
motor’s authorized service network.

CONTENTS
3GB
TABLE OF CONTENTS
Operating instructions............................................................................. 5
Ecologic guide....................................................................................... 5
Riding safety .........................................................................................6
CHAPTER 1 GENERAL INFORMATION ..............................................7
Vehicle identification data ....................................................................... 8
Familiarizing with the vehicle...................................................................9
Specifications ......................................................................................10
Electrical system...................................................................................14
Electrical system...................................................................................16
Recommended lubricants and liquids......................................................18
CHAPTER 2 OPERATION .................................................................. 19
Main parts ..........................................................................................20
Checks before and after use.................................................................. 24
Breaking in..........................................................................................24
Fuelling............................................................................................... 25
Startup................................................................................................ 26
Engine shut-down................................................................................. 26
CHAPTER 3 ADJUSTMENTS..............................................................27
Brakes ................................................................................................28
Clutch.................................................................................................29
Adjustment of gas clearance.................................................................. 29
Accelerator .........................................................................................30
Handlebar ..........................................................................................30
Adjusting fork ...................................................................................... 30
Shock absorber....................................................................................31
Suspension adjustment according to the motorcyclist’s weight ....................32
CHAPTER 4 CHECKS AND MAINTENANCE .....................................33
Key to symbols.....................................................................................34
Gear oil.............................................................................................. 34
Coolant ..............................................................................................35
Air filter ..............................................................................................38
Spark plug ..........................................................................................40
Carburetor ..........................................................................................41
Front Brake.......................................................................................... 43

CONTENTS
4
GB
Rear brake ..........................................................................................45
Clutch control ......................................................................................47
Steering gear.......................................................................................48
Oil fork............................................................................................... 49
Tyres...................................................................................................53
Chain .................................................................................................54
Headlight............................................................................................ 56
Rear tail light.......................................................................................57
Cleaning the vehicle............................................................................. 58
Prolonged inactivity..............................................................................59
Scheduled maintenance vehicle ............................................................60
CHAPTER 5 TROUBLESHOOTING ....................................................61
Troubleshooting ...................................................................................62

5GB
OPERATING INSTRUCTIONS
•The vehicle must be accompanied by: number-plate, registration document, tax
disc and insurance.
•Do not carry animals, pets or loose objects that can stick out from the vehicle.
•Riding without a crash helmet is forbidden.
•Always ride with the low beam on.
•Any modifications of the engine or other parts resulting in a power and/or speed
increase are punishable by severe sanctions including the confiscation of the vehicle.
•To protect your safety and that of others, always drive carefully and with your helmet
on.
WARNING
Any modifications and tampering with the vehicle during the warranty period exempt
the manufacturer from all responsibility and invalidate warranty.
ECOLOGIC GUIDE
•Every vehicle powered by an internal combustion engine produces an amount of
noise (noise pollution) and gases (air pollution) which varies with the riding style.
•The abatement of noise and air pollution levels is the duty of everybody. Avoid
full-throttle starts, sudden acceleration and abrupt braking. This will reduce noise
emission as well as the wear and tear of the tyres and mechanical parts, and will
also allow a considerable reduction in fuel consumption.

6
GB
RIDING SAFETY
•Observe the Highway Code.
•Always put on and fasten a homologated helmet.
•Always ride with the low beam on.
•Always keep the crash helmet visor clean.
•Avoid wearing garments with hanging ends.
•Do not keep sharp or brittle objects in your pockets while riding.
•Properly adjust the rearview mirrors.
•Always ride in a seated position, with both hands on the handlebars and both feet
on the footrests.
•Always pay attention and do not allow anything to distract you while riding.
•Do not eat, drink, smoke, use a mobile phone, etc. while riding.
•Do not wear headphones to listen to music while riding.
•Never ride abreast with other vehicles.
•Do not tow and avoid being towed by other vehicles.
•Always keep a safe distance from other vehicles.
•Do not sit on the vehicle when it is on its stand.
•Do not start off while the vehicle is on its stand.
•Do not pull out the stand when the vehicle is facing downhill.
•Avoid swaying and wheelies as they are extremely dangerous for your own and
other people’s safety as well as for your vehicle.
•Always apply both brakes on dry roads with no gravel and sand. Using one brake
may be dangerous and cause uncontrolled skidding.
•To reduce the braking distance, always apply both brakes.
•On wet roads and in off-road riding, drive with care and at moderate speed. Take
special care in applying the brakes.
•Do not start the engine in closed places.

1
GENERAL INFORMATION
7GB
CONTENTS
Vehicle identification data ....................................................................... 8
Frame identification ...........................................................................8
Engine identification ..........................................................................8
Familiarizing with the vehicle...................................................................9
Main parts........................................................................................9
Specifications ......................................................................................10
Weight........................................................................................... 10
Vehicle dimensions .......................................................................... 10
Tyres..............................................................................................10
Capacities......................................................................................10
Front suspension..............................................................................11
Rear suspension ..............................................................................11
Front brake..................................................................................... 11
Rear brake ..................................................................................... 11
Engine ...........................................................................................12
Carburetor...................................................................................... 12
Gear box .......................................................................................13
Electrical system...................................................................................14
Electrical diagram homologated version............................................. 14
Legend electrical diagram homologated version.................................. 15
Electrical system...................................................................................16
Electrical diagram race version ......................................................... 16
Legend electrical diagram race version .............................................. 17
Recommended lubricants and liquids......................................................18
CHAPTER 1 GENERAL INFORMATION

1
GENERAL INFORMATION
8
GB
VEHICLE IDENTIFICATION
DATA
FRAME IDENTIFICATION
Frame identification data Aare stamped
on the right side of the steering head tube.
ENGINE IDENTIFICATION
Engine identification data Bare stamped
in the area shown in the picture.
WARNING:
Tampering with the identification numbers
is severely punished by law.
A
B

1
GENERAL INFORMATION
9GB
FAMILIARIZING WITH THE VEHICLE
MAIN PARTS
1 Fuel tank
2 Tank cap
3 Silencer
4 Rear shock absorber
5 Headlight
6 Rear light
7 Side stand
8 Fork
9 Rider’s footrests
10 Lower bumper
14
3
12
4
11 Engine
12 Front mudguard
13 Rear mudguard
14 Kick-start
15 Gear lever
16 Rear brake lever
17 Front brake lever
18 Clutch lever
19 Throttle
7
2
1
16
6
5
13
8
19
17
18
11
10 15 9

1
GENERAL INFORMATION
10
GB
SPECIFICATIONS
WEIGHT
Version EVO 125 EVO 200 EVO 250 EVO 300
Dry weight [kg] 67.5 68.5 68.5 68.5
Front [kg] 33.75 34.25 34.25 34.25
Rear [kg] 33.75 34.25 34.25 34.25
VEHICLE DIMENSIONS
maximum length ....................................................................... 1990 mm
maximum width .......................................................................... 850 mm
wheelbase ............................................................................... 1305 mm
maximum height ....................................................................... 1115 mm
ground clearance ....................................................................... 310 mm
saddle height ............................................................................. 660 mm
TYRES
CAPACITIES
fuel tank .......................................................................................2.8 litri
including reserve ...........................................................................0.5 litri
coolant circuit:
Version EVO 125 EVO 200 EVO 250 EVO 300
With dry circuit [ml] 630 585 530 530
With circuit emptied [ml] 530 485 420 420
gear oil ........................................................................................550 ml
Dimensions Pressure [Bar]
Front tyre Rear tyre Front tyre Rear tyre
2.75 - 21 4.00 - 18 0.4 ÷ 0.5 0.3 ÷ 0.4
