BH FITNESS X8 ELLIPTICAL User manual

BH Fitness �20155 Ellipse �Foothill Ranch �CA �92610
www.bhnorthamerica.com �Phone[phone] �Fax [phone]
BH FITNESS X8 ELLIPTICAL
OWNER�S MANUAL

BH X8 ELLIPTICAL
BH Fitness • 20155 Ellipse • Foothill Ranch • CA • 92610
www.bhnorthamerica.com • Phone [phone] • Fax [phone]
1
INTRODUCTION
Congratulations for selecting the X8 Elliptical as a fitness resource. The BH Fitness Elliptical
offers many exercise programs that benefit users of all levels and ages. The X8 is designed to
make your workouts more effective and enjoyable.
Please read this manual carefully before using the X8. This will allow you to get a full
understanding of all the features the BH Fitness Elliptical provides. If you have questions or
concerns, please contact BH FITNESS or any authorized BH FITNESS distributors in your area.
BEFORE YOU BEGIN
It is very important to become familiar with the frequently used components of your X8.

BH X8 ELLIPTICAL
BH Fitness • 20155 Ellipse • Foothill Ranch • CA • 92610
www.bhnorthamerica.com • Phone [phone] • Fax [phone]
2
TABLE OF CONTENTS
SECTION PAGE
1. IMPORTANT SAFETY INSTRUCTIONS ..................................................... 3
2. ASSEMBLY INSTRUCTIONS ...................................................................... 5
3. COMPUTER CONSOLE.............................................................................. 25
4. COMPUTER CONSOLE DESCRIPTIONS .................................................. 27
5. PROGRAM PROFILES................................................................................ 28
6. MAKING ENTRIES ...................................................................................... 29
7. PROGRAM MODE....................................................................................... 30
8. HR CONTROL MODE ................................................................................. 30
9. TARGET HEART RATE CALCULATION...................................................... 31
10.WARRANTY ................................................................................................ 32

BH X8 ELLIPTICAL
BH Fitness • 20155 Ellipse • Foothill Ranch • CA • 92610
www.bhnorthamerica.com • Phone [phone] • Fax [phone]
3
SECTION 1
IMPORTANT SAFETY INSTRUCTIONS
Read all instructions before using the elliptical.
User Safety
1. Users should pass a full medical examination before they begin an exercise program. Work at the
recommended exercise level. Do not over exert yourself. If you feel any pain or discomfort, stop
exercising immediately and consult your doctor.
2. Before exercising calculate your maximum heart rate using the formula on page 31.
3. Do warm up stretching exercises before using the unit.
4. Verify that all of the parts are attached and that the nuts, bolts, pedals and bar are correctly tightened
before use. Verify that there are not any cracks or sharp edges.
5. Do not wear loose clothing or high heels. Tie up shoe laces.
6. The maximum weight of a user is 375 pounds (170 Kg).
7. Keep hands away from moving parts.
8. Supervise children, invalids or disabled persons at all times. Children are curious and vulnerable to
accidents. Do not use the unit as a toy. Disabled people should not use the exercise equipment
without the assistance of a qualified person or doctor. Keep pets away from unit.
9. The owner is responsible for explaining safety instructions to each user.
10. The unit can only be used by one person at a time.
Unit Safety
1. For safety, maintain a minimum clearance around the unit. Maintain 18 inches on the front and on
each side of the unit plus 24 inches at the rear of the unit.
2. Install and use the unit on a flat, stable surface, with some type of protection for the floor or carpet. Do
not place it alongside walls or furniture. Check the unit before each use.
3. Please read all of the instructions before assembling or using this unit.
4. Do not place sharp objects near the exercise equipment.
5. Do not use the exercise equipment if it is not working correctly.
6. Do not lean against the computer console.

BH X8 ELLIPTICAL
BH Fitness • 20155 Ellipse • Foothill Ranch • CA • 92610
www.bhnorthamerica.com • Phone [phone] • Fax [phone]
4
IMPORTANT SAFETY INSTRUCTIONS CONTINUED
WARNING: To reduce the risk of fire, electric shock, injury to persons or inflicting the harm of a burn:
7. Remove the batteries before adding or removing parts.
8. Do not operate the unit under a blanket or pillow. Excessive heating can occur and cause fire, electric
shock, injury to persons or inflict the harm of a burn.
9. Use the unit only as described in this manual. Only use attachments recommended by the
manufacturer.
10. Do not operate this unit if it is not working properly. Do not operate this unit if it has been dropped or
damaged. Do not operate this unit if it has been immersed into water. Return the unit to a service
center for examination and repair.
11. Never operate the unit when the air openings are blocked. Keep the air openings free of lint, hair and
the like.
12. Do not drop or insert any objects into any openings.
13. Do not use outdoors or near water.
14. Do not operate where aerosol (spray) products are being used or where oxygen is being administered.
POWER SUPPLY
The X8 is self-powered, requiring no external power source. When a user strides at a speed
above 20 revolutions per minute (RPM), electricity is generated to allow the console of the
Elliptical Trainer to function properly. Because of this self-generating feature, the console
feedback will fade away when you cease pedaling.
Exercising will recharge the four 1.2V, AA rechargeable batteries installed in the console. If the
user exercises for 20 minutes, then stops, and the LED display immediately turns off (within 3 to
5 seconds) it means that the batteries in the console are dead. Replace the batteries with new
rechargeable batteries. The battery location is illustrated on Assembly Step 11.
CLEANING
Clean with soap and slightly damp cloth only; never use solvents.

BH X8 ELLIPTICAL
BH Fitness • 20155 Ellipse • Foothill Ranch • CA • 92610
www.bhnorthamerica.com • Phone [phone] • Fax [phone]
5

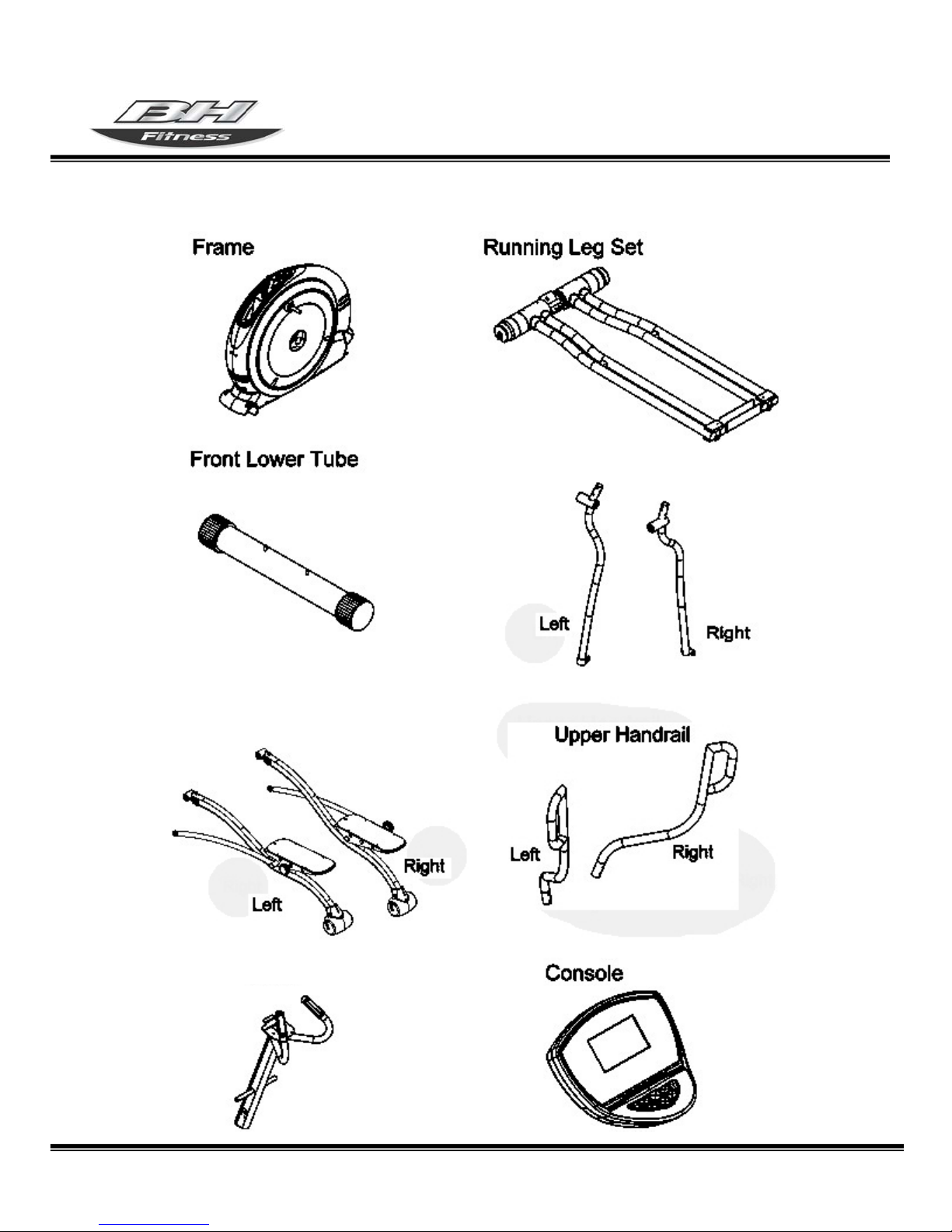

SECTION 2 – ASSEMBLY INSTRUCTIONS

BH X8 ELLIPTICAL
BH Fitness • 20155 Ellipse • Foothill Ranch • CA • 92610
www.bhnorthamerica.com • Phone [phone] • Fax [phone]
6
ASSEMBLY INSTRUCTIONS CONTINUED
Pedal Rods
Upper Control Tube
Lower Handrails

BH X8 ELLIPTICAL
BH Fitness • 20155 Ellipse • Foothill Ranch • CA • 92610
www.bhnorthamerica.com • Phone [phone] • Fax [phone]
7

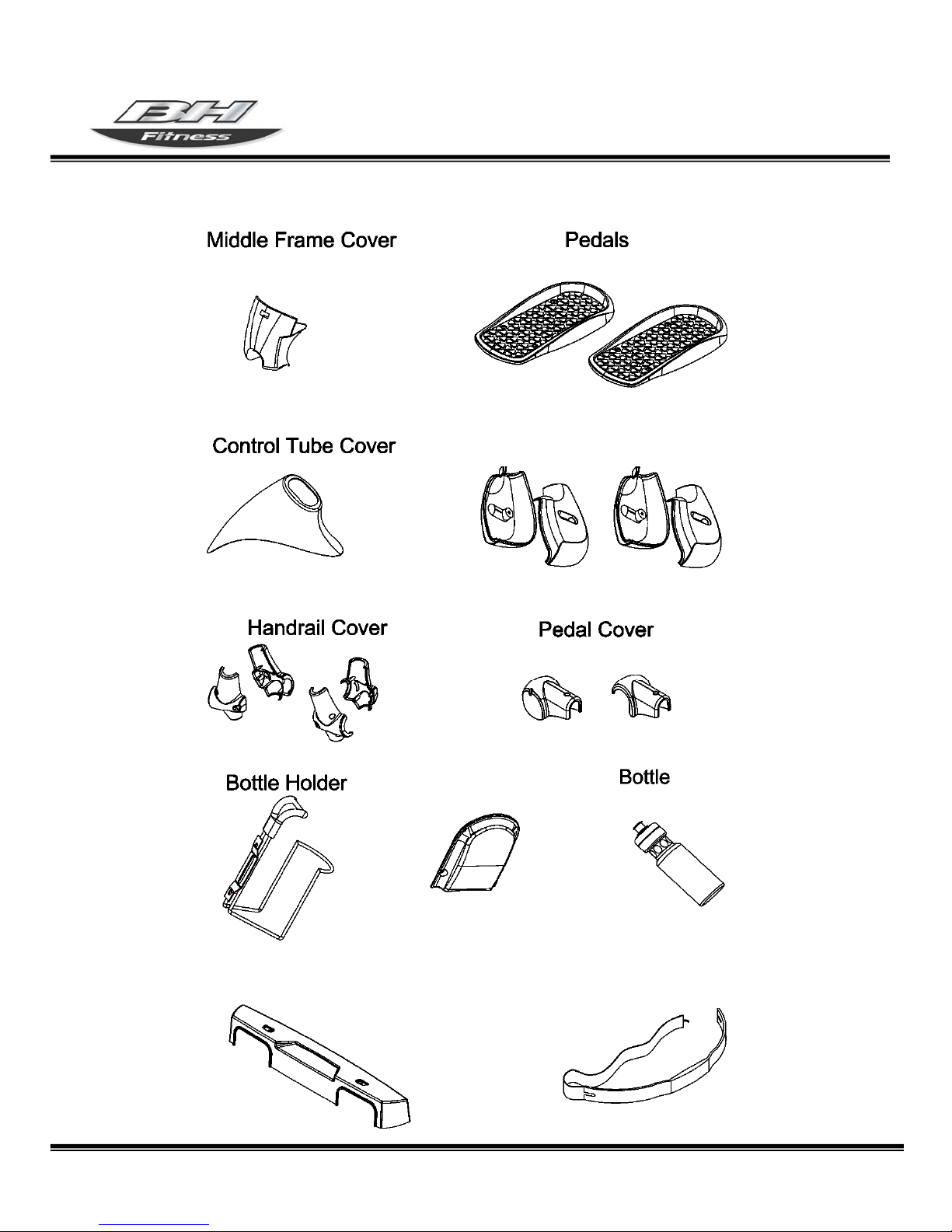

ASSEMBLY INSTRUCTIONS CONTINUED
Rear Running Leg Cover
Computer Cove
r
Pedal Rod Cove
r
Heart Rate Belt (wireless pulse emitter)

BH X8 ELLIPTICAL
BH Fitness • 20155 Ellipse • Foothill Ranch • CA • 92610
www.bhnorthamerica.com • Phone [phone] • Fax [phone]
8
ASSEMBLY INSTRUCTIONS CONTINUED
STEP ITEM Description QTY STEP ITEM Description QTY
1 1 Nut M8 (PL item 92) 2 19 Bolt M8X45 (PL item 101) 4
2 Spring Washer M10 (PL item 90) 3
7
20 Nylon Nut M8 (PL item 9) 4
2
3 Allen Bolt M10X20 (PL item 91) 3 8 21 Screw ψ4X16 (PL item 25) 6
4 Bolt M5X10 (PL item 24) 1 9 22 Bolt M4X15 (PL item 60) 6
3
5 Bolt M4x15 (PL item 60) 2 23 Bolt M5X10 (PL item 93) 8
6 Washer ψ8Xψ25X2.0t
(PL item 115) 2
10
24 Flat Washer ψ6.5 X ψ13 X 1.0t
or ψ6 X ψ13 X 1.0t (PL item 94) 8
7 Allen Bolt M8X15 (PL item 52) 2 25 Bolt M4X8 (PL item 102) 4
4
8 Wave Washer ψ17Xψ24X0.3t
(PL item 154) 2 26 Nut M6 (PL item 103) 4
9 Allen Bolt M8X60 (PL item 97) 2
11
27 Flat Washer ψ6.5Xψ13X1.0t
Or ψ6Xψ13X1.0t (PL item 94) 4
10 Allen Bolt M8X15 (PL item 98) 1 12 28 Bolt M4X10 (PL item 161) 2
11 Arc Washer NO.2014 (PL item 99) 1 29 Allen Wrench 150X75(8mm) 1
5
12 Nylon Nut M8 (PL item 09) 2 30 Allen Wrench 160X75(10mm) 1
13 Washer ψ8Xψ25X2.0t
(PL item 115) 2 31 Allen Wrench 60X40(6mm) 1
14 Allen Bolt M8X15 (PL item 52) 2 32 Allen Wrench 60X40(5mm) 1
15 Allen Bolt M12X40 (PL item 95) 2 33 Sleeve Wrench+Screwdriver 10mm+13mm 1
16 Nylon Nut M12 2 34 Lug Wrench 19mm+13mm 1
17 Spacer (Handrail Fixing Plastic)
(PL item 100) 2
6
18 Wave Washerψ20.7Xψ29.1X0.3t 2

BH X8 ELLIPTICAL
BH Fitness • 20155 Ellipse • Foothill Ranch • CA • 92610
www.bhnorthamerica.com • Phone [phone] • Fax [phone]
9
ASSEMBLY INSTRUCTIONS CONTINUED

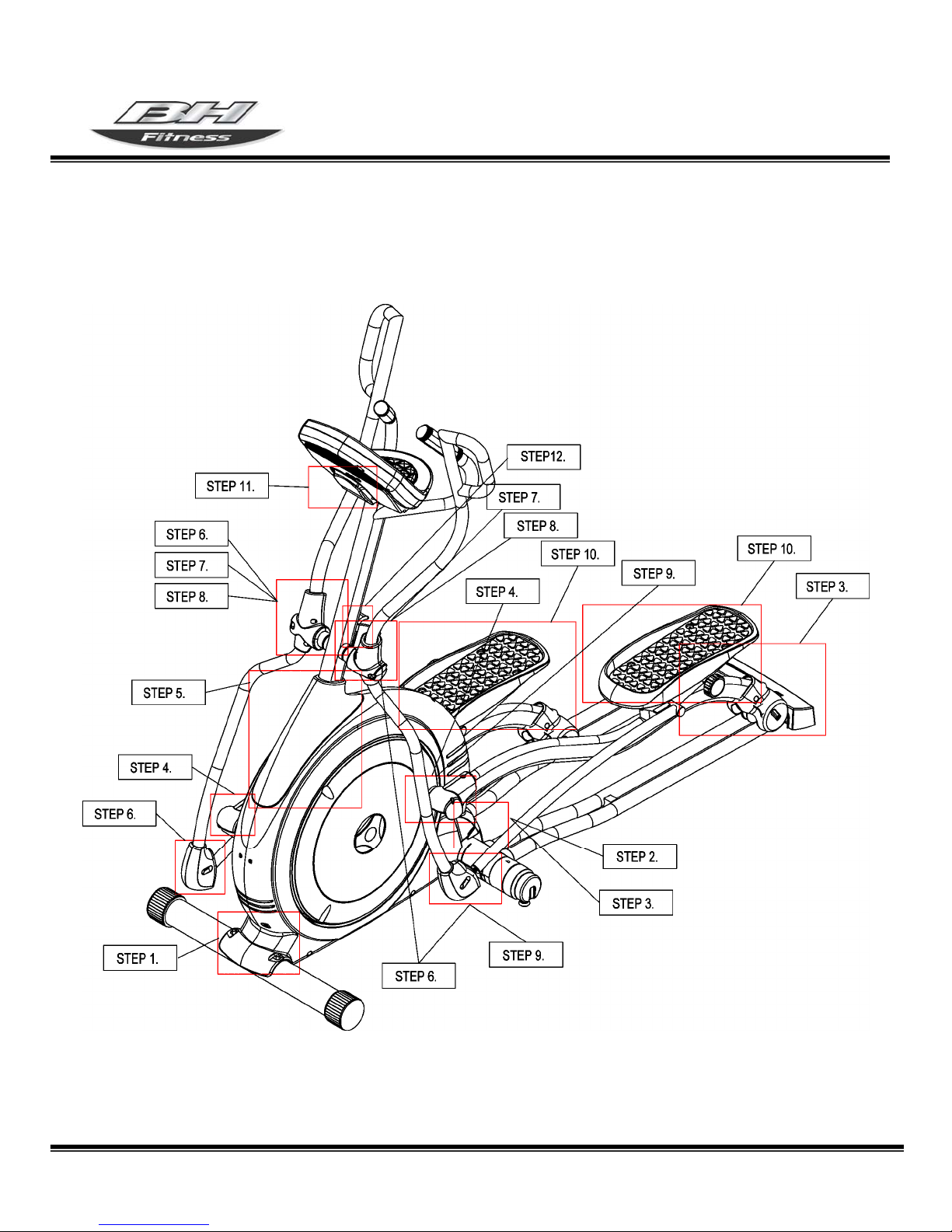

For safety, it is recommended that a minimum of two people assemble this elliptical
trainer.

BH X8 ELLIPTICAL
BH Fitness • 20155 Ellipse • Foothill Ranch • CA • 92610
www.bhnorthamerica.com • Phone [phone] • Fax [phone]
10

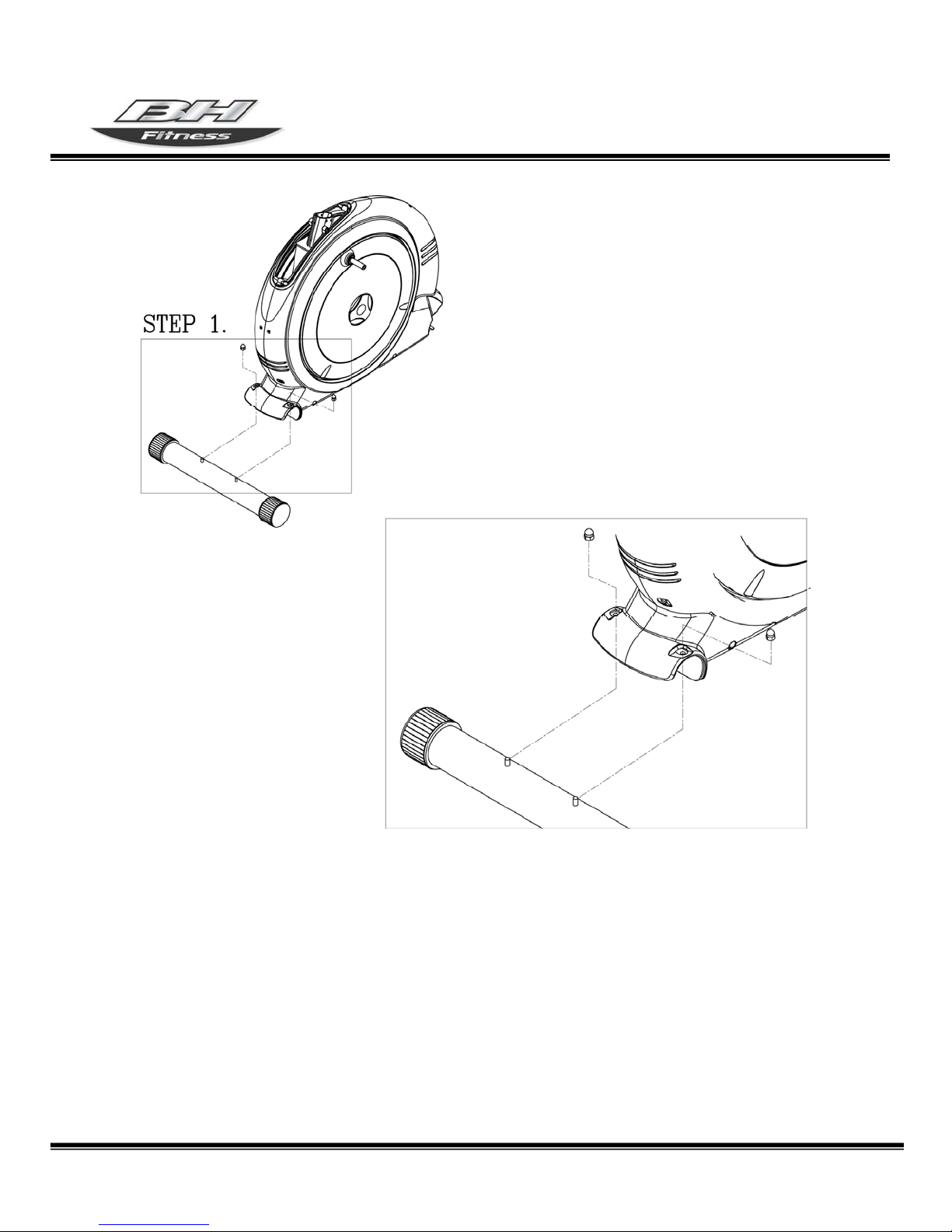

STEP 1. Assembly of frame and front lower tube.
1.1As required, lift the frame up onto foam or cardboard to assist during assembly.
1.2Align the bolts in the front lower tube with the holes in the front of the frame. Assemble the
frame and front lower tube with M8 acorn nuts as shown in the illustration above.

BH X8 ELLIPTICAL
BH Fitness • 20155 Ellipse • Foothill Ranch • CA • 92610
www.bhnorthamerica.com • Phone [phone] • Fax [phone]
11
ASSEMBLY INSTRUCTIONS CONTINUED
STEP 2. Assembly of frame and running leg set.
1.1Align the holes in the steel plate of the running legs with the holes at the rear of the frame and
attach using M10 washers and M10 bolts as shown.

BH X8 ELLIPTICAL
BH Fitness • 20155 Ellipse • Foothill Ranch • CA • 92610
www.bhnorthamerica.com • Phone [phone] • Fax [phone]
12
ASSEMBLY INSTRUCTIONS CONTINUED
STEP 3. Assembly of center frame cover and rear running leg cover.
1.1Align the hole in the center shroud with the hole in the center of the running leg set and attach
with M5 bolt.
1.2Turn the units middle adjustment foot pads until they are lifted above the ground.
1.3Turn the units rear adjustment foot pads so that they contact the floor and the unit does not
lean (to the left or right).
1.4Turn the middle foot pads down to the floor. Try to slide a piece of paper under all four foot
pads to verify that they all touch the floor.
1.5The unit should not lean to the left or the right and should be stable.
1.6Place the plastic cover on the rear stabilizer tube as shown and attach with bolts.
Middle foot pads
Rear foot pads

BH X8 ELLIPTICAL
BH Fitness • 20155 Ellipse • Foothill Ranch • CA • 92610
www.bhnorthamerica.com • Phone [phone] • Fax [phone]
13
ASSEMBLY INSTRUCTIONS CONTINUED

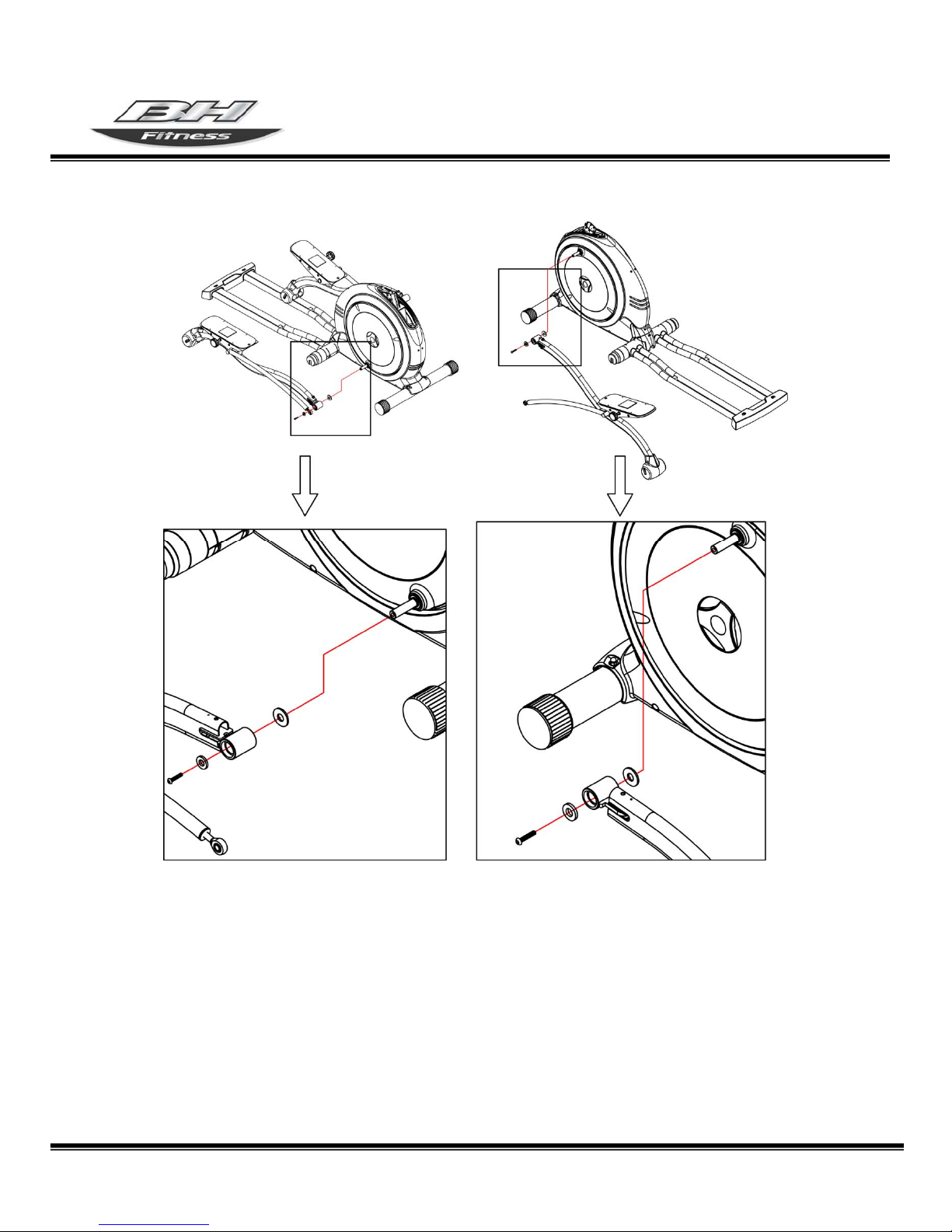

STEP 4. Assembly of pedal rods and frame.
1.1 For the left side. Slide the wave washer onto the left crankshaft of the frame.
1.2 One person should hold the left pedal rod.
1.3 A second person slide the left pedal rods steel tube onto the left crankshaft followed by the flat
washer and fasten with M8 bolt. Fasten securely to prevent the bolt from loosening.
1.4 Repeat for the right side.

BH X8 ELLIPTICAL
BH Fitness • 20155 Ellipse • Foothill Ranch • CA • 92610
www.bhnorthamerica.com • Phone [phone] • Fax [phone]
14
ASSEMBLY INSTRUCTIONS CONTINUED
STEP 5. Assembly of upper control tube and frame.
1.1 Insert the wires and the Upper Control Tube into the Control Tube plastic cover (see photo on
next page). Insert the Control Tube into the tube of the Frame.
1.2 One person should hold the Upper Control Tube while the other person fastens the two tubes
- with two M8 bolts and nylon nuts on the side of the steel tube and
- with one M8 bolt and arc washer in the front of the steel tube.
1.3 Align the connectors in the correct direction, and then press them together.
1.4 Turn the plastic cover to the correct location and press into place (see photo on next page).

BH X8 ELLIPTICAL
BH Fitness • 20155 Ellipse • Foothill Ranch • CA • 92610
www.bhnorthamerica.com • Phone [phone] • Fax [phone]
15
ASSEMBLY INSTRUCTIONS CONTINUED

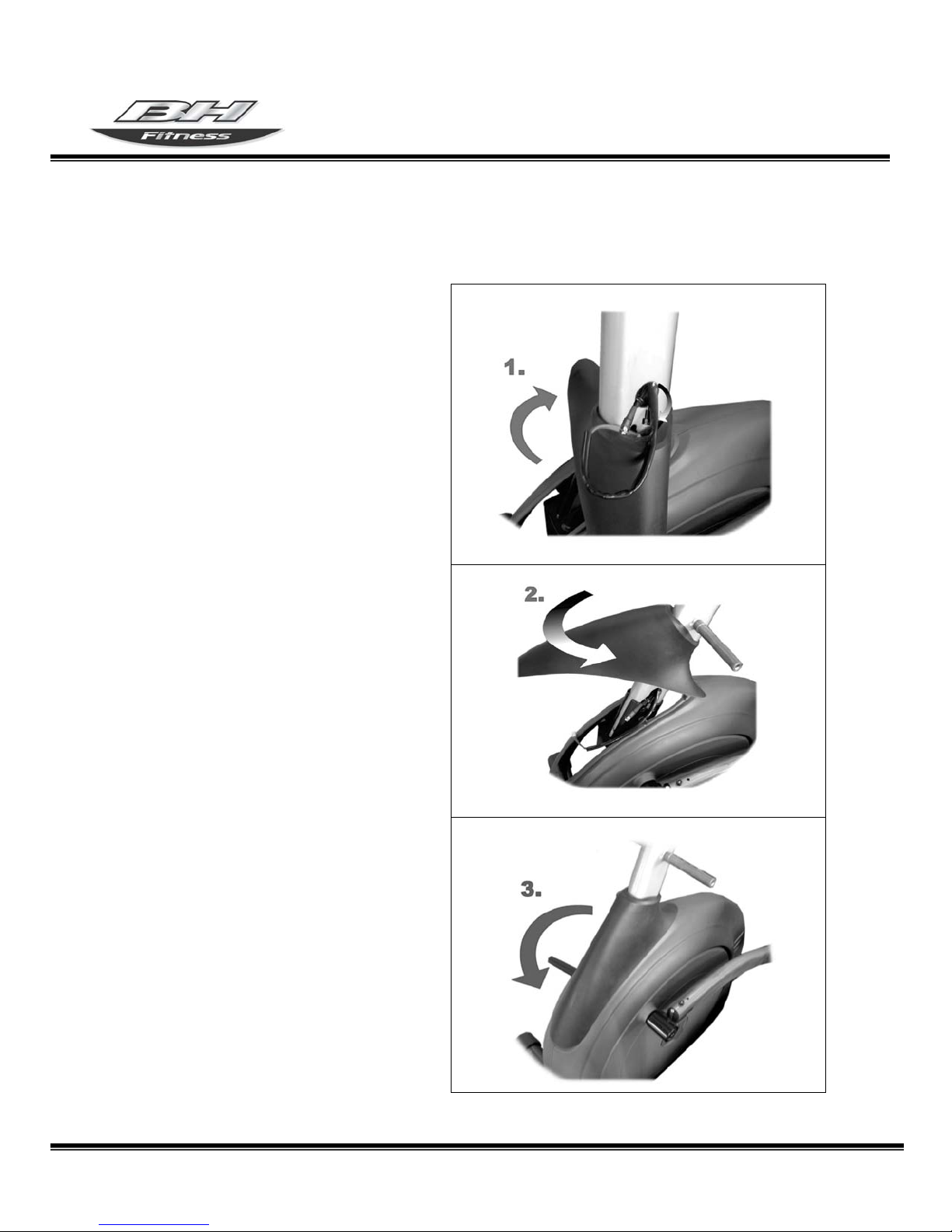

Additional Upper Control Tube Assembly Information
zIf necessary, change the
direction of the Control Tube
plastic cover in order to insert
the wire into the tube.
zTurn the plastic cover back
into position.
zAfter tightening the bolts,
press the plastic cover into
place.

BH X8 ELLIPTICAL
BH Fitness • 20155 Ellipse • Foothill Ranch • CA • 92610
www.bhnorthamerica.com • Phone [phone] • Fax [phone]
16
ASSEMBLY INSTRUCTIONS CONTINUED

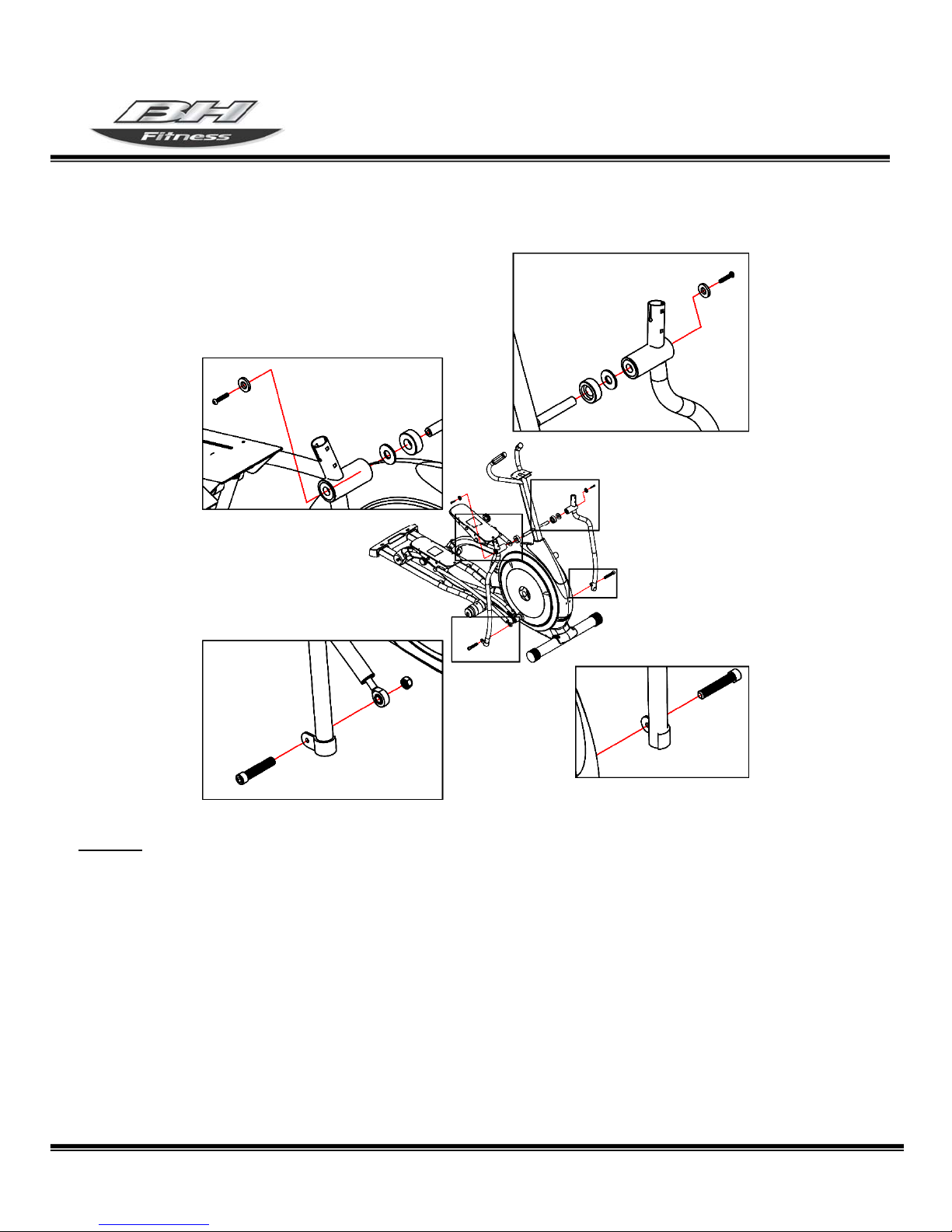

STEP 6. Assembly of lower handrails, upper control tube and pedal rods.
NOTES:
1. The left and right lower handrails are different. Look for “LEFT” or “RIGHT” labels.
Make sure to install them as shown in the illustration above.
2. During assembly, be careful not to bump into any protruding parts.
1.1 Slide a plastic spacer and a wave washer onto the left horizontal bar. Connect the upper
part of the left lower handrail with the horizontal bar on the upper control tube. Fasten with
M8 washer and M8 bolt.
1.2 Connect the left lower part of the lower handrail with the bearing at the end of the pedal rods.
Fasten with M12 nut and M12 bolt.
1.3 Repeat for right side.
Step 6.1.1
Step 6.1.1
Step
6.1.2.

BH X8 ELLIPTICAL
BH Fitness • 20155 Ellipse • Foothill Ranch • CA • 92610
www.bhnorthamerica.com • Phone [phone] • Fax [phone]
17
ASSEMBLY INSTRUCTIONS CONTINUED
STEP 7. Assembly of upper handrail to lower handrail.
NOTE: The upper left and right handrails are different. Make sure to install them as shown in the
illustration above with the curve outward and rearward.
1.1 Fit the upper left handrail into lower left handrail; fasten it with M8 nuts and M8 bolts.
1.2 Fit the upper right handrail into lower right handrail; fasten it with M8 nuts and M8 bolts.

BH X8 ELLIPTICAL
BH Fitness • 20155 Ellipse • Foothill Ranch • CA • 92610
www.bhnorthamerica.com • Phone [phone] • Fax [phone]
18
ASSEMBLY INSTRUCTIONS CONTINUED

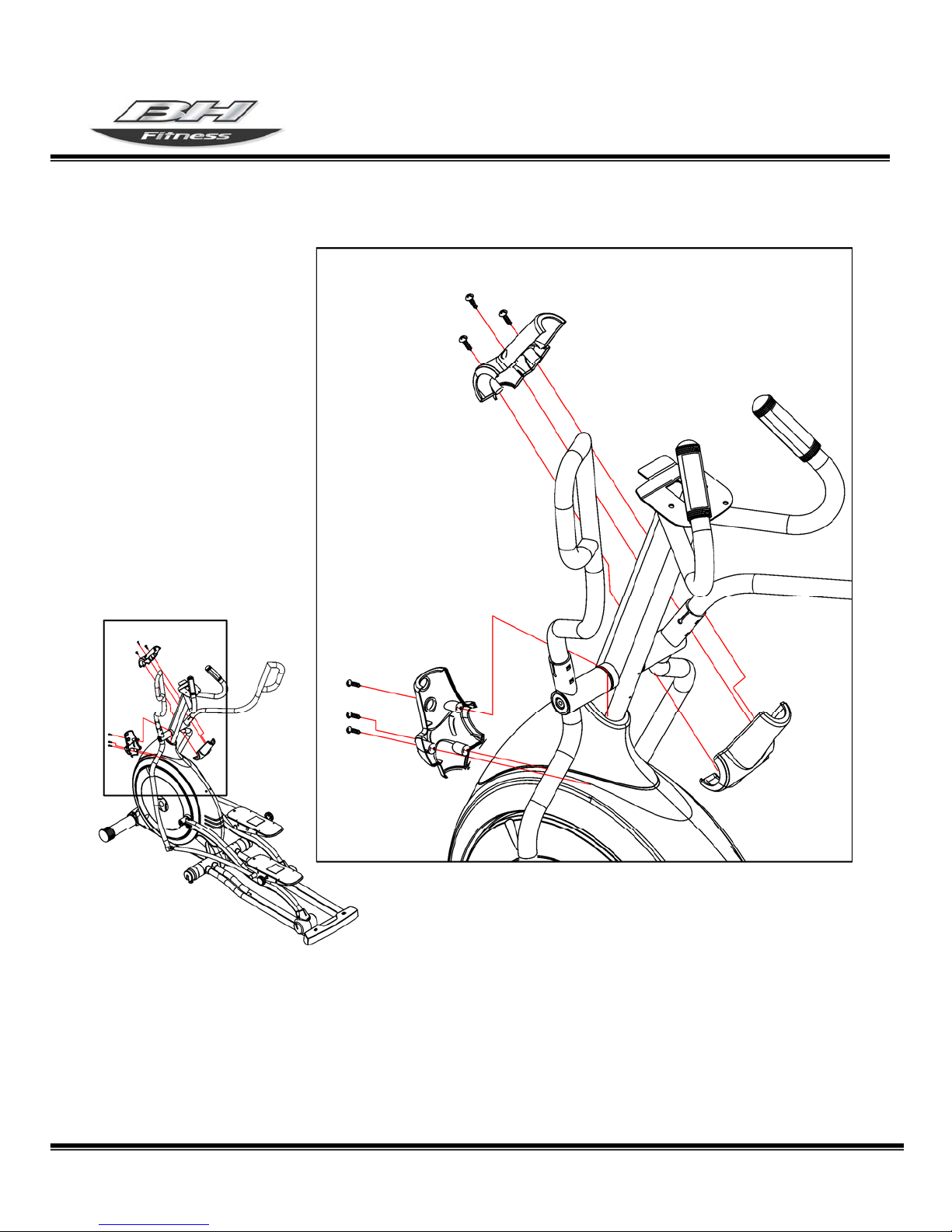

STEP 8. Assembly of handrail covers.
1.1 Place the front left cover and the rear left cover on the horizontal bar and fasten them with
M4 screw.
1.2 Place the front right cover and the rear right cover on the horizontal bar and fasten them
with M4 screw.

BH X8 ELLIPTICAL
BH Fitness • 20155 Ellipse • Foothill Ranch • CA • 92610
www.bhnorthamerica.com • Phone [phone] • Fax [phone]
19
ASSEMBLY INSTRUCTIONS CONTINUED
STEP 9. Assembly of handrail and pedal rods plastic covers.
1.1 Place the plastic cover on the front top of the left pedal rods, make sure the bolt hole on the
plastic and the bolt hole on the steel tube are aligned, then fasten the plastic cover with M4
bolts.
1.2 Place the left and right plastic covers on the handrail lower end, and fasten with bolts.
1.3 On the other side of the frame, place the plastic cover on the front top of the right pedal rods,
make sure the bolt hole on the plastic and the bolt hole on the steel tube are aligned, then
fasten the plastic cover with M4 bolts.
1.4 Place the left and right plastic cover on the handrail lower end, and fasten with M4 bolts.
