USE AND MAINTENANCE MANUAL

3
STIR PLUS
1. OPERATING AND SAFETY
INSTRUCTIONS
ATTENTION:
Before using the machine, please read carefully
all the safety and operang instrucons as
described in this manual. KEEP THESE IN-
STRUCTIONS FOR FUTURE REFERENCE.
1. This appliance is intended for the solely use it
is designed for, the manufacturer cannot be held
responsible for eventual damages for improper use.
2. The fair use of this appliance is exclusively the
one described in this instrucon manual.
3. Aer the removal of the package make sure of
the appliance’s integrity. Eventual damages must be
reported immediately to the seller.
4. This appliance is not intended for outdoor use or
for enviroments with freezing risks.
5. The iron must be placed and used on a at stable
surface.
6. Before the use, check for visible damages. Never
put the machine into operaon in case of damages
and/or water loss and/or fall. In this case the
machine must be sent to the proper service centre:
the security standards could be compromised and
the use could be dangerous.
7. Surfaces next to the boiler, the ironing board and
the iron, might overheat while in operaon and,
therefore, being dangerous.
8. When present and when in operaon, the iron
must be laid on the rubber mat included in the
package.
9. The use of this machine is forbidden to children
and anyone not aware of the risks connected to its
use.
10. Do not leave the machine unaended when
children or anyone not aware of the risks or ani-
mals are around.
11. Children or anyone not aware of the risks are
forbidden to use the packaging or any of its parts:
risk of choking.
12. Do not leave the machine powered when not
necessary, once ended the usage, turn o the
switches and unplug the machine.
13. Connect the machine to an electric outlet
compable with the plug included, checking its
integrity. Only if necessary, use only CE branded
plugs/extension cables in compliance with europe-
an norms and/or properly set and with a grounding
system.
14. Any type of maintenance and/or cleaning must
be performed with the machine o, cooled and
unplugged.
15. Use only original spare parts and accessories.
16. Installaon, maintenance and repairing
operaons must be performed solely by qualied
personnel authorized by the manifacturer.
17. Before connecng the appliance verify that the
line voltage matches with the data wrien on the
label on the back; if you are not sure of your line
voltage, contact qualied personnel.
18. The electrical system to which the appliance
will be connected must be wired and supplied with
a residual current device (lifeline wiring) and an
earthed conductor lead, mandated by law. Make
sure of these security basic requirements, and if in
doubt, contact a qualied technician. The manu-
facturer is not responsible for eventual damages
to persons and/or things caused by absence or
malfuncon of the residual current device or the
earthed conductor lead.
19. Safe funconing is guaranteed only when the
appliance is connected to the public power grid
with a 3 poles plug (no xed connecon). Once
connected, the plug must be accessible so it can be
unplugged in case of need.
20. To avoid damages, the connecon data on the
machine plate (protecon, frequency, voltage)
must match with the ones of the power grid to whi-
ch the machine will be connected. In case of doubt
apply to a qualied technician.
21. When showing even small signs of damage,
replace the power cable with one of the same type
(available at the authorized technical assistance).
The replacement must be done only by authorized
personnel or by the technical assistance authorized
by the manufacturer.
22. The security stopper/security valve must be
replaced every once a year from the rst ignion.
23. Do not pour chemicals, acids, solvents, deter-
gents, corrosive or toxic substances, perfumes etc.
inside the boiler, pour only water.
24. Do not clean the machine by water spraying,
do not dip into water, use only a wet cloth with the
machine o, unplugged and cooled. Do not use any
type of detergents.
25. Never touch the machine while plugged with
wet hands and/or barefoot.
26. Do not use the machine next to water (sinks,
pools, bathtubs, containers, etc.), in places with a
certain danger of explosion or presence of toxic/
inammable substances.

4
STIR PLUS
27. Do not run steam jet towards people and/
or animals and electrical or electronic equipment
plugged to the power grid.
28. The emptying of the boiler does not need to be
done at the end of each operang session, but boi-
ler emptying/cleaning must be done at least once
a month. Before doing it, unplug the machine, let it
cool and gently unscrew half-round the security val-
ve to remove eventual residual pressure inside the
boiler. When the boiler is empty open gently the
drain valve to let the residual water get out. If no
water comes out check the output for limescale. In
case of limescale inside the boiler, it is possible to
pour inside it a glass of water mixed with vinegar.
Then shake and empty the boiler, then rinse with
water. It is recommended not to use any an-lime-
scale products.
29. While using the machine, the stopper/security
valve must never be removed.
30. Never remove security and protecon devices
31. Before lling in the boiler (in case of a manual
model) unplug the machine. Do not use dislled or
demineralized water.
32. In case of long periods of inacvity, unplug the
machine, empty the boiler and keep the machine
in a dry place.
33. Keep the packaging also for the eventual tran-
sport to the authorized technical assistance service.
BIEFFE IS NOT RESPONSBILE FOR DIRECT OR
INDIRECT DAMAGES TO PEOPLE, THINGS OR
ANIMALS FOLLOWING THE DISREGARD OF THE
REQUIRENMENTS INCLUDED IN THIS MANUAL.
1.1 DISPOSAL OF THE DEVICE
This BIEFFE product is subject to the 2002/96/EC
Direcve of the European Parliament and of the
Council of the European Union concerning the wa-
ste of electrical and electronic equipment (WEEE).
Use the appropriate local collecon facilies WEEE
for the disposal of this product or comply with
current regulaons.
The strikethrough waste bin icon on the machine,
means the obligaon not to dispose the machine as
urban waste, but to deliver it to a centre for separa-
te collecon of electrical and electronic equipment,
or to exchange it buying a new similar equipment
to the seller.
The separate waste collecon take the waste for
being recycled and properly disposed in accordance
with the environment’s needs. It helps to prevent
negave eects on the environment and human
health, caused by dangerous substances or their
improper use. For detailed informaon about the
available waste collecon systems address to your
local waste disposal service or to the seller. Anyone
who illegally disposes this products is subject to the
penales as prescribed by applicable regulaons.
WEEE separate collecon,
posted on the packaging box.

5
STIR PLUS
1.2 PLAQUES AND PICTOGRAMS
1
4
2
5
3
1. Read the instrucons before the use
2. Do not dispose as household waste
3. Check the grounding
4. Risk of electric shock
5. Burning risks
1.3 IDENTIFICATION PLATE (MODEL)
2. WARRANTY TERMS AND
CONDITIONS
The purchased appliance is covered by a legal war-
ranty from the day of purchase in maer of lack of
conformity present at the moment of delivery.
If the buyer is to be considered as consumer in ac-
cordance with current legislaon, the warranty will
be extended to 24 months from the purchase.
For those who buy the machinery using VAT the
product is guaranteed one year for defects already
present at the date of purchase.
This warranty is valid in the countries that follow
the European direcve 99/44/CE, the other
countries will apply their current laws in maer of
warranty.
Warranty claims are only accepted when the date
of purchase is proven by a valid document, scally
eecve, issued from the seller. Without this
document the intervenons are enrely borne by
the purchaser.
The machine must be returned in the original
package by the user, to a technical service centre or
a seller authorized by the manufacturer.
The guarantee will not be applied in the following
cases:
1. Failures are caused by fortuitous events, caused
by a third party or by the Customer;
2. Failures or damages are due to the transport.
3. The parts for which the guarantee is requested
are damaged by the consumpon and subjected
to normal wear and tear (e.g painted o enamelled
parts, knobs, handles, movable or removable pla-
sc parts, lamps, glass parts, rubber hoses, external
electric cables, accessories, etc.);
4. The machine has been incorrectly installed and/
or set and/or it is not used in conformity with the
instrucons or norms contained in this manual;
5. Failures or anomalies of the electrical system or
its limited range;
6. Neglect and caralessness in maintenance and/
or cleaning of the machine;
7. Tampering caused by unauthorized personnel;
improper use of the machine; use of non-original
parts;
8. Breakup of the seal that prevents the access to
the internal parts;
9. Inappropriate use and not in compliance with
the instrucons;
10. Failures and/or faults not caused by manufactu-
ring faults.

6
STIR PLUS
3. TECHNICAL DATA
Power supply 230V 50/60H
Boiler capacity 2,4 Lt
Boiler rell Manual
Boiler power 900W
Boiler pressure 3 bar
Iron power 850W

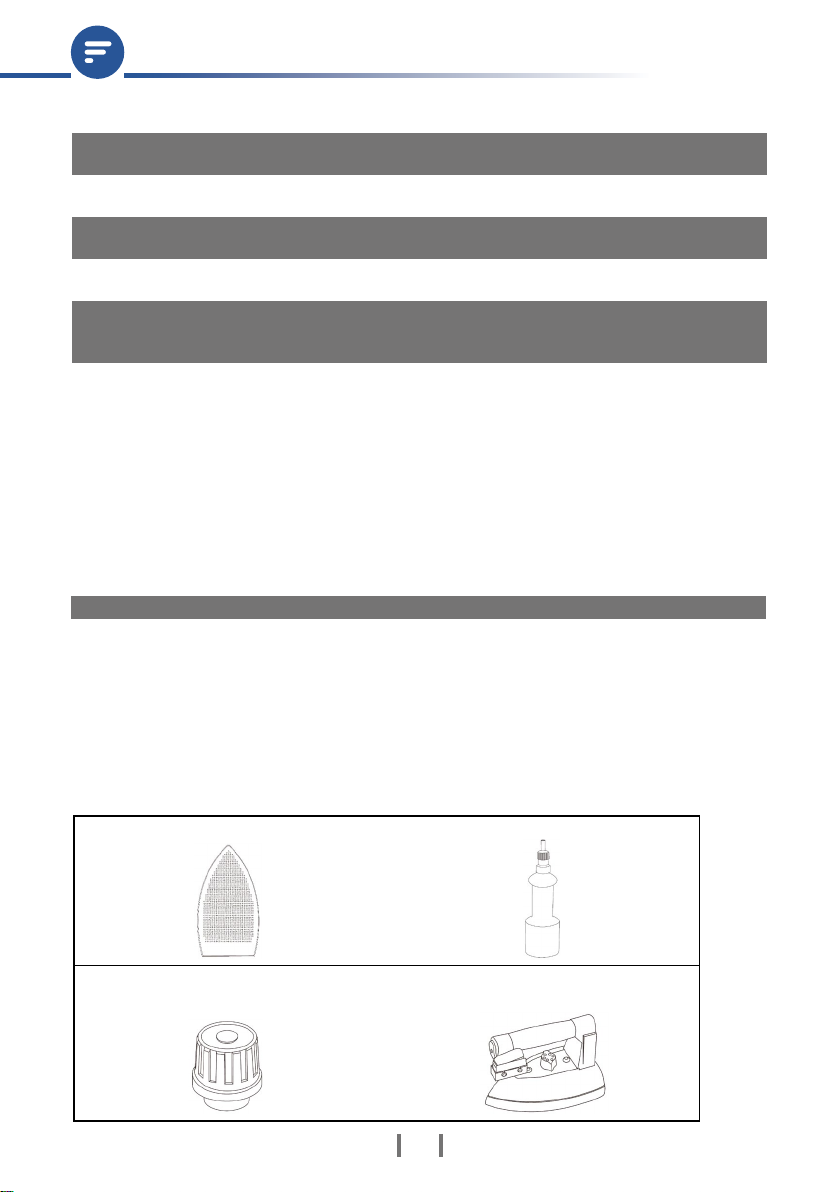

4. MACHINE DESCRIPTION
The system consists of a steam generator with copper boiler of 2,4 lt and a professional iron. For the ironing,
in accordance with the model, it is possible to include a steam generator with an automac relling system.
Along with all BIEFFE steam generators, the boiler is made of copper, the heaters are placed outside the
boiler so that they are not immersed in water, allowing to get rid of wear issues and reducing signicantly
waing mes saving electricity. The best tools on the market as thermostat, pressure switch, safety valve and
pressure gauge, check for the correct funconing of the system automacally.
Before the use we recommend to read carefully all the informaon related to the model in your possession.
Data, descripons and illustraons in the following leaet are not binding. BIEFFE reserves the right to make
any necessary modicaons.
5. REGULAR MAINTENANCE: EMPTYING/CLEANING OF THE BOILER
ATTENTION: BEFORE DRAINING THE WATER FROM THE BOILER, UNPLUG THE MACHINE AND UNSCREW
BY HALF A TURN THE SACURITY TAP TO RELEASE THE REMAINING PRESSURE AND HEATH FROM THE
BOILER.
»Wait for the boiler to be cool and the pressure gauge to show “0”, open carefully the sacurity tap a
turn upside down the steam generator to let the water out. Do this operaon on a sink or another water
container.
»To carry out an extraordinary cleaning, pour into the boiler a glass of vinegar and water. Then shake
the steam generator and empty the boiler and rinse with only water. Do not use any an-limescale pro-
duct.
THIS OPERATION MUST BE DONE DEPENDING ON THE USE OF THE MACHINE, AT LEAST ONCE A MON-
TH. IF NOT, THE GUARANTEE WILL DECAY.
6. USABLE WATER
“Boiler volume” means: volume of usable water + steam chamber.
It is normal that the quanty of water inside the boiler is smaller than the boiler volume.
BOILER VOLUME = USABLE WATER VOLUME + STEAM CHAMBER
Boiler volume Usable water volume Steam chamber
2/2,4 Lt 2,4 Lt 0,5 Lt

7
STIR PLUS
"STIR PLUS"
1 Cable rod
2 Safety tap
3 General/iron switch
4 Boiler switch
5Thermostat knob
6 Steam ready light
7Steam buon
8Steam valve with regulaon

8
STIR PLUS
7. INSTALLATION AND ACTIVATION
ATTENTION: read and follow carefully all the safety instrucons previusly reported, pay aenon to
the instrucons about the electrical system to which the appliance is connected.
»Before starng, ensure that the boiler contains water. Before lling the boiler unplug the machine
from the socket.
Do not unscrew the security tap (2) before ensuring that the machine is not connected to the electric
outlet. If the boiler is hot and pressured unscrew the tap very slowly.
»Unscrew by half-a-turn the tap (2) to get rid of residual pressure and heat inside the boiler. When the
boiler is cool, unscrew carefully the tap and add tap-water using a funnel.
WATER MUST NOT BE DISTILLED AND/OR DEMINERALIZED. While lling the boiler, be careful not to let
water out from the inlet, at the end of the operaon close the tap not too ghtly. Some water drops
may come out from the iron together with the steam.
7.1 USE
»Insert the power cord to the socket.
»Acvate the general switch/electro iron (4) and boiler switch (5). To iron without steam is on ciente
acvate only the switch (4).
»Place the thermostat knob (5) in the electro-iron on the temperature desired.
»Temperature regulaon is approximate. Test the temperature on one part hidden of the garment to
be ironed. The regulaon for the electric iron steam is indicated by the symbol ".." or higher. With high
temperatures you risk to burn ssues or get the unwanted and eo shiny. These problem can be solved
using angloss teon insoles.
»Before you start ironing, wait for the steam ready ligth (7) be lit. During the ironing, the steam ready
ligth will turn on and o according to the pressure inside the boiler.
»To dispense steam press the red buon (8) on the electro-iron handle. The rst me direct the steam
jet away, towards a safe direcon, and press the red buon several mes to eliminate any condensaon.
»At the end of the ironing deacvate all switches. It is not necessary drain the boiler from the remai-
ning water.
»When the electric iron dispenses very lile steam, turn o all switches. Open with cauon the safety
cap to discharge the remaining pressure. Wait 5 minutes that the boiler cools down and ll it according to
instrucons.
8. OPTIONAL ACCESSORIES
Do not unscrew the tap while the boiler is pressured/in use.
AR8P - Insole ironclad
AR48 - Cap FP1 - Electro-iron 1,7 kg
K2 - Anti-drip bottle

9
STIR PLUS
MALFUNCTION POSSIBLE CAUSES SOLUTIONS
The iron switch does not light up
when pressed.
The switch is broken. Replace switch.
Power cord not properly
inserted. Check power cord.
Lack of power supply. Check power cord.
Aer some minutes, the iron is
sll cold.
Check that the thermostat is at
least on COTTON posion. Set the thermostat or replace it.
The temperature of the iron is
too high.
Thermostat is faulty or
temperature seng is too high. Set the thermostat or replace it.
Iron gives out water or wet
steam.
The thermostat knob is set to a
low temperature or thermostat
is faulty.
Set the thermostat or replace it.
The steam geng out from the
iron is too dry.
The thermostat knob is set to a
high temperature or thermostat
is faulty.
Set thermostat knob to a
lower temperature or replace
thermostat
When you press the red thumb
switch, you do not get any
steam.
Coil is burned. Replaice coil.
Switch is defecve. Replace switch.
Power cord is damaged. Replace power cord.
Aer having turned on the boiler
switch and waited 15 minutes
the steam ready indica-tor lamp
does not light up.
heang element has blown.
Check heang element, if
burned replace it. If not, check
pressurestat and thermostat’s
control over heang element.
Boiler is empty.
Pressurestat is faulty.
Light burned out.
While ironing, you start to get
lile steam. No water le inside the boiler.
Rell the boiler only aer
having carefully read the safety
instrucons.
9. TROUBLESHOOTING

10
STIR PLUS
10. ELECTRIC DIAGRAM STIR PLUS
EV WATER VALVE
I1 ELECTRO-IRON SWITCH
I2 BOILER SWITCH
PL BOILER SWITCH
PR PRESSURE SWITCH
RS ELECTRO-IRON RESISTANCE
RS2 BOILER HEATING ELEMENT
TR1 ELECTRO-IRON THERMOSTAT
TR2 THERMOSTATBOILER
SP STEAM READY LIGTH
RIF DESCRIPTION
ELECTRO-IRON BOILER

EN 03.2021
Biee S.r.l. - Via Costa Fagnano 3
61122 Pesaro (PU), Italy
www.bieeitalia.it
T [phone] | F [phone] | info@bieeitalia.it
Centri Assistenza per l'Italia:
hps://www.bieeitalia.it/vendita-e-assistenza/
Follow us:
