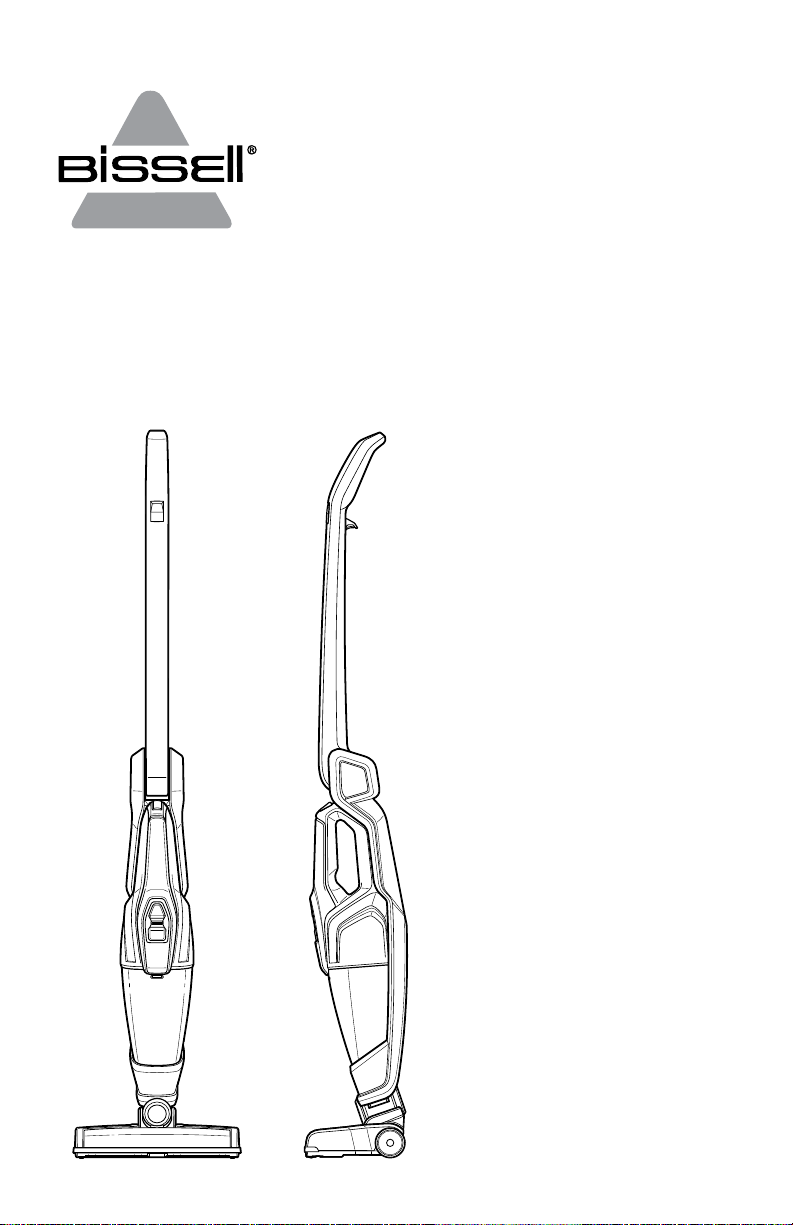

Bissell READYCLEAN 3192 Series User manual

READYCLEAN® CORDLESS XRT
2-IN-1 CORDLESS VACUUM
3192 SERIES

2BISSELL.com
IMPORTANT SAFETY INSTRUCTIONS
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR INJURY:
»Do not use outdoors or on wet surfaces.
»Do not allow to be used as a toy. Close attention is necessary when
used by or near children.
»Do not use for any purpose other than described in this user guide.
Use only manufacturer’s recommended attachments.
»Do not use with damaged cord or plug. If appliance is not working
as it should, has been dropped, damaged, left outdoors, or
dropped into water, have it repaired at an authorized service center.
»Do not put any object into opening.
»Do not use with any opening blocked.
»Do not unplug by pulling on cord. To unplug, grasp the plug, not
the cord.
»Do not handle charger, including charger plug and charger terminal
with wet hands.
»Do not charge the appliance outdoors.
»Use only the charger supplied by the manufacturer to recharge.
»Do not incinerate the appliance even if it is severely damaged.
The batteries can explode in a fire.
»Keep openings free of dust, lint, hair, and anything that may
reduce airflow.
»Keep hair, loose clothing, fingers, and all parts of body away from
openings and moving parts.
»Use extra care when cleaning stairs.
»Do not use to pick up flammable or combustible materials
(lighter fluid, gasoline, kerosene, etc.) or use in areas where they
may be present.
»Do not pick up toxic material (chlorine bleach, ammonia, drain
cleaner, etc.).
»Do not use vacuum cleaner in an enclosed space filled with vapors
given off by oil-based paint, paint thinner, some moth-proofing
substances, flammable dust, or other explosive or toxic vapors.
»Do not pick up hard or sharp objects such as glass, nails, screws,
coins, etc.
»Do not pick up anything that is burning or smoking, such as
cigarettes, matches or hot ashes.
»Do not use without dirt tank or filters in place.
»Use only on dry, indoor surfaces.
»Always turn OFF this appliance before connecting or disconnecting
the motorized nozzle.
»Do not pull or carry charger by the cord, use cord as a handle, close
a door on cord, or pull cord around sharp edges or corners. Do not
run appliance over cord.
»Prevent unintentional starting. Ensure the switch is in the OFF-
position before picking up or carrying the appliance. Carrying the
appliance with your finger on the switch or energizing appliance
that have the switch on invites accidents.
»Under abusive conditions, liquid may be ejected from the battery;
avoid contact. If contact accidentally occurs, flush with water.
If liquid contacts eyes, additionally seek medical help. Liquid
ejected from the battery may cause irritation or burns.
»Do not use appliance that is damaged or modified. Damaged or
modified batteries may exhibit unpredictable behavior resulting in
fire, explosion or risk of injury.
»Do not expose appliance to fire or excessive temperature. Exposure
to fire or temperature above 130°C/265°F may cause explosion.
»Follow all charging instructions and do not charge the appliance
outside of the temperature range specified in the instructions.
Charging improperly or at temperatures outside of the specified
range may damage the battery and increase the risk of fire.
»Have servicing performed by a qualified repair person using only
identical replacement parts. This will ensure that the safety of the
product is maintained.
»Do not modify or attempt to repair the appliance except as
indicated in the instructions for use and care.
»Keep the temperature range of between 40-104°F when charging
battery, storing appliance or during use.
»Use only with charger E-TEK, Model ZD12D170080US.
»Recharge only with the charger specified by the manufacturer.
A charger that is suitable for one type of battery pack may create a
risk of fire when used with another battery pack.
SAVE THESE INSTRUCTIONS
THIS MODEL IS FOR HOUSEHOLD USE ONLY.
COMMERCIAL USE OF THIS MACHINE VOIDS THE MANUFACTURER’S WARRANTY.
READ ALL INSTRUCTIONS BEFORE USING YOUR APPLIANCE.
Always connect to a polarized outlet (one slot is wider than the other). Unplug from outlet when not in use and before
conducting maintenance. When using an electrical appliance, basic precautions should be observed, including the following:
WARNING
This product contains Lithium-Ion rechargeable batteries. DO NOT mix Lithium-Ion
batteries with general household waste. According to Federal and State regulations,
removal and proper disposal of Lithium-Ion batteries is required. For specific
battery disposal instructions please contact Call2Recycle at 877-723-1297 or visit
www.call2recycle.org. For full instructions on battery removal for recycling visit
support.BISSELL.com.

BISSELL.com 3
NOTE: Standard accessories may vary by model. To identify what should be included with
your purchase, please refer to the “Carton Contents” list located on the carton top flap.
Safety Instructions...........2
Product View................4
Assembly ...................5
Operations ................5-6
Maintenance & Care .......7-9
Troubleshooting ............10
Warranty ....................11
Service ......................11
Product Registration........12
Consumer Care .............12
What’s in the Box?
Thanks for buying a BISSELL®
ReadyClean® Cordless XRT cordless vac!
We love to clean and we’re excited to share one of our innovative products
with you. We want your cordless vac to work like new for the years to come,
so this guide has tips on how to use, maintain and, if there’s a problem,
troubleshoot.
Your cordless vac needs a little assembly before getting to work, so flip to the
“Assembly” section and let’s get started!
Charging Adapter Crevice
Tool
Upholstery
Tool
Dusting Brush Multi-Surface
Brush Roll
3
www.BISSELL.com
What’s In The Box?
NOTE: Standard accessories may vary by model. To identify what should be included with
your purchase, please refer to the “Carton Contents” list located on the carton top flap.
Thanks for buying a BISSELL Adapt™ Ion XRT!
We love to clean and we’re excited to share one of our innovative
products with you. We want to make sure your vacuum works as well in
two years as it does today, so this guide has tips on using (pages 6-9),
maintaining (pages 10-13), and if there is a problem, troubleshooting
(page 14).
Your vacuum needs a little assembly before you can put it to work, so
flip to page 5 and let’s get started!
Safety Instructions... . . . .... . 2
Product View....... . ........4
Assembly ................... 5
Operations ................6-9
Maintenance & Care . ... . 10-13
Troubleshooting ............ 14
Warranty ................... 15
Service . . ................... 15
Product Registration........ 16
Consumer Care............. 16
Crevice
Tool
Charging
Adapter
Upholstery
Tool
Multi Surface
Brush Roll
Dusting
Brush

4BISSELL.com
Product View
1 Fingertip Controls
2 2-Way Folding Handle
Release Trigger
3 Hand Vacuum Release Button
4 Hand Vacuum Power Button
5 Dirt Tank Release
6 Charging Light Indicator
7 Detachable Hand Vacuum
8 Dirt Tank
9 Washable Filter Assembly
10 Swivel Head
11 Crevice Tool
12 Upholstery Tool
13 Dusting Brush
14 Charging Adapter Plug
LED Light Display Status
Battery Status Light Status
IN USE
In Use Solid green light
Low Power Blinking red light (.5 seconds)
No Power Solid red light (3 seconds)
Brush Stall Solid red light, then machine shuts off
CHARGING
Charging Blinking red light (1 second)
Fully Charged Green light (on 10 minutes, then blinks every 1 minute)
Charger, Battery,
or Motor Error Red and green blinking light, contact Consumer Care
3
2
1
7
4
56
8
10
9
11
12
14
13

BISSELL.com 5
Assembling and Charging Your Vacuum
Insert charging adapter
plug into the charging
port on the back of the
vacuum.
Insert foot into body
of the vacuum until
you hear a “click”.
click
Using the Control Buttons
Brush Roll ON/OFF:
Select the brush button
to turn the motorized
brush roll off and on.
Power ON/OFF:
To start cleaning select
the power button to turn
the vacuum ON.
Brush Speed HI/LO:
Select the +/- button to
adjust the brush speed.
WARNING
Do not plug in your ReadyClean® until you are familiar with all instructions and operating procedures.
Plug the adapter into
the wall outlet.
Charge completely for
4 hours prior to first use.
4h
3
4
21

6BISSELL.com
Using the 2-Way Folding Handle
Pull the 2-Way Folding
Handle Release Trigger
under the handle.
Fold the handle forward
to easily clean underneath
low places.
Fold the handle back for
easy storage.
Using the Hand Vacuum
Press the power button
to begin cleaning.
Press the
button on
top of the
hand vacuum
handle and
lightly pull
out to remove
it from the
machine.
The upholstery tool has a
felt strip that attracts pet hair
while vacuuming upholstery.
The dusting brush slides
onto the upholstery tool for
dusting on hard surfaces.
Insert the desired tool firmly into the hand vacuum
nozzle.
The crevice tool
reaches narrow spaces.
1 2 3
1 2
3

BISSELL.com 7
Emptying the Dirt Tank
WARNING
To reduce the risk of fire, electric shock or injury, turn power OFF and disconnect plug from electrical
outlet before performing maintenance or troubleshooting.
Hold the hand vacuum vertically and
press release button on the front to
release the dirt tank.
Make sure the vacuum is OFF. Remove
the hand vacuum by pressing the release
button on top of its handle.
Grasp filter tabs and pull vertically to
remove filter assembly and empty dirt
into waste container.
Replace filter assembly back into the dirt
tank and attach dirt tank to hand vacuum
until it snaps securely into place.
3 4
1 2

8BISSELL.com
WARNING
Do not operate your ReadyClean® Cordless XRT with damp or wet filters or without filters in place.
Cleaning the Filters
Turn power OFF and remove the dirt
tank following the “Emptying the Dirt
Tank” steps on page 7.
Grasp filter tabs and lift up to remove
the washable filter assembly from the
dirt tank. Grip the filter assembly and
turn counter-clockwise and lift down to
remove filter from filter screen.
Tap firmly against the inside of a waste
container, removing any visible dirt.
Replace filter back into the filter screen
then turn clockwise to lock into place.
Attach filter assembly back into the dirt
tank and attach to hand vacuum until it
snaps securely in place.
NOTE: you may rinse the filter and screen in warm water to clean. The filter and screen
need to be 100% dry before reuse. The key to maximum performance is having a clean
filter. Cleaning the filter after each use will help your vacuum operate at peak efficiency.
3 4
1 2

BISSELL.com 9
5
Maintaining the Brush Roll
1 2
Turn the foot over and locate the brush
roll cover tab. Use a coin to remove the
brush roll, turning counter-clockwise to
unlock.
Make sure the vacuum is OFF. Press the
vacuum foot release button to disconnect
it from the vacuum.
3 4
Grasp the brush roll and remove from the
foot window area. Clean off hair or debris
from brush. Place the cleaned brush roll back
into the foot of the machine and use coin to
turn lock clockwise to lock into place.
Slide the tab down to unlock and lift the
corner cover piece.
6
BRUSH ROLL RESET:
Turn machine OFF and remove debris
from brush roll and brush roll endcap
area, following the steps above. Replace
brush roll and turn machine ON to reset.
If the brush roll stops spinning due to
debris, the LED light will turn solid red.
WARNING
To reduce the risk of fire, electric shock or injury, turn power OFF and disconnect plug from
electrical outlet before performing maintenance or troubleshooting
NOTE: Make sure the brush roll cover tab is locked back into place to prevent breaking
or faulty brush roll.

10 BISSELL.com
Troubleshooting
Problem Possible Causes Remedies
Vacuum
won’t turn
ON
Battery isn’t fully charged. Charge battery. Follow charging
battery instructions on page 3.
Wrong charger is being used. Be sure to use only the charger
supplied with your product. The label
on the detachable hand vacuum will
list which charger can be used.
Brush roll
not turning
Brush roll is jammed. Remove obstruction.
Follow instructions on page 9.
Brush roll needs to be reset. Follow instructions on page 9.
Broken brush roll belt. Visit www.BISSELL.com or call
1-800-237-7691 to order replacement
parts.
Vacuum
cleaner
has low
suction
Dirt tank is full. Empty dirt tank.
Dirt tank isn’t installed properly. Position dirt tank correctly and
snap firmly into place.
Foot is loose. Make sure foot is fully inserted into
body of machine.
Filters need cleaning. Follow filter instructions on page 8.
Filters need replacing. Visit www.BISSELL.com or call
1-800-237-7691 to order replacement
filters.
Clog or obstruction in foot area. Detach foot from main body and
examine and remove clog from brush
chamber.
Visible dirt
escaping
from cleaner
Dirt tank is full of debris. Empty dirt tank.
Filter assembly is missing or
installed incorrectly. Check filter for correct installation.
Dirt tank installed incorrectly. Position dirt tank correctly and
snap firmly into place.
Vacuum
won’t charge
Wrong charger is being used. Use only the charger that comes with
the machine.
Hand vacuum may not be
installed in place properly. Remove the hand vacuum and install it properly.
Vacuum
won’t turn on
and LED light
is solid RED
Brush roll stalled by debris. Clear the brush roll and brush roll
endcap area. Follow instructions on
page 9.
WARNING
To reduce the risk of fire, electric shock or injury, turn power OFF and disconnect plug from electrical
outlet before performing maintenance or troubleshooting.

BISSELL.com 11
This warranty gives you specific legal rights,
and you may also have other rights which may
vary from state to state. If you need additional
instruction regarding this warranty or have
questions regarding what it may cover, please
contact BISSELL® Consumer Care by email or
telephone as described below.
It may be necessary to obtain some of your
personal information, such as a mailing
address, to fulfill terms of this warranty. Any
personal data will be handled pursuant to
BISSELL’s Privacy Policy, which can be found
online at www.BISSELL.com/privacy-policy.
Limited One-Year Warranty
Subject to the *Exceptions and Exclusions
from the Terms of the Limited Warranty, upon
receipt of the product BISSELL will repair or
replace (with new, refurbished, lightly used, or
remanufactured components or products), at
BISSELL’s option, free of charge from the date
of purchase by the original purchaser, for one
year, any defective or malfunctioning part.
See information below on "If your BISSELL
product should require service”.
This warranty applies to product used for
personal, and not commercial or rental,
service. This warranty does not apply to
fans or routine maintenance components
such as filters, belts or brushes. Damage or
malfunction caused by negligence, abuse,
neglect, unauthorized repair, or any other use
not in accordance with the user guide is not
covered. This warranty will only be valid if the
product is used in the same country in which
it was sold.
BISSELL is not liable for incidental or
consequential damages of any nature
associated with the use of this product.
BISSELL’s liability will not exceed the purchase
price of the product.
Some states do not allow the exclusion or
limitation of incidental or consequential
damages, so the above limitation or
exclusion may not apply to you.
*Exceptions and Exclusions from the
Terms of the Limited Warranty
This warranty is exclusive and in lieu of
any other warranties, either oral or written.
Any implied warranties, which may arise
by operation of law, including the implied
warranties of merchantability and fitness for
a particular purpose, are limited to the one-
year duration from the date of purchase as
described above.
Some states do not allow limitations on how
long an implied warranty lasts, so the above
limitation may not apply to you.
Warranty
NOTE: Please keep your original sales receipt. It provides proof of date of purchase in the
event of a warranty claim.
Service
Please do not return this product to the store. Other maintenance or service not included in
the manual should be performed by an authorized service representative.
If your BISSELL product should require service: Visit support.BISSELL.com or call
1-800-237-7691 for warranty information, BISSELL Authorized Service Centers, and
replacement parts.

Love 5your BISSELL® product?
Don’t keep it a secret. Let us, and millions of others, know what
you think! Leave your star-rating on BISSELL.com.
We’re Waggin’ Our Tails!
BISSELL® proudly supports BISSELL Pet
Foundation® and its mission to help save
homeless pets. When you buy a BISSELL
product, you help save pets, too. We’re proud
to design products that help make pet messes,
odors and pet homelessness disappear.
Visit BISSELLsavespets.com to learn more.
Registering is quick, easy and offers you benefits over the lifetime of your product.
BISSELL® Rewards Points
Automatically earn points for discounts and
free shipping on future purchases.
Faster Service
Supplying your information now saves you
time should you need to contact us with
questions regarding your product.
Product Support Reminders and Alerts
We’ll contact you with any important
product maintenance reminders and alerts.
Special Promotions
Optional: Register your email to receive
notice of offers, contests, cleaning tips,
and more!
Visit BISSELL.com/registration!
Parts & Supplies
Register Your Product
For Parts and Supplies, go to BISSELL.com and enter your model number in the
search field.
©2021 BISSELL Inc. All rights reserved.
Part Number 1625616 02/21 RevC
