BLUM TANDEM plus BLUMOTION 563F User manual

TANDEM plus BLUMOTION
Subject to technical modifications without notice. © 2015 Blum Inc. Dimensions in millimeters (inch equivalents as noted)
1

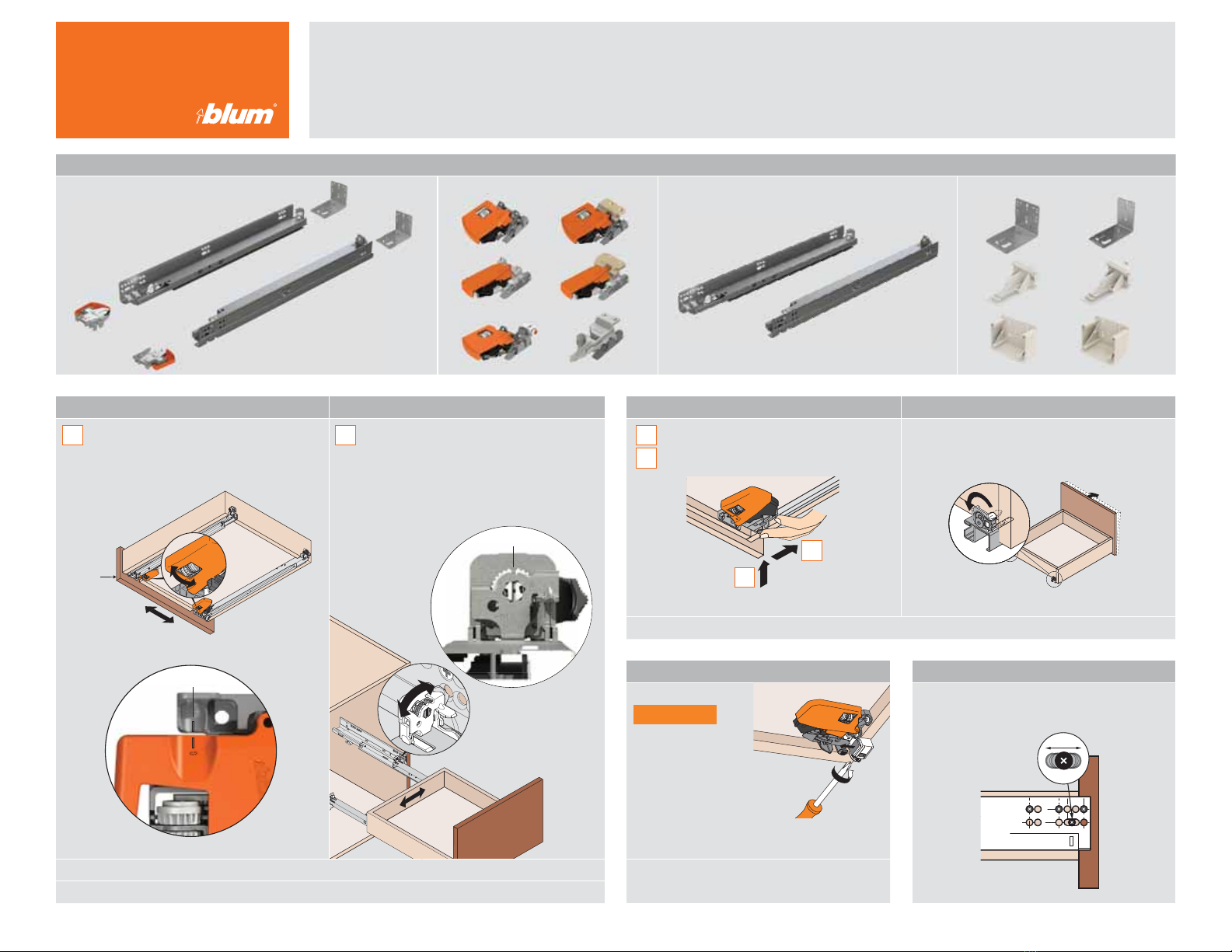

563F installation instructions
Side-to-side adjustment Rear side-to-side adjustment
1Rotate side-to-side adjustment left or
right equally on both locking devices. Drawer
front moves in the same direction as rotation.
2After front side-to-side adjustment is
made with the locking devices, rotate the
rear side-to-side adjustment left or right
to re-align the back of the drawer box with
the front. Drawer back moves in the same
direction as rotation.
Maximum 1.5 (1/16") to left or right in both front and rear (tool-free)
NOTE: Side-to-side adjustment not available on T51.x8xx locking devices
Height adjustment Tilt adjustment
1Press up on adjustment tab
2Push towards back of drawer
Maximum 3(1/8") rise of drawer front (tool-free)
Rotate the tilt adjustment lever on the rear of
each runner to lift the back of the drawer and
tilt the top of the drawer front forward
Maximum 5(3/16") rise of drawer back (tool-free)
NOTE: Height and tilt adjustments available with all combinations of locking devices and runners
Full extension concealed runners
Basic components Locking devices Runners Rear attachment options
Depth adjustment on runner
TANDEM 563 runners feature elongated
holes that allow ±4.5 (3/16") depth adjustment
Depth adjustable locking device
Locking device
with side-to-side,
height and
depth adjustment
Turning the adjustment screw allows
for up to a +2.5 (3/32") out adjustment
NOTE: For T51.1901.PS setback in inset
applications, see page 5
g
R
L
R
L
Drawer
front
L
R
L R
T51.1901.PS
0
0
1
2

TANDEM plus BLUMOTION
Subject to technical modifications without notice. © 2015 Blum Inc. Dimensions in millimeters (inch equivalents as noted)
2

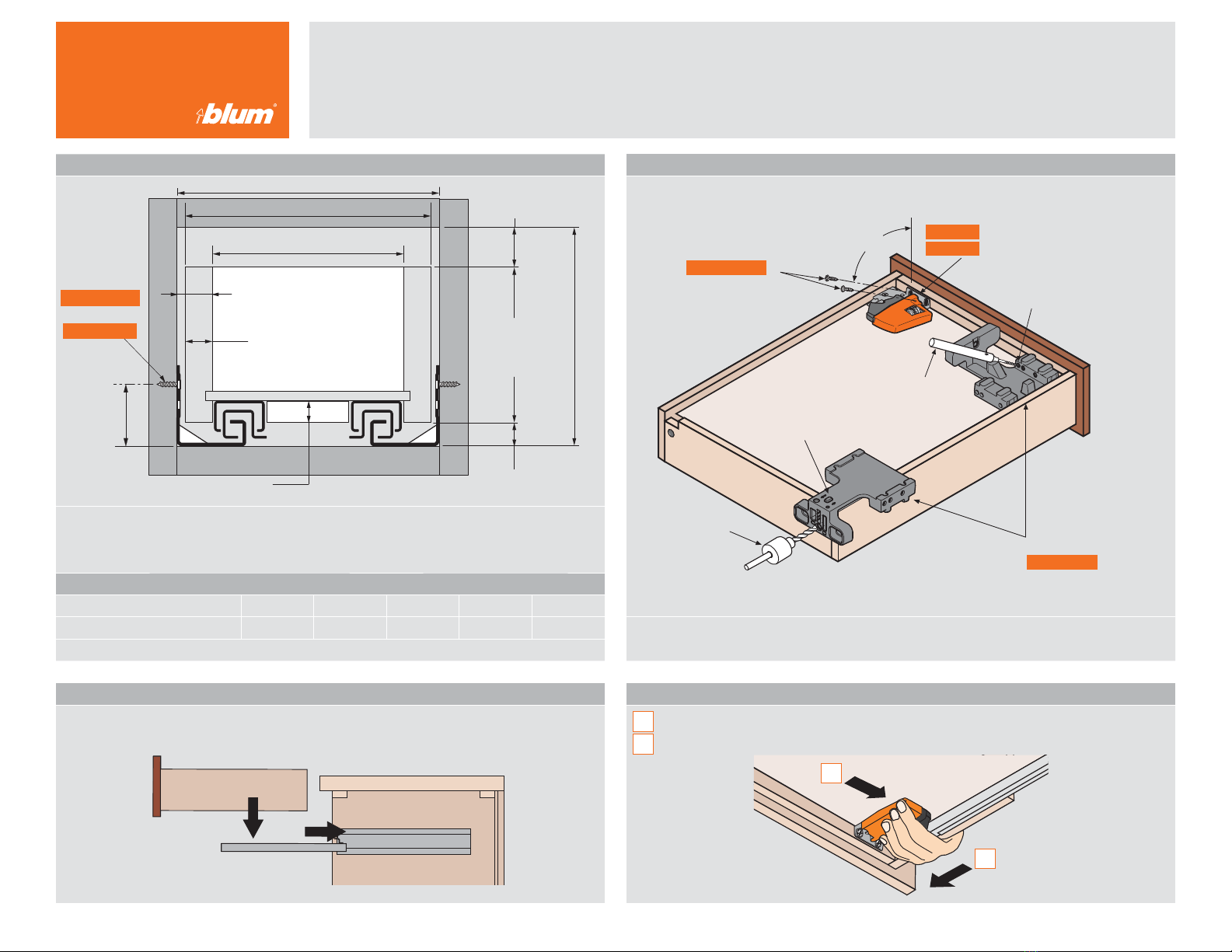

Drawer specifications
Preparing for hardware installation
NOTE: Use of the T65.1600.01 TANDEM template is essential for accurate location and angle of
pre-bored locking device holes and accurate boring for rear hook holes
6mm bit with
stop collar
2.5 mm bit with
extension chuck
Pre-boring holes for
locking devices
Pre-boring holes
for rear hooks
75°
Installation screw
606N or 606P
TANDEM template
T65.1600.01
T51.1801
T51.1901
Locking device
with side-to-side adjustment or
without side-to-side adjustment
Drawer box specifications
Front view
NOTE: Drawer side material thickness may vary. Accurate measurement of drawer side
material thickness should be used when calculating outside drawer width using the table
below. Inside drawer width must equal opening width minus 49 (1-15/16") for TANDEM
to align and function optimally.
Calculating outside drawer width
For drawer side thickness 19 (3/4") 18 (23/32") 17 (21/32") 16 (5/8") 15 (19/32")
Deduct from opening width 11 (7/16") 13 (1/2") 15 (19/32") 17 (21/32") 19 (3/4")
Example: For 21" opening width and a 3/4" thick drawer, 21" minus 7/16" = 20-9/16" drawer width
drawer side thickness
maximum 19 (3/4")
13 (1/2")
bottom recess
14 (9/16")
bottom clearance
37
(1-15/32")
maximum
drawer height =
opening minus
20 (25/32")
opening width
opening height
opening width minus 49
24.5 (31/32")
outside drawer width
6(1/4")
minimum top
clearance
606N or 606P
Screws
662.1150.HG
or
Drawer insertion
Extend the concealed runners fully. Place the drawer on the runners and close.
The locking devices automatically engage with the runners. Make adjustments if necessary.
Drawer removal
1Squeeze orange handles on locking devices
2Pull drawer straight out and up
1
2

TANDEM plus BLUMOTION
Subject to technical modifications without notice. © 2015 Blum Inc. Dimensions in millimeters (inch equivalents as noted)
3

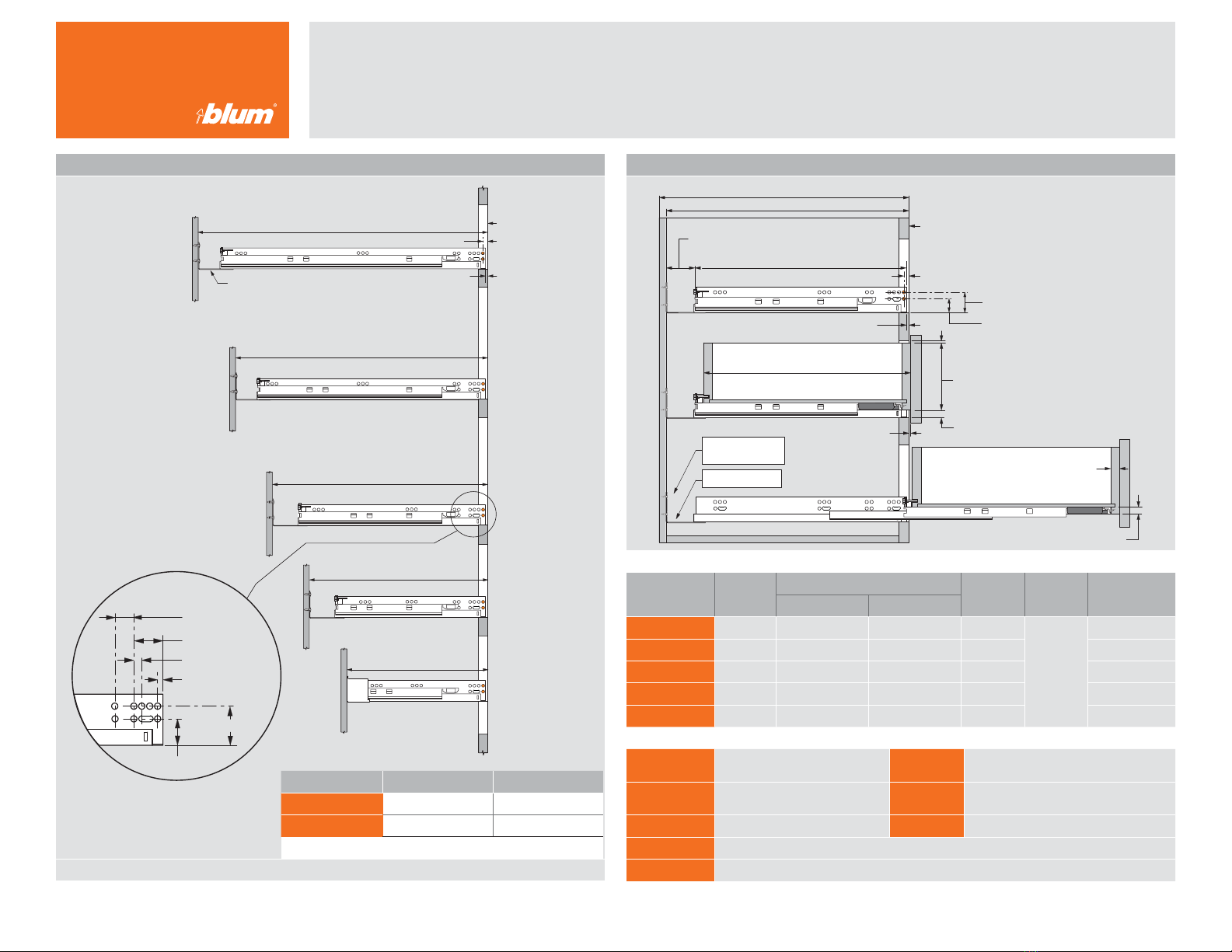

Runner mounting specifications
Side view
NOTE: Orange dots indicate screw locations required to meet specified load capacities
Cabinet and drawer specifications
Side view
563F3050B
563F3810B
563F5330B
533 (21") drawer
mounting position 10 (13/32")
setback 3(1/8")
rear bracket
cabinet face
inside cabinet depth range
557 to 599 (21-15/16" to 23-19/32")
328 to 370 (12-29/32" to 14-9/16")
404 to 446 (15-29/32" to 17-9/16")
563F2290B10
*see below
563F4570B
457 (18") drawer
480 to 522 (18-29/32" to 20-9/16")
Detail of front holes
7(9/32")
32 (1-1/4")
9(11/32") typical
37 (1-15/32")
25 (31/32")
34 (1-11/32")
305 (12")
cabinet
381 (15")
cabinet
457 (18")
cabinet
533 (21")
cabinet
610 (24")
cabinet
381 (15") drawer
305 (12") drawer
229 (9") drawer
TANDEM plus
BLUMOTION
Cabinet
depth
Inside cabinet depth Drawer
length
Maximum
drawer
thickness
Runner
length
Maximum Minimum
563F5330B 610 (24") 599 (23-19/32") 557 (21-15/16") 533 (21")
19 (3/4")
548 (21-9/16")
563F4570B 533 (21") 522 (20-9/16") 480 (18-29/32") 457 (18") 471 (18-17/32")
563F3810B 457 (18") 446 (17-9/16") 404 (15-29/32") 381 (15") 395 (15-9/16")
563F3050B 381 (15") 370 (14-9/16") 328 (12-29/32") 305 (12") 319 (12-9/16")
563F2290B10 305 (12") 299 (11-25/32") 266 (10-15/32") 229 (9") 259 (10-3/16")
*Bracket Maximum depth Minimum depth
295.3700.21 282 (11-3/32") 266 (10-15/32")
295.3700.22 299 (11-25/32") 283 (11-5/32")
NOTE: *These brackets are for 563F2290B10 only
T51.1901R Locking device with side-to-side
adjustment (right)
295.3750.01
Rear mounting bracket, non-handed
T51.1901L Locking device with side-to-side
adjustment (left) 295.3700.21 563F2290B10 rear bracket, non-handed
T51.1801R Locking device (right) 295.3700.22 563F2290B10 rear bracket, non-handed
T51.1801L Locking device (left)
606N or 606P #6 Wood screw
(for mounting runner to cabinet side, rear brackets and locking devices)
Face frame application
bottom clearance 14 (9/16")
minimum top clearance 6 (1/4")
setback 3 (1/8")
bracket range
6 to 48
(1/4" to 1-7/8")
front gap 1.5 (1/16")
25 (31/32")
37 (1-15/32")
Target Drawer
Length
drawer thickness
bottom recess 13 (1/2")
maximum drawer height =
opening minus
20 (25/32")
rear mount bracket
295.3750.01
mounting screws
606N or 606P
(#6 x 5/8" wood screw)
mounting position 10 (13/32")
cabinet depth
cabinet face
inside cabinet depth
runner length
drawer length

TANDEM plus BLUMOTION
Subject to technical modifications without notice. © 2015 Blum Inc. Dimensions in millimeters (inch equivalents as noted)
4
Runner mounting specifications
Side view
NOTE: Orange dots indicate screw locations required to meet specified load capacities
Cabinet and drawer specifications
Side view
TANDEM plus
BLUMOTION
Cabinet
depth
Minimum inside
cabinet depth
Drawer
length
Maximum
drawer
thickness
Runner
length
563F5330B 610 (24") 557 (21-15/16") 533 (21")
19 (3/4")
548 (21-9/16")
563F4570B 533 (21") 480 (18-29/32") 457 (18") 471 (18-17/32")
563F3810B 457 (18") 404 (15-29/32") 381 (15") 395 (15-9/16")
563F3050B 381 (15") 328 (12-29/32") 305 (12") 319 (12-9/16")
563F2290B10 305 (12") 266 (10-15/32") 229 (9") 259 (10-3/16")
610 (24")
cabinet
533 (21")
cabinet
457 (18")
cabinet
381 (15")
cabinet
480 (18-29/32") minimum
mounting position 37 (1-15/32")
cabinet face
setback 3 (1/8")
557 (21-15/16") minimum
18 (23/32") typical
224 (8-13/16")256 (10-3/32")
224 (8-13/16")192 (7-9/16")
404 (15-29/32") minimum
328 (12-29/32") minimum
128 (5-1/32")192 (7-9/16")
128 (5-1/32")96 (3-25/32")
563F3050B
563F4570B
563F3810B
563F5330B
533 (21") drawer
(12")
cabinet 563F2290B10
266 (10-15/32") minimum
305
Detail of front holes
7(9/32")
32 (1-1/4")
9(11/32") typical
37 (1-15/32")
25 (31/32")
34 (1-11/32")
457 (18") drawer
381 (15") drawer
305 (12") drawer
229 (9") drawer
96 (3-25/32") 96 (3-25/32")
T51.1901R Locking device with side-to-side adjustment (right)
T51.1901L Locking device with side-to-side adjustment (left)
T51.1801R Locking device (right)
T51.1801L Locking device (left)
606N or 606P #6 Wood screw
(for mounting runner to cabinet side, rear brackets and locking devices)
662.1150.HG #6 System screw
(for mounting runner to cabinet side)
inside cabinet depth
bottom clearance 14 (9/16")
minimum top clearance 6 (1/4")
setback 3 (1/8")
front gap 1.5 (1/16")
mounting position 37 (1-15/32")
drawer thickness
maximum drawer height =
opening minus
20(25/32")
25 (31/32")
37 (1-15/32")
cabinet depth
runner length
drawer length
bottom recess 13 (1/2")
cabinet face
Panel application

TANDEM plus BLUMOTION
Subject to technical modifications without notice. © 2015 Blum Inc. Dimensions in millimeters (inch equivalents as noted)
5
Inset application
Face frame application – partial blockout
Side view
inside cabinet depth range
minimum =runner length +setback +6(1/4")
maximum with bracket =
runner length +setback +48 (1-7/8")
Face frame application – complete blockout
Side view
Runner setback (see table)
Trial recommended
Blocking behind frame
inside cabinet depth
minimum =runner length +setback +6(1/4")
Setback information
Side view
NOTE: For mounting hole position add 7(9/32") to
runner setback
Runner setback when using depth adjustable locking device (T51.1901.PS)
563/569 F/A Runner setback ▬ Setbacks in this table recess the
face of the drawer front inside of
the cabinet 1 (1/32")
▬ The depth adjustment can then
be used to move the drawer
front out to its desired position,
2.5 (3/32") out adjustment only
Sub-front
thickness
13 (1/2") 17 (21/32") 20 (25/32") 23 (29/32")
16 (5/8") 20 (25/32") 23 (29/32") 26 (1-1/32")
19 (3/4") 23 (29/32") 26 (1-1/32") 29 (1-5/32")
16 (5/8") 19 (3/4") 22 (7/8")
Drawer front thickness
Calculating
runner setback 563/569 F/A Sub-front thickness +drawer front thickness minus 12 (15/32")
Runner setback when using all other locking devices
563/569 F/A Runner setback ▬ Setbacks in this table set the
face of the drawer front flush
with the face of the cabinet
▬ If a depth adjustable locking
device is needed, please see
the locking device and table
above
Sub-front
thickness
13 (1/2") 14.5 (9/16") 17.5 (11/16") 20.5 (13/16")
16 (5/8") 17.5 (11/16") 20.5 (13/16") 23.5 (15/16")
19 (3/4") 20.5 (13/16") 23.5 (15/16") 26.5 (1-1/32")
16 (5/8") 19 (3/4") 22 (7/8")
Drawer front thickness
Calculating
runner setback 563/569 F/A Sub-front thickness +drawer front thickness minus 14.5 (9/16")
g
b front
NOTE: Runner cannot be
mounted below opening
Runner setback
Mounting hole position
Drawer front
Drawer sub-front
Panel application
Side view
Runner setback (see table)
Trial recommended
inside cabinet depth
minimum =runner length +setback +6(1/4")
Runner setback (see table)
Trial recommended
Blocking behind frame

TANDEM plus BLUMOTION
Subject to technical modifications without notice. © 2015 Blum Inc. Dimensions in millimeters (inch equivalents as noted)
6

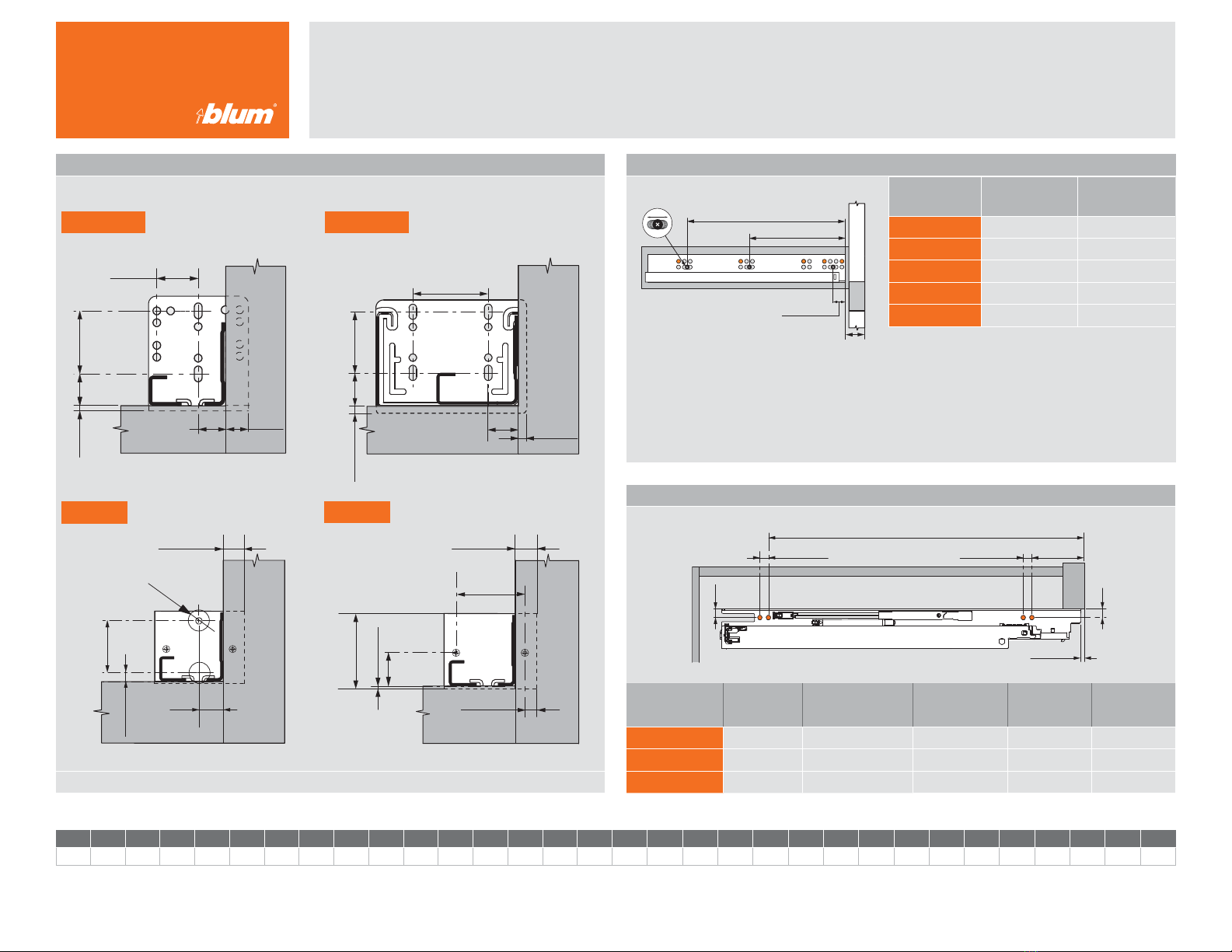

Bottom mounting specifications
Top view
Millimeter to inch conversion chart
1 1.5 2 3 4 5 5.5 6 7 8 9 9.5 10 11 12 13 13.5 14 15 16 17 17.5 18 19 20 20.5 21 22 23 24 24.5 25.4
1/32 1/16 3/32 1/85/32 3/16 7/32 1/49/32 5/16 11/32 3/813/32 7/16 15/32 1/217/32 9 /16 19/32
5/821/32 11/16 23/32 3/425/32 13/16 27/32 7/829/32 15/16 31/32 1
INST-TDM563F 05.15
3 (1/8")
X
67 (2-5/8")
9 (11/32")
Y
Z
9 (11/32")
TANDEM plus
BLUMOTION
Drawer
length
Minimum inside
cabinet depth XYZ
563F5330B 533 (21") 557 (21-15/16") 448 (17-5/8") 15.5 (5/8") 22.5 (7/8")
563F4570B 457 (18") 480 (18-29/32") 378 (14-7/8") 15.5 (5/8") 22.5 (7/8")
563F3810B 381 (15") 404 (15-29/32") 319 (12-9/16") 15.5 (5/8") 22.5 (7/8")
Attachment specifications
Depth adjustment specifications
Side view
Mount each runner using at least two of the elongated holes. Install the drawer to check the
position of the drawer front.
Remove the drawer, loosen screws and make adjustments if necessary, ±4.5 (3/16").
Tighten the screws, verify the drawer front position and finish mounting the runners using the
screw locations indicated by the orange dots.
TANDEM plus
BLUMOTION AB
563F5330B 244.5 (9-5/8") 500.5 (19-23/32")
563F4570B 244.5 (9-5/8") 436.5 (17-3/16")
563F3810B 148.5 (5-27/32") 340.5 (13-13/32")
563F3050B 148.5 (5-27/32") 244.5 (9-5/8")
563F2290B10 116.5 (4-19/32") 212.5 (8-3/8")
Rear attachment options for face frame applications
Front view
NOTE: Use at least three 606N or 606P installation screws for 295.3750.01 or 295.3700.2x
12
face frame rail
face frame stile
16 32
14 (9/16")
(1-1/4")
(5/8")
(3/32")
2
21
(13/16")
(15/32")
17.5 32
(1-1/4")
(11/16")
16 (5/8")
face frame rail
face frame stile
5(3/16")
4(5/32")
39.5 (1-9/16")
face frame stile
face frame rail
16
(5/8")
32
(1-1/4")
Ø8
3.2 (1/8")
face frame stile
face frame rail
9(11/32")
37
(1-15/32")
6.5 (1/4")
2(3/32")
19
(3/4")
40 (1-9/16")
9(11/32")
295.6410 Plug-in socket, non-handed
295.3700.2x For 563F2290B10, non-handed
295.3750.01 Rear mounting bracket,
non-handed
295.6400 Screw-on socket, non-handed
A
B
20.5 (13/16")
setback
